BRUGSANVISNING VTC-TNB3RFE Vitek
TRANSCENDENT VITEK


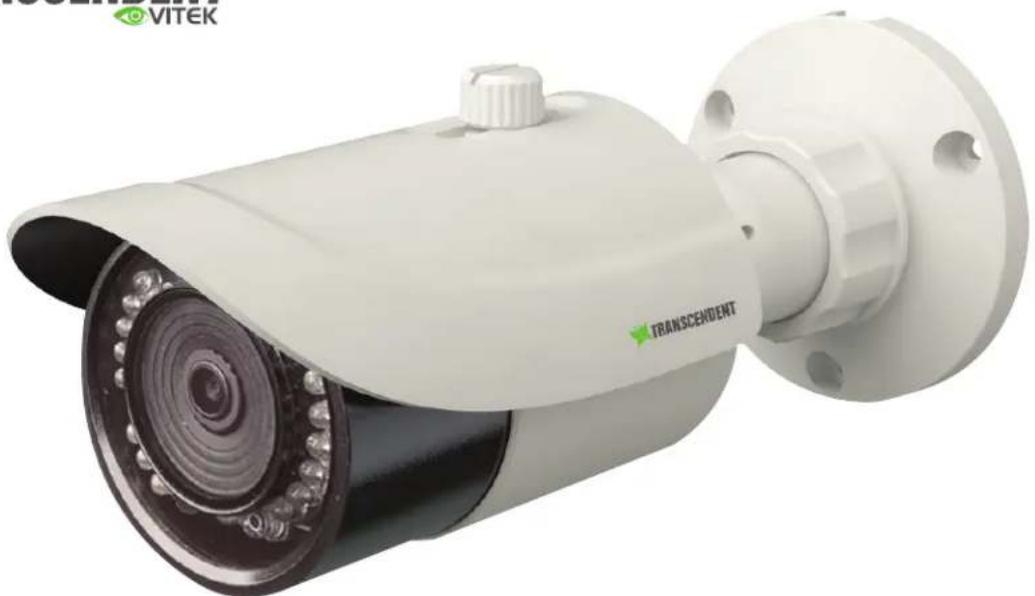

Exterior view of a white VITEK transparent security camera with black lens and hexagonal buttons (no text or symbols on body)
FEATURES:
• 1/3" 3.0 Megapixel CMOS Image Sensor
- Up to 30fps live view @ 3 MegaPixel (2048x1536)
• 2.8mm or 3.6mm Fixed Iris Lens Options
• 36 Infrared LED's with 120' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
- On Board Motion Detection, Privacy Masking, and ROI
• H.264 & MJPEG Compression
- Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP66 Weather Resistance
- Optional Junction Box Mount Available (VT-TJB01)
• 12VDC & PoE (Power over Ethernet) Operation
Transcendent Series High Definition 3 Megapixel IP Network Cameras offer unprecedented performance and value.
These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.
Use with VITEK Transcendent Series Real Time Network Video Recorders


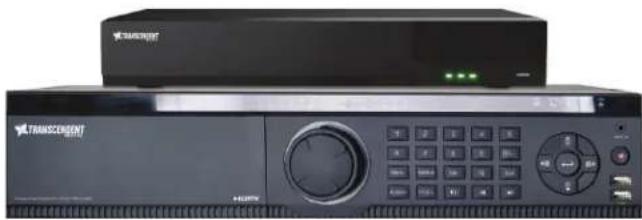

Exterior view of a black rectangular electronic device with control panel and indicator lights (no visible text or symbols)Transcendent Series 4, 8, 32, and 64 Channel 8 MegaPixel H.265 Real Time Network Video Recorders with 4K HDMI Output.
Download on the App Store
ANDROID APP ON Google play
NVIF
Detailed Specifications
| Image Sensor | 1/3" 3.0 Megapixel CMOS |
| Image Size | 3 MegaPixel 2048 x 1536 |
| Resolution | 3MP (2048x1536), 1080P (1920x1080), 720P (1280x720), D1, CIF, 480x240 |
| Min. Illumination | O Lux (IR LED ON) |
| Lens | 2.8mm or 3.6mm Fixed Iris Lens Options |
| Day/Night | True Day/Night by ICR |
| IR LEDs | 36 |
| IR Distance | 120' |
| Video Compression | H.264 / MJPEG |
| Multi-Stream | 1~30fps: 3 MP, 1080P, 720P, D1, CIF, 480x240 |
| WDR | Digital WDR |
| DNR | 3D-DNR |
| Quality | VBR (Five Levels of Adjustment) / CBR (Adjustable) |
| Image Setting | Saturation, Brightness, Contrast, WDR, Noise reduction |
| Smart Alarm | Motion Alarm |
| ROI | Max 3 detailed areas can be viewed |
| Network | RJ45 |
| Remote Viewing | CMS / Web Browser / Mobile (iOS/Android) |
| Supported Browsers | Microsoft Internet Explorer |
| Connection Protocol | ONVIF |
| Resistance | IP66 Weather Resistance |
| Power Input | 12VDC / PoE |
| Power Consumption (12VDC) | 210mA (IR Off) / 500mA (IR On) |
| Power Consumption (PoE) | 4W (IR's off) / 7.8W (IR's on) |
| Working Environment | -4~122 / 10%~90% Humidity |
| Weight | 21.87 oz. / 1.37 lbs. / 620g |
| Dimensions | 3.43 x 8.62" (87mm x 219mm) Dia x L |
Optional Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras
