BRUGSANVISNING VT-TR1M Vitek

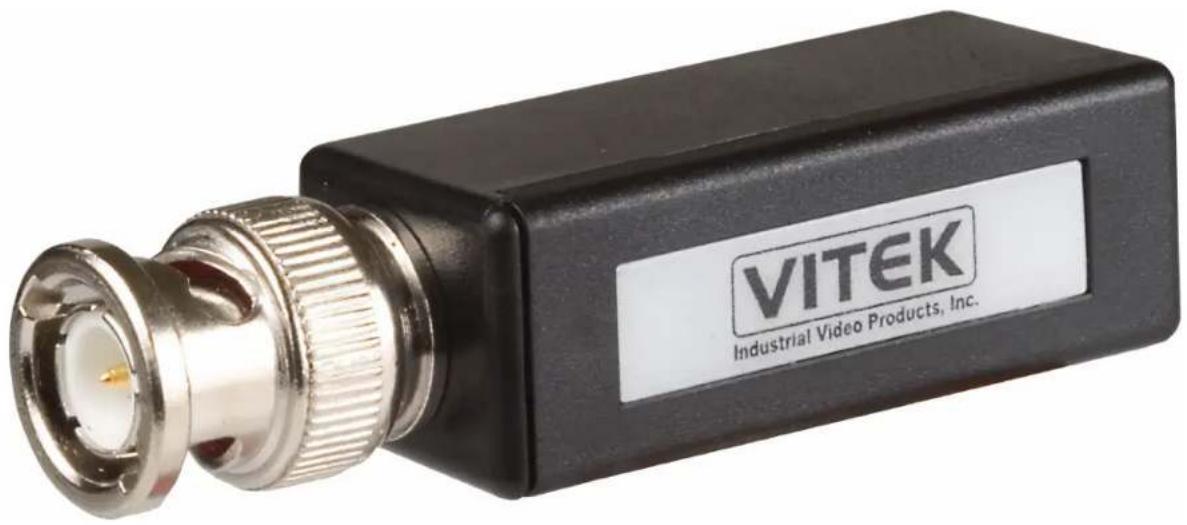

Combining the ultimate in Affordability and ease of installation Vitek is proud to announce the most recent addition to its extensive product line, the VT-TR1M Passive UTP Transceiver. The VT-TR1M is capable of transmitting up to 2000' in of B/W video or 1300' in Color across 24AWG CAT5 cable. The no power requirement of passive transmission, the ease of thin, light weight CAT5, and the easy to install terminal screws make installation a breeze.
FEATURES
- Up to 2000' B/W or 1300' Color video signal transmission
• Easy to install screw terminals - Reduces exposure to ground loops and electrical interference
• Uses CAT5 cable for ease of installation
• Passive - No External Power Required!
| Detailed Specifications | |
| BNC Video Input | 1 |
| Video Input | 1V p-p, 75 Ohms |
| UTP Output | 1 |
| Transmission Distance | 2000' in of B/W / 1300' in Color |
| Cable Requirement | CAT5 Twisted Pair (24AWG) |
| Dimensions | 2.4" x 0.75" x 0.6" (61mm x 19mm x 15.3mm) |
