BRUGSANVISNING VT-IR1-12 Vitek
VITEK
PERFORMANCE YOU NEED
QUALITY YOU TRUST
VT-IR1/24

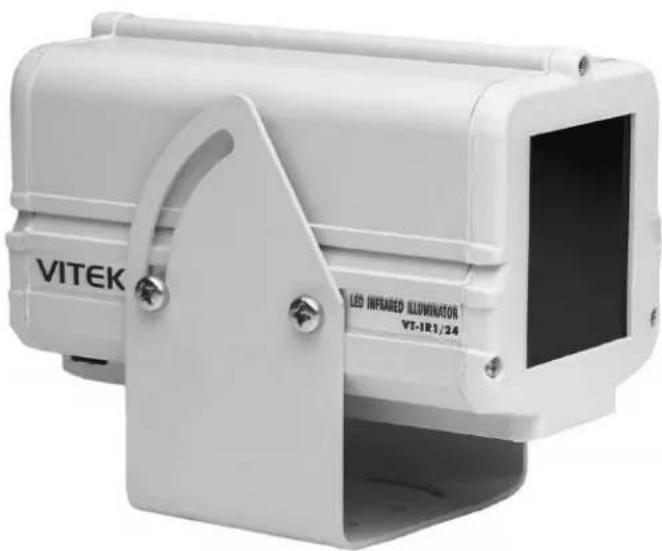

L.E.D. INFRARED ILLUMINATOR
RANGE BEYOND 45 FEET
56° BEAM SPREAD
NEAR INVISIBLE 840nm WAVELENGTH
USES 48 LED LIGHT SOURCE FOR EXTENDED LIFE(LED LIFE LASTS APPROXIMATELY 6000 HRS)
PHOTOCELL AUTOMATICALLY DETECTS DARKNESS TO PRESERVE ENERGY
24VAC POWER INPUT
12VDC VERSION ALSO AVAILABLE
The VT-IR1/24 InFrared Illuminator is designed to enable your B/W CCD camera to deliver useable images in absolute darkness. It has range to 50 feet and runs off of low voltage 24vac (the same as most surveillance cameras). A 12vdc version is also available for remote applications. Heavy-duty aluminum construction and a built-in fan enable usage indoor and outdoors.
VITEK
INDUSTRIAL VIDEO PRODUCTS, INC. "QUALITY PRODUCTS AT AN AFFORDABLE PRICE"
VT-IR1/24
SPECIFICATIONS
| Wave Length | 840nm |
| Beam Spread | 56° |
| Range 50 Feet | |
| Power on | Automatic CDS Control |
| Power Consumption | 320 mA |
| LED Lifetime | Approximately 6000 hours |
| Construction | Aluminum |
| Heat Dissipation Built-In fan / Ventilation Holes | |
| Operating Temperature | -4°F ~ 140°F |
| Power Source | 24 VAC / 12VDC (Model VT-IR1/12) |
| Dimensions 4.1"W x 5.1"H x 6.3"L | |
| Weight | 1.8 lbs |
VT-IRMT
VITEK
INDUSTRIAL VIDEO PRODUCTS, INC.
9970 GLENOAKS BLVD. UNIT B
SUN VALLEY, CALIFORNIA 91352
PHONE: 888-VITEK-70 818-771-0300
FAX: 818-771-0400
WWW.VITEKCCTV.COM
