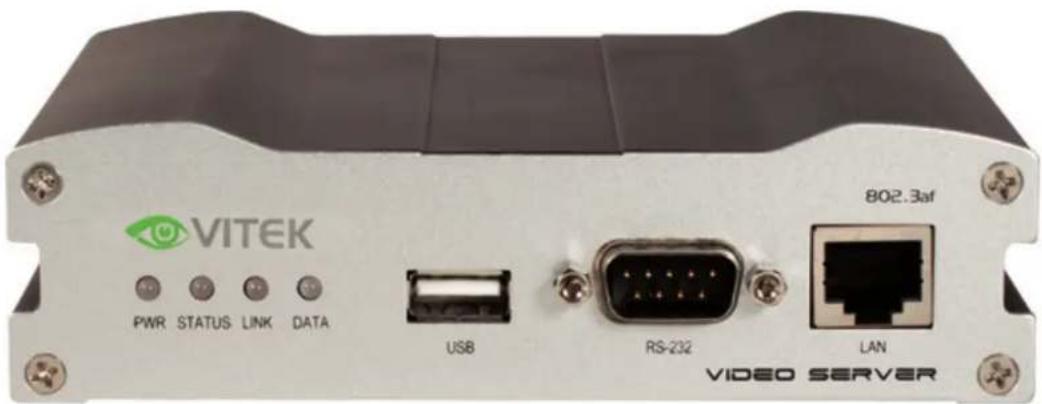

BRUGSANVISNING VT-IPS402H Vitek
FEATURES
• H.264 + H.264 / H.264 + MJPEG Dual Streaming
• 4CH Video Encoding
• Full-duplex audio/video transmission
• 30fps/25fps @ full D1 resolution
- Protocols : TCP/IP, Multicast, HTTP, SMTP, SNMP, FTP, DHCP, DNS, Dynamic DNS , RTP, RTSP
• 1:N Multi-casting and relayed data transmission
• Real time monitoring/recording/playback through CMS viewer S/W and Internet Explorer
• Dynamic IP support with Dynamic DNS
• Power over Ethernet(PoE) support
• Data storage against network failure or event (USB2.0)
• Watchdog for system recovery
• Support for PTZ and Controller
- Motion detection
Detailed Specifications
| System Mode | Encoder |
| Network Interface | Ethernet 10/100Base-T (RJ-45) |
| Network Protocol | TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP |
| Standards | Main Stream: H.264Secondary Stream: H.264, MJPEG |
| Data Rate | 32Kbps ~ 2Mbps |
| Resolution | NTSC : 720x480, 720x240, 352x480, 352x240PAL : 720x576, 720x288, 352x576, 352x288 |
| Max Frame Rate | NTSC : Max 30fps / PAL : Max 25fps |
| Frame Rate Range | NTSC : 0.2 ~ 30fps / PAL : 0.2 ~ 25fps |
| Input | 4 x Composite (1 Vpp 75 Ohm, BNC) |
| Motion Detection | Sensitivity Adjustment |
| Standards | G.711 |
| Sample Rate | 8KHz |
| Data Rate | 64Kbps |
| Input | 1 x Line-In (Mini-stereo, Single Mono) |
| Output | 1 x Line-Out (Mini-stereo, Single Mono) |
| Port1 | 1 x RS-232 (Terminal Block) |
| Port2 | 1 x RS-422/485 (Terminal Block) |
| Data Rate | 2,400bps ~ 115,200bps |
| Sensor Input | 4 x NO Contact (Terminal Block) |
| Alarm Output | 4 x NO Contact (Terminal Block) |
| Beep | 1 x Buzzer 88dB Min |
| Reset Button | 1 x Factory Reset Button |
| System Status | LED |
| Recording/Backup | 1 x USB 2.0 Port |
| CMS/Web Viewer | Live Monitoring, Recording, Search & Playback, Backup |
| Dimension | 0.44" x 0.41" x 0.11" / 134 x 125 x 35mm |
| Weight | 17.14oz / 486g |
| Power Source | DC 12V/0.5A, PoE(Power over Ethernet): 802.3af |
| Power Consumption | Max 6W |
| Operating Temp. | 14°F ~ 122°F / -10°C ~ 50°C |
