BRUGSANVISNING VT-SMKC2T Vitek

TRANSCENDENT
VITEK

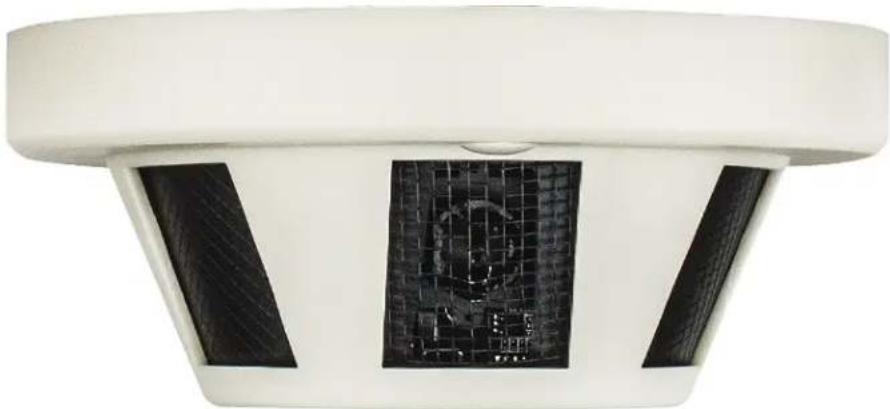






FEATURES:
• 1/3" 2.1 MegaPixel Progressive Scan CMOS
• 2.1 MegaPixel (1080p / 720p)
• 1 Lux at F1.2 / 0.1 Lux (B/W)
• 3.7mm Fixed lens Included
• Over 1500' HD Video Transmission (Depending on cable characteristics and integrity)
• 12VDC Operation
Transcendent Series High Definition 1080P TVI Cameras offer unprecedented performance and value.
These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500'.
Use with VITEK Transcendent Series HD-TVI/HD-AHD/960H Recorders with IP Camera Support
Specifications
| Image Device | 1/3" 2.1 MegaPixel Progressive Scan CMOS |
| Resolution | 2.1 MegaPixel (1080p / 720p) |
| Effective Pixels | 1920x1080 |
| S/N Ratio | 48dB or more |
| Video Output | 1x HD-TVI (BNC) & SD CVBS (BNC) |
| Built-In Lens | Pinhole 3.7mm Fixed |
| Minimum Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| Electronic Shutter | Auto (1/30sec ~ 1/60,000sec) |
| DNR | 3D-DNR |
| Gain Control | Auto |
| White Balance | ATW |
| HD Transmission Range | Over 1500' (Depending on cable characteristics and integrity) |
| Power Source | 12VDC |
| Power Consumption | 100mA |
| Operation Temperature | -10° ~ 50°C (14° ~ 122°F) Less Than 80% RH |
| Dimensions | 5.12" x 2.29" (130 x 58mm) |
