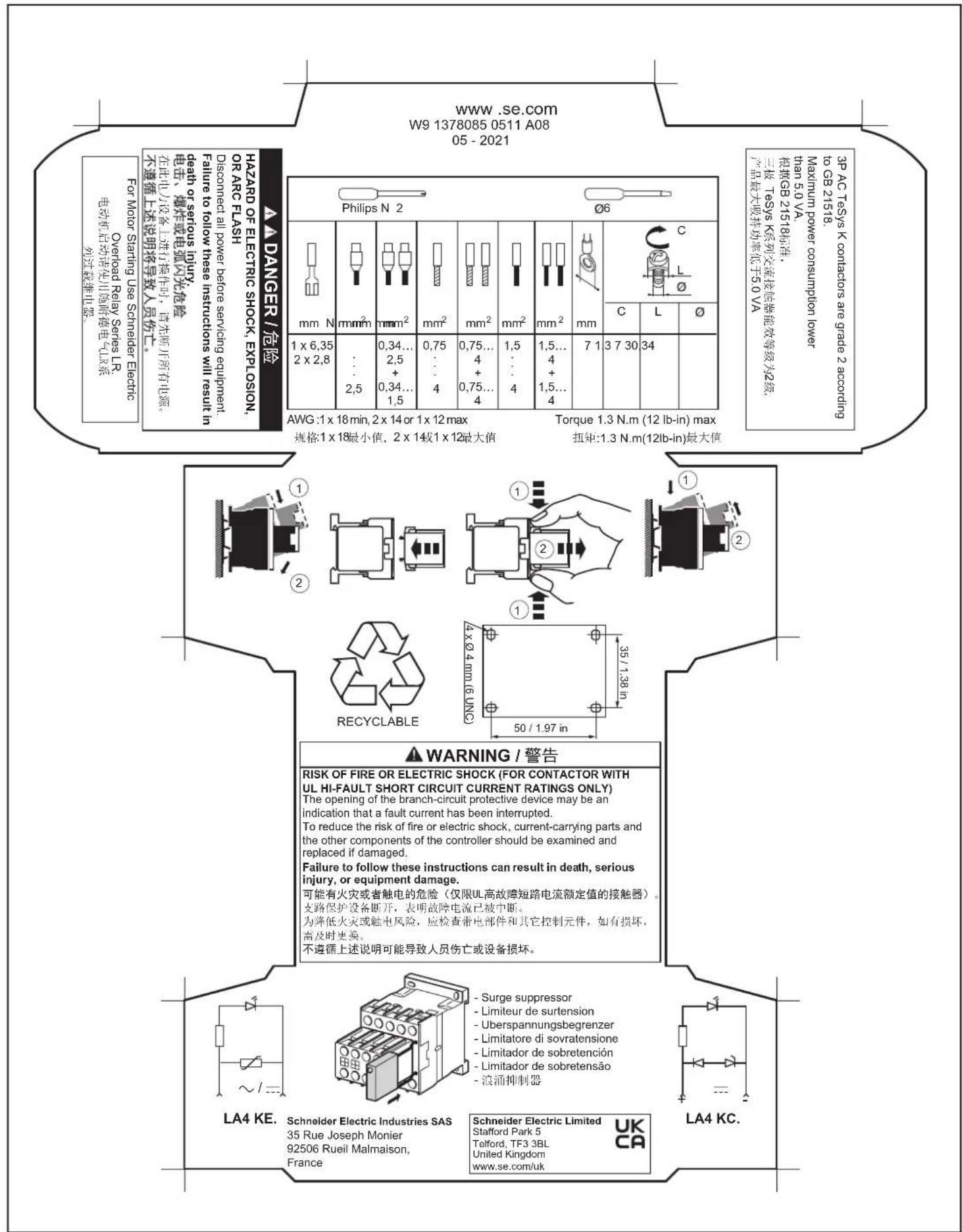

www .se.com W9 1378085 0511 A08 05 - 2021 ▲ DANGER / 危险 HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Disconnect all power before servicing equipment. Failure to follow these instructions will result in death or serious injury. For Motor Starting Use Schneider Electric Overload Relay Series LR 电动机启动电引陶耐锈电气连接 外送线继电器。 HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Disconnect all power before servicing equipment. 请勿断开所有电源。 不遵循上述说明将导致人员伤亡。 AWG:1 x 18 min, 2 x 14 or 1 x 12 max 规格:1 x 18最小值, 2 x 14或1 x 12最大值 Torque 1.3 N.m (12 lb-in) max 扭矩:1.3 N.m(12lb-in)最大值 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟A WARNING / 警告 RISK OF FIRE OR ELECTRIC SHOCK (FOR CONTACTOR WITH UL HI-FAULT SHORT CIRCUIT CURRENT RATINGS ONLY) The opening of the branch-circuit protective device may be an indication that a fault current has been interrupted. To reduce the risk of fire or electric shock, current-carrying parts and the other components of the controller should be examined and replaced if damaged. Failure to follow these instructions can result in death, serious injury, or equipment damage. 可能有火灾或者触电的危险（仅限UL高故障短路电流额定值的接触器）。 支路保护设备断片，表明故障电流已被中断。 为降低火灾或触电风险，应检查带电部件和其它控制元件，如有损坏， 需及时更换。 不遵循上述说明可能导致人员伤亡或设备损坏。 LA4 KE. Schneider Electric Industries SAS 35 Rue Joseph Monier 92506 Rueil Malmalson, France - Surge suppressor - Limileur de surtension - Uberspannungsbegrenzer - Limitatore di sovratensione - Limitador de sobretencione - Limitador de sobretensao - 浪涌抑制器 Schneider Electric Limited Stafford Park 5 Telford, TF3 3BL United Kingdom www.se.com/uk LA4 KC. 3P AC TeSys K contactors are grade 2 according to GB 2151B. Maximum power consumption lower than 5.0 VA. 根据GB 215 18标准， 三极 TeSys K系列交流接线器能效等级为2级。 产品最大吸料功率低于5.0 VA
