NAVODILA ZA UPORABO TX-28PK3 PANASONIC

Panasonic-Pa P a as i an so ic n a P a as i an so

Front view of a CRT television displaying the 'Qipinola' brand logo, with no visible text or symbols on the screen itself.

TX-28PK3

Colour Television

(U.K. Standard)

Operating Instructions

TQB8E3411---1

WELCOME

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from new colour television. This is a very advanced television; however, the Quick Start Guide will allow you the TV as quickly as possible. You can then read the instructions completely and retain the reference.

CONTENTS

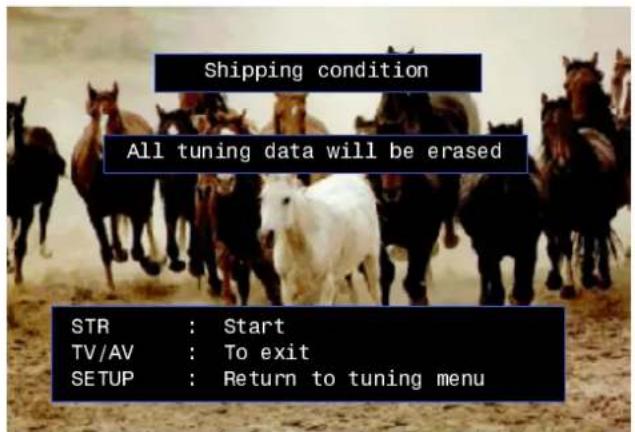

Warnings and Precautions 3. Tuning Menu - Shipping condition 26

Accessories 4. Tuning Menu - Owner I.D. 27

Inserting the Remote Control Batteries 4.... AV Select and Setup .... 28

Basic Controls 5. Q-Link 29

Quick Start Guide 6 VCR and Satellite Receiver Installation 31.....

Using the On Screen Displays 12 VCR/DVD Operation 32

Aspect Control 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Picture Menu 16....Audio / Video (AV).Connections 35

Sound Menu 17....Via.the.front A pin S=Video.AV3, RCA Audio / Video and Headphone sockets .... 35

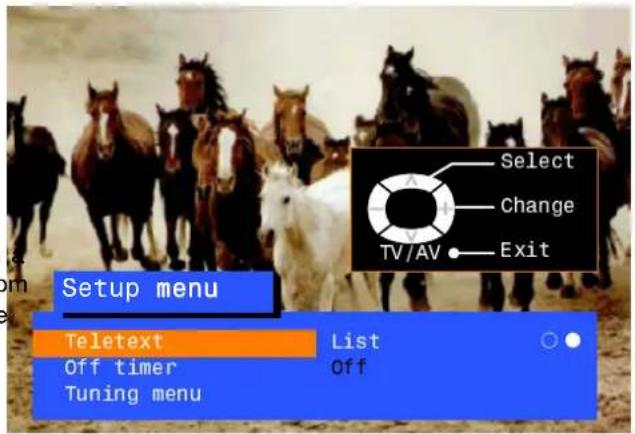

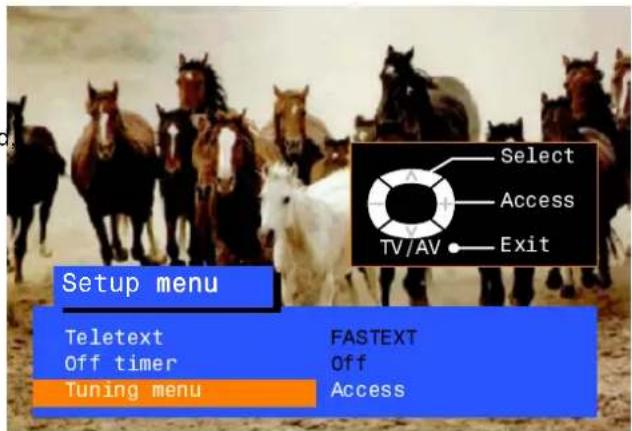

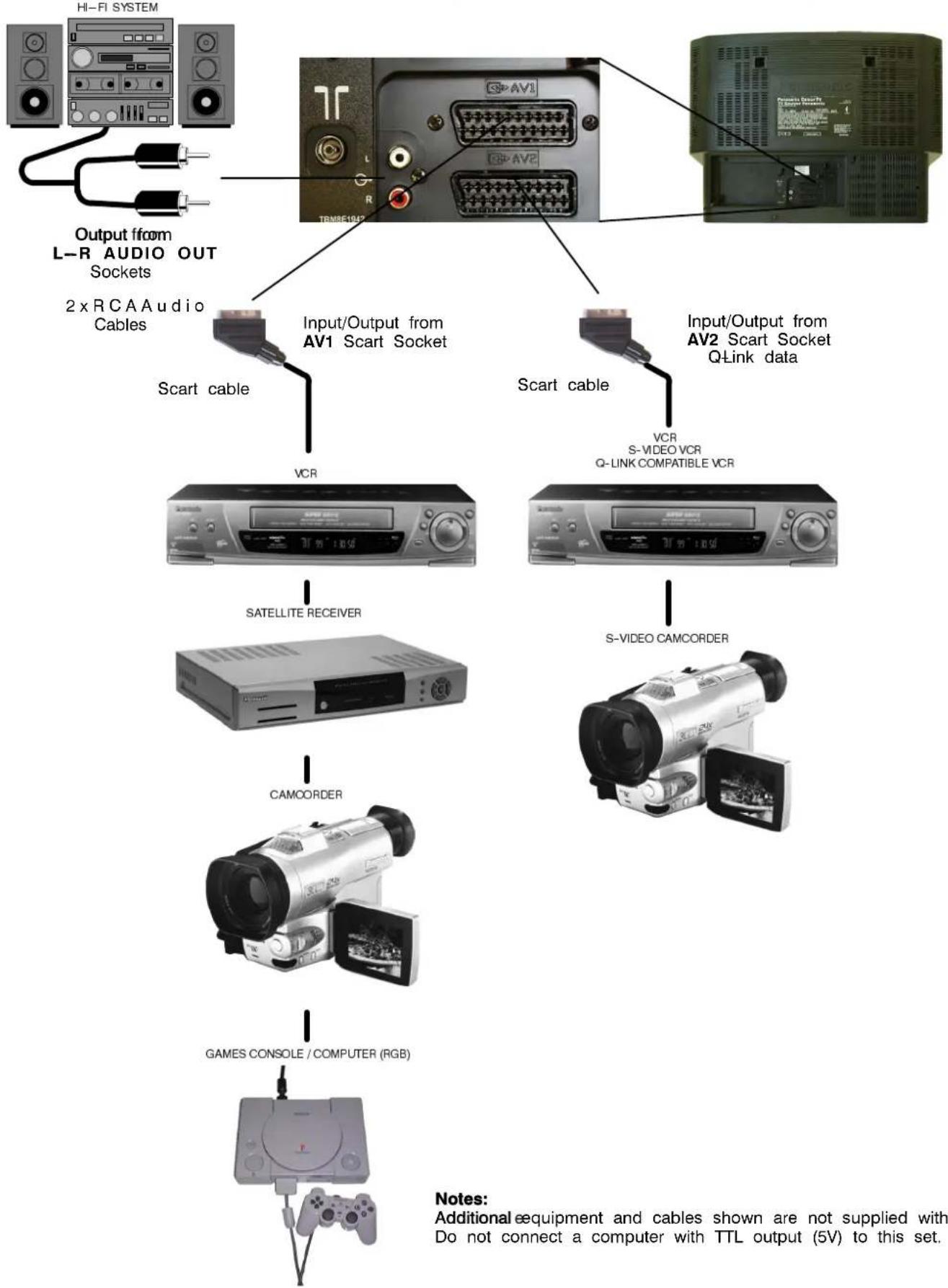

Setup Menu 18 Scart and S-Video socket information 35

Tuning Menu - overview 19 Via the rear AV1 / AV2 21 Pin Scart

Tuning Menu - Programme edit 20 Troubleshooting 37

Tuning Menu - Auto setup 24 For your guidance 38

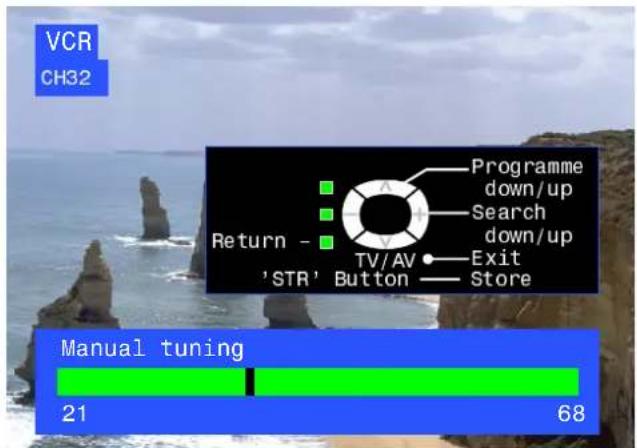

Tuning Menu - Manual tuning 25 Specifications 36

- This TV set is designed to operate on 220 - 240V, 50Hz A.C.

- To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture. This TV must not be exposed to dripping or splashing and objects filled with liquid, such as vases, must be placed on top of or above the TV.

●WARNING : HIGH VOLTAGE !!!

Donotremovetherearcoveraslivepartsare accessiblewhen it is removed. There are no user serviceable parts inside.

- Avoid exposing the TV settodirect sunlight and other sources of heat.

- The On/Off switch on thismodel does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

●CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and picture tube can be cleaned with a soft cloth moistened mild detergent and water. Do not use solutions containing water benzol or petroleum. TV sets can produce static electricity, not be care must be taken whenever touching the TV screen.

- Adequateventilationisessentialtopreventfailureofelectrical components, we recommend that a gap of at least 5cm all around this televisionreceiver even when it is placed inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to E

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the fitted plughasa removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp. socket.

Illustration of a black electrical plug with a screwdriver and two orange buttons (no text or symbols)

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1): Example Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (See example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely. (See example 2).

then refit the fuse,

IMPORTANT :- The wires in the mains lead of this appliance are coloured in accordance with the following code :- BLUE : NEUTRAL BROWN : LIVE

Asthecoloursofthewiresinthemainsleadofthisappliancemaynotcorrespondtothemarkingsidentifyingtheterminalsin yourplug, proceed as follows :-

1. The BLUEwire must be connected to the terminal marked 'N' or coloured black.
2. The BROWNwire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE: Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol.

Check that you have the accessories and items shown

Operating Instruction book TQB8E3411---1

Panasonic TX-28PK3 QintriaF Qbox T

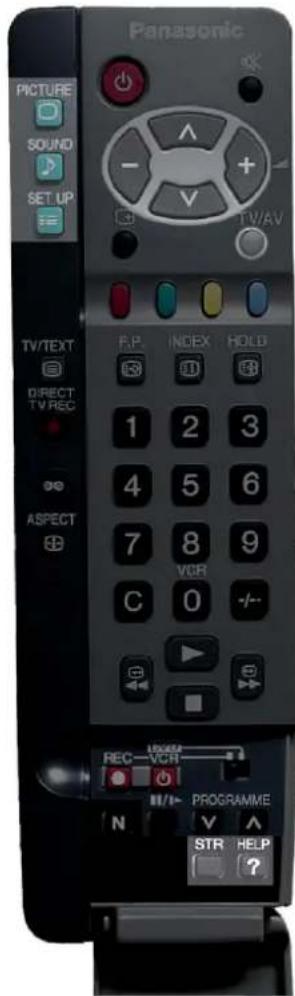

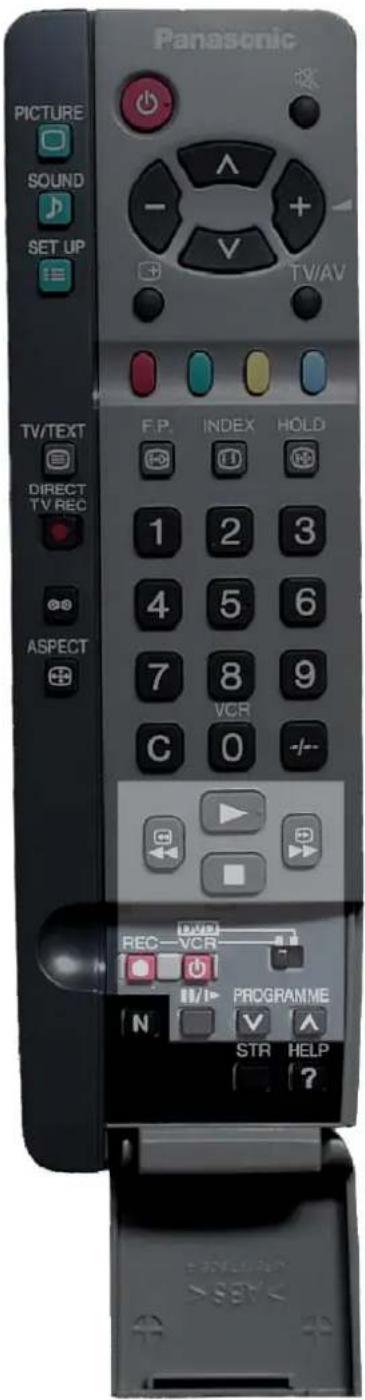

Remote Control Transmitter EUR511210

Front view of a gray remote control with black scroll and keypad (no visible text or symbols)

CRT Guarantee

Batteries for the Remote Control Transmitter. (2 x R6 (UM3) size)

TV Guarantee

Video cabinet VS--28PK

3D rendering of a metallic cabinet or shelf with three vertical slots and two hanging buttons (no text or symbols visible)

Questionnaire

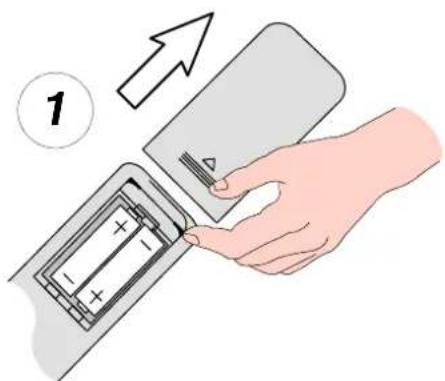

INSERTING THE REMOTE CONTROL BATTERIES

1

Slide off the battery cover

2 Pensiscus Panasonic

Insert batteries - note correct polarity (+ and +)

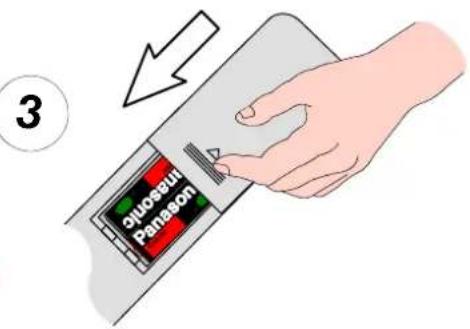

3 Olooseut Panaxon

Replace the cover

Notes:

• Make sure that the batteries are fitted the correct way round.
• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
• Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni-Cad) batteries.

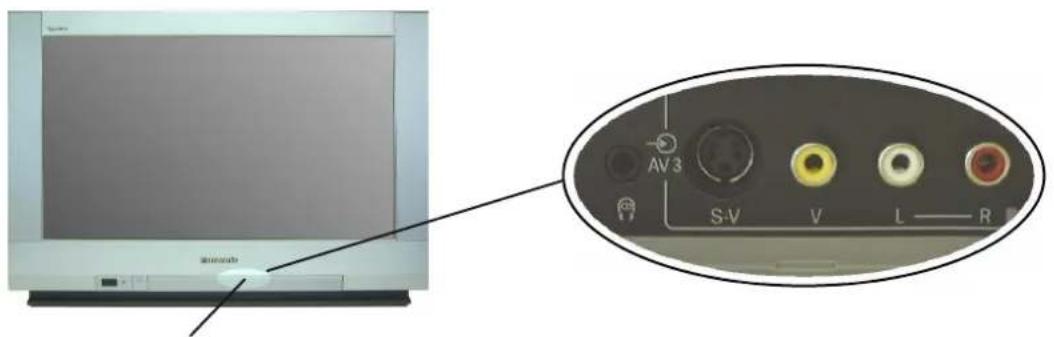

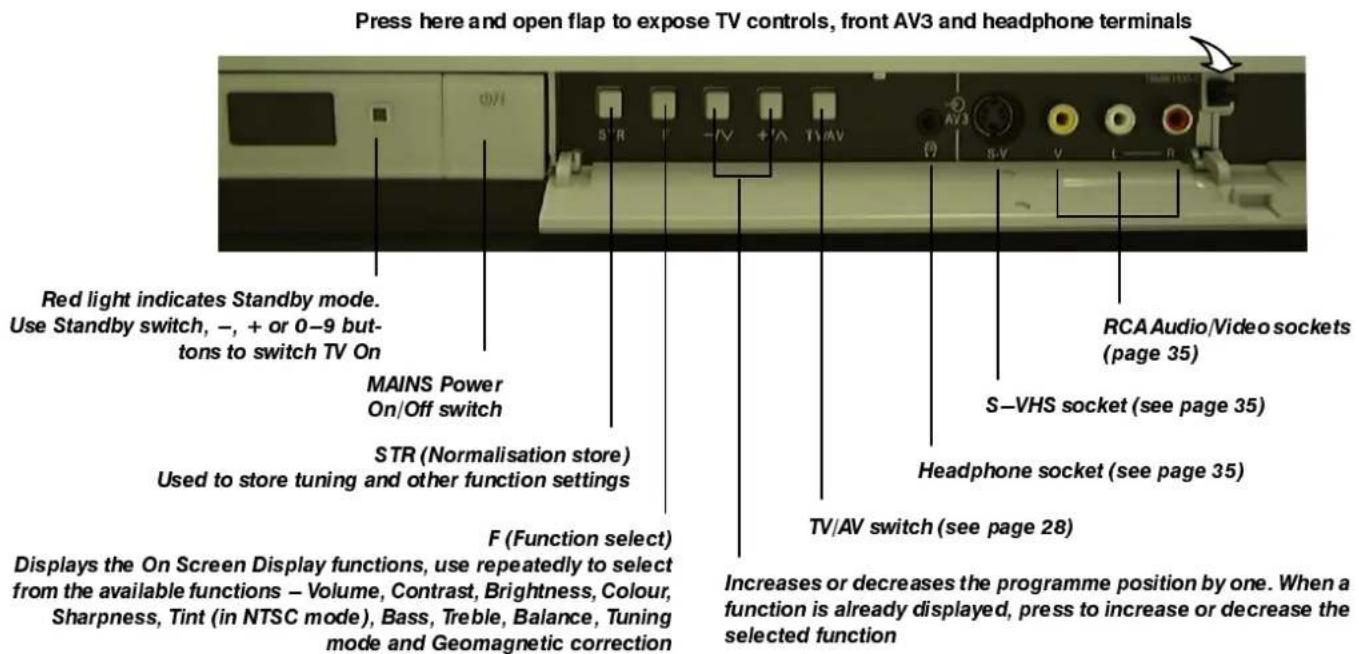

Press here and open flap to expose TV controls, front AV3 and headphone terminals Red light indicates Standby mode. Use Standby switch, -, + or 0-9 button to switch TV On MAINS Power On/Off switch STR (Normalisation store) Used to store tuning and other function settings F (Function select) Displays the On Screen Display functions, use repeatedly to select from the available functions – Volume, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass, Treble, Balance, Tuning mode and Geomagnetic correction RCA Audio/Video sockets (page 35) S–VHS socket (see page 35) Headphone socket (see page 35) TV/AV switch (see page 28) Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function

Standby On/Off switch Switches TV On or Off standby Menu buttons Press to access the Picture, Sound and Setup menus (see page 12) Status button Press to display programme position, programme name, channel number, time, NICAM mode, aspect mode and programme table Teletext buttons (see page 33) Direct TV Record button (see page 29) Ambience on/off Aspect control button (see page 13) Direct channel access During normal TV viewing or when in the Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons The N button will recall settings stored with STR STR (Normalisation store) Panasonic PICTURE SOUND SET UP TV/TEXT DIRECT TV REC F.P. INDEX HOLD 1 2 3 4 5 6 7 8 9 C 0 VCR Programme / channel change buttons (0-9) and Teletext page buttons (see page 33) When in Standby mode, switches TV on Programme position for selection of two digit programmes (10-99) using numeric buttons VCR / DVD buttons (see page 32) The Help button provides a demonstration of On Screen Display menus

Connection and setting up options

1. If connecting the TV using an RF cable only, proceed to option 1.
2. If connecting the TV using Scart and RF cables, proceed to option 2.
3. If connecting the TV to a Q-Link (or Q-Link compatible) VCR, proceed to option 3 on page 7.
4. If connecting the TV to a Q-Link (or Q-Link compatible) VCR and a Satellite Receiver, proceed to option 4 on page 8.

1. Connection of TV using an RF cable only

RF Connection

- Connect the RF cable into the TV Aerial socket ^7 (1).

Connection connect the RF cable into the TV Aerial socket(7) Mains Socket Aerial Input socket

2. Connection of TV and VCR using Scart and RF cables

Scart Connections

• The VCR can also be connected to the TV using a Scart cable if you are using a Scart equipped VCR.
- UsetheTV'sAV1ScartsocketforaVCR.
- Use the TV's AV2S Scart socket for an S---Video VCR.

RF Connection

- Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket 7(7).

TV Mains Socket Aerial Input socket AV1 and AV2 Scart sockets Mains Socket VCR AV1 Scart socket Aerial Input socket Aerial Output socket

Notes :

Additional equipment and cables are supplied.

Further details of AuAudio/video on the 35 pages and 36.

What is QLink ?

Q-Link allows direct communication between the TV and a Q-Link (or Q-Link compatible) VCR, this will enable features such as downloading of tuning information from the TV to the VCR.

When using an“EXTVIEWLINK” VCR themainfeatures possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using aQ-Link" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).
  • TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  • VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view On - If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

This TV will also communicate with other VCR's that bear the following logos :

• "DATA LOGIC" (a trademark of Metz Corporation).
- "Easy Link" (a trademark of Philips Corporation).
- "Megalogic" (a trademark of Grundig Corporation).
- "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions. Refer to the VCR operating instruction book.

Further information on QLink can be found on page 29.

In order for Q-Link to function correctly, the Scart cables must be connected in a certain way, dependent on whether the TV is being connected to a VCR (option 3, below) or to a VCR and Satellite Receiver (option 4, overleaf).

3. Q-Link connection of TV and VCR using Scart and RF cables

Scart Connection

- The VCR must be connected to the AV2 Scart socket of this TV using a 'fully wired' Scart cable.

Note :

If using "aQ-Link" VCR then the AV1 Scart of the VCR must be connected to the AV2 socket of the TV. If your VCR is not a "Q-Link" VCR, please consult your VCR operating instruction book.

RF Connection

- Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket ( 7Γ ).

TV Mains Socket Aerial Input socket VCR Mains Socket Aerial Input socket AV2 Scart socket AV1 Scart socket Aerial Output socket

Notes :

Additional equipment and data are not supplied.

Further details of AuAudio/Divideonceptions can barlobed foundages 35 aged 35 and 36.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 31.

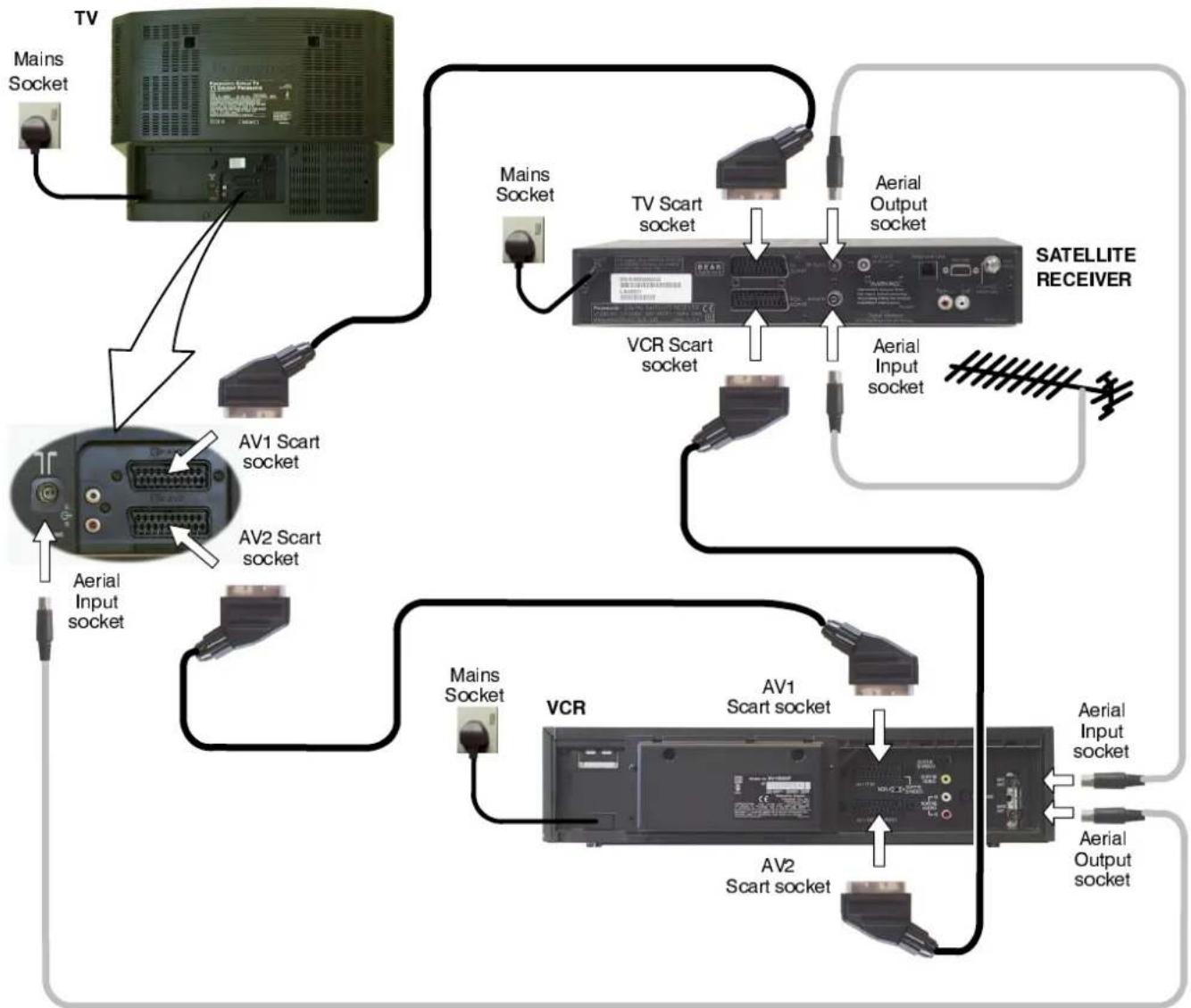

4. Q-Link connection of TV, VCR and Satellite Receiver using Scart and RF cables

For Q-Link to function correctly the TV, VCR and Satellite Receiver must be connected as shown in the diagram below.

Scart Connections

'Fully wired' Scart cables should be used for all of the Scart connections.

• The AV2 Scart of the VCR must be connected to the VCR socket of the Satellite Receiver.
• The TV Scart socket of the Satellite Receiver must be connected to the AV1 Scart socket of the TV.

Note :

If using a "Q-Link" VCR then the AV1 Scart of the VCR must be connected to the AV2 socket of the TV. If your VCR is not a "Q-Link" VCR, please consult your VCR operating instruction book.

RF Connections

• Connect an RF cable to the Aerial In socket of the Satellite Receiver.
• Connect an RF cable from the RF Out socket of the Satellite Receiver to the RF In socket of the VCR.
• Connect an RF cable from the RF Out socket of the VCR to the TV Aerial In socket ( 7F ).

Notes ::

Additional equipment and databases are net not applied.

Further details for AuAudioVide Video Connections beafoubel found on 35 pages 365 and 36.

Further information for CD/CR/CD Satellite Satellite Installation With this TV or page 3 found on page 31.

QUICK START GUIDE

1

Ensure that the OCRs is StarStybdhydode.

2

Switch ONyou Satellite Receiver, ensure reliable tuning select either SKY ONE or SKY NEWS (for analogue satellite receiver). Select any channel for digital satellite receiver.

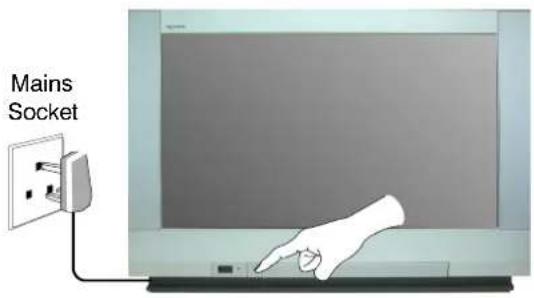

Plug the TV into mains socket and switch ON.

Mains Socket

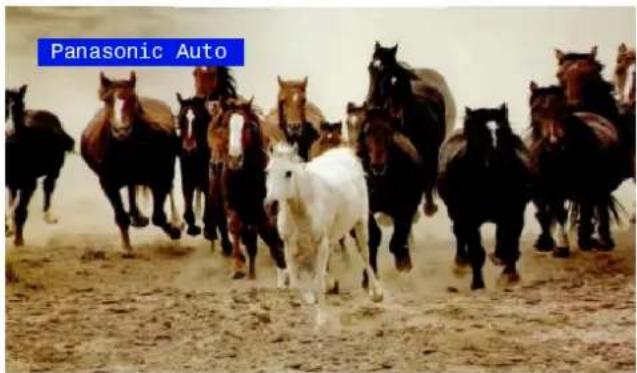

Programmes will appear immediately if your dealer has programmed the TV for you.

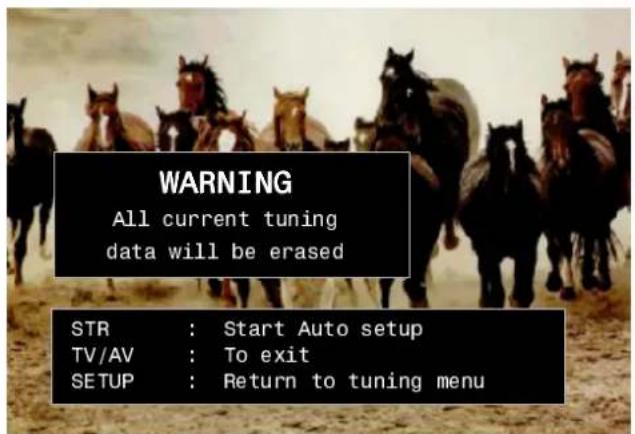

If the TV has not been programmed for you then Aul setup will begin. TV stations will be located, sorted into order and stored ready for*2use.

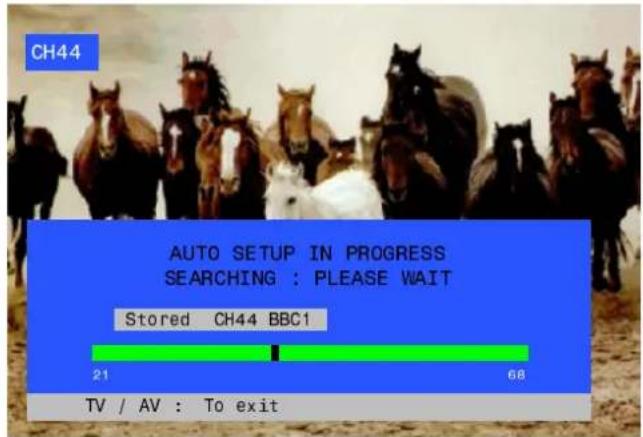

CH44 AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT Stored CH44 BBC1 21 68 TV / AV : To exit

3

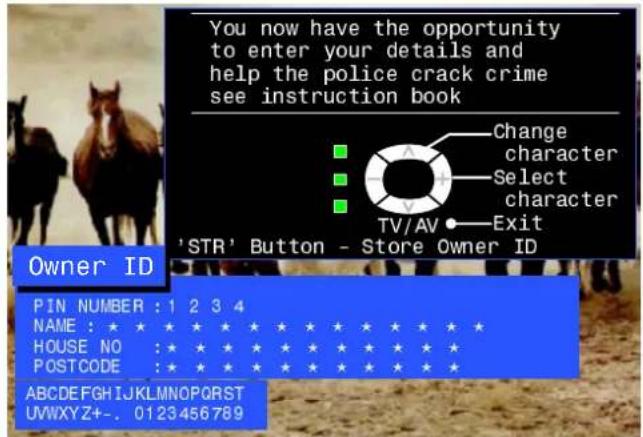

Owner ID

As an added feature, this TV has the option of adding a security code (Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the Police to trace the owner.

Enter required 4 digit Owner ID PIN NUMBER.

(using 0 to 9 on the remote control). 7 8 9 0

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID Owner ID PIN NUMBER : ★ ★ ★ ★ NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ 0123456789

4

Enter NAME, HOUSE NUMBER and POSTCODE.

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NVWMElihne.

If not, mooved the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details.

Press STR again, when you are asked "Are you sure?"

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID Owner ID PIN NUMBER : 1 2 3 4 NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ABCDEFGHIJKLMNOPQRSTUVWXYZ+-. 0123456789

For further information on Owner I.D., see page 27.

A space is provided on page 27 to write down the PIN NUMBER for future reference.

5

TV tboVCCFDDownload

If a "O-Link", "NEXTVIEWLINK" or compatible VCR has been connected to the AW2 soAW2 socket before starting Step 1, programming information will be downloaded to the VCR.

Downloaded tuning information will match the television's.

Not all VCRs support this download of programme information, some may require to be started manually.

Refer to the VCR operating instruction book.

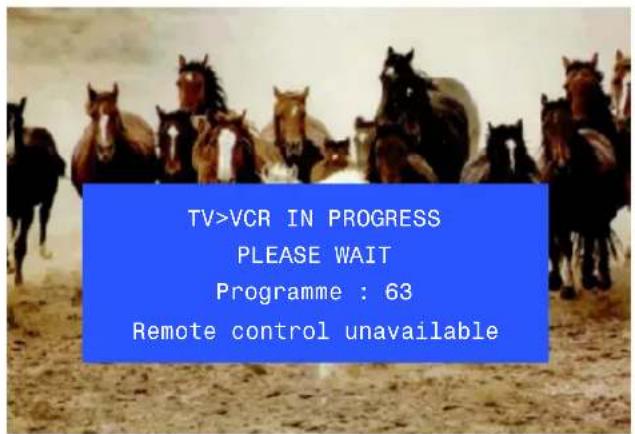

TV > VCR DOWNLOAD IN PROGRESS PLEASE WAIT PROGRAMME : 48 REMOTE CONTROL UNAVAILABLE

If a VCR other than those described above has been connected, then there will be no download operation.

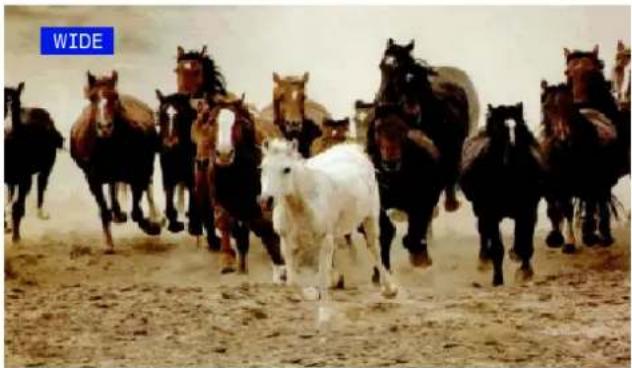

Group of horses galloping in a sandy field, one white horse standing nearby (no text or symbols visible)

Notes :

If the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR's menu system. Refer to the VCR operating instruction book.

If QLink is not operating correctly, check the following :

●The Scart cable is connected to the TV's AV2 Scart socket.
- The Scart cable is connected to the VCR's compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart socket.
●The Scart cable is a "fully wired" type.

For further information on Q-Link and connecting equipment, see pages 29, 35 and 36.

*1. If, after Auto Setup is complete, the programme position of the digital satellite receiver is not to your preference, you can re---arrange the programme position. Refer to the Programme edit menu --- see page 20 for details.
*2. The sorting order depends upon the TV signal, the broadcasting system, and reception conditions. If either BBC1, BBC2 or ITV are not located, then their respective pre-allocated programme positions (1 to 3) will remain unused.

Programme Position	All stations available	No Channel 5	No Channel 5 / S4C	No Channel 4 / Channel 5	No S4C	No Channel 4 / S4C	No Channel 4 / S4C / Channel 5
1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1
2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2
3	ITV	ITV	ITV	ITV	ITV	ITV	ITV
4	Channel 4	Channel 4	Channel 4	S4C	Channel 4	Channel 5	Satellite
5	S4C	S4C	Satellite	Satellite	Channel 5	Satellite
6	Channel 5	Satellite			Satellite
7	Satellite
Note :The next available channel will appear, if no other stations are available then the Programme position will remain unused.

Note:
The next available channel will appear, if no other stations are available then the Programme position will remain unused.

Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners (colour purity). The Geomagnetic Correction feature can be used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete.

The screen should not be showing any On---Screen Display menus.

Group of horses in a sandy field, one white and one black standing (no visible text or symbols)

Open the flap on the television's front panel

Press and release here to open flap

Front view of a vintage electronic device with control panel and buttons (no visible text or symbols)

Panasonic

Press the F button repeatedly until the Geomagnetic Correction feature is displayed

F

000 Geomagnetic Correction F : To exit - ,+ : Adjust tilt STR F -/v +/Δ TV/AV

Press the + or - buttons repeatedly until the picture appears to be level

-/v

+/A

002 Geomagnetic Correction F : To exit -,* : Adjust tilt STR F -/V +/A TV/AV

Press the F button again to return to normal viewing. Close the flap to prevent damage

F

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

Adjust Volume Change Programme

This TV has a comprehensive system of On Screen Display menus to access adjustments and options

Menu Title Submenus Selection bar Picture menu Contrast Brightness Colour Sharpness Colour balance P-NR AI Normal off On Select Change TV/AV Exit Instructions Indicator for options

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a change of setting to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE, SOUND and SET UP buttons are used to open the main menus and also to return to to PICTURE SOUND SET UP

The up and down cursor buttons are used to move the cursor up and down the menus.

The left and right cursor buttons are used to access menus, adjust levels or to select from a range of options.

The STR button is used to store settings after adjustments have been made or options have been set.

The TV/AV button is used to exit the menu system and return to the normal viewing screen.

The HELP button will run a demonstration of the menus available. Press the HELP button and select one of the options.

If the HELP button is pressed whilst a menu is displayed, the 'Instructions' box will be hidden from view. Press the HELP button again to show the 'Instructions' box.

e ∧ ∨ − +

HELP ?

Panasonic PICTURE SOUND SET_UP TV/TEXT DIRECT TV REC ASPECT F.P. INDEX HOLD 1 2 3 4 5 6 7 8 9 C 0 -/- REC-VCR PROGRAMME N V A STR HELP ?

The widescreen TV will allow you to enjoy viewing the picture at its maximum size, including widescreen ‘cinema format’ pictures.

Note: Just mode is not available when viewing an RGB source.

Press the ASPECT button to move through the ASPECT six aspect options: Panasonic Auto, 4:3, Zoom, 16:9 (Full), 14:9 and Just

Panasonic Auto

Panasonic Auto determines the best aspect ratio to use to display the picture you are viewing. It does this using a four step process to determine if the picture being viewed is a widescreen picture.

If Panasonic Auto detects a widescreen signal it switches into the appropriate 16:9 or 14:9 widescreen mode. If Panasonic Auto does not detect a widescreensignalthen thepicture isdisplayed inJust or 4:3 mode.

The text shown on the screen indicates how Panasonic Auto determined which ratio to use:

'WIDE' appears in the top left of the screen if a widescreen identification signal (WSS) is found or a signalfound through a Scart socket. Panasonic Auto switches to the appropriate 16:9 or 14:9 widescreen ratio

'PanasonicAuto' appears in the top left of the screen if black stripes above and below the picture are detected. PanasonicAuto chooses the best ratio and expands the picture to fill the screen. This process can take several minutes, depending how dark the picture is.

'Panasonic Auto' appears in the top left of the screen andred andgreenkeysatthebottomifnoindicationof a widescreen signal is found, the picture is displayed in Just or 4:3 mode. If the picture has a standard 4:3 aspectratiothen youmayprefer to view itat itsoriginal size, the red and green keys that appear allow you to choose between viewing at standard 4:3 size or expanded in Just mode.

Equally, you may prefer to select one of the other modes available to view the picture.

Notes:

- If, in Panasonic Auto mode, you experience problems with the screen display size when playing back widescreen format recordings from your VCR then it is possible that the tracking control of your VCR requires adjustment (your VCR instruction book will contain adjustment details).

- Thewidescreenaspectratios of differentfilms and programmes can vary. If these are wider than a standard 16:9 aspect picture then a black band may be visible at the top and bottom of the screen.

Group of horses galloping in a sandy field, no visible text or symbols

'WIDE' appears in the top left of the screen, Panasonic Auto switches to the appropriate 16:9 or 14:9 widescreen ratio.

Panasonic Auto

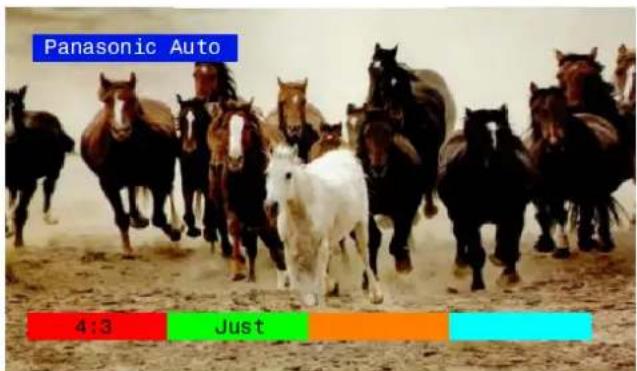

'Panasonic Auto' appears in the top left of the screen, The best ratio is chosen and the picture expanded to fill the screen.

Panasonic Auto 4:3 Just

'Panasonic Auto' appears in the top left of the screen, The picture is displayed in Just or 4:3 mode, red and green keys appear, allowing switching between Just and 4:3 modes.

4:3

4:3 will display a 4:3 picture at its standard 4:3 size without any elongation.

Group of horses galloping across a sandy field, no visible text or symbols

4:3

Zoom

Zoom modemagnifiesthecentr section of the picture.

The picture can be removed and enlarge vertically using the coloured keys. The former adjustment is useful for viewing any sub--titles which may appear outside the picture.

Theon screenselectorkeysthatappear for someaspectfunctionswillclearafter afewseconds. If you subsequently wish to select an operation then press the Aspect key once more for the keys to reappear.

Zoom V-size- V-size+ V-pos- V-pos+

Zoom

Zoom V-size- V-size+ V-pos- V-pos+

Blue key has been pressed to move picture upwards

16:9 (Full)

16:9 (Full) will display the picture at its maximum size but with slight elongation.

Group of horses galloping in a sandy field, one white and one black, with no visible text or symbols.

16:9 (Full)

14:9

14:9 will display the picture at its maximum size without any elongation.

Group of horses galloping in a sandy field, one white horse visible in the background (no text or symbols)

14:9

Just

Just mode will display a 4:3 picture at maximum size but with aspect correction applied to the centre of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the original signal.

Group of horses galloping in a sandy field, one white horse standing nearby (no text or symbols visible)

Just

Open the Picture menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Picture menu


TV/AV

Picture menu Contrast Brightness Colour Sharpness Colour balance P-NR AI Select Adjust Exit TV/AV Normal Off On

Contrast

Brightness

Colour

Sharpness

The Contrast, Brightness, Colour and Sharpness levels can be adjusted to suit your own preferences.

The Tint adjustment will only appear a menu item if you have an NTSC source connected to the TV and allow adjustment of the hue.

Picture menu Contrast Brightness Colour Sharpness Colour balance P-NR AI Normal Off On Select Adjust Exit TV/AV

Colour baltanose

TheColourbalancesettingallowsyou to set the overall colour tone of the picture.

PARR

PNR will automatically reduce unwanted picture noise.

AI

AI automatically analyses the incoming picture and processes it to give improved contrast and optimum depth of field.

Sharpness

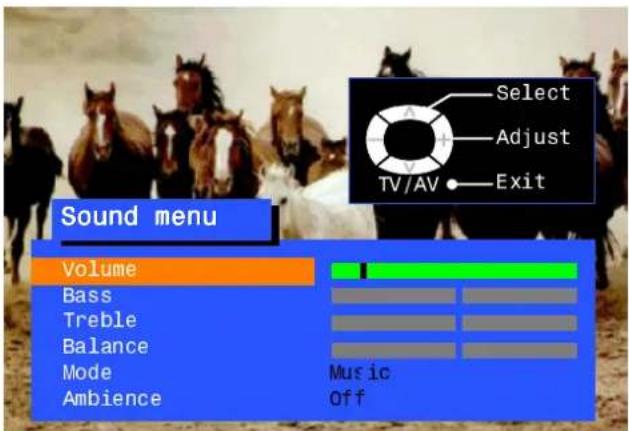

Open the Sound menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Sound menu

SOUND

TV/AV

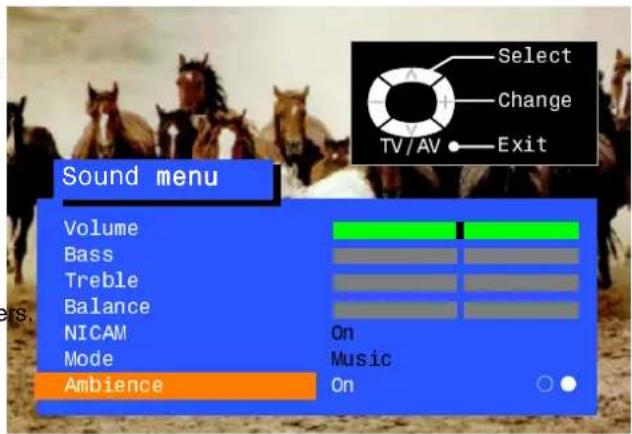

Sound menu Volume Bass Treble Balance NICAM Mode Ambience Select Adjust TV/AV Exit On Music On

Volume

Bass

Treble

Balance

The Volume adjustment sets the overall output volume.

Bass adjustment will emphasise the lower, deeper frequencies and can be increased or decreased.

Treble adjustment will emphasise the sharper, higher frequencies and can increased or decreased.

Balance affects the levels of sound between the left and right speaker. Adjustment can be made so that the level from the speakers will suit your listening position.

Sound menu Volume Bass Treble Balance NICAM Mode Ambience Select Change TV/AV Exit

NICAM

Select On to provide stereo sound reproduction. Select Off for FM Mono sound output.

If Nicam Mono is being transmitted select either FM Mono (Off), Nicam Mono I (M1) or Nicam Mono II (M2). The options depend upon the signal being transmitted.

If reception deteriorates it is advisable to switch to FM Mono (Off).

When Nicam transmissions are not being received the sound will be Mono (Off) only.

Sound menu Volume Bass Treble Balance NICAM Mode Ambience Select Change TV/AV Exit FM On Music Off

Mode

The sound can be improved during Music or Speech mode by selecting the appropriate function.

Ambience

Ambience provides a dynamic enhancer to simulate improved spatial effects.

The Setup menu provides access to various advanced features and also to the Tuning menu

Open the Setup menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit the Setup menu

SET UP V - + TV/AV

Setup menu Teletext OFF timer Tuning menu FASTEXT Off Select Change TV/AV Exit

Teletext

The Teletext option allows you to choose between FASTEXT or List mode. See page 33.

● ○○○○○○ Off timer

Off timer will switch the TV off within a preset time which you can choose from between 0 to 90 minutes in 15 minute intervals.

Setup menu Teletext List Off timer Off Tuning menu

Tuning menu

The Tuning menu provides an entry to many other features including Programme edit and Auto setup. Seepage 19.

Volume ocorbec.

Volume correction (in AV mode only) allows you to adjust the volume level individual stations.

Setup menu Teletext Off timer Tuning menu FASTEXT Off Select Change TV/AV Exit

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit

SET UP ^ V - + + ^ V - + + TV/AV

Setup menu Teletext Off timer Tuning menu FASTEXT Off Select Change TV/AV Exit

Programme edit

Accessing the Programme edit menu will allow stations to be moved, added deleted, named or locked. Seepage20.

Auto setup

The Auto setup menu allows you to automatically retune the TV. Seepage24.

Manual tuning

The Manual tuning menu allows individual programme positions to be tuned manually. See page 25.

Setup menu Teletext Off timer Tuning menu FASTEXT Off Access Select Access TV/AV Exit

● ○ Decoder ((AV2)

This option is used when a decoder is connected via AV2. Set to On if scrambled signal is to be processed the decoder. Set to Off after use.

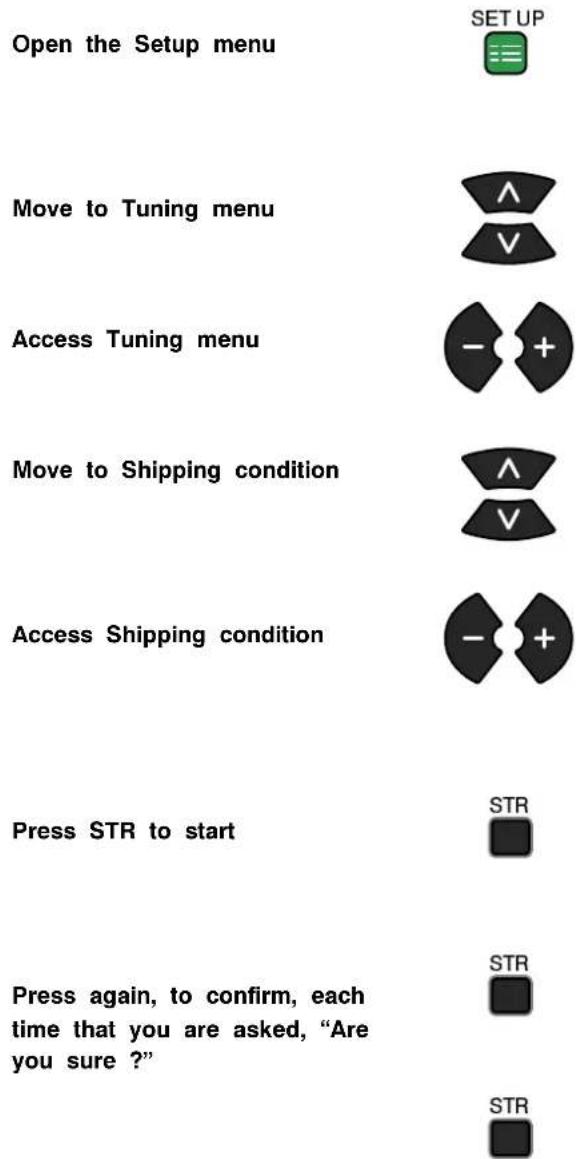

Shipping condition

Allows you to clear all tuning information and reset all control level back to factory settings. See page 26.

Owner ID

Allows you to enter a security code and address information. Seepage27.

1 by CH44 Select Access Return - TV/AV Exit 'STR' Button Store Tuning menu Programme edit Access Auto setup Manual tuning Decoder (AV2) off Shipping condition Owner ID

The Programme edit menu allows you to edit the programme position settings

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Programme edit menu Access Programme edit menu

Make required changes (see sections below)

Press STR button to store changes STR If you have finished in the Programme edit menu, press the TV/AV button to exit TV/AV

To delete an unwanted programme position

Ensure that the cursor is in the Prog. Column

Choose the programme position Press the Red button on remote control Press the Red button again to confirm If you have finished in the Programme edit menu, press the TV/AV button to exit

Setup menu Teletext Off timer Tuning menu FASTEXT Off Select Change TV/AV Exit

Setup menu Teletext FASTEXT Off timer Off Tuning menu Access

1 CH44 Return - 'STR' button Select Access TV/AV Exit Store Tuning menu Programme edit Access Auto setup Manual tuning Decoder (AV2) off Shipping condition Owner ID

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan Ch Name LockName Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

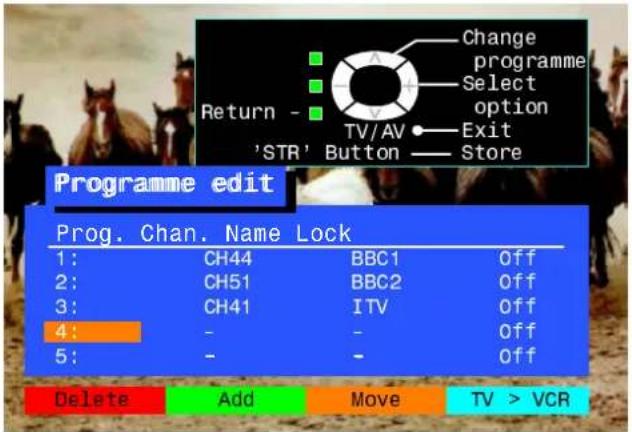

To add a programme position

Choose the programme position where the new programme is to be inserted

Press the Green button

Press the Green button again to confirm

This blank programme can then be tuned (see page 25), named (see page 22) or locked (see page 23)

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

To move a programme to another position

Choose the programme position to be moved

Press the Yellow button on remote control

Choose new position

Press the Yellow button again to confirm

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV 'STR' Button Exit Store Programme edit Prog. Chan CHName LockName Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan.CName LockName Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: - - Off 5: CH41 ITV Off Delete Add Move TV > VCR

To rename a programme position

Choose the programme position

Move to the Name column

Choose the new character

Move to the next character position

Continue until renaming is done

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change character Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan.ChName LockName Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: CH54 C H 4 Off 5: CH41 ITV Off A B C D E F G H I J K L M N O P Q R S T U V W X Y Z + - . ■ 0 1 2 3 4 5 6 7 8 9

To lock a programme position to prevent access

Choose the programme position

Move to the lock column

Choose between Lock On or Lock Off

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Note :

When a programme position is locked, Direct Channel Access using the 'C' and numeric keys on the remote control is not available.

Programme edit Prog. Chan.CName Lock Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: CH54 CH4 Off 5: CH41 ITV Off

To copy programme information to a compatible VCR connected to AV2

Move to the Prog. column

Press the Blue button on the remote control.

Programme data will now be sent to the VCR. This might take a while, depending on the number of stations stored. If the message "Unable to download, check your VCR" appears on the screen, the television is unable to send programme information to the VCR. See the VCR handbook for further information

If you have finished in the Programme edit menu, press the TV/AV button to exit

TV>VCR IN PROGRESS PLEASE WAIT Programme : 63 Remote control unavailable

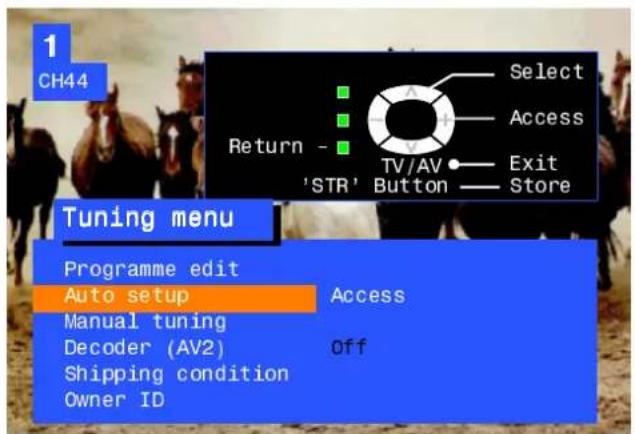

The Auto setup menu will allow you to automatically retune the TV to your local stations. It is useful if you move to a different region

Open the Setup menu SET UP Move to Tuning menu A V Access Tuning menu - + Move to Auto setup A V Access Auto setup - + Press STR to start Auto setup STR

The TV will search for, locate and sort into order your local stations. If a compatible VCR is connected via the AV2 socket, programme data will be sent to the VCR via QLink (see page 29)

Once this operation is completed the TV will display programme position 1

Setup menu Teletext Off timer Tuning menu FASTEXT Off Access Select Access TV/AV Exit

1 CH44 Select Access Return - TV/AV Exit 'STR' Button Store Tuning menu Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID Access Off

WARNING All current tuning data will be erased STR : Start Auto setup TV/AV : To exit SETUP : Return to tuning menu

CH44 AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT Stored CH444 BB8C1 21 68 68 SETUP : Return to tuning menu TV/AV : To exit

Manual tuning of other programme positions is available either from the On Screen Display menu or from the front panel controls

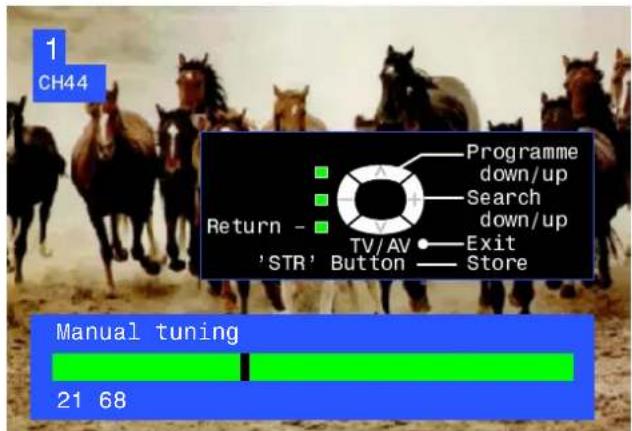

Manual tuning menu

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to Manual tuning

Access Manual tuning

Select the programme position to be tuned

Press repeatedly until required station is found

When the desired station is found, press STR to store.

The programme position will flash

Press the TV/AV button to exit

SET UP

STR

TV/AV

Manual tuning (Front panel)

Press the F button (Front panel) until "Tuning mode" is reached

Press the or + button to access Tuning mode

Press the TV/AV button to move between "Change programme" and "Search"

Press the er + button to change programme position or start search

When the desired station is found, press STR to store.

The programme position will flash

Repeat above procedure to tune additional programmes or press the Fbuttontoexit

1 CH44 Select Access Return - 'STR' TV/AV Exit Store Tuning menu Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID Access Off

1 CH44 Return - 'STR' Button Programme down/up Search down/up TV/AV Exit Store Manual tuning 21 68

Important note :

On passing channel 68, tuning will restart at channel 21.

21 68

1 CH44 Manual tuning (Front panel) + : Search TV/AV : Move cursorcursor STR : To:storeTo store F : To exit To exit 21 68 STR F -/V +/∧ TV/AV

Shipping condition allows you to reset the TV to its original condition, i.e. no channels tuned i

This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to your new local stations.

This can be done either through the Shipping condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position '0' VCR after operating the Shipping condition menu - refer to page 31.

Open the Setup menu SET UP Move to Tuning menu ^ V Access Tuning menu - + Move to Shipping condition ^ V Access Shipping condition - + Press STR to start STR Press again, to confirm, each time that you are asked, "Are you sure?" STR STR

Switch TV off and wait for a few seconds.

Switch TV on again.

Auto setup will begin, stations will be located, sorted and stored ready for use.

Seepage24

Setup menu Teletext Off timer Tuning menu FASTEXT Off Access Select Access TV/AV Exit

1 CH44 Return - 'STR' Select Access TV/AV Exit Store Tuning menu Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID Off Access

Shipping condition All tuning data will be erased STR : Start TV/AV : To exit SETUP : Return to tuning menu

Owner I.D. allows you to enter a security code and address information so that in the unfortunate event of theft it will help the Police to determine the owner.

If the Owner I.D. information was not entered after Auto setup or it is necessary to alter soil information it can be reaccessed via the Tuning menu.

Open the Setup menu SET UP Move to Tuning menu ^ V Access Tuning menu - + Move to Owner I.D. ^ V Access Owner I.D. - + If the Owner I.D. has previously been set, enter the PIN NUMBER (using 0 to 9 on the remote control) followed by STR to proceed, this will take any to the NAME option

If no Owner I.D. has previously been set, enter the required 4 digit 4 5 6 Owner I.D. PIN NUMBER (using 0 to 9 on the remote control).

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details. Press again, to confirm, when asked, "Are you sure?"

The Tuning menu will be displayed.

Press the TV/AV button to exit

- + ^ V - +

Setup menu Teletext FASTEXT Off timer Off Tuning menu Access

1 CH44 Select Access Return - TV/AV Exit 'STR' Button Store Tuning menu Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID off Access

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID PIN NUMBER : 1 2 3 4 NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ABCDEFGHIJKLMNOPQRSTUVWXYZ+-. 0123456789

For future reference, write your PPNN number here :

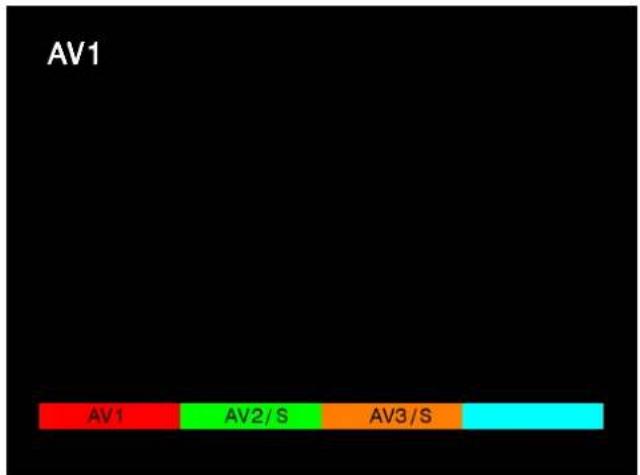

The AV Select menu will allow you to choose which AV source to view

Press the TV/AV button

TV/AV

Press the appropriate coloured remote control button (whilst the options remain on screen)

The options will disappear

You may wish to make adjustments in the Setup or Sound menus

AV1 AV1 AV2/ S AV3/S

Setup menu

Open the Setup menu

SET UP

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

TV/AV

Sound menu

Open the Sound menu

SOUND

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

TV/AV

Setup menu Teletext Off timer Volume correc. FASTEXT Off Select Change TV/AV Exit

Sound menu Volume Bass Treble Balance Mode Ambience Music Off Select Adjust TV/AV Exit

Q-Link allows the television to communicate with a compatible VCR

For Q-Link communication to work, the TV must be connected to a VCR with the "Q-Link", "NEXTVIEWLINK", "DATALOGIC", "Easy Link", "Megalogic" or "SMARTLINK" logo using a 'fully wired' Scart cable between the AV2 socket of the television and the appropriate socket on your VCR.

For connection to the appropriate Scart socket on the VCR, refer to the VCR operating instruction book.

When using anNEXTVIEWLINK" WORthemain features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using a "QLink" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).
• TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  ● VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.

This TV will also communicate with other VCR's that bear the following logos :

• "DATA LOGIC" (a trademark of Metz Corporation).
• "Easy Link" (a trademark of Philips Corporation).
• “Megalogic” (a trademark of Grundig Corporation).
• "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions.

Refer to the VCR operating instruction book.

Preset Download

This allows the programme order from the TV to be downloaded to the VCR, this helps to ensure that correct recordings are made, there are several ways to perform this operation :

1. During installation as explained in the 'Quick Start Guide' beginning on page 6.
2. When Auto setup is started from within the Tuning menu, see page 24.
3. When TV to VCR manual download is started from within 'Programme edit', see page 23.
4. Preset download started from the VCR, refer to the VCR operating instruction book.

Important Note:

Not all VCRs support this type of data communication system. Some may support certain features, but not others. Refer to the VCR operating instruction book.

If Q-Link is inoperative, first confirm that your Scart cable is a full function type. Ask your dealer for further details.

What You See Is What You Record (DIRECT TV RECORDING)

This will allow the immediate recording of the program currently shown on the Television.

DIRECT

TV BEC

Press the DIRECT TV REC button on the remote con

If the VCR is in Standby mode with a useable tape inserted, it will automatically switch on when you press the DIRECT TV REC button.

If a “Q-Link” VCR is connected a message will appear on the TV screen showing what is being recorded, or if it is not possible to record. Some “Q-Link” compatible VCR’s will only display the message when on the VCR programme position(0) or in AV mode. Refer to the VCR operating instruction book.

VCR recording preset prog

Recording this programme now

VCR is recording the programme signal from its you do own tuner. If you wish you can switch off the TV and leave the VCR recording in the normal way.

VCR recording TV source

VCR is recording the programme signal from the television. You must not change programme position or switch off the TV: if you do, the VCR will automatically stop recording and switch off.

No recording TAPE IS PROTECTED

The write protection tab on the back of the cassette has been removed.

Examples of other messages that might be displayed are:

No recording NO TAPE

No recording - VCR IS PLAYING

VCR Recording VCR external

No recording - ALREADY RECORDING!

No recording - TAPE MAY BE DAMAGED

No recording - NO SOURCE AVAILABLE

TV / VCR Auto Power On

(With a Panasonic Q-Link VCR connected, this additional feature is available).

- If you insert a tape in the VCR and press the Play button whilst the TV is in 'Standby' mode, the TV will automatically switch On and select the AV2 input so that you can view the tape.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCR Auto Power Standby

(With a Panasonic Q-Link VCR connected, this additional feature is available).

When the TV is switched into 'Standby' mode, the VCR will also switch into 'Standby' mode if there is no tape in the VCR, or if there is a tape in and the VCR is in 'Rewind' or 'Stop' mode (if the VCR is rewinding a tape, it will not switch into 'Standby' mode until rewinding has finished).

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCR Image View On

(With a Panasonic Q-Link VCR connected, this additional feature is available).

If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCR AND SATELLITE RECEIVER INSTALLATION

Your new TV is supplied with programme position '0' set to receive an RF signal from your VCR, although a Scart connection is preferable if the VCR is so equipped.

However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or sound from your VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of your VCR (some VCR's allow adjustment of their RF channel via their remote control unit) or to adjust the tuning of the TV's programme position '0' or both until it receives the RF output channel of your VCR.

It is intended that this advice is used in conjunction with the instruction books for your additional equipment.

UsetheAV1ScartterminalforaVCR.

Use the AV2S Scart terminal for an S-Video VCR.

Use the AV2S Scart terminal for a Q-Link,VIEWLINK or compatibleVCR.

Illustration of a hand inserting into a CD into a rectangular device (no text or symbols visible)

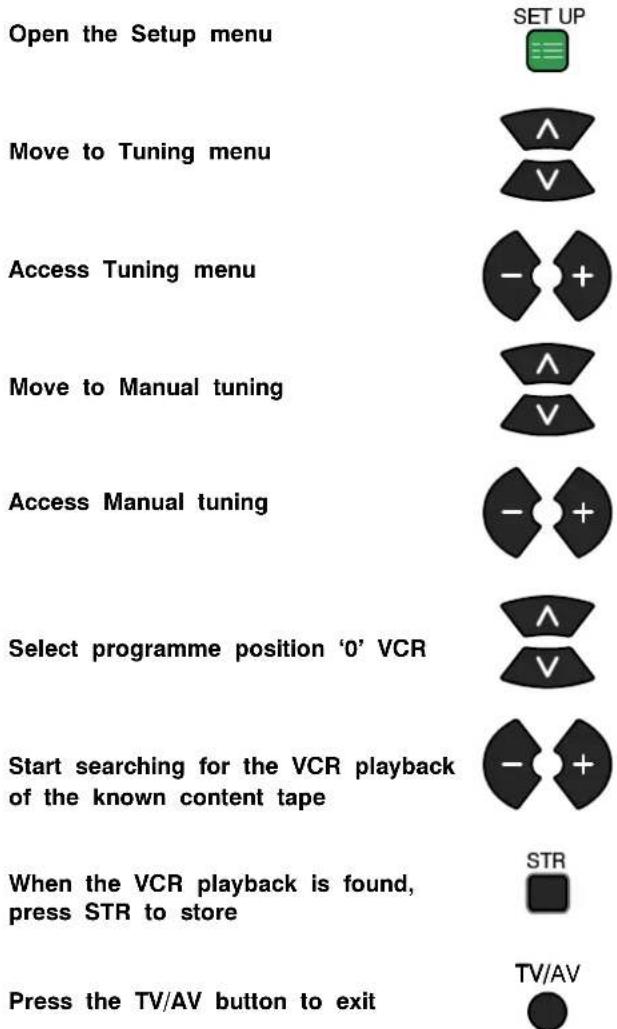

To tune your TV to the VCR

Switch on the VCR, insert and play a prerecorded tape with known content

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Manual tuning Access Manual tuning Select programme position '0' VCR Start searching for the VCR playback of the known content tape When the VCR playback is found, press STR to store Press the TV/AV button to exit SET UP STR TV/AV

See below for installation of VCR Satellite Receiver

Notes :

• If picture patterning occurs on programme position '0' it may be necessary to adjust the RF output channel of the VCR, refer to the VCR instruction book.
• If a Satellite Receiver and a VCR are going to be used with RF cable connections it is important to avoid both units being set on the same channel.

Refer to the Satellite Receiver and VCR instruction books for precise tuning information.

Setup menu Teletext Off timer Tuning menu FASTEXT Off Access Select Access TV/AV Exit

VCR CH32 Return - 'STR' Button Programme down/up Search down/up Exit Store Manual tuning 21 68

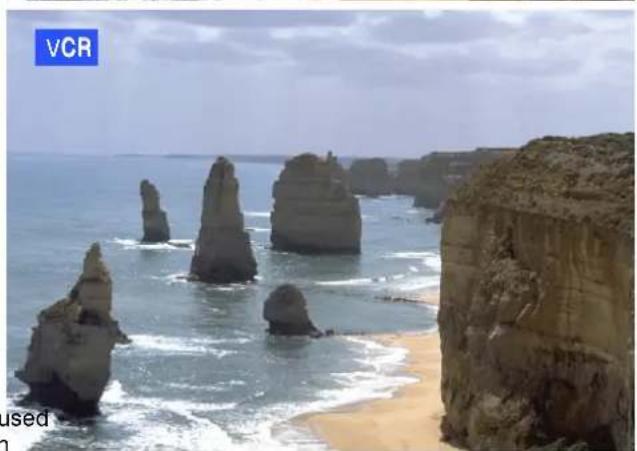

Coastal landscape with layered rock formations and ocean waves under a cloudy sky (no text or symbols visible)

The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment's instruction book or consult your dealer for details.

Panasonic PICTURE SOUND SET UP TV/AV F.P. INDEX HOLD 1 2 3 4 5 6 7 8 9 VCR C 0 ASPECT REC-VCR N PROGRAMME STR HELP ?

	StandbyPress to switch the VCR or DVD to standby mode.Press again to switch back on.
	VCR / DVD switchUse this switch to select whether controls operate DVD equipment or your VCR.
	PlayPress to playback the tape or DVD.
	StopPress to stop the tape or DVD.
	Skip / Fast Forward / CueVCR: Press to fast forward the tape. In Play smode, p to view the picture rapidly forward (Cue).DVD : Press on cet o sk i p to then e x t t r a c k . In p press and hold to view the picture rapidly forward.
	Skip / Rewind / ReviewVCR: Press to rewind the tape. In Play mode, press 1 view the picture rapidly in reverse (Review).DVD : Press on cet o sk i p to the prev i o u s t r a c k . mode press and hold to view the picture rapidly in reverse.
	Pause / StillPress in playback mode, the picture will pause.Press again to restart play.
	Programme Up / DownPress to increase or decrease the VCR programme position by one.
	RecordPress this button to start recording.

TELETEXT OPERATION

• Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext.
• Pressing the Picture button whilst in Teletext operation will display the contrast function with a cyan bar, press ◀ to alter the setting as required.
  Pressing the Setup button whilst in Teletext operation will display special function options at the bottom of the screen.
• When in Teletext mode, the volume may still be altered to the desired listening level.

What is LIST mode?

In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory.

What is FASTEXT?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

TV/TEXT

TV / Teletext mode

Press the TV/TEXT button.

The screen will display the Teletext page.

Press again when you wish to return to TV. mode.

Page Selection

Pages can be selected in two ways :

a. Press the Up / Down buttons to increase or decrease the page number by one. b. By entering the page number, using 0 -9 on the remote control.

Full / Top / Bottom

Press the SET UP button to display special functions, followed by the Green button. Press the Green button again to expand the BOTTOM half. Press again to return to normal (FULL) size.

Reveal

Press the SET UP button to display special functions, followed by the Red button to reveal hidden words e.g. quiz page answers. Press again to hide.

Red / Green / Yellow / Blue buttons

In FASTEXT mode these correspond to the differently coloured subjects. In LIST mode they correspond to the differently coloured page numbers.

List Store

In LIST mode the four page numbers can be altered (programme positions 1 - 25 only).

To do this, press one of the four coloured buttons and enter the new Press and hold STR, the page numbers will change to white indicating that the page is stored.

Hold

To hold the Teletext page when viewing multi-page information.

Press again to return to automatic page update.

TELETEXT OPERATION

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

Favourite Page (F.P.)

Stores a favourite page in memory for instant recall. To store such a page, the TV must be in LIST mode, and the programme position must be from 1 - 25.

Press the Blue button, select the page number, then press and hold the STR button.

The page number is now stored.

Press F. P. to recall this page.

Update Display

Press the SET UP button to display special functions, followed by the Yellow button to view the TV picture whilst searching for a Teletext page.

When found, the screen will display the page number at the top left.

Press the Yellow button to view the page.

Press TV/TEXT again to return to normal TV operation.

News Flash

When a news flash page has been selected, press SET UP, Yellow, to view the TV picture. When an update is received, the page number will be displayed on screen.

Press the Yellow button to display the News Flash

Press TV/TEXT to return to normal TV. operation.

Update

Press SET UP, Yellow to see the update of information on certain pages.

When an update is received, the page number will be displayed at the top left of the screen.

Press the Yellow button to view the page.

Press TV/TEXT to return to normal TV. operation.

Sub Coded Page Access

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require.

It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found.

Select the required page number using buttons 0 9.

Press the SET UP button followed by the Blue button; T**** will be displayed at the top right of the screen.

Enter desired sub page number before the T**** disappears.

To select page 6 enter 0, 0, 0 and 6.

(If in LIST mode, a 'T' will appear in the current box at the bottom).

Press the Yellow button to view a normal TV programme. (Press SET UP, Yellow in LIST mode).

When the page is available, press the Yellow button to view the page.

To clear the page perform one of the following :

- Press SET UP.

- Select a new page number.

- Press TV/TEXT to return to normal TV operation.

Index

When in FASTEXT operation

Press INDEX to return to the main index page.

Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Front A/3 R C A A u d i V i d e o and Headphone sokets

AV 3 S-V V L R

Press and release to open

Output from Headphone socket 3.5mm Stereo Plug STEREO HEADPHONES with 3.5mm Plug Video input to S-V S---Video socket S-V Video input to V socket V L - R RCA Video Cable CAMCORDER Audio inputtdo L / R sockets 2 x R CA Audio Cables Note : Additional equipment and cables shown are not supplied with this TV set.

Note :
Additional equipment and cables shown are not supplied with this TV set.

■ Scart and S-Video socket information

AV1 Scart socket

Socket Earth	21-	□	-20	CVBS in (video)
CVBS out (video)	19-	□	-18	RGB status earth
CVBS earth	17-	□	-16	Status RGB
Red in	15-	□	-14	Earth
Red earth	13-	□	-12	--
Green in	11-	□	-10	--
Green earth	9-	□	-8	Status CVBS
Blue in	7-	□	-6	Audio in (L)
Blue earth	5-	□	-4	Audio earth
Audio out (L)	3-	□	-2	Audio in (R)
Audio out (R)	1-	□

Suitable inputs for AV1 include RGB (Red/Green/Blue).

AV2 Scart socket (S-Video, Q-Link)

Socket Earth	21-	□	□	-20	CVBS in (video)
CVBS out (video)	19-	□	□	-18	Earth
CVBS earth	17-	□	□	-16	--
S.C. - In	15-	□	□	-14	Earth
Earth	13-	□	□	-12	--
--	11-	□	□	-10	Q-Link data
Earth	9-	□	□	-8	Status CVBS
--	7-	□	□	-6	Audio in (L)
Earth	5-	□	□	-4	Audio earth
Audio out (L)	3-	□	□	-2	Audio in (R)
Audio out (R)	1-	□	□

AV2 Pins 15 and 20 are dependent on AV2 S-WHS / V/IEC Gwaltiching.

S-Wideo 4 points socket

Chrominance in	Luminance in
Chrominance earth	Luminance earth

Rear AV1/AV2(S)22 PiPbScandarRCARQAliAolibteOntinelsminals

Notes:
Additional equipment and cables shown are not supplied with this TV set. Do not connect a computer with TTL output (5V) to this set.

Symptoms			Checks
Picture Sound
			Aerial location, direction or connection
	Snowy Picture	Noisy Sound
			Aerial location, direction or connection
	Multiple Images	Normal Sound
			Electrical appliances Cars / Motorcycles Fluorescent lights Switch on P---NR in Picture menu to reduce pictu noise.
	Interference	Noisy Sound
			Volume level Sound mute switched on
	Normal Picture	No Sound
			TV set to AV mode Not plugged into A.C. outlet Not switched on Picture / Sound controls set at minimum level Check if in standby mode
	No Picture	No Sound
			Colour controls set at minimum levels
	No Colour	Normal Sound
			Retune Channel(s)
	Poor or Distorted Picture	Weak or No Sound
			Magnetic Interference from unshielded equipment Receiver moved while switched ON, switch TV 30 minutes. If picture is also tilted, use Geomagnetic Correctic feature (see Quick Start Guide, page 11)
	Coloured Patches	Normal Sound
			Sound reception may have deteriorated. Switch NICAM setting (Sound menu) to Off ur reception improves.
	Normal Picture	Weak or distorted sound

■Service

Before requesting service, please refer to the troubleshooting Certain functions have a last position memory, i.e. the setting at guide on previous page to determine the symptoms. To obtain the time of switch-off will be the setting used when the receiver is service please contact your local Panasonic dealer quoting the switched on again:-

model number and serial number (both are located at the rear of the TV).

■TV Games / Home Computers

ExtendeduseofTVgamesorhomecomputerswith anytelevision set can cause a permanent 'shadow' on the screen. This irreversiblepicturetube damage,can belimitedby observingthe following points:

- Reduce the brightness and contrast levels to a minimum viewing level.

- Donotoperatethetelevisionsetfora continuousperiodof time while using TV games or home computers.

- This type of picture tube damage, is not an operating defect, and as such is not covered by the Panasonic warranty.

■Last Position Memory

Programme	Tint (M.NTSC / NTSC only)
Mode	Volume correction (in AV mode only)
AV Position	Contrast
Volume	Sharpness
NICAM	Aspect mode
Bass	Standby
Treble	Artificial Intelligence (AI)
Balance	Colour
Colour Balance	Brightness
Status	PNR
Teletext mode	Decoder (AV2)
Ambience	Geomagnetic correction

■Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV is in AV mode.

SPECIFICATIONS

		TX-28PK3
Power Source		220 - 240V 50Hz A.C.
Power Consumption		98W
Standby Consumption		1.4W
Picture TubeVisible Diagonal		66 cm
Audio OutputMusic Power		Front Left / Right 15W x 2, 8Ω impedance
Dimensions	HWD	497 mm718 mm523 mm
Weight (Kg)		42
Receiving Systems/ Band name		PAL I PAL 525/60 M.NTSC NTSC (AV input only) UHF E21-68Playback of NTSC tape from some PAL Video recorders (VCR)Playback from M.NTSC Videorecorders (VCR)Playback from NTSC Videorecorders (VCR)
Aerial - Rear		UHF
Headphones - Front		3,5mm, 8Ω impedance
AV - Rear		AV1 - 21 pin terminal - Audio / Video in / out, RGB in.AV2 - 21 pin terminal - Audio / Video in/out, S-Video in, Q-Link2 x RCA Audio Monitor Out
AV - Front		AV3 - S-Video in, 2 x RCA Audio in, 1 x RCA Video in

Specifications are subject to change without notice. Weight and dimensions shown are approximate.
