NAVODILA ZA UPORABO TX-25MK1 PANASONIC

Panasonic

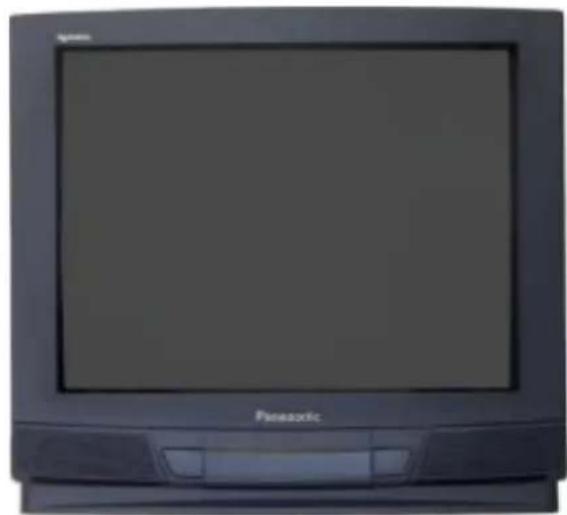

Front view of a Panasonic CRT television displaying its blank screen (no visible text or symbols on the screen body)

TX---28MK1/M

TX---21MK1/M

ColourTelevision

(U.K.Standard)

DIGITAL

8-BIT

Technology

Quintrix

Operating Instructions

WELCOME

DearPanasonicCustomer,

WelcometothePanasonicfamilyofcustomers.Wehopethatyouhavemanyyearsofenjoymentfromyour newcolourtelevision.Thisisaveryadvancedtelevision;however,theQuickStartGuidewillallowyoutouse theTVasquicklyaspossible.Youcanthenreadtheinstructionscompletelyandretainthemforfuture reference.

CONTENTS

Warnings and Precautions 3

Accessories 4

Inserting the Remote Control Batteries 4

Basic Controls 5

Quick Start Guide 6

Using the On Screen Displays 11

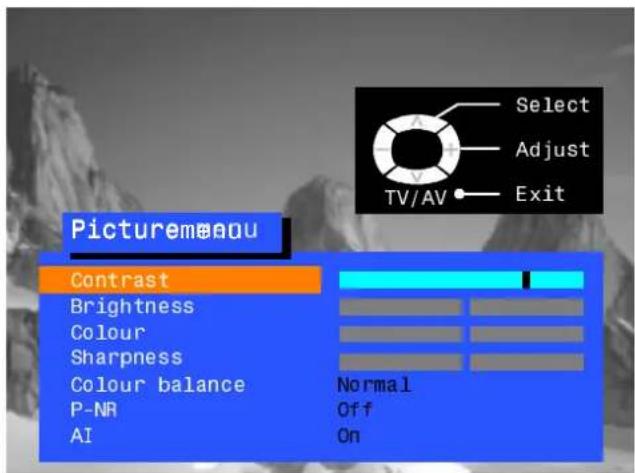

Picture Menu 12

Sound Menu 13

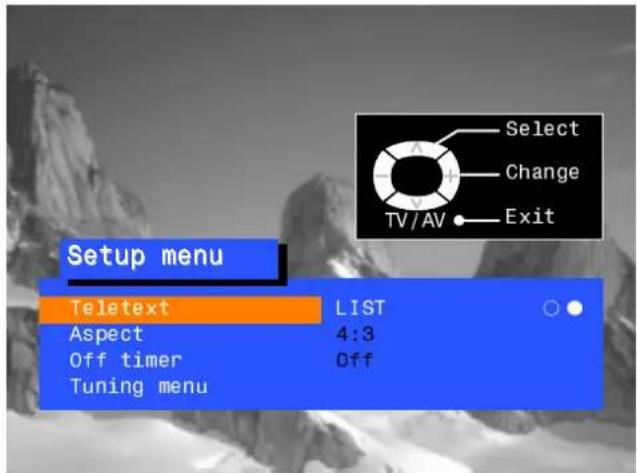

Setup Menu 14

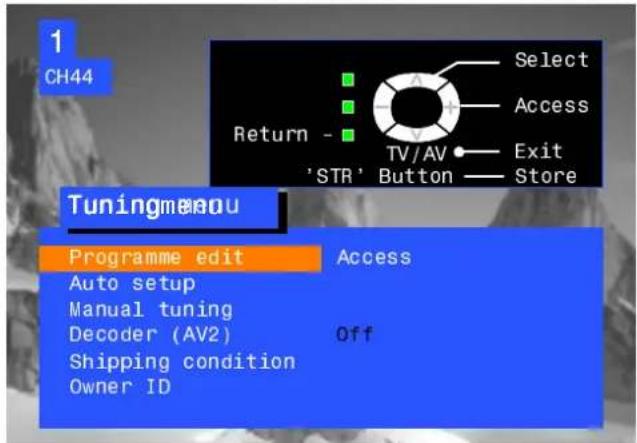

Tuning Menu - overview 15

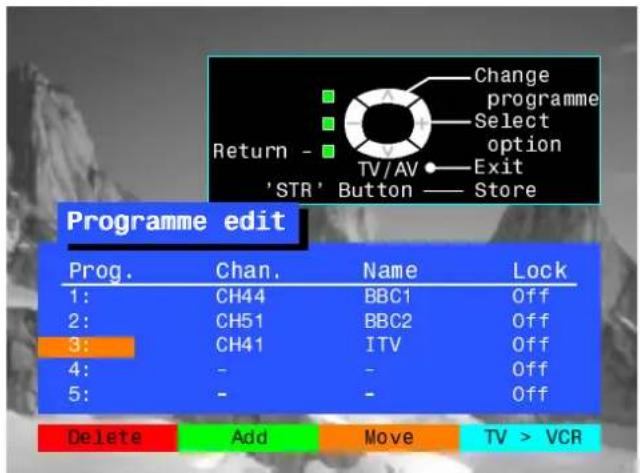

Tuning Menu - Programme edit 16

Tuning Menu - Auto setup 20

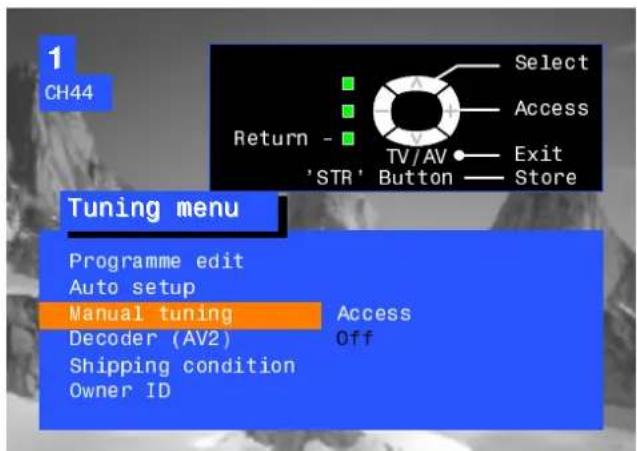

Tuning Menu - Manual tuning 21

Tuning Menu - Shipping condition 22

Tuning Menu - Owner ID 23

AV Select and Setup 24

Q-Link 25

VCR and Satellite Receiver Installation 27

VCR/DVD Operation 28

Teletext Operation 29

Audio / Video (AV) Connections 31

Via the front AV3 Audio / Video (RCA) and Headphone Sockets 31

Scart and S-Video Terminal Information .... 31

Via the rear AV1 / AV2 21 Pin (Scart) and RCA Audio Out terminals 32

Trouble-shooting 33

For your guidance 34

Specifications 34

WARNINGS AND PRECAUTIONS

• This TV set is designed to operate on 220 - 240V, 50Hz A.C.
• To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or excessive moisture.
  • WARNING : HIGH VOLTAGE !!!
  Do not remove the rear cover as live parts are accessible when it is removed. There are no user serviceable parts inside.
• Avoid exposing the TV set to direct sunlight and other sources of heat.
• The On/Off switch on this model does not fully disconnect the TV from the mains supply. Remove the mains plug from the wall socket when the TV set is not used for a prolonged period of time.

• CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.

- Adequate ventilation is essential to prevent failure of electrical components, we recommend that a gap of at least 5cm is left all around this television receiver even when it is placed inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS 1362.

Check for the ASTA mark

or the BSI mark

on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13 amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

How to replace the fuse (for plug type shown in example 1):

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (See example 1).

How to replace the fuse (for plug type shown in example 2):

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely. (See example 2).

Example 1.

Illustration of a black electrical plug with a lever and two orange buttons (no text or symbols)

Example 2.

Illustration of a black electrical plug with two orange connectors and a connector pin (no text or symbols)

IMPORTANT: The wires in the mains lead of this appliance are coloured in accordance with the following code:

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :-

1. The BLUE wire must be connected to the terminal marked 'N' or coloured black.
2. The BROWN wire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE: Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol.

ACCESSORIES

Check that you have the successes and the charts shown

Operating Instruction book TQB8E2704

Remote Control Transmitter EUR511200

Batteries for the Remote Control Transmitter. (2 x R6 (UM3) size)

Panasonic TX-28MK1/M TX-21MK1/M User Guide

Illustration of a remote control device with black keypad and gray handle (no text or symbols)

CRT Guarantee

TV Stand TS-2800 or TS-2800S (Assembly Instructions are included in stand packaging)

TV Guarantee

3D rendering of a mechanical component with a base and top plate (no text or symbols)

Questionnaire

INSERTING THE BMOO CONTROLABABIES

123

Slide off the battery cover

Quosetized Panasonic Quosetized Panasonic 2

Insert batteries - note correct polarity (+ and -)

Ollosefül Renasoni

Replace the cover

Notes:

• Make sure that the batteries are fitted the correct way round.
• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
• Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni-Cad) batteries.

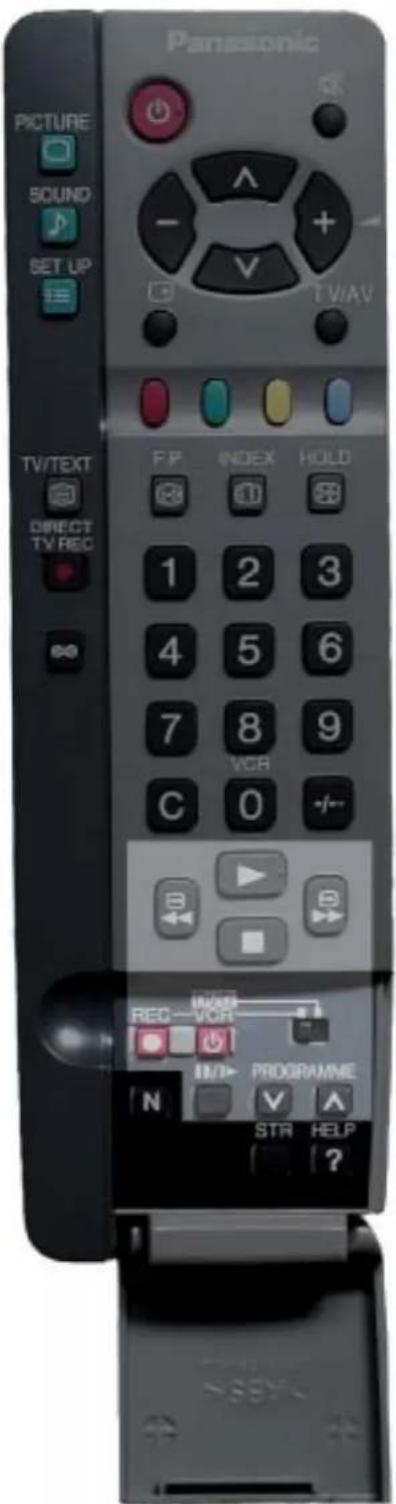

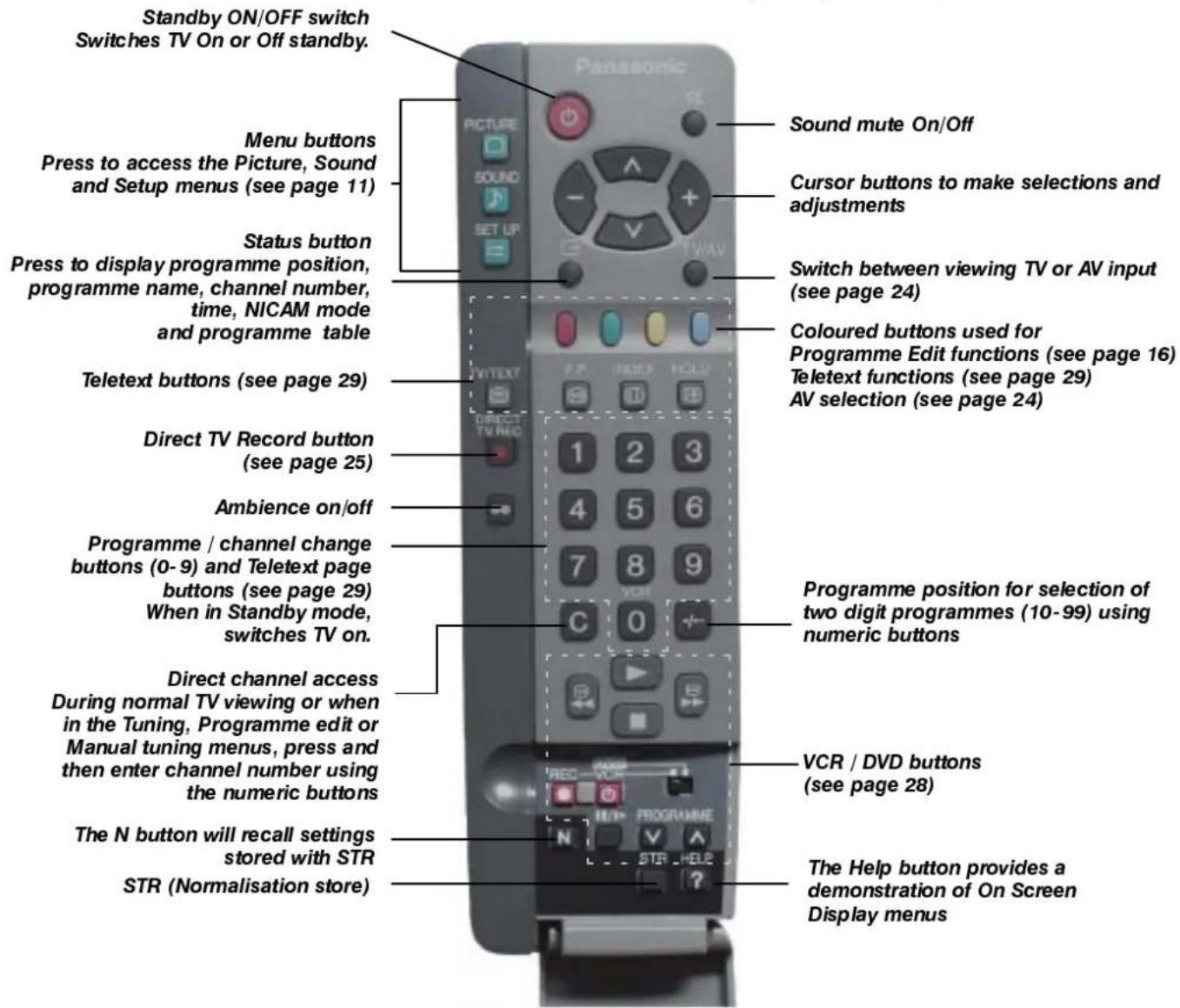

BASICCONTROLS : FRONTPANNELANDR BEMODECONTROL

Press here and open flap to expose TV controls, front AV3 and headphone terminals MAINS Power On/Off switch STR (Normalisation store) Used to store tuning and other function settings F (Function select) Displays the On Screen Display functions, use repeatedly to select from the available functions - Volume, Contrast, Brightness, Colour, Sharpness, Tint (in NTSC mode), Bass, Treble, Balance, and Tuning mode. Press and hold for 5 seconds to display the Owner ID information. Red light indicates Standby mode. Use Standby switch, -, +(Front Panel) or 0-9 buttons to switch TV On Headphone socket (see page 31) RCA Audio/Video sockets (page 31) TV/AV switch (see page 24) Increases or decreases the programme position by one. When a function is already displayed, press to increase or decrease the selected function. When in Standby mode, switches TV On.

Standby ON/OFF switch Switches TV On or Off standby. Menu buttons Press to access the Picture, Sound and Setup menus (see page 11) Status button Press to display programme position, programme name, channel number, time, NICAM mode and programme table Teletext buttons (see page 29) Direct TV Record button (see page 25) Ambience on/off Programme / channel change buttons (0-9) and Teletext page buttons (see page 29) When in Standby mode, switches TV on. Direct channel access During normal TV viewing or when in the Tuning, Programme edit or Manual tuning menus, press and then enter channel number using the numeric buttons The N button will recall settings stored with STR STR (Normalisation store) Sound mute On/Off Cursor buttons to make selections and adjustments Switch between viewing TV or AV input (see page 24) Coloured buttons used for Programme Edit functions (see page 16) Teletext functions (see page 29) AV selection (see page 24) Programme position for selection of two digit programmes (10-99) using numeric buttons VCR / DVD buttons (see page 28) The Help button provides a demonstration of On Screen Display menus

QUICKSSTARTGGJUDEE

Connectionandsettingupoptions

1. If connecting the TV using an RF cable only, proceed to option 1.
2. If connecting the TV using Scart and RF cables, proceed to option 2.
3. If connecting the TV to a Q-Link (or Q-Link compatible) VCR, proceed to option 3 on page 7.
4. If connecting the TV to a Q-Link (or Q-Link compatible) VCR and a Satellite Receiver, proceed to option 4 on page 8.

1. Connection of ToUsings in Farable cable only

RF Connection

- Connect the RF cable into the TV Aerial socket ( 7Γ ).

ct the RF cable into the TV Aerial socket ( 7Γ ) . Mains Socket Aerial Input socket

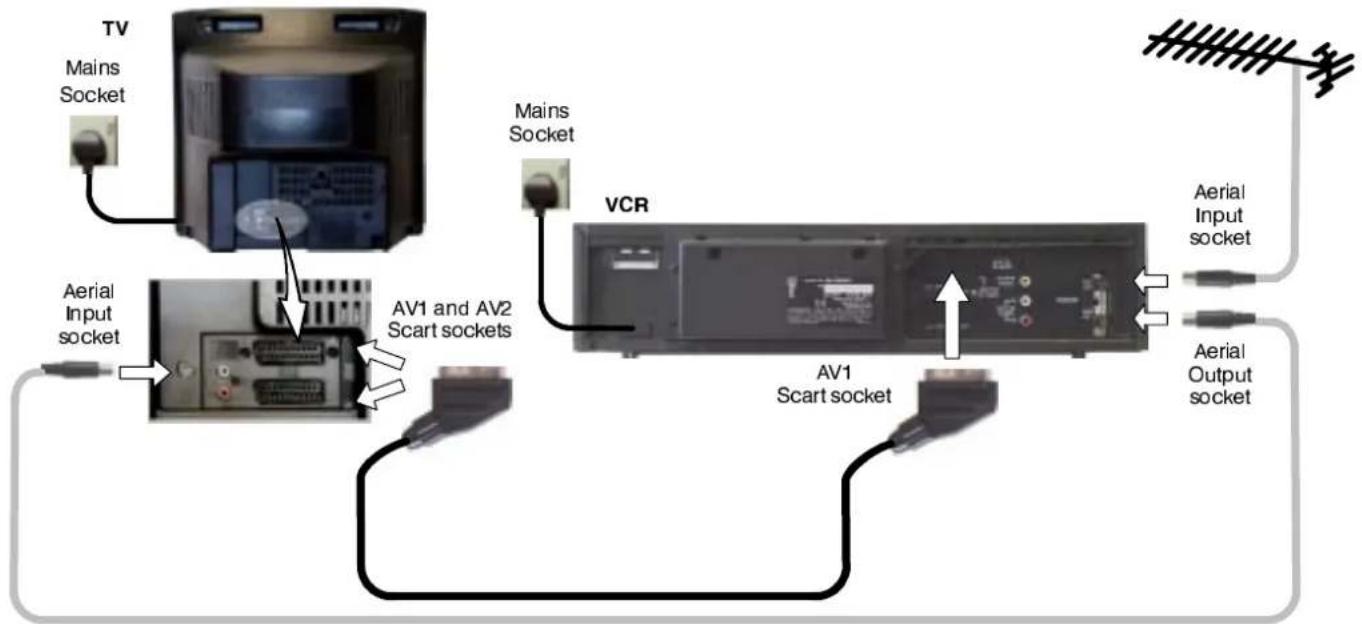

2. Connection TV and VCG using Sagiagand RFables cables

Scart Connections

• The VCR can also be connected to the TV using a Scart cable if you are using a Scart equipped VCR.
• Use the TV's AV1 Scart socket for a VCR.
• Use the TV's AV2S Scart socket for an S-Video VCR.

RF Connection

- Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket ( 7F ).

TV Mains Socket Aerial Input socket Mains Socket VCR AV1 and AV2 Scart sockets Aerial Input socket AV1 Scart socket Aerial Output socket

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/Video connections can be found on pages 31 and 32.

QUICKSSTARTGGUDIEE

WhatisQLink?

Q-Link allows direct communication between the TV and a Q-Link (or Q-Link compatible) VCR, this will enable features such as downloading of tuning information from the TV to the VCR.

When using a "NEXTVIEWLINK" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using a "QLink" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).
  • TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  • VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view On - If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

This TV will also communicate with other VCR's that bear the following logo's :

• "DATA LOGIC" (a trademark of Metz Corporation).
- "Easy Link" (a trademark of Philips Corporation).
• "Megalogic" (a trademark of Grundig Corporation).
- "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions. Refer to the VCR operating instruction book.

Further information on Q-Link can be found on page 25.

In order for Q-Link to function correctly, the Scart cables must be connected in a certain way, dependent on whether the TV is being connected to a VCR (option 3, below) or to a VCR and Satellite Receiver (option 4, overleaf).

3. Q-Link connection of TV and VCR using Scart and RF cables

Scart Connection

- The VCR must be connected to the AV2 Scart socket of this TV using a "fully wired" Scart cable.

Note :

If using a "Q-Link" VCR then the AV1 Scart of the VCR must be connected to the AV2 socket of the TV. If your VCR is not a "Q-Link" VCR, please consult your VCR operating instruction book.

RF Connection

- Connect the RF cable to the Aerial In socket of the VCR and an RF cable from the VCR Aerial Out socket to the TV Aerial socket ( 7Γ ).

TV Mains Socket Aerial Input socket Mains Socket VCR AV2 Scart socket AV1 Scart socket Aerial Input socket Aerial Output socket

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/Video connections can be found on pages 31 and 32.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 27.

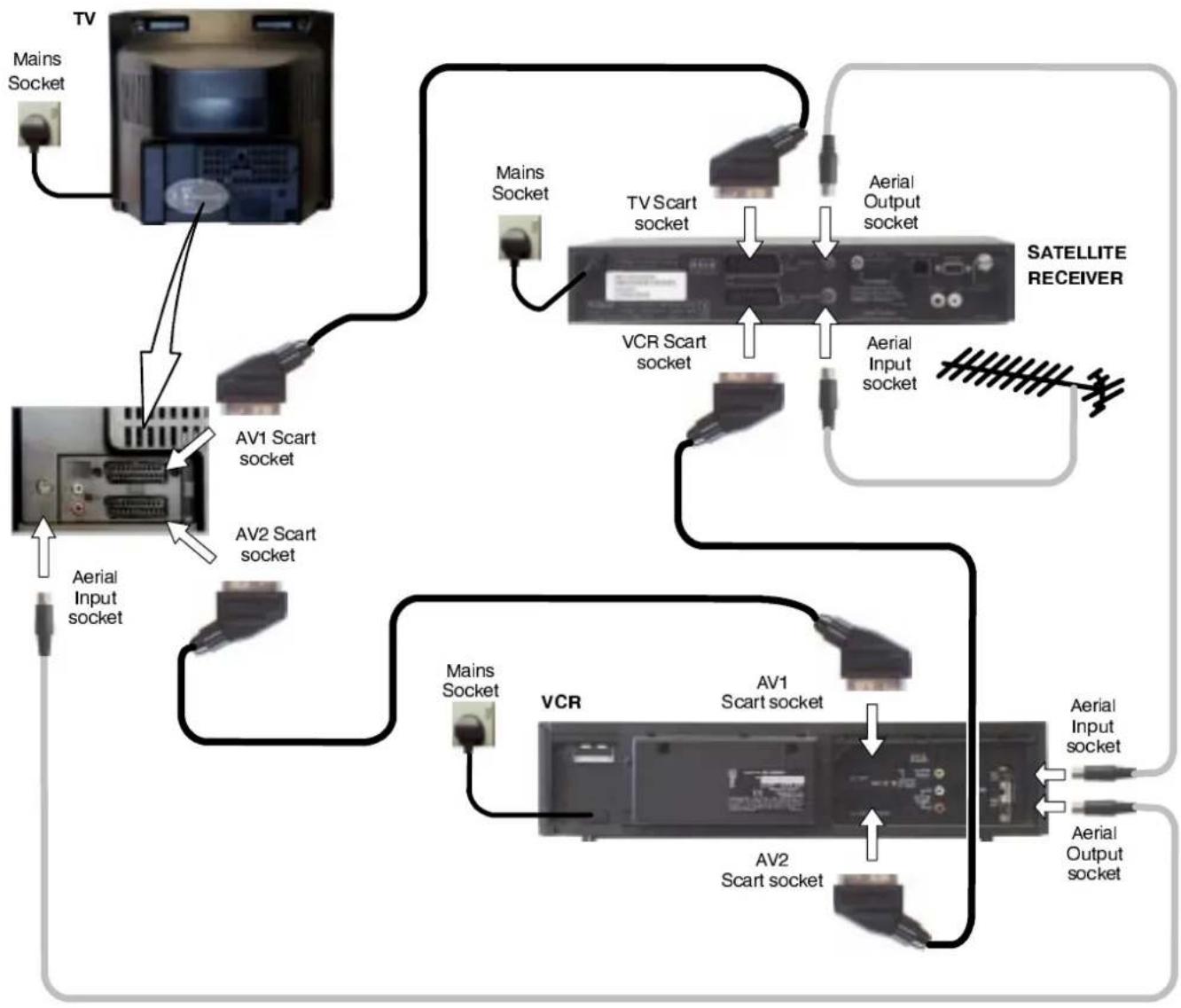

4. Q-Link connection of TV, VCR and Satellite Receiver using Scart and RF cables

For Q-Link to function correctly the TV, VCR and Satellite Receiver must be connected as shown in the diagram below.

Scart Connections

"Fully wired" Scart cables should be used for all of the Scart connections.

• The AV2 Scart of the VCR must be connected to the VCR socket of the Satellite Receiver.
• The TV Scart socket of the Satellite Receiver must be connected to the AV1 Scart socket of the TV.

Note :

If using a "Q-Link" VCR then the AV1 Scart of the VCR must be connected to the AV2 socket of the TV. If your VCR is not a "Q-Link" VCR, please consult your VCR operating instruction book.

RF Connections

• Connect an RF cable to the Aerial In socket of the Satellite Receiver.
• Connect an RF cable from the RF Out socket of the Satellite Receiver to the RF In socket of the VCR.
• Connect an RF cable from the RF Out socket of the VCR to the TV Aerial In socket ( 7F ).

Notes :

Additional equipment and cables are not supplied.

Further details of Audio/Video connections can be found on pages 31 and 32.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 27.

QUICKSSTAFFRIGGUDEE

1

Ensure that the VCR is in Standby mode.

Switch ON your Satellite Receiver; to ensure reliable tuning select either SKY ONE or SKY NEWS.

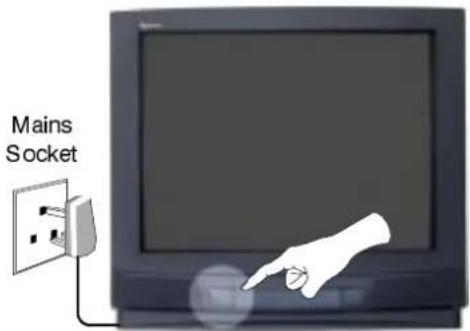

Plug the TV into mains socket and switch ON.

Mains Socket

2

Programmes will appear immediately if your dealer has programmed the TV for you.

If the TV has not been programmed for you then Auto setup will begin. TV stations will be located, sorted into order and stored ready for use.

CH44 AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT Stored CH44 BBC1 21 68 TV / AV : To exit

3

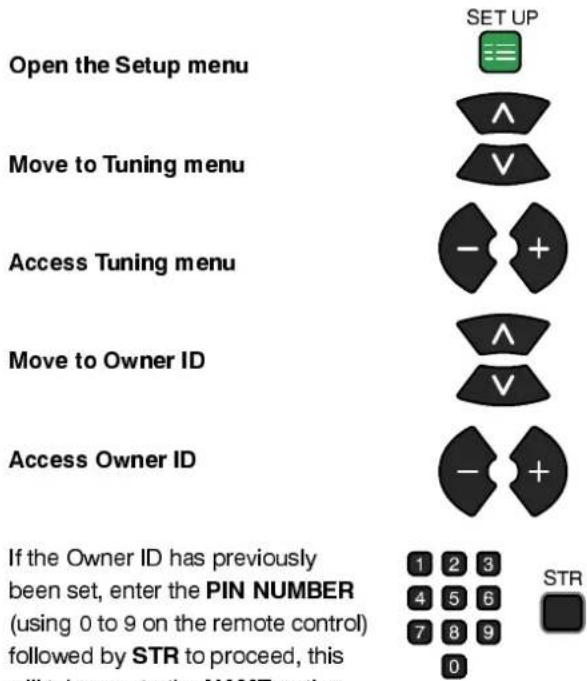

Owner ID

As an added feature, this TV has the option of adding a security code(Owner ID) and personal details into its memory, so that in the unfortunate event of theft it will help the Police to trace the owner.

Enter required 4 digit Owner ID

PIN NUMBER.

(using 0 to 9 on the remote control).

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID OwnerIDD PIN NUMBER : ★ ★ ★ ★ NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ 0123456789

4

Enter NAME, HOUSE NUMBER and POSTCODE.

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details.

Press STR again, when you are asked "Are you sure?"

- + ^ V - +

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID OwnerIDD PIN NUMBER : 1 2 3 4 NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ABCDEFGHIJKLMNOPQRSTUVWXYZ+-. 0123456789

For further information on Owner ID, see page 23.

A space is provided on page 23 to write down the PIN NUMBER for future reference.

QUICKSSTARTGGJUDEE

5

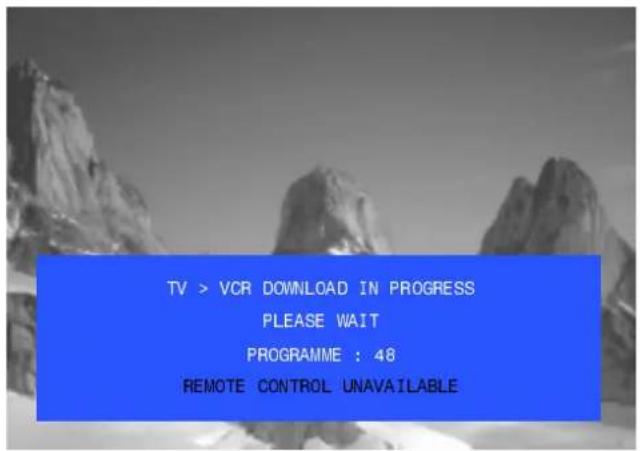

TV to VCR Download

If a "Q-Link", "NEXTMEWLINK" or compatible VCR has been connected to the AV2 socket before starting Step 1, programme information will be downloaded to the VCR.

Downloaded tuning information will match the television's.

Not all VCRs support this download of programme information, some may require to be started manually.

Refer to the VCR operating instruction book.

If a VCR other than those described above has been connected, then there will be no download operation, the TV is now ready for use: -

TV > VCR DOWNLOAD IN PROGRESS PLEASE WAIT PROGRAMME : 48 REMOTE CONTROL UNAVAILABLE

REAA DTOTCODG.O...

Adjust Volume

Change Programme Position

Snow-covered mountain range with visible peaks and a blue label 'BBC1' in the top-left corner (no other text or symbols)

Notes :

If the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR's menu system. Refer to the VCR operating instruction book.

If Q-Link is not operating correctly, check the following :

• The Scart cable is connected to the TV's AV2 Scart socket.
• The Scart cable is connected to the VCR's compatible (Q-Link, NEXTVIEWLINK or similar technology) Scart socket.
• The Scart cable is a "fully wired" type.

For further information on Q-Link and connecting equipment, see pages 25, 31 and 32.

- The sorted programme order depends upon the TV signal, the broadcasting system, and reception conditions. If the order is not to your preference it can be rearranged. Refer to the Programme edit menu - see page 16 for details.

Prog. Position	All channels	No CH5	No CH5 / S4C	No CH4 / CH5	No S4C	No CH4 / S4C	No CH4 / S4C / CH5
1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1
2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2
3	ITV	ITV	ITV	ITV	ITV	ITV	ITV
4	CH4	CH4	CH4	S4C	CH4	CH5	SAT
5	S4C	S4C	SAT	SAT	CH5	SAT
6	CH5	SAT			SAT
7	SAT
Note :The next available channel will appear, if no other stations are available then the Programme position will remain unused.

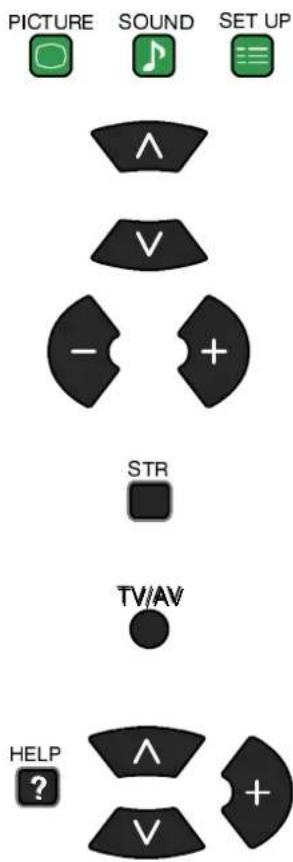

USINGTHECONSSGBRENDISPLAYS

ThisTVhasacomprehensivesystemofOnScreenDisplaymenustoaccess adjustmentsandoptions

Menu Title Sub-menus Selection bar Picturemenu Contrast Brightness Colour Sharpness Colour balance P-NR AI Normal Off On Select Change TV/AV Exit Instructions Indicator for options

Some selections, for example, Contrast, Brightness, Colour and Sharpness will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a change of setting to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE, SOUND and SET UP buttons are used to open the main menus and also to return to the previous menu.

The up and down cursor buttons are used to move the cursor up and down the menus.

The left and right cursor buttons are used to access menus, adjust levels or to select from a range of options.

The STR button is used to store settings after adjustments have been made or options have been set.

The TV/AV button is used to exit the menu system and return to the normal viewing screen.

The HELP button will run a demonstration of the menus available. Press the HELP button and select one of the options.

If the HELP button is pressed while a menu is displayed, the 'Instructions' box will be hidden from view. Press the HELP button again to show the 'Instructions' box.

Panasonic PICTURE SOUND SET UP TV/TEXT DIRECT TV/RES N RED VOR N PROGAMINE V STR HELP ?

PICTUREMENW

Open the Picture menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Picture menu


Picturemonou Contrast Brightness Colour Sharpness Colour balance P-NR AI Select Adjust Exit Normal Off On

Contrast

Brightness

Colour

Sharpness

Tint

The Contrast, Brightness, Colour and Sharpness levels can be adjusted to suit your own preferences.

The Tint adjustment will only appear as a menu item if you have an NTSC signal source connected to the TV and will allow adjustment of the hue.

Picturemeou Contrast Brightness Colour Sharpness Colour balance P-NR AI Select Adjust Exit Normal Off On

Colourbalance

The Colour balance setting allows you to set the overall colour tone of the picture.

PARR

P-NR will automatically reduce unwanted picture noise.

AI automatically analyses the incoming picture and processes it to give improved contrast and optimum depth of field.

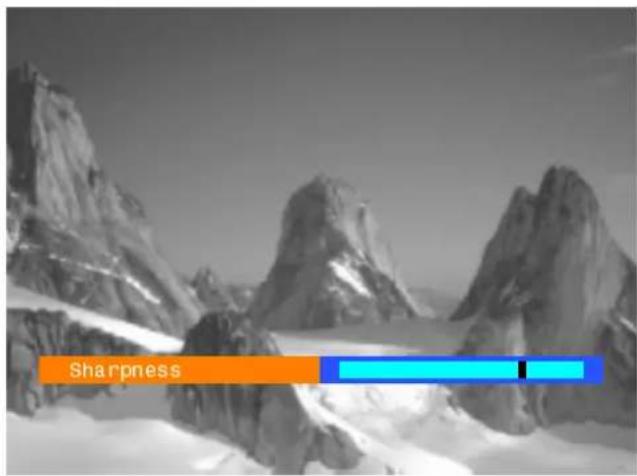

Sharpness

Open the Sound menu

Move to your choice

Increase or decrease levels or set options

Press the TV/AV button to exit the Sound menu

SOUND

TV/AV

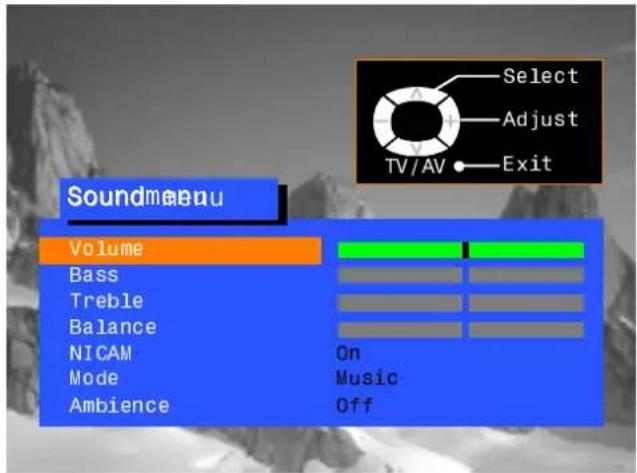

Soundmeau Volume Bass Treble Balance NICAM Mode Ambience Select Adjust TV/AV Exit

Volume

Bass

The Volume adjustment sets the overall output volume.

Bass adjustment will emphasise the lower, deeper frequencies and can be increased or decreased.

Treble

Treble adjustment will emphasise the sharper, higher frequencies and can be increased or decreased.

Balance

Balance affects the levels of sound between the left and right speakers. Adjustment can be made so that the level from the speakers will suit your listening position.

NICAM

Select On to provide stereo sound reproduction. Select Off for FM Mono sound output.

If Nicam Mono is being transmitted select either FM Mono (Off), Nicam Mono I (M1) or Nicam Mono II (M2). The options depend upon the signal being transmitted. If reception deteriorates it is advisable to switch to FM Mono (Off).

When Nicam transmissions are not being received the sound will be FM Mono (Off) only.

Mode

The sound can be improved during Music or Speech mode by selecting the appropriate function.

Ambience

Ambience provides a dynamic enhancer to simulate improved spatial effects.

Soundmenu Volume Bass Treble Balance NICAM Mode Ambience Select Change TV/AV Exit On Music Off

Soundmenu Volume Bass Treble Balance NICAM Mode Ambience Off Music Off Select Change TV/AV Exit

SETUP MENU

TheSetupmenuprovidesaccesstovariousadvancedfeaturesandalsototheTuningmenu

Open the Setup menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit the Setup menu

SET UP

TV/AV

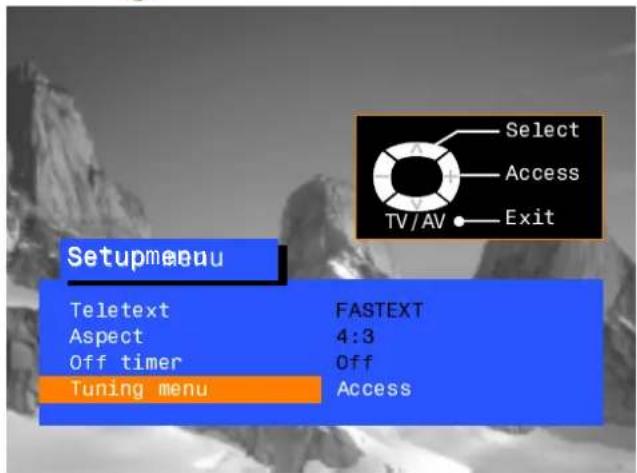

Setup menu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu

Teletext

The Teletext option allows you to choose between FASTEXT or LIST mode.

See page 29.

Aspect

Aspect allows you to view widescreen programme material with the correct aspect ratio (16:9).

Offtimeer

Off timer will switch the TV off within a preset time which you can choose from between 0 to 90 minutes in 15 minute intervals.

Tuningmeou

The Tuning menu provides an entry to many other features including Programme edit and Auto setup.

See page 15.

Volume correction (in AV mode only) allows you to adjust the volume level of individual stations.

Setup menu Teletext LIST Aspect 4:3 Off timer Off Tuning menu

Setup menu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to your choice

Increase or decrease levels, set options or access further menus

Press the TV/AV button to exit

SET UP

TV/AV

Programme edit

Accessing the Programme edit menu will allow stations to be moved, added, deleted, named or locked. See page 16.

Auto setup

The Auto setup menu allows you to automatically retune the TV. See page 20.

Manual tuning

The Manual tuning menu allows individual programme positions to be tuned manually. See page 21.

Decoder(AV2)

This option is used when a decoder is connected via AV2. Set to On if a scrambled signal is to be processed by the decoder. Set to Off after use.

Shipping condition

Allows you to clear all tuning information and reset all control levels back to factory settings. See page 22.

Owner ID

Allows you to enter a security code and address information. See page 23.

Setup menu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu

Setup menu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access

1

CH44

Select Access Return - TV/AV Exit Store 'STR' Button

Tuning menu

Programme edit

Auto setup

Manual tuning

Decoder (AV2)

Shipping condition

Owner ID

Off

TUNINGMENUPROGRAMMEEDEDIT

TheProgrammeeditmenuallowsyoutoedittheprogrammepositionsettings

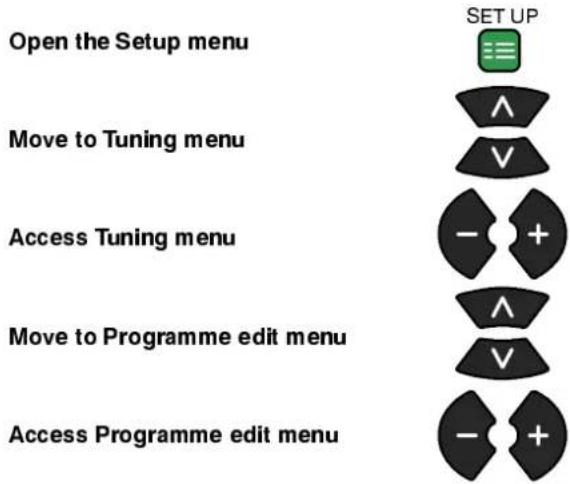


Make required changes (see sections below)

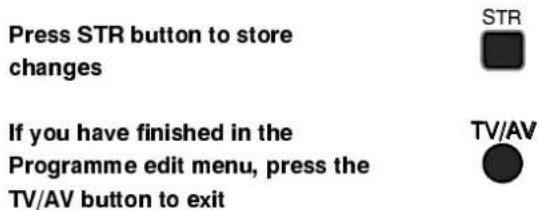

Press STR button to store changes STR If you have finished in the Programme edit menu, press the TV/AV button to exit TV/AV

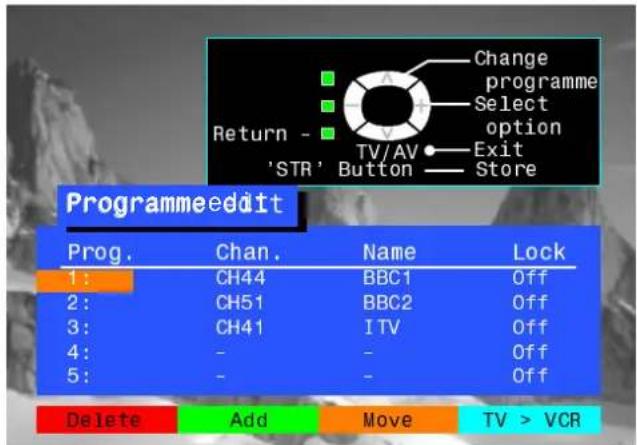

To delete an unvarated programpe position

Ensure that the cursor is in the Prog. Column

Choose the programme position

Press the Red button on remote control

Press the Red button again to confirm

If you have finished in the Programme edit menu, press the TV/AV button to exit

Setupmenu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu

Setupmeau Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access

1 CH44 Select Access Return - TV/AV Exit 'STR' Button Store Tuningmenu Programme edit Access Auto setup Manual tuning Decoder (AV2) Off Shipping condition Owner ID

Change programme Select option Return - 'STR' Button Exit Store Programmeedit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

TUNINGMENUPROGRAMMEEDEDIT

Toaddaprogrammeposition

Choose the programme position where the new programme is to be inserted

Press the Green button

Press the Green button again to confirm

This blank programme can then be tuned (see page 21), named (see page 18) or locked (see page 19).

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

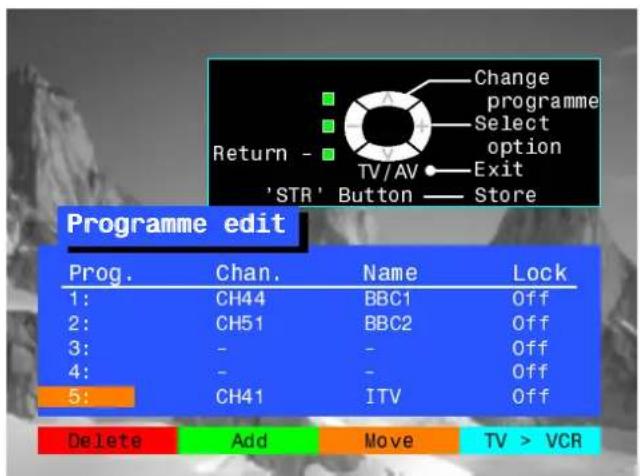

To move a programme to another sposition

Choose the programme position to be moved

Press the Yellow button on remote control

Choose new position

Press the Yellow button again to confirm

If you have finished in the Programme edit menu, press the TV/AV button to exit

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: CH41 ITV Off 4: - - Off 5: - - Off Delete Add Move TV > VCR

Change programme Select option Return - TV/AV Exit 'STR' Button Store Programme edit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: - - Off 5: CH41 ITV Off Delete Add Move TV > VCR

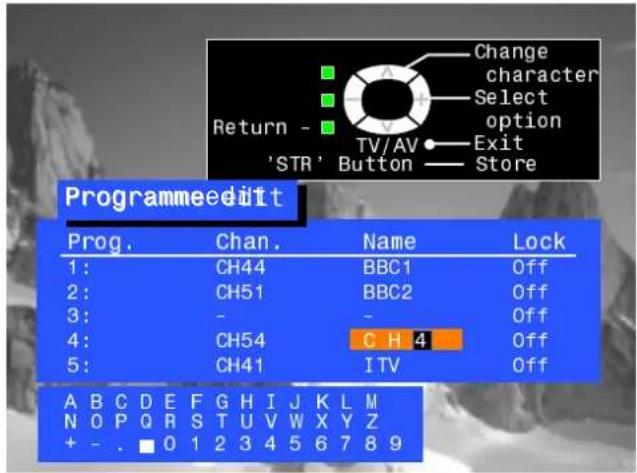

7R UHQDPH D SURJUDPPH SRVLWLRQ

Choose the programme position

Move to the Name column

Choose the new character

Move to the next character position

Continue until renaming is done

Press STR to store

If you have finished in the Programme edit menu, press the TV/AV button to exit

Return - 'STR' Button Change character Select option Exit Store Programmeedit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: CH54 C H 4 Off 5: CH41 ITV Off A B C D E F G H I J K L M N O P Q R S T U V W X Y Z + - . ■ 0 1 2 3 4 5 6 7 8 9

TUNINGMENUPROGRAMMEEDEDIT

Tolockaprogrammepositiontoprevent access

Choose the programme position

Move to the lock column

Choose between lock On or lock Off

Press STR to store

If you have finished in the

Programme edit menu, press the

TV/AV button to exit

Note :

When a programme position is locked, Direct Channel Access using the 'C' and numeric keys on the remote control is not available.

Return - 'STR' Back On/Off Select option Exit Store Programme edit Prog. Chan. Name Lock 1: CH44 BBC1 Off 2: CH51 BBC2 Off 3: - - Off 4: CH54 CH4 Off 5: CH41 ITV Off

To copy programme information to a compatible VCR connected to AX22

Move to the Prog. column

Press the Blue button on the remote control.

Programme data will now be sent to the VCR. This might take a while, depending on the number of stations stored. If the message "Unable to download, check your VCR" appears on the screen, the television is unable to send the programme information to the VCR. See the VCR handbook for further information.

If you have finished in the

Programme edit menu, press the TV/AV button to exit

TV>VCR IN PROGRESS PLEASE WAIT Programme : 63 Remote control unavailable

TUNINGMENUAUAOSETSETUP

The AutosetupmenuwillallowyoutoautomaticallyretunetheTVtoyourlocalstations. Itisusefulifyoumovetoadifferentregion

Open the Setup menu SET UP Move to Tuning menu ^ V Access Tuning menu - + Move to Auto setup ^ V Access Auto setup - + Press STR to start Auto setup STR

The TV will search for, locate and sort into order your local stations. If a compatible VCR is connected via the AV2 socket, programme data will be sent to the VCR via Q-Link (see page 25).

Once this operation is completed the TV will display programme position 1.

Setupmenu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access 1 CH44 Select Access TV/AV Exit 1 'Tuningmenu Programme edit Access Auto setup Manual tuning Off Decoder (AV2) Shipping condition Owner ID Return - 'STR' Button Store Select Access Exit Store WARNING All current tuning data will be erased STR : Start Auto setup TV/AV : To exit SETUP : Return to tuning menu CH44 AUTO SETUP IN PROGRESS SEARCHING : PLEASE WAIT Stored CH44 BBC1 21 68 SETUP : Return to tuning menu TV/AV : To exit

TUNINGMENUMAMNALALNINGING

ManualtuningoftheprogrammepositionsisavailableeitherfromtheOnScreenDisplaymenu orfromthefrontpanelcontrols

Manualtuningmenu

Open the Setup menu

Move to Tuning menu

Access Tuning menu

Move to Manual tuning

Access Manual tuning

Select the programme position to be tuned

Press repeatedly until required station is found

When the desired station is found, press STR to store.

The programme position will flash

Press the TV/AV button to exit.

SET UP

STR

TV/AV

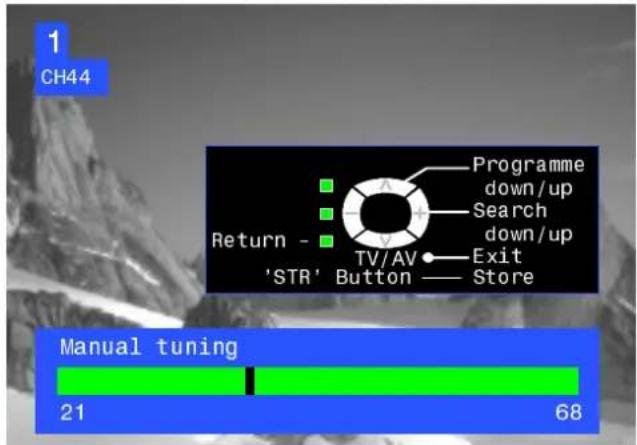

Manualtuning(Frontpanel)el)

Press the F button (Front panel) until "Tuning mode" is reached

Press the - or + button to access Tuning mode

Press the TV/AV button to move between "Change programme" and "Search"

Press the - or + button to change programme position or start search

When the desired station is found, press STR to store.

The programme position will flash

Repeat above procedure to tune additional programmes or press the F button to exit

TV/AV

1 CH44 Select Access Return - TV/AV Exit 'STR' Button Store Tuning menu Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID Access Off

1 CH44 Return - 'STR' Button Programme down/up Search down/up Exit Store Manual tuning 21 68

Important note :

On passing channel 68, tuning will restart at channel 21.

21 68

1 CH44 Manual tuning (Front panel) - ,+ : Search TV/AV : Move cursor STR : To store F : To exit 21 68 STR F - /V + / ^TV/AV

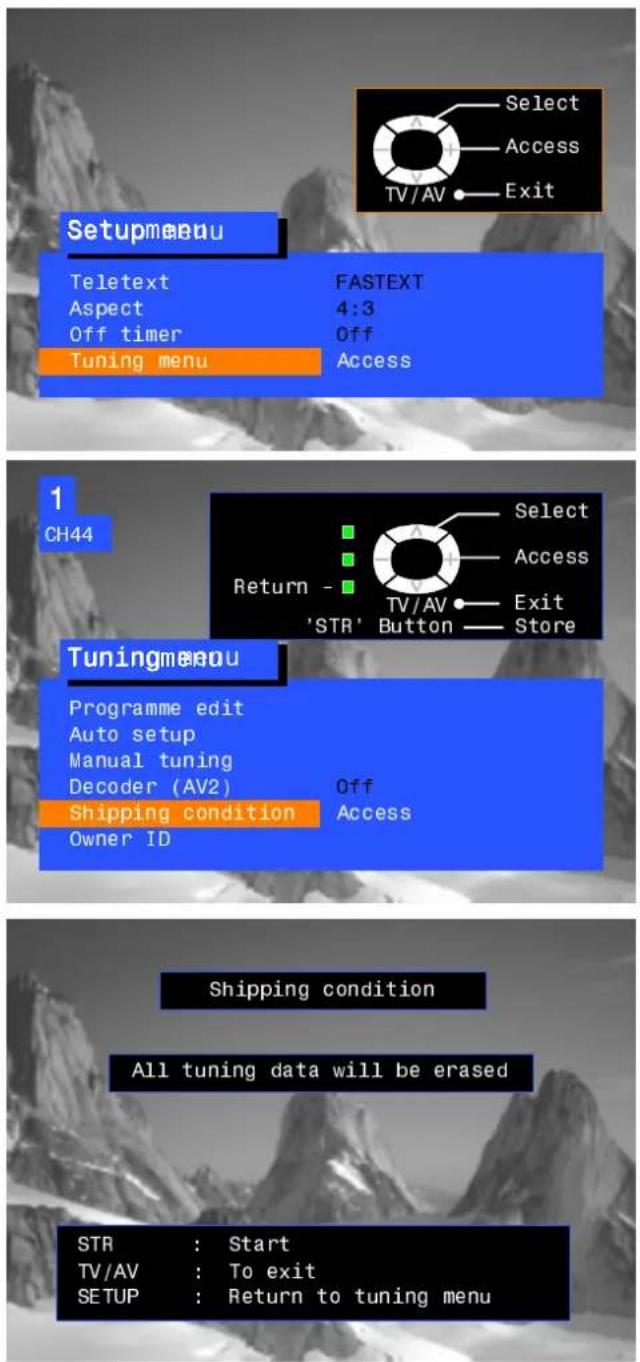

TUNINGMENUSHISHING CONDITION

ShippingconditionallowsyoutoresettheTVtoitsoriginalcondition,i.e.nochannelstunedin

This is useful, for example, if you move to a different area when you will probably want the TV to tune itself to your new local stations.

This can be done either through the Shipping condition menu or through the Auto setup menu.

The Shipping condition menu will reset all data, clearing all tuning information and resetting all control levels back to factory settings. You may need to adjust your VCR or programme position '0' VCR after operating the Shipping condition menu - refer to page 27.

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Shipping condition Access Shipping condition Press STR to start Press again, to confirm, each time that you are asked, "Are you sure?" Switch TV off and wait for a few seconds. Switch TV on again. Auto setup will begin, stations will be located, sorted and stored ready for use. See page 20.

Setupmenu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access 1 CH44 Select Access Return - 'STR' Button Exit Store Select Access Shipping condition All tuning data will be erased STR : Start TV/AV : To exit SETUP : Return to tuning menu

OwnerIDallowsyoutoenterasecuritycodeandaddressinformationsothatintheunfortunate eventoftheftitwillhelpthePolicetodeterminetheowner.

If the OwnerIDinformation was not entered after Autosetuporitis necessary to alters some of the ID information it can be accessed via the Tuningmenu.

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Owner ID Access Owner ID SET UP ^ V - + ^ V - + If the Owner ID has previously been set, enter the PIN NUMBER (using 0 to 9 on the remote control) followed by STR to proceed, this will take up to the NAME option. 1 2 3 4 5 6 7 8 9 0 STR

If no Owner ID has previously been set, enter the required 4 digit Owner ID PIN NUMBER (using 0 to 9 on the remote control).

If a 4 digit PIN NUMBER was entered above, you will be taken automatically to the NAME line.

If not, move to the NAME line.

Change character.

Select character position.

Repeat above until NAME, HOUSE NUMBER and POSTCODE are entered.

Press STR to store the details. Press again, to confirm, when asked, "Are you sure?"

The Tuning menu will be displayed.

Press the TV/AV button to exit

- + ^ V - +

Setupmenu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access

1 CH44 Select Access Return - TV/AV 'STR' Button Exit Store Tuningmeau Programme edit Auto setup Manual tuning Decoder (AV2) Shipping condition Owner ID Off Access

You now have the opportunity to enter your details and help the police crack crime see instruction book Change character Select character TV/AV Exit 'STR' Button - Store Owner ID OwnerIDD PIN NUMBER : 1 2 3 4 NAME : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ HOUSE NO : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ POSTCODE : ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ★ ABCDE FGH IJKL MNOP QRS T UWXYZ+-. 0123456789

Forfuture reference, write your PRIN Number here :

AVSELECTANDS SETUP

TheAVSelectmenuwillallowyoutochoosewhichAVsourcetoview

Press the TV/AV button

Press the appropriate coloured remote control button (whilst the options remain on screen)

The options will disappear

You may wish to make adjustments in the Setup or Sound menus

TV/AV

AV1 AV1 AV2 / S AV3

Setupmenu

Open the Setup menu

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

SET UP

TV/AV

Setupmeanou Teletext Aspect 4:3 Off timer Off Volume correc. FASTEXT Select Change TV/AV Exit

Soundmenu

Open the Sound menu

Move to your choice

Access adjustments or options

Press the TV/AV button to exit

SOUND

TV/AV

Soundmeau Volume Bass Treble Balance Mode Ambience Music Off Select Adjust TV/AV Exit

Q-LINK

Q-Link allows the television to communicate with a compatible VCR

For Q-Link communication to work, the TV must be connected to a VCR with the "Q-Link", "NEXTVIEWLINK", "DATALOGIC", "Easy Link", "Megalogic" or "SMARTLINK" logo using a 'fully wired' Scart cable between the AV2 socket of the television and the appropriate socket on your VCR.

For connection to the appropriate Scart socket on the VCR, refer to the VCR operating instruction book.

When using a "NEXTVIEWLINK" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).

When using a "Q-Link" VCR the main features possible are the following :

• Preset Download - Downloading of tuning information from the TV to the VCR.
• Direct TV Record - For immediate recording of the current program (What You See Is What You Record).
  • TV/VCR Auto Power On - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.
  • VCR Auto Power Standby - When the TV is switched into Standby, the VCR will also switch into Standby.
• VCR Image view - When the VCR plays a tape the TV will automatically switch On and select the AV2 input.

This TV will also communicate with other VCR's that bear the following logos :

• "DATA LOGIC" (a trademark of Metz Corporation).
- "Easy Link" (a trademark of Philips Corporation).
• "Megalogic" (a trademark of Grundig Corporation).
• "SMARTLINK" (a trademark of Sony Corporation).

These VCR's may support some or all of the above functions.

Refer to the VCR operating instruction book.

PresetDownload

This allows the programme order from the TV to be downloaded to the VCR, helping to ensure that correct recordings are made. There are several ways to perform this operation:

1. During installation as explained in the 'Quick Start Guide' beginning on page 6.
2. When Auto setup is started from within the Tuning menu, see page 20.
3. When TV to VCR manual download is started from within 'Programme edit', see page 19.
4. Preset download started from the VCR, refer to the VCR operating instruction book.

Important Note:

Not all VCRs support this type of data communication system. Some may support certain features, but not others. Refer to the VCR operating instruction book.

If Q-Link is inoperative, first confirm that your Scart cable is a full function type. Ask your dealer for further details.

WhatYouSeelsWhatYouRecord(DIRECTTVRECORDING)

This will allow the immediate recording of the program currently shown on the Television.

DIRECT

TV BEC

Press the DIRECT TV REC button on the remote control

If the VCR is in Standby mode with a useable tape inserted, it will automatically switch on when you press the DIRECT TV REC button.

If a "Q-Link" VCR is connected a message will appear on the TV screen showing what is being recorded, or if it is not possible to record. Some "Q-Link" compatible VCR's will only display the message when on the VCR programme position(0) or in AV mode. Refer to the VCR operating instruction book.

VCRreecodinggpresesptogVCRrecord

Recording this program menewnow

VCR is recording the programme signal from its own tuner. If you wish you can switch off the TV and leave the VCR recording in the normal way.

Source VCR recording TV source

VCR is recording the programme signal from the television. You must not change programme position or switch off the TV: if you do, the VCR will automatically stop recording and switch off.

Noneconding TAPEAISPROCTEBCOEDCTED

The write protection tab on the back of the cassette has been removed.

Examples of other messages that might be displayed are:

NonecondingNOTAPEAPE

Noreoordinge VCRISPLSAYLMGYING

VCRR Recording/CR/External

Noreeoddingg ALAEADXBECORDDROING

No recording - TAPE MAY BE DAMAGED

No recording - NO SOURCE AVAILABLE

TV/MOGRAAtotBcRoverOnOn

(With a Panasonic Q-Link VCR connected, this additional feature is available).

- If you insert a tape in the VCR and press the Play button whilst the TV is in 'Standby' mode, the TV will automatically switch On and select the AV2 input so that you can view the tape.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCRAutoPower&Strachloy

(With a Panasonic Q-Link VCR connected, this additional feature is available).

When the TV is switched into 'Standby' mode, the VCR will also switch into 'Standby' mode if there is no tape in the VCR, or if there is a tape in and the VCR is in 'Rewind' or 'Stop' mode (if the VCR is rewinding a tape, it will not switch into 'Standby' mode until rewinding has finished).

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCRIImageViewOn

(With a Panasonic Q-Link VCR connected, this additional feature is available).

If the TV is in Standby mode and the VCR sends a menu to be displayed on the TV screen (e.g. Main menu), the TV will automatically switch On and the menu will be displayed.

Some other VCR's may support this feature. Refer to the VCR operating instruction book.

VCRANDSATEELLTERBEGEMEHNSTATALATION

Your new TV is supplied with programme position '0' set to receive an RF signal from your VCR, although a Scart connection is preferable if the VCR is so equipped.

However, if for some reason your VCR is tuned to a different RF channel then you will not receive any picture or sound from your VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of your VCR (some VCR's allow adjustment of their RF channel via their remote control unit) or to adjust the tuning of the TV's programme position '0' or both until it receives the RF output channel of your VCR.

It is intended that this advice is used in conjunction with the instruction books for your additional equipment.

Use the AV1 Scart terminal for a VCR.

Use the AV2S S cart terminal for an S-Video VCR.

Use the AV2S Scart terminal for a Q-Link, NEXTVIEWLINK or compatible VCR.

ToturneyouuFVttheVCR

Switch on the VCR, insert and play a pre-recorded tape with known content

Open the Setup menu Move to Tuning menu Access Tuning menu Move to Manual tuning Access Manual tuning Select programme position '0' VCR Start searching for the VCR playback of the known content tape When the VCR playback is found, press STR to store Press the TV/AV button to exit. SET UP STR TV/AV

See below for installation of VCR and Satellite Receiver.

Notes :

• If picture patterning occurs on programme position '0' it may be necessary to adjust the RF output channel of the VCR, refer to the VCR instruction book.
• If a Satellite Receiver and a VCR are going to be used with RF cable connections it is important to avoid both units being set on the same channel. Refer to the Satellite Receiver and VCR instruction books for precise tuning information.

Illustration of a hand inserting into a CD into a device (no text or symbols visible)

Setupmenu Teletext FASTEXT Aspect 4:3 Off timer Off Tuning menu Access

VCR CH32 Return - 'STR' Button Programme down/up Search down/up Exit Store Manual tuning 21 68

Coastal landscape with large rock formations and ocean waves, no visible text or symbols

VCR/DDDD REPERTADION

The Remote Control is capable of operating some functions of selected Panasonic VCRs and DVD (Digital Versatile Disc) equipment. Some VCR and DVD equipment have different functions, so to ensure compatibility please refer to the equipment's instruction book or consult your dealer for details.

Panasonic PICTURE SOUND SET UP TV/TEXT DIRECT TV REC FP INDEX HOLD 1 2 3 4 5 6 7 8 9 VCR C 0 REC-VCR N PROGRAMME STR HELP ?

	[SSYW]	StandbyPress to switch the VCR or DVD to standby mode.Press again to switch back on.
	[S2W4]	VCR / DVD switchUse this switch to select whether controls operate DVD equipment or your VCR.
		PlayPress to playback the tape or DVD.
		StopPress to stop the tape or DVD.
		Skip / Fast Forward / CueVCR: Press to fast forward the tape. In Play mode, press to view the picture rapidly forward (Cue).DVD: Press once to skip to the next track. In play mode press and hold to view the picture rapidly forward.
		Skip / Rewind / ReviewVCR: Press to rewind the tape. In Play mode, press to view the picture rapidly in reverse (Review).DVD: Press once to skip to the previous track. In play mode press and hold to view the picture rapidly in reverse.
	[ZZYK]	Pause / StillPress in playback mode, the picture will pause.Press again to restart play.
		Programme Up / DownPress to increase or decrease the VCR programme position by one.
	[SWGG]	RecordPress this button to start recording.

TELETEXT OPERATION

• Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext.
• Pressing the Picture button whilst in Teletext operation will display the contrast function with a cyan bar, press ◀ to alter the setting as required.
  Pressing the Setup button whilst in Teletext operation will display special function options at the bottom of the screen.
• When in Teletext mode, the volume may still be altered to the desired listening level.

What is LSSImobate ?

In LIST mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV's memory.

What is FASSEXX?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the display. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

TV/TEXT

TV/Tellettextmode

Press the TV/TEXT button.

The screen will display the Teletext page.

Press again when you wish to return to TV. mode.

Page Selection

Pages can be selected in two ways :

a. Press the Up / Down buttons to increase or decrease the page number by one.

b. By entering the page number, using 0 -9 on the remote control.

Full/ITopó BøtBont t o m

Press the SET UP button to display special functions, followed by the Green button. Press the Green button again to expand the BOTTOM half.

Press again to return to normal (FULL) size.

Reveal

Press the SET UP button to display special functions, followed by the Red button to reveal hidden words e.g. quiz page answers. Press again to hide.

Red/Green/Y/eYd/o/B/U/Blouttoursons

In FASTEXT mode these correspond to the differently coloured subjects. In LIST mode they correspond to the differently coloured page numbers.

ListStore

In LIST mode the four page numbers can be altered (programme positions 1 - 25 only). To do this, press one of the four coloured buttons and enter the new page number. Press and hold STR, the page numbers will change to white indicating that the page is stored.

HOLD

Hold

To hold the Teletext page when viewing multi-page information. Press again to return to automatic page update.

TELETEXTOPERATION

It is not possible to change the programme position when in News flash, Update or Sub Coded Page Access operation.

Favourite Pages(FFP.)

Stores a favourite page in memory for instant recall. To store such a page, the TV must be in LIST mode, and the programme position must be from 1 - 25. Press the Blue button, select the page number, then press and hold the STR button. The page number is now stored.

Press F.P. to recall this page.

Update Display

Press the SET UP button to display special functions, followed by the Yellow button to view the TV picture whilst searching for a Teletext page. When found, the screen will display the page number at the top left. Press the Yellow button to view the page. Press TV / TEXT again to return to normal TV operation.

News Flash

When a news flash page has been selected, press SET UP, Yellow, to view the TV picture. When an update is received, the page number will be displayed on screen. Press the Yellow button to display the News Flash Press TV / TEXT to return to normal TV. operation.

Update

Press SET UP, Yellow to see the update of information on certain pages. When an update is received, the page number will be displayed at the top left of the screen. Press the Yellow button to view the page. Press TV / TEXT to return to normal TV. operation.

Sub CodedPageAccess

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require. It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found. Select the required page number using buttons 0 - 9.

Press the SET UP button followed by the Blue button; T**** will be displayed at the top right of the screen.

Enter desired sub page number before the T**** disappears. To select page 6 enter 0, 0, 0 and 6.

(If in LIST mode, a 'T' will appear in the current box at the bottom).

Press the Yellow button to view a normal TV programme. (Press SET UP, Yellow in LIST mode).

When the page is available, press the Yellow button to view the page. To clear the page perform one of the following :

• Press SET UP.
• Select a new page number.
• Press TV/TEXT to return to normal TV operation.

Index

When in FASTEXT operation

Press INDEX to return to the main index page. Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

FrontAW3FCAAudio/Videoa

Press and release to open V L - R Video input to V socket RCA Video cable CAMCORDER Audio input to L / R sockets 2 x RCA Audio cables AV3 AV V L—R Output from Headphones socket 3.5mm Stereo Plug STEREO HEADPHONES with 3.5mm Plug

ndHeadphonesSockets

3.5mm Stereo Plug STEREO HEADPHONES with 3.5mm Plug

Note :
Additional equipment and cables shown are not supplied with this TV set.

■Scartsockleinfomatation

AV1 Scart socket

Socket Earth	21-	□	□	-20	CVBS in (video)
CVBS out (video)	19-	□	□	-18	RGB status earth
CVBS earth	17-	□	□	-16	Status RGB
Red in	15-	□	□	-14	Earth
Red earth	13-	□	□	-12	--
Green in	11-	□	□	-10	--
Green earth	9-	□	□	-8	Status CVBS
Blue in	7-	□	□	-6	Audio in (L)
Blue earth	5-	□	□	-4	Audio earth
Audio out (L)	3-	□	□	-2	Audio in (R)
Audio out (R)	1-	□	□

Suitable inputs for AV1 include RGB (Red/Green/Blue).

AV2 Scart socket (S-Video, Q-Link)

Socket Earth	21-	□	□	-20	CVBS in (video)
CVBS out (video)	19-	□	□	-18	Earth
CVBS earth	17-	□	□	-16	--
S.C. - In	15-	□	□	-14	Earth
Earth	13-	□	□	-12	--
--	11-	□	□	-10	Q-Link data
Earth	9-	□	□	-8	Status CVBS
--	7-	□	□	-6	Audio in (L)
Earth	5-	□	□	-4	Audio earth
Audio out (L)	3-	□	□	-2	Audio in (R)
Audio out (R)	1-	□	□

AV2 - Pins 15 and 20 are dependent on AV2 S-VHS / VIDEO switching.

Rear AV1/AV2(S) 21 Pin Scart and RCA Audio Out Terminals

Notes:
Additional equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this set.

TROUBLESHOOOING

Symptoms		Checks
Picture	Sound
Snowy Picture	Noisy Sound	Aerial location, direction or connection
Multiple Images	Normal Sound	Aerial location, direction or connection
Interference	Noisy Sound	Electrical appliancesCars / MotorcyclesFluorescent lights
Normal Picture	No Sound	Volume levelSound mute switched on
No Picture	No Sound	TV set to AV modeNot plugged into A.C. outletNot switched onPicture / Sound controls set at minimum levelsCheck if in standby mode
No Colour	Normal Sound	Colour controls set at minimum levels
Poor or Distorted Picture	Weak or No Sound	Retune Channel(s)
Coloured Patches	Normal Sound	Magnetic Interference from unshielded equipmentReceiver moved while switched ON, switch TV off for 30 minutes.
Normal Picture	Weak or distorted sound	Sound reception may have deteriorated.Switch NICAM setting (Sound menu)to Off until reception improves.

FORYOURGGUDIAANDEE

■Service

Before requesting service, please refer to the trouble-shooting guide on previous page to determine the symptoms. To obtain service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

■ TVGGames/HodgeComponents

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage, can be limited by observing the following points:

• Reduce the brightness and contrast levels to a minimum viewing level.
• Do not operate the television set for a continuous period of time while using TV games or home computers.
• This type of picture tube damage, is not an operating defect, and as such is not covered by the Panasonic warranty.

■LastPDeitionMTheory

Certain functions have a last position memory, i.e. the setting at the time of switch-off will be the setting used when the receiver is switched on again:

Programme	Tint (M.NTSC / NTSC only)
Headphone volume	Decoder (AV2)
AV Position	Contrast
Volume	Sharpness
NICAM	Aspect
Bass	Standby
Treble	Artificial Intelligence (AI)
Balance	Colour
Colour Balance	Brightness
Status	Ambience
P-NR	Teletext mode
Volume correction (in AV mode only)

■SleepFeature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when the TV is in AV mode.

SPECIFICATIONS

		TX-28MK1/M	TX-21MK1/M
Power Source		220 - 240V 50Hz A.C.
Power Consumption		85W	71W
Standby Consumption		1.8W
Picture TubeVisible Diagonal		66 cm	51 cm
Audio OutputMusic Power		2 x 15W, 8Ω impedance
Dimensions	H	580 mm	481 mm
	W	666 mm	525 mm
	D	472 mm	477 mm
Weight (Kg)		31	22
Receiving Systems/ Band name		PAL I UHF E21-68PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)M.NTSC Playback from M.NTSC Videorecorders (VCR)NTSC (AV input only) Playback from NTSC Videorecorders (VCR)
Aerial - Rear		UHF
Headphones - Front		3.5mm, 8Ω impedance
AV - Rear		AV1 - Scart terminal - Audio / Video in / out, RGB in.AV2 - Scart terminal - Audio / Video in/out, S-Video in, Q-Link2 x RCA Audio Monitor Out
AV - Front		AV3 - 2 x RCA Audio in, 1 x RCA Video in.

Specifications are subject to change without notice. Weight and dimensions shown are approximate.

NOTES
