MANUAL DE UTILIZARE Kikki Chipolino

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE

INSTRUCTION MANUAL FOR USE OF BABY STROLLER "KIKKI"

KIKKI

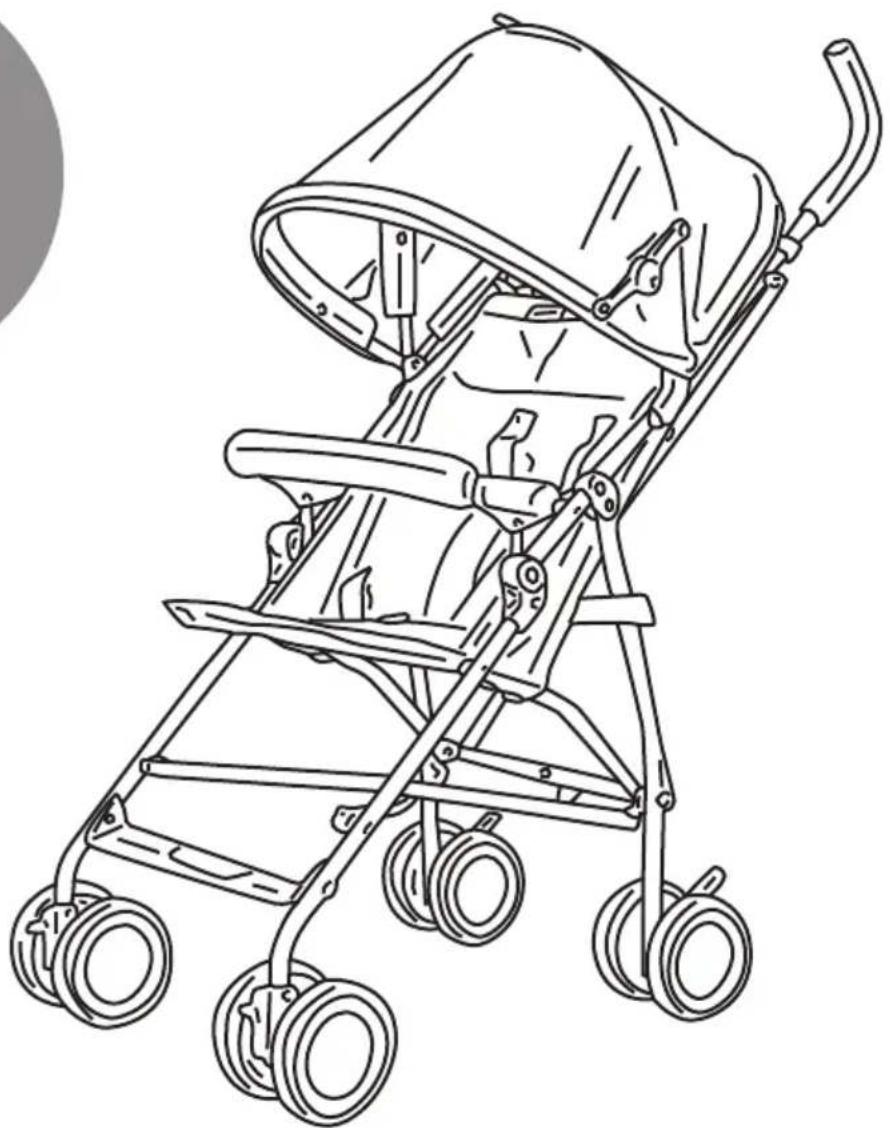

Line drawing of a stroller with wheels and handle (no text or symbols)

This stroller Chipolino is manufactured according to the requirements of the Product Safety Directive 2001/95/EU of the European Parliament and The Council and with European standard EN 1888 "Child care articles. Wheeled child conveyances. Safety requirements and test methods" and the regulations of national legislation including Customer Protection Law.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECCOMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT!

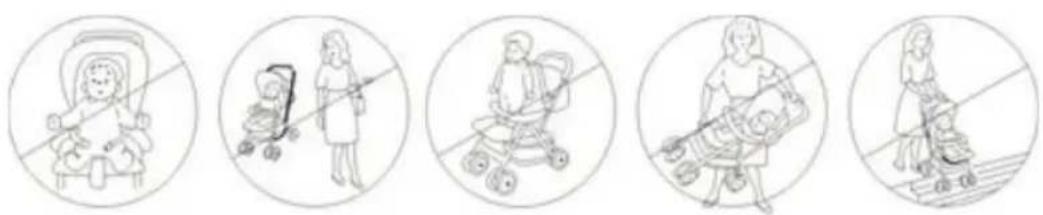

CAUTION! WARNINGS!

✿ NEVER LEAVE YOUR CHILD UNATTENDED!
✿ THE SEAT OF THIS STROLLER IS NOT SUITABLE FOR CHILDREN AGED LESS THAN 6 MONTHS!
KEEP AWAY FROM FIRE!
DO NOT LIFT THE STROLLER BY THE FRONT BAR, BECAUSE THIS CAN LEAD TO SERIOUS INJURIES!
◆ ALWAYS USE THE RESTRAINT SYSTEM (SAFETY BELT)!
❖ MAKE SURE YOUR CHILD IS AT SAFE DISTANCE AWAY FROM THE STROLLER DURING ADJUSTMENTS, FOLD OR UNFOLD OF THE STROLLER.
❖ MAKE SURE THAT ALL LOCKING MECHANISMS ARE ENGAGED BEFORE PLACING THE CHILD IN THE STROLLER.
DO NOT ALLOW YOUR CHILD TO PLAY WITH THIS STROLLER!
✿ THE STROLLER IS NOT SUITABLE FOR RUNNING OR SKATING!
Use the stroller for a child weighing not more than 22 kg.
- Initial assembly, folding and unfolding to be done only by adult!
❖ Always activate the parking device when the stroller has stopped and is not moving, especially when you place or take out your child from it!
Make sure the safety belts are fastened and fit well to the child before usage.
Do not overload the stroller! Always balance your stroller in a way to keep it stable and prevent the risk of tip-over!
❖ Stroller is intended for use for one child at a time!
Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him!
Do not apply any changes or modifications to the stroller's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!
Discontinue the usage, if you find worn out or loose joints, damaged or missing parts! There is a risk of injury of the child!
Do not allow children younger than 3 years near the stroller during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!
◆ Strings can cause strangulation! Do not place additional strings to the product to avoid injuries!
✿ Never use the stroller on stairs or escalators! Use extra care when going up or down a pavement or step!
The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

Five circular illustrations showing different behaviors of a woman in strollers, including using a baby and using a walking stick (no text or symbols present)

MAIN FEATURES

✿ Seat unit is suitable for one child aged 6+ months;
❖ Stroller is suitable for one child weighing not more than 22 kg;
◆ 5-point safety harness system;
◆ Adjustable canopy;

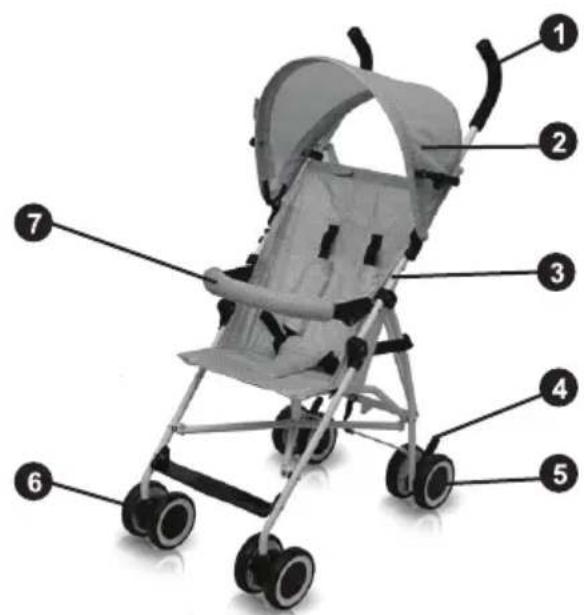

MAIN PARTS

Labeled diagram of a baby stroller with numbered parts for identification

1 - Handles
2 - Canopy
3 - Frame
4 – Parking devices
5 - Rear wheels
6 - Front wheels
7 - Front bumper

ASSEMBLY INSTRUCTIONS AND FUNCTIONS

This stroller is supplied partially assembled. In order to complete the assembly, you do not need any tools.

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! After each operation, make sure that you have followed the instructions correctly and the fixing is stable!

IMPORTANT! In most cases after the completion of an operation, you will hear a clicking sound.

The assembly, disassembly and functions are numbered from 1 to 8. Use the operations descriptions given in this manual and their matching picture

ASSEMBLY

1 - Unfolding

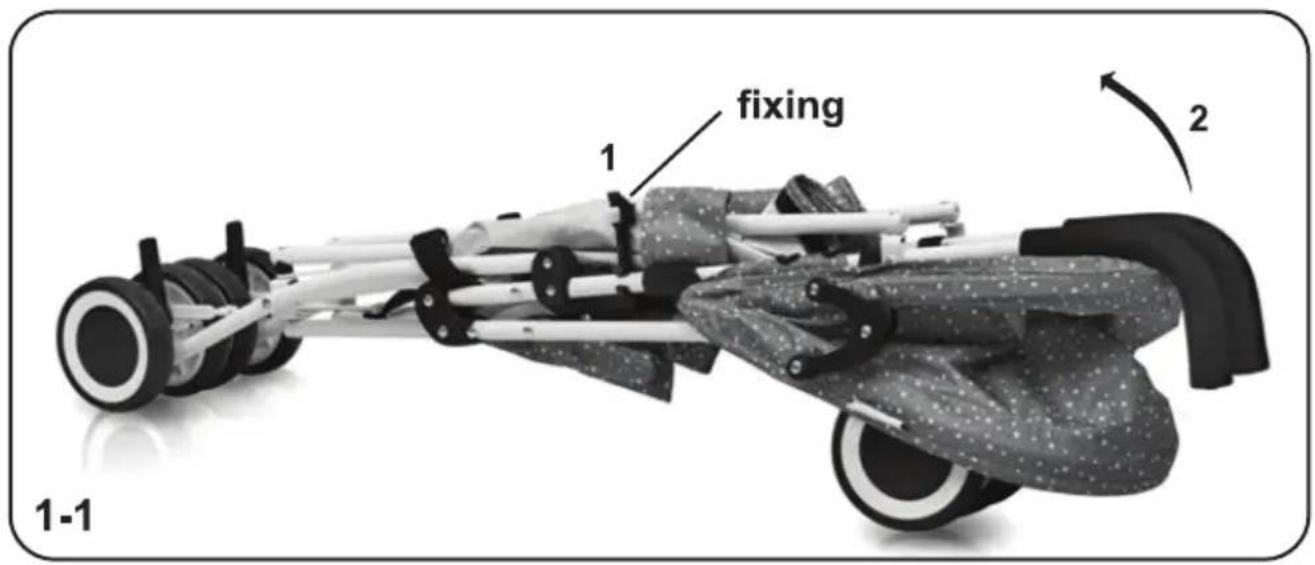

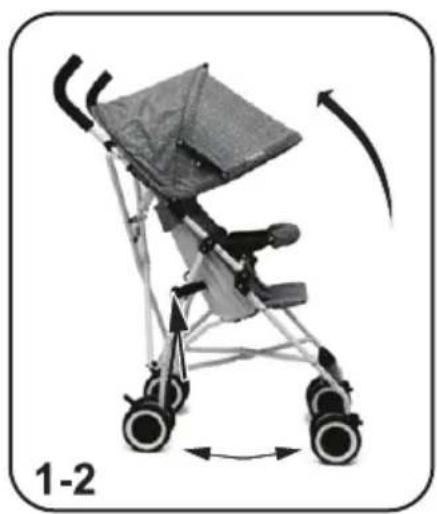

1-1, 1-2 - Release the fixing (1) and pull both handles upwards (2).

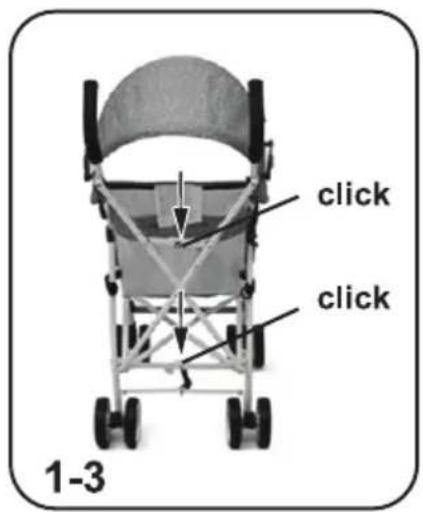

1-3 - Fix both locking mechanisms.

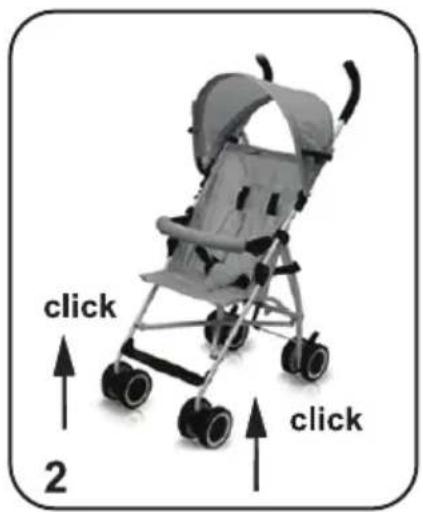

2 - Assembly of front wheels

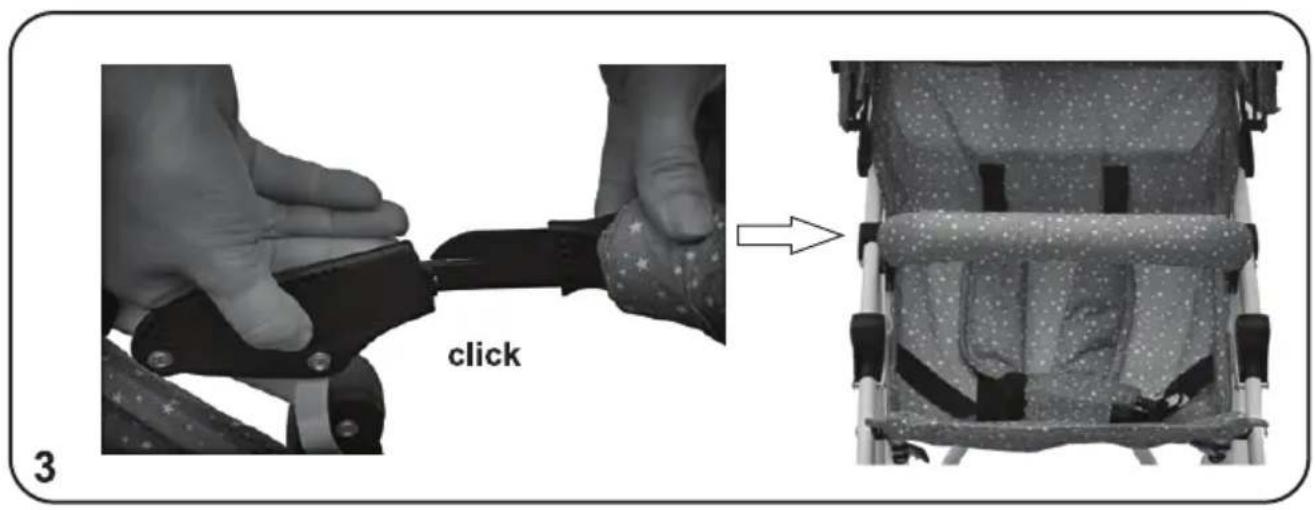

3 - Front bumper

IMPORTANT: Check if the fixing is stable as try to pull out the front bumper from the stroller!

Note: To remove the front bumper, press the buttons located inside the front bumper and pull it away.

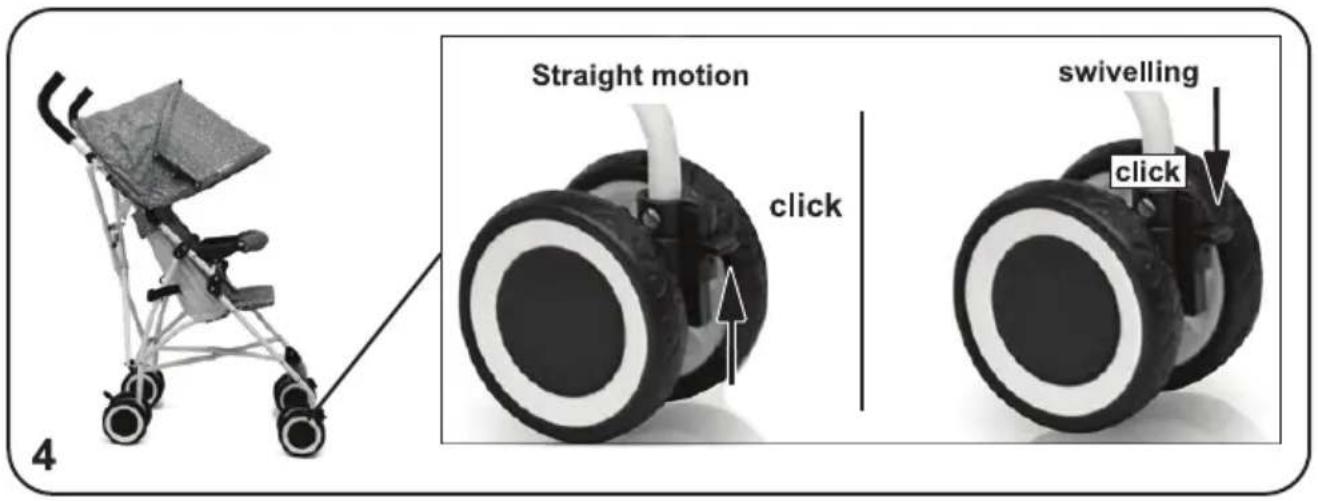

4 - Straight motion and swiveling of front wheels

IMPORTANT! When using the stroller on uneven surfaces, fix the wheels for straight movement only.

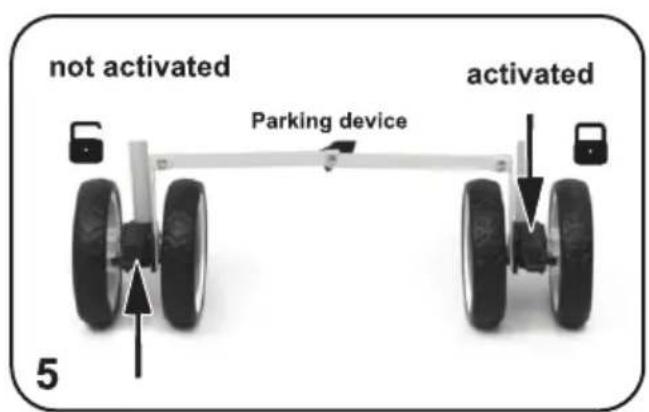

5 - Parking device

6 - Restraint system (5-point safety harness)

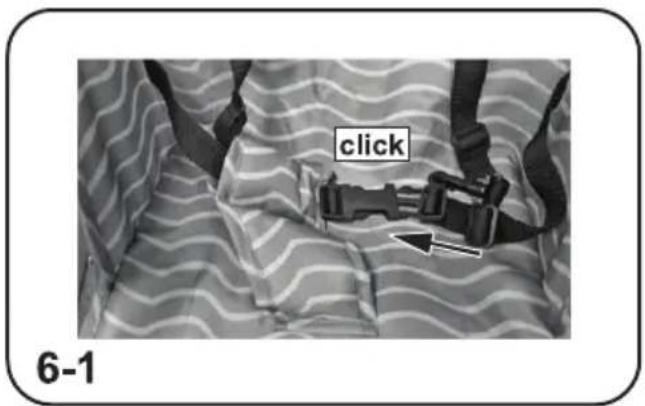

6-1 - Lock the harness;

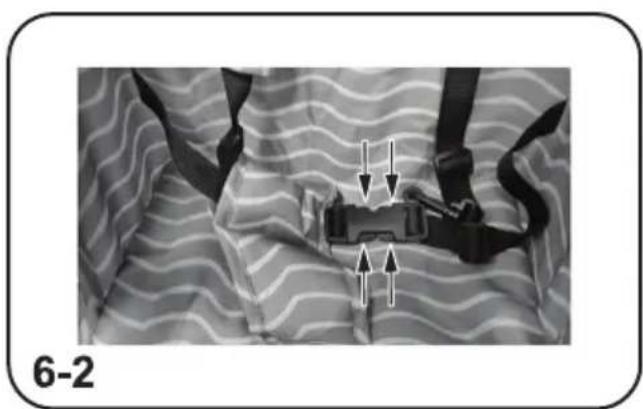

6-2 - Unlock the harness;

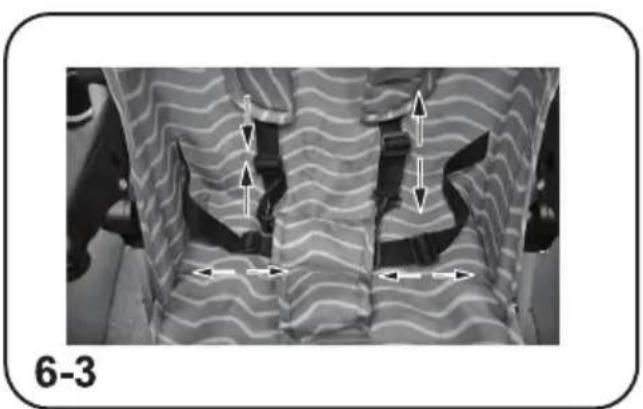

6-3 - Length adjustment of shoulder and waist belts;

Note: Belt must be snug to child's body and must not be twisted.

IMPORTANT! Periodically check to ensure that the seat belt is securely attached to the stroller frame as well as securely fastened. The seat belt straps must not be damaged, worn out or twisted, the buckles must be strong, with no damages and providing stable connection!

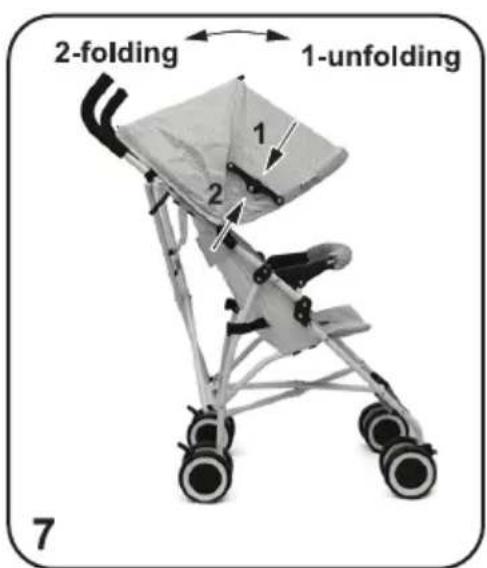

7 - Canopy

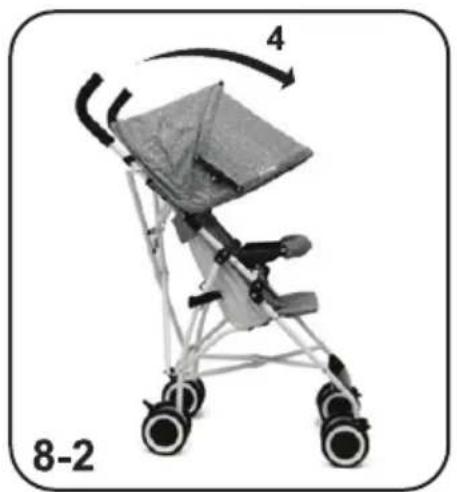

8-Folding

IMPORTANT! Before folding the stroller, activate the parking device, remove the front bumper and fold the canopy.

fixing 1 2 1-1

Illustration of a baby stroller with wheels and a curved arrow indicating rotation (no text or symbols)

click click 1-3

click 2 click

click 3

Straight motion swivelling click click 4

not activated Packing device activated 5

click 6-1

Close-up of a person wearing a striped patterned shirt with a black strap, showing a close-up of the chest and shoulder (no text or symbols visible)

Close-up of a person wearing a patterned seatbelt with black straps and directional arrows indicating movement (no text or symbols)

2-folding 1-unfolding 7

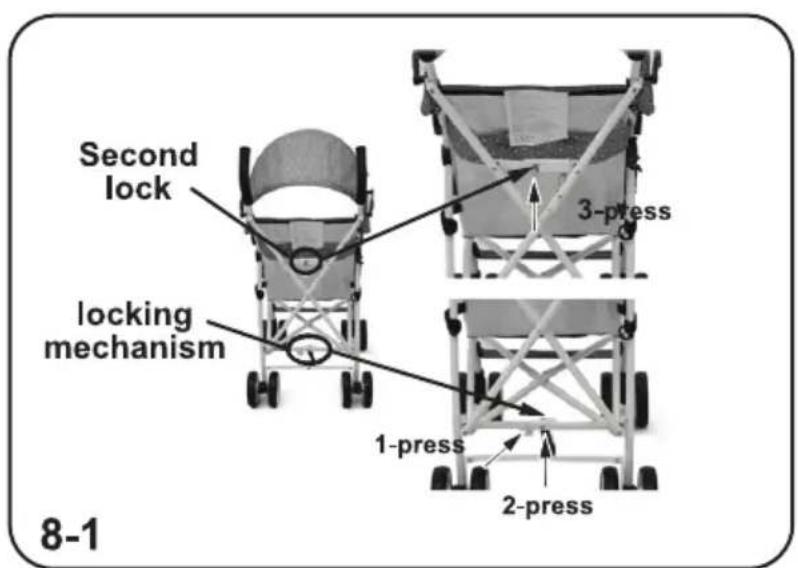

Second lock locking mechanism 3-press 1-press 2-press 8-1

Illustration of a stroller with a curved arrow indicating rotation (no text or symbols)

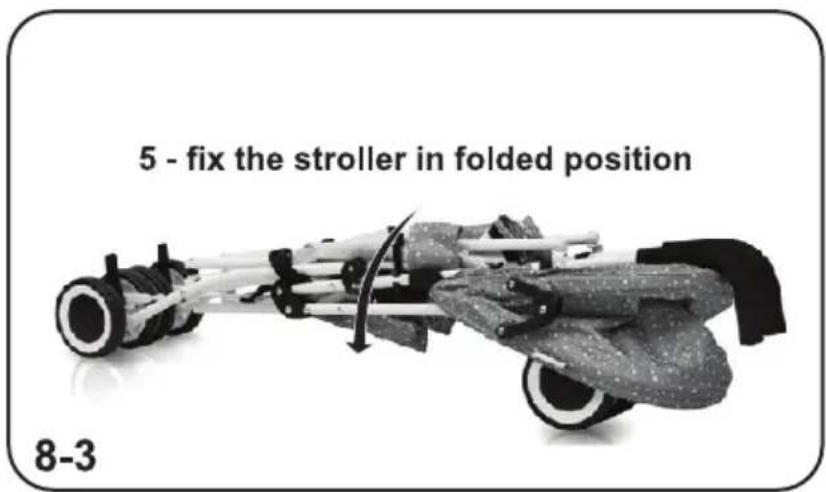

5 - fix the stroller in folded position 8-3

CARE AND MAINTENANCE GUIDELINES

The brakes and wheels wear out faster than other parts. Replace them when necessary.
◆ Regularly oil the moving parts. Use silicone oil or silicone spray for oiling.
- Clean and oil all dirty metal and plastic parts regularly.
- Clean the fabrics, plastic parts and metal parts with damp cotton cloth or sponge and mild soap.
Do not use aggressive detergents, solvents, bleach or spirits to clean your stroller.
❖ Always leave the stroller to fully dry after cleaning before you use it or store it. Mold could form if you keep your stroller moist.
- Always store your stroller indoors. The effect of the environment – direct sunlight, rain, moisture or high temperature intervals can damage your stroller. Sea air, road covered with salt, acid rains, etc., as well as storing in the open air lead to corrosion.
Please, contact your authorized dealer for problems connected with the use or repair of this stroller.

Fabric Composition:

Outer: 100% Polyester

Filling: 100% Polyester

LKKK01xxxxx
