INSTRUKCJA OBSŁUGI LWHT5535 513 Schwaiger

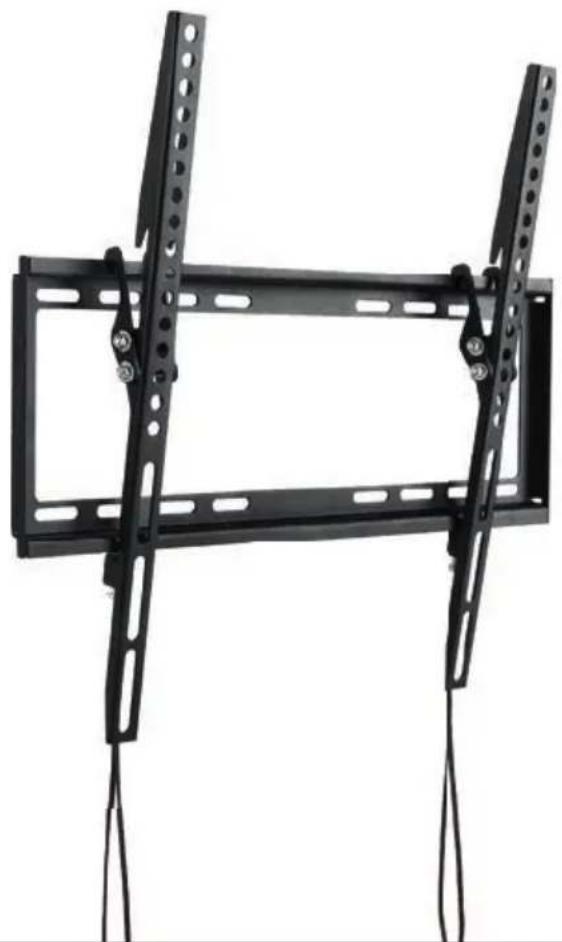

Black metal TV frame with attached cable ties, no text or symbols visible

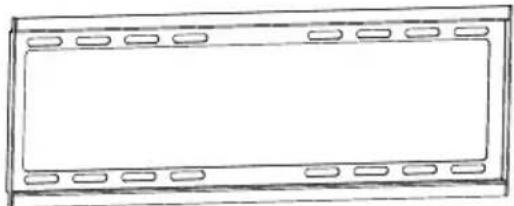

A (1x) B (2x)

Simple line drawing of a rectangular frame with evenly spaced oval cutouts on both sides (no text or symbols)

Technical line drawing of a mechanical lever or rod assembly (no text or symbols)

M-A (4x)

M4×14

M-B (4x)

M5x14 M6x14 M8x15

M-C (4x) M-D (4x)

M-E (4x)

M8×50

M-F (4x)

D5 D8

M-G (4x)

W-A (4x)

W-B (4x)

SX10×50

W-C (4x)

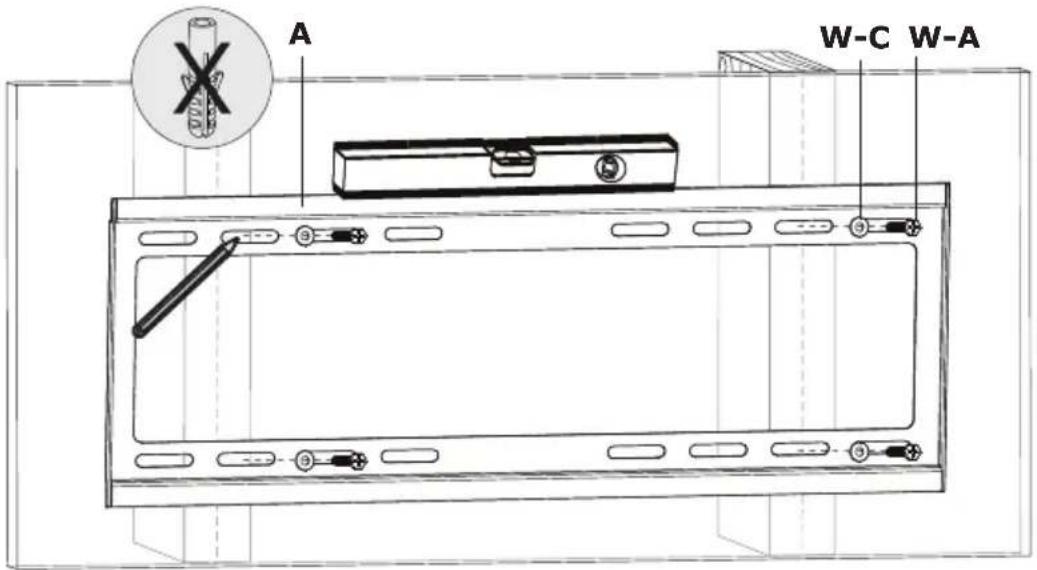

1A

Technical diagram showing various mechanical components and dimensions, including a pencil, screwdriver, and cutting tool with measurements in millimeters.

A W-C W-A

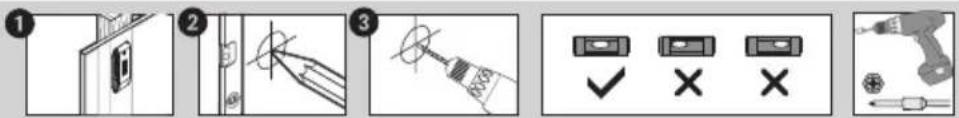

Diagram showing five-step installation or repair process with labeled steps and icons for inspection, testing, and tooling.

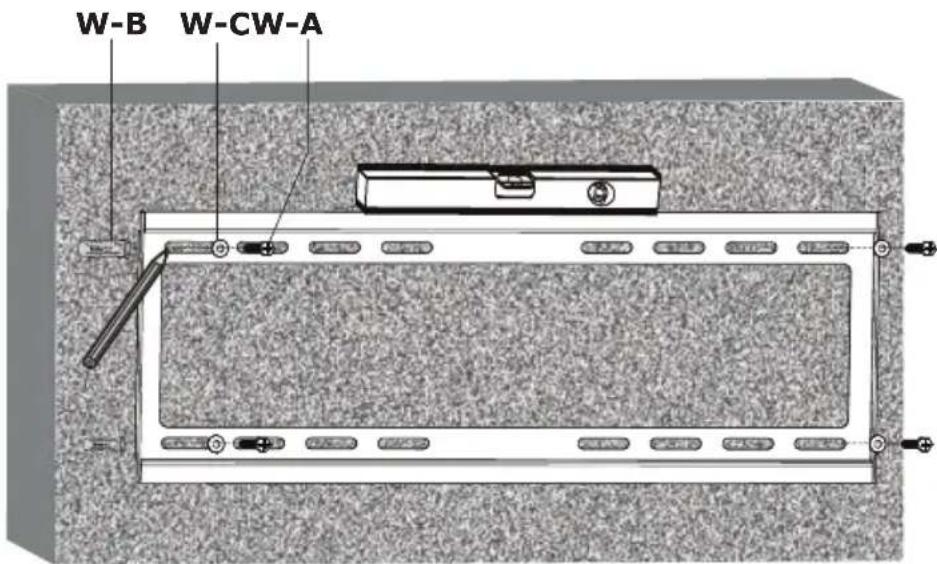

1B

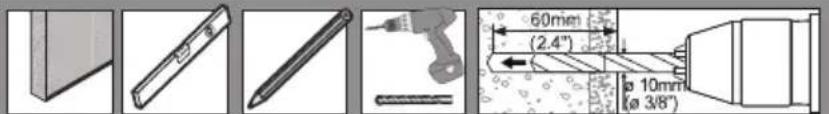

60mm (2.4") ø 10mm (ø 3/8")

W-B W-CW-A

Diagram showing five-step installation or repair process: door opening, tool tip, screwdriver, checkmark, and pencil.

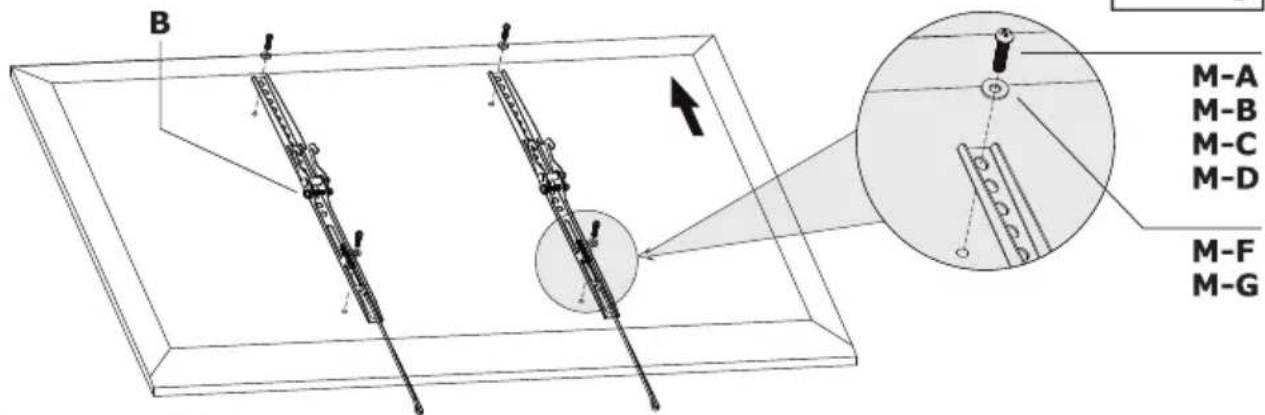

2

B M-A M-B M-C M-D M-F M-G

Samsung TV

Für einen Samsung TV mit tieferen Gewindebuchsen verwenden Sie bitte die Schrauben M8x50 und die Unterlegscheiben D8.

If you use a Samsung TV with deeper VESA holes, please use M8x50 screws and Samsung spacer.

M-E M-G

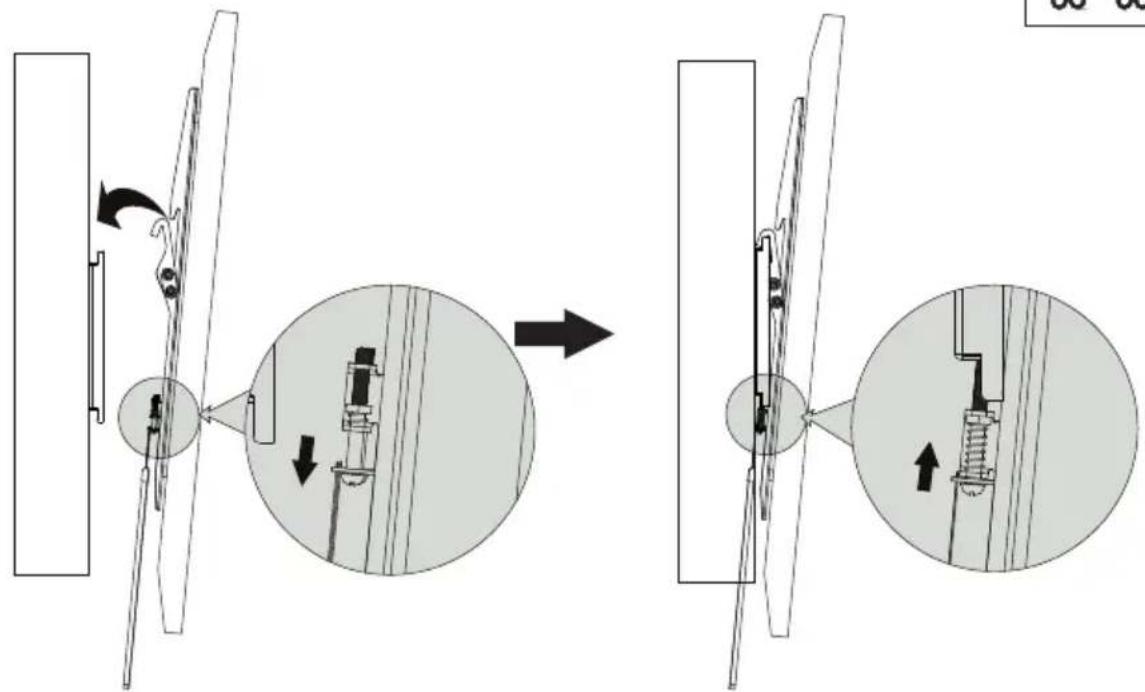

3

Technical diagram illustrating mechanical assembly and disassembly steps with labeled components and directional arrows
