INSTRUKCJA OBSŁUGI LWHF5535 513 Schwaiger

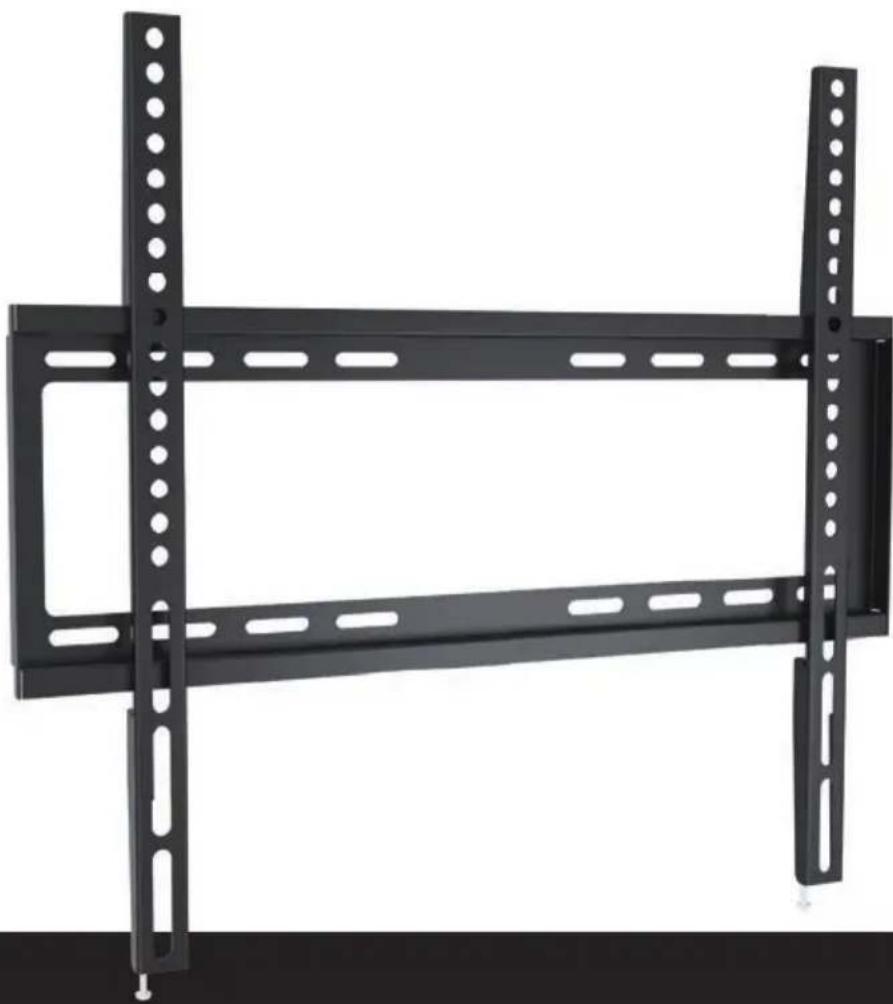

Black metal shelving unit with vertical supports and mounting holes (no text or symbols)

A (1x) B (2x)

Simple line drawing of a rectangular frame with evenly spaced oval cutouts on both sides (no text or symbols)

Technical line drawing of a mechanical component with multiple circular holes and a central mounting bracket (no text or symbols)

M-A (4x)

M4x14 M5x14 M6x14 M8x15
M-B (4x) M-C (4x) M-D (4x)

M-E (4x)

M8×50

M-F (4x) M-G (4x)

D5 D8

W-A (4x) W-B (4x) W-C (4x)

SX10×50

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

1A

Technical diagram showing five mechanical components with dimensional annotations in millimeters and inches

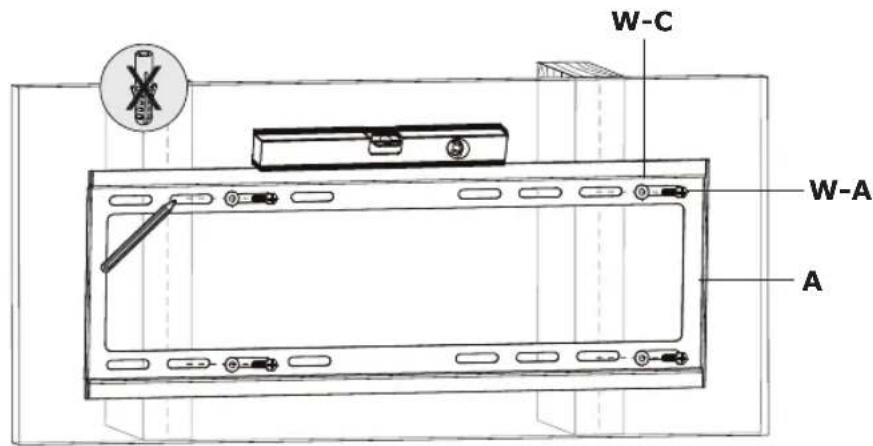

W-C W-A A

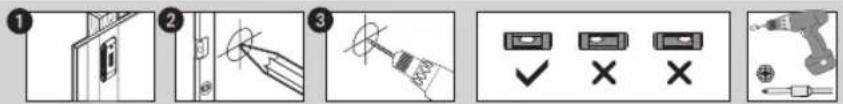

Diagram showing six-step electrical or mechanical installation steps with labeled icons and check/cancel buttons

1B

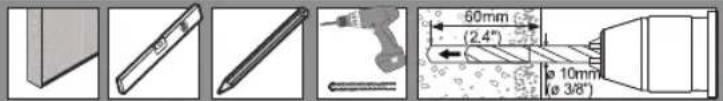

60mm (2.4") e 10mm (e 3/8")

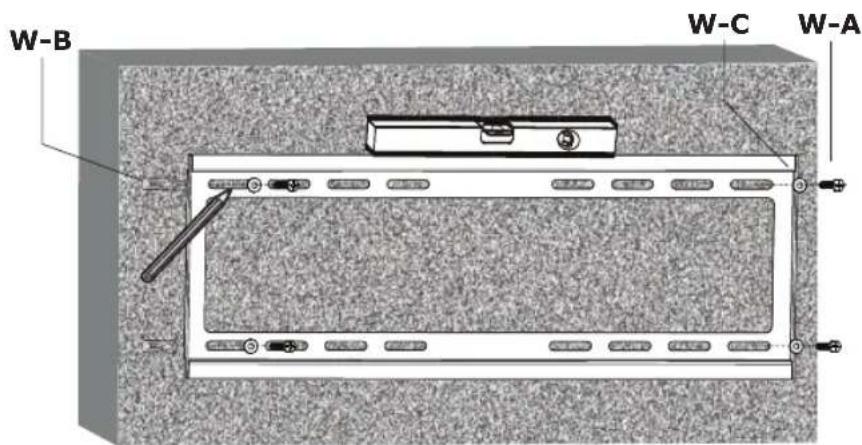

W-B W-C W-A

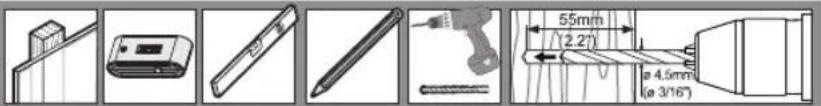

Diagram showing five different electrical or mechanical tool icons with labels and symbols, including a pencil, screwdriver, switch, and power plug.

SCHWAIGER®

2

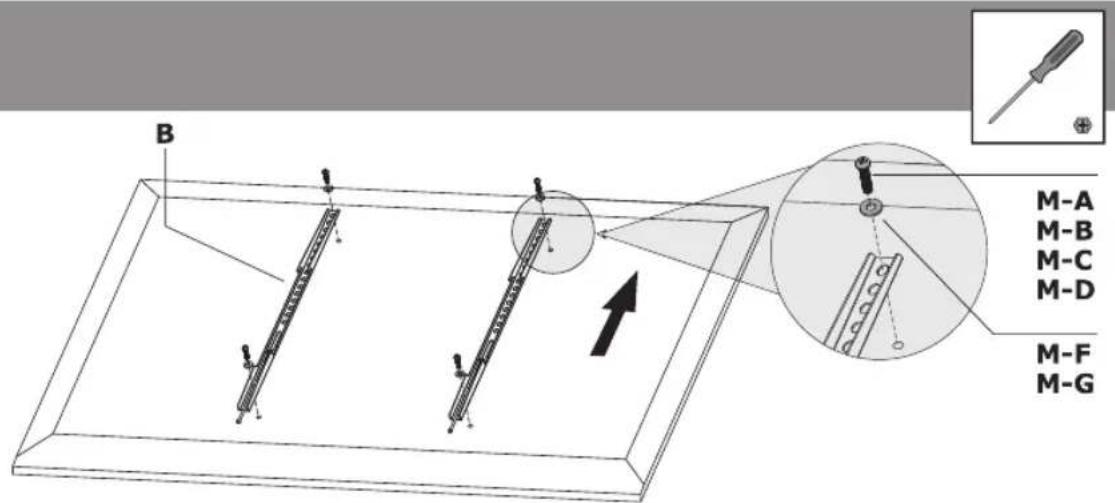

B M-A M-B M-C M-D M-F M-G

Samsung TV

Für einen Samsung TV mit tieferen Gewindebuchsen verwenden Sie bitte die Schrauben M8x50 und die Unterlegscheiben D8. If you use a Samsung TV with deeper VESA holes, please use M8x50 screws and Samsung spacer.

M-E M-G

3

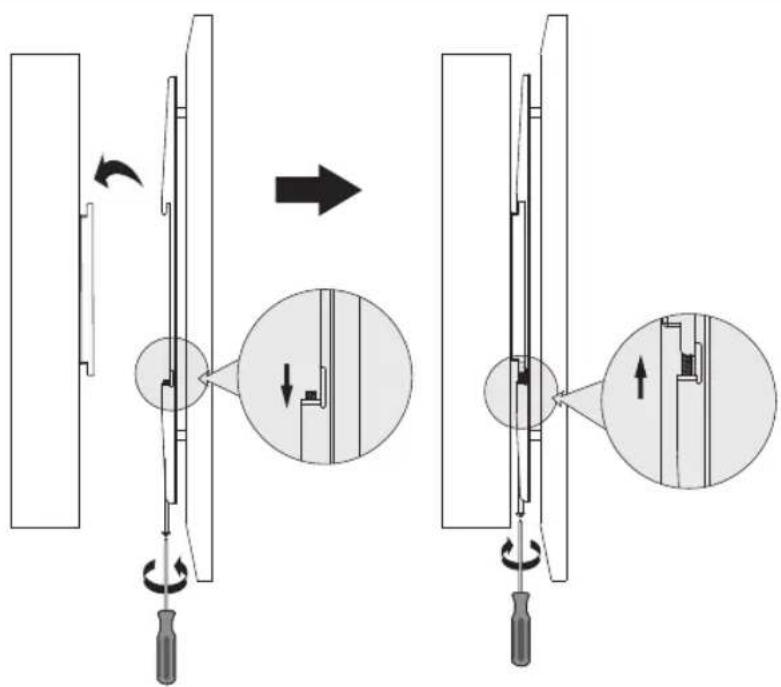

Diagram illustrating a mechanical assembly or disassembly process with labeled parts and directional arrows indicating movement.
