Type de produit	Imprimante à jet d'encre grand format
Marque	Canon
Modèle	LP24
Dimensions (unité principale)	997 x 810 x 344 mm (L x P x H)
Poids (unité principale)	51 kg (net), 74 kg (emballé)
Alimentation	AC 220-240 V, 50/60 Hz, consommation 100 W max, veille 6 W, arrêt 1 W
Résolution d'impression maximale	2400 x 1200 dpi
Vitesse d'impression (A1 brouillon)	33 secondes
Nombre de buses	15360 buses
Taille de goutte	4 pl
Nombre de couleurs	5 (MBK, BK, C, M, Y)
Type d'encre	Pigment et colorant réactifs
Formats de support papier rouleau	Jusqu'à 610 mm de large (A1, 24 pouces)
Formats de feuille coupée	Cassette : jusqu'à 432 mm ; Alimentation manuelle : jusqu'à 610 mm
Impression sans bordure	Oui, jusqu'au format A1
Connectivité	USB 2.0 Hi-Speed, Ethernet 10/100Base-TX, IEEE1394 (option)
Mémoire vive	256 Mo
Système d'exploitation pris en charge	Windows 2000, XP, Server 2003, Vista (32 bits)
Entretien	Cartouche de maintenance MC-16
Sécurité	CE, CB, TUV (GS), Gost R
Pièces détachées	Tête d'impression PF-03, réservoirs d'encre PFI-102 (130 ml), cartouche de maintenance MC-16

FOIRE AUX QUESTIONS - LP 24 CANON

Comment charger le papier rouleau sur le Canon LP24 ?

Ouvrez le capot avant, placez le rouleau sur le support en alignant le bord avec le guide, puis refermez le capot. Utilisez le panneau de commande pour sélectionner le format de papier approprié.

Comment remplacer une cartouche d'encre ?

Ouvrez le capot avant, faites glisser la tête d'impression vers la position de remplacement, poussez le loquet pour libérer la cartouche vide, insérez la nouvelle cartouche PFI-102 jusqu'au clic, puis refermez.

Que faire en cas de bourrage papier ?

Éteignez l'imprimante, retirez tout support présent dans les bacs, ouvrez le capot et retirez délicatement le papier coincé. Vérifiez qu'aucun morceau de papier ne reste à l'intérieur avant de redémarrer.

Comment entretenir la tête d'impression ?

Utilisez la fonction de nettoyage automatique depuis le panneau de commande ou le logiciel. Si nécessaire, effectuez un nettoyage manuel avec la trousse de maintenance fournie.

Quels types de papier sont compatibles ?

L'imprimante accepte une large gamme de supports : papier standard, papier couché mat, papier photo brillant et satiné, adhésif, film, etc. Consultez la liste des supports recommandés par Canon.

Comment réaliser une impression sans bordure ?

Dans les paramètres d'impression, sélectionnez le format de papier et cochez l'option 'Impression sans bordure'. Utilisez du papier rouleau ou feuille coupée compatible avec les marges minimales.

Quelle est la vitesse d'impression pour un plan A1 ?

En mode brouillon sur papier ordinaire, elle est d'environ 33 secondes. Sur papier couché standard, comptez environ 1 minute 19 secondes.

Comment connecter l'imprimante au réseau ?

Utilisez le câble Ethernet pour le connecter à votre routeur ou commutateur. Configurez l'adresse IP via le panneau de commande ou le logiciel fourni.

Quelle est la consommation électrique en veille ?

En mode basse consommation, l'imprimante consomme 6 W ou moins. En mode arrêt, elle consomme moins de 1 W.

Comment remplacer la cartouche de maintenance ?

Ouvrez le capot avant, localisez la cartouche de maintenance (MC-16), poussez le loquet pour la retirer, insérez la nouvelle cartouche jusqu'au clic, puis refermez le capot.

MODE D'EMPLOI LP 24 CANON

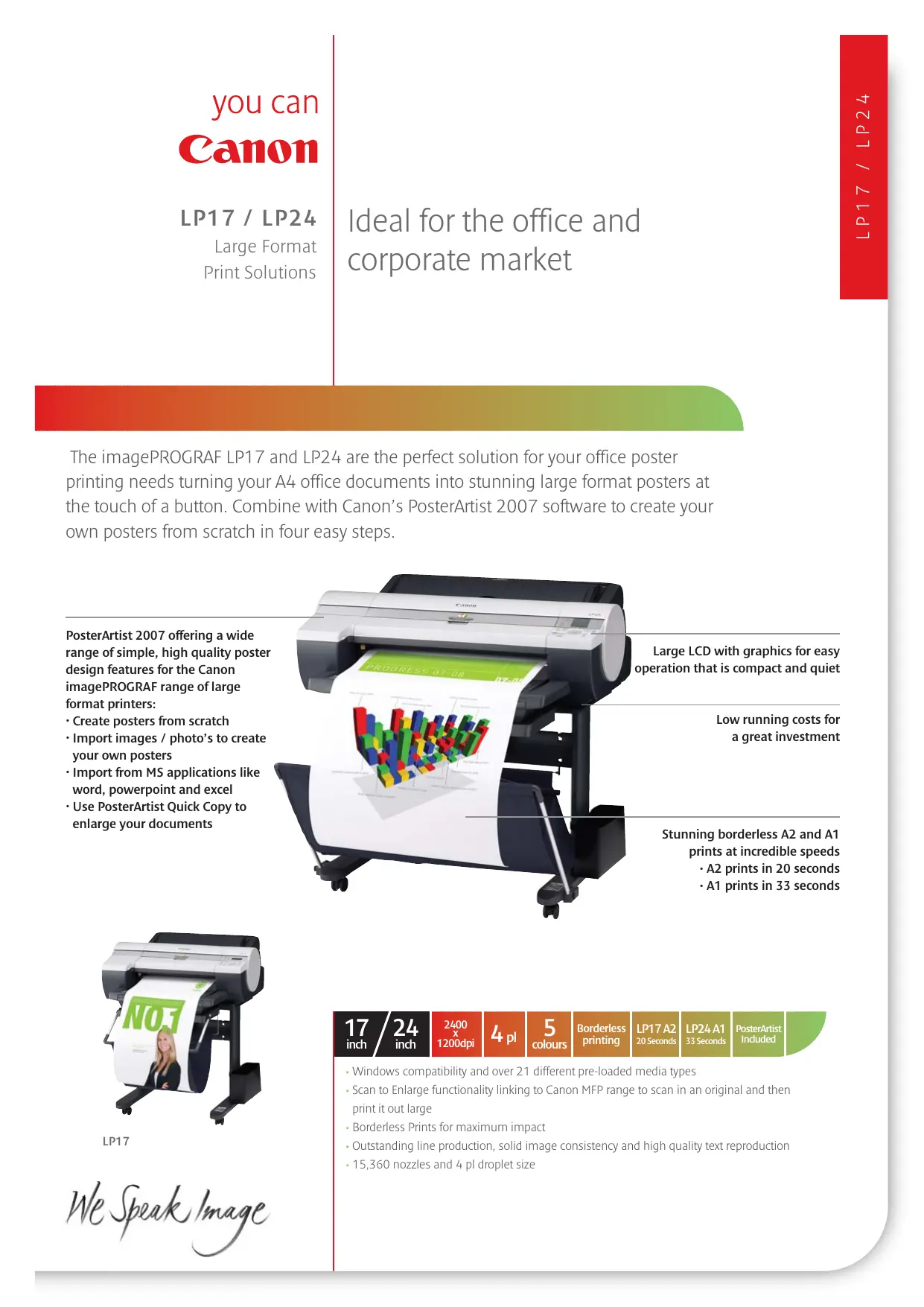

The imagePROGRAF LP17 and LP24 are the perfect solution for your office poster printing needs turning your A4 office documents into stunning large format posters at the touch of a button. Combine with Canon's PosterArtist 2007 software to create your own posters from scratch in four easy steps.

PosterArtist 2007 offering a wide range of simple, high quality poster design features for the Canon imagePROGRAF range of large format printers:

• Create posters from scratch
• Import images / photo's to create your own posters
• Import from MS applications like word, powerpoint and excel
• Use PosterArtist Quick Copy to enlarge your documents

Large LCD with graphics for easy operation that is compact and quiet

Low running costs for a great investment

Stunning borderless A2 and A1

prints at incredible speeds

A2 prints in 20 seconds
A1 prints in 33 seconds

LP17

We Speak Image

17 inch 24 inch 2400 X 1200dpi 4 pl 5 colours Borderless printing LP17 A2 20 Seconds LP24 A1 33 Seconds PosterArtist Included

• Windows compatibility and over 21 different pre-loaded media types
• Scan to Enlarge functionality linking to Canon MFP range to scan in an original and then print it out large
• Borderless Printing for maximum impact
• Outstanding line production, solid image consistency and high quality text reproduction
• 15,360 nozzles and 4 pl droplet size

Class	LP17: 17-inch, LP24: 24-inch
Ink Type	Pigment and Dye reactive ink, 5 colors (MBK x 2, BK, C, M, Y)
Maximum Print Resolution	2,400 x 1,200 dpi
Printing Speed
(LP17- A2 Roll, LP24- A1 Roll)
Plain paper	LP17: 0:20 (Draft), LP24: 0:33 (Draft)
Coated Paper	LP17: 0:55 (Standard), LP24: 1:19 (Standard)
Photo Glossary Paper	LP17: 1:38 (Standard), LP24: 2:44 (Standard)
Dimensions, Weight (Net)
W x D x H (mm), (kg)	LP17: Main unit 819 (W) x 733 (D) x 317 (H) mm; Weight: approx. 39 kg LP24: Main Unit, 997 (W) x 810 (D) x 344 (H) mm; Weight: approx. 51 kg LP17: Main unit with Stand 819 (W) x 981 (D) x 989 (H) mm; Weight: approx. 58 kg LP24: Main unit with Stand 997 (W) x 991 (D) x 989 (H) mm; Weight: approx. 68 kg
Dimensions, Weight (Packaged)
W x D x H (mm), (kg)	LP17: Main unit with Palette, 960 (W) x 874 (D) x 638 (H) mm; Weight: approx. 57 kg LP24: Main unit with Palette, 1,138 (W) x 914 (D) x 675 (H) mm; Weight: approx. 74 kg
Power Supply
Input power	AC 220 - 240 V (50/60 Hz)
Power consumption	100 W or less
Standby power consumption (At the low power mode)
220 V - 240 V	LP17: 6 W or less (when IEEE1394 is mounted, 11 W or less) LP24: 6 W or less (when IEEE1394 is mounted, 11 W or less)
Power off (standby)	1 W or less (In compliance with Executive Order of the President of the United States of America)
Operational Environment	Temperature: 15 - 30°C, Humidity: 10 - 80 % (Condensation free)
Acoustic Noise
Acoustic pressure	Operation: 52 dB (A) or less, Standby: 35 dB (A) or less
Acoustic power	Operation: LP17: 6.6 Bels or less, LP24: 6.6 Bels or less
Minimal Line Width	0.02mm (Theoretical value)
Line Accuracy	±0.1 % or less (User adjustments necessary. Printing environment media must match that used for the adjustments. CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only.)
Operation Panel
Display	Large LCD: LP17: 16 columns x 2 lines, Key x 11, LED x 5, LP24: 160 x 128 dots, Key x 12, LED x 5
Displayable Language on LCD
Interface
USB2.0 Hi-Speed	Built-in
Type	Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Mode	LP17: Series B (4 pins), LP24: Series B (4 pins)
Connector type	Built-in
Ethernet	Built-in
Type	IEEE 802.3 10base-T
Standard	IEEE 802.3u 100base-TX / Auto-Negotiation
Protocol	IEEE 802.3x Full Duplex
	LP17: IPX/SPX (Netware 4.2 (J), 5.1 (J), 6.0 (J), SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
	LP24: IPX/SPX (Netware 4.2 (J), 5.0 (J), 6.0 (J), SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk
IEEE1394 (Option)
Type	Slot card type (option)
Standard	IEEE1394 - 1995, P1394a, Half duplex, Data/Strb differential serial 100 / 200 / 400 Mbit/sec.
Data-transfer time	In compliance with IEEE1394 - 1995, 6 pins, No power supply
Connector type	Windows 2000, XP, Server 2003, Vista (32)
Operating Systems supported	CE Mark, CB Certification, TUV (GS), Gost R
Regulations
MEMORY
Standard Memory	LP17: 192Mb, LP24: 256Mb
PRINT HEAD
Model	PF-03
Type	Bubble-jet on demand
Head configuration	6 colours integrated type (6 chips per print head)
Nozzle pitch	1,200 dpi x 2
Nozzle per chip	MBK: 5,120 nozzles, Other Colours: 2,560 nozzles each
Droplet size	4 pl per colour
INK TANK
Model	Model - PFI - 102 (130ml), MBK, BK,C, M, Y
MEDIA HANDLING
Roll paper	One Roll, Front-loading, Front Output
Cut sheet	Cassette: Front loading, Front output, Manual Feed: top Feeding, Front output

Media type Roll paper	LP17/24 : Standard Paper 80gsm/90gsm, Matt Coated Paper 90gsm/120gsm/140gsm, Extra Matt Coated Paper 180gsm,Opaque Paper 120gsm, High Resolution Graphic Paper - Self Adhesive 140gsm, High Resolution Barrier Paper 180gsm, Glossy Photo Paper 190gsm/240gsm, Satin Photo Paper 190gsm/240gsm, Inst Dry Paper Glossy 200gsm, Inst Dry Paper Satin 200gsm, Photo Paper High Gloss 255gsm, Photo Paper Semi Matt 255gsm, Photo Paper Pearl 260gsm, Photo Realistic Paper 210gsm, Heavy Weight Glossy Photo Paper 300gsm, Heavy Weight Satin Photo Paper 300gsm
Media Size Roll paper (width)	ISO: A3, A2, A1 (LP24 only), JIS: B4, B2 (LP24 only), ARCH: D (24" = 609.6mm) (LP24 only)Others: 8", 10", 14", 16", 17", 300mm, A3+ (329mm)ISO: A4, A3, A3+, A2, A1 (LP24 only), B4, B3, B2 (LP24 only), DIN:C4, C3, C2 (LP24 only), JIS: B4, B3, B2 (LP24 only), ANSI: Letter (8.5 x 11"), Legal (8.5. X 14"), 11 x 17", 13 x 19", 17 x 22", 22 x 34"(LP24 only), ARCH: 9 x 12", 12 x 18", 18 x 24" (LP24 only), 24 x 36"(LP24 only), Photo: 20 x 24" (LP24 only), 18 x 22" (LP24 only), 14 x 17", 12 x 16", 10 x 12", 10 x 15", 16 x 20" (US photo size),Poster: 20 x 30" (LP24 only), 300 x 900mm, Others: 13 x 22", 17 x 24" (LP24 only)
Media Thickness	Roll paper - 0.07 - 0.8mmCut sheet: Cassette - 0.08 - 0.3mm, Manual feed (top) - 0.07 - 0.8, Manual Feed (front) - 0.5 - 1.5mm
Maximum Outside Diameter of Roll Paper Media Core Size Media Width	150.0 mmInternal diameter of roll core: 2" / 3"LP17: Roll Paper - 203 - 432mmLP24: Roll Paper - 203 - 610mmLP17: Cut Sheet: Cassette Feed - 203 - 432mmLP17: Cut Sheet: Manual Feed (top) - 203 - 432mmLP17: Cut Sheet: Manual Feed (Front) - 203 - 432mmLP24: Cut Sheet: Cassette Feed - 203 - 432mmLP24: Cut Sheet: Manual Feed (top) - 203 - 610mmLP24: Cut Sheet: Manual Feed (Front) - 203 - 610mm
Minimal Printable Paper Length	LP17: Roll Paper - 203mm, Cut Sheet - Cassette: 279mm, Manual Feed (Top): 279mm, Manual Feed (Front): 520mmLP24: Roll Paper - 203mm, Cut Sheet - Cassette: 279mm, Manual Feed (Top): 279mm, Manual Feed (Front): 520mm
Maximum Printable Paper Length	LP17: Roll Paper - 18m (varies according to the OS and application), Cut Sheet - Cassette: 594mm, Manual Feed (Top): 610mm, Manual Feed (Front): 914mmLP24: Roll Paper - 18m (varies according to the OS and application), Cut Sheet - Cassette: 594mm, Manual Feed (Top): 1.6m, Manual Feed (Front): 914mm
Margins(Top, Bottom, Sides)Recommended area	Roll paper: Top: 20mm, Bottom: 5mm, Side: 5mmCut Sheet: Cassette/Manual Feed (Top) - Top: 20mm, Bottom: 27mm, Side: 5mmManual Feed (Front) - Top: 20mm, Bottom: 23mm, Side: 5mmRoll paper (borderless printing): Top: 3mm (0mm), Bottom: 3mm (0mm), Side: 3mm (0mm)Cassette: Top: 3mm (0mm), Bottom: 3mm (0mm),Side: 3mm (0mm)Manul Feed (Top): Top: 3mm, Bottom: 3mm, Side: 3mmManual Feed (Front): Top: 3mm, Bottom: 23mm, Side: 3mm
Printable area	10" (254mm), B4 (257mm), A3+ (329mm), 14" (356mm), 16" (407mm), A2 (420mm), A2+17" (432mm), B2 (515mm)(LP24 only), A1 (594mm) (LP24 only), 24" (610mm) (LP24 only)
Printer Stand Auto Roll Feed Unit(including RH2-11)BasketRoll Holder SetIEEE1394 Expansion Board	LP17: ST:11, LP24: ST-24LP17: RU-02LP17: BU-02LP17: RH2-11, LP24: RH2-24 (2-inch core spindle with 3-inch media tube attachment and borderless printing space)EB-05
CONSUMABLEs Ink Tank Print Head Maintenance Cartridge	PFI-102 (130 ml); MBK, BK, C, M, YPF-03LP17: MC-05, LP24: MC-16
Some images are simulated for clarity of reproduction. All data is based on Canon's standard testing methods.This leaflet and the specifications of the product have been developed prior to the date of product launch.Final specifications are subject to change without notice." and @ . All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.Canon recommends you use Canon Media for the best results. Please check media (paper) compatibility list to see which variety of paper/media is recommended.
