Intitulé	Description
Type de produit	Téléphone DECT sans fil
Caractéristiques techniques principales	Technologie DECT, son HD, écran couleur, compatibilité avec les systèmes Alcatel-Lucent
Alimentation électrique	Batterie rechargeable Li-Ion
Dimensions approximatives	150 x 50 x 25 mm
Poids	150 g
Compatibilités	Compatible avec les systèmes Alcatel-Lucent OmniPCX et d'autres systèmes DECT
Type de batterie	Batterie Lithium-Ion
Tension	3.7 V
Puissance	0.1 W (en mode veille)
Fonctions principales	Appels vocaux, messagerie vocale, répertoire, sonnerie personnalisable
Entretien et nettoyage	Nettoyer avec un chiffon doux, ne pas utiliser de produits abrasifs
Pièces détachées et réparabilité	Disponibilité de pièces de rechange via le service après-vente Alcatel-Lucent
Sécurité	Cryptage des communications, conformité aux normes de sécurité DECT
Informations générales utiles	Garantie de 2 ans, assistance technique disponible

FOIRE AUX QUESTIONS - LUCENT DECT 8232 ALCATEL

Comment réinitialiser mon ALCATEL LUCENT DECT 8232 ?

Pour réinitialiser votre téléphone, maintenez enfoncé le bouton de réduction du volume et le bouton de mise sous tension pendant environ 10 secondes jusqu'à ce que l'écran s'éteigne.

Pourquoi mon téléphone ne se connecte-t-il pas à la base ?

Assurez-vous que le téléphone est bien enregistré sur la base. Vous pouvez essayer de le désenregistrer puis de le réenregistrer en suivant les instructions du manuel.

Comment augmenter le volume de mon ALCATEL LUCENT DECT 8232 ?

Utilisez les boutons de volume situés sur le côté du téléphone pour ajuster le volume pendant un appel ou dans le menu de configuration.

Que faire si l'écran de mon téléphone reste noir ?

Vérifiez si le téléphone est chargé. Si l'écran reste noir même après avoir été chargé, essayez de réinitialiser le téléphone.

Comment modifier les réglages de sonnerie ?

Allez dans le menu 'Réglages', puis 'Son' et choisissez 'Sonnerie' pour sélectionner le son de votre choix.

Mon téléphone ne reçoit pas d'appels. Que faire ?

Vérifiez si le mode 'Ne pas déranger' est activé. Si c'est le cas, désactivez-le. Assurez-vous également que le téléphone est bien connecté à la base.

Comment vérifier la durée de vie de la batterie ?

La durée de vie de la batterie peut être vérifiée dans le menu 'Réglages' sous 'Batterie'.

Puis-je utiliser mon ALCATEL LUCENT DECT 8232 à l'étranger ?

Oui, tant que vous avez une base compatible avec le standard DECT et une connexion téléphonique appropriée.

Comment mettre à jour le firmware de mon téléphone ?

Les mises à jour du firmware sont généralement effectuées automatiquement. Si une mise à jour est disponible, vous serez notifié dans le menu 'Réglages'.

Que faire si mon téléphone ne charge pas ?

Vérifiez que le câble et l'adaptateur sont en bon état. Essayez de nettoyer les contacts de charge et de redémarrer le téléphone.

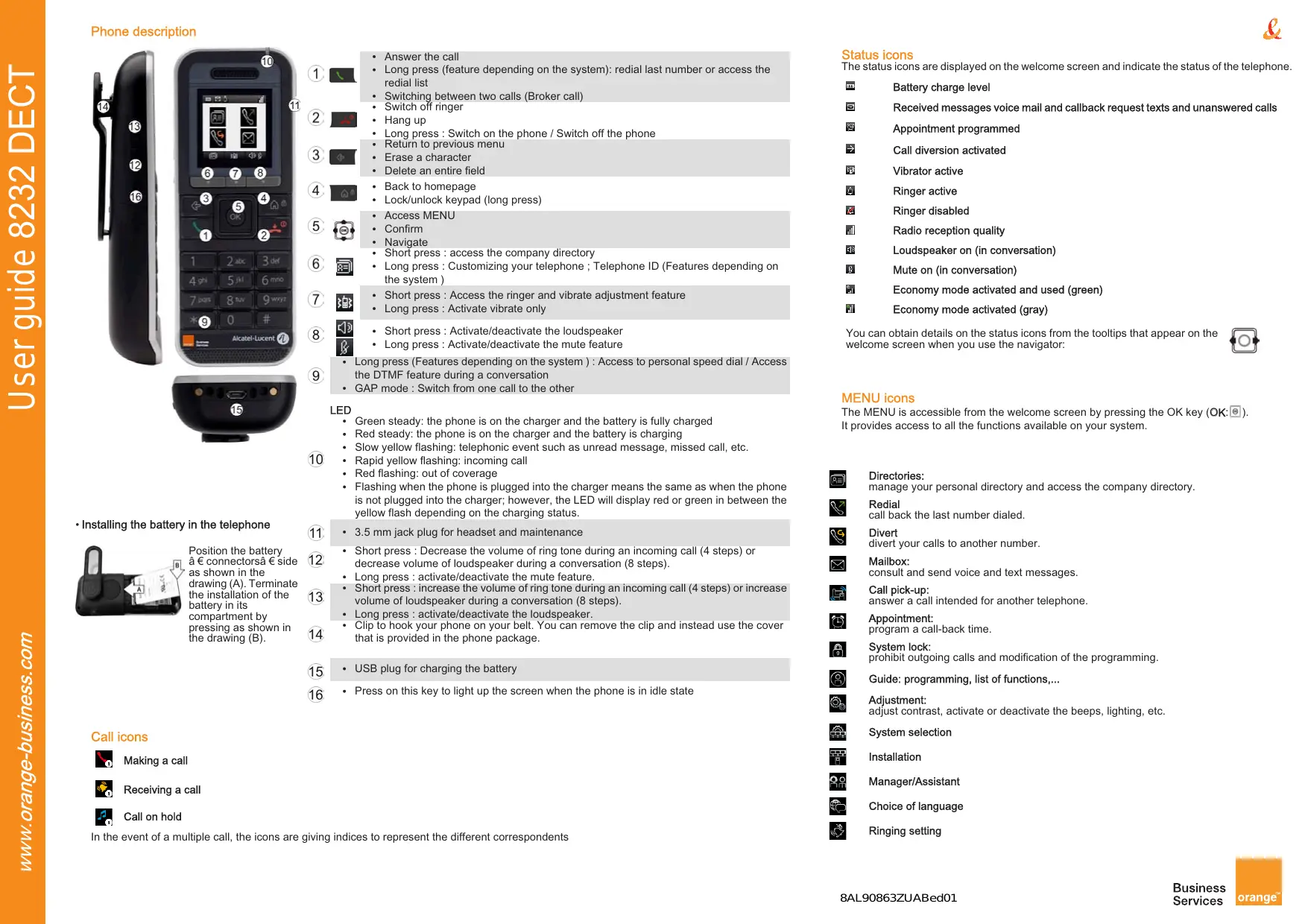

MODE D'EMPLOI LUCENT DECT 8232 ALCATEL

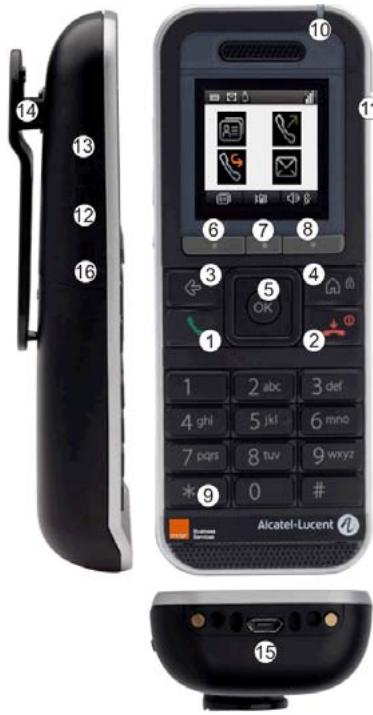

10 11 6 7 8 3 4 OK 1 2 abc 3 def 4 ghi 5 jkl 6 mno 7 pqrs 8 tuv 9 wxyz * 0 # 15 Alcatel-Lucent

1

2

3

4

5

6

7

8

9

• Long press (Features depending on the system) : Access to personal speed dial / Access the DTMF feature during a conversation
  • GAP mode : Switch from one call to the other

• Installing the battery in the telephone

Position the battery â € connectorsâ € side as shown in the drawing (A). Terminate the installation of the battery in its compartment by pressing as shown in the drawing (B).

LED

• Green steady: the phone is on the charger and the battery is fully charged
• Red steady: the phone is on the charger and the battery is charging
• Slow yellow flashing: telephonic event such as unread message, missed call, etc.
• Rapid yellow flashing: incoming call
  • Red flashing: out of coverage
• Flashing when the phone is plugged into the charger means the same as when the phone is not plugged into the charger; however, the LED will display red or green in between the yellow flash depending on the charging status.
  • 3.5 mm jack plug for headset and maintenance
• Short press : Decrease the volume of ring tone during an incoming call (4 steps) or decrease volume of loudspeaker during a conversation (8 steps).
• Long press : activate/deactivate the mute feature.
• Short press : increase the volume of ring tone during an incoming call (4 steps) or increase volume of loudspeaker during a conversation (8 steps).
• Long press : activate/deactivate the loudspeaker.
• Clip to hook your phone on your belt. You can remove the clip and instead use the cover that is provided in the phone package.

11

14

15

• USB plug for charging the battery
- Press on this key to light up the screen when the phone is in idle state

16

Call icons

Making a call

Receiving a call

Call on hold

In the event of a multiple call, the icons are giving indices to represent the different correspondents

Status icons

The status icons are displayed on the welcome screen and indicate the status of the telephone.

Battery charge level
Received messages voice mail and callback request texts and unanswered calls
Appointment programmed
→ Call diversion activated
Vibrator active
Ringer active
Ringer disabled
Radio reception quality
Loudspeaker on (in conversation)
Mute on (in conversation)
Economy mode activated and used (green)
Economy mode activated (gray)

You can obtain details on the status icons from the tooltips that appear on the welcome screen when you use the navigator:

MENU icons

The MENU is accessible from the welcome screen by pressing the OK key (OK: ☐). It provides access to all the functions available on your system.

Directories:

manage your personal directory and access the company directory.

Redial

call back the last number dialed.

Divert

divert your calls to another number.

Mailbox:

consult and send voice and text messages.

Call pick-up:

answer a call intended for another telephone.

Appointment:

program a call-back time.

System lock:

prohibit outgoing calls and modification of the programming.

Guide: programming, list of functions,...

Adjustment:

adjust contrast, activate or deactivate the beeps, lighting, etc.

System selection

Installation

Manager/Assistant

Choice of language

Ringing setting

Features

Described features are dependent on your system.. For more information, contact your installer or administrator.	e-diatonis CE/S/M/L		e-diatonis XL / Multi Connect Business	mode GAP
Answered incoming calls1
Redialing (Long press)
Send the call
Switching between two outgoing calls
Switching between two calls, either one or two incoming calls
Ignore call
End the call
Calling from your personal directory (PersSpDial)
Calling your correspondent by name (company directory)
Programming your personal directory (PersSpDial)
Calling your correspondent by name (company directory)
Call from call log (All incoming, outgoing, missed or unanswered calls are displayed in the call log )
Consulting external missed calls
Consulting internal missed calls
Consulting text messages
Sending text messages
Consulting your voice mailbox				the voice-mail nb
Sending a recorded message to a number a distribution list
Customising your voice greeting				[CGB2]
Divert your calls to another number.	[63TS]			the re code
Diverting calls to your voice mailbox				[6STG] the voice code
Different types of diversions				the feature code
Automatic Message if no reply	[53DS]
Do not disturb				the re code
Forward if busy
Cancelling all diversions				[111E] the re code
Select the type of call to divert				[Y5GB]
Modifying your personal code				[KABB]
Choice of language
Choose the tune
Adjusting the ringer volume				[48GB]
Access the ringer and vibrate adjustment feature
Auto answer
Your phone number
Programming an appointment reminder
Locking your telephone
Locking the keypad
Personal assistant
Define an overflow number	[BCYD]
Define an associate number
Standard
Access to the handset settings menu (Device info , Coverage warning , Security ,...)				[DG48]

Features accessible in conversation:

Accessing the directories

Diverting your calls to your voice message service

Transferring a call

Putting on common hold

Switching to DTMF signals

Parking an external communication

Switching between two calls (Broker call)

Call duration and cost

Setting up a conference

Additional options (Features depending on the system)

GAP mode

Your telephone complies with the GAP standard and can be used in simplified mode.

The feature descriptions and feature codes are dependent on your system.

The operation of your phone depends on its single or multi-line installation. For more information regarding this configuration, contact the person in charge of your installation.

For more information on how to use your phone in GAP mode, please refer to the user manual.

Charging your telephone battery

• How to dock your phone on the desk support

Front view of a mobile phone with a stand and keypad (no visible text or symbols)

Put your phone on its support. Plug the USB cable into the 5V socket of the desk support. Plug the other end of the USB cable into the AC/DC adapter. Plug the adaptor into the mains power supply.

• How to dock your phone with the USB cable

Plug the USB cable into the USB port of your phone. The other end of the USB cable can be plugged into the AC/DC adapter or into a computer USB port.

LED

• Green steady: the phone is on the charger and the battery is fully charged
• Red steady: the phone is on the charger and the battery is charging

Recharge your telephone battery regularly. The telephone can be on or off when recharging the battery. If the telephone is to remain unused or out of its charger for several weeks, remove the battery and store it separately.

The battery charging time is less than 3 hours.

Switch off the telephone before changing the battery.
