Type de produit	Tricycle pour enfant
Marque	Schwinn
Modèle	Roadster S6728
Catégorie	Vélo (tricycle)
Dimensions (L x l x H)	Environ 80 x 50 x 60 cm
Poids	Environ 10 kg
Matériau du cadre	Acier
Nombre de roues	3
Taille de la roue avant	Environ 12 pouces
Taille des roues arrière	Environ 10 pouces
Hauteur de selle réglable	Oui (réglage sans outil avec bouton)
Pédales	Incluses
Garde-boue	Avant et arrière
Plateforme arrière	Oui (pour se tenir debout)
Assemblage requis	Oui, avec outils (clé de 13 mm)
Guide d'assemblage inclus	Oui, manuel de 11 pages
Garantie cadre	À vie pour l'acheteur initial
Garantie pièces (hors usure)	1 an
Pièces de rechange	Disponibles sur appel (1-800-626-2811)
Entretien recommandé	Vérifier serrages, lubrifier chaîne et pivots, gonfler les pneus
Équipement de sécurité recommandé	Casque, supervision adulte
Utilisation prévue	Promenade et loisirs, pas de cascades ni de course

FOIRE AUX QUESTIONS - Roadster S6728 Schwinn

Comment assembler le tricycle Roadster S6728 ?

Suivez les étapes du manuel : fixez la selle, insérez la fourche dans le tube de direction, installez le guidon et serrez le collier de potence avec une clé de 13 mm. Assurez-vous que toutes les pièces sont bien serrées.

Comment régler la hauteur de la selle ?

Desserrez le bouton de réglage de la selle, faites glisser la selle vers l'avant ou l'arrière, puis resserrez le bouton. La selle peut être réglée sans outil.

Que faire en cas de pièces manquantes ?

Ne retournez pas le tricycle au magasin. Appelez le service client Pacific Cycle au 1-800-626-2811 (lun-ven, 8h-17h CT) ou envoyez un email à [e-mail] pour obtenir les pièces manquantes.

Quelle est la garantie du tricycle ?

Le cadre est garanti à vie pour l'acheteur initial. Les autres pièces (hors usure normale) sont garanties 1 an. Les pièces d'usure (poignées, pneus, câbles) sont garanties contre les défauts initiaux. La garantie ne couvre pas les dommages accidentels ou la mauvaise utilisation.

Comment entretenir le tricycle ?

Vérifiez régulièrement le serrage de toutes les vis et boulons. Lubrifiez la chaîne et les pièces mobiles avec de l'huile légère. Gonflez les pneus à la pression recommandée. Inspectez les freins et les roues pour un fonctionnement correct.

Est-ce que ce tricycle est adapté pour une utilisation sur route ?

Non, il est conçu pour une utilisation sur des surfaces planes et dégagées, sous surveillance. Ne l'utilisez pas sur des routes fréquentées, en descente ou de nuit. Portez toujours un casque.

Que faire si une roue ne tourne pas librement ?

Vérifiez que le garde-boue ne frotte pas contre le pneu. Si c'est le cas, pliez doucement le garde-boue dans la direction opposée pour le centrer. Assurez-vous que les écrous d'essieu ne sont pas trop serrés.

Comment contacter le service client ?

Appelez le 1-800-626-2811 du lundi au vendredi de 8h00 à 17h00 (heure centrale) ou envoyez un email à [e-mail]. Adresse postale : Pacific Cycle LLC, 4730 East Radio Tower Lane/PO Box 344, Olney, IL 62450.

Puis-je utiliser ce tricycle pour des cascades ?

Non, le tricycle n'est pas conçu pour le saut, la course ou toute utilisation abusive. Cela annulerait la garantie et pourrait causer des blessures.

Quels outils sont nécessaires pour l'assemblage ?

Une clé de 13 mm (ou clé à molette) est nécessaire pour serrer le collier de potence. Aucun autre outil n'est requis, car les autres fixations sont pré-assemblées ou utilisent des molettes.

MODE D'EMPLOI Roadster S6728 Schwinn

in the interest of safety, make certain that you read and understand all information and instructions included with and pertaining to this product.

• WARRAINTY

• MAINTENANCE

• ADJUSTMENTS

• OPERATING

ASSEMBLY

Schwin Roadster

OWNER'S MANUAL

Personal Care From PACIFICCYCLE

DO NOT RETURN THIS ITEM TO THE STORE. PLEASE CALL PACIFIC CYCLE FOR ASSISTANCE.

Congratulations on your new purchase! Our Service Department is dedicated to your satisfaction with Pacific Cycle and its products. For questions regarding performance, assembly, operation, parts or returns, contact the experts at Pacific Cycle directly by calling toll free

1-800-626-2811

8:00am - 5:00pm Central Time Monday thru Friday Or by email at

[e-mail]

To avoid accidents, leach children good riding skills with an emphasis on safety from an early age.

1. Always wear a properly fitted helmet.
2. Do not play in driveways or the road.
3. Do not ride on busy streets.

4. Do not ride at night.

5. Obey all the traffic laws, especially stop signs and red

lights.

1. Be aware of other road vehicles behind and nearby.
2. Before entering a street: Stop, lock right, left, and right

again for traffic. If there's no Ira

1. If riding downhill, be extra careful. Slow down using the

2. Never take your hands off the handlebars, or your feet off

the pedals when riding downhill.

The Consumer Protection Safety Commission advises that the riding of small wheel diameter bicycles at excessive speeds can lead to instability and is not recommended.

Children should be made aware of all possible riding hazards and correct riding behavior before they take to the streets - Do not leave it up to trial and error.

Schwin Roadster Assembly Instructions

Tools needed:

13mm (1/2") wrench or crescent (adjustable) wrench

Parts list:

1) Main frame assembly -- frame, rear wheels, rear lenders,

rear standing deck

2) Saddle assembly - saddle, carriage bolt, saddlo-adjustment

knob

3) Fork assembly - front fork, front wheel, front fender

4) Handlebar assembly - handlebar, grips, stem clamp

(1) 12 (2) 12 (3) 12 (4) 12 (5) 12 (6) 12 (7) 12 (8) 12 (9) 12 (10)

above: If any parts are missing or damaged, DO NOT

RETURN TRICYCLE TO DEALER. Please call 1-800-626-2811

for replacement or missing parts.

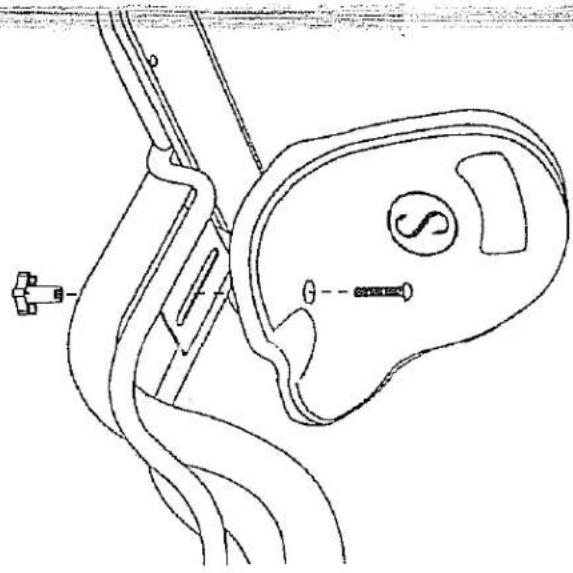

Disassemble saddle-adjustment knob from saddle. Position saddle on frame with carriage bolt protruding through center slot in frame. Tighten knob onto carriage bolt to lock saddle in position. Fore and aft saddle adjustment can be accomplished by loosening the saddle-adjustment knob a few turns, sliding saddle forward or backward, and then re-tightening saddle-adjustment knob.

Line drawing of a medical device with a labeled 'S' and inserted screw, no text or symbols present

Pure technical diagram showing a curved line and crosshair marker without any text or symbols

Diagram of a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)

Inspect all wheels to be sure that they turn freely. If any wheel does not turn freely, check that tender is not rubbing on the tire. If it is flex tender to the opposite side that it is rubbing on, until it is centered (see illustration). While holding front wheel, check that handlebar cannot be turned independently from wheel. Check that saddle carriage bolt and lightening knob are holding saddle securely. If necessary, lighten saddle-adjustment knob further.

Schwinn Roadster Paris List

[Unreadable due to extreme pixelation and noise]

Key		No
No.	Part Name	Re
1.	Main Frame	1
2.	Fork	1
3.	Handlebar & Grips	1
4.	Saddle	1
5.	Front Wheel Assembly	1
6.	Rear Wheel Assembly	2
7.	Front Fender & Brace	1
8.	Rear Fender & Brace	2
9.	Rear Standing Deck & Frame	1
10.	Pedals	2
11.	Saddle Carriage Bolt	1
12.	Saddle Adjustment Knob	1
13.	Stem Clamp	1
14.	Stem Clamp Bolt	1
15.	Stem Clamp Washer	1
16.	Stem Clamp Acorn Nut	1
17.	Plastic Stem Clamp Cap	1
18.	Front Wheel Fender Bolts	2
19.	Rear Standing Deck Bolts	4
20.	Rear Standing Deck Washers	4
21.	Rear Standing Deck Nuts	4
22.	Rear Axle	1
23.	Rear Wheel Washers	8
24.	Rear Wheel Inner-Lock Nuts	2
25.	Rear Wheel Acorn Lock Nut	2
26.	Rear Wheel Fender Bolts	2
27.	Front Fender Screw	1

Your bicycle has been desired for general transportation and recreational use, but has not been designed to withstand abuse associated with stunting, etc. ride with more than one person, or use the bike for stunting or jumping.

Any other warranty claims not included in this statement are void. This especially includes installation, assembly, and disassembly costs. This war-tary does not cover panel damage, trash or any modifications made to the blue. Normal Wear Parts are delinded as gips, lrics, lubes, and cables. These parts are warranted to be free from defects in material and workman- ship as delivered with the product. Any claim for repair or replacement of normal wear Parts (grips, lubes, lias, cables, batch shows, and saddlo date of purchases. The warranty does not cover normal wear and leaf. Improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the bicycle as solid. The warranty does not apply to damage or failure due to accident, abuse, misuse, neg- toel, or their claims involving these issues will not be honored.

The entire blue frame is guaranteed against faculty materials and workership for as long as the initial consumer purchaser has the blue, subject to the condition of the warranty listed below if before failure should occur by proof of purchase. All other parts of the unit except Nominal Wear Parts are warranted against detective materials and workership for a period of 1 year from the date of confirmed warranty. The address given on this page: Blue frames must be lettered for inspection at customers' expense.

Limited WARRANTY AND POLICY ON RELEASEMENT PROCEDURE AND RESPONSIBLES Your purchase includes the following warranty which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchase warranties. No warranty registration is required. This warranty gives you spactic legal rights and you may have other rights which vary from state to state.
