MODE D'EMPLOI KMD-410MWH Hoshizaki
Hoshizaki America, Inc.
Modular Crescent Cuber
Model
KMD-410MWH
www.hoshizaki.com
PARTS LIST
Number: F044-3238
Issued: 7-23-2009
Revised: 5-6-2016
Auxiliary Codes
KMD-410MWH U-1 July 2009
V-0 January 2010
V-1 February 2010
V-2 July 2010
A-0 January 2011
A-1 April 2011
F-0 January 2016
F-1 May 2016
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates significant part changes within a year. Base is "0" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.
MARKS LOCATED UNDER THE AUXILIARY CODE
- = Part deleted.
x = Part deleted and replaced by "o" part.
o = New part in place of "x" part.
FASTENER PART NUMBER
SCREWS


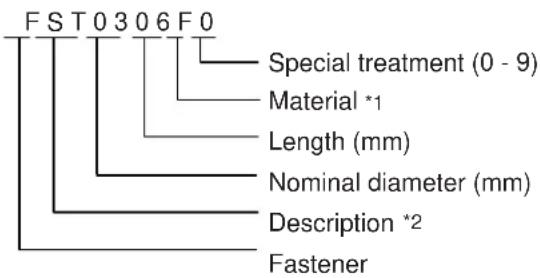

F S T 0 3 0 6 F 0 Special treatment (0 - 9) Material *1 Length (mm) Nominal diameter (mm) Description *2 Fastener^*_1 Material
F: Steel
S: Austenitic stainless steel
M: Martensitic stainless steel
B: Copper alloy
P: Polycarbonate
N: Polyamide
V: PVC
A: ABS
X: Polyacetal
L: Aluminum
NUTS & WASHERS


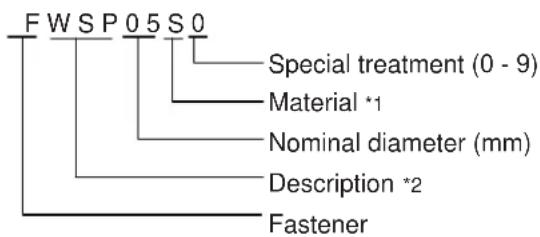

F W S P 0 5 S 0 Special treatment (0 - 9) Material *1 Nominal diameter (mm) Description *2 Fastener^*_2 Description
First letter
S: Machine screw
T: Tapping screw
M: Wood screw
B: Bolt
W: Washer
N: Nut


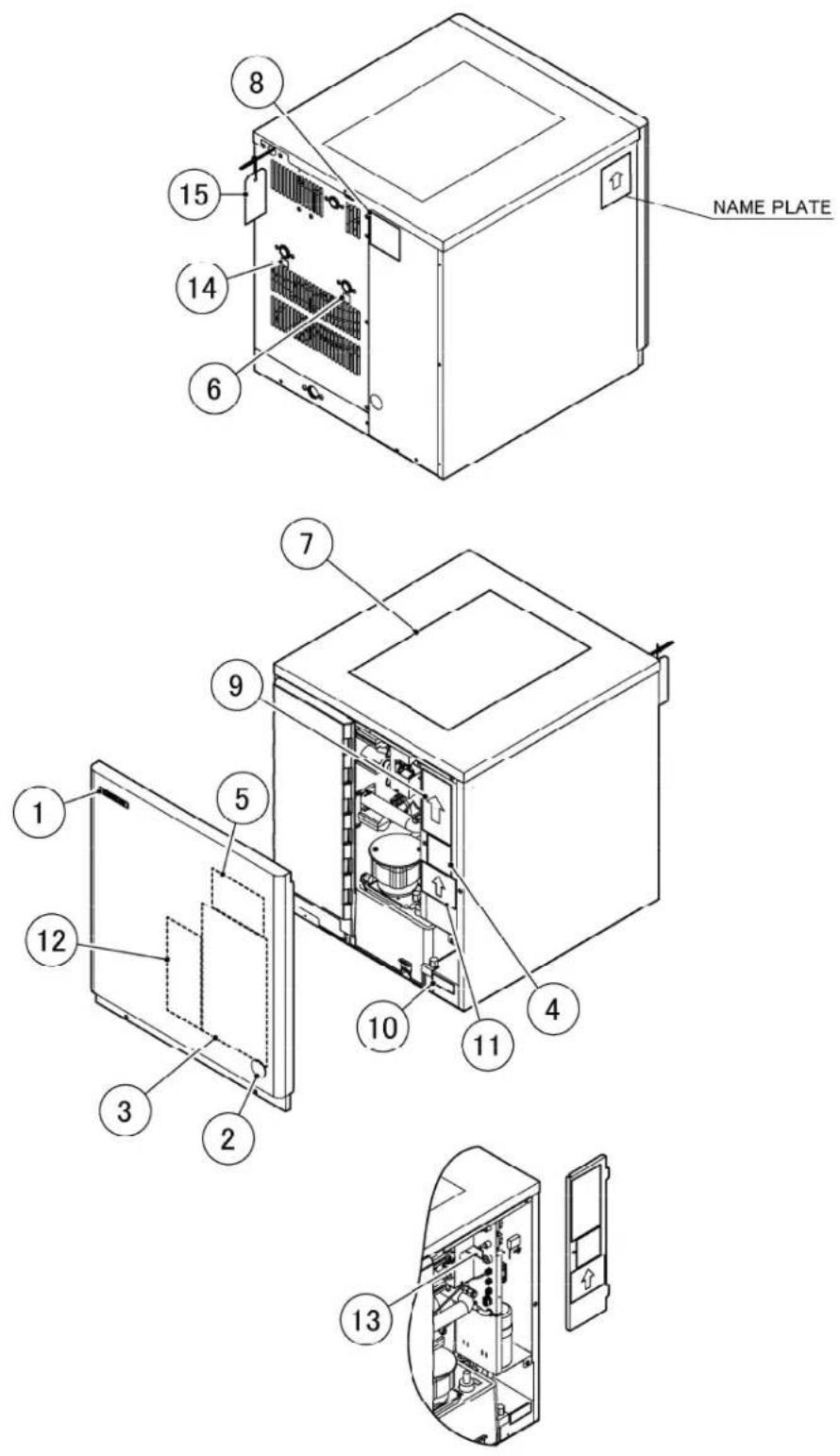

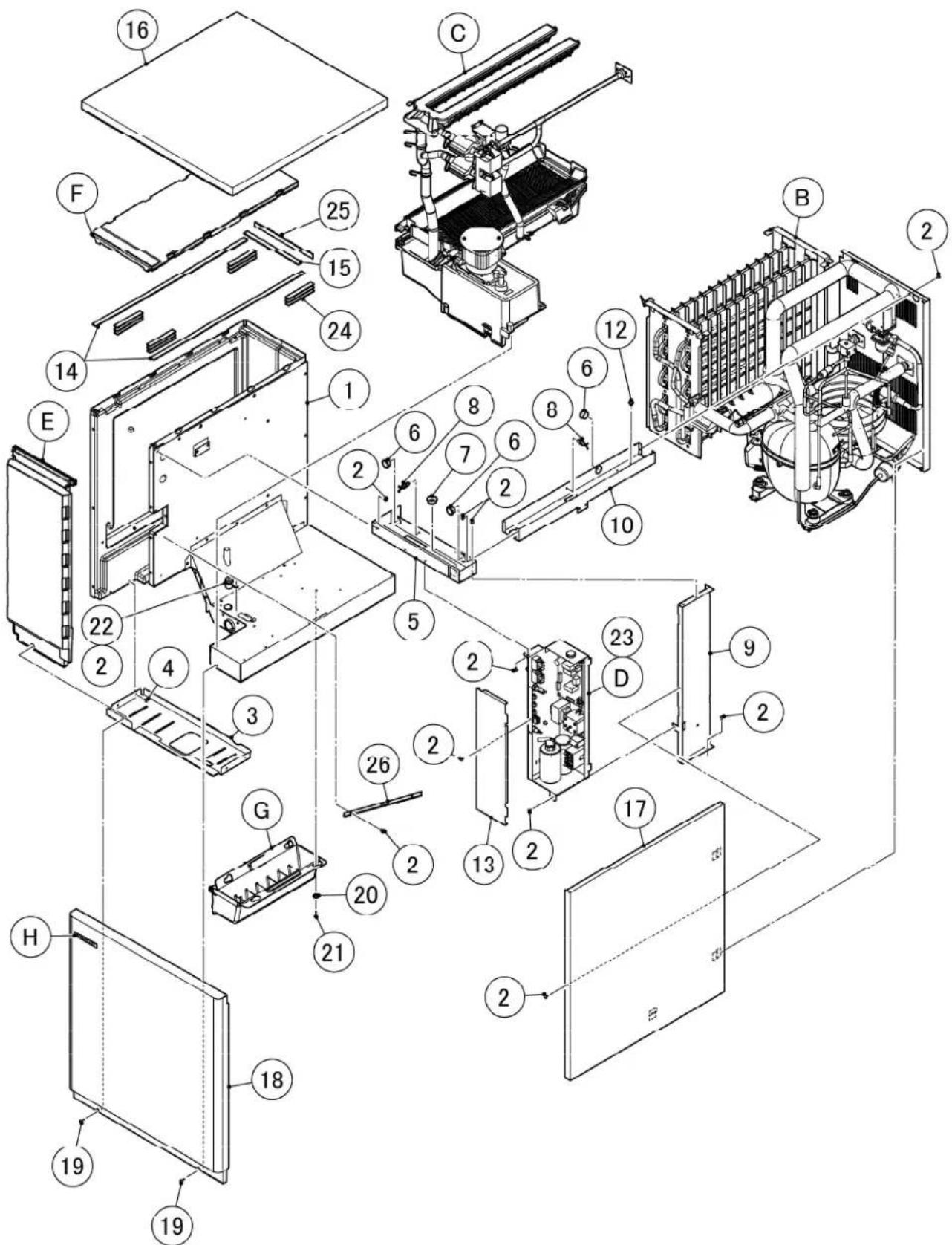

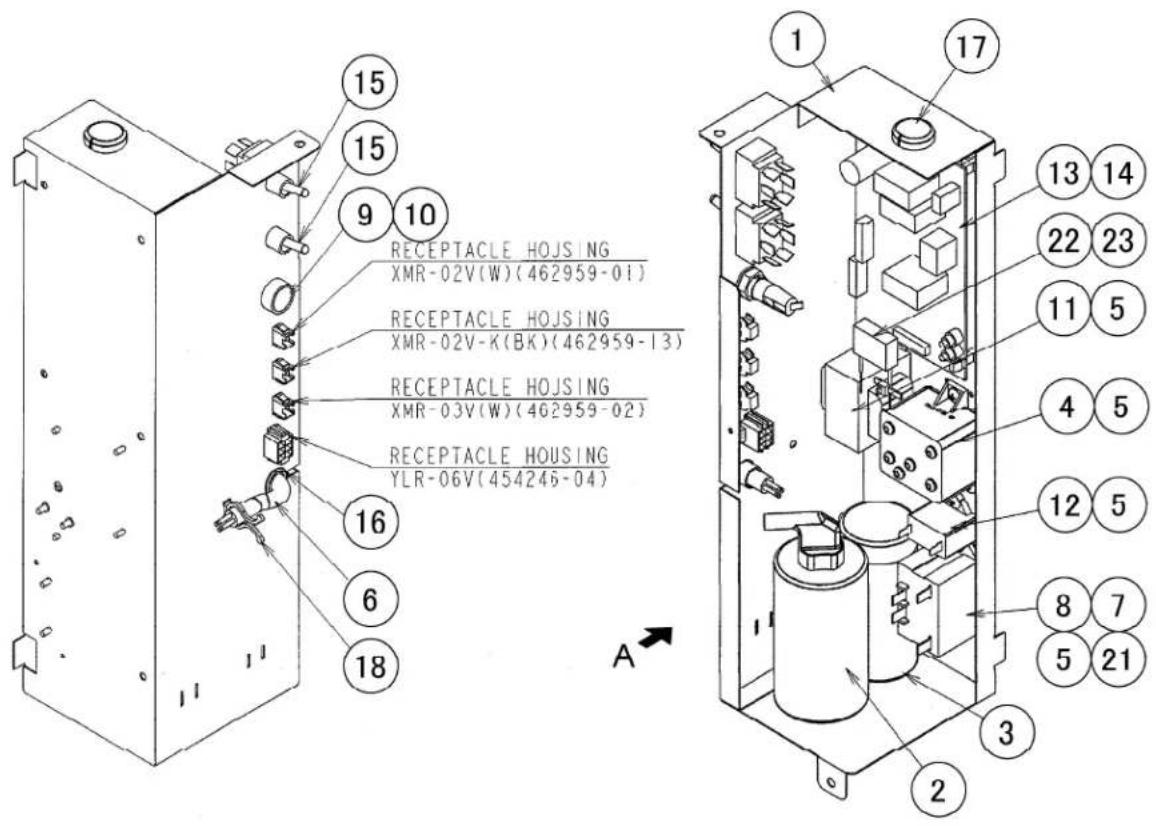

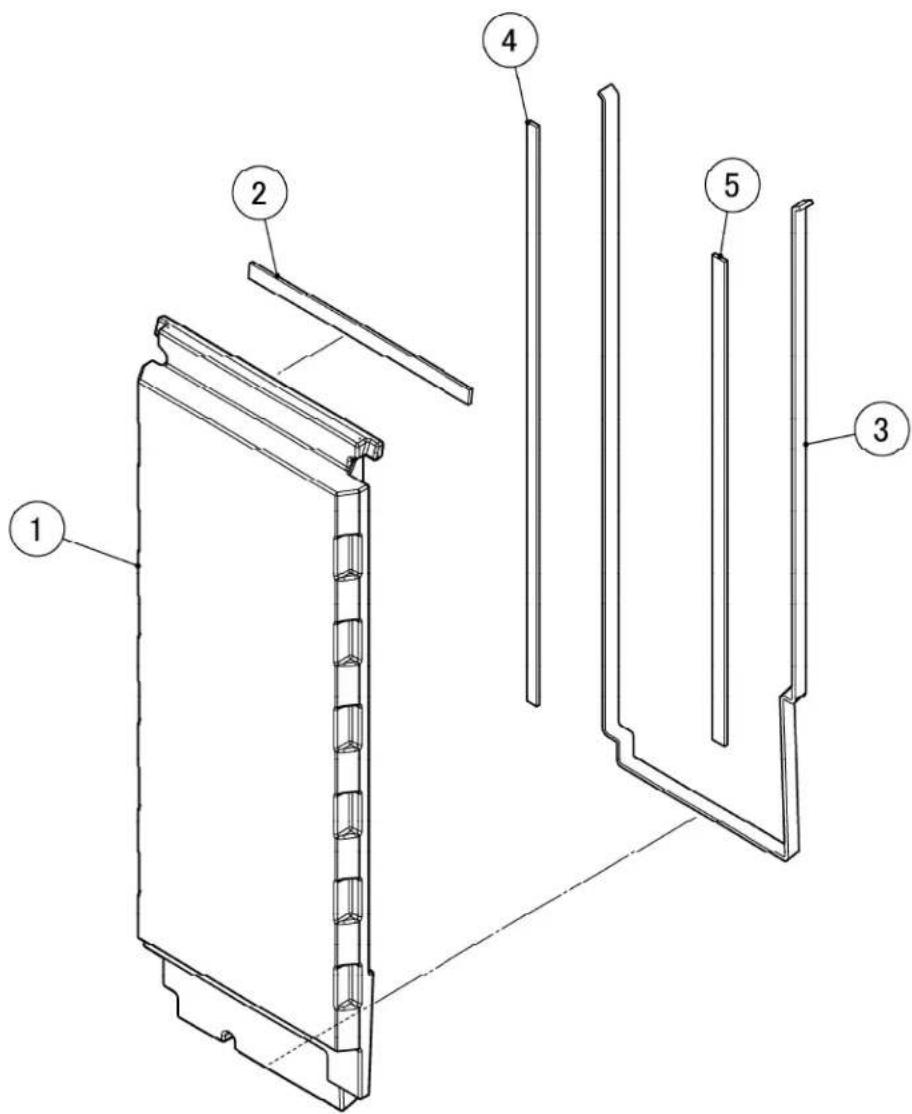

Exploded view diagram of a multi-chamber refrigerator with numbered components for identificationHA
| MODEL: KMD-410MWH TITLE: A. ICE CUBER ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A-0 | A-1 | ||||
| B RE | FRIGERATION CIRCUIT 119827A01 | 1 | 1 | 1 | 1 | ||
| C WATER | CIRCUIT 119820A01 | 1 | 1 | 1 | 1 | ||
| D CONT. | BOX ASSY 257522A01 | 1 | 1 | 1 | 1 | ||
| E FRONT | INSULATION ASSY 371887A01 | 1 | 1 | 1 | 1 | ||
| F TOP | INSULATION ASSY 374537A01 | 1 | 1 | 1 | 1 | ||
| G BIN | SWITCH 371886A01 | 1 | 1 | 1 | 1 | ||
| H LABEL | LOCATION 119828A01 | 1 | 1 | 1 | 1 | ||
| K AC | CESSORIES A01924-01 | 1 | 1 | 1 | 1 | ||
| 1 EV | AP. CASE 119110G05 | 1 | 1 | 1 | 1 | ||
| 2 T2 | SCREW 4X8 FT20408F0 | 15 | 15 | 15 | 18 | ||
| 3 | BOTTOM FRAME | 371876M01 | 1 | 1 | 1 | 1 | |
| 4 | T2 SCREW | 4X8 SUS | FT20408M0 | 4 | 4 | 4 | 4 |
| 5 | TOP FRAME | 371867M01 | 1 | 1 | 1 | 1 | |
| 6 | BUSHING | OCB-875 | 428394-04 | 3 | 3 | 3 | 3 |
| 7 | BUSHING | OCB-750 | 428394-01 | 1 | 1 | 1 | 1 |
| 8 | CLAMP | No.249 | 427902-03 | 2 | 2 | 3 | 3 |
| 9 | SIDE FRAME (A) | 371873M01 | 1 | 1 | 1 | 1 | |
| 10 | SIDE FRAME (B) | 371866M01 | 1 | 1 | 1 | 1 | |
| 11 | SQUARE WASHAR | 433537-02 | 1 | 1 | 1 | 1 | |
| 12 | SCREW - GROUNDING | 433304-02 | 1 | 1 | 1 | 1 | |
| 13 | CONT. BOX COVER | 371874M01 | 1 | 1 | 1 | 1 | |
| 14 | GASKET | L=563 | 119826Z01 | 2 | 2 | 2 | 2 |
| 15 | GASKET | L=203 | 119826Z02 | 1 | 1 | 1 | 1 |
| 16 | TOP PANEL | 255967M02 | 1 | 1 | 1 | 1 | |
| 17 | SIDE PANEL (R) | 255966G04 | 1 | 1 | 1 | 1 | |
| 18 | FRONT PANEL | 373166G01 | 1 | 1 | 1 | 1 | |
| 19 | TRUSS HEAD SCREW | 4X20 SUS | FST0420S0 | 2 | 2 | 2 | 2 |
| 20 | COLLAR | 435269-01 | 4 | 4 | 4 | 4 | |
HA
| MODEL: KMD-410MWH TITLE: A. ICE CUBER ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A-0 | A-1 | ||||
| 21 T2 | SCREW 4X16 SUS FT20416M0 4 4 4 4 | ||||||
| 22 HOLE PLUG 373078R01 1 1 1 1 | |||||||
| 23 WRE HARNESS 373139Z02 1 1 1 1 | |||||||
| 24 GASKET L=50 119826Z03 12 12 | 12 12 | ||||||
| 25 GASKET L=215 119826Z04 1 1 1 1 | |||||||
| 26 PLATE - SIDE PANEL | 379577M01 | 1 | |||||


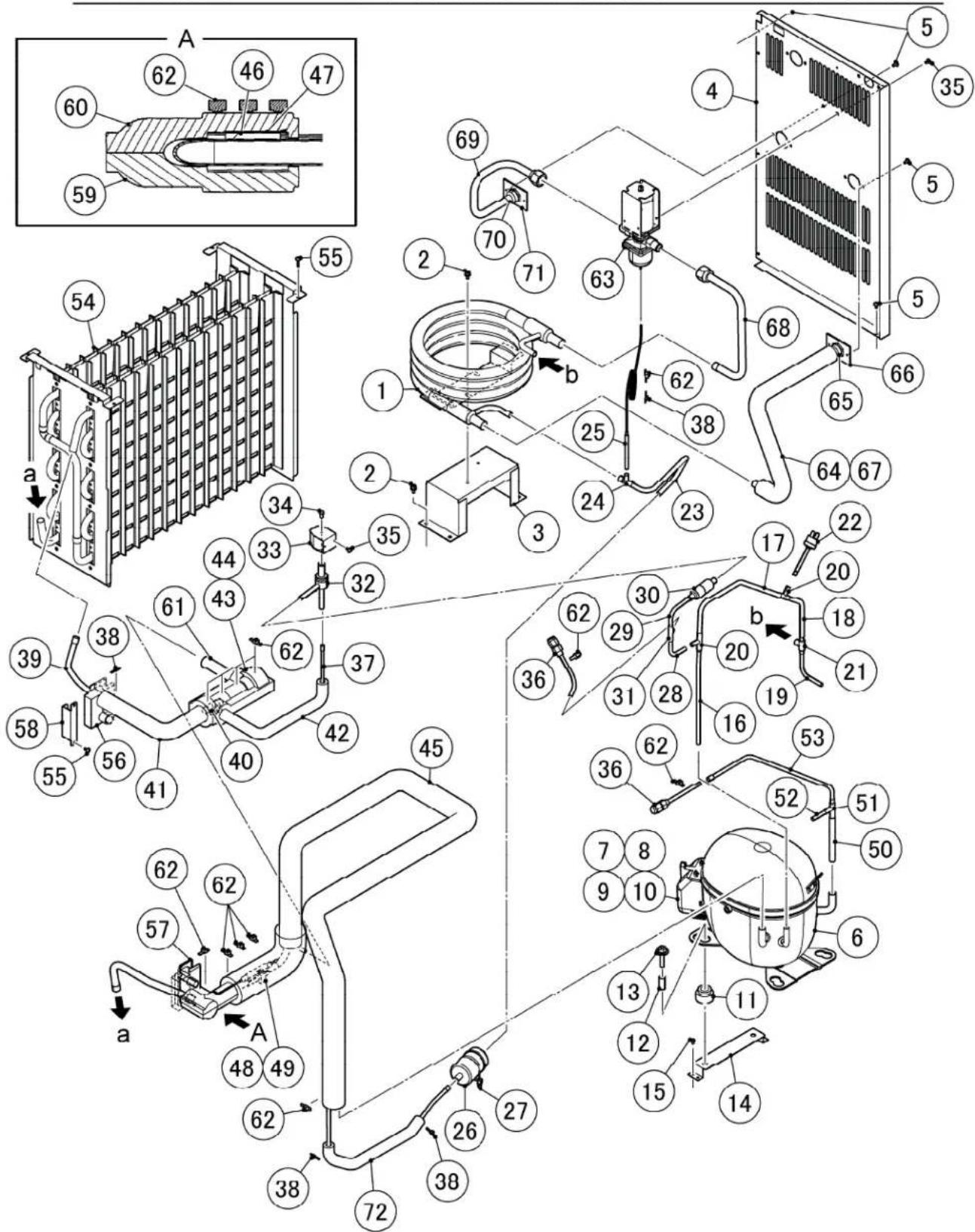

Technical diagram of a refrigeration system with numbered components and labeled parts, including heat exchangers, fans, and refrigerators.HA
| MODEL: KMD-410MWH TITLE: B. REFRIGERATION CIRCUIT | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 1 CO | NDENSER - WATER COOLED P0121 | 2-01 1 1 1 | |||||
| 2 HE | X HEAD BOLT W/WASHER [SW] 5X1D | SUS FBK0510S0 | 6 6 6 6 | ||||
| 3 | BASE - CONDENSER WATER COOLED | 372520M01 1 | 1 1 1 | ||||
| 4 RE | AR PANEL 256723M02 1 1 1 | ||||||
| 5 T2 | SCREW 4X8 FT20408F0 9 9 9 9 | ||||||
| 6 CO | MPRESSOR NT6217GKV | P01550-01 1 1 1 | |||||
| 7 TE | RMINAL COVER | P02814-01 1 1 1 | |||||
| 8 PR | OTECTOR T0873/G9 | P01552-01 1 1 1 | |||||
| 9 PR | OTECTOR RETAINER | P02815-01 1 1 1 | |||||
| 10 | SCREW | P00840-01 1 | 1 1 | ||||
| 11 | GROMMET | P00846-01 4 | 4 4 4 | ||||
| 12 | SPACER | P00847-01 4 | 4 4 4 | ||||
| 13 | BOLT | M8X35 | 436206-03 | 4 | 4 | 4 | 4 |
| 14 | COMP. MOUNT | 371868G01 2 | 2 2 2 | ||||
| 15 | RIVET | SSD43SSBS | 7170-0005 | 8 | 8 | 8 | 8 |
| 16 | COPPER TUBE (A1) - HIGH SIDE | COPPER TUBE (A) - HIGH SIDE256728G01 | 256728M01 1 | 1 1 1 | |||
| 17 | COPPER TUBE (A2) - HIGH SIDE | COPPER TUBE (A) - HIGH SIDE256728G01 | 256728M02 1 | 1 1 1 | |||
| 18 | COPPER TUBE (A3) - HIGH SIDE | COPPER TUBE (A) - HIGH SIDE256728G01 | 256728M03 1 | 1 1 1 | |||
| 19 | COPPER TUBE (A4) - HIGH SIDE | COPPER TUBE (A) - HIGH SIDE256728G01 | 256728M04 1 | 1 1 1 | |||
| 20 | TEE | COPPER TUBE (A) - HIGH SIDE256728G01 | 420041-02 | 2 2 2 | 2 | ||
| 21 | TEE | COPPER TUBE (A) - HIGH SIDE256728G01 | 420041-16 | 1 1 1 | 1 | ||
HA
| MODEL: KMD-410MWH TITLE: B. REFRIGERATION CIRCUIT | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 22 PRESSURE SWITCH ACB-1UB43 463180-05 1 1 1 1 | |||||||
| 23 COPPER TUBE (B1) - HIGH SIDE | COPPER TUBE (B) - HIGH SIDE372527G01 | 372527M01 1 | 1 1 1 | ||||
| 24 TEE | COPPER TUBE (B) - HIGH SIDE372527G01 | 4A1545-02 1 | 1 1 | ||||
| 25 COPPER TUBE (B) - CAPILLARY 446047-02 1 1 1 1 | |||||||
| 26 DRIER DML032.5s 462965-01 1 1 1 - | |||||||
| DML032S P02070-01 | 1 | ||||||
| 27 PUSH MOUNT TIE T50RSF | 436156-02 1 1 1 | 1 | |||||
| 28 COPPER TUBE (D1) - HIGH SIDE | COPPER TUBE (D) - HIGH SIDE371885G01 | 371885M01 1 | 1 1 1 | ||||
| 29 COPPER TUBE (D2) - HIGH SIDE | COPPER TUBE (D) - HIGH SIDE371885G01 | 371885M02 1 | 1 1 1 | ||||
| 30 STRainer | COPPER TUBE (D) - HIGH SIDE371885G01 | P00812-01 1 | 1 1 | ||||
| 31 TEE | COPPER TUBE (D) - HIGH SIDE371885G01 | 417394-01 1 | 1 1 | ||||
| 32 VALVE BODY AT S-B7SHDU-2 | 4A3978-01 1 1 1 | 1 | |||||
| 33 COIL-VALVE | AMS-C12HDU-3 | 4A3277-01 1 | 1 1 | ||||
| 34 BOLT M4X8 | 4A3277F01 | 1 1 1 1 | |||||
| 35 TRUSS HEAD SCREW 4X8 SUS | FST0408S0 4 4 4 | 4 | |||||
| 36 ACCESS VALVE TOJ-2F20NHDU-1 457729-01 2 2 2 2 | |||||||
| 37 COPPER TUBE (E1) - HOT GAS | COPPER TUBE (E) - HOT GAS371883G02 | 372521M01 1 | 1 1 1 | ||||
| 38 TIE CV-100 | 7920-0002 4 4 4 | 4 | |||||
HA
| MODEL: KMD-410MWH TITLE: B. REFRIGERATION CIRCUIT | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 39 COPPER TUBE (E2) - HOT GAS | COPPER TUBE (E) - HOT GAS371883G02 | 371880M01 1 | 1 1 1 | ||||
| 40 TEE | COPPER TUBE (E) - HOT GAS371883G02 | 420335-01 1 | 1 1 | ||||
| 41 INSULATION TUBE | COPPER TUBE (E) - HOT GAS371883G02 L=290 | H71030290 1 | 1 1 1 | ||||
| 42 INSULATION TUBE | COPPER TUBE (E) - HOT GAS371883G02 L=360 | H71020360 1 | 1 1 1 | ||||
| 43 EXP. VALVE HFE-10NHD-2 4A1414-01 | 1 1 1 | ||||||
| 44 EXPANSION VALVE COVER 3A0944-01 | 1 1 1 1 | ||||||
| 45 HEAT EXCHANGER 255974G02 1 1 1 1 | |||||||
| 46 THERMISTOR NBFC-36-H60-1 P00027-01 1 1 1 1 | |||||||
| 47 HOLDER - THERMISTOR | 427430-01 1 1 1 | 1 | |||||
| 48 HOLDER / EXP. VALVE - 3/8 | 3A0107-01 1 1 1 | 1 | |||||
| 49 CLAMP | 443461-02 1 1 1 | 1 | |||||
| 50 | COPPER TUBE (F1) - ACCESS VALVE | COPPER TUBE (F) - ACCESS VALVE371877G01 | 371877M01 1 | 1 1 1 | |||
| 51 TEE | COPPER TUBE (F) - ACCESS VALVE371877G01 | 417394-01 1 | 1 1 | ||||
| 52 | COPPER TUBE (F2) - ACCESS VALVE | COPPER TUBE (F) - ACCESS VALVE371877G01 | 371877M03 1 | 1 1 1 | |||
| 53 | COPPER TUBE (F3) - ACCESS VALVE | COPPER TUBE (F) - ACCESS VALVE371877G01 | 371877M04 1 | 1 1 1 | |||
| 54 EVAPORATOR ASSY | 257091G01 1 1 1 | 1 | |||||
| 55 T2 | SCREW 4X8 | SUS | FT20408M0 | 6 6 6 6 | |||
HA
| MODEL: KMD-410MWH TITLE: B. REFRIGERATION CIRCUIT | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 56 RUBBER INSULATION (B) 3A1045-01 1 | 1 1 1 | ||||||
| 57 RUBBER INSULATION (A) 3A1044-01 1 | 1 1 1 | ||||||
| 58 INSULATION HOLDER 473043M01 1 1 1 | 1 | ||||||
| 59 INSULATION - THERMISTOR (A) 439368-01 1 1 1 1 | |||||||
| 60 INSULATION - THERMISTOR (B) 439368-02 1 1 1 1 | |||||||
| 61 INSULATION TUBE L=90 7762-1020 1 1 | 1 1 | ||||||
| 62 TIE CV-200 7920-0010 14 14 | 14 14 | ||||||
| 63 WATER REGULATOR | P04029-01 1 1 1 1 | ||||||
| 64 COPPER TUBE (A1) - WATER CIRCUIT | COPPER TUBE (A) - WATER CIRCUIT372524G01 | 372524M01 1 | 1 1 1 | ||||
| 65 INLET FITTING | COPPER TUBE (A) - WATER CIRCUIT372524G01 | P01214-01 1 | 1 1 | ||||
| 66 FITTING HOLDER | COPPER TUBE (A) - WATER CIRCUIT372524G01 | 4A0764-01 1 | 1 1 | ||||
| 67 INSULATION TUBE | COPPER TUBE (A) - WATER CIRCUIT372524G01 L=430 | 7762-1330 1 | 1 1 | ||||
| 68 COPPER TUBE (B) - WATER CIRCUIT | 372525M01 1 | 1 1 1 | |||||
| 69 COPPER TUBE (C1) - WATER CIRCUIT | COPPER TUBE (C) - WATER CIRCUIT372526G01 | 372526M01 1 | 1 1 1 | ||||
| 70 INLET FITTING | COPPER TUBE (C) - WATER CIRCUIT372526G01 | P01214-01 1 | 1 1 | ||||
| 71 FITTING HOLDER | COPPER TUBE (C) - WATER CIRCUIT372526G01 | 4A0764-01 1 | 1 1 | ||||
| 72 INSULATION TUBE L=245 | H71020245 | 1 1 1 | 1 | ||||
| MODEL: KMD-410MWH TITLE: C. WATER CIRCUIT ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| J PUMP BRACKET ASSY 371889A01 1 1 1 | 1 | ||||||
| 1 WATER SUPPLY PIPE 371882G01 1 1 1 | 1 | ||||||
| 2 T2 SCREW 4X8 FT20408F0 9 9 9 9 | |||||||
| 3 RUBBER GASKET 413854-03 2 2 2 2 | |||||||
| 4 WATER VALVE V19 4L/min P01559-01 2 2 2 2 | |||||||
| 5 WATER VALVE BRACKET | 371875G01 1 1 1 1 | ||||||
| 6 TRUSS HEAD SCREW 4X8 SUS | FST0408S0 4 4 4 4 | ||||||
| 7 SOLENOID VALVE FDC-90-02-115 | P00018-02 2 2 2 2 | ||||||
| 8 BRACKET - NSF VALVE | 474226M01 1 1 1 1 | ||||||
| 9 TEE | 371167R01 1 1 1 1 | ||||||
| 10 HOSE CLAMP※Use either of the right P02909-04 2 2 2 2 | 16.5mm SUS | 427443-04 | 2 | 2 | 2 | 2 | 2 |
| 11 HOSE CLAMP※Use either of the right P02909-05 6 6 6 6 | 18mm SUS | 427443-05 | 6 | 6 | 6 | 6 | 6 |
| 12 SPRAY TUBE | 256969P01 1 1 1 1 | ||||||
| 13 PLUG | 4A0176-01 2 2 2 2 | ||||||
| 14 CONNECTING PIPE | 371162P02 1 1 1 1 | ||||||
| 15 SILICONE HOSE | Φ20XΦ25(CLEAR)L=60 | H12025060 1 1 1 | |||||
| 16 SILICONE HOSE | Φ20XΦ25(CLEAR)L=465 | H12025465 1 1 1 | |||||
| 17 HOSE CLAMP※Use either of the right P02909-03 4 4 4 | 25mm SUS | 427443-03 | 4 | 4 | 4 | 4 | 4 |
| 18 HOSE CLAMP※Use either of the right P02909-06 1 1 1 | 20mm SUS | 427443-06 | 1 | 1 | 1 | 1 | 1 |
| 19 BYPASS HOSE | 371165R01 1 1 1 1 | ||||||
| 20 SILICONE HOSE | Φ15XΦ19(CLEAR)L=340 | H11519340 1 1 1 | |||||
| 21 BYPASS INSULATION | 371169Z01 1 1 1 | ||||||
| 22 WATER SUPPLY TUBE 256968P01 1 1 1 1 | |||||||
HA
| MODEL: KMD-410MWH TITLE: C. WATER CIRCUIT ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| 23 SPRAY GUIDE 252052P03 2 2 2 2 | |||||||
| 24 TANK 255326G02 1 1 1 1 | |||||||
| 25 PARTITION PLATE 371160P01 1 1 1 1 | |||||||
| 26 DRAIN CAP 371168G01 1 1 1 1 | |||||||
| 27 CUBE GUIDE 118904P01 1 1 1 1 | |||||||
| 28 DEFLECTOR (L) 255250P01 1 1 1 1 | |||||||
| 29 GASKET 371166R01 2 2 2 2 | |||||||
| 30 COLLAR 435269-01 4 4 4 4 | |||||||
| 31 T2 SCREW | 4X16 SUS | FT20416M0 | 4 | 4 | 4 | 4 | 4 |
| 32 THUMBSCREW | 415949G12 5 5 5 | 5 | |||||
| 33 DEFLECTOR (R) | 255249P01 1 1 1 | 1 | |||||
| 34 FLOAT SWITCH | OLV-29Z-2P2 | P00816-01 | 1 | 1 | 1 | 1 | 1 |
| 35 PUMP MOTOR | PV-211BHZ1 | 4A4259-01 | 1 | 1 | 1 | 1 | 1 |
| 36 INLET INSULATION | 373079Z01 1 1 1 | 1 | |||||


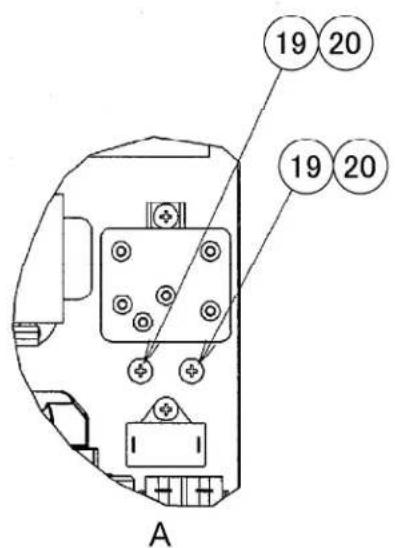

19 20 19 20 AHA

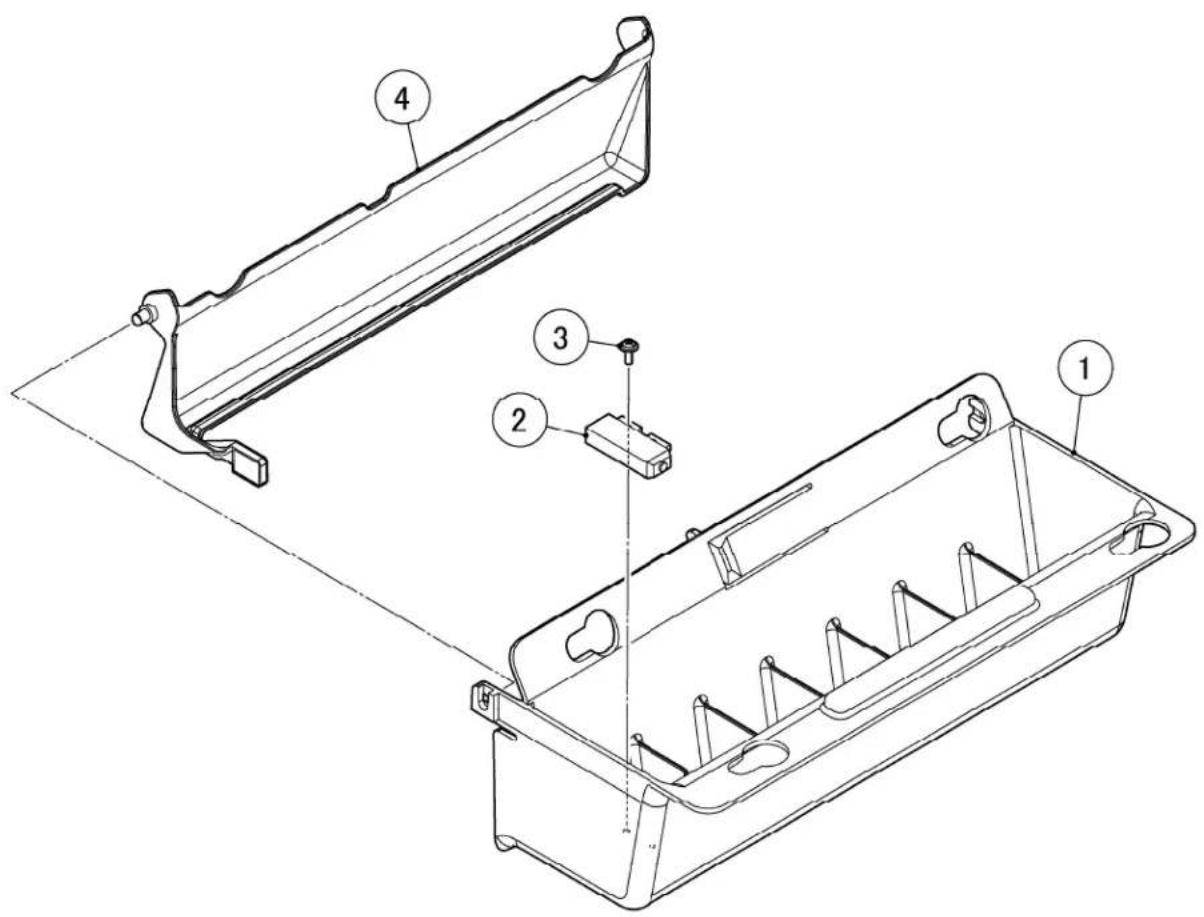

| MODEL: KMD-410MWH TITLE: D. CONTROL BOX ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 1 CONTROL BOX 255970M01 1 1 1 1 | |||||||
| 2 RUN CAPACITOR | 2253315 35uF | P02699-01 1 | 1 1 | ||||
| 3 START CAPACITOR | 2252331 243-292uF | P02867-01 1 | 1 1 | ||||
| 4 S T A R T E R | 1253016 3ARR3B3S3 | P01554-01 1 | 1 1 | ||||
| 5 T2 SCREW 4X8 FT20408F0 6 6 6 6 | |||||||
| 6 WIRE KIT P00845-01 1 1 1 1 | |||||||
| 7 BRACKET 428393F01 1 - - - | |||||||
| 8 MAGNETIC CONTACTOR | VC20 | 428393-01 | 1 | - | - | - | - |
| 9 FUSE HOLDER BF115 | P00014-01 1 1 1 | ||||||
| 10 FUSE | FGAO-2 250V/5A | 420468-02 | 1 | 1 | 1 | 1 | 1 |
| 11 TRANSFORMER | 3A4395-01 1 | 1 1 | |||||
| 12 CAPACITOR | CMPS25B255UWF | 4A2128-05 | 1 | 1 | 1 | 1 | 1 |
| 13 CONTROLLER BOARD | HKM2006V003 | P01771-02 | 1 | 1 | 1 | 1 | 1 |
| 14 BOARD SUPPORT | CBS-9K | P01770-01 | 4 | 4 | 4 | 4 | 4 |
| 15 TOGGLE SWITCH | 2GM91-78 | P01206-01 | 2 | 2 | 2 | 2 | 2 |
| 16 BUSHING | OCB-625 | 428394-03 | 1 | 1 | 1 | 1 | 1 |
| 17 BUSHING | SR-34-2 | 420472-05 | 1 | 1 | 1 | 1 | 1 |
| 18 CLAMP | No. 249 | 427902-03 | 1 | 1 | 1 | 1 | 1 |
| 19 SPRING WASHER | SUS 4 | FWSP04S0 2 | 2 2 | ||||
| 20 TRUSS HEAD SCREW | SUS 4X8 | FST0408S0 | 2 | 2 | 2 | 2 | 2 |
| 21 POWER RELAY | G7L-1A-TUB | 449000-01 | 1 | 1 | 1 | 1 | |
| 22 CAPACITOR (NOISE SUPPRESSION) | REB474 | P00228-01 | 1 | 1 | 1 | ||
| 23 TIE | CV-150 | 7920-0003 | 1 | 1 | 1 | ||
| MODEL: KMD-410MWH TITLE: E. FRONT INSULATION ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| 1 FRONT INSULATION 255253G01 1 1 1 1 | |||||||
| 2 GASKET L=228 371887Z02 1 1 1 1 | |||||||
| 3 GASKET L=1385 371887Z03 1 1 1 1 | |||||||
| 4 GASKET L=520 371887Z04 1 1 1 1 | |||||||
| 5 GASKET L=435 371887Z05 1 1 1 1 | |||||||
| MODEL: KMD-410MWH TITLE: F. TOP INSULATION ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| 1 TOP INSULATION 255254G01 1 1 1 1 | |||||||
| 2 INSULATION 473041Z01 1 1 1 1 | |||||||
| 3 GASKET L=415 374537Z03 1 1 1 1 | |||||||
| MODEL: KMD-410MWH TITLE: G. BIN SWITCH | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| 1 SWITCH HOUSING 255248P01 1 1 1 1 | |||||||
| 2 REED SWITCH PS-0074-601 453861-04 | 1 1 1 | ||||||
| 3 TAPPING SCREW 3X8 431415-01 2 2 2 2 | |||||||
| 4 DETECTOR 371158G01 1 1 1 1 | |||||||
HA
| MODEL: KMD-410MWH TITLE: H. LABEL LOCATION | ||||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | ||||
| U-1V-0 | V-1 | V-2A-0 | A-1F-0 | F-1 | ||||
| 1 EMBLEM 456245-01 11111 | ||||||||
| 2 LABEL - PENGUIN L 471487L01 1 1 | 1 1 | - | ||||||
| LABEL - PENGUIN 468184-01 - | - - - 1 | |||||||
| 3 MAINTENANCE LABEL 255479L01 1 | 1 1 1 | 1 | ||||||
| 4 CAUTION LABEL - SERVICE 471180L01 | 1 1 1 1 | 1 | ||||||
| 5 WIRING LABEL 373135L01 1 1 | 1 1 1 | |||||||
| 6 LABEL - OUTLET 418029-05 1 1 | 1 1 1 | |||||||
| 7 INSTRUCTION SHEET 255482L01 1 | 1 1 1 1 | |||||||
| 8 INSTRUCTION LABEL 472709L01 1 | 1 1 1 1 | |||||||
| 9 MANUAL LABEL 371379L01 1 1 | 1 1 1 | |||||||
| 10 LABEL - R404A | 453230-01 1 | 1 | 1 | 1 | 1 | |||
| 11 LABEL - ALARM | 370310L01 1 | 1 | 1 | 1 | 1 | |||
| 12 LABEL / CONTROL BOARD | 370605L01 | 1 | 1 | 1 | 1 | 1 | ||
| 13 LABEL - FUSE | 472712L01 1 | 1 | 1 | 1 | 1 | |||
| 14 LABEL - INLET | 418029-04 1 | 1 | 1 | 1 | 1 | |||
| 15 TAG - WARNING ELECT CONNECTION | 4A4766-01 | 1 | 1 | |||||
| MODEL: KMD-410MWH TITLE: J. PUMP BRACKET ASSY | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 | V-2,A-0 | A-1 | ||||
| 1 PU | MP BRACKET 118907G01 1 1 1 1 | ||||||
| 2 PM | BRACKET INSULATION 371170Z01 | 1 1 1 | |||||
| 3 GA | SKET L=138 4A0808L02 1 1 1 1 | ||||||
| 4 GA | SKET L=100 4A0808L02 1 1 1 1 | ||||||
| MODEL: KMD-410MWH TITLE: K. ACCESSORIES | |||||||
| INDEX NO. | DESCRIPTION | MATERIAL OR MODEL NUMBER | PART NUMBER | REQ'D NUMBER | |||
| U-1,V-0 | V-1 V-2 | A- 0 | A-1 | ||||
| 1 INSTRUCTION MANUAL L1F043104 1 1 1 1 | 1 | ||||||
| 2 UNIVERSAL BRACE 473048M01 2 2 2 2 | |||||||
| 3 HEX HEAD BOLT W/WASHER [SW] 5X12 | SUS FBK0512S0 2 | 2 2 2 | |||||
