KM-515MWH - Machine à glace Hoshizaki - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil KM-515MWH Hoshizaki au format PDF.
Choisissez votre langue et indiquez votre email : nous vous enverrons une version traduite specifiquement.
| Type de produit | Machine à glace modulaire produisant des glaçons en croissant |
| Marque | Hoshizaki |
| Modèle | KM-515MWH |
| Refroidissement | Refroidissement à eau |
| Production de glace | Environ 230 kg par 24 heures (à température ambiante 21°C et eau à 10°C) |
| Capacité de stockage | Environ 45 kg (bac inclus) |
| Forme des glaçons | Glaçons en forme de croissant (Crescent Cuber) |
| Dimensions (L × P × H) | Environ 762 × 610 × 890 mm (sans le socle) |
| Poids net | Environ 85 kg |
| Alimentation électrique | 230 V / 50 Hz, monophasé (selon version) – 10 A maximum |
| Réfrigérant | R-404A ou R-134a (selon la version et l'année de production) |
| Compresseur | Compresseur hermétique de type alternatif |
| Condenseur | Condenseur à eau (modèle MWH) |
| Évaporateur | Évaporateur à plaques en acier inoxydable |
| Régulation de niveau | Interrupteur mécanique de niveau de stockage (bin control) |
| Nettoyage | Cycle de nettoyage manuel avec vanne de nettoyage intégrée |
| Entretien | Filtre à air lavable (pour versions refroidies par air) – non applicable ici ; pour le condenseur à eau, nettoyage périodique du circuit d'eau conseillé |
| Pièces détachées | Disponibles via le réseau Hoshizaki : pompe, vannes, kit de joints, etc. |
| Accessoires inclus | Bac de récupération, panier de stockage, étiquette, support universel |
| Réparabilité | Indice de réparabilité élevé grâce à la modularité et à la disponibilité des pièces détachées |
| Sécurité | Protection thermique du compresseur, pressostat haute pression, interrupteur de sécurité du bac |
| Classe climatique | Température ambiante: 5 °C à 40 °C |
FOIRE AUX QUESTIONS - KM-515MWH Hoshizaki
Comment démarrer la machine à glace Hoshizaki KM-515MWH pour la première fois ?
Après avoir installé la machine et raccordé l'alimentation en eau et électrique, mettez l'interrupteur de commande en position ON. Le cycle de fabrication commence automatiquement. Attendez environ 30 minutes pour la première production de glaçons.
Comment nettoyer la machine à glace KM-515MWH ?
Utilisez la vanne de nettoyage intégrée. Ouvrez la vanne, ajoutez un détartrant agréé Hoshizaki dans le réservoir d'eau, puis actionnez le cycle de lavage. Rincez abondamment à l'eau claire. Effectuez cette opération au moins une fois par mois.
Quelle est la consommation d'eau de cette machine ?
La consommation d'eau est d'environ 0,6 litre par kilogramme de glace produit. La machine est équipée d'un régulateur de vanne d'eau pour optimiser la consommation.
Que faire si la machine ne produit pas de glace ?
Vérifiez d'abord l'alimentation électrique et l'arrivée d'eau. Assurez-vous que le bac de stockage n'est pas plein (le bin control peut arrêter la production). Si le problème persiste, nettoyez le condenseur et l'évaporateur, puis vérifiez le filtre à eau.
Comment régler la taille des glaçons ?
La taille des glaçons n'est pas réglable sur ce modèle ; ils sont calibrés en forme de croissant d'environ 30×25×20 mm. La régulation se fait par le cycle de dégivrage automatique.
Quel est le type de réfrigérant utilisé ?
Le réfrigérant est du R-404A ou R-134a selon l'année de fabrication. Vérifiez l'étiquette sur le compresseur pour connaître le type exact.
Puis-je installer la machine moi-même ?
L'installation doit être réalisée par un professionnel qualifié, car elle nécessite des raccordements électriques et de plomberie, ainsi que la mise en service du circuit frigorifique.
Comment entretenir le condenseur à eau ?
Le condenseur à eau ne nécessite pas de nettoyage d'air, mais il faut vérifier périodiquement le débit d'eau et détartrer le circuit d'eau de refroidissement tous les 6 mois.
Quels sont les codes d'erreur courants ?
Les codes d'erreur sont indiqués par des clignotements du voyant sur la carte de commande. Par exemple, 3 clignotements indiquent un défaut de thermistance. Consultez la notice pour la liste complète.
Où puis-je trouver les pièces de rechange ?
Les pièces détachées sont disponibles auprès des revendeurs agréés Hoshizaki. Utilisez les numéros de référence de la liste de pièces de la notice (par exemple, pompe PA0613, vanne d'eau 3U0111-04).
Questions des utilisateurs sur KM-515MWH Hoshizaki
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Aucune question pour l'instant. Soyez le premier à en poser une.
Téléchargez la notice de votre Machine à glace au format PDF gratuitement ! Retrouvez votre notice KM-515MWH - Hoshizaki et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil KM-515MWH de la marque Hoshizaki.
MODE D'EMPLOI KM-515MWH Hoshizaki
Hoshizaki America, Inc.
Modular Crescent Cuber
Models
KM-515MAH
KM-515MWH
KM-515MRH
www.hoshizaki.com
PARTS LIST
Number: 71274
Issued: 1-28-2008
Revised: 2-24-2015
CONTENTS
Auxiliary Codes....3
Note About Ordering Parts 4
A. Main Assembly & Refrigeration Circuit 5
KM-515MAH 5
KM-515MWH 7
KM-515MRH....9
B. Water Circuit....11
C. Control Box Assembly 14
D. Accessories & Labels 16
Auxiliary Codes
| KM-515MAH S-0 October 2007 | KM-515MWH S-0 November 2007 | ||||
| T-0 | April | 2008 | T-0 | February 2008 | |
| U-1 | January | 2009 | U-1 | January 2009 | |
| U-2 | February | 2009 | U-2 | February 2009 | |
| U-3 | August | 2009 | U-3 | August 2009 | |
| V-0 | January | 2010 | V-0 | January 2010 | |
| V-1 | March | 2010 | V-1 | March 2010 | |
| V-2 | April | 2010 | V-2 | April 2010 | |
| V-3 | August | 2010 | V-3 | August 2010 | |
| A-0 | January | 2011 | A-0 | January 2011 | |
| B-0 | January | 2012 | B-0 | January 2012 | |
| B-1 | March | 2012 | B-1 | May 2012 | |
| C-0 | January | 2013 | C-0 | January 2013 | |
| C-1 | May | 2013 | C-1 | April 2013 | |
| C-2 | October | 2013 | C-2 | May 2013 | |
| D-0 | January | 2014 | C-3 | October 2013 | |
| D-1 | December | 2014 | D-0 | January 2014 | |
| E-0 | January | 2015 | D-1 | December 2014 | |
| E-0 | January 2015 | ||||
KM-515MRH S-0 October 2007
| T-0 | May | 2008 |
| T-1 | October | 2008 |
| U-1 | January | 2009 |
| U-2 | February | 2009 |
| U-3 | August | 2009 |
| V-0 | January | 2010 |
| V-1 | March | 2010 |
| V-3 | August | 2010 |
| A-0 | January | 2011 |
| B-0 | January | 2012 |
| B-1 | May | 2012 |
| C-0 | January | 2013 |
| C-1 | May | 2013 |
| D-0 | January | 2014 |
| D-1 | June | 2014 |
| D-2 | December | 2014 |
| E-0 | January | 2015 |
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates significant part changes within a year. Base is "0" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.
A. Main Assembly & Refrigeration Circuit
KM-515MAH
S-0 to E-0


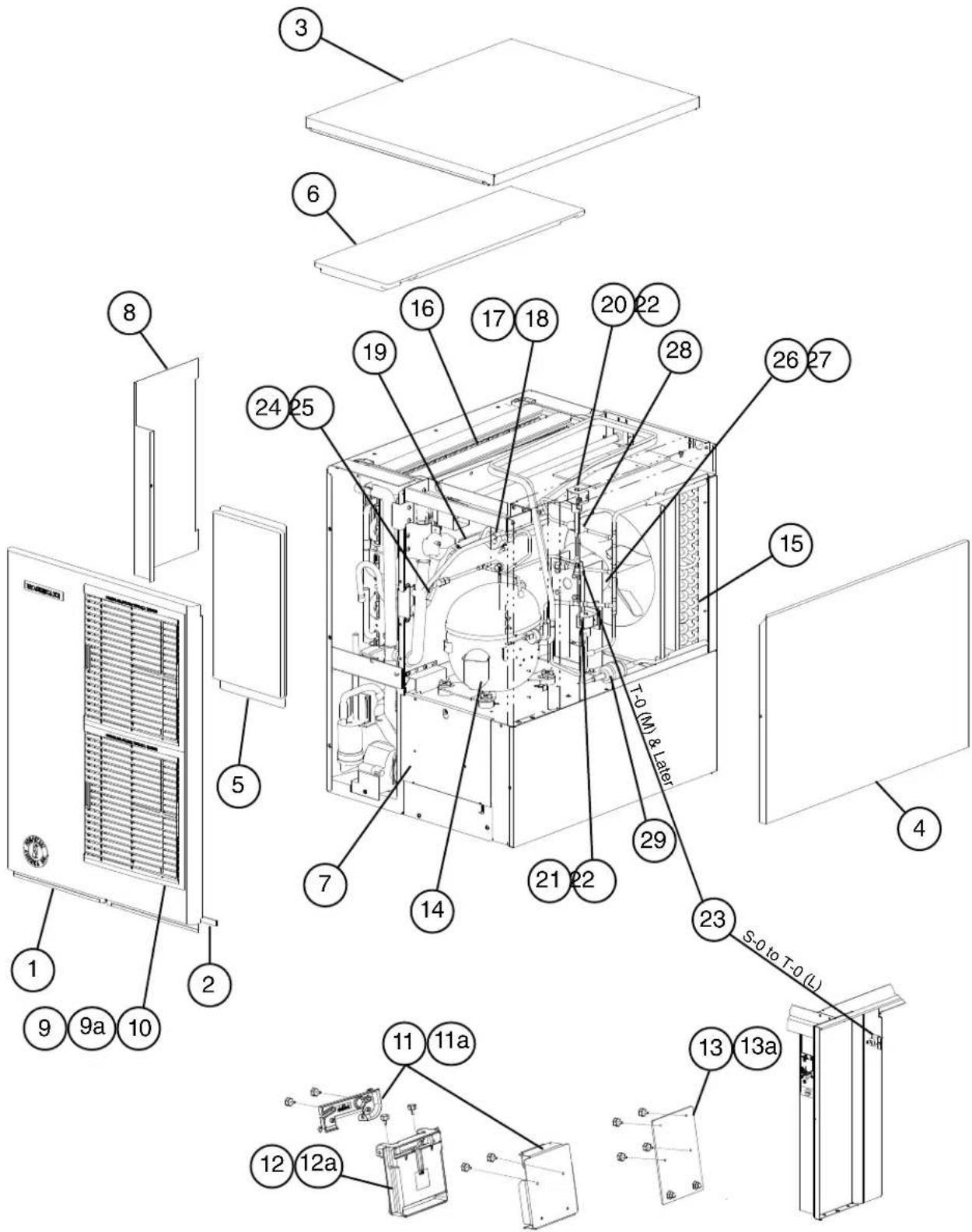

Exploded view diagram of a refrigerator internal structure with numbered components and labeled parts| Title: A. Main Assembly & Refrigeration Circuit Model: KM-515MAH | ||||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||||
| S-0 to T-0 (L) | T-0 (M) to U-1 | U-2 to B-0 | B-1 to C-0 | C-1 to E-0 | ||||||||
| Main Assembly | ||||||||||||
| 1 Front Panel 2A3767G01 1 1 1 1 1 | ||||||||||||
| 2 Basket L=554 mm 4A0808L02 1 1 1 | 1 1 | |||||||||||
| 3 Top Panel 3A3878A01 1 1 1 1 1 | ||||||||||||
| 4 Right Side Panel 2A2117G01 1 1 1 1 | 1 1 | |||||||||||
| 5 Front Insulation | 21 | 5731G01 1 1 1 | 1 1 | |||||||||
| 6 Top Insulation | 21 | 5730G01 1 1 1 | 1 1 | |||||||||
| 7 Base Cover | 32 | 525G01 1 1 1 | 1 1 | |||||||||
| 8 Control Box Cover | 3A | 2476-01 | 1 | 1 1 | 1 | |||||||
| 9 Louver | 1A | 0547-01 | 2 | 2 2 | 2 | |||||||
| 9a Push Retainer | 4A2414-01 | 6 | 6 | 6 6 6 | ||||||||
| 10 Air Filter | 2A2062G01 | 2 | 2 | 2 | 2 | 2 | 2 | |||||
| 11 Bulb Holder | 3A3903-01 | 1 | 1 | - | ||||||||
| Mechanical Bin Control Switch Mount | 3A4463-01 | 1 1 | - | |||||||||
| 3A6040-01 | 1 | |||||||||||
| 11a Thumbscrew | 415949G11 | 2 | 2 | - | ||||||||
| 415949G10 | 2 2 | 2 | ||||||||||
| 12 Mechanical Bin Control | 2A4393G01 | 1 | 1 | 1 | ||||||||
| 12a Thumbscrew | 4 | 5949G10 | 2 2 2 | |||||||||
| 13 Mechanical Bin Control Extension Bracket | 4A5046G01 | 1 1 | 1 | |||||||||
| 13a Thumbscrew | 4 | 5949G10 | 4 4 4 | |||||||||
| Refrigeration Circuit | ||||||||||||
| 14 Compressor | 4A4376-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 15 Condenser | 2A3756-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 16 Evaporator | 106492G01 | 1 | 1 | 1 | - | |||||||
| 1A2357G01 | 1 1 | |||||||||||
| 17 Thermostatic Expansion Valve | 4A4008-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 18 Thermostatic Expansion Valve Cover | 3A0944-01 | 1 1 | 1 1 1 | |||||||||
| 19 Thermostatic Expansion Valve Bulb Holder | 3A0107-01 | 1 1 | 1 1 1 | |||||||||
| 20 Hot Gas Valve Body | 4A3978-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 21 Liquid Line Valve Body | 4A3276-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 22 Valve Coil | 4A3277-01 | 2 2 | 2 2 2 | |||||||||
| 23 High-Pressure Switch | 433441-07 | 1 | - | |||||||||
| 463180-04 | 1 1 | 1 1 | ||||||||||
| 24 Thermistor | 429006-03 | 1 1 | 1 1 1 | |||||||||
| 25 Thermistor Holder | 427430-01 | 1 | 1 | 1 | 1 | 1 | ||||||
| 26 Fan Motor | 4A3158-01 | 1 1 | 1 1 1 | |||||||||
| 27 Fan Blade | 4A3959-01 | 1 1 | 1 1 1 | |||||||||
| 28 Strainer | 441569-01 | 1 1 | 1 1 1 | |||||||||
| 29 Drier | 4A2666-01 | 1 1 | 1 1 1 | |||||||||
A. Main Assembly & Refrigeration Circuit KM-515MWH
S-0 to E-0


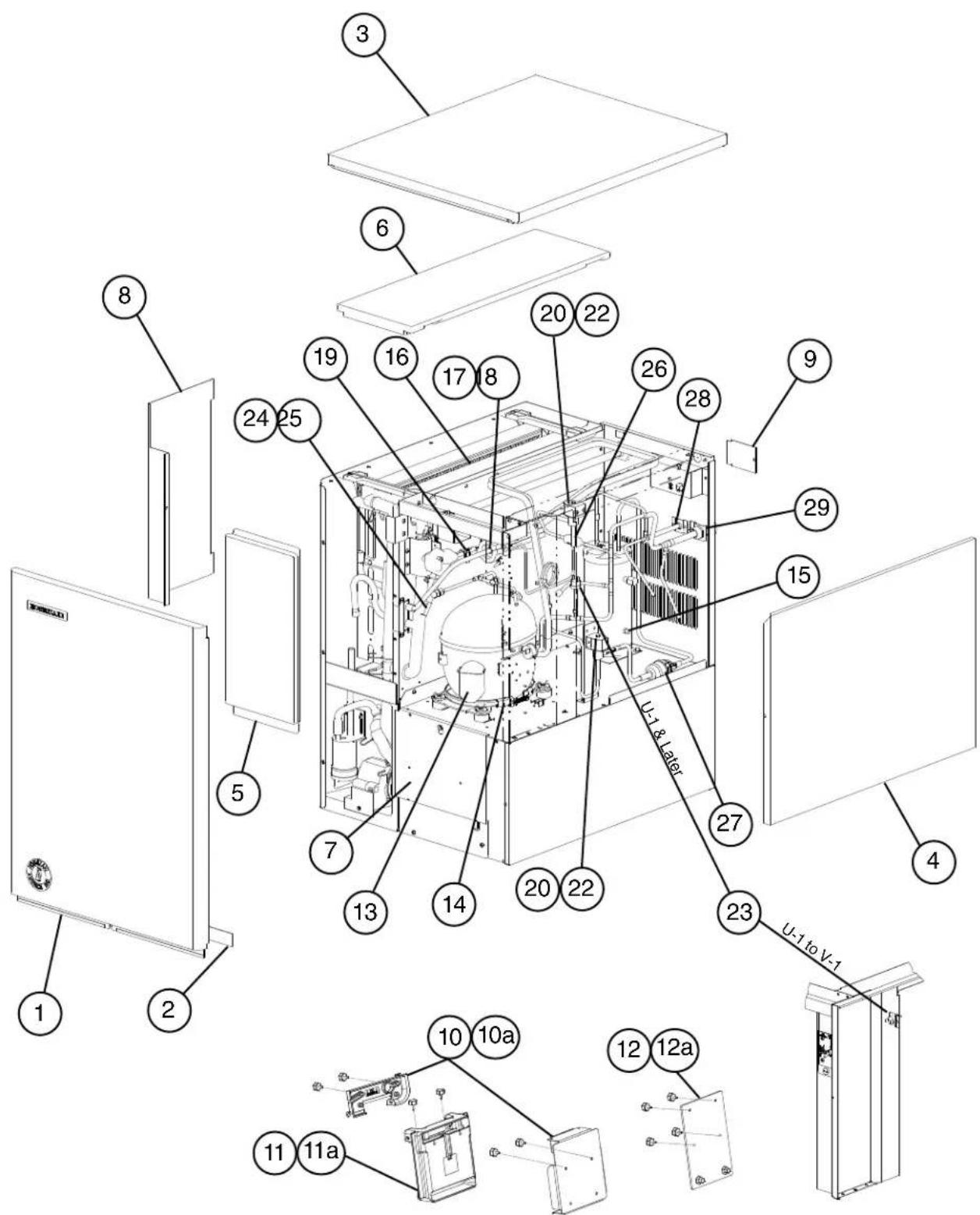

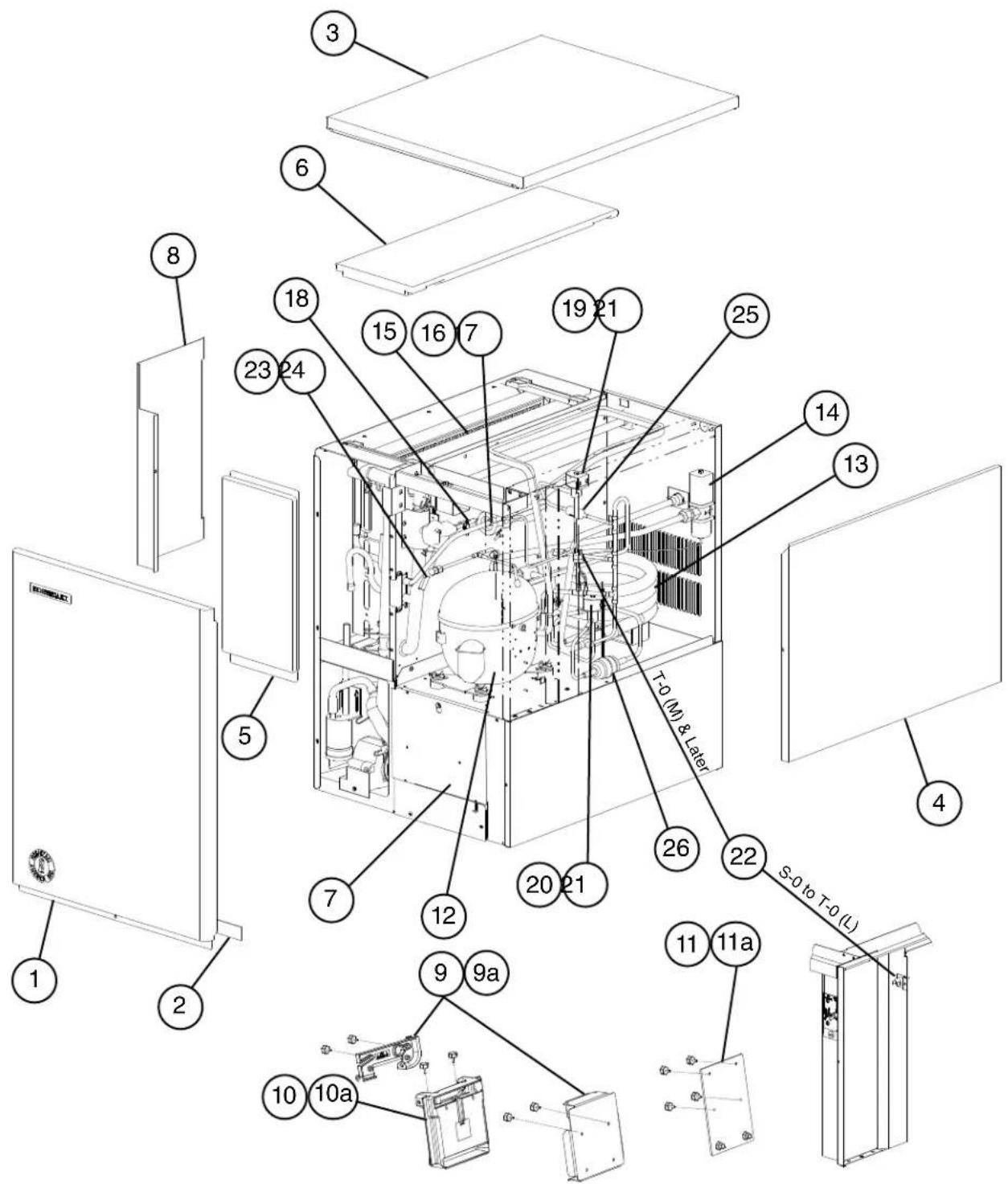

Exploded view diagram of a refrigerator internal structure with numbered components and labeled parts| Title: A. Main Assembly & Refrigeration Circuit Model: KM-515MWH | |||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |||||||
| S-0 to T-0 (L) | T-0 (M) to U-1 | U-2 to C-0 | C-1 | C-2 to E-0 | |||||||
| Main Assembly | |||||||||||
| 1 Front Panel 2A2150G01 1 1 1 1 1 | |||||||||||
| 2 Basket L=554 mm 4A0808L02 1 1 1 1 1 1 | |||||||||||
| 3 Top Panel 3A3878A01 1 1 1 1 1 | |||||||||||
| 4 Right Side Panel | 2A | 2117G01 1 1 1 | 1 1 | ||||||||
| 5 Front Insulation | 21 | 5731G01 1 1 1 | 1 1 | ||||||||
| 6 Top Insulation | 21 | 5730G01 1 1 1 | 1 1 | ||||||||
| 7 Base Cover | 32 | 525G01 1 1 1 | 1 1 | ||||||||
| 8 Control Box Cover | 3A | 2476-01 | 1 1 1 | 1 | |||||||
| 9 Bulb Holder | 3A | 3903-01 | 1 | - | |||||||
| 3A4463-01 | 1 1 | - | |||||||||
| 3A6040-01 | 1 | ||||||||||
| 9a | Thumbscrew | 415949G11 | 2 | 2 | - | ||||||
| 415949G10 | 2 2 | 2 | |||||||||
| 10 | Mechanical Bin Control | 2A4393G01 | 1 | 1 | 1 | ||||||
| 10a Thumbscrew | 4 | 5949G10 | 2 2 2 | ||||||||
| 11 | Mechanical Bin Control Extension Bracket | 4A5046G01 | 1 1 | 1 | |||||||
| 11a | Thumbscrew | 415949G10 | 4 | 4 | 4 | ||||||
| Refrigeration Circuit | |||||||||||
| 12 | Compressor | 4A4376-01 | 1 | 1 | 1 | 1 | 1 | ||||
| 13 | Condenser | HS-0160 | 2A2359G01 | 1 | 1 | 1 | - | ||||
| 3A7321-01 | 1 1 | ||||||||||
| 14 | Water Regulating Valve | 4A0911-06 | 1 | 1 | 1 | 1 | 1 | ||||
| 15 | Evaporator | 106492G01 | 1 | 1 | 1 | 1 | 1 | ||||
| 16 | Thermostatic Expansion Valve | 4A4008-01 | 1 | 1 | 1 | 1 | 1 | ||||
| 17 | Thermostatic Expansion Valve Cover | 3A0944-01 | 1 1 | 1 1 1 | |||||||
| 18 | Thermostatic Expansion Valve Bulb Holder | 3A0107-01 | 1 1 | 1 1 1 | |||||||
| 19 | Hot Gas Valve Body | 4A3978-01 | 1 | 1 | 1 | 1 | 1 | ||||
| 20 | Liquid Line Valve Body | 4A3276-01 | 1 | 1 | 1 | 1 | 1 | ||||
| 21 | Valve Coil | 4A3277-01 | 2 2 | 2 2 2 | |||||||
| 22 | High-Pressure Switch | 433441-05 | 1 | - | |||||||
| 463180-05 | 1 1 | 1 1 | |||||||||
| 23 | Thermistor | 429006-03 | 1 1 | 1 1 1 | |||||||
| 24 | Thermistor Holder | 427430-01 | 1 | 1 | 1 | 1 | 1 | ||||
| 25 | Strainer | 441569-01 | 1 1 | 1 1 1 | |||||||
| 26 | Drier | 4A2666-01 | 1 1 | 1 1 1 | |||||||
A. Main Assembly & Refrigeration Circuit
KM-515MRH
S-0 to E-0
| Index No. | Description | Material or Model Number | Part Number | Required Number | |||||||
| S-0 to T-1 U | U-1 | U-2 to V-3 (K) | V-3 (L) to C-0 | C-1 to E-0 | |||||||
| Ice Cuber Assembly | |||||||||||
| 1 Front Panel 2A2150G01 1 1 1 1 1 | |||||||||||
| 2 Gasket L=554 mm 4A0808L02 1 1 1 1 | 1 | ||||||||||
| 3 Top Panel | 3A3878A01 | 1 1 1 | 1 | ||||||||
| 4 Right Side Panel | 2A2117G01 | 1 1 1 | 1 | ||||||||
| 5 Front Insulation | 215731G01 1 1 | 1 1 | |||||||||
| 6 Top Insulation | 215730G01 1 1 | 1 1 | |||||||||
| 7 Base Cover | 321525G01 1 1 | 1 1 | |||||||||
| 8 Control Box Cover | 3A2476-01 | 1 1 1 | 1 | ||||||||
| 9 Junction Box Cover | 433410-01 | 1 1 1 | 1 | ||||||||
| 10 Bulb Holder | 3A3903-01 | 1 | 1 | - | |||||||
| Mechanical Bin Control Switch Mount | 3A4463-01 | 1 1 | - | ||||||||
| 3A6040-01 | 1 | ||||||||||
| 10a Thumbscrew | 415949G11 | 2 | 2 | - | |||||||
| 415949G10 | 2 2 | 2 | |||||||||
| 11 Mechanical Bin Control | 2A4393G01 | 1 | 1 | 1 | |||||||
| 11a Thumbscrew | 415949G10 | 2 | 2 | 2 | |||||||
| 12 Mechanical Bin Control Extension Bracket | 4A5046G01 | 1 1 | 1 | ||||||||
| 12a Thumbscrew | 415949G10 | 4 4 4 | |||||||||
| Refrigeration Circuit | |||||||||||
| 13 Compressor | 4A4376-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 14 Crankcase Heater | 3A4663-01 | 1 | 1 | 1 | - | ||||||
| 4A5091-01 | 1 1 | ||||||||||
| 15 Receiver Tank | 437596-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 16 Evaporator | 106492G01 | 1 | 1 | 1 | 1 | 1 | |||||
| 17 Thermostatic Expansion Valve | 4A1414-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 18 Thermostatic Expansion Valve Cover | 3A0944-01 | 1 1 | 1 1 | ||||||||
| 19 Thermostatic Expansion Valve Bulb Holder | 3A0107-01 | 1 1 | 1 1 | ||||||||
| 20 Hot Gas Valve Body | 4A3978-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 21 Liquid Line Valve Body | 4A3276-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 22 Valve Coil | 4A3277-01 | 2 2 | 2 2 2 | ||||||||
| 23 High-Pressure Switch | 433441-07 | 1 | - | ||||||||
| 463180-04 | 1 1 | 1 1 | |||||||||
| 24 Thermistor | 429006-03 | 1 1 | 1 1 | ||||||||
| 25 Thermistor Holder | 427430-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 26 Strainer | 441569-01 | 1 1 | 1 1 | ||||||||
| 27 Drier | 4A2666-01 | 1 1 | 1 1 | ||||||||
| 28 Liquid Line Coupling | 4A3972G01 | 1 | 1 | 1 | 1 | 1 | |||||
| 29 Discharge Line Coupling | 434136G01 1 | 1 1 1 | 1 | ||||||||
B. Water Circuit
KM-515M_H


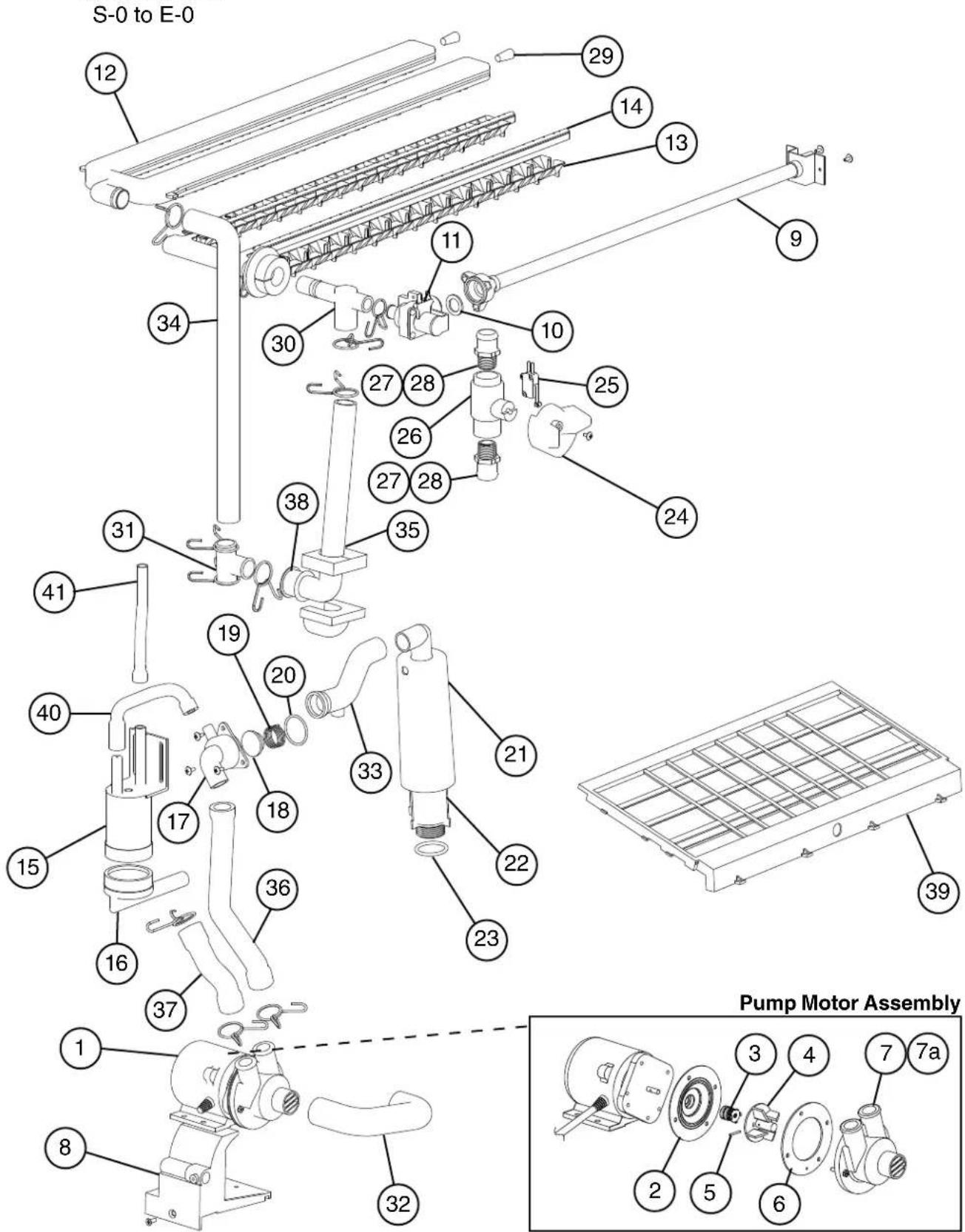

S-0 to E-0 12 29 14 13 9 34 30 11 10 27 28 25 26 27 28 24 38 35 31 41 19 20 33 21 40 17 18 36 22 23 15 16 37 1 1 8 32 Pump Motor Assembly 39 2 5 6 7 7a| Title: B. Water Circuit Model: KM-515M_H | |||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |||||||
| S-0 to V-3 | A-0 B-0 | B-1 to E-0 | |||||||||
| 1 Pump Motor Assembly (includes items 2 through 7a) | PA0613 1 1 1 | ||||||||||
| 2 Pump Flange 3A2988-01 1 1 1 | |||||||||||
| 3 Mechanical Seal 465627-01 1 1 1 | |||||||||||
| 4 Impeller 433522-01 1 1 1 | |||||||||||
| 5 Pir | 4A0648-01 1 1 1 | ||||||||||
| 6 Pump Gasket | 4A2974-01 1 1 1 | ||||||||||
| 7 Pump Housing | 211409-01 | 1 1 | |||||||||
| 7a | Screw | 4x20 | 4A3871-01 | 4 | 4 | 4 | |||||
| 8 Pump Motor Bracket | 211408-01 | 1 1 1 | |||||||||
| 9 Water Supply Pipe | 4A0768G04 1 | - | |||||||||
| 4A5216G04 | 1 1 | ||||||||||
| 10 | Rubber Gasket | 413854-03 | 1 | 1 | 1 | ||||||
| 11 | Inlet Water Valve | KM-515MAH | 3U0111-04 | 1 | 1 | - | |||||
| 3U0111-03 | 1 | ||||||||||
| KM-515MWH KM-515MRH | 3U0111-04 | 1 | 1 | ||||||||
| 12 | Spray Tube | 1A0260-02 | 1 | 1 | 1 | ||||||
| 13 | Spray Guide | KM-515MAH | 208586-01 | 6 | 6 | - | |||||
| 2A4282-02 | 2 | ||||||||||
| KM-515MWH KM-515MRH | 208586-01 6 | 6 | |||||||||
| 14 | Water Supply Tube | 2A0079-01 | 1 | 1 | 1 | ||||||
| 15 | Float Switch | 4A3624-01 1 | 1 1 | ||||||||
| 16 | Float Switch Connector | 426799-01 | 1 | 1 | 1 | ||||||
| 17 | Drain Valve Housing | 321001-01 | 1 | 1 | 1 | ||||||
| 18 | Drain Valve Seat | 433705-01 | 1 | 1 | 1 | ||||||
| 19 | Drain Valve Spring | 322110-01 | 1 | 1 | 1 | ||||||
| 20 | Drain Valve O-Ring | 7611-G035 | 1 | 1 | 1 | ||||||
| 21 | Overflow Cap | 321002-01 | 1 1 | 1 | |||||||
| 22 | Overflow Pipe | 430722-03 | 1 1 | 1 | |||||||
| 23 | Overflow Pipe O-Ring | 4A1234-01 | 1 1 | 1 | |||||||
| 24 | Cleaning Valve Handle | 215383-01 | 1 | 1 | 1 | ||||||
| 25 | Cleaning Valve Microswitch | 4A2546-01 | 1 | 1 | 1 | ||||||
| 26 | Cleaning Valve Ball Valve | 439293-01 | 1 | 1 | 1 | ||||||
| 27 | Cleaning Valve Male Adaptor | 325826-01 | 2 | 2 | 2 | ||||||
| 28 | Cleaning Valve O-Ring | 7611-P018 | 2 | Replaced with thread sealant tape | |||||||
| 29 | Spray Tube Plug | 4A0176-01 | 2 | 2 | 2 | ||||||
| 30 | Tee | 4A0177-01 | 1 | 1 | 1 | ||||||
| 31 | Distributor | 432426-01 1 | 1 1 | ||||||||
| 32 | Suction Hose | 433466-01 1 | 1 1 | ||||||||
| 33 | Drain Hose | 433468-01 1 | 1 1 | ||||||||
| 34 | Rubber Hose C | 4A1551-03 | 1 1 | 1 | |||||||
| 35 | Rubber Hose D | 4A1551-04 | 1 1 | 1 | |||||||
| 36 | Vinyl Hose | L=250 mm | 7716-2025 | 1 | 1 | 1 | |||||
| 37 | Vinyl Hose | L=110 mm | 7716-2025 | 1 | 1 | 1 | |||||
| 38 | Rubber Ring 439236-01 1 1 1 | ||||||||||
| 39 | Cube Guide | 212088-01 | 1 1 | 1 | |||||||
| Title: B. Water Circuit Model: KM-515M_H | ||||||||||||
| IndexNo. | Description | Material orModel Number | Part Number | Required Number | ||||||||
| S-0toV-3 | A-0B-0 | B-1toE-0 | ||||||||||
| 40 Silicone Hose L=140 mm 7730I3896 | 1 1 1 | |||||||||||
| 41 Silicone Hose L=140 mm 7730I3812 | 1 1 1 | |||||||||||
| Hose Clamp 25 mm 427443-03 9 | 9 9 | |||||||||||
| Hose Clamp 18 mm 427443-05 1 | 1 1 | |||||||||||
| Hose Clamp 20 mm 427443-06 1 | 1 1 | |||||||||||
C. Control Box Assembly
KM-515M\_H
S-0 to E-0


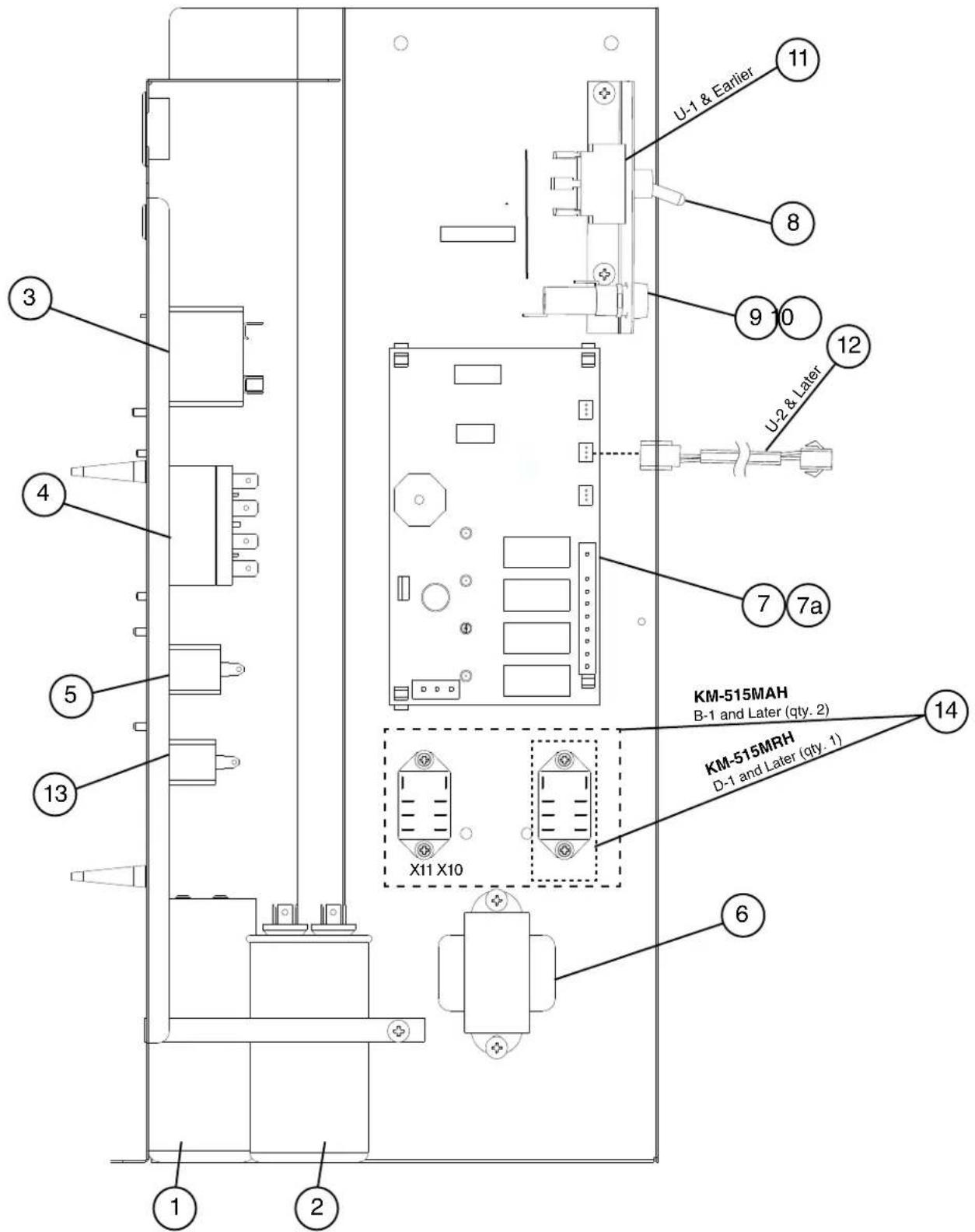

U-1 & Earlier 11 8 9 10 12 U-2 & Later 7 7a KM-515MAH B-1 and Later (qty. 2) KM-515MRH D-1 and Later (qty. 1) X11 X10 6 1 2 3 4 5 13 1| Title: C. Control Box Assembly Model: KM-515M_H | |||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | |||||||
| S-0 to U-1 | U-2 to V-1 | V-2 to B-0 | B-1 to D-0 | D-1 E-0 | |||||||
| 1 Start Capacitor 243-292MFD, | 165V | 3A0076-20 1 | 1 1 1 | ||||||||
| 2 Run Capacitor 35MFD, | 440VAC | 3A2005-12 1 | 1 1 1 | ||||||||
| 3 Start Relay (Starter) 4A1107-11 1 1 | 1 1 | ||||||||||
| 4 Magnetic Contactor KM-515MAH | KM-515MWH | 428393-01 1 | - | ||||||||
| 4A3140-01 | 1 1 | 1 | |||||||||
| 428393-01 | 1 | 1 | - | ||||||||
| 4A5096-01 | 1 1 | - | |||||||||
| 4A3140-01 | 1 | ||||||||||
| 5 Pump Motor Capacitor 5.5MFD, 250VAC | 443192-03 | 1 1 | 1 1 1 | ||||||||
| 6 Control Transformer | 3A0172-01 | 1 | 1 | 1 | 1 | 1 | |||||
| 7 Control Board "E" Board 2A | 1410-01 1 - | ||||||||||
| "G" Board | 2A3792-01 | 1 1 | 1 1 | ||||||||
| 7a Control Board Support | 4A0336-03 | 4 | 4 | 4 | 4 | ||||||
| 8 Control Switch | 443119-01 | 1 1 1 | 4 | ||||||||
| 9 Fuse Holder | 4A5443-01 | 1 1 1 | 1 | ||||||||
| 10 Fuse | AGC-10A, 250VAC | 4A0893-07 | 1 1 | 1 1 1 | |||||||
| 11 Bin Control Thermostat | 4A2879-01 | 1 | - | ||||||||
| 12 Mechanical Bin Control Wire Harness | 4A2200G04 | 1 1 | 1 1 | ||||||||
| 13 Fan Motor Capacitor | KM-515MAH 5MFD, 250VAC | 443192-02 | 1 1 | 1 1 1 | |||||||
| 14 Harvest Pump Timer Relays (X10, X11) | KM-515MAH 406132-07 | 2 2 | |||||||||
| Crankcase Heater Relay (X10) KM-515MRH 406 | 32-07 | 1 | |||||||||
D. Accessories & Labels
KM-515M\_H
S-0 to E-0


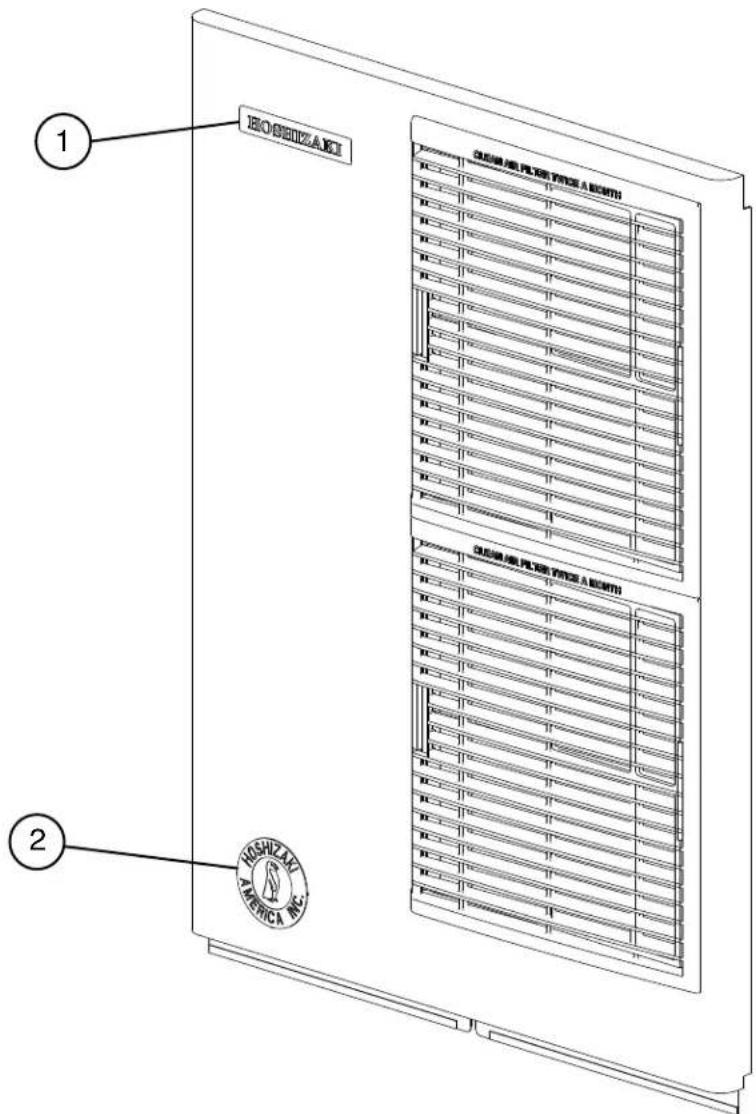

1 HOSHIZAKI 2 HOSHIZAKI CLOWS PLUGE TINZ A MONTH CLOWS PLUGE TINZ A MONTH CLOWS PLUGE TINZ A MONTH| Title: D.Accessories & Labels Model: KM-515M_H | |||||||||||
| IndexNo. | Description | Material orModel Number | Part Number | Required Number | |||||||
| S-0toE-0 | |||||||||||
| 1 Hoshizaki Emblem Label 4A0560-01 1 | |||||||||||
| 2 Penguin Label 4A0526-01 1 | |||||||||||
| 3 Universal Brace 4A0363-01 2 | |||||||||||
| 3a Hex Head Bolt 5x12, SS 7B02-0512 2 | |||||||||||
