Type de produit	Support mural fixe pour téléviseur
Marque	Gembird
Modèle	WM-70F-03
Compatibilité diagonale	37 à 70 pouces
Capacité de charge maximale	35 kg
Normes VESA compatibles	200x200, 300x300, 400x200, 400x400, 600x400 mm
Matériau	Acier
Couleur	Noir
Distance mur-écran	Environ 25 mm (profil bas)
Inclinaison	Fixe, sans inclinaison
Rotation	Non rotatif
Poids net	Environ 2,5 kg

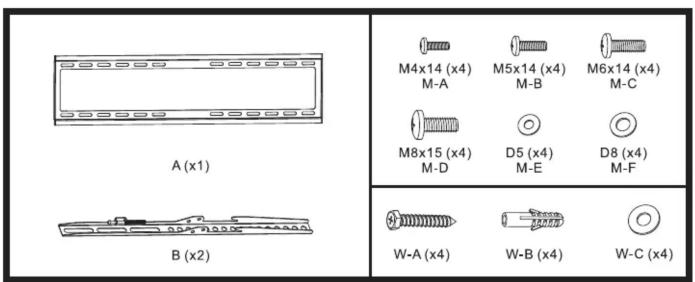

Contenu de l'emballage	Support mural, vis, chevilles, notice d'installation
Installation	Murale, nécessite perçage (outils non inclus)
Type de mur recommandé	Mur en béton ou brique pleine
Garantie	2 ans
Certifications	Conforme aux normes CE
Entretien	Nettoyer avec un chiffon sec et doux. Ne pas utiliser de produits abrasifs.
Informations générales	Fabriqué pour Gembird Europe B.V. Service client : www.gmb.nl/service

FOIRE AUX QUESTIONS - WM-70F-03 Gembird

Quelle est la taille d'écran maximale supportée par le support Gembird WM-70F-03 ?

Le support mural Gembird WM-70F-03 est conçu pour les téléviseurs de 37 à 70 pouces de diagonale.

Quel est le poids maximal que peut supporter ce support ?

La capacité de charge maximale est de 35 kg. Assurez-vous que votre téléviseur ne dépasse pas ce poids.

Quelles sont les normes VESA compatibles avec le WM-70F-03 ?

Ce support accepte les normes VESA suivantes : 200x200, 300x300, 400x200, 400x400 et 600x400 mm.

Le support permet-il d'incliner ou de pivoter le téléviseur ?

Non, le WM-70F-03 est un support fixe : il n'offre ni inclinaison ni rotation. L'écran reste plaqué contre le mur.

Quels outils sont nécessaires pour l'installation ?

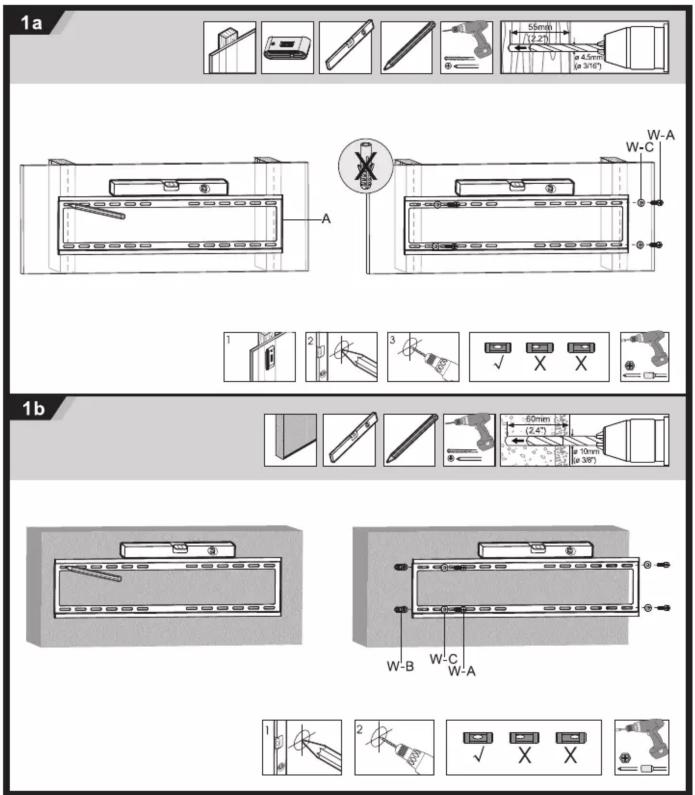

Vous aurez besoin d'une perceuse, d'un niveau à bulle, d'un tournevis (cruciforme ou plat selon les vis fournies) et d'un crayon pour marquer les points de perçage. Les vis et chevilles sont incluses.

Sur quel type de mur peut-on installer ce support ?

Il est recommandé pour les murs en béton ou en brique pleine. Pour les cloisons sèches ou plaques de plâtre, utilisez des chevilles adaptées (non fournies) et vérifiez la capacité de charge.

Y a-t-il des précautions de sécurité à respecter ?

Oui : lisez les consignes de sécurité sur www.gmb.nl/safety. Assurez-vous que le mur supporte le poids total, et que les vis sont bien serrées. Évitez de monter le support près d'une source de chaleur ou d'humidité.

Peut-on utiliser ce support avec un téléviseur incurvé ?

Oui, à condition que l'écran respecte les normes VESA et le poids maximal. La fixation se fait par l'arrière, donc la courbure n'est pas un problème tant que les points de montage sont compatibles.

Comment nettoyer et entretenir le support mural ?

Utilisez un chiffon sec et doux pour dépoussiérer. N'utilisez jamais de produits chimiques ou abrasifs qui pourraient endommager la peinture.

Quelle est la durée de la garantie et comment l'activer ?

La garantie est de 2 ans. Conservez la facture d'achat indiquant la date et le numéro de pièce. Pour toute réclamation, contactez le service client via www.gmb.nl/service ou [e-mail].

MODE D'EMPLOI WM-70F-03 Gembird

GENERAL INFORMATION

This product has been manufactured by or on behalf of Gembird Europe B.V.. Inquiries to the EU Importer or related to product compliance in Europe should be sent to: Gembird Europe B.V., Wittevrouwen 56, 1358 CD, Almere, The Netherlands. www.gmb.nl

Warranty conditions: www.qmb.nl/warranty

Product support: www.gmb.nl/service and/or [e-mail]

SAFETY

(ENG) To ensure safe handling of the product, follow the safety advice on: (DE/AT) Hinweise zum sicheren Gebrauch der Produkte finden Sie auf: (NL/BE) Voor een veilig gebruik van het product volgt u deze algemene veiligheidsaanwijzingen op: (ES) Para garantizar una manipulación segura de los dispositivos, siga las advertencias de seguridad disponibles en: (CB) Abyste zajestil bezpečnou manipulaci s výrobkem, dodržuje bezpečnostní pokyny na: (FR/BE) Pour garantir une manipulation sûre des appareils, suivez les consignes de sécurité sur: (IT) Per garantire una manipulazione sicura del prodotto, seguire i consigli di sicurezza su: (PT) Para garantir o manuseio seguro do produto, siga as recomendações de segurança em: (PL) Aby obchodzić się bezpiecznice z produktami, należy przetztegać wskazówek dotyczących bezpieczeństwa: (RO) Pentru asigurarea unei manipulári in conditii de Singapore a produsului, urmatí recomandárile de securitate de pe: (SK) Na zaistenie bezpečnej manipulácie so zariadeniami sa riadte bezpečnostnymi pokynami na: (SL) Za gotavljanje varnega ravnanja z napravami, upoštevajte varnostna navodila, ki jih najdete na: (HR) Da biste osigurali sigumo rukovanje uređajima, pratite sigurnosne savjete na web-mjistuz: (HU) A készülekek biztonságos kezelésének erdékeben kövesse a biztonsági tanácsokat (BG) Za da osigurrite безопасna работа na устройstva, следvaître светeite za безопасност по-долу: www.gmb.nl/safety

(EN) WARRANTY CONDITIONS The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the effective title will be credited, repaired or expaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to end may any warranty claim for damages on defects due to misuse, abuse or external impact falling down, impact, ingress of waste; dust, contamination or break; damage from accident; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from losses or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from loss or damage from Damage; damage from Losses or Damage: Damage not yet determined by any other person who can be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to be able to become an offer of sale. Other information relative to the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sale, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the times of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales, including the time of sales,including 100% (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%) (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% 100%, 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%), 100% (50%),

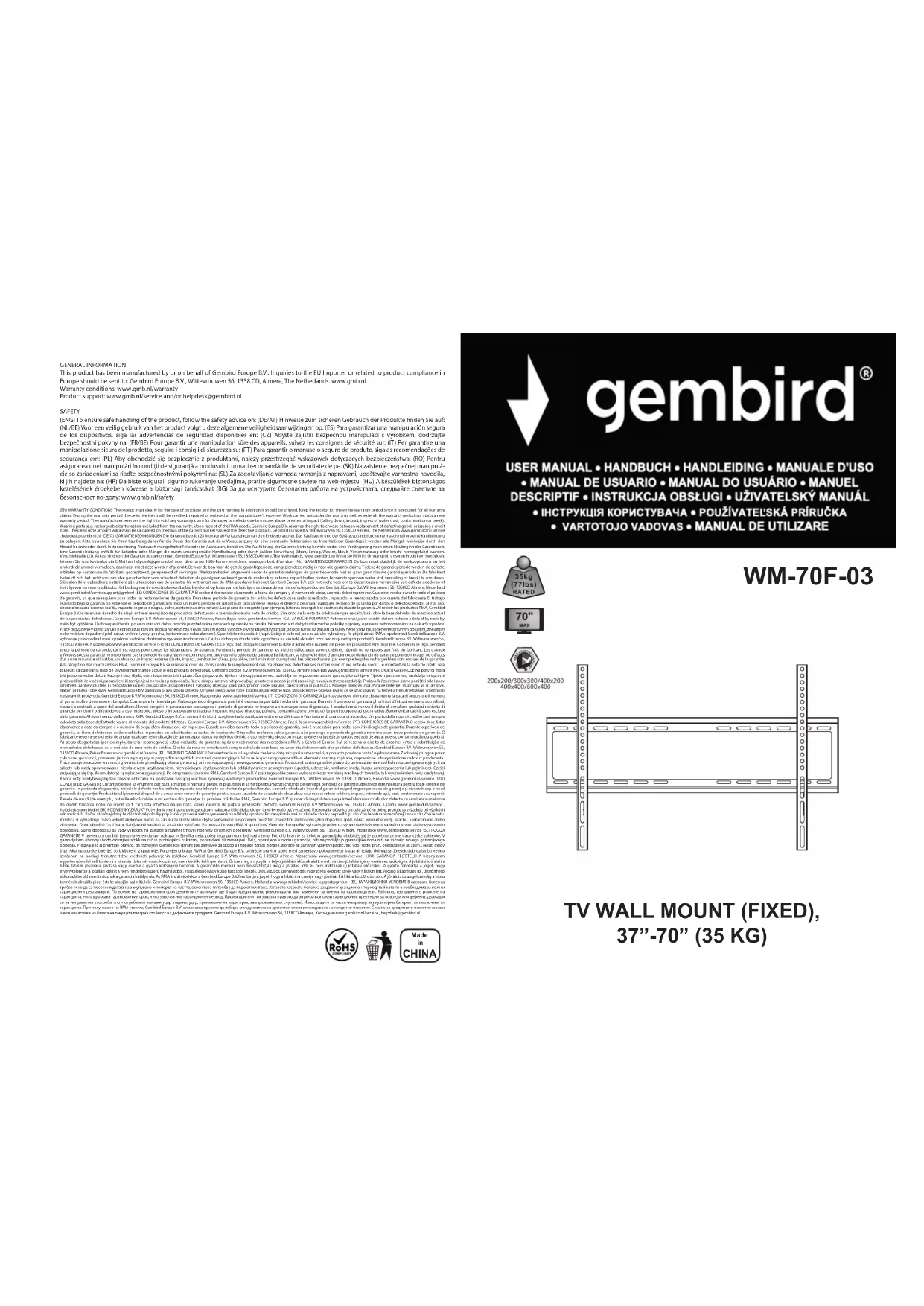

USER MANUAL • HANDBUCH • HANDLEIDING • MANUALE D'USO

- MANUAL DE USUARIO • MANUAL DO USUÁRIO • MANUEL

DESCRIPTIF • INSTRUKCJA OBSŁUGI • UŻIVATELSKÝ MANUÁL

• ІНСТРУКЦІЯ КОРИСТУВАЧА • ΡΟUŽÍVATELŠKÁ PRÍRUČKA

• VARTOTOJO VADOVAS • MANUAL DE UTILIZARE

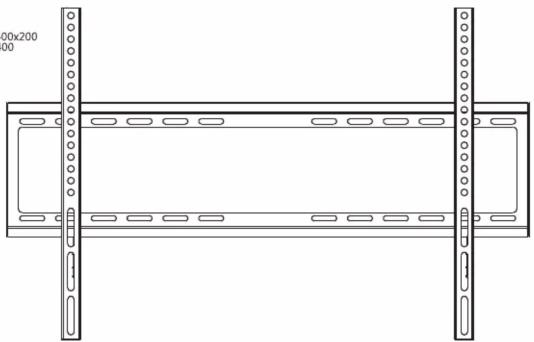

200x200/300x300/400x200
400x400/600x400

WM-70F-03

Technical line drawing of a dual-panel storage unit with mounting holes and side panels (no text or symbols)

TV WALL MOUNT (FIXED),

37"-70" (35 KG)
