| Caractéristiques techniques | Multiprise avec protection contre les surtensions, 7 prises de courant, 1 port USB |
|---|---|
| Capacité de charge | Max 2300W, 10A |
| Dimensions | Longueur : 30 cm, Largeur : 10 cm, Hauteur : 5 cm |
| Poids | 1,2 kg |
| Utilisation | Idéale pour les bureaux, maisons, et équipements électroniques sensibles |
| Maintenance | Vérifier régulièrement l'état des prises et du câble d'alimentation |
| Sécurité | Protection contre les surcharges et les courts-circuits, conforme aux normes de sécurité |
| Informations générales | Garantie de 2 ans, certification CE |
FOIRE AUX QUESTIONS - P703URC1 CyberPower
Questions des utilisateurs sur P703URC1 CyberPower
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Multiprise au format PDF gratuitement ! Retrouvez votre notice P703URC1 - CyberPower et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil P703URC1 de la marque CyberPower.
MODE D'EMPLOI P703URC1 CyberPower
CyberPower

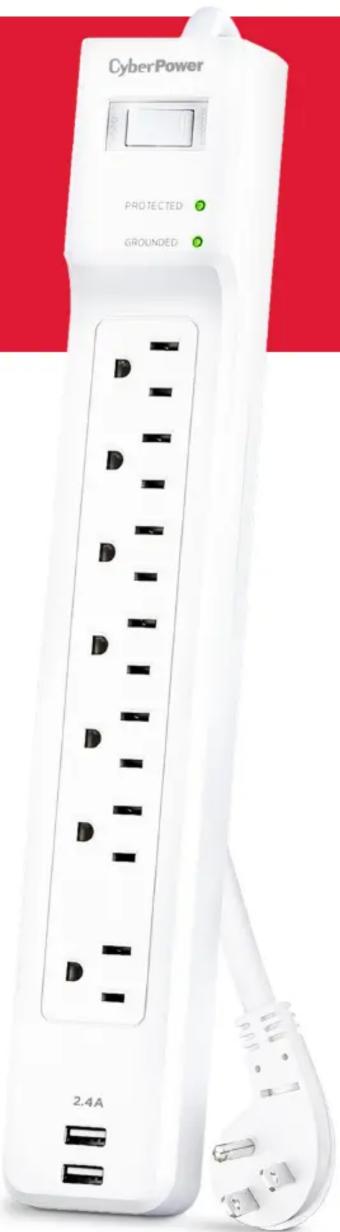

P703URC1 | ESSENTIAL SURGE PROTECTOR
Protect home and office computers, electronics, and home theater equipment
The CyberPower P703URC1 brings you power, protection, and versatility — all in one unit. Featuring 7 AC power outlets with 2,000J of surge protection, 2 USB-A charge ports. It's a great solution for bringing power to home offices, home entertainment systems, or other high-traffic areas of the home where power is needed.
Features of the P703URC1 include automatic shutdown, metal oxide varistor (MOV) technology, an EMI/RFI noise filter, keyhole mounting slots, and an impact-resistant casing. This surge suppressor comes with a One-Year Limited Warranty and a Connected Equipment Guarantee.
TYPICAL APPLICATIONS
• Personal Computers
- Chargers
• Personal Electronics
FEATURES
- AC Outlets: 7
• AC Outlet Type: NEMA 5-15R - Surge Protection: 2,000 Joules
- USB-A Ports: 2
• USB-A Output: 2.4A (shared) - Cord Length: 3 ft
- Plug Type: NEMA 5-15P
- Plug Style: Flat
• Electrical Rating: 125V/15A/60Hz
• Connected Equipment Guarantee: \$200,000
• Warranty: One-Year Limited Warranty
| INPUT | |
| Circuit Breaker 15 A | |
| Cord Length | 3 ft (.09 m) |
| Input Plug Type NEMA 5-15P | |
| Maximum Input Current 15 A | |
| Plug Style 45° Offset Right | |
| OUTPUT | |
| Outlet Type | 7 NEMA 5-15R |
| Outlets - Total | 7 |
| Output Voltage 125 VAC | |
| Output Watts - Continuous 1,875 W | |
| USB Charge Port Yes | |
| USB Charge Port Amperage 2.4 Amps (Shared) | |
| USB Charge Port Quantity 2 | |
| USB Charge Port Type | 2 Type A |
| USB Charge Port Voltage 5 VDC | |
SPECIFICATIONS CONT.
SURGE PROTECTION & FILTERING
| Attenuation 32 dB | |
| Clamping Voltage | 600V (H-N, H-G, N-G) |
| EMI/RFI Filtration | 150 KHz100 MHzYes |
| Maximum Surge Current | 60,000 A |
| Maximum Surge Current H-G | 15,000 A |
| Maximum Surge Current H-N | 30,000 A |
| Maximum Surge Current N-G | 15,000 A |
| Maximum Surge Voltage 6,000 V | |
| Response Time <1 Nanosecond | |
| Surge Suppression (Joules) | 2,000 J |
PHYSICAL
| Color | White |
| Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |
| Material of Construction Plastic |
DIMENSIONS
| Physical Dimensions - WxHxD (cm) | 5.21 x 3.99 x 31.9 cm |
| Physical Dimensions - WxHxD (mm) | 52 x 40 x 319 mm |
| Physical Dimensions - WxHxD (in.) | 2.05 x 1.57 x 12.56 in. |
| Weight (kg) | 0.41 kg |
| Weight (lb) | 0.90 lbs. |
SHIPPING DIMENSIONS
| Shipping Dimensions - WxHxD (cm) | 10.49 x 35.41 x 4.5 cm |
| Shipping Dimensions - WxHxD (mm) | 104.9 x 354.08 x 44.96 mm |
| Shipping Dimensions - WxHxD (in) | 4.13 x 13.94 x 1.77 in. |
| Shipping Weight (kg) | 0.52 kg |
| Shipping Weight (lbs.) | 1.15 lbs. |
CERTIFICATIONS
| Environmental RoHS Compliant | |
| Safety | UL1363, UL1449 4th Edition, UL1310, cUL, FCC, DOE VI |
WARRANTY
| CEG Amount | $200,000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | One-Year Limited |
