IT 773 - Cuisinière CATA - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil IT 773 CATA au format PDF.
| Caractéristiques | Détails |
|---|---|
| Type de cuisinière | Cuisinière à gaz |
| Nombre de foyers | 4 foyers |
| Dimensions (L x P x H) | 60 x 60 x 85 cm |
| Puissance totale | 8 kW |
| Type de four | Four à gaz |
| Capacité du four | 60 litres |
| Fonctionnalités du four | Gril, convection |
| Système de sécurité | Thermocouple de sécurité |
| Matériau de la surface | Acier émaillé |
| Facilité de nettoyage | Grilles amovibles, four émaillé |
| Consommation énergétique | Classe énergétique A |
| Accessoires inclus | Grille, plat à four |
FOIRE AUX QUESTIONS - IT 773 CATA
Questions des utilisateurs sur IT 773 CATA
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Cuisinière au format PDF gratuitement ! Retrouvez votre notice IT 773 - CATA et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil IT 773 de la marque CATA.

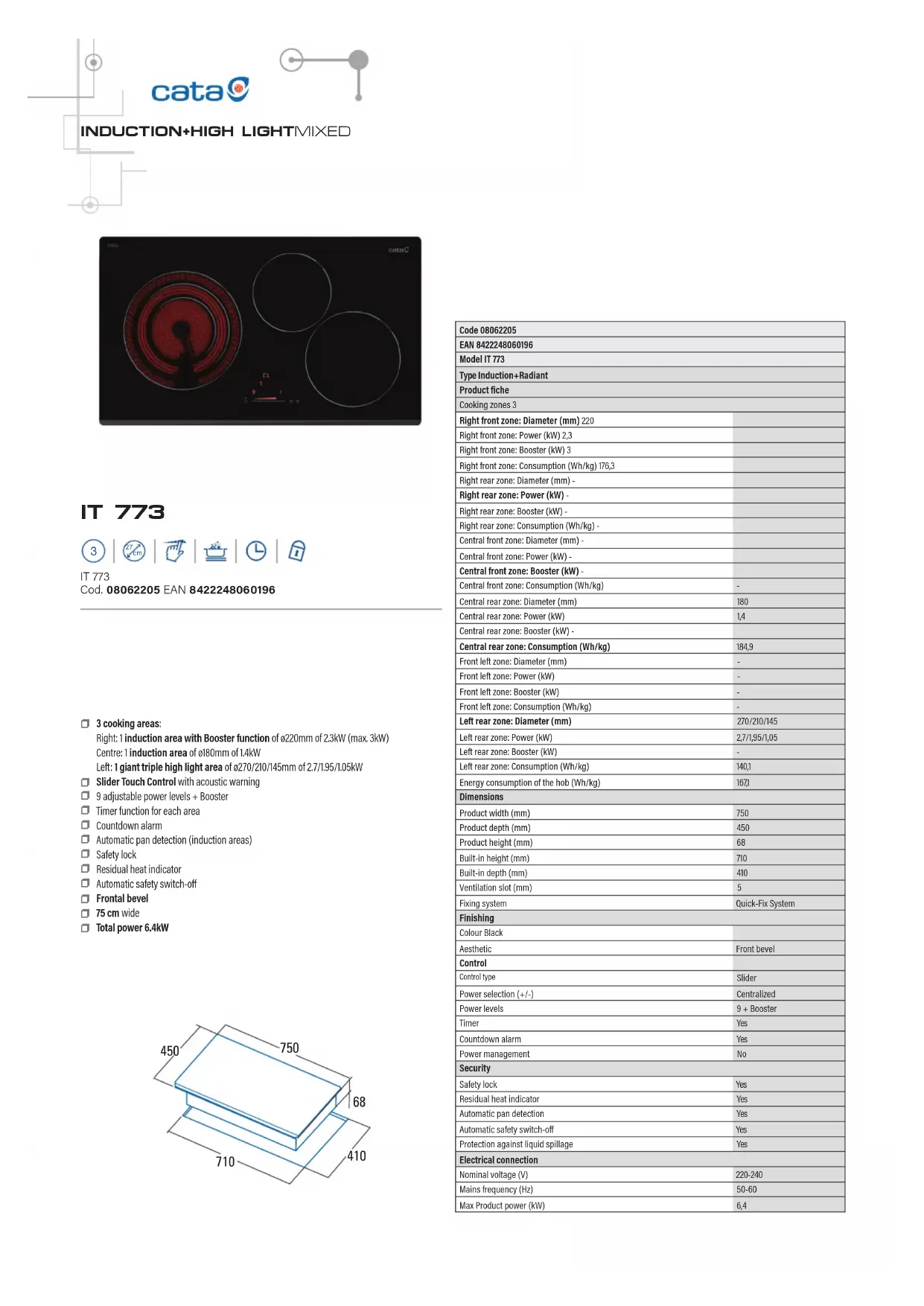

MODE D'EMPLOI IT 773 CATA

IT 773






IT773
Cod. 08062205 EAN 8422248060196

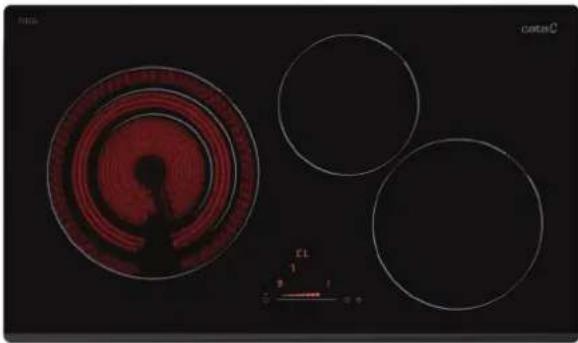

3 cooking areas:
Right: 1 induction area with Booster function of 220mm of 2.3kW (max. 3kW )
Centre:1 induction area of 0180mm of 1.4kW
Left: 1 giant triple high light area of 0270/210/145mm of 2.7/1.95/1.05kW
Slider Touch Control with acoustic warning
9 adjustable power levels + Booster
Timer function for each area
□ Countdown alarm
Automatic pan detection (induction areas)
Safety lock
Residual heat indicator
Automatic safety switch-off
Frontal bevel
75cm wide
Total power 6.4kW

Code 08062205
EAN 8422248060196
Model IT 773
Type Induction+ Radiant
Product fiche
Cooking zones 3
Right front zone: Diameter (mm) 220
Right front zone: Power (kW) 2,3
Right front zone: Booster (kW) 3
Right front zone: Consumption (Wh/kg) 176,3
Right rear zone: Diameter (mm) -
Right rear zone: Power (kW)
Right rear zone
Right rear zone: Consumption (Wh/kg)
Central front zone: Diameter (mm)
Central front zone: Power (kW) -
Central front zone: Booster (kW)
Central front zone: Consumption (Wh/kg)
Central rear zone: Diameter (mm) 180
Central rear zone: Power (kW) 1/4
Central rear zone: Booster (kW)
Central rear zone: Consumption (Wh/kg) 184,9
Front left zone: Diameter (mm)
Front left zone: Power (kW)
Front left zone: Booster (kW)
Front left zone: Consumption (Wh/kg)
Left rear zone: Diameter (mm) 270/210/145
Left rear zone: Power (kW) 2,7/1,95/1,05
Left rear zone: Booster (kW)
Left rear zone: Consumption (Wh/kg) 140,1
Energy consumption of the hob (Wh/kg) 167

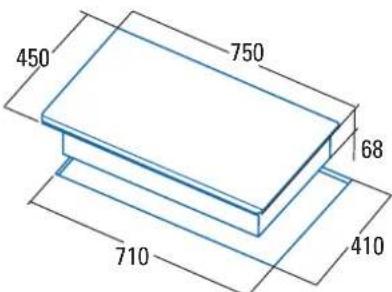

Dimensions
Product width (mm) 750
Product depth (mm) 450
Product height (mm) 68
Built-in height (mm) 710
Built-in depth (mm) 410
Ventilation slot (mm) 5
Fixing system Quick-Fix System
Finishing
Colour Black
Aesthetic Front bevel
Control
Control type
Power selection (+/-) Centralized
Power levels 9+Booster
Timer Yes
Countdown alarm Yes
Power management No
Security
Safety lock Yes
Residual heat indicator Yes
Automatic pan detection Yes
Automatic safety switch-off Yes
Protection against liquid spillage
Electrical connection
Nominal voltage (V) 220-240
Mains frequency (Hz) 50-60
Max Product power (kW) 6,4
