AC229 - Caméra de surveillance Vivotek - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil AC229 Vivotek au format PDF.
| Type de produit | Caméra de surveillance |
| Marque | Vivotek |
| Modèle | AC229 |
| Dimensions | ∅ 94 x 29 mm |
| Poids | 146 g |
| Matériau du couvercle | Polycarbonate (PC) |
| Matériau de la bulle | Polycarbonate (PC) |
| Indice de protection | IK10 (résistance aux chocs) |
| Couleurs disponibles | Blanc, Noir |
| Alimentation | PoE (Power over Ethernet) |
| Résolution maximale | 2 Mégapixels (HD 1080p) |
| Vision nocturne | Infrarouge (IR) jusqu'à 30 mètres |
| Angle de vue | 90° (grand angle) |
| Connectivité | Ethernet 10/100 |
| Fonctions principales | Surveillance vidéo, détection de mouvement, streaming en direct |
| Entretien et nettoyage | Essuyer avec un chiffon doux et sec |
| Sécurité | Boîtier anti-vandalisme (IK10) |
| Pièces détachées et réparabilité | Pièces de rechange disponibles auprès du fabricant |
| Température de fonctionnement | -10°C à 50°C |
| Certifications | CE, RoHS |
FOIRE AUX QUESTIONS - AC229 Vivotek
Questions des utilisateurs sur AC229 Vivotek
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Caméra de surveillance au format PDF gratuitement ! Retrouvez votre notice AC229 - Vivotek et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil AC229 de la marque Vivotek.
MODE D'EMPLOI AC229 Vivotek
AC-229
IK10 Transparent Cover
Model AC-229
Construction
Cover: PC
Bubble: PC
Dimensions ∅ 94 x 29 mm
Color White, Black
Weight 146 g
Certification IK10
Box Dimension 207 (L) x 117 (W) x 44 (H) mm (2 pcs in package)
Carton Dimension 340 (L) x 340 (W) x 160 (H) mm (20 pcs)
Carton Weight 7.3 kg


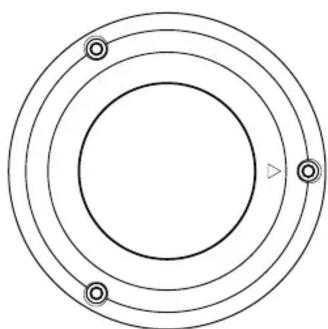

Pure concentric circular diagram with three bolt holes and a small triangle symbol at the center (no text or labels)
