MODE D'EMPLOI EPA5006GP ENGENIUS

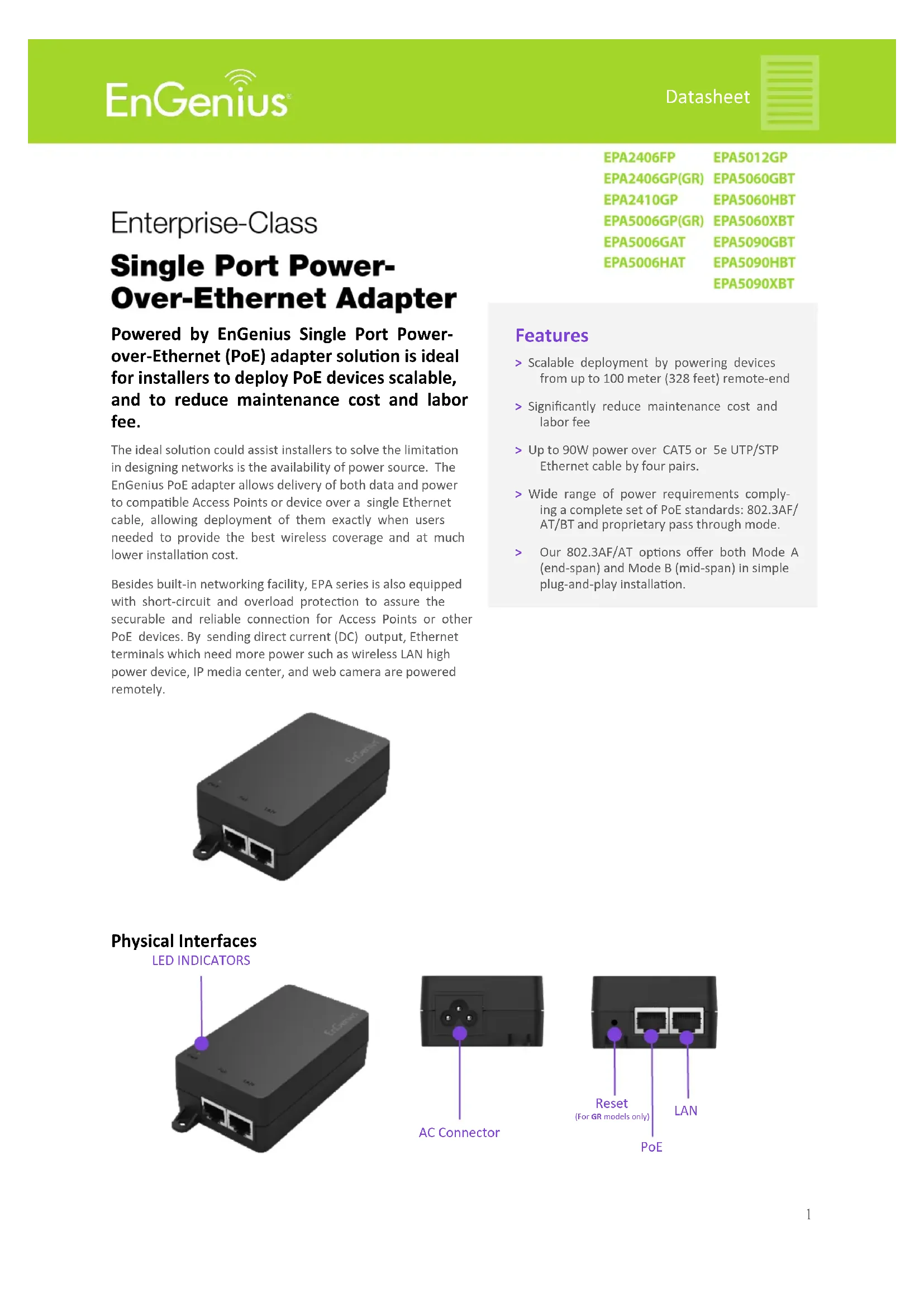

Enterprise-Class
Single Port Power-Over-Ethernet Adapter
Powered by EnGenius Single Port Power-over-Ethernet (PoE) adapter solution is ideal for installers to deploy PoE devices scalable, and to reduce maintenance cost and labor fee.
The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to compatible Access Points or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.
Besides built-in networking facility, EPA series is also equipped with short-circuit and overload protection to assure the securable and reliable connection for Access Points or other PoE devices. By sending direct current (DC) output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.
| EPA2406FP | EPA5012GP |
| EPA2406GP(GR) | EPA5060GBT |
| EPA2410GP | EPA5060HBT |
| EPA5006GP(GR) | EPA5060XBT |
| EPA5006GAT | EPA5090GBT |
| EPA5006HAT | EPA5090HBT |
| EPA5090XBT |
Features
Scalable deployment by powering devices from up to 100 meter (328 feet) remote-end
Significantly reduce maintenance cost and labor fee
Up to 90W power over CAT5 or 5e UTP/STP Ethernet cable by four pairs.
Wide range of power requirements complying a complete set of PoE standards: 802.3AF/AT/BT and proprietary pass through mode.
Our 802.3AF/AT options offer both Mode A (end-span) and Mode B (mid-span) in simple plug-and-play installation.
LED INDICATORS
Technical Specifications Single Port Power-over-Ethernet (PoE) Adapter
| Model | EPA2406FP | EPA2406GP | EPA2406GR | EPA2410GP |
| Power Specification | ||||
| Input Voltage 100V~240V AC | ||||
| Input Current | 0.4A @ 120V AC0.24A @ 240V AC | 0.4A @ 120V AC0.24A @ 240V AC | 0.4A @ 120V AC0.24A @ 240V AC | 0.7A @ 120V AC0.35A @ 240V AC |
| AC Input Frequency 50-60Hz | ||||
| Max. Output Power | 14.4W | 14.4W | 14.4W | 24W |
| Power Line | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-) | |||
| Data Specifications | ||||
| Ethernet Ports Std. | 10/100 Mbit/s | 10/100/1000 Mbit/s | ||
| Data Lines | Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) | |||
| Protection Level | ||||
| Surge Protection | L-L: 1KV; L-G: 2KV | L-L: 2KV; L-G: 4KV | ||
| ESD | Contact 4KV; Air: 8KV | |||
| Other Protection | Over-voltage and over-current protection; Short-circuit protection | |||
| Physical Interfaces & Indicators | ||||
| Ethernet Ports | 10/100 Mbit/s | 1 x 10/100/1000 Data input;1 x 10/100/1000 Data & power output | ||
| AC Connector | 1 x IEC 320 C6 AC connector (US, EU, UK, AU) | |||
| LED Indicator | Power on : Green | |||
| Mechanical & Environment | ||||
| Dimension | 100mm x 58.4 mm x 33.4 mm (3.9" x 2.27" x 1.3") | |||
| Weight (Adapter Only) | 112g (3.95oz) | 112g (3.95oz) | 112g (3.95oz) | 144g (5.08 oz) |
| Temperatures | Storage: -20 ~ 70°C (-4 ~ 158 °F), Operation: 0 ~ 40°C (32 ~ 104 °F) | |||
| Compliance Regulatory | ||||
| CB | IEC 62328-1: 2014 | |||
| UL | UL 60950-1 2" | |||
| FCC | FCC Subpart15 B | |||
| CE | EN 55032:2012/AC:2013, EN 55024: 2010 | |||
| RCM | AS/NZS60950.1: 2011/Amdt 1: 2012 | |||
| Warranty | ||||
| 1 year hardware warranty | ||||
Technical Specifications Single Port Power-over-Ethernet (PoE) Adapter
| Model | EPA5006GP | EPA5006GR | EPA5006GAT | EPA5006HAT |
| Power Specification | ||||
| Input Voltage 100V~240V AC | ||||
| Input Current | 0.8A @ 120V AC | 0.8A @ 120V AC | 0.8A @ 120V AC | 0.8A @ 120V AC |
| 0.4A @ 240V AC | 0.4A @ 240V AC | 0.4A @ 240V AC | 0.4A @ 240V AC | |
| AC Input Frequency 50-60Hz | ||||
| Max. Output Power 32.8W 30W | ||||
| Power Line | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-) | |||
| Data Specifications | ||||
| Ethernet Ports Std. | Proprietary | IEEE 802.3 AF/AT | ||
| Data Lines | Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) | |||
| Protection Level | ||||
| Surge Protection | L-L: 2KV; L-G: 4KV | |||
| ESD Contact 4KV; Air: 8KV | ||||
| Other Protection | Over-voltage and over-current protection; Short-circuit protection | |||
| Physical Interfaces & Indicators | ||||
| Ethernet Ports | 1 x 10/100/1G Data input;1 x 10/100/1G Data & power output | 1 x 10/100/1G Data input;1 x 10/100/1G Data & power output | 1 x 10/100/1G/2.5G Data input;1 x 10/100/1G/2.5G Data & power output | |
| AC Connector | 1 x IEC 320 C6 AC connector (US, EU, UK, AU) | |||
| LED Indicator | Power on : Green | |||
| Mechanical & Environment | ||||
| Dimension | 100mm x 58.4 mm x 33.4 mm (3.9" x 2.27" x 1.3") | |||
| Weight (Adapter Only) | 144g (5.08 oz) | 144g (5.08 oz) | 154g (5.44 oz) | 154g (5.44 oz) |
| Temperatures | Storage: -20 ~ 70°C (-4 ~ 158 °F ), Operation: 0 ~ 40°C (32 ~ 104 °F ) | |||
| Compliance Regulatory | ||||
| CB | IEC 62328-1: 2014 | |||
| UL | UL 60950-1 2" | |||
| FCC | FCC Subpart15 B | |||
| CE | EN 55032:2012/AC:2013, EN 55024: 2010 | |||
| RCM | AS/NZS60950.1: 2011/Amdt 1: 2012 | |||
| Warranty | ||||
| 1 year hardware warranty | ||||
Technical Specifications Single Port Power-over-Ethernet (PoE) Adapter
| Model | EPA5012GP | EPA5060GBT | EPA5060HBT | EPA5060XBT |
| Power Specification | ||||
| Input Voltage 100V~240V AC | ||||
| Input Current | 1.12A @ 120V AC | 1.12A @ 120V AC | ||
| 0.75A @ 240V AC | 0.75A @ 240V AC | |||
| AC Input Frequency 50-60Hz | ||||
| Max. Output Power 60W | 60W | |||
| Power Line | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-)&Pin8(Vdc-) | |||
| Data Specifications | ||||
| Ethernet Ports Std. | Proprietary | IEEE 802.3 AF/AT/BT | ||
| Data Lines | Pin1(Rx+)&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) | |||
| Protection Level | ||||
| Surge Protection | L-L: 2KV; L-G: 4KV | |||
| ESD Contact 4KV; Air: 8KV | ||||
| Other Protection | Over-voltage and over-current protection; Short-circuit protection | |||
| Physical Interfaces & Indicators | ||||
| Ethernet Ports | 1 x 10/100/1G Data input;1 x 10/100/1G Data & power output | 1 x 10/100/1G Data input;1 x 10/100/1G Data & power output | 1 x 10/100/1G/2.5G Data input;1 x 10/100/1G/2.5G Data & power output | 1 x 10/100/1G/2.5G/10G Data input;1 x 10/100/1G/2.5G/10G Data & power output |
| AC Connector 1 x IEC 320 C6 AC connector (US, EU, UK, AU) | ||||
| LED Indicator | Power on : Green | |||
| Mechanical & Environment | ||||
| Dimension | 100mm x 58.4 mm x 33.4 mm (3.9" x 2.27" x 1.3") | |||
| Weight (Adapter Only) | 186g(6.56oz) | 198g(6.98oz) | ||
| Temperatures | Storage: -20 ~ 70°C (-4 ~ 158 °F ), Operation: 0 ~ 40°C (32 ~ 104 °F ) | |||
| Compliance Regulatory | ||||
| CB | IEC 62328-1: 2014 | |||
| UL | UL 62328-1 | |||
| FCC | FCC Subpart15 B | |||
| CE | EN 55032:2012/AC:2013, EN 55024: 2010 | |||
| Warranty | ||||
| 1 year hardware warranty | ||||
Technical Specifications Single Port Power-over-Ethernet (PoE) Adapter
| Model | EPA5090GBT | EPA5090HBT | EPA5090XBT |
| Power Specification | |||
| Input Voltage 100V~240V AC | |||
| Input Current | 0.95A @ 120V AC0.5A @ 240V AC | ||
| AC Input Frequency 50-60Hz | |||
| Max. Output Power 90W | |||
| Power Line | Pin4(Vdc+)&Pin5(Vdc+); Pin7(Vdc-&Pin8(Vdc-) | ||
| Data Specifications | |||
| Ethernet Ports Std. IEEE | 802.3 AF/AT/BT | ||
| Data Lines | Pin1(Rx)+&Pin2(Rx-); Pin3(Tx+)&Pin6(Tx-) | ||
| Protection Level | |||
| Surge Protection | L-L: 2KV; L-G: 4KV | ||
| ESD Contact 4KV; Air: 8KV | |||
| Other Protection | Over-voltage and over-current protection; Short-circuit protection | ||
| Physical Interfaces & Indicators | |||
| Ethernet Ports | 1 x 10/100/1G Data input;1 x 10/100/1G Data & power output | 1 x 10/100/1G/2.5G Data input;1 x 10/100/1G/2.5G Data & power output | 1 x 10/100/1G/2.5G/10G Data input;1 x 10/100/1G/2.5G/10G Data & power output |
| AC Connector 1 x IEC 320 C6 AC connector (US, EU, UK, AU) | |||
| LED Indicator Power on : Green | |||
| Mechanical & Environment | |||
| Dimension 150mm x 65 mm x 34 mm (5.9" x 2.56" x 1.34") | |||
| Weight (Adapter Only) 354g(12.48oz) | |||
| Temperatures | Storage: -20 ~ 70°C (-4 ~ 158 °F ), Operation: 0 ~ 40°C (32 ~ 104 °F ) | ||
| Compliance Regulatory | |||
| CB | IEC 62328-1: 2014 | ||
| UL | UL 62328-1 | ||
| FCC | FCC Subpart15 B | ||
| CE | EN 55032:2012/AC:2013, EN 55024: 2010 | ||
| Warranty | |||
| 1 year hardware warranty | |||
Compliant Models
| Model | EPA2406FP | EPA2406GP | EPA2406GR | EPA2410GP |
| Compliant AP List | ENS202(EXT)(v2)ENS202(EXT)ENS500(EXT)ENH200(EXT)ENH202(v2)ENH500(v2)EnStation5 | ENS500-ACENS500EXT-ACEnStation5-ACENS610EXTENS202(EXT)ENS500(EXT)ENH200(EXT)ENH202(v2)ENH500(v2)EnStation5 | ENS500-AC(EXT)(v2)EnStation5-AC(v2)ENH500(v3) | ENS620EXT |
| Model | EPA5006GP | EPA5006GR | EPA5006GAT | EPA5012GP | EPA5060HBT |
| Compliant AP List | EAP1250 | EAP1250 | ECW270 | ||
| EAP1300 | EAP1300 | ||||
| EAP1300(EXT) | EAP1300(EXT) | ||||
| EAP1750H | EAP1750H | ||||
| EAP2200 | EAP2200 | ||||
| ECB1750 | ECB1750 | ||||
| ENS1750 | ENS1750 | ||||
| EnStationAC | EnStationAC | ||||
| EWS330AP | EWS330AP | ||||
| EWS355AP | ENH1350EXT | EWS355AP | |||
| EWS357AP | ENStationAC(v2) | EWS357AP | |||
| EWS360AP | EWS850AP-FIT | EWS360AP | |||
| EWS370AP | EWS850 | EWS370AP | EWS860AP | ||
| EWS371AP | ECW160 | EWS371AP | EWS870AP | ||
| EWS377AP | ECW260 | EWS377AP | EWS871AP | ||
| EWS385AP | ENH500-AX | EWS385AP | ENH1750EXT | ||
| EWS511AP | EnStation6 | EWS511AP | |||
| EWS550AP | ENS621EXT | EWS550AP | |||
| EWS660AP | EWS660AP | ||||
| ECW120 | ECW120 | ||||
| ECW115 | ECW115 | ||||
| ECW220(S) | ECW220(S) | ||||
| ECW230(S) | ECW230(S) | ||||
| ECW336 | ECW336 | ||||
| ECW215 | ECW215 | ||||
| EWS357-FIT | EWS357-FIT | ||||
| EWS377-FIT | EWS377-FIT | ||||
| ECW130 | ECW130 |
HQ, Taiwan
www.engeniusnetworks.com
Costa Mesa, California, USA | (+1) 714 432 8668
www.engeniustech.com
Markham, Ontario, Canada | (+1) 905 940-8181
www.engeniustech.com
Singapore | (+65) 6227 1088
www.engeniustech.com.sg
Eindhoven, Netherlands | (+31) 40 8200 888
www.engeniusnetworks.eu
Dubai, UAE | (+971) 4 357 5599
www.engenius-me.com
EnGenius®
Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Prior to installing any surveillance equipment, it is your responsibility to ensure the installation is in compliance with local, state and federal video and audio surveillance and privacy laws.
Version 6.1—2022/10/25
