Home Theater HT1206UC2 - Multiprise CyberPower - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil Home Theater HT1206UC2 CyberPower au format PDF.
| Type de produit | Multiprise avec protection contre les surtensions |
| Marque | CyberPower |
| Modèle | Home Theater HT1206UC2 |
| Dimensions (L x H x P) | 13.41 x 3.66 x 32.72 cm |
| Poids | 0.82 kg |
| Alimentation | 125 VAC, 15 A |
| Protection contre les surtensions | 2 880 joules |
| Nombre de prises | 12 prises NEMA 5-15R |
| Prises largement espacées | 6 |
| Ports USB de charge | 4 ports USB-A (4,8 A partagé, 5 VDC) |
| Cordon d'alimentation | 1,8 m (6 pieds) |
| Protection de ligne de données | RJ45 (entrée/sortie), RG6 coaxial (2 entrées/2 sorties) |
| Filtrage EMI/RFI | Oui (43 dB d'atténuation) |
| Temps de réponse | < 1 nanoseconde |
| Circuit de coupure | 15 A (réarmable) |
| Matériaux | Plastique ignifuge |
| Couleur | Noir |
| Montage mural | Oui (trous en forme de clavette) |
| Garantie produit | 1 an limitée |
| Garantie équipement connecté | 500 000 $ (à vie) |
| Certifications | UL 498A, UL 1449 3e édition, cUL, FCC, RoHS |
| Entretien | Débrancher et essuyer avec un chiffon sec |
| Réparabilité | Non réparable par l'utilisateur ; contacter le support |
FOIRE AUX QUESTIONS - Home Theater HT1206UC2 CyberPower
Questions des utilisateurs sur Home Theater HT1206UC2 CyberPower
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Multiprise au format PDF gratuitement ! Retrouvez votre notice Home Theater HT1206UC2 - CyberPower et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Home Theater HT1206UC2 de la marque CyberPower.

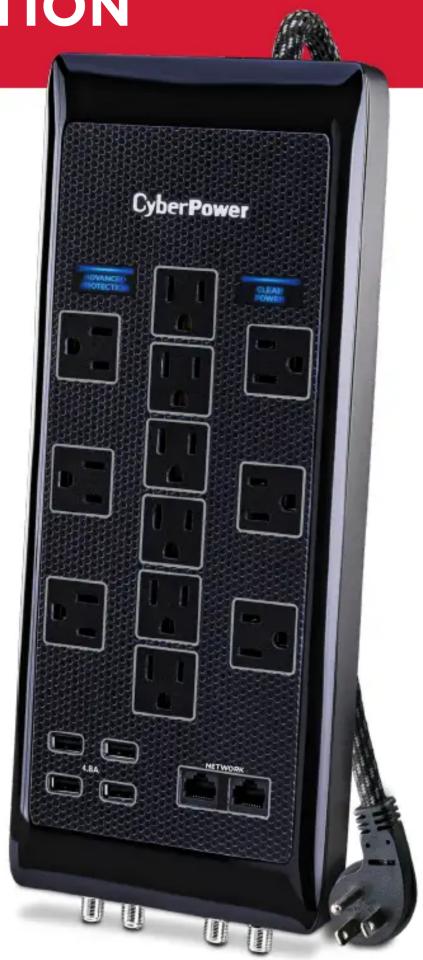

MODE D'EMPLOI Home Theater HT1206UC2 CyberPower
CyberPower
HT1206UC2RC1
HOME THEATER SURGE PROTECTION
Protect home theater equipment, home and office computers, and other electronics
Your home entertainment system, gaming gear and devices deserve 24/7 protection. Safeguard valuable electronics against voltage spikes and serious power events such as lightning-induced surges with advanced power protection. Loaded with features like fireproof and safe-fail technology, this surge protector guarantees your home and equipment stay safe. USB charging ports, network line protection, kink-resistant cord and a sleek design make it perfect for all your home entertainment needs.
TYPICAL APPLICATIONS
Home Theater Equipment
- Cable DSL/Modems
Personal Computers
Phone/Fax/Modem
- Cable and Satellite
Consumer Electronics
FE ATUR ES
Surge suppression: 2,880 J
- Circuit breaker: 15 A
Plug type: NEMA 5-15P (45° off-set)
- Outlet type: 12 × NEMA 5-15R (surge-protected)
- USB charge ports: 4
- Transformer spaced outlets: 6
Power cord: 6 ft.
- Dataline protection: Yes
- EMI/RFI Filtration: Yes
Warranty: 1-Year Limited
- Connected Equipment Guarantee: $500,000

SPECIFICATIONS
| INPUT | |
| Circuit Breaker 15 A | |
| Cord Length 6 ft (1.8 m) | |
| Input Plug Type NEMA 5-15P | |
| Input Voltage 125 VAC | |
| Maximum Input Current 15 A | |
| Plug Style Right Angle - 45° Offset | |
| Switch Yes | |
OUTPUT
| Outlet Type 12 NEMA 5-15R | |
| Outlets - Total 12 | |
| Outlets - Widely Spaced 6 | |
| USB Charge Port Yes | |
| USB Charge Port Amperage 4.8 Ams (Shared) | |
| USB Charge Port Quantity | 4 |
| USB Charge Port Type | Type A |
| USB Charge Port Voltage | 5 VDC |
SPECIFICATIONS CONT.
SURGE PROTECTION & FILTERING
| Attenuation 43 dB | |
| Clamping Voltage 500V (H-N, H-G, N-G) | |
| Coax Protection RG6 | 2 in 2 out Tin |
| EMI/RFI Filtration Yes | |
| Maximum Surge Current 90,000 A | |
| Maximum Surge Current H-G 15,000 A | |
| Maximum Surge Current H-N 60,000 A | |
| Maximum Surge Current N-G 15,000 A | |
| Maximum Surge Voltage 6,000 V | |
| Network Protection RJ45 1 in / 1 out | |
| Response Time <1 Nanosecond | |
| Surge Suppression (Joules) 2,880 J | |
PHYSICAL
| Color Black | |
| Form Factors Supported | Horizontal Mount in Variety of Other Applications |
| Keyhole Mounting Slots Yes | |
| Material of Construction Plastic | |
| Safety Covers | No |
DIMENSIONS
| Physical Dimensions - WxHxD (cm) | 13.41 x 3.66 x 32.72 cm |
| Physical Dimensions - WxHxD (mm) | 134 x 37 x 327 mm |
| Physical Dimensions - WxHxD (in.) | 5.28 x 1.44 x 12.88 in. |
| Weight (kg) | 0.82 kg |
| Weight (lb) | 1.80 lbs. |
SHIPPING DIMENSIONS
| Shipping Dimensions - WxHxD (cm) | 21.01 x 40.23 x 4.19 cm |
| Shipping Dimensions - WxHxD (mm) | 210.06 x 402.34 x 41.91 mm |
| Shipping Dimensions - WxHxD (in) | 8.27 x 15.84 x 1.65 in. |
| Shipping Weight (kg) 0.94 kg | |
| Shipping Weight (lbs.) | 2.08 lbs. |
CERTIFICATIONS
| Environmental | RoHS Compliant |
| Safety | UL498A UL1449 3rd Edition cUL DoE FCC ICES-003 |
WARRANTY
| CEG Amount | $500,000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1-Year Limited |
