TU3S - Accordeur chromatique BOSS - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Accordeur chromatique
Marque	Boss
Modèle	TU3S
Dimensions (L x P x H)	73 x 84 x 56 mm
Poids	220 g
Alimentation	Adaptateur secteur PSA série (vendu séparément), 9 V DC, 35 mA (95 mA en mode haute luminosité)
Tension d'alimentation	9 V DC
Consommation électrique	35 mA (95 mA en mode haute luminosité)
Plage d'accord	Do0 (16,35 Hz) – Do8 (4 186 Hz)
Fréquence de référence	La4 = 436–445 Hz (par pas de 1 Hz)
Précision d'accord	±1 cent
Niveau d'entrée nominal	-20 dBu
Impédance d'entrée	1 MΩ
Niveau de sortie nominal	-20 dBu
Impédance de sortie	1 kΩ
Impédance de charge recommandée	10 kΩ ou plus
Modes d'accord	Chromatique, Chromatique bémol, Guitare, Guitare bémol, Basse, Basse bémol
Fonctions spéciales	Accu-Pitch Sign, mode Haute luminosité, accordage par corde (guitare 7 cordes, basse 6 cordes), Flat tuning jusqu'à 6 demi-tons
Affichage	Mètre lumineux (mode CENT ou STREAM), indicateur de note/corde, voyant CHECK
Connecteurs	Entrée INPUT (Jack 6,35 mm), Sortie OUTPUT (Jack 6,35 mm), DC IN, DC OUT (pour alimenter d'autres pédales)
Accessoires inclus	Manuel d'utilisation, feuille « USING THE UNIT SAFELY » et « IMPORTANT NOTES », cordon DC parallèle, patin caoutchouc
Entretien et nettoyage	Nettoyer avec un chiffon sec et doux. Ne pas utiliser de solvants.
Sécurité	Lire attentivement les feuilles « USING THE UNIT SAFELY » et « IMPORTANT NOTES » avant utilisation.
Origine	Fabriqué au Japon

FOIRE AUX QUESTIONS - TU3S BOSS

Quels sont les modes d'accord disponibles sur le Boss TU3S ?

Le TU3S propose six modes : Chromatique, Chromatique bémol, Guitare, Guitare bémol, Basse et Basse bémol. Le mode Guitare permet d'accorder par numéro de corde (jusqu'à 7 cordes) et le mode Basse supporte les basses 6 cordes.

Comment régler la hauteur de référence (La4) ?

Appuyez simultanément sur les boutons MODE et STREAM/CENT. Le chiffre des unités de la fréquence clignote. Utilisez MODE pour augmenter de 1 Hz et STREAM/CENT pour diminuer de 1 Hz. La plage va de 436 à 445 Hz. Le réglage est conservé après extinction.

Qu'est-ce que la fonction Accu-Pitch Sign ?

La fonction Accu-Pitch Sign indique visuellement la fin de l'accordage : les lumières du mètre convergent vers le centre lorsque la note est accordée avec stabilité. Pour l'activer, maintenez le bouton STREAM/CENT enfoncé tout en mettant sous tension.

Comment activer le mode Haute luminosité ?

Maintenez le bouton STREAM/CENT enfoncé pendant au moins 2 secondes pour basculer entre le mode normal et le mode Haute luminosité. Ce mode augmente la visibilité en extérieur mais consomme plus (95 mA contre 35 mA).

Quelle est la différence entre l'affichage CENT et STREAM ?

En mode CENT, le mètre s'allume à gauche si la note est trop basse, à droite si trop haute, et vert au centre si juste. En mode STREAM, les lumières défilent vers la gauche (trop bas) ou la droite (trop haut) ; le défilement ralentit à mesure que l'accord s'affine et s'arrête lorsqu'il est exact.

Puis-je accorder une guitare 7 cordes ou une basse 6 cordes ?

Oui, le mode Guitare supporte les guitares 7 cordes (la 7e corde est affichée '7') et le mode Basse supporte les basses 6 cordes (Do aigu affiché 'C', Si grave affiché 'b').

Comment brancher le TU3S dans ma chaîne d'effets ?

Branchez votre instrument sur la prise INPUT, puis reliez la prise OUTPUT à vos autres pédales d'effets ou à l'amplificateur. Pour un accordage correct, le TU3S doit être placé en premier dans la chaîne, avant les autres effets.

Puis-je alimenter d'autres pédales avec le TU3S ?

Oui, via la prise DC OUT, vous pouvez alimenter d'autres pédales compatibles avec l'adaptateur PSA en utilisant un cordon parallèle PCS-20A (optionnel). L'adaptateur secteur PSA est nécessaire.

Que faire si l'accordeur ne s'allume pas ?

Vérifiez que l'adaptateur secteur (PSA série) est correctement branché et que la prise secteur est sous tension. L'accordeur s'allume automatiquement dès que l'adaptateur est connecté. Si le problème persiste, consultez la feuille 'IMPORTANT NOTES'.

Le TU3S est-il compatible avec les accordages alternatifs (Drop D, etc.) ?

Oui, le mode Guitare bémol permet des accordages 'descendus' jusqu'à six demi-tons en dessous du réglage standard. Par exemple, pour un Drop D, accordez la corde de Mi grave un ton plus bas (mode b).

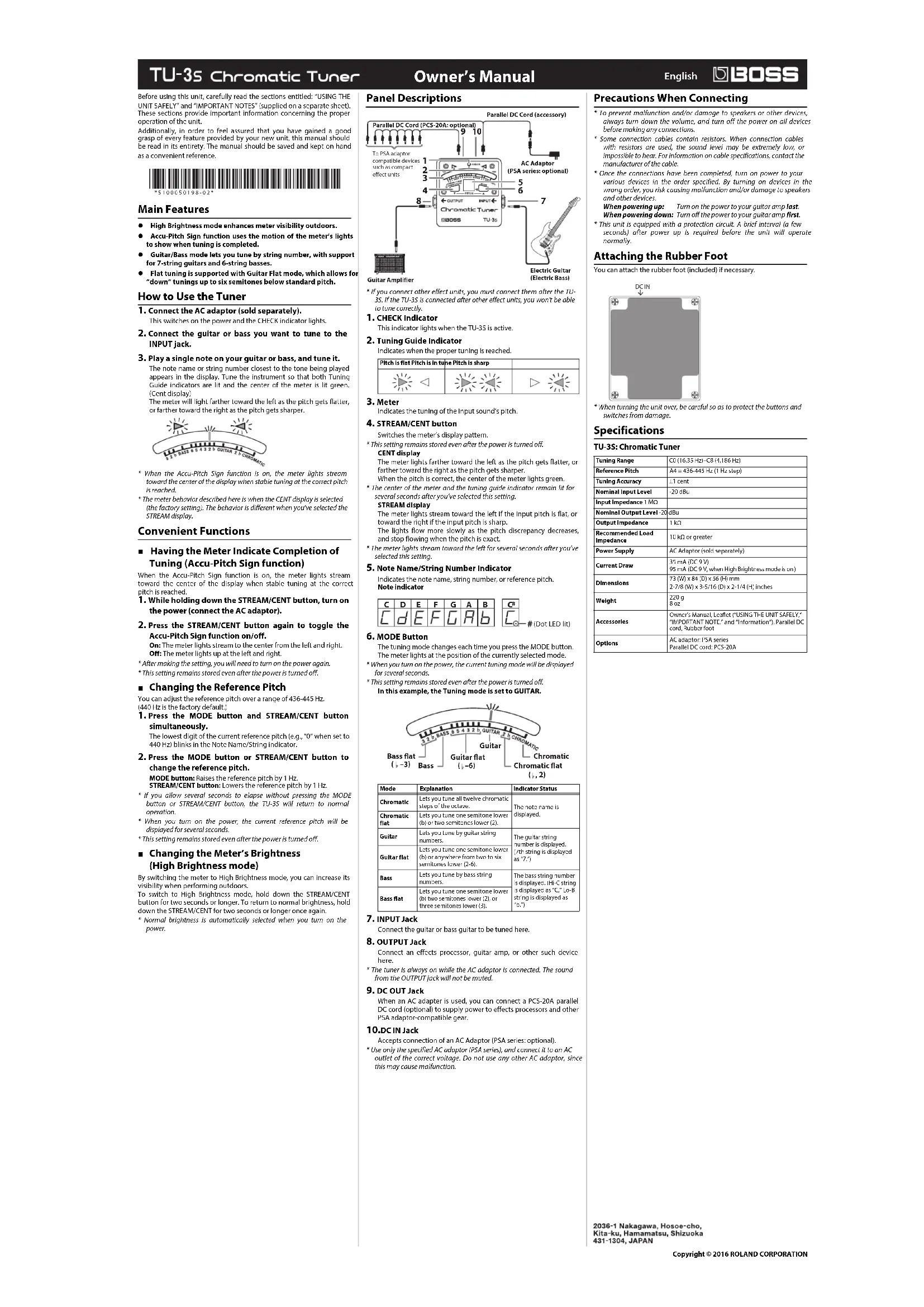

MODE D'EMPLOI TU3S BOSS

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (supplied on a separate sheet). These sections provide important information concerning the proper operation of the unit.

Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Main Features

• High Brightness mode enhances meter visibility outdoors.
• Accu-Pitch Sign function uses the motion of the meter's lights to show when tuning is completed.
• Guitar/Bass mode lets you tune by string number, with support for 7-string guitars and 6-string basses.
• Flat tuning is supported with Guitar Flat mode, which allows for "down" tunings up to six semitones below standard pitch.

How to Use the Tuner

1. Connect the AC adaptor (sold separately). This switch on the sensor of the FUSEC indicators
2. Connect the guitar or bass you want to tune to the INPUT jack.
3. Play a single note on your guitar or bass, and tune it.

The note name or string number closest to the tone being played appears in the display. Tune the instrument so that both Tuning Guide indicators are lit and the center of the meter is lit green. (Cent display)

The meter will light farther toward the left as the pitch gets flatter, or farther toward the right as the pitch gets sharper.

• When the Accu-Pitch Sign function is on, the meter lights stream toward the center of the display when stable tuning at the correct pitch is reached.
• The meter behavior described here is when the CENT display is selected (the factory setting). The behavior is different when you've selected the STREAM display.

Convenient Functions

Having the Meter Indicate Completion of Tuning (Accu-Pitch Sign function)

When the Accu-Pitch Sign function is on, the meter lights stream toward the center of the display when stable tuning at the correct pitch is reached.

1. While holding down the STREAM/CENT button, turn on the power (connect the AC adaptor).
2. Press the STREAM/CENT button again to toggle the Accu-Pitch Sign function on/off.

On: The meter lights stream to the center from the left and right. Off: The meter lights up at the left and right.

*After making the setting, you will need to turn on the power again. * This setting remains stored even after the power is turned off.

Changing the Reference Pitch

You can adjust the reference pitch over a range of 436-445 Hz. (440 Hz is the factory default.)
1. Press the MODE button and STREAM/CENT button simultaneously.

The lowest digit of the current reference pitch (e.g., "0" when set to 440Hz ) blinks in the Note Name/Strinig indicator,

1. Press the MODE button or STREAM/CENT button to change the reference pitch.
   MODE button: Raises the reference pitch by 1 Hz.

STREAM/CENT button: Lowers the reference pitch by 1 Hz.

If you allow several seconds to elapse without pressing the MODE
button or STREAM/CENT button, the TU-3S will return to normal operation.

• When you turn on the power, the current reference pitch will be displayed for several seconds.
• This setting remains stored even after the power is turned off.

Changing the Meter's Brightness (High Brightness mode)

By switching the meter to High Brightness mode, you can increase its visibility when performing outdoors.
To switch to High Brightness mode, hold down the STREAM/CENT button for two seconds or longer. To return to normal brightness, hold down the STREAM/CENT for two seconds or longer once again.
* Normal brightness is automatically selected when you turn on the power.

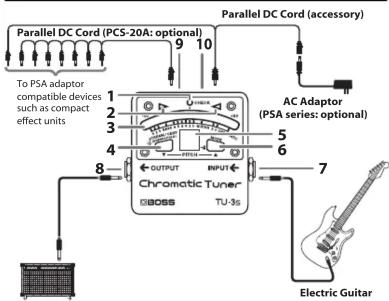

Panel Descriptions

Guitar Amplifier

• If you connect other effect units, you must connect them after the TU-35. If the TU-35 is connected after other effect units, you won't be able to tune correctly.
• CHECK Indicator

This indicator lights when the TU-3S is active.

1. Tuning Guide Indicator

Indicates when the proper tuning is reached.

Pitch is flat Pitch is in tune Pitch is sharp

3.Meter

Indicates the tuning of the input sound's pitch.

4 STREAM/CENT button
Switches the meter's display pattern.
This setting remains stored even after the power is turned off.
CENT display
The meter lights farther toward the left as the pitch gets flatter, or farther toward the right as the pitch gets sharper.
When the pitch is correct, the center of the meter lights green.
The center of the meter and the tuning guide indicator remain lit for several seconds after you've selected this setting.
STREAM display
The meter lights stream toward the left if the input pitch is flat, or toward the right if the input pitch is sharp.
The lights flow more slowly as the pitch discrepancy decreases, and stop flowing when the pitch is exact.
* The meter lights stream toward the left for several seconds after you've selected this setting.

1. Note Name/String Number Indicator

Indicates the note name, string number, or reference pitch. Note indicator

1. MODE Button
   The tuning mode changes each time you press the MODE button. The meter lights at the position of the currently selected mode.
2. When you turn on the power, the current tuning mode will be displayed for several seconds.
3. This setting remains stored even after the power is turned off. In this example, the Tuning mode is set to GUITAR.

Mode	Explanation	Indicator Status
Chromatic	Lets you tune all twelve chromatic steps of the octave.	The note name is displayed.
Chromatic flat	Lets you tune one semitone lower (b) or two semitones lower (2).
Guitar	Lets you tune by guitar string numbers.	The guitar string number is displayed. (7th string is displayed as "7.")
Guitar flat	Lets you tune one semitone lower (b) or anywhere from two to six semitones lower (2-6).
Bass	Lets you tune by bass string numbers.	The bass string number is displayed. (Hi-C string is displayed as "C", Lo-B string is displayed as "b.")
Bass flat	Lets you tune one semitone lower (b) two semitones lower (2), or three semitones lower (3).

1. INPUT Jack

Connect the guitar or bass guitar to be tuned here.

1. OUTPUT Jack

Connect an effects processor, guitar amp, or other such device here.
* The tuner is always on while the AC adaptor is connected. The sound from the OUTPUT jack will not be muted.

9.DC OUT Jack

When an AC adapter is used, you can connect a PCS-20A parallel DC cord (optional) to supply power to effects processors and other PSA adaptor-compatible gear.

10.DC IN Jack
Accepts connection of an AC Adaptor (PSA series: optional).
* Use only the specified AC adaptor (PSA series), and connect it to an AC outlet of the correct voltage. Do not use any other AC adaptor, since this may cause malfunction.

Precautions When Connecting

• To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

• Some connection cables contain resistors. When connection cables with resistors are used, the sound level may be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

• Once the connections have been completed, turn on power to your devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

When powering up: Turn on the power to your guitar amp last.
When powering down: Turn off the power to your guitar amp first

• This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

Attaching the Rubber Foot

You can attach the rubber foot (included) if necessary.

• When turning the unit over, be careful so as to protect the buttons and switches from damage.

Specifications

TU-3S:Chromatic Tuner

Tuning Range	C0 (16.35 Hz)–C8 (4,186 Hz)
Reference Pitch	A4 = 436–445 Hz (1 Hz step)
Tuning Accuracy	±1 cent
Nominal Input Level	-20 dBu
Input Impedance 1 MΩ
Nominal Output Level -20 dBu
Output Impedance	1 kΩ
Recommended Load Impedance	10 kΩ or greater
Power Supply	AC Adaptor (sold separately)
Current Draw	35 mA (DC 9 V) 95 mA (DC 9 V, when High Brightness mode is on)
Dimensions	73 (W) x 84 (D) x 56 (H) mm 2-7/8 (W) x 3-5/16 (D) x 2-1/4 (H) inches
Weight	220 g 8 oz
Accessories	Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information"), Parallel DC cord, Rubber foot
Options	AC adaptor: PSA series Parallel DC cord: PCS-20A
