| Type de produit | Caisson de basses |
| Marque | Soundstream |
| Modèle | Reserve R5.124 |
| Puissance maximale | 2000 W |
| Puissance RMS | 1000 W |
| Impédance | DVC 4 Ω (bobine double 4 ohms) |
| Sensibilité | 85,98 dB (1 W/1 m) |
| Réponse en fréquence (Fs) | 25,79 Hz |
| Facteur Qts | 0,50 |
| Diamètre de la bobine | 2,5 pouces (63,5 mm) |
| Type d'aimant | Double stack 317 oz (9 kg) avec T-yoke ventilé |
| Diamètre du haut-parleur | 12,625 pouces (321 mm) |
| Profondeur de montage | 7 pouces (178 mm) environ |
| Diamètre de découpe | 11 pouces (279 mm) |
| Déplacement linéaire (Xmax) | 15 mm |
| Déplacement mécanique max (Xmech) | 30 mm |
| Matériau du cône | Pulpe d'épicéa avec protection UV et chimique |
| Matériau de la suspension | Mousse polyéther inversée avec protection UV |
| Type de cône | IMPP concave surdimensionné |
| Bornier | Compression à ressort nickelé 12 AWG |
| Garantie | 90 jours limitée (2 ans avec installation par revendeur agréé) |
| Accessoires inclus | Joint de cône, anneau de finition, manuel |
FOIRE AUX QUESTIONS - Reserve R5.124 Soundstream
Questions des utilisateurs sur Reserve R5.124 Soundstream
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Caisson de basses au format PDF gratuitement ! Retrouvez votre notice Reserve R5.124 - Soundstream et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Reserve R5.124 de la marque Soundstream.
MODE D'EMPLOI Reserve R5.124 Soundstream

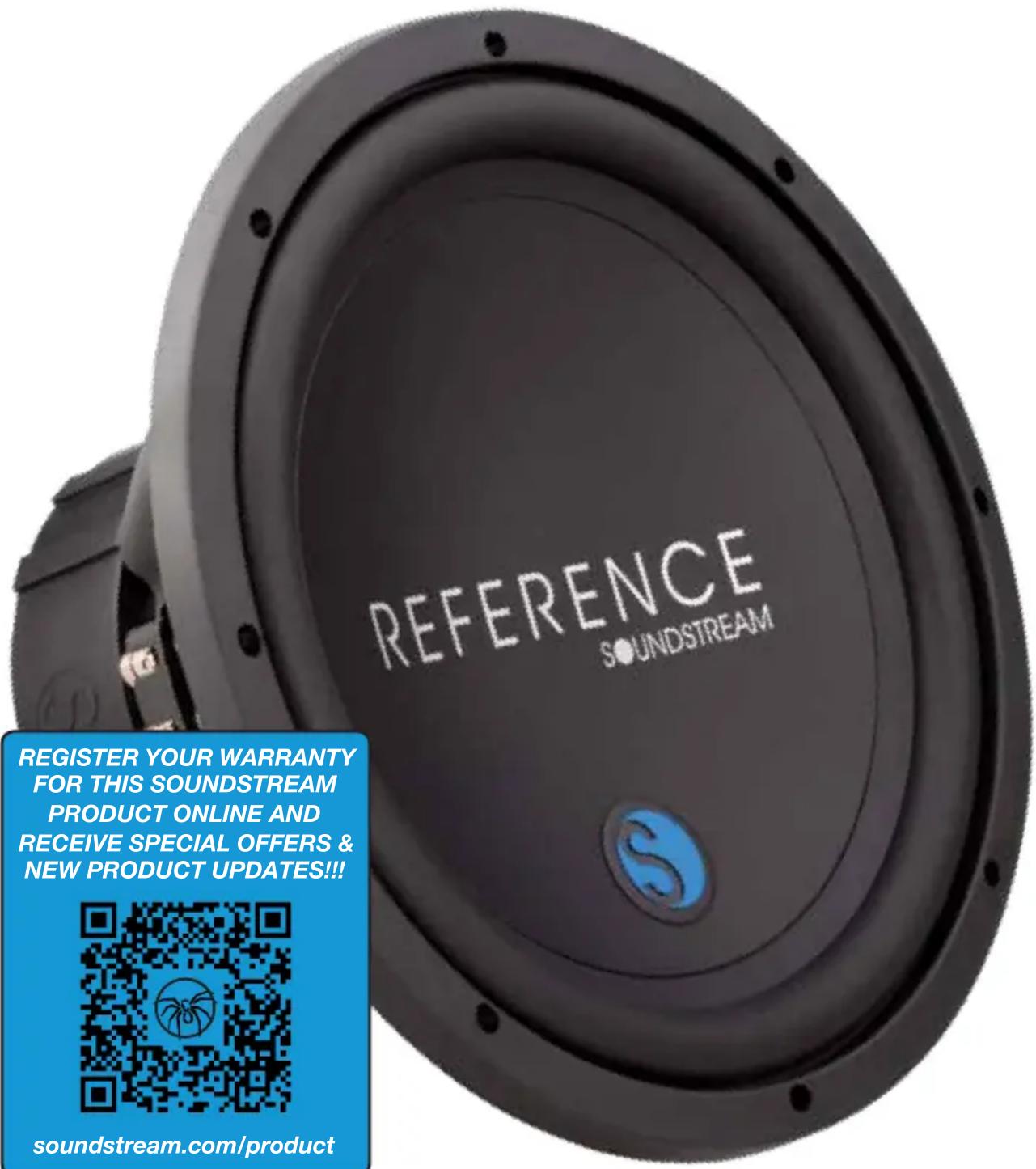

SOUNDSTREAM
FEATURES, PARAMETERS, & SPECIFICATIONS
Third Generation Soundstream Reference Frame
Oversaturated Motor Sturcture for Increased Magnetic Strength
12mm Vented T-Yoke & Top Plate Improve Low Frequency Dynamics
317oz Double Stack Magnet, T-Yoke & Top Plate
2.5" 4-Layer Voice Coil w/ Large Gauge Wire Increases Power Handling
High-Temperature Tolerance Adhesives Resist Thermal Failure
Inverted Roll Polyether Foam Surround w/ UV & Chemical Protection
Oversized Concave IMPP Primary Cone Increases Effective Surface Area
Spruce Pulp Cone w/ UV & Chemical Protection
Polyvinyl Chloride Gasket & Trim Ring
Nickel Plated 12ga Spring-Loaed Compression Wire Terminals
Stitched Voice Coil Leads Prevent Potential Damage
Dual Poly-Cotton Suspension Dampen Violent Accelerations
| Specification R5.122 | R5R2422 | R5.124 |
| Fs (Hz) 24.82 25.79 | 24.82 | 25.79 |
| Qms 5.00 4.81 | 5.00 | 4.81 |
| Vas (L) 81.43 84.52 | 81.43 | 84.52 |
| Cms (mm/N) .191 .199 | .191 | .199 |
| Mms (g) 216.37 191.86 | 216.37 | 191.86 |
| Xmax (mm) 15 | 15 | |
| Xmech (mm) 30 | 30 | |
| Qes .53 .56 | .53 | .56 |
| Re (Ω) 3.61 7.23 | 3.61 | 7.23 |
| Z (Ω) | 4 | 8 |
| BL (Tm) | 15.21 19.97 | 19.97 |
| MAX Power | 2,000w | |
| RMS Power | 1,000w | |
| Qts | .48 .50 | .50 |
| Efficiency (1w/1m) | 85.60dB | 85.98dB |
| Impedance | DVC 2 Ω | DVC 4 Ω |


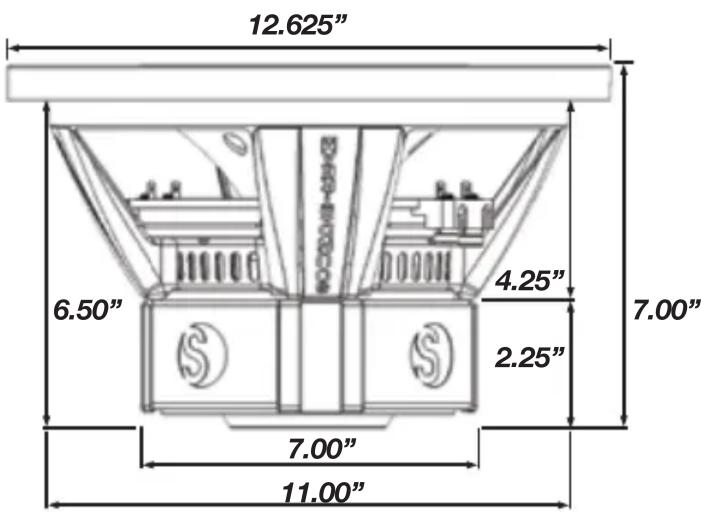

12.625" 6.50" 4.25" 7.00" 2.25" 7.00" 11.00"ENCLOSURE DESIGN & WOOFER INSTALLATION
Vehicle conditions, amplifier, music preferences, & other variables make it difficult to give you exact dimensions for an enclosure deisgn. For enclosure designs tailored to your specific needs, please contact us at tech-support@soundstream.com, or 1-800-724-1377.
All enclosures should be made of .75" (3/4") material only. When possible, make the baffle 1.5" (1 ½) thick and add .75" (3/4") to the depth of the enclosure to compensate. All volumes INCLUDE vent/port and subwoofer displacements. DO NOT change the volume unless you plan on adding a substantial amount of bracing. For added performance, applying a coat of fiberglass resin to the interior walls will greatly improve sealing the enclosure. Adding a thin layer of poly-fill will improve response by smoothing out reflections within the enclosure.
Below are recommended enclosure designs and their expected performance:
| Recommended Sealed Enclosures | Recommended Ported Enclosures | |||||
| Airspace | QTCC Tuning | AirSpace Round | ARepta Tuning | Round Port | Tuning | |
| Min. 0. | 750ft75 ft3 | .884 52 | 5 H5215ft | 1.75 ft3 | 4" x 15.25"L 3 | 3.3 Hz.3 Hz |
| Opt. 1. | 1.00ft00 ft3 | .785 50 | 3 H50230ft | 2.00 ft3 | 4" x 14.5"L 31 | .1 Hz.1 Hz |
| Max. 1. | 1.25 ft25 ft3 | .725 49 | 5 H4925ft | 2.25 ft3 | 4" x 14"L 29 | 3 Hz29.3 Hz |

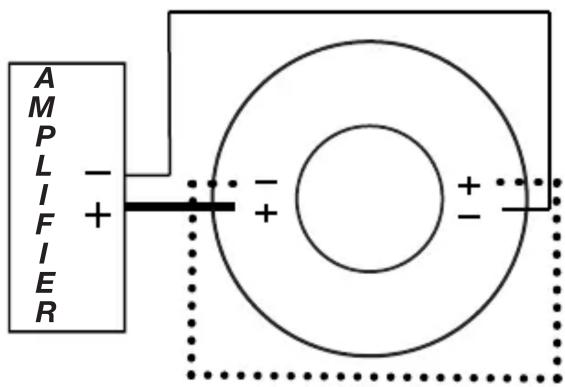

1 R5.122 wired for 4Ω
1 R5.124 wired for 8Ω


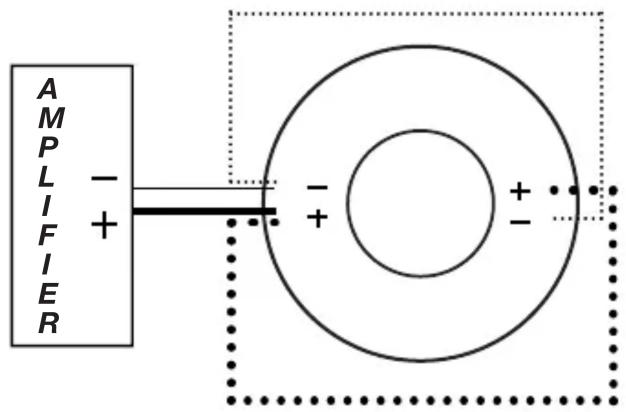

A M P L I F I E R - + -1 R5.122 wired for 1Ω
1 R5.124 wired for 2Ω


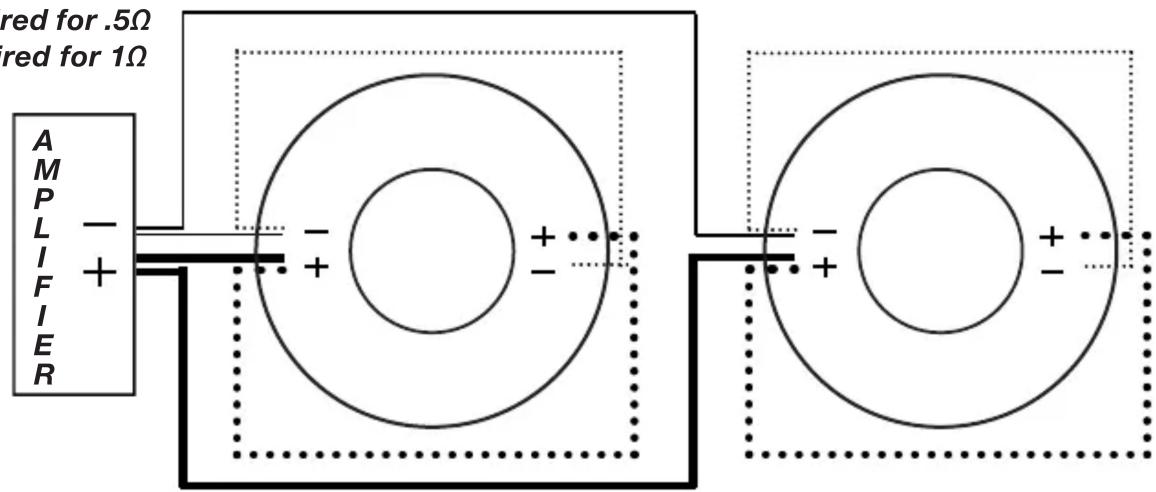

A M P L I F I E R - + - + - +2 R5.122 wired for .5Ω
2 R5.124 wired for 1Ω
LIMITED TWO-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER
Soundstream promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Soundstream's sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of two-years from the date of purchase from the Soundstream authorized retailer, PROVIDED the product was purchased and installed by a Soundstream authorized retailer. During this two-year period, there will be no charge for product repair or replacement, PROVIDED the unit is returned to Soundstream, return shipping pre-paid, along with the required proof of installation, the bill of sale or other dated proof of purchase, and the consumer's contact information.
If the unit is installed by anyone other than a Soundstream authorized retailer, the warranty period will be 90-days from the date of purchase. This warranty is nontransferable and does not apply to any unit that has been modified or used in a manner contrary to its intended purpose, and does not cover damage to the unit caused by installation or removal of the unit. During this 90-day period, there will be no charge for the repair or replacement PROVIDED the unit is returned to Soundstream, return shipping prepaid, along with the bill of sale or other dated proof of purchase and the consumer's contact information.
This warranty is void if the product has been damaged by accident or unreasonable use, neglect, improper service or other causes not arising out of defects in materials or construction. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception, damage to speakers, accessories, electrical systems, cosmetic damage or damage due to negligence, misuse, failure to follow operating instructions, accidental spills or customer applied cleaners, damage due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, lightning or extreme temperatures, damage due to accidents, road hazards, fire, theft, loss or vandalism, damage due to improper connection to equipment of another manufacturer, modification of existing equipment, or Product which has been opened or tampered for any reason. Units which are found to be damaged by abuse resulting in thermally damaged voice coils are not covered by this warranty but may be replaced at the absolute and sole discretion of Soundstream. Unit must be returned to Soundstream, postage pre-paid, with bill of sale or other dated proof of purchase bearing the following information: consumer's name, telephone number, and address, authorized retailer's name and address, and product description. Please contact Soundstream warranty office at 800-724-1377, email to repairs@soundstream.com, or visit Soundstream.com/warranty to obtain a Return Authorization Number prior to shipping the product.
Note: This warranty does not cover labor costs for the removal and reinstallation of the unit. IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF PURCHASE & INSTALLATION BY A SOUNDSTREAM AUTHORIZED RETAILER. ALL UNITS RECEIVED BY SOUNDSTREAM FOR WARRANTY REPAIR WITHOUT PROOF OF SOUNDSTREAM AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED BY THE LIMITED 90-DAY WARRANTY.
BY PURCHASING THIS PRODUCT, ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT ALLOWED BY LAW, AND SOUNDSTREAM NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. SOUNDSTREAM HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND SOUNDSTREAM SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN LOS ANGELES COUNTY, CALIFORNIA. Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitation or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state.
