MIR8O - Robinet de cuisine SMEG - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Robinet de cuisine
Marque	SMEG
Modèle	MIR8O
Type de commande	Monocommande
Matériau	Laiton chromé
Pression de service	1 à 5 bar
Température maximale admissible	80 °C
Débit approximatif	10 L/min (sous 3 bar)
Fixation	Sur évier, passage 35 mm
Hauteur sous bec	20 cm
Angle de rotation du bec	360°
Raccordement	Flexibles d'alimentation 3/8"
Poids net	1,2 kg
Entretien et nettoyage	Chiffon doux et eau savonneuse, éviter les produits abrasifs
Garantie	2 ans
Installation	Par un professionnel qualifié
Cartouche céramique	Oui, de type standard
Contenu de l'emballage	Robinet, flexibles, écrous de fixation, notice

FOIRE AUX QUESTIONS - MIR8O SMEG

Comment installer le robinet SMEG MIR8O ?

L'installation doit être réalisée par un professionnel qualifié. Assurez-vous de couper l'arrivée d'eau avant de commencer. Fixez le robinet sur l'évier à l'aide des écrous fournis et raccordez les flexibles aux arrivées d'eau (3/8"). Serrez modérément pour éviter les fuites.

Quelle est la pression d'eau recommandée pour ce robinet ?

La pression de service recommandée est comprise entre 1 et 5 bar. Une pression inférieure peut réduire le débit, une pression supérieure peut endommager le robinet.

Comment nettoyer le robinet SMEG MIR8O ?

Utilisez un chiffon doux et de l'eau savonneuse. Évitez les nettoyants abrasifs, acides ou contenant du chlore qui pourraient endommager la finition chromée. Rincez à l'eau claire et séchez avec un chiffon doux.

Le bec du robinet tourne-t-il ?

Oui, le bec pivote à 360° pour faciliter les mouvements dans l'évier.

Que faire en cas de fuite au niveau de la commande ?

Une fuite peut indiquer un joint ou une cartouche usée. Coupez l'eau et démontez la poignée pour inspecter la cartouche. Remplacez la cartouche si nécessaire. Utilisez une clé adaptée pour éviter d'endommager les pièces.

Quels sont les accessoires fournis avec le robinet ?

Le robinet est livré avec deux flexibles d'alimentation (3/8"), des écrous de fixation, une rondelle de support, et la notice d'installation.

Puis-je utiliser ce robinet avec un chauffe-eau instantané ?

Oui, ce robinet est compatible avec les chauffe-eaux instantanés, à condition que la pression d'entrée soit dans la plage recommandée (1-5 bar). Vérifiez les spécifications de votre chauffe-eau.

Comment remplacer la cartouche céramique ?

Coupez l'eau, retirez le capuchon de la poignée, dévissez la vis de fixation, puis retirez la poignée. Déclipsez la bague de serrage et retirez la cartouche. Installez la nouvelle cartouche en respectant le sens, puis remontez dans l'ordre inverse.

Quelle est la durée de vie typique de ce robinet ?

Avec un entretien approprié et une eau non calcaire, la durée de vie peut dépasser 10 ans. La cartouche céramique peut nécessiter un remplacement après 5 à 8 ans d'utilisation.

Où trouver des pièces détachées pour le SMEG MIR8O ?

Les pièces détachées (cartouche, flexibles, joint, poignée) sont disponibles auprès du service client SMEG ou chez les revendeurs agréés. Utilisez le numéro de modèle MIR8O pour identifier les pièces compatibles.

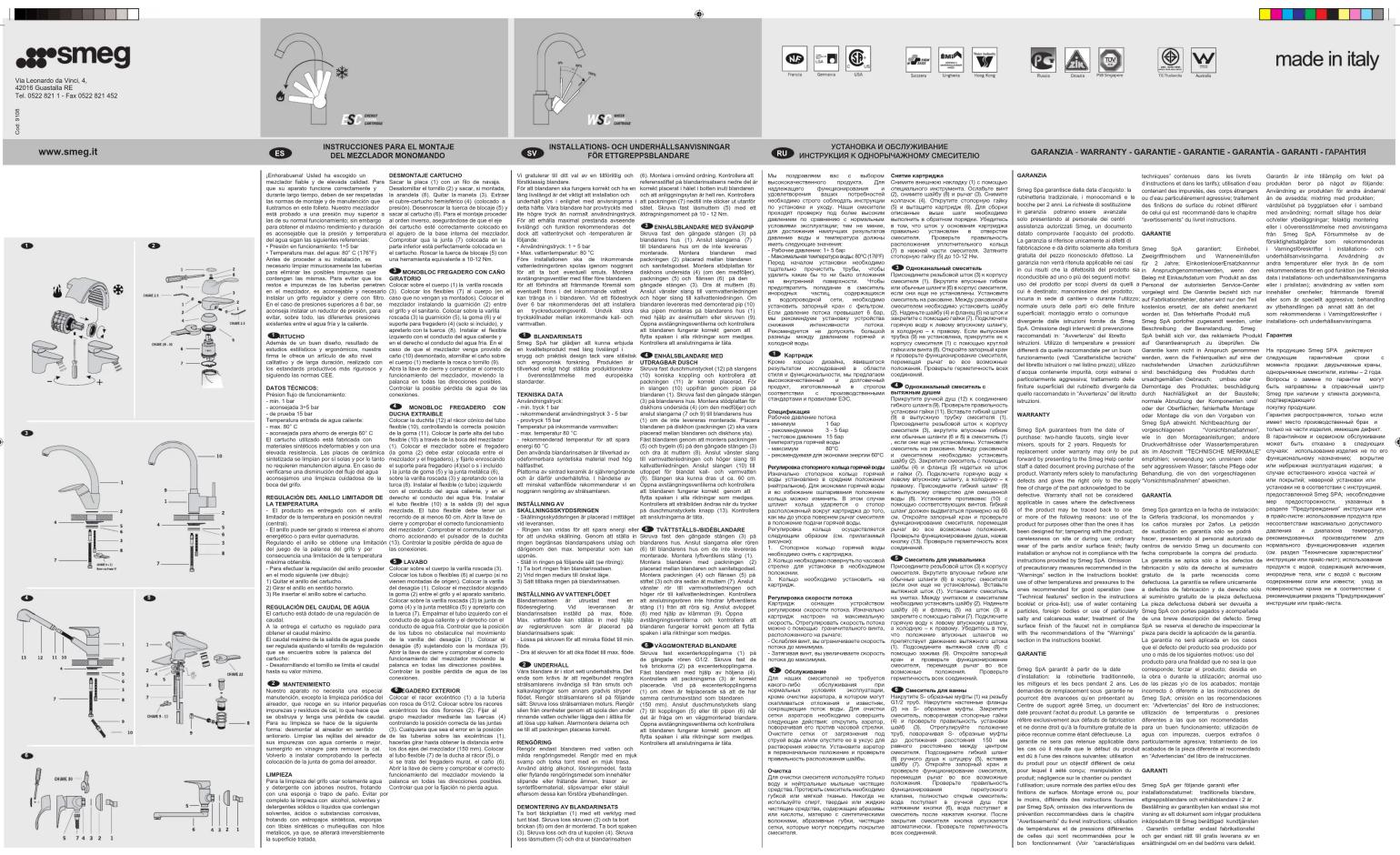

MODE D'EMPLOI MIR8O SMEG

Vas leonnato da 19th, 4Tel: [phone] - Fax: [phone]

www.smeg.it

IT

ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE DEL MISCELATORI MONODOMANDO

-ZKD2]

Computations! Le le neux un inspecitati per la liquidation. La liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and waterin the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a tissue difference desiccions de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface d'acqua - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a tissue difference desiccions de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface d'acqua - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'acqua - Pressure d'exercico d'ac Aqua - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar

LAVELLO MONITORIO DOCAIE SREVOLEA (1) or 2 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar, in the case of the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a tissue difference desiccions de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de l'acqua - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1

LAVELLO MONITORIO DOCAIE DISTRABLER (1) or 2 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica (1) or 2 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5 bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar - Pressure d'exergica 1-5bar. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a tissue difference desiccions de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface. The liquidation is a tissue difference desiccions de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de la surface de l'acqua - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exercico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar- Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressured'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exorgico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergica 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergicoi 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico i 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico 1-5 bar - pressure d'exergico. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation.

LAVELLO MONITORIO DOCAIE (1) or 2 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar - Pressure d'exergico 1-5bar. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation.The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water, and the concentration of the cartilage is correctly placed on the base of the cartilage.

LAVELLO MONITORIO DOCAIE (1) or 2 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergoic 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergicoi 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico i 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico 1-5 bar - Pressure d'exergico. In the case of the liquidation, the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water inthe liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixtureof water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. Theliquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water inthe liquidation. The liquidation is a mixture of water and waterin the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixtureof water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. Theliquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water in the liquidation. The liquidation is a mix of water and water inthe liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and waterIn the liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water andwater in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is a mixture of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation. The liquidation is also composed of water and water in the liquidation.

smeg

www.smeg.it

istruzioni miscelatori SMEG indd 1

中

03/02/14 15.52
