| Type de produit | Moniteur interactif tactile |
| Marque | Avtek |
| Modèle | 5 Lite 55 |
| Taille de l'écran | 55 pouces (diagonale) |
| Résolution | 4K UHD (3840 × 2160 pixels) |
| Technologie tactile | Infrarouge (20 points de contact) |
| Luminosité | 300 cd/m² |
| Contraste | 4000:1 (typique) |
| Temps de réponse | 8 ms |
| Angle de vision | 178° horizontal et vertical |
| Haut-parleurs intégrés | 2 × 10 W |
| Connectivité | 2 × HDMI 2.0, 1 × VGA, 3 × USB 2.0, 1 × USB 3.0, RS232, LAN RJ45 |
| Système d'exploitation intégré | Android 7.0 |
| Processeur | ARM Cortex A73 Dual Core |
| Mémoire RAM | 2 Go |
| Stockage interne | 16 Go |
| Dimensions (L × H × P) | 1268,4 × 765,2 × 112,4 mm |
| Poids | 30 kg |
| Alimentation | 100 - 240 V CA, 50/60 Hz |
| Consommation énergétique | 96 W (standard), 0,5 W (veille) |
| Norme VESA | 400 × 400 mm |
| Température de fonctionnement | 0 °C à 40 °C |
| Garantie | 3 ans (2 ans pour le panneau LCD) |
| Accessoires inclus | câbles (alimentation, HDMI, VGA, USB, audio), stylet, télécommande, support mural, guide rapide |
FOIRE AUX QUESTIONS - 5 Lite 55 Avtek
Questions des utilisateurs sur 5 Lite 55 Avtek
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Moniteur au format PDF gratuitement ! Retrouvez votre notice 5 Lite 55 - Avtek et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil 5 Lite 55 de la marque Avtek.
MODE D'EMPLOI 5 Lite 55 Avtek


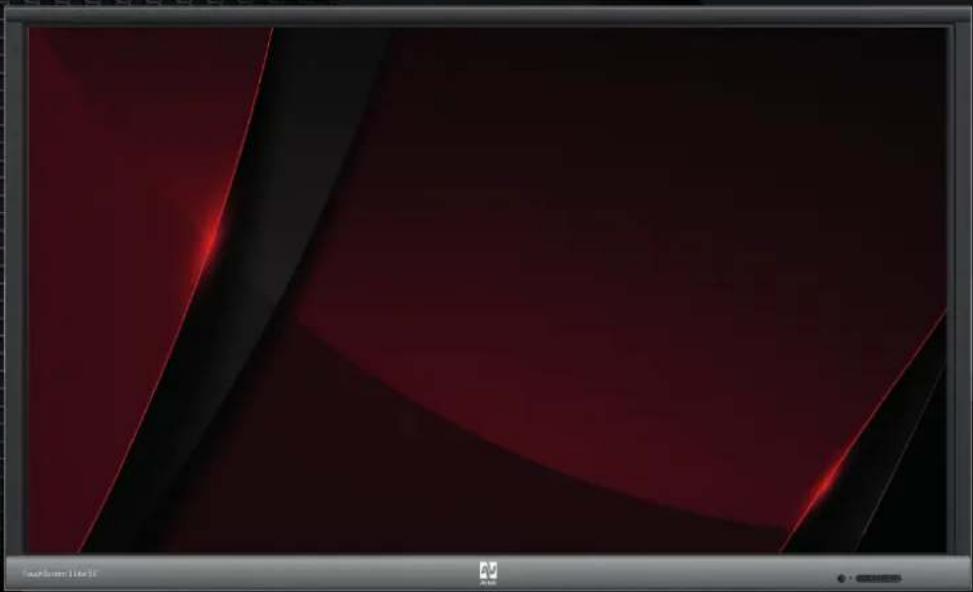

Abstract digital screen with red and black geometric background, no visible text or symbolsINTERACTIVE SCREEN
Avtek Touchscreen 5 Lite 55"
Avtek
TouchScreen 5 Lite is a series of universal Avtek interactive screens, equipped with everything that's needed: high quality panel with UHD resolution, Android system with useful apps, slot for a built-in computer and a set of ports that allow user to connect external devices like computers or cameras. Lite series will be a perfect fit for education where it will become a multimedia learning center in every classroom, allowing more interaction with educational content. It will also be a useful replacement for a regular TV or projector in a conference room, allowing more effective meetings and sharing of ideas.
SCREEN DETAILS
| model(diagonal) 55" |
| resolution 4K/UHD (3840×2160) |
| display area 1209,6 mm × 680,4 mm |
| pixel size (pitch) 0,315 mm × 0,315 mm |
| backlight Direct LED |
| response time 8 ms |
| refresh frequency 60 HZ |
| display colors 1,07 bn (10bit) |
| brightness 300 cd/m ^2 |
| viewing angle 178° |
| contrast (typical) 4000:1 |
| panel life time 30 000 hours |
| protection glass Toughened Glass with Level 7 of Mohs Standard |
TOUCH SPECS
| technology Infrared (IR) | |
| touch tool Finger, Finger cover by glove, Opaque objects | |
| min. object size 3 mm | |
| supported points 20 | |
| touch resolution 32767 x 32767 points | |
| response time <15 ms | |
| precision 2 mm | |
| supported platforms | Windows: 10, 8.1, 8, 7, Vista, XPLinux / Mac / Android / Chrome |
INPUTS/OUTPUTS
| HDMI in 2x HDMI 2.0 (4K @ 60Hz) | |
| VGA in 1 | |
| Audio ports 1 × input / 1 × output | |
| USB ports 3 × USB 2.0 / 1 × USB 3.0 | |
| Including USB ports on the front | 2 (shared between OPS, Android and external computer connected by USB Touch) |
| USB touch 1 | |
| RS232 1 | |
| LAN (RJ45) 1 shared port (for OPS and Android) | |
| Memory card 1 | |
| Avtek OPS slot Yes (Supports 4K@60Hz) | |
| built-in speakers 2 × 10 W | |
ANDROID MODULE SPECS
OS version 7.0
OS resolution Full HD
CPU ARM Cortex A73 Dual Core CPU
GPU Mali-450
RAM 2 GB
ROM 16 GB
SOFTWARE DETAILS
language english/german/polish
annotation software Yes, Note 2.0
annotations on all sources Yes, two modes
boot logo upload Yes
source name change Yes
built-in response system Yes
possibility to show send and show comments on the screen Yes
windows software compatible with built-in annotation tool Yes, Note
PHYSICAL SPECS
buttons on front 1 front button / main power switch

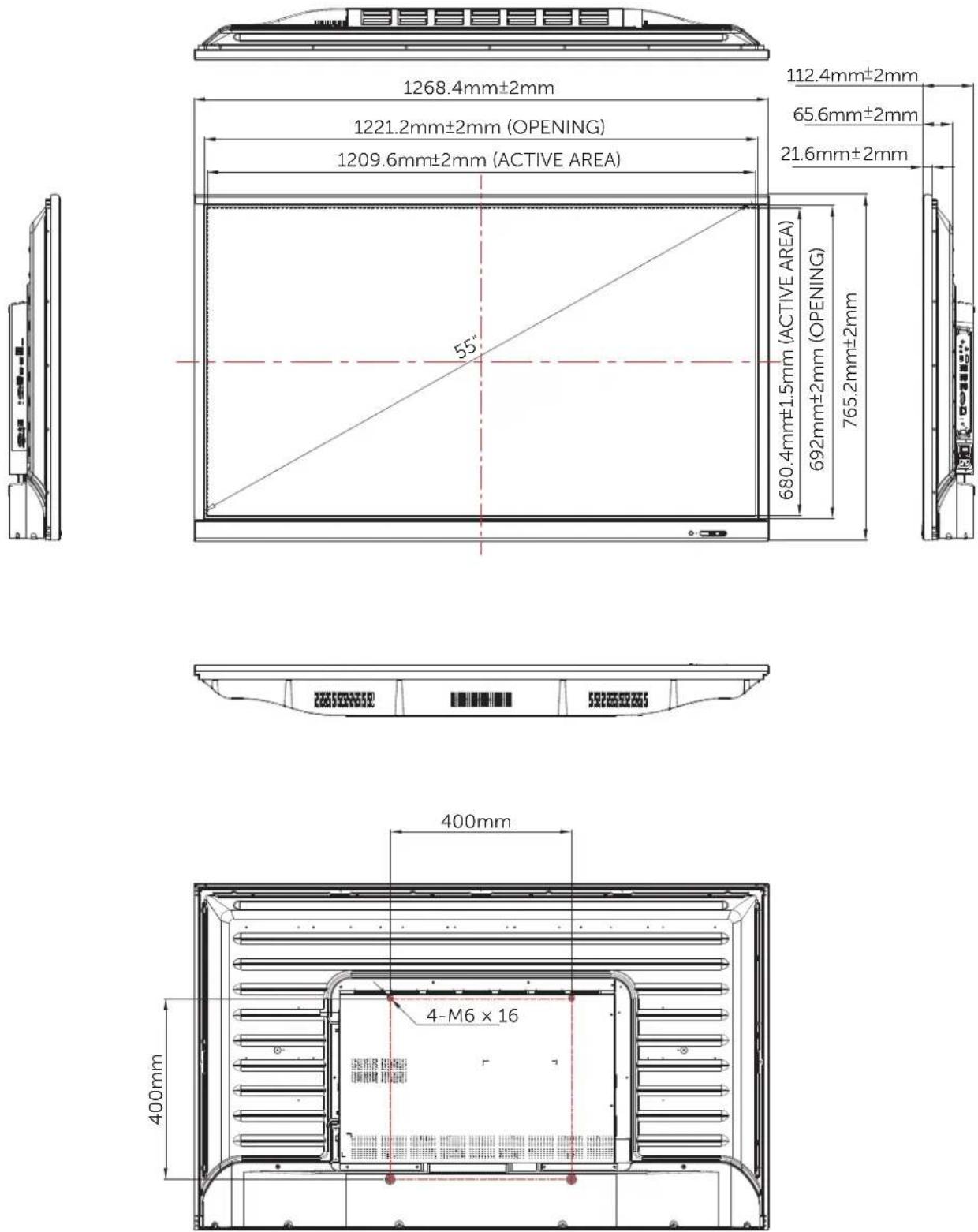

dimensions 1268,4 × 765,2 × 112,4 mm
packaging dimensions 1428 × 878 × 220 mm
weight 30 kg
gross weight 40 kg
VESA standard 400 × 400
wall-mount included Yes
power requirements 100 - 240 V AC / 50 or 60 Hz

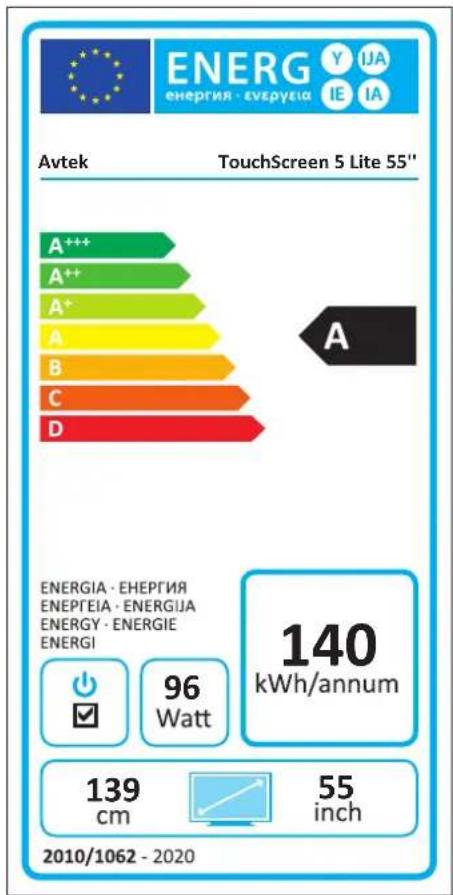

power consumption 0,5 W (stand-by) / 96 W (standard consumption) / 250 W (maximum theoretical consumption)
noise level 30 dB
ENVIROMENTAL CONDITIONS
operation temperature 0°C to 40°C
operation humidity 10% to 90%
storage temperature -20°C to 60°C
storage humidity 10% to 90%
altitude max. 5000 m.a.s.l.
OTHER
diagnostic tools for quick support Yes
warranty 3 years (2 years LCD panel)
accessories included
Power cord (3 m), HDMI cable (1,5m), VGA cable (3 m), USB cable (5 m), audio cable mj 3,5mm (5 m), plastic pen (3 pcs.), remote controller, quick guide, CD or flashdrive with drivers and software, WiFi USB dongle
