HideAway - Accessoire automobile THULE - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil HideAway THULE au format PDF.
| Type de produit | Auvent de camping-car ou van |
| Marque | Thule |
| Modèle | HideAway |
| Catégorie | Accessoire automobile |
| Longueurs disponibles | 2,6 m / 3,0 m / 3,5 m / 4,0 m / 4,5 m |
| Ouverture | Manuelle avec manivelle |
| Fermeture | Manuelle avec manivelle |
| Matériau principal | Toile imperméable (non précisé dans la notice) |
| Contenu du kit | Auvent, pieds de support, support de manivelle, visserie, manivelle, supports de gouttière |
| Outils nécessaires | Tournevis TX20, TX30, clé Allen (non détaillé) |
| Installation gouttière | Fixation sur la gouttière du véhicule (étape 6) |
| Installation auvent | Fixation sur le véhicule avec supports (étape 7) |
| Installation pied de support | Deux pieds à fixer au sol (étape 8) |
| Installation support de manivelle | Support pour manivelle (étape 9) |
| Accessoires optionnels | Kit de sangles latérales, Tension Rafter G2, Bandes LED, Caoutchouc d'étanchéité, Sun Blocker, Rain Blocker |
| Sécurité | Respecter les avertissements : ne pas utiliser en cas de vent fort, vérifier les fixations régulièrement |
| Entretien | Nettoyer à l'eau claire avec un chiffon doux, éviter les produits abrasifs |
| Poids estimé | Environ 20 à 30 kg selon longueur |
| Réparabilité | Pièces détachées disponibles (voir liste accessoires) |
| Garantie | Consulter le revendeur Thule |
FOIRE AUX QUESTIONS - HideAway THULE
Questions des utilisateurs sur HideAway THULE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Accessoire automobile au format PDF gratuitement ! Retrouvez votre notice HideAway - THULE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil HideAway de la marque THULE.
MODE D'EMPLOI HideAway THULE
USER + INSTALLATION
> Instructions
Thule 4200
3028XX



USER
4

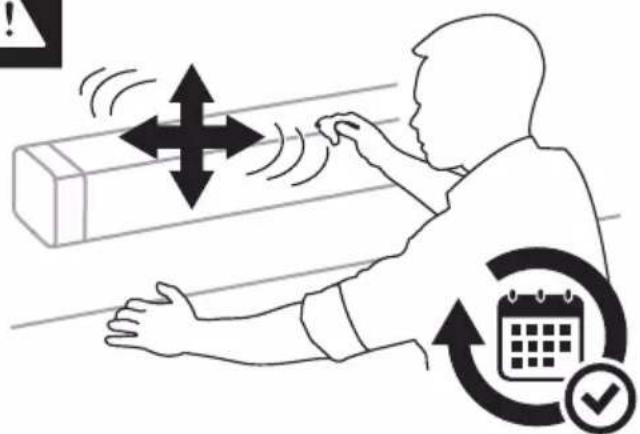

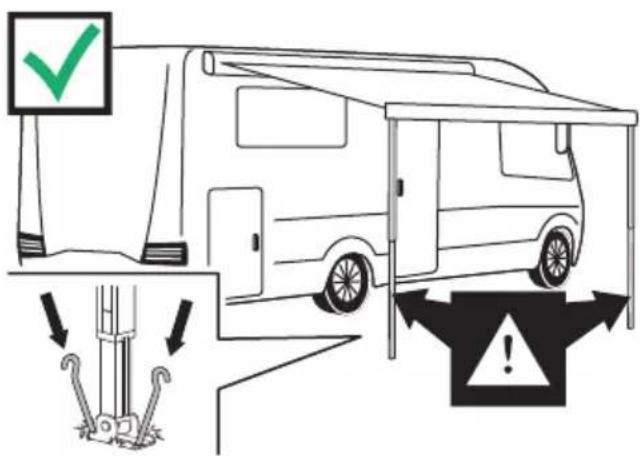

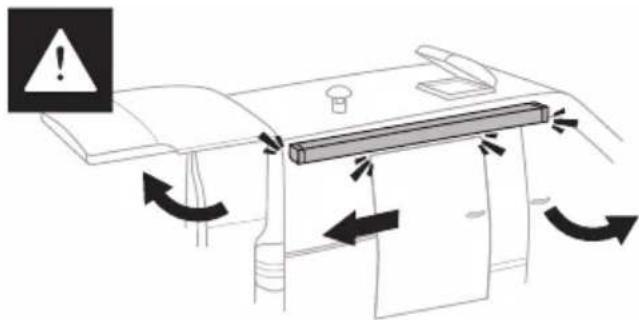

1 WARNINGS & INFO 4
Warnungen & Info / waarschuwingen & info / averissements et informations / avertimentie informazioni / advertencias e informacion / varninger & info / varoitukset ja tiedot / advarsler og info / advarsler og info / ostrzezenia i informacao

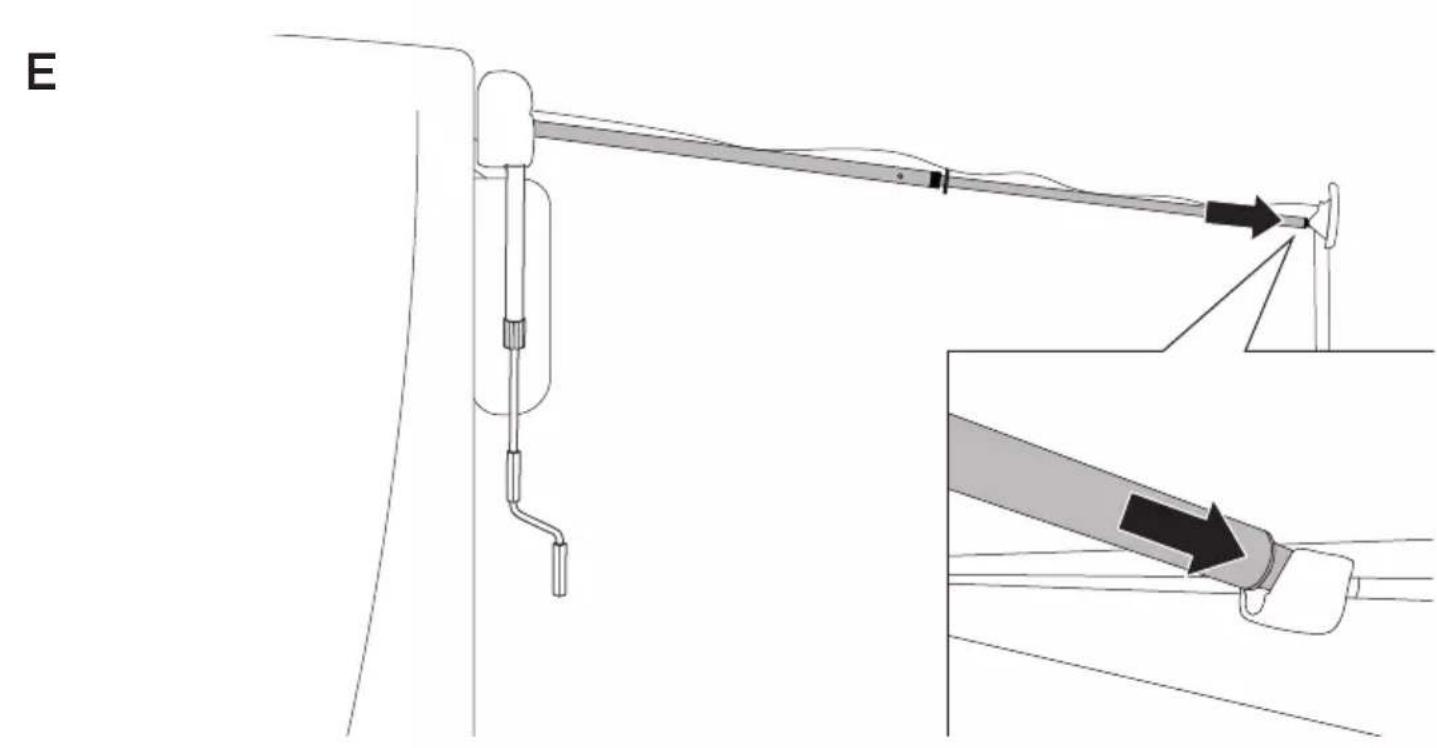

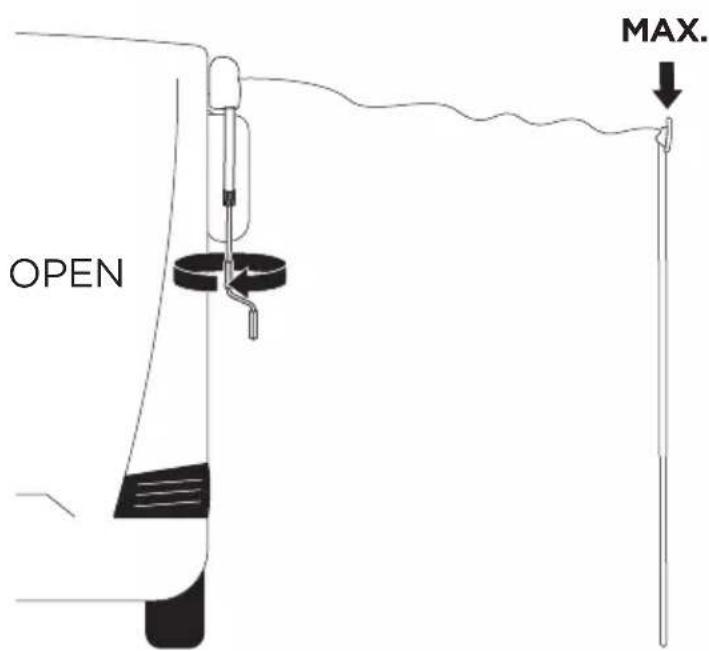

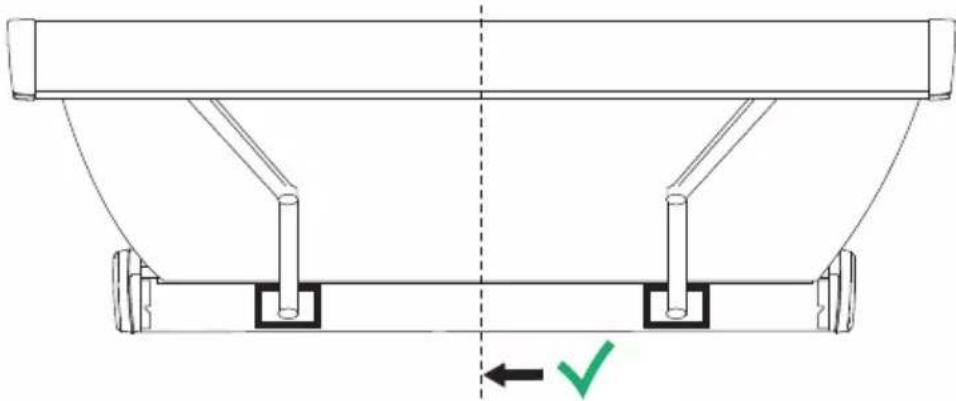

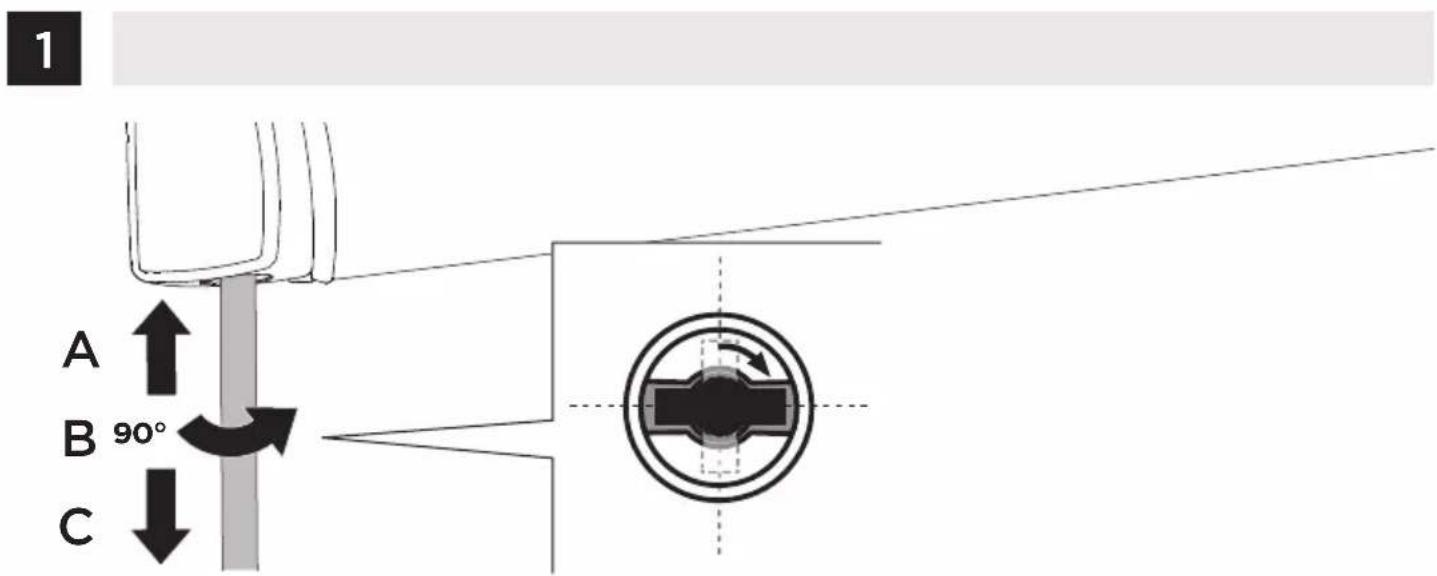

2 OPEN
6
Öffnen / Openen / Ouvrir / Apri / Abrir / Öppna / Avaa / Åben / Åpane / Otworz

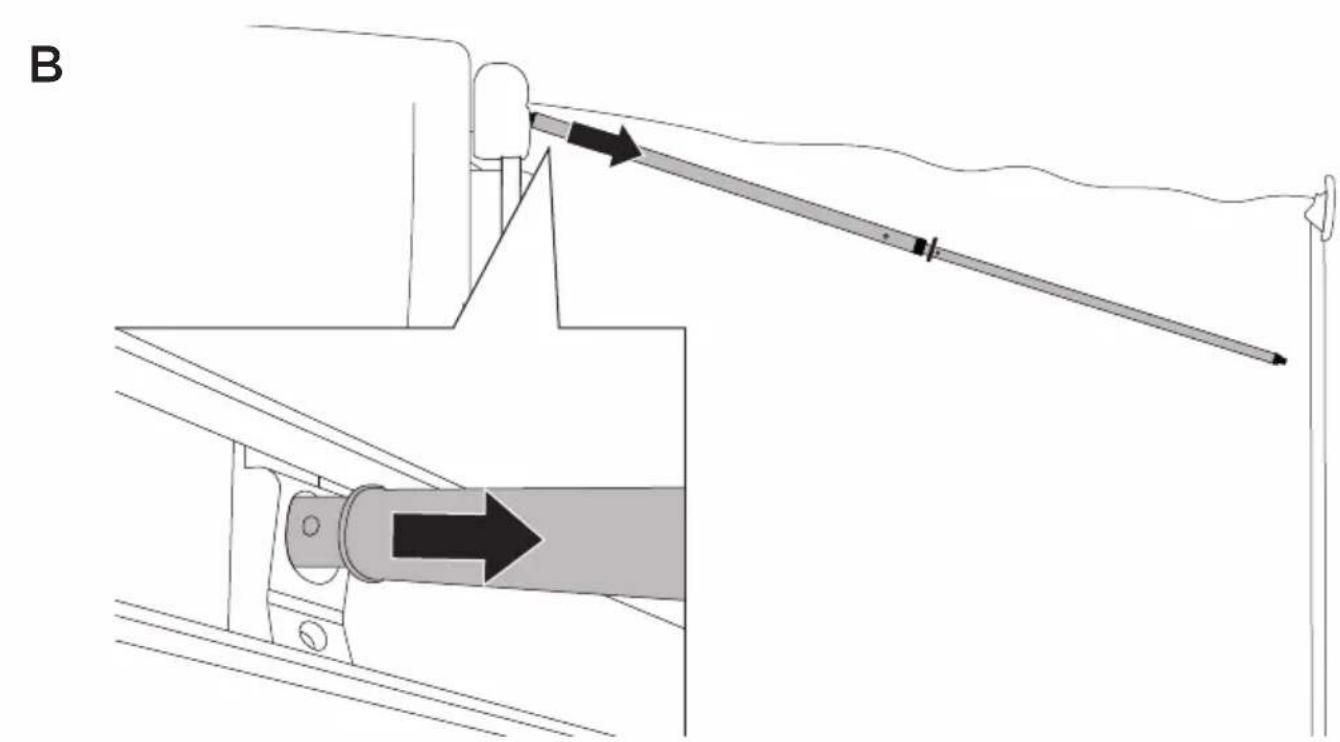

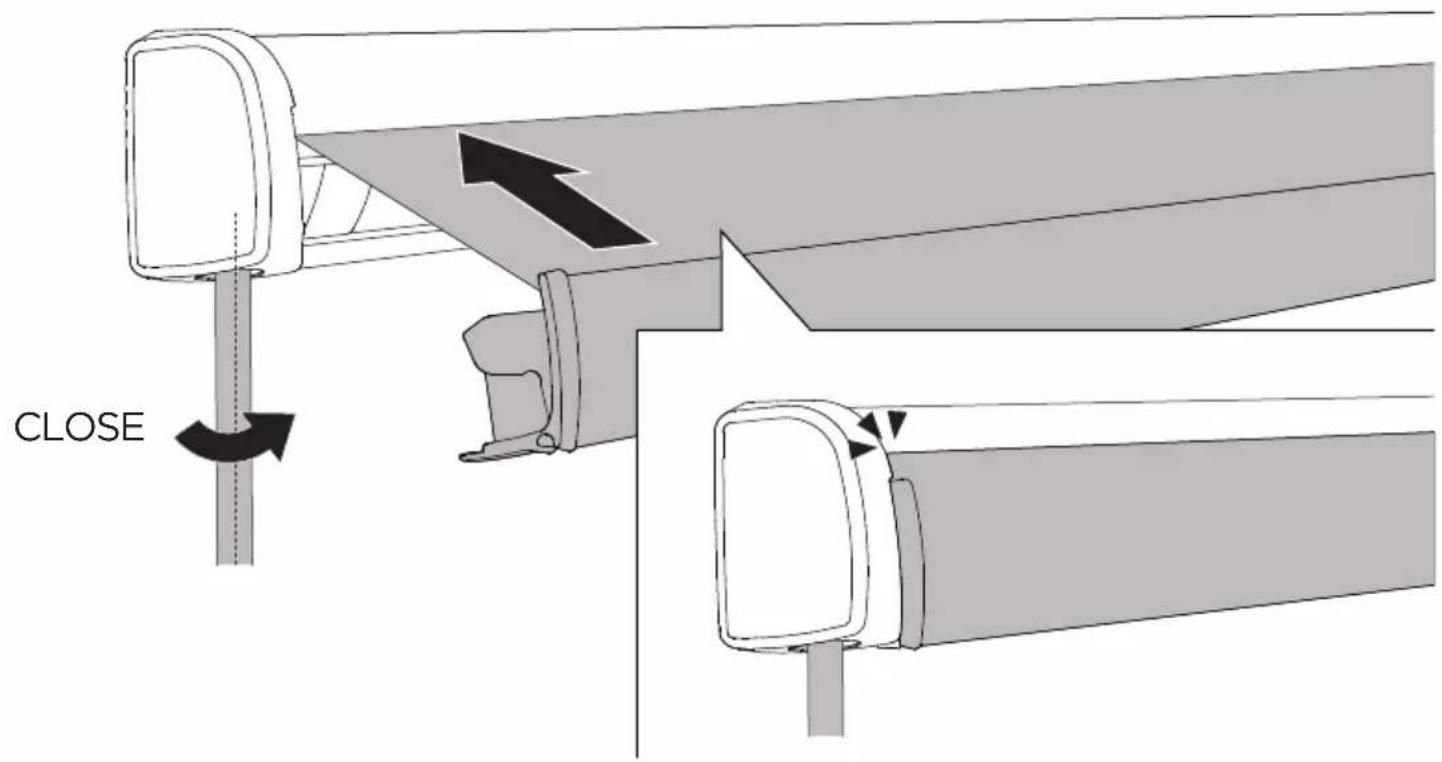

3 CLOSE
12
Schlieben / Sluiten / Fermer / Chiudi / Cerrar / Stanga / Sulje / Luk / Lukke / Zamknij
INSTALLATION
16
4 CONTENT
16
Inhalt / inhoud / contentu / contentuo / contentido / innehäll / sisältö / indhold / innhold / zawartosc

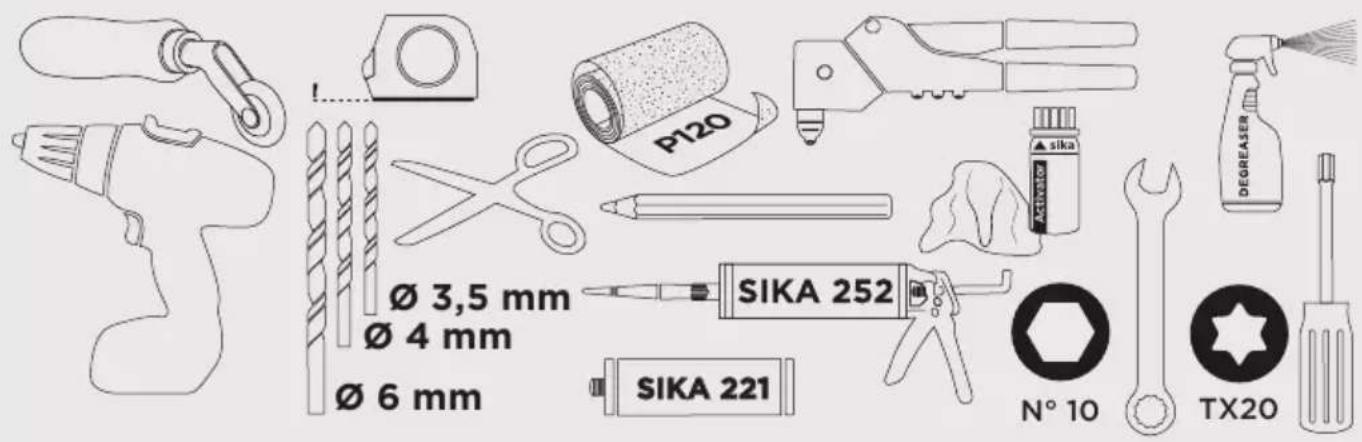

5 TOOLS
17
Werkzeuge / gereedschappen / outils / strumenti / herramentas / verktyg / tyokalut / værktæjer / verktøy / narzedzia

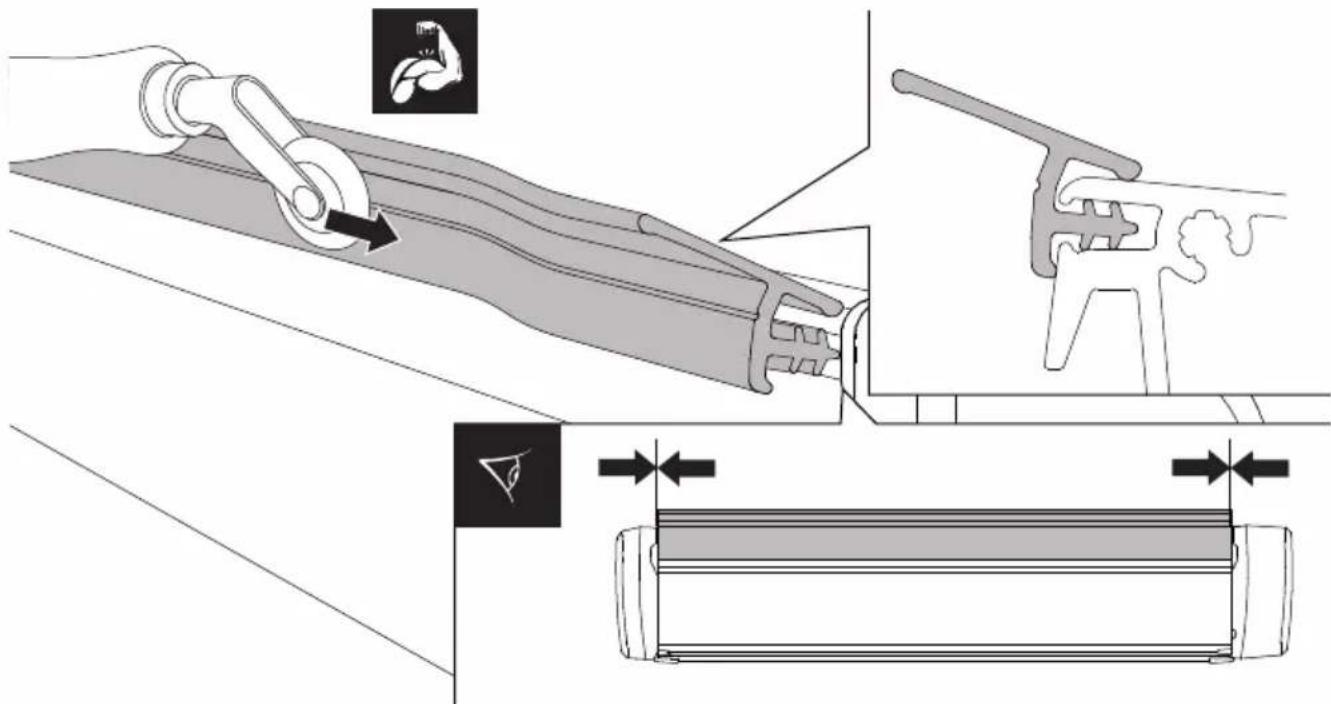

6 GUTTER INSTALLATION
18
Dachrinnen-Installation / Installatie goot / Installation de la gouttière / Installation della grondaia / Instalación del canalón / Installation av dropplister / Kourun asennus / Montering af tagrende / Montering av renne / Instalacja rynienki

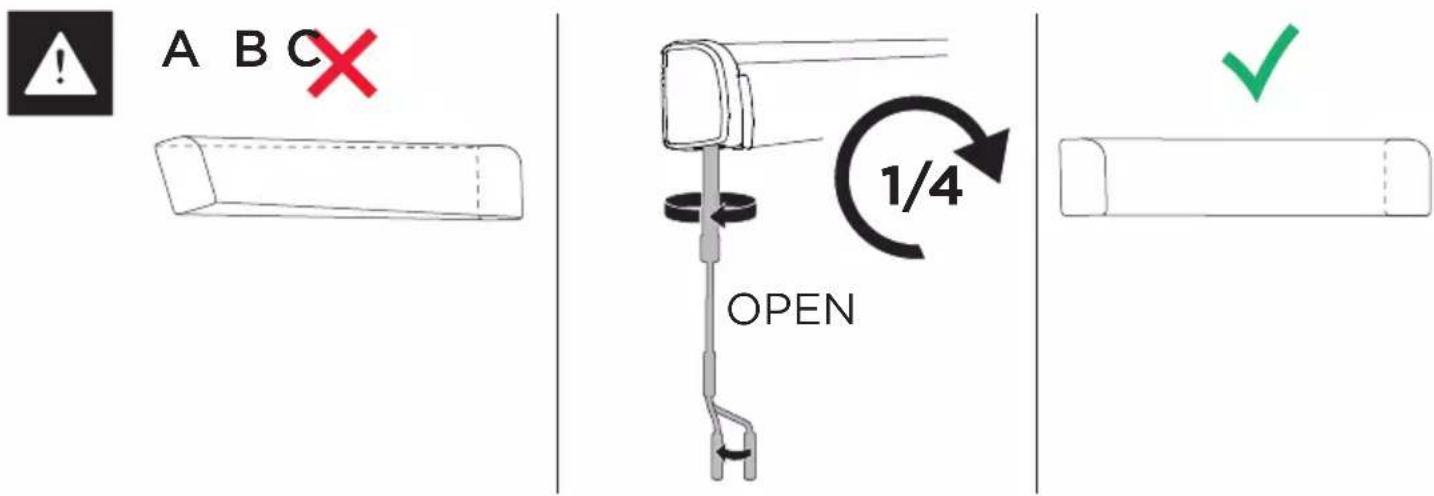

7 INSTALLATION
19
Installation / installatie / installation / installment / instalacion / installation / asennus / installation / installationsj/ instalacja

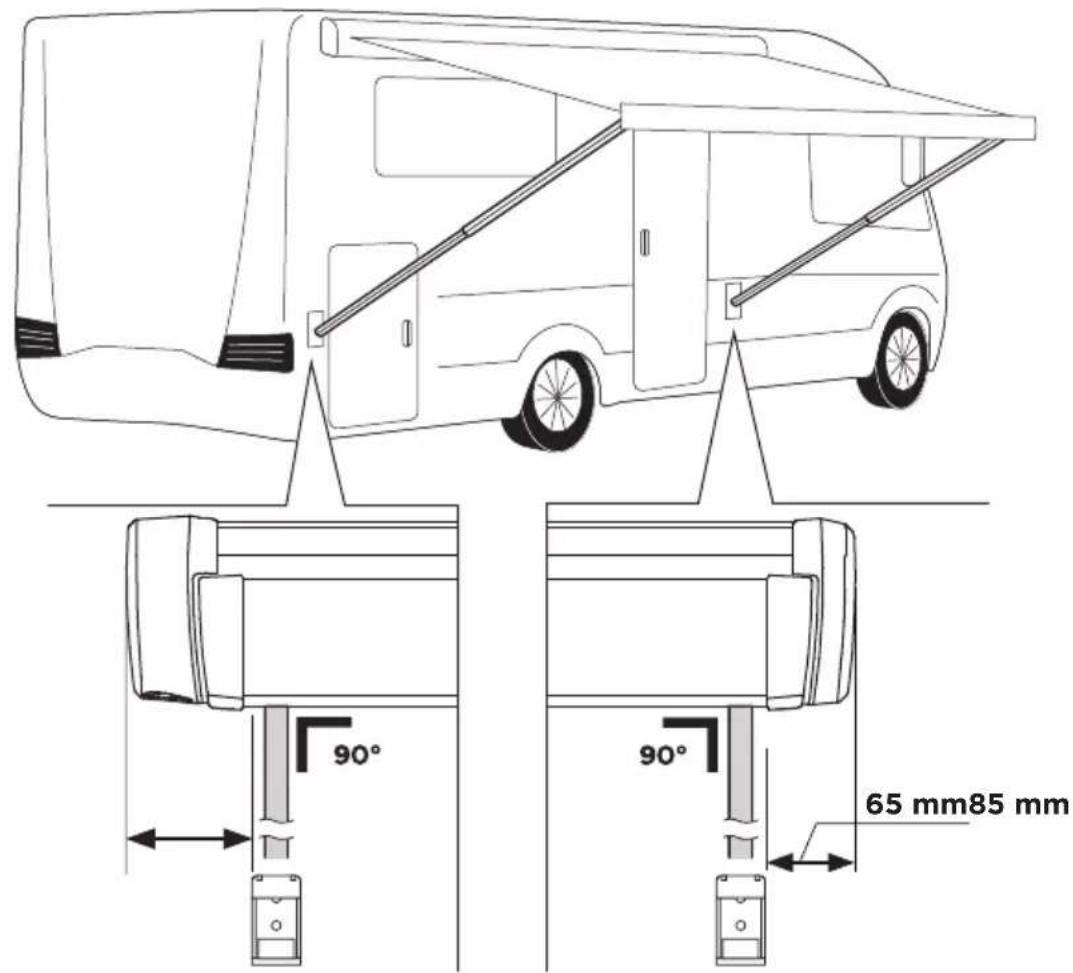

8 FOOT SUPPORT INSTALLATION
22
Installation der Fußstütze / Installatie voetsteun / Installation du repose-pieds / Installazione del supporto del piede / Instalacion del soporte para pies / Fotstodinstallation / Jalkatuen asennus / Montering af fodstotte / Fotstottemontering / Instalacia wspornika stopy

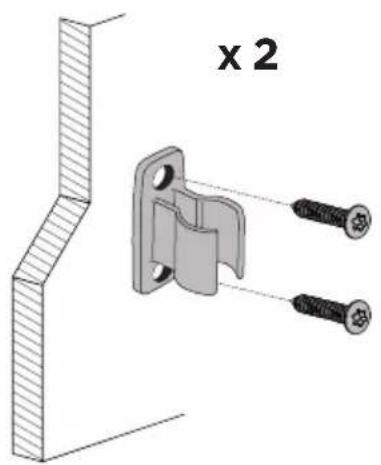

9 HAND CRANK SUPPORT INSTALLATION 25
Installation der Handkurbelstütze / Installatie handzwengelsteun / Installation du repose-manivelle / Installazione del supporto della manovella manuale / Instalacion del soporte de la manivela / Installation av handvevsstod / Kaskammen tuen asennus / Händsving hjælper med installation / Händsveivstøttemontering / Instalacja wsparcia korby recznej
10 ACCESSORIES 26
Zubehor / accessoires / accessoires / accessori / associos / tillbehör / tarvikkeet / tilbehör / tilbehör / akcesoria
USER

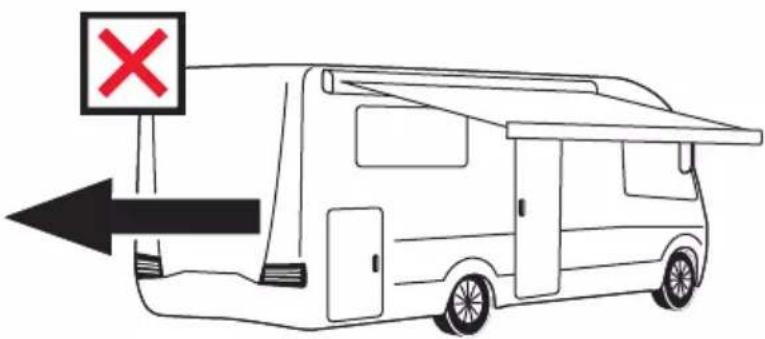

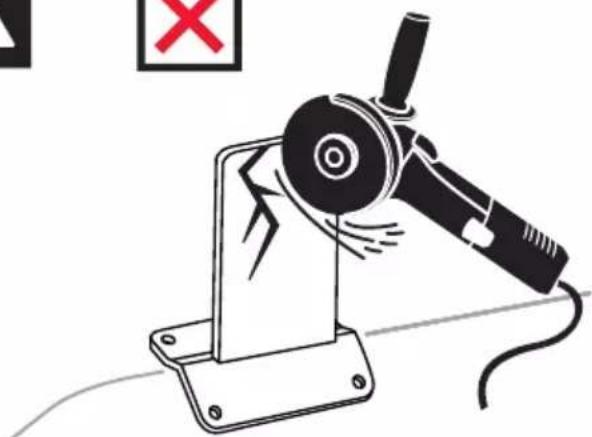

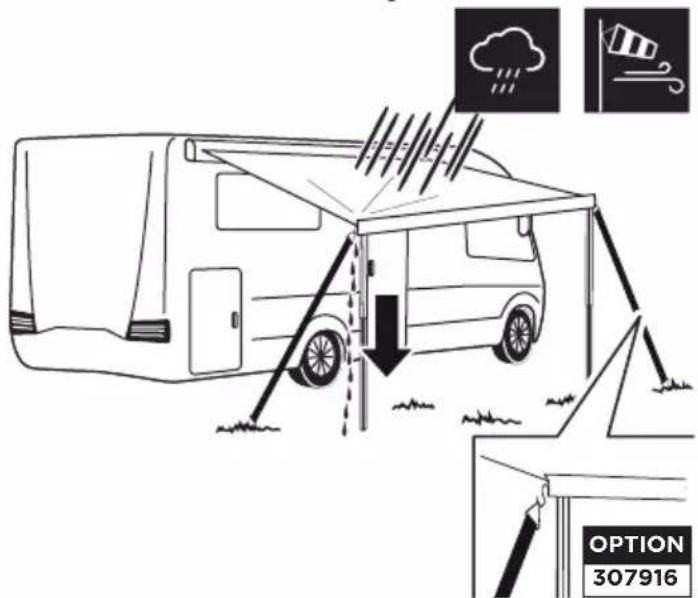

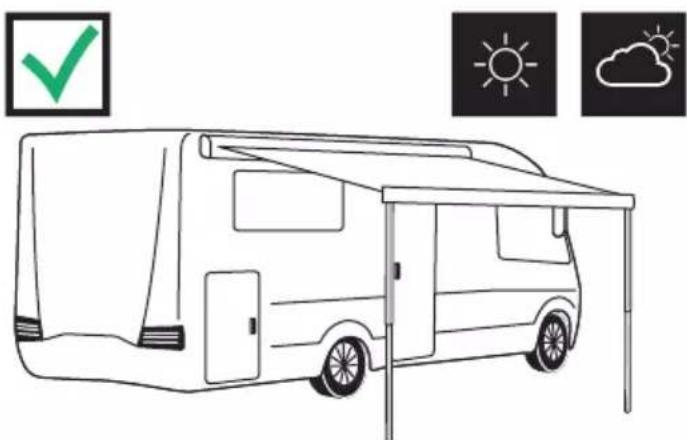

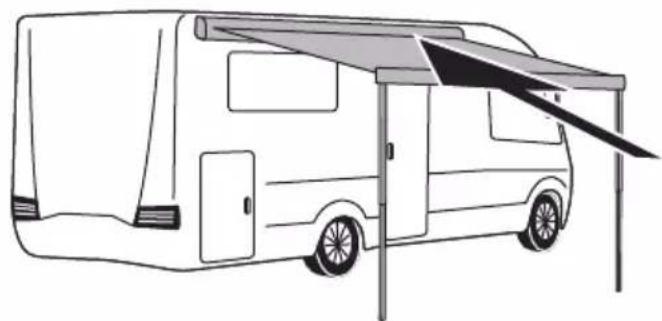

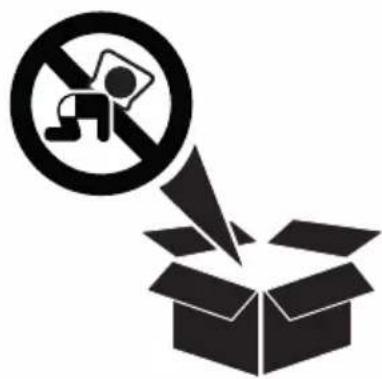

1 WARNINGS & INFO







OK

NOK






















2,6 m
3,0m

3,5 m
4,0 m
4,5 m

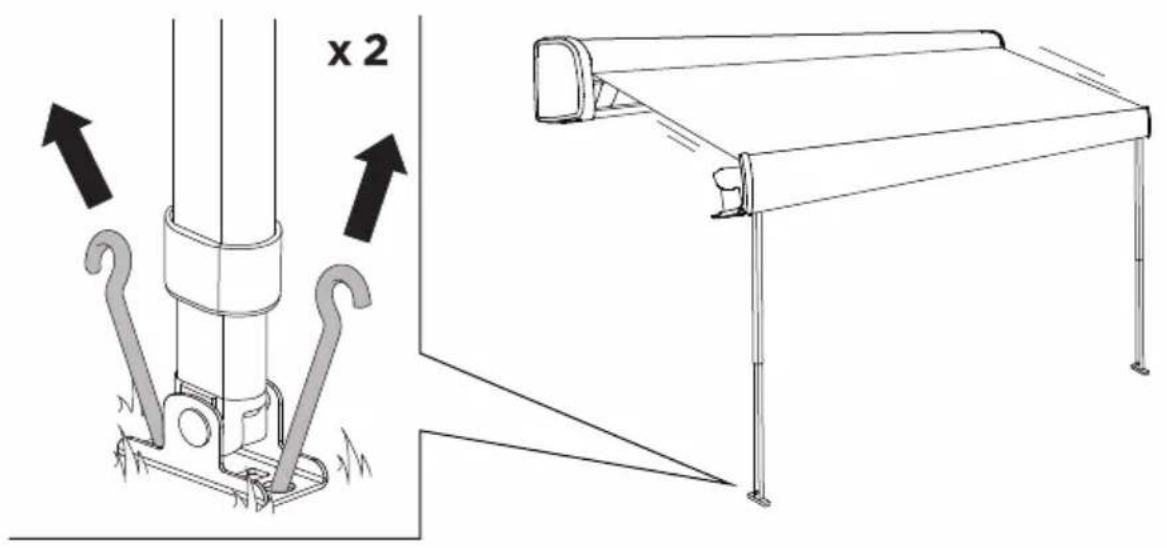

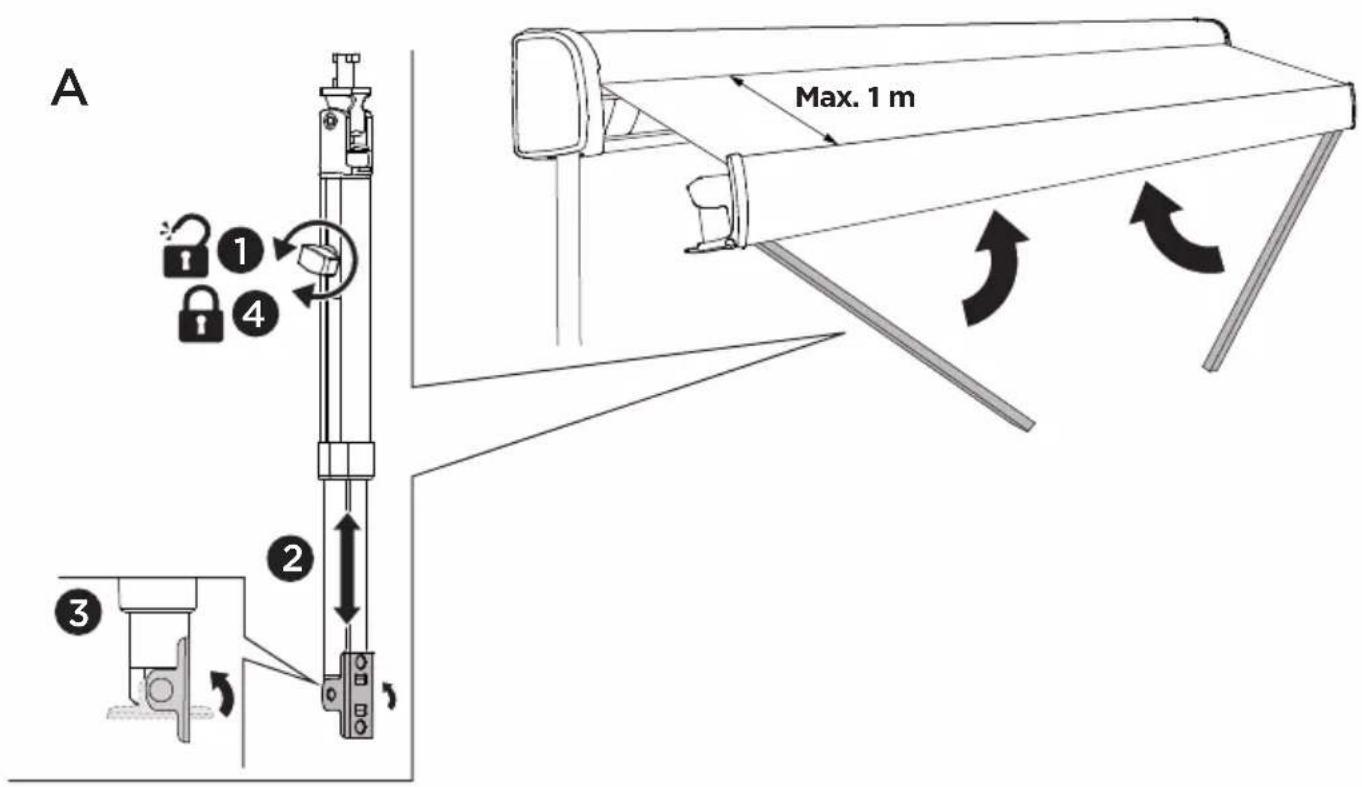

CLOSE
THE AWNING

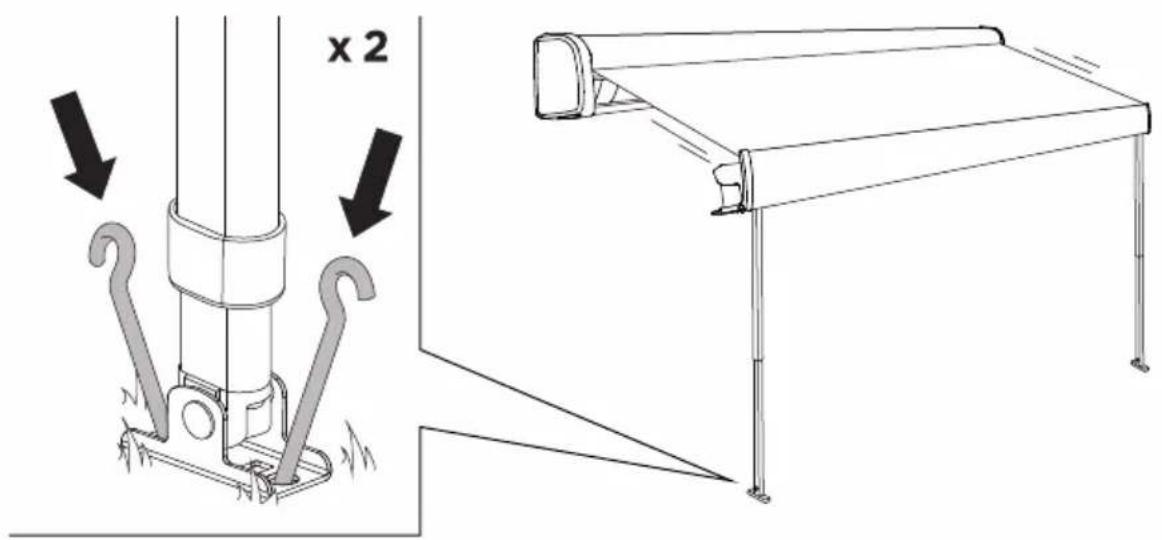

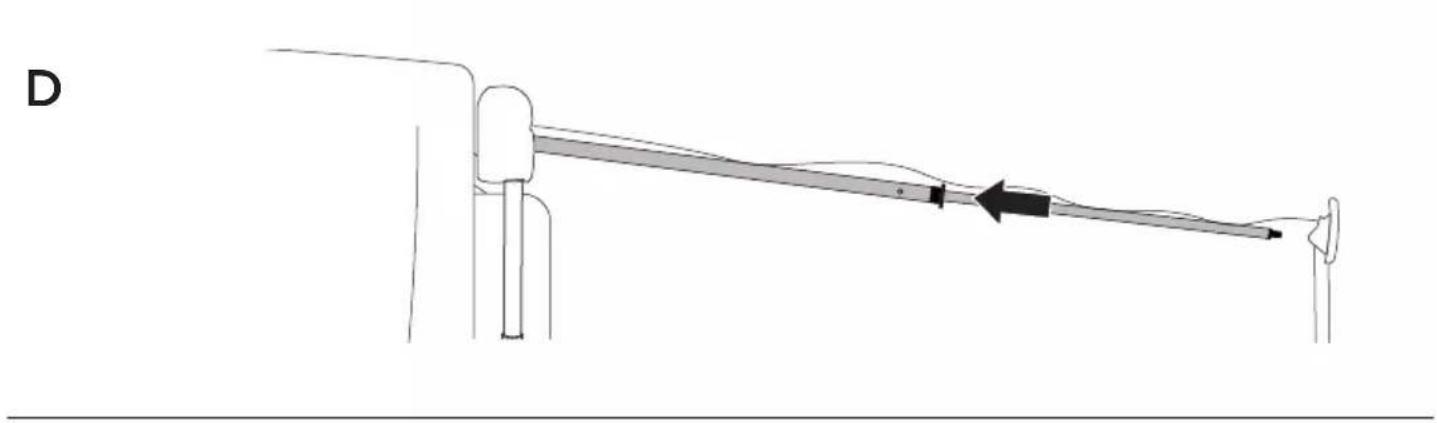

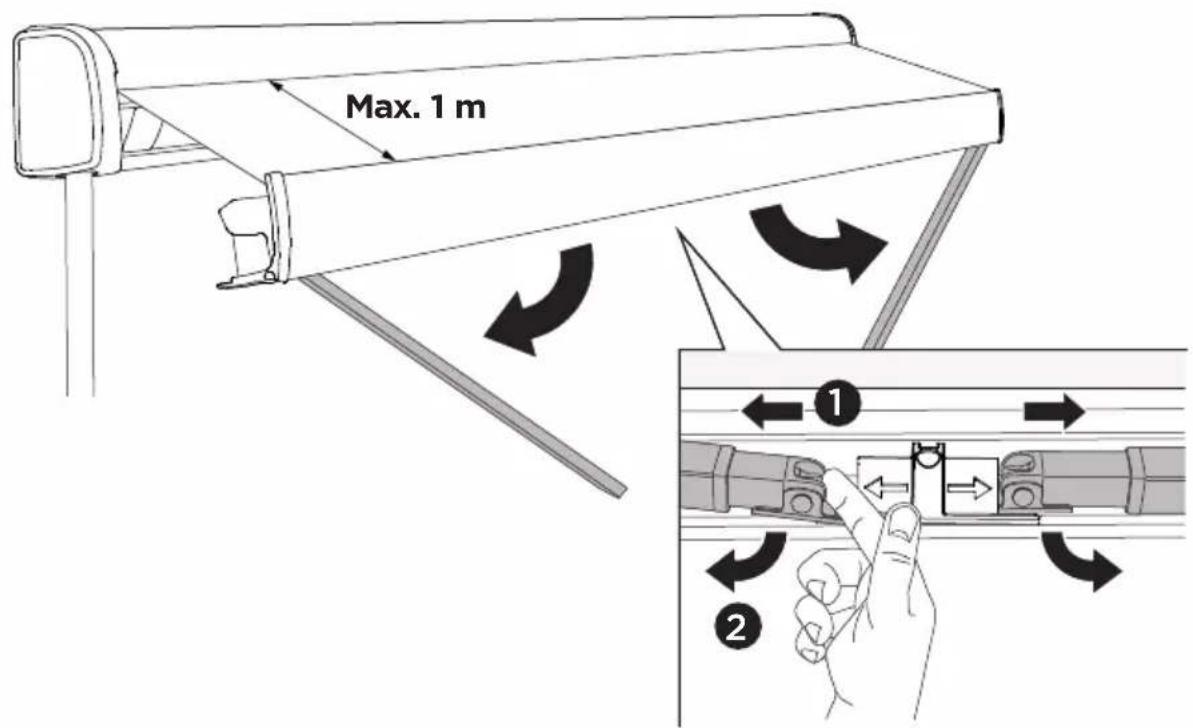

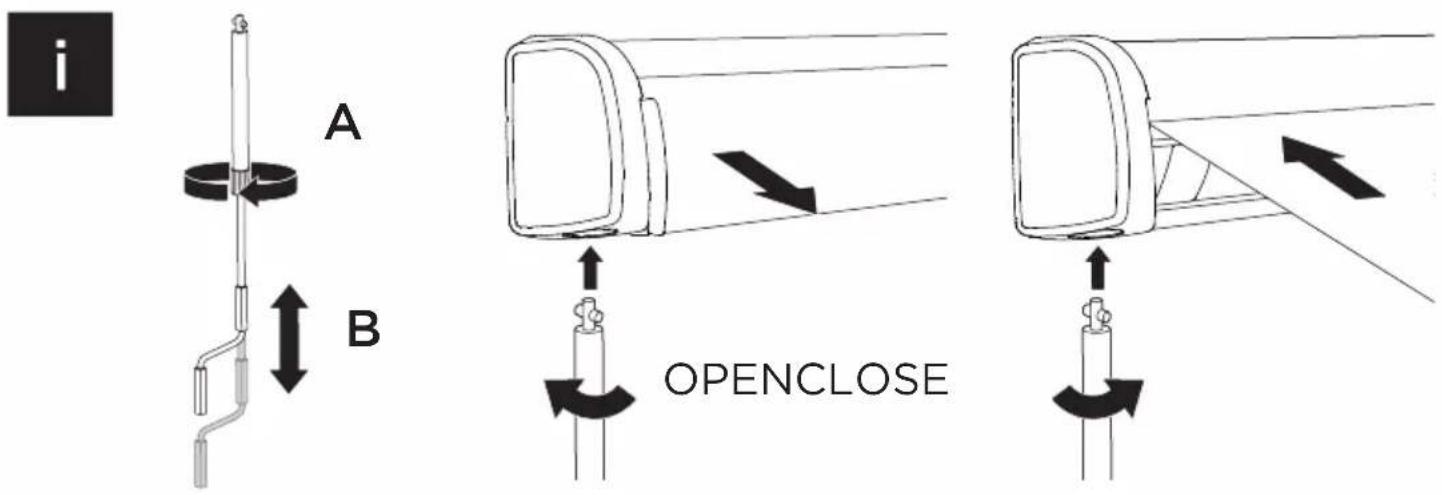

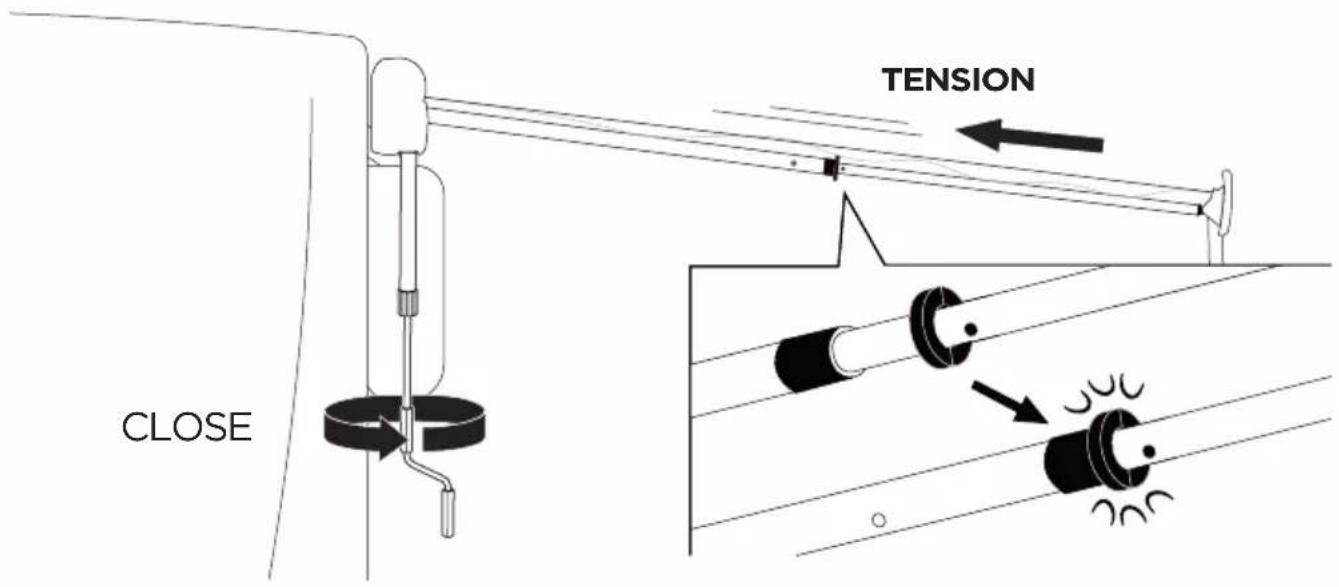

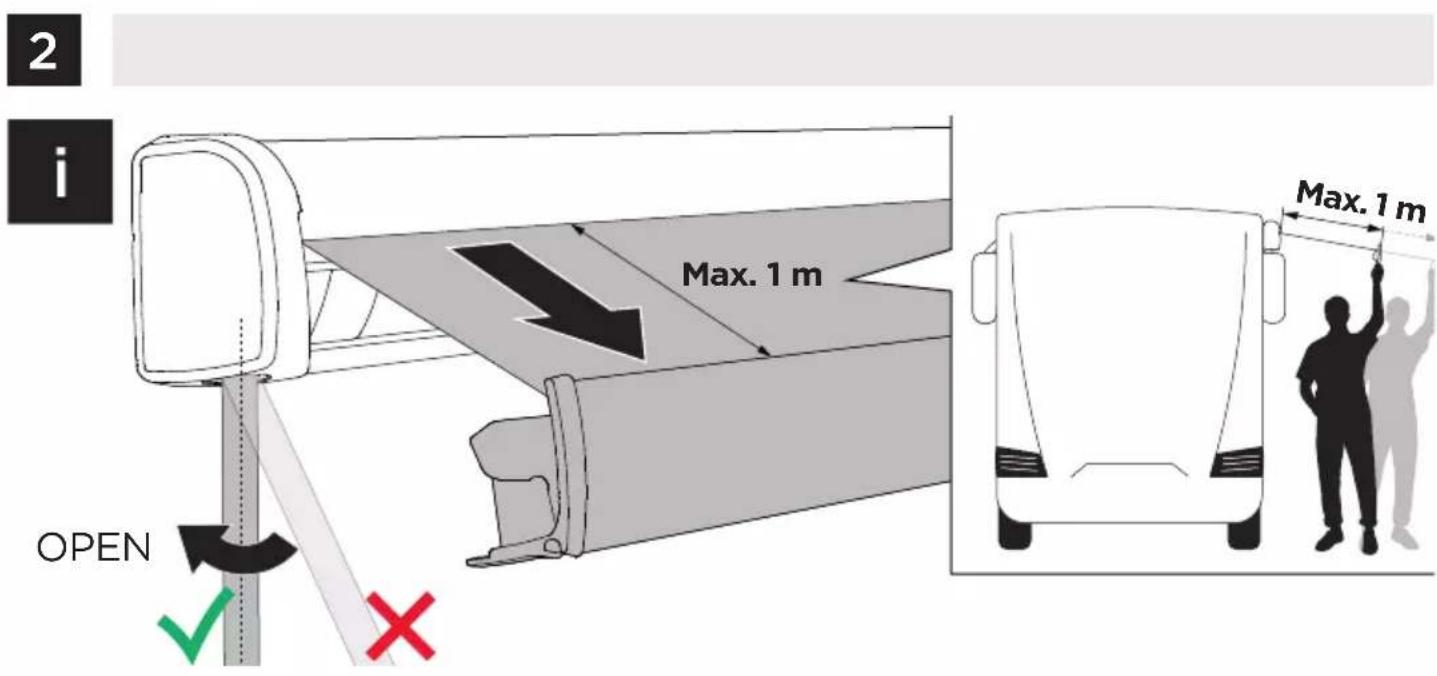

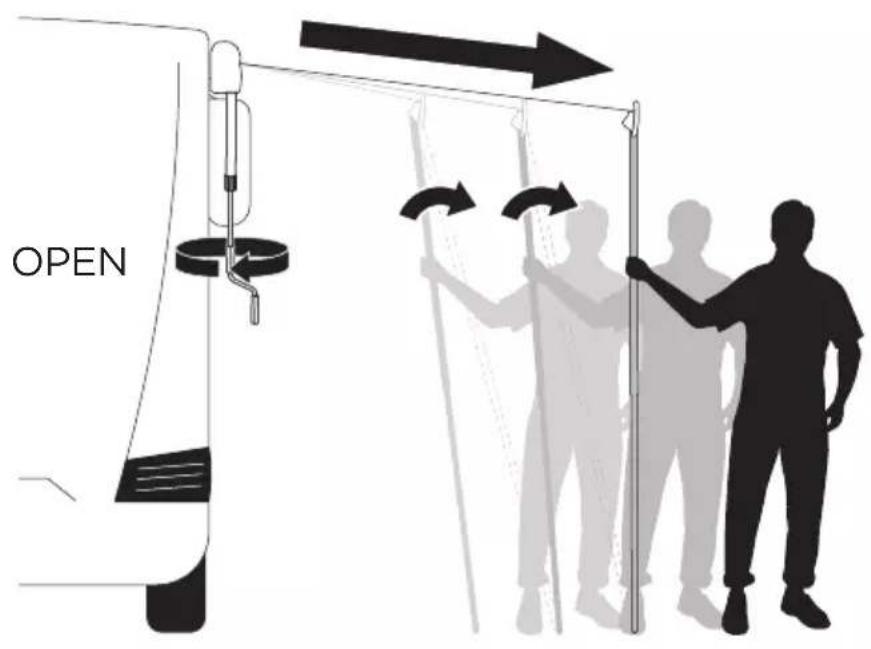

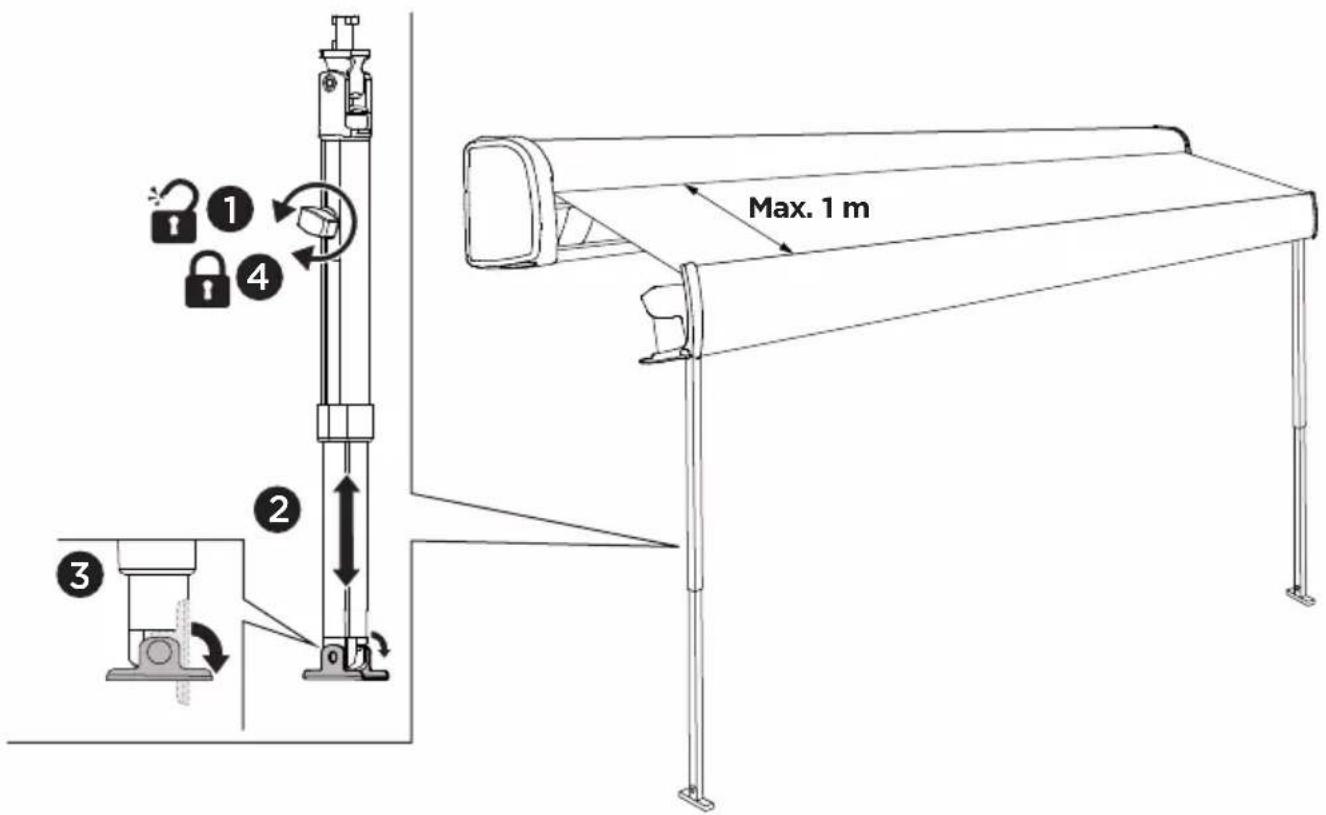

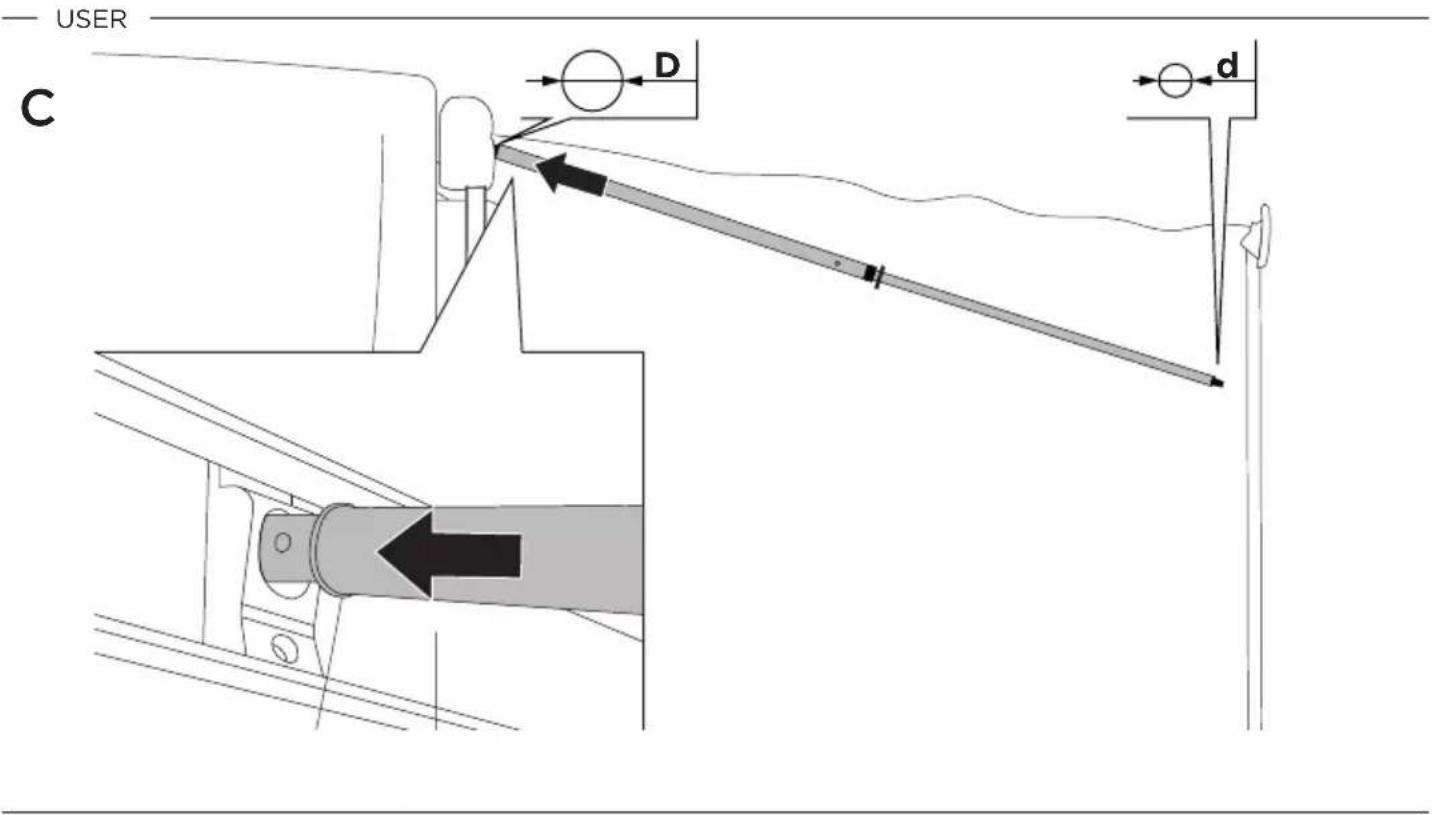

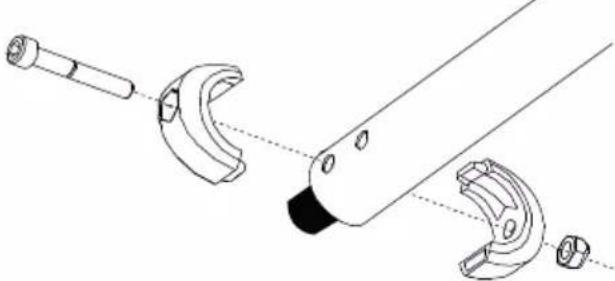

2 OPEN




3
A

B

C

D

4



x1

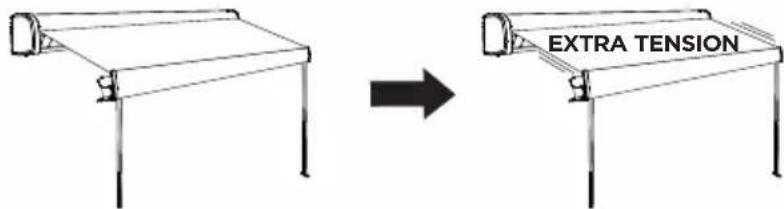

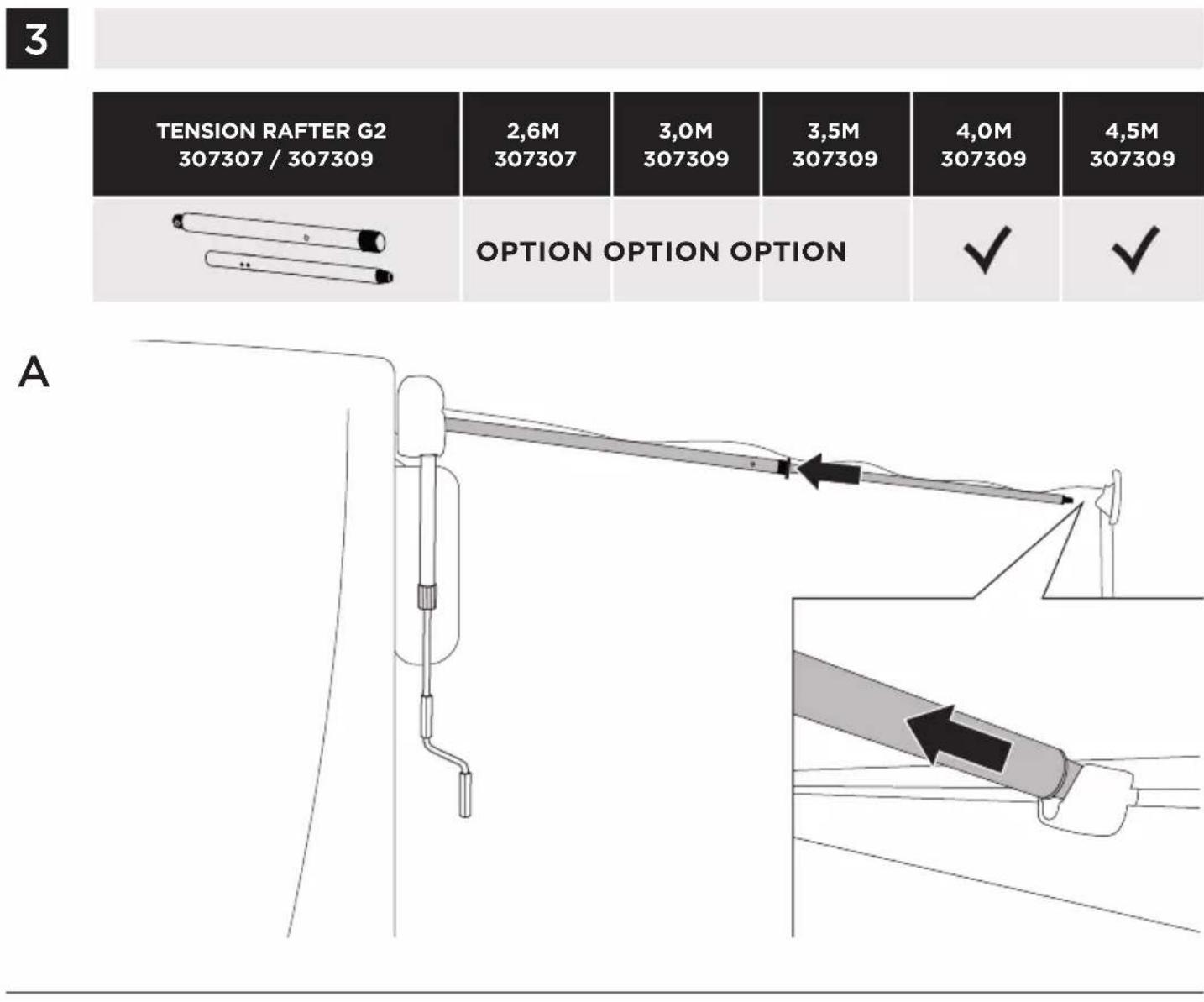

TENSION RAFTER G2 307307 / 307309
2,6M 307307
3.0M 307309
3,5M 307309
4,OM 307309
4,5M 307309

OPTION OPTION OPTION





A


B




5

6

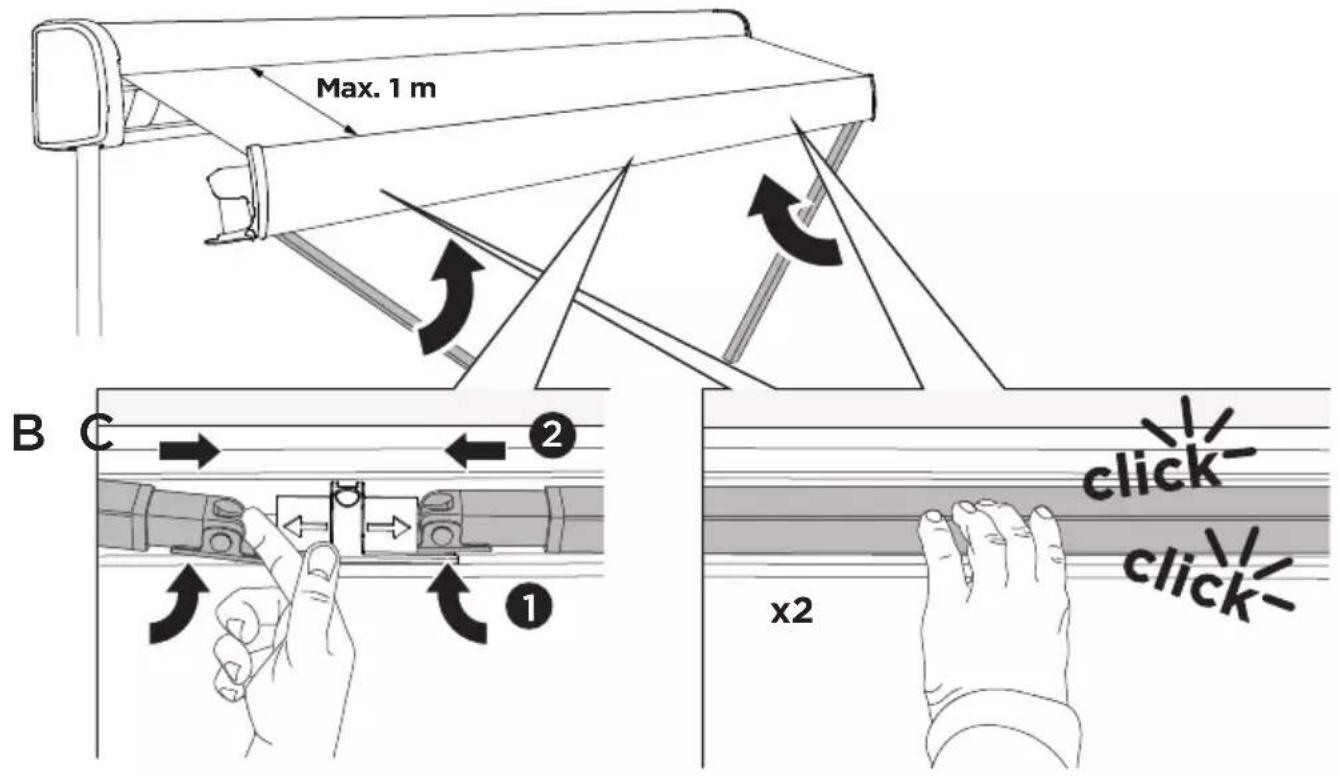

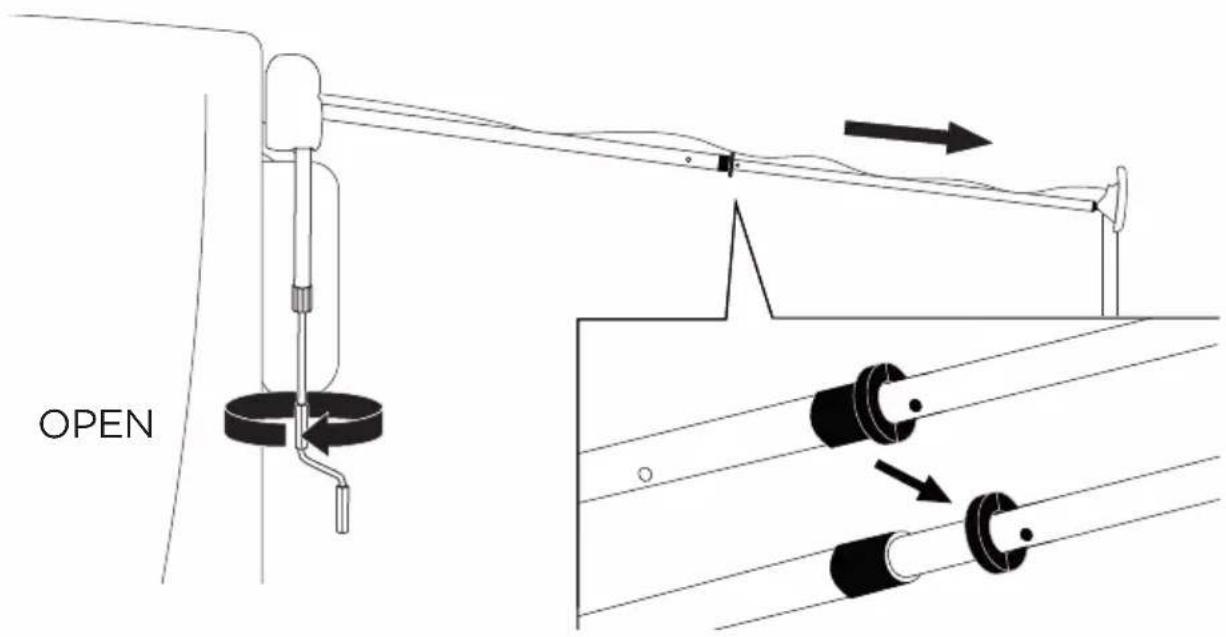

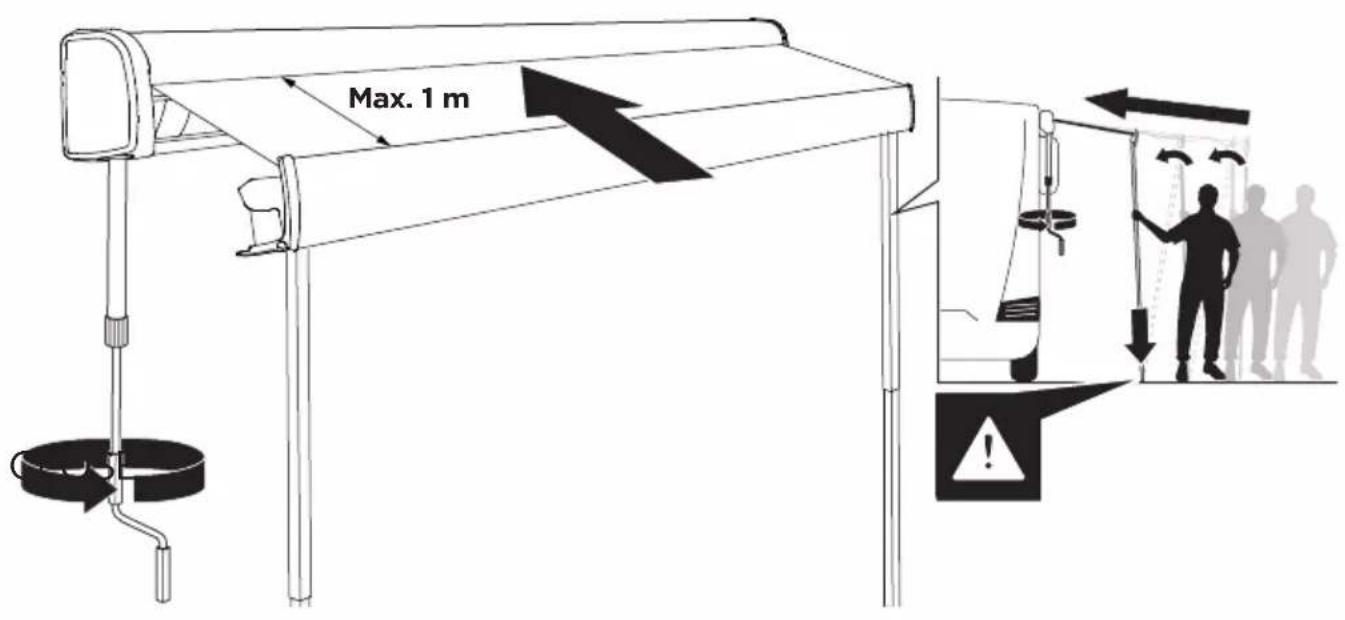

3 CLOSE

1
2









6
INSTALLATION
4 CONTENT

AWNING


2,6m
3,0m
3,5m
4,0m
4,5m

2,6m
3,0m
3,5m
4,0m
4,5m

40mm
$$ x 1 x 1 x 1 x 2 $$

4,2×16 mm
DIN 7504N
TX20
$$ \begin{array}{c c c} \text {x 5 x 5 x 5 x 6} & \text {x 5} \end{array} $$

80mm
$$ \begin{array}{c} \text {x 2 x 2 x 1} \end{array} $$
934

$$ \begin{array}{c c} \text {x 7 x 7 x 7 x 8} & \text {x 1 0} \end{array} $$

$$ x 2 x 2 $$

M6 DIN 6798
$$ \begin{array}{c c} \text {x 7 x 7 x 7 x 8} & \text {x 1 0} \end{array} $$

400mm
$$ \times 3 \times 3 \times 3 \times 4 \times 4 $$

M5 DIN 125
$$ \begin{array}{c c c} \text {x 4 x 4 x 4 x 4} & \text {x 4} \end{array} $$

$$ \times 2 \times 2 \times 2 \times 2 \times 3 $$

$$ \begin{array}{c c c} \times 4 & \times 4 & \times 4 \ \hline \end{array} $$

M6 x 55 mm DIN 965 - TX30
$$ \times 2 \times 2 \times 2 \times 2 \times 2 $$

$$ \begin{array}{c c c} \text {x 4 x 4 x 4 x 4 x 4} & \text {x 4} \end{array} $$

$$ x 5 x 5 x 5 x 6 x 8 $$

$$ \begin{array}{c c} \times 2 & \times 2 \times 2 \times 2 \ \hline \end{array} \quad \begin{array}{c c} \times 2 & \times 2 \times 2 \ \hline \end{array} $$
M6 x 55 mm DIN 603
$$ \times 4 \times 4 \times 4 \times 4 \times 4 $$

$$ \begin{array}{c c} \times 2 & \times 2 \times 2 \times 2 \ \hline \end{array} \quad \begin{array}{c c} \times 2 & \times 2 \times 2 \ \hline \end{array} $$

4,2×25mm DIN7981-TX20
$$ x 4 x 4 x 4 x 4 x 4 $$

$$ \begin{array}{c c} \hline x 1 & x 1 \ \hline \end{array} $$
4,2×25mm DIN7982-TX20

$$ \begin{array}{c c} \hline x 1 & x 1 \ \hline \end{array} $$

OPTIONAL 302690 - 302693

5 TOOLS

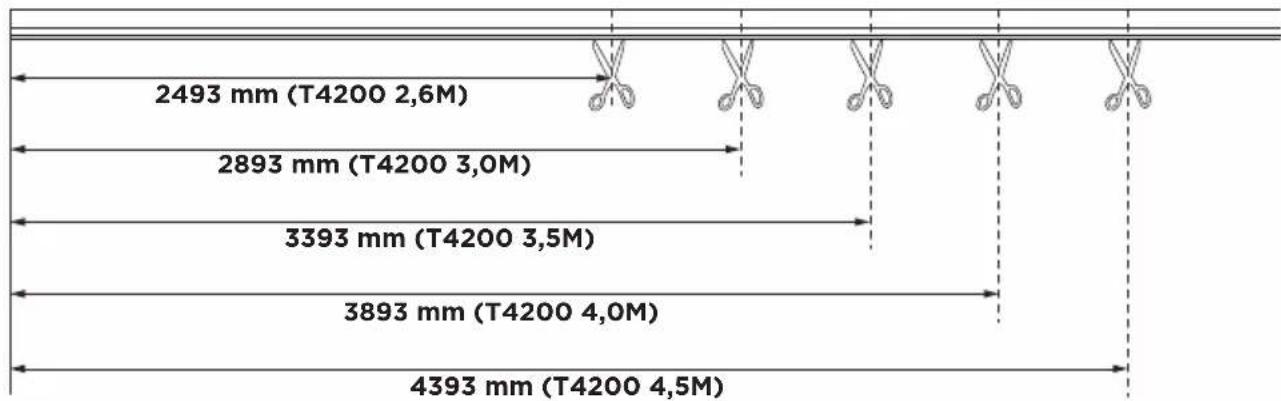

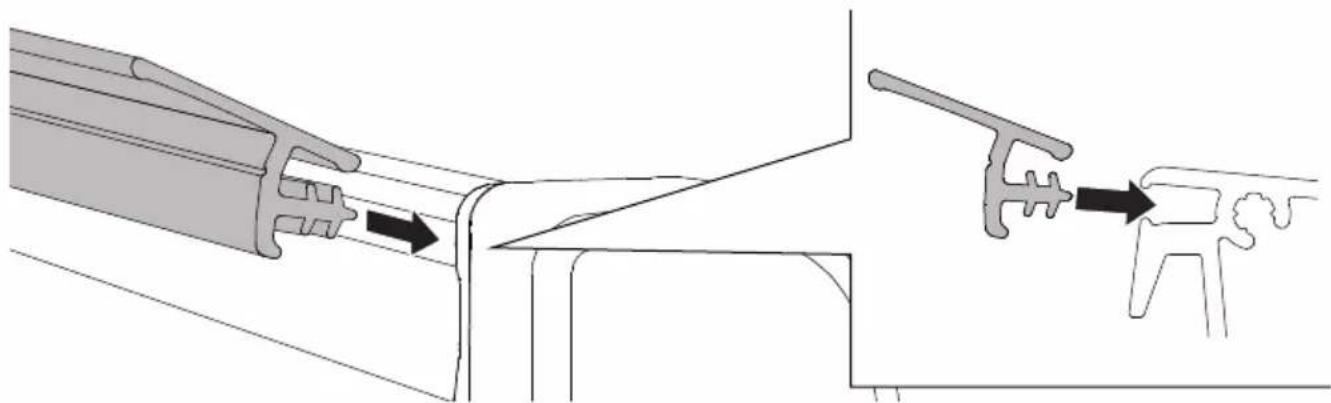

6 GUTTER INSTALLATION

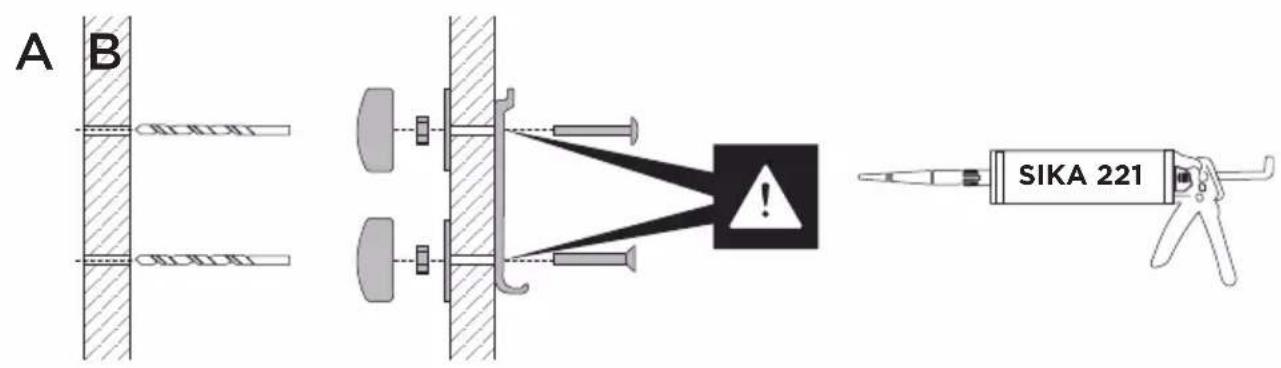

1

A

B

C

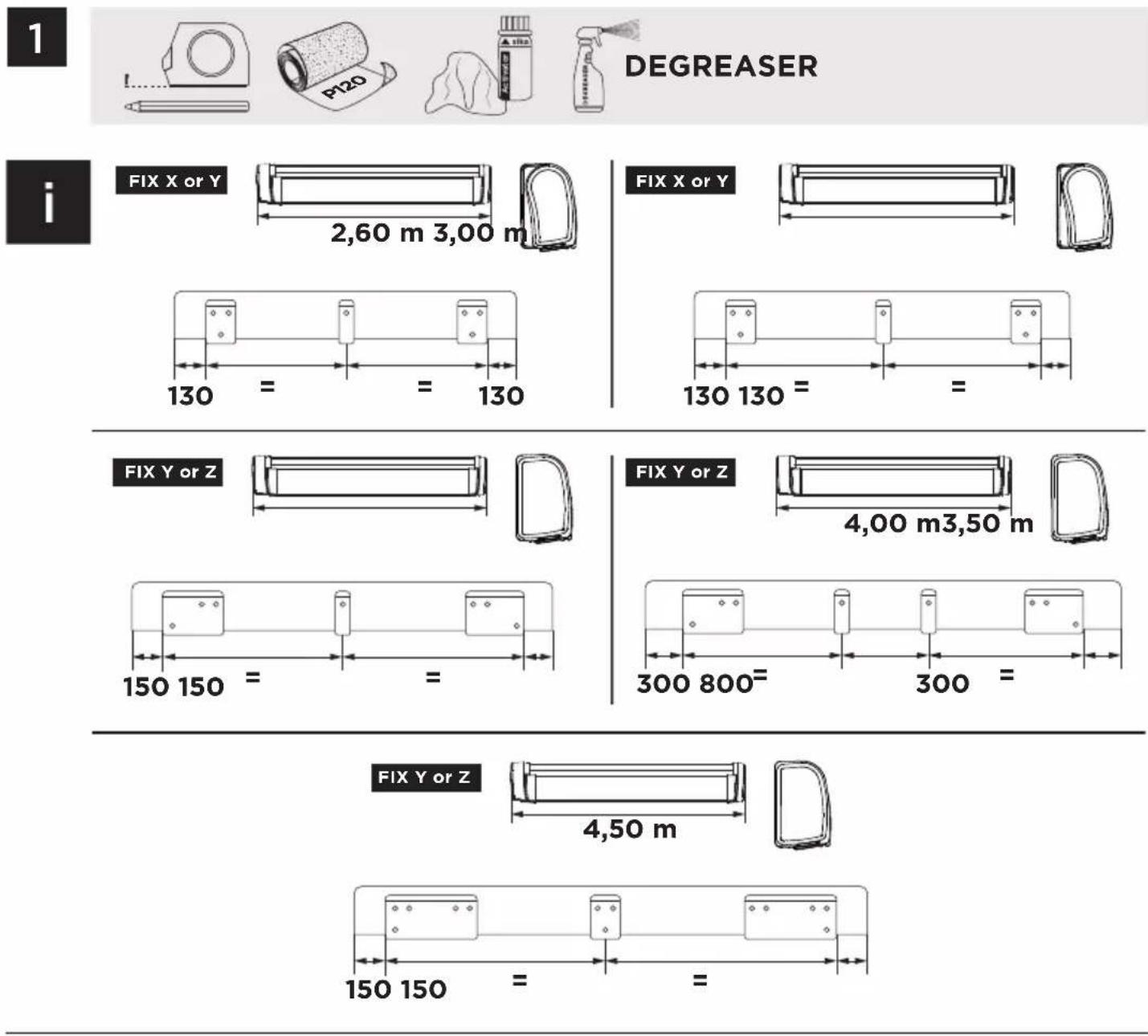

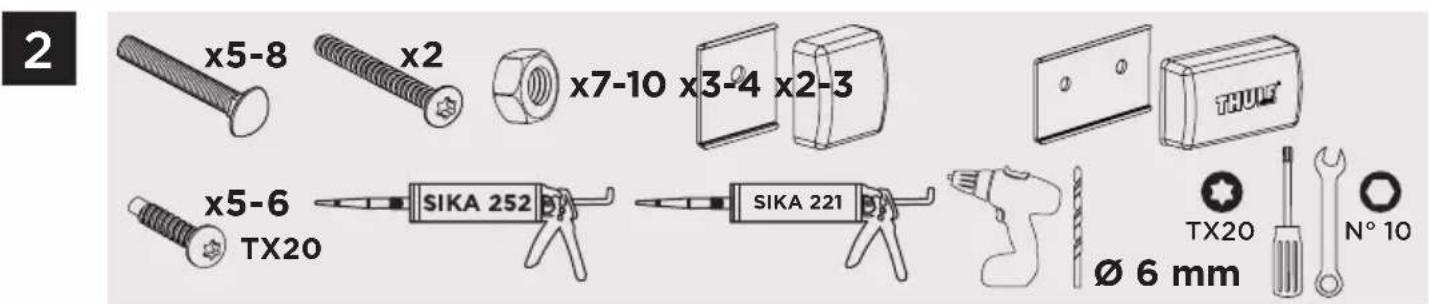

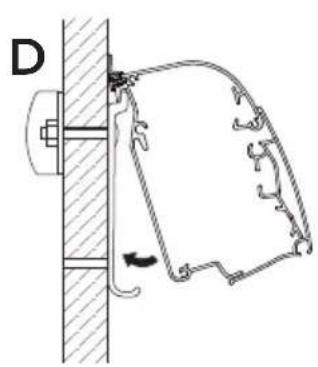

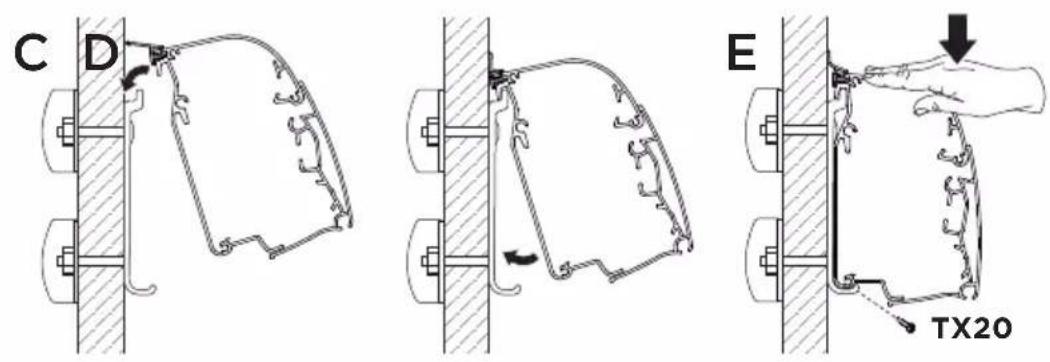

7 INSTALLATION

A


B


2

3

4

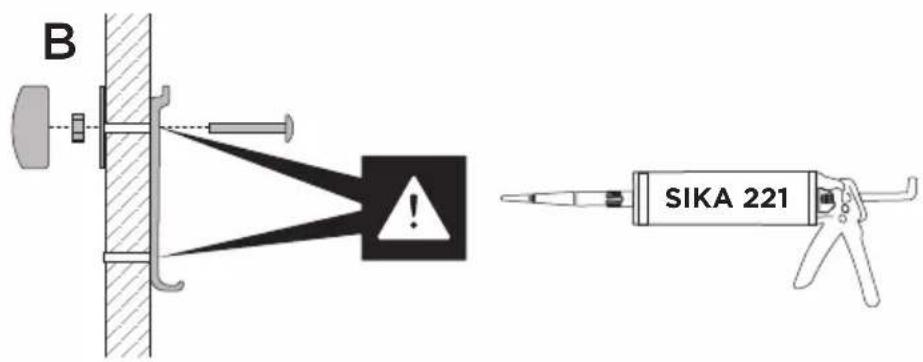

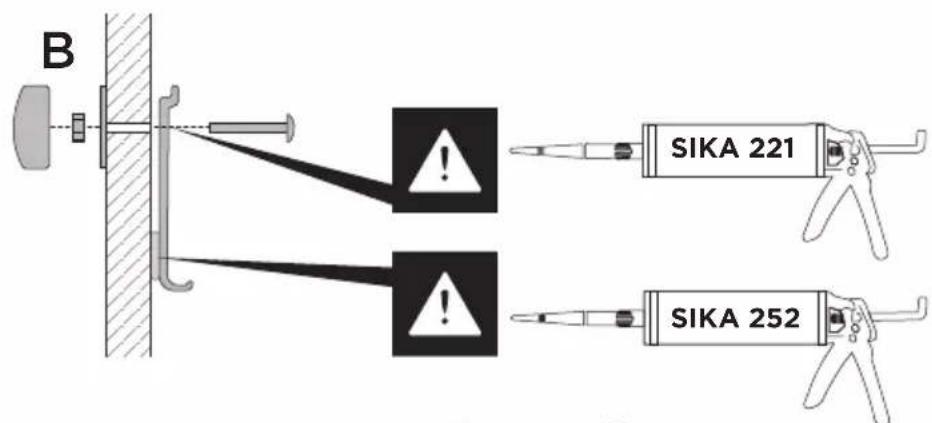

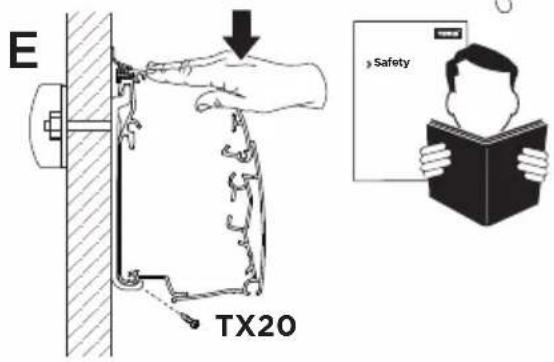

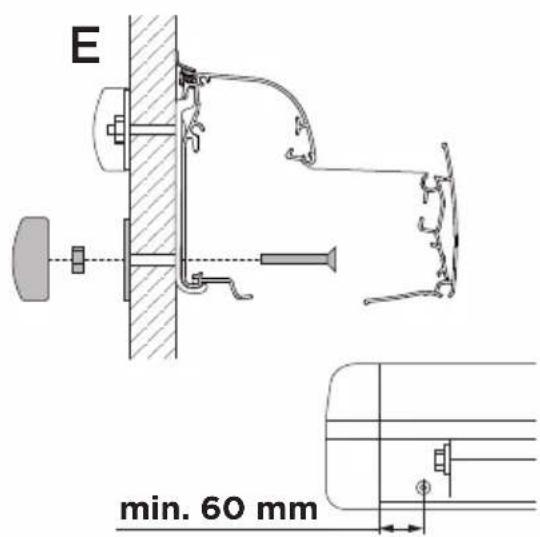

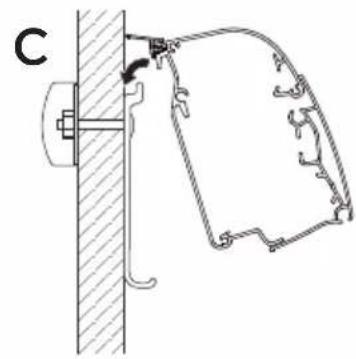

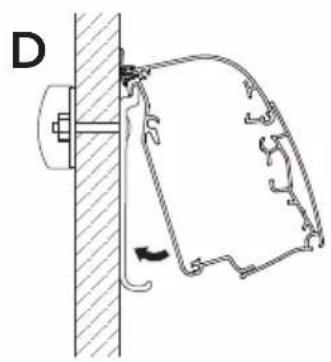

FIX X

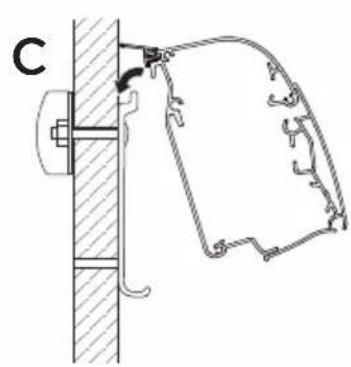

FIXY





FIXZ

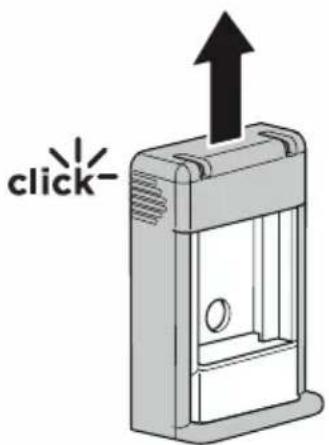

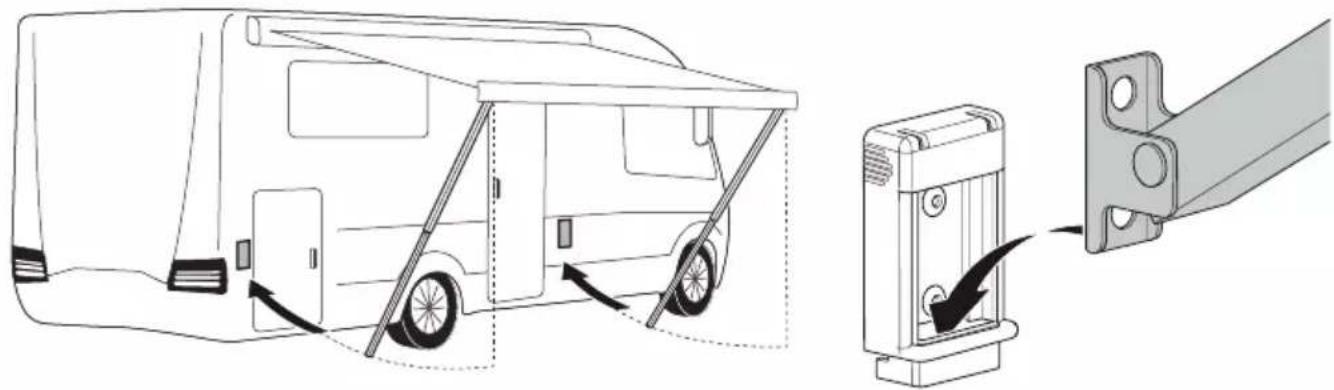

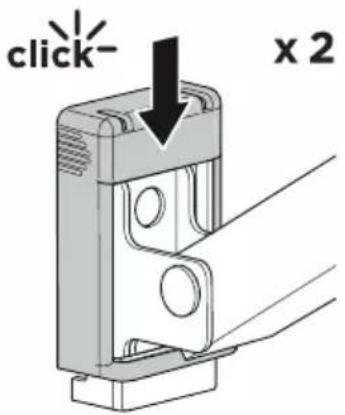

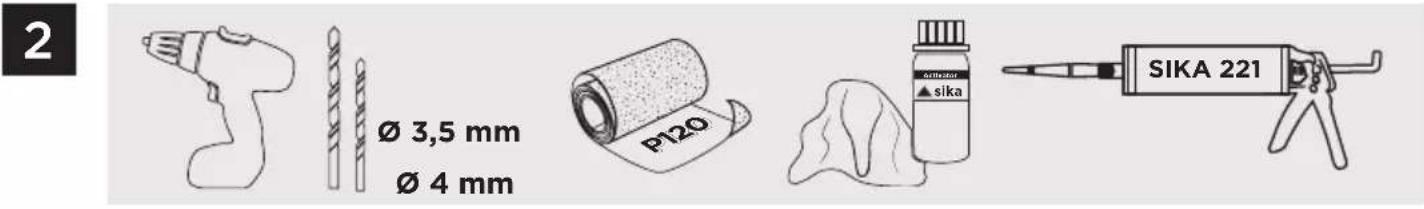

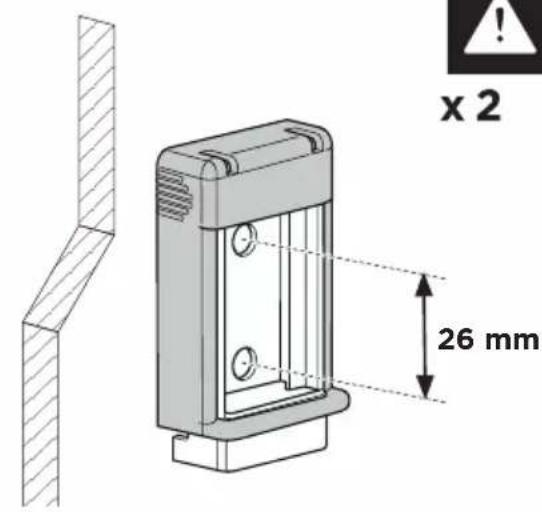

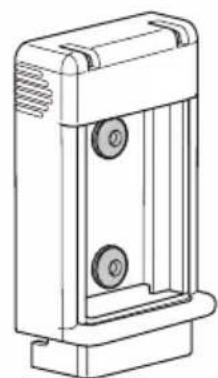

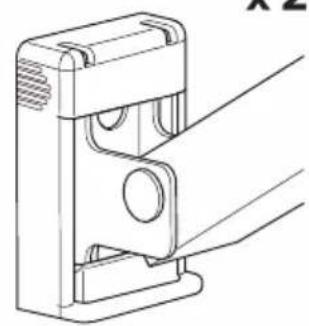

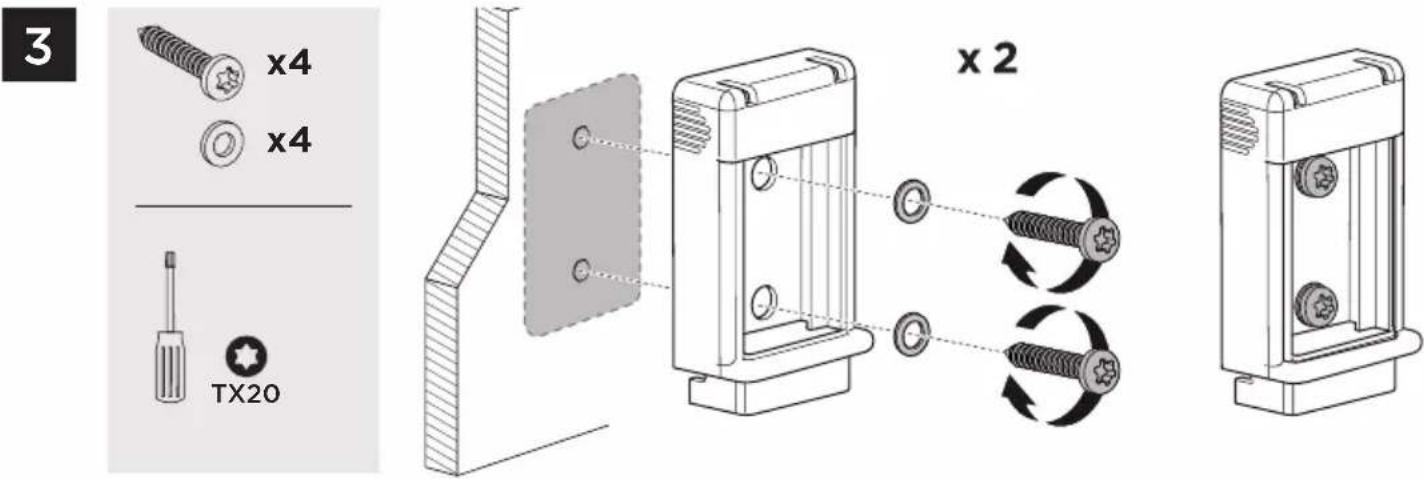

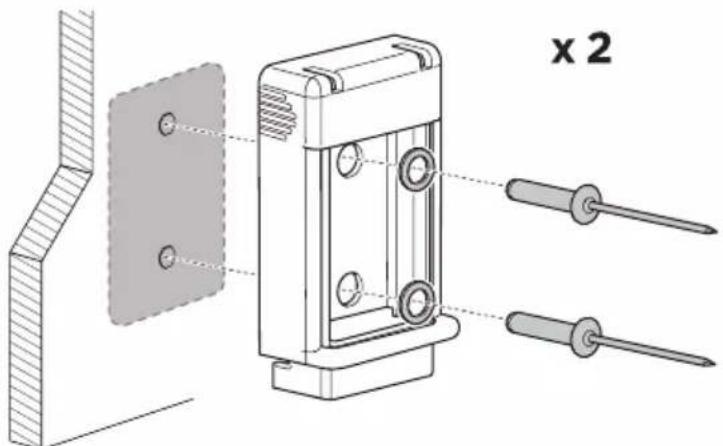

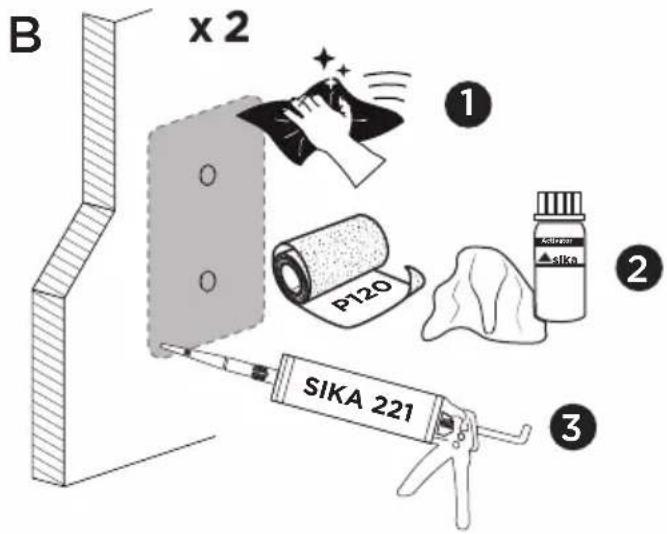

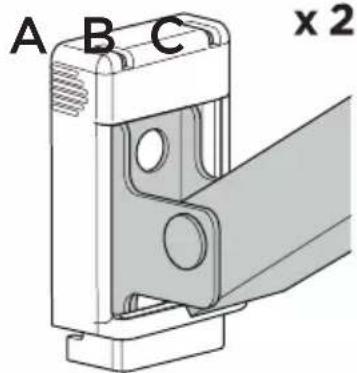

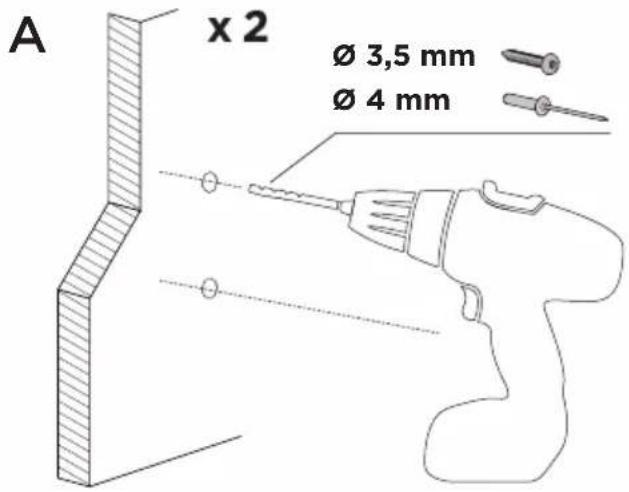

8 FOOT SUPPORT INSTALLATION





A B
x2


X2









4

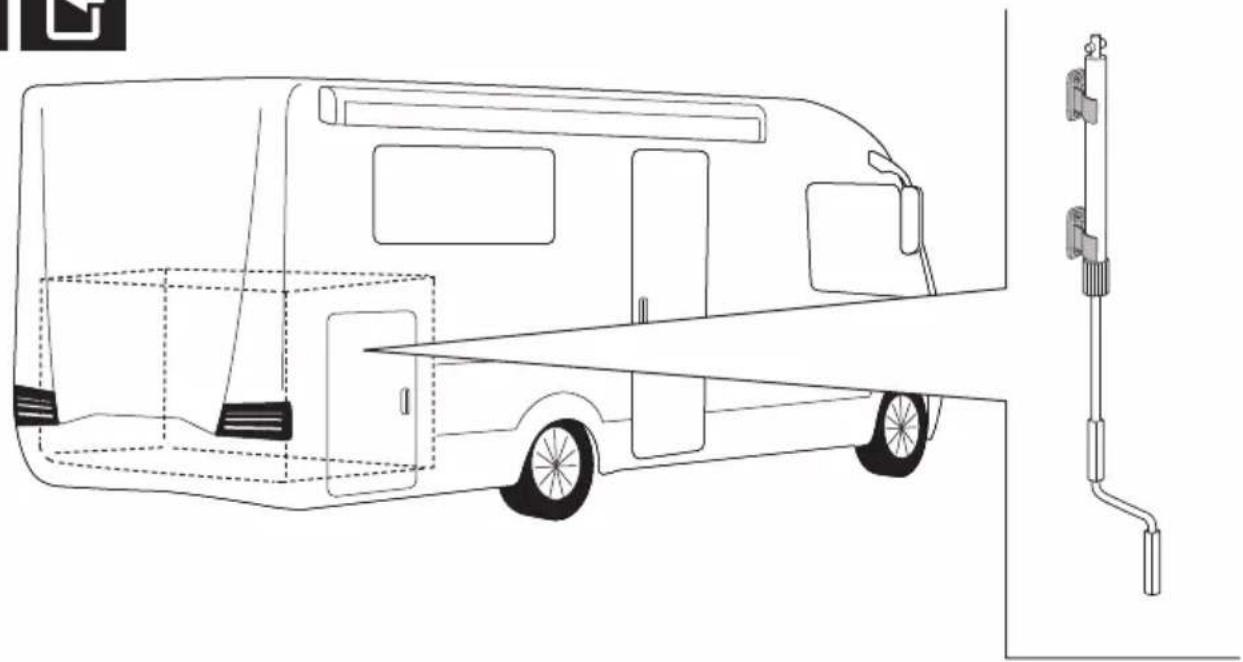

9 HAND CRANK SUPPORT INSTALLATION

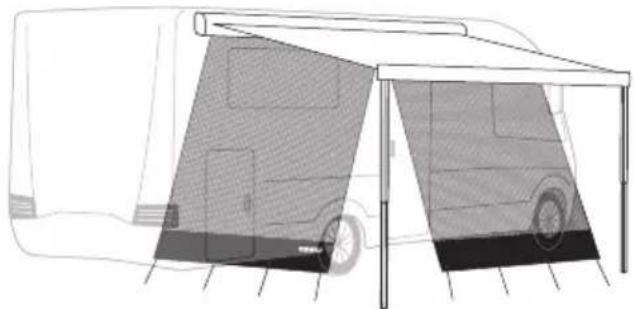

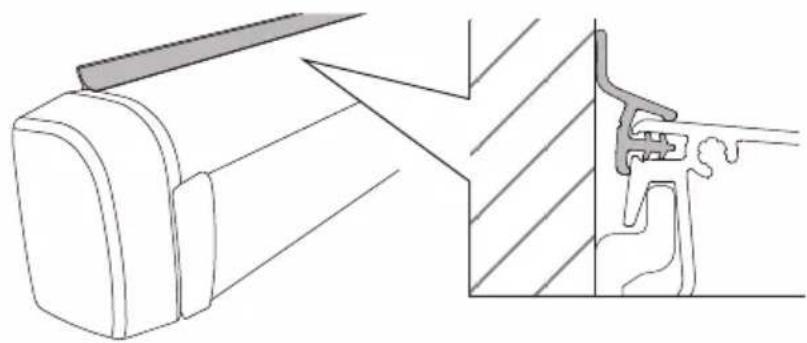

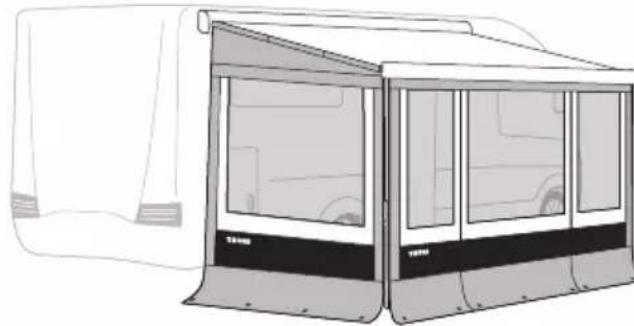

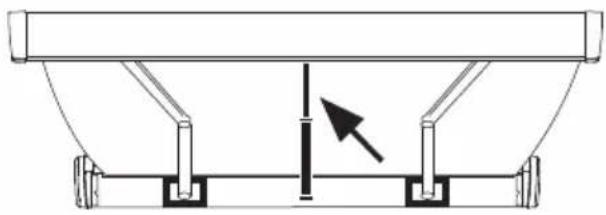

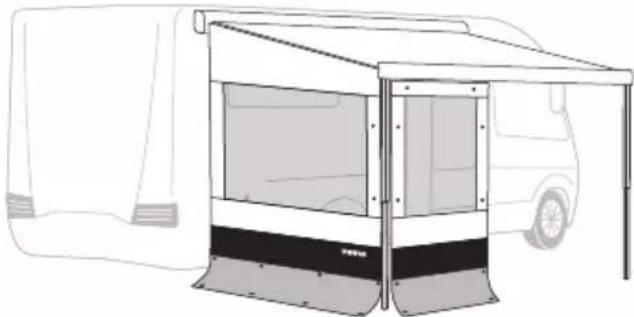

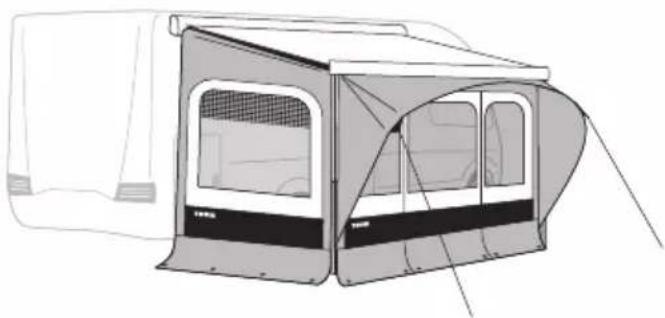

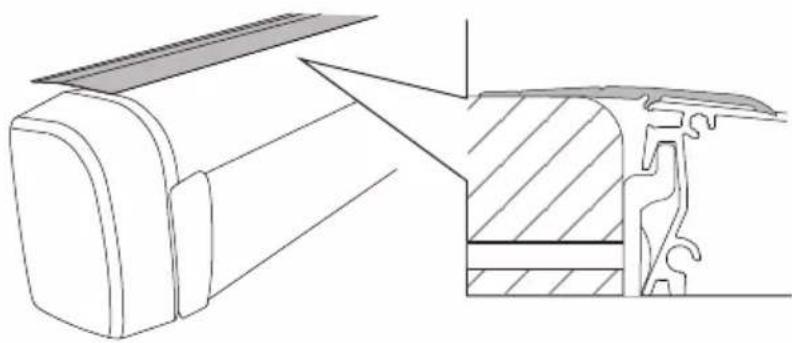

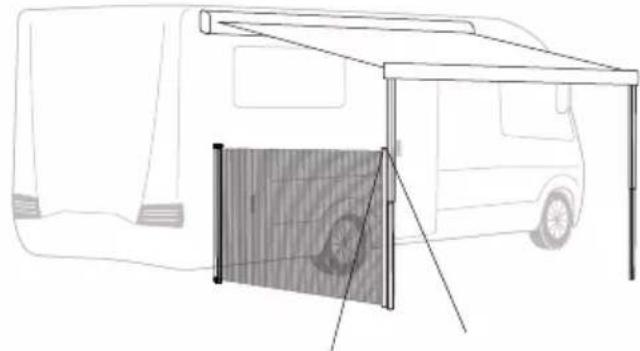

10 ACCESSORIES

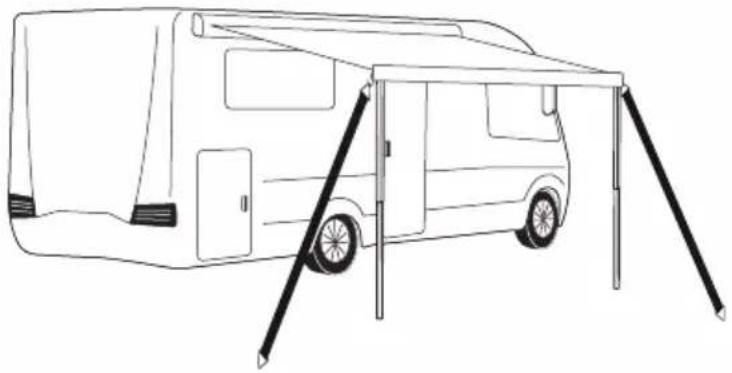

Thule Hold Down Side Strap Kit (307916)

Thule Tension Rafter G2 (307307 / 307309)

Thule LED Strip (307135 - 307137)

Thule Sealing Rubber (306891 - 306892)

Thule Sealling Rubber (302690 - 302693)

Thule Sun Blocker G2 T



Thule Residence G3TI

Thule Rain Blocker G2
