MODE D'EMPLOI TC21S3MZ PANASONIC
Panasonic


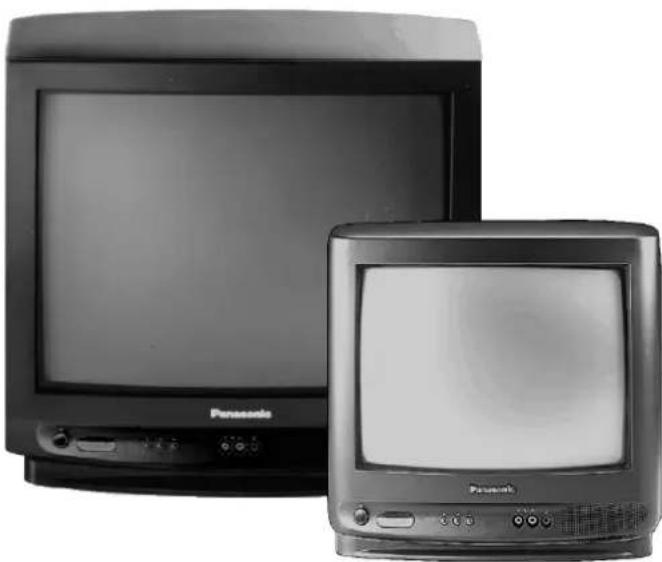

Two Panasonic TVs shown side by side, one front-mounted and one front-mounted (no visible text or labels)TC---21S3M/Z
TC---14S3M/Z
(U.K. Standard)
WARNINGS AND PRECAUTIONS
●This T.V. is designed to operate on A.C. 220 --- 240V,
- Do not expose this monitor to rain or excessive moisture.
●WARNING: HIGH VOLTAGE!
Do not remove the rear cover, there are no user serviceable parts inside.
- Avoid exposing the monitor to direct sunlight or other sources of heat.
- Remove the mains plug from the wall socket when the monitor is not to be used for a prolonged period of time. Do not pull the power cable to remove the mains plug from the socket, always remove it by the plug.
CABINET AND PICTURE TUBE CARE
Remove the mains plug from the wall socket. The cabir and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. Monitors can produce static electricity, care must be taken whenever touching the monitor screen.
- Adequate ventilation is essential to prevent failure of electrical components. We recommend that a gap of at least 5cm is left all around this monitor even when it is placed inside a cabinet or between shelves.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING CAREFULLY
This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.
Check for the ASTA mark
ASA
or the
BSI
mar
on the body of the fuse.
If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
Replacement fuse covers can be purchased through your local Panasonic dealer.
The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered mains plug this monitor will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.
Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13amp socket.
If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.
Lift out the removable fuse compartment with a screwdriver and replace the fuse, securely into the mains plug.
Important Note : The layout of the mains plug then refit may differ from this illustration
used
IMPORTANT :--The wires in the mains lead of this appliance are coloured in accordance with the following code :-
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :---
- The BLUEwire must be connected to the terminal marked 'N' or coloured black.
- The BROWNwire must be connected to the terminal marked 'L' or coloured red.
IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol ( ).
Connect input equipment as shown on page 4 Plug the monitor into a mains socket and switch ON.
To switch ON press the power On / Off button on the front of the monitor. If the power to this monitor is in whilst it is switched on, when power is returned the monitor will automatically switch back on. To switch OFF the power On / Off button again.

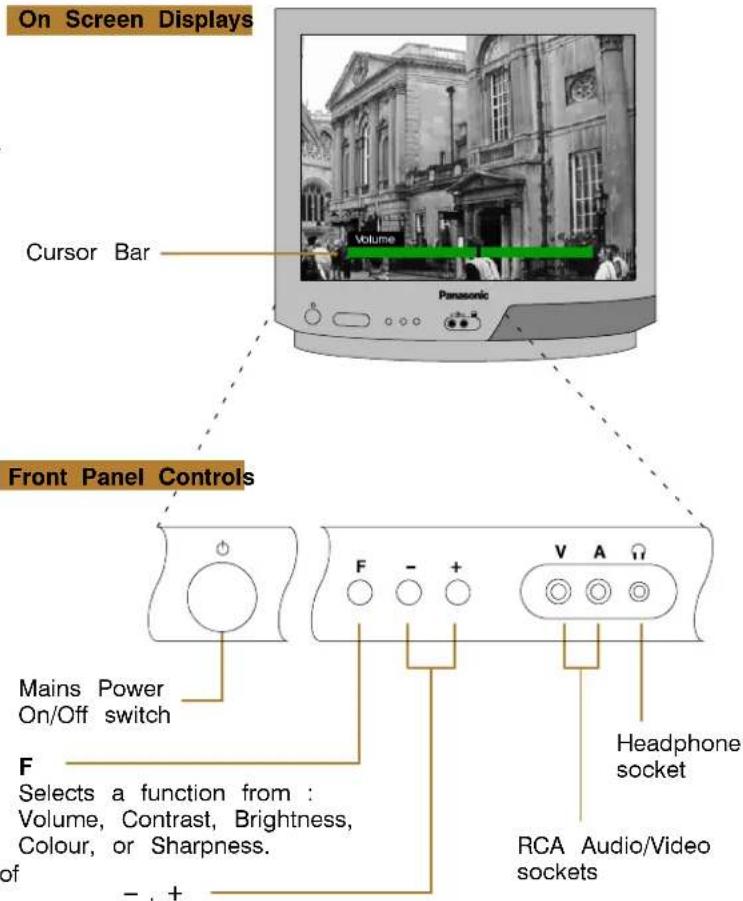

LOCATION OF CONTROLS
Using the On Screen Displays (OSDs)
Sound and picture adjustments are carried out using a series of On Screen Displays, accessed by pressing the F key on the front of the monitor.
Press F repeatedly to select the required function.
The following adjustments may be made in turn: Volume, Contrast, Brightness, Colour and Sharpness. Press + to increase or - to decrease the setting.
FUNCTION SEQUENCE
If the F key is not pressed within a few seconds of each selection the display will disappear.
When the F key on the front of the monitor is pressed again, the display will start off at Volume.
ACCESSORIES
The following accessories are provided:
• SCART to BNC/RCA adaptor lead TJS8E006
Guarantee Card
CRT Guarantee
Questionnaire

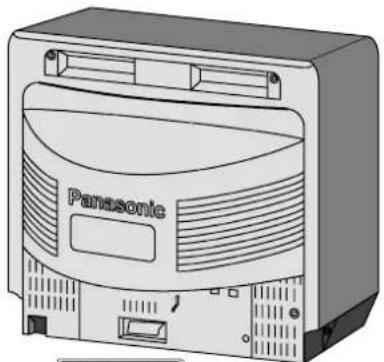

21 pin SCART Terminal
(not supplied)
Audio In Video InAudio Out Video Out
Front RCA and Headphone terminals
RCA Audio cable
RCA Video cable
Headphones
(3.5mm Plug)
(not supplied)
Only the SCART to BNC/RCA adaptor lead is supplied. No other leads are supplied. Do not connect a computer with TTL output (5V) to this monitor.
The monitor's speaker will be automatically disconnected whilst the headphones are connected
Do not connect front and rear AV inputs simultaneously, as the sound and pictures will be mixed.
This monitor is not classed as professional standard equipment. As such, we recommend a MAXIMUM of 10 pieces when configured in a loop system utilising the video out facility. Brightness adjustment may also be necessary to achieve desired performance.
SPECIFICATION
TROUBLE-SHOOTING
| Model Number | TC-21S3M/Z | TC-14S3M/Z |
| Power Source | 220 --- 240V 50Hz A.C. | |
| Power Consumption | 50W | 33W |
| Picture Tube(visible diagonal) | 51cm | 34cm |
| Audio Output (Music) | 6W, 8Ω impedance, Mono | |
| Dimensions (HxWxD) | 477x518x478 | 364x389x384 |
| Weight | 21kg | 10kg |
| Headphones --- Front | 3.5mm, 8Ωimpedance, Mono | |
| AV - Rear | 21 pin terminal --- Audio/Video in/Video loop --- 10 pieces maximu | |
| AV - Front | RCA Audio in/RCA Video in | |
| Symptom | Check |
| No picture, no sound | Not plugged into A.C. outlet Not switched on.Picture/sound controls set to minimum. |
| No colour | Check colour level. |
| Normal picture, no sound | Check volume level. |
Design and specifications are subject to change without notice. Weights and dimensions shown are approximate.
