TU3W - Accordeur électronique BOSS - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Accordeur chromatique pour guitare basse
Marque	Boss
Modèle	TU-3W
Dimensions	73 x 129 x 59 mm
Poids	460 g (avec pile)
Alimentation	Pile 9 V (6F22/6L861) ou adaptateur secteur PSA série (optionnel)
Consommation	60 mA (normal), 110 mA (mode Haute Luminosité)
Plage d'accordage	Do0 (16,35 Hz) à Do8 (4,186 kHz)
Fréquence de référence	La4 = 436–445 Hz (réglable par pas de 1 Hz)
Précision d'accordage	±1 cent
Impédance d'entrée	1 MΩ
Impédance de sortie	1 kΩ
Niveau d'entrée nominal	-20 dBu
Niveau de sortie nominal	-20 dBu
Modes d'accordage	Chromatique, Chromatique bémol, Guitare, Guitare bémol, Basse, Basse bémol
Fonction Accu-Pitch Sign	Indique visuellement la fin de l'accordage
Mode Haute Luminosité	Améliore la visibilité en extérieur
True Bypass / Buffered Bypass	Sélectionnable via commutateur OUTPUT BUF/THRU
Sortie jack	OUTPUT (muet en accordage), BYPASS (toujours actif)
Affichage	Afficheur à LED avec indicateurs de note/corde et aiguille lumineuse
Accessoires inclus	Notice, pamphlet de sécurité, pile alcaline 9 V
Options	Adaptateur secteur PSA série, cordon DC parallèle PCS-20A
Entretien et nettoyage	Essuyer avec un chiffon sec ; ne pas utiliser de solvants
Remplacement de la pile	Ouvrir la pédale en dévissant la vis moletée, remplacer la pile 9 V

FOIRE AUX QUESTIONS - TU3W BOSS

Comment allumer le Boss TU-3W ?

Branchez votre instrument à la prise INPUT. La pédale s'allume automatiquement. Pour activer l'accordeur, appuyez sur le pied de la pédale ; le voyant CHECK s'allume.

Comment accorder une guitare en accordage standard ?

Sélectionnez le mode GUITAR en appuyant sur le bouton MODE. Jouez une corde à vide ; le numéro de corde s'affiche. Ajustez la mécanique jusqu'à ce que le centre du cadran s'allume en vert et que les deux indicateurs latéraux soient allumés.

Comment changer la fréquence de référence (La4) ?

Maintenez enfoncés simultanément les boutons MODE et STREAM/CENT jusqu'à ce que le dernier chiffre de la fréquence clignote. Utilisez MODE pour augmenter de 1 Hz ou STREAM/CENT pour diminuer de 1 Hz. Laissez quelques secondes pour confirmer la valeur.

Comment activer le mode Haute Luminosité ?

Maintenez le bouton STREAM/CENT enfoncé pendant au moins deux secondes. Le cadran devient plus lumineux. Pour revenir au mode normal, maintenez à nouveau deux secondes.

Que signifie la fonction Accu-Pitch Sign ?

Lorsque la fonction est activée, les lumières du cadran convergent vers le centre lorsque l'accord est correct et stable. Pour l'activer/désactiver, maintenez STREAM/CENT enfoncé tout en branchant l'instrument, puis appuyez sur STREAM/CENT.

Comment basculer entre True Bypass et Buffered Bypass ?

Utilisez le commutateur OUTPUT BUF/THRU situé sur le dessus de la pédale. Position THRU pour True Bypass (signal direct) ou BUF pour Buffered Bypass (signal avec buffer).

Pourquoi le son est-il coupé lorsque j'active l'accordeur ?

Par défaut, la sortie OUTPUT est muette en mode accordage pour éviter tout bruit parasite. Utilisez la sortie BYPASS si vous voulez entendre votre instrument pendant l'accordage.

Comment remplacer la pile ?

Dévissez la vis moletée sur le dessus de la pédale, ouvrez le capot vers le haut. Retirez l'ancienne pile 9 V, débranchez le connecteur, branchez la nouvelle pile en respectant la polarité, replacez-la dans le compartiment, refermez la pédale en veillant à ne pas coincer les fils, puis revissez.

Puis-je utiliser l'accordeur avec une guitare à 7 cordes ou une basse à 6 cordes ?

Oui. Le mode GUITAR supporte jusqu'à 7 cordes (la 7e s'affiche '7') et le mode BASS supporte les basses 6 cordes (Do aigu affiché 'C', Si grave affiché 'b').

Comment nettoyer la pédale ?

Utilisez un chiffon doux et sec. N'utilisez jamais de produits chimiques, solvants ou nettoyants abrasifs qui pourraient endommager la finition.

MODE D'EMPLOI TU3W BOSS

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (supplied on a separate sheet). These sections provide important information concerning the proper operation of the unit.

Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

A battery is supplied with the unit. The life of this battery may be limited, however, since its primary purpose was to enable testing.

Main Features

• TU-3W features a function that allows you to switch between the true bypass and buffered bypass.
  ● High Brightness mode enhances meter visibility outdoors.
• Accu-Pitch Sign function uses the motion of the meter's lights to show when tuning is completed.
  ● Guitar/Bass mode lets you tune by string number, with support for 7-string guitars and 6-string basses.
• Flat tuning is supported with Guitar Flat mode, which allows for "down" tunings up to six semitones below standard pitch.
• Switching on the tuner automatically mutes the output signal, allowing you to tune without outputting the sound.

How to Use the Tuner

1. Connect the guitar or bass you want to tune to the INPUT jack. (This switches on the power.)
2. Press the pedal switch to turn the tuner on. The CHECK indicator will light.
3. Play a single note on your guitar or bass, and tune it. The note name or string number closest to the tone being played appears in the display. Tune the instrument so that both Tuning Guide Indicators are lit and the center of the meter is lit green. (Cent display)

The meter will light farther toward the left as the pitch gets flatter, or farther toward the right as the pitch gets sharper.

* When the Accu-Pitch Sign function is on, the meter lights stream toward the center of the display when stable tuning at the correct pitch is reached.
* The meter behavior described here is when the CENT display is selected (the factory setting). The behavior is different when you've selected the STREAM display.

* The sound from the OUTPUT jack is muted when the tuner is on.

Convenient Functions

■ Having the Meter Indicate Completion of Tuning (Accu-Pitch Sign function)

When the Accu-Pitch Sign function is on, the meter lights stream toward the center of the display when stable tuning at the correct pitch is reached.

1. While holding down the STREAM/CENT button, turn on the power (insert a plug into the INPUT jack).
2. Press the STREAM/CENT button again to toggle the Accu-Pitch Sign function on/off. On: The meter lights stream to the center from the left and right. Off: The meter lights up at the left and right.
   * The TU-3W returns to its normal state when several seconds have elapsed without the STREAM/CENT button being pressed.
   * This setting remains stored even after the power is turned off.

■ Changing the Reference Pitch

You can adjust the reference pitch over a range of 436-445 Hz. (440 Hz is the factory default.)

1. Press the MODE button and STREAM/CENT button simultaneously. The lowest digit of the current reference pitch (e.g., "0" when set to 440 Hz) blinks in the Note Name/String indicator.
2. Press the MODE button or STREAM/CENT button to change the reference pitch. MODE button: Raises the reference pitch by 1 Hz. STREAM/CENT button: Lowers the reference pitch by 1 Hz.
   * If you allow several seconds to elapse without pressing the MODE button or STREAM/CENT button, the TU-3W will return to normal operation.
   * When you turn on the power, the current reference pitch will be displayed for several seconds.

* This setting remains stored even after the power is turned off.

■ Changing the Meter's Brightness (High Brightness mode)

By switching the meter to High Brightness mode, you can increase its visibility when performing outdoors.

To switch to High Brightness mode, hold down the STREAM/CENT button for two seconds or longer. To return to normal brightness, hold down the STREAM/CENT for two seconds or longer once again.

* Normal brightness is automatically selected when you turn on the power.

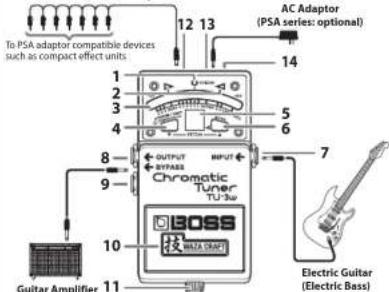

Panel Descriptions

Parallel DC Cord (PCS-20A: optional)

* If you connect other effect units, you must connect them after the TU-3W. If the TU-3W is connected after other effect units, you won't be able to tune correctly.

1. CHECK Indicator

This indicator shows whether the effect is on or off, and also doubles as the battery check indicator.

* If you're powering the unit with a battery and the CHECK indicator goes dim—or doesn't light at all—when you try to turn the effect on, the battery is near depletion and should be replaced. For instructions on changing the battery, refer to "Changing the Battery."

1. Tuning Guide Indicator

Indicates when the proper tuning is reached.

1. Meter

Indicates the tuning of the input sound's pitch.

1. STREAM/CENT button

Switches the meter's display pattern.

* This setting remains stored even after the power is turned off. CENT display

The meter lights farther toward the left as the pitch gets flatter, or farther toward the right as the pitch gets sharper. When the pitch is correct, the center of the meter lights green.

* The center of the meter and the tuning guide indicator remain lit for several seconds after you've selected this setting.

STREAM display

The meter lights stream toward the left if the input pitch is flat, or toward the right if the input pitch is sharp. The lights flow more slowly as the pitch discrepancy decreases, and stop flowing when the pitch is exact.

* The meter lights stream toward the left for several seconds after you've selected this setting.

1. Note Name/String Number Indicator

Indicates the note name, string number, or reference pitch. Note indicator

1. MODE Button

The tuning mode changes each time you press the MODE button. The meter lights at the position of the currently selected mode.

* When you turn on the power, the current tuning mode will be displayed for several seconds.

* This setting remains stored even after the power is turned off. In this example, the Tuning mode is set to GUITAR.

Mode	Explanation	Indicator Status
Chromatic	Lets you tune all twelve chromatic steps of the octave.	The note name is displayed.
Chromatic flat	Lets you tune one semitone lower (b) or two semitones lower (2).
Guitar	Lets you tune by guitar string numbers.	The guitar string number is displayed.(7th string is displayed as "7.")
Guitar flat	Lets you tune one semitone lower (b) or anywhere from two to six semitones lower (2-6).
Bass	Lets you tune by bass string numbers.	The bass string number is displayed.(Hi-C string is displayed as "C," Lo-B string is displayed as "b.")
Bass flat	Lets you tune one semitone lower (b) two semitones lower (2), or three semitones lower (3).

1. INPUT Jack

Connect the guitar or bass guitar to be tuned here.

* The INPUT jack doubles as the power switch. Power to the unit is turned on when you plug into the INPUT jack; the power is turned off when the cable is unplugged.

1. OUTPUT Jack

Connect an effects processor, guitar amp, or other such device here.

* The output is muted when the tuner is on.

1. BYPASS Jack

Connect an effects processor, guitar amp, or other such device here. This jack will always output the signal from the instrument connected to the Input jack. Use this jack if you want to be heard while you tune.

1. Pedal Switch

This switch turns the effect on/off.

1. Thumbscrew

When this screw is loosened, the pedal will open, allowing you to change the battery. For instructions on changing the battery, refer to "Changing the Battery."

1. DC OUT Jack

When an AC adapter is used, you can connect a PCS-20A parallel DC cord (optional) to supply power to effects processors and other PSA adaptor-compatible gear.

* Power cannot be supplied from the DC OUT jack when the TU-3W is running on batteries.

13.DC IN Jack

Accepts connection of an AC Adaptor (PSA series: optional). By using an AC Adaptor, you can play without being concerned about how much battery power you have left.

* Use only the specified AC adaptor (PSA series), and connect it to an AC outlet of the correct voltage. Do not use any other AC adaptor, since this may cause malfunction.

* We recommend that you keep batteries installed in the unit even if you'll be powering it with the AC adaptor. That way, you'll b continue a performance even if the cord of the AC adaptor gets accidentally disconnected from the unit.

1. OUTPUT BUF/THRU Switch

Switches between true bypass and buffered bypass.

Precautions When Connecting

* To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
* Some connection cables contain resistors. When connection cables with resistors are used, the sound level may be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.
* If you'll be using the TU-3W for an extended time, we recommend that you use an AC adaptor.
* Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

When powering up: Turn on the power to your guitar amp last. When powering down: Turn off the power to your guitar amp first.

* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

* When operating on battery power only, the unit's indicator will become dim when battery power gets too low. Replace the battery as soon as possible.

Changing the Battery

When the indicator goes dim or no longer lights while the effect is on, it means that the battery must be replaced.
* Please be sure to read the separate sheet "USING THE UNIT SAFELY" and "IMPORTANT NOTES" for details on battery handling.
* Batteries should always be installed or replaced before connecting any other devices. This way, you can prevent malfunction and damage.
1. Hold down the

pedal and loosen the thumbscrew, then open the pedal upward.

* The pedal can be opened without detaching the thumbscrew completely

1. Remove the old battery from the

battery housing, and remove the snap cord connected to it.

1. Connect the snap cord to the new battery, and place the battery inside the battery housing.

* Be sure to carefully observe the battery's polarity (+ versus -).

1. Slip the coil spring onto the spring base on the back of the pedal, and then close the pedal.

* Carefully avoid getting the snap cord caught in the pedal, coil spring, and battery housing.

1. Finally, insert the thumbscrew into the guide bush hole and fasten it securely.

Storefront Demo Display

1. While holding down the STREAM/CENT button and Pedal switch, turn the power on (insert a plug into the INPUT jack).

The storefront display appears. The storefront display remains until you turn the TU-3W's power off and then on again, or until you press the Pedal switch.

Specifications

TU-3W: Chromatic Tuner

Tuning Range	C0 (16.35 Hz)-C8 (4.186 Hz)
Reference Pitch	A4 = 436-445 Hz (1 Hz step)
Tuning Accuracy	±1 cent
Nominal Input Level	-20 dBu
Input Impedance	1 MΩ
Nominal Output Level -20 dBu
Output Impedance	1 kΩ
Recommended Load Impedance	10 kΩ or greater
Power Supply	Carbon-zinc battery (9 V, 6F22)/Alkaline battery (9 V, 6L861), AC Adaptor (sold separately)
Current Draw	60 mA (DC 9 V)110 mA (DC 9 V, when High Brightness mode is on)
Dimensions	73 (W) x 129 (D) x 59 (H) mm2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
Weight	460 g1 lb 1 oz (including battery)
Accessories	Owner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Alkaline battery (9 V, 6L861)
Options	AC adaptor: PSA seriesParallel DC cord: PCS-20A

* Duration of continuous use with battery operation:

These figures will vary depending on the actual conditions of use.

Battery	When the tuner is continuously on		When the tuner is on for one minute and off for three minutes
	When High Brightness mode is off	When High Brightness mode is on	When High Brightness mode is off	When High Brightness mode is on
Carbon	0.5 hours	0.2 hours	1 hour	0.5 hours
Alkaline	6 hours	3 hours	6.5 hours	6 hours

* The battery that was supplied with the unit is for temporary use, intended primarily for testing the unit's operation.
