| Type de produit | Extension audio/video HDBaseT quad DVI-D |
| Marque | Smart-AVI |
| Modèle | SDX4PRX (SDX-4P) |
| Dimensions (L x H x P) | 43,2 cm x 4,3 cm x 8,1 cm (17 x 1,7 x 3,2 pouces) |
| Poids | 1,81 kg (4 lb) |
| Alimentation | Interne 100-240 VAC, sortie 5 VDC/4 A (20 W) |
| Distance de transmission | Jusqu'à 120 m (400 pi) sur câble CAT5/5e/6 |
| Résolutions supportées | Jusqu'à 1920x1200 @60 Hz et 3840x2160 @30 Hz |
| Formats vidéo | 4 entrées DVI-D Single Link |
| Connectique vidéo | TX et RX : 4 x DVI-D 29 broches femelle |
| Audio | Stéréo, entrée/sortie jack 3,5 mm femelle, impédance 100 Ω |
| USB | USB 1.1 pour clavier et souris (TX : type B femelle, RX : 2 x type A femelle) |
| RS-232 | Double RS-232 (TX : 2 x DB9 femelle, RX : 2 x DB9 mâle), vitesse jusqu'à 115 Kbps |
| HDCP | Prise en charge HDCP |
| EDID | Apprentissage automatique |
| Systèmes d'exploitation compatibles | Windows, Mac, Linux |
| Température de fonctionnement | 0 à 55 °C |
| Température de stockage | -20 à 85 °C |
| Humidité | Jusqu'à 95 % |
| Type de câble recommandé | CAT5/5e/6 avec connecteurs RJ-45, paire torsadée |
| Contenu de la boîte | 1 émetteur SDX-4P-TX, 1 récepteur SDX-4P-RX, 2 alimentations 5 VDC/4 A |
| Entretien | Nettoyer avec un chiffon sec et non pelucheux |
| Sécurité | Utiliser dans un environnement tempéré, hors de portée des enfants |
| Pièces détachées et réparabilité | Contacter le support Smart-AVI |
| Informations générales | Fabriqué aux États-Unis |
FOIRE AUX QUESTIONS - SDX4PRX Smart-AVI
Questions des utilisateurs sur SDX4PRX Smart-AVI
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Extension audio/video au format PDF gratuitement ! Retrouvez votre notice SDX4PRX - Smart-AVI et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil SDX4PRX de la marque Smart-AVI.
MODE D'EMPLOI SDX4PRX Smart-AVI

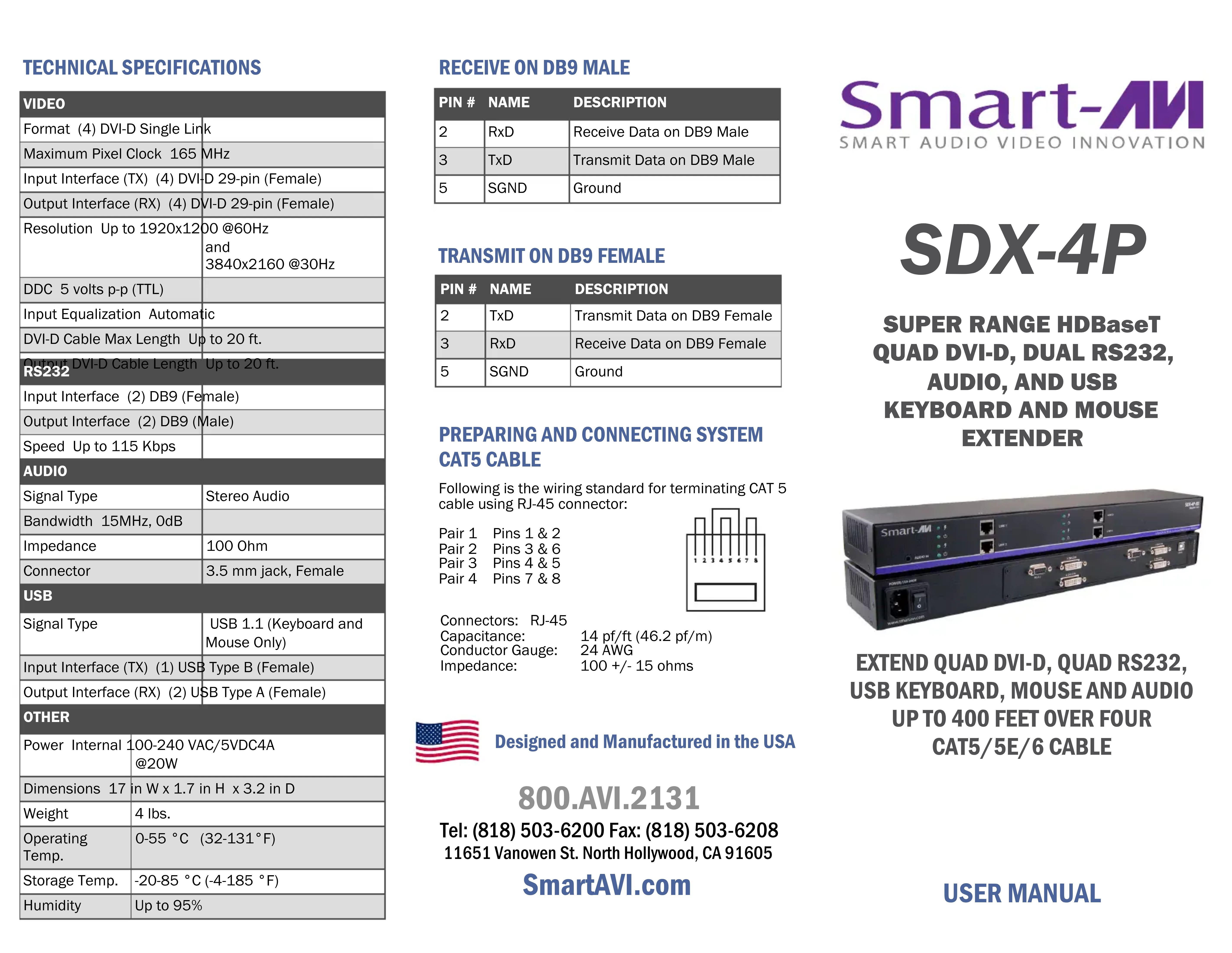

TECHNICAL SPECIFICATIONS
| VIDEO | |
| Format (4) DVI-D Single Link | |
| Maximum Pixel Clock 165 | MHz |
| Input Interface (TX) (4) DVI-D 29-pin (Female) | |
| Output Interface (RX) (4) DVI-D 29-pin (Female) | |
| Resolution Up to 1920x12 | 00 @60Hz and 3840x2160 @30Hz |
| DDC 5 volts p-p (TTL) | |
| Input Equalization Automatic | |
| DVI-D Cable Max Length Up to 20 ft. | |
| Output DVI-D Cable Length Up to 20 ft. | |
| RS232 | |
| Input Interface (2) DB9 (Female) | |
| Output Interface (2) DB9 (Male) | |
| Speed Up to 115 Kbps | |
| AUDIO | |
| Signal Type | Stereo Audio |
| Bandwidth 15MHz, 0dB | |
| Impedance | 100 Ohm |
| Connector | 3.5 mm jack, Female |
| USB | |
| Signal Type | USB 1.1 (Keyboard and Mouse Only) |
| Input Interface (TX) (1) USB Type B (Female) | |
| Output Interface (RX) (2) USB Type A (Female) | |
| OTHER | |
| Power Internal 100-240 VAC/5VDC4A @20W | |
| Dimensions 17 in W x 1.7 in H x 3.2 in D | |
| Weight 4 lbs. | |
| Operating Temp. 0-55 °C (32-131 °F) | |
| Storage Temp. -20-85 °C (-4-185 °F) | |
| Humidity Up to 95% | |
RECEIVE ON DB9 MALE
| PIN # | NAME | DESCRIPTION |
| 2 | RxD | Receive Data on DB9 Male |
| 3 | TxD | Transmit Data on DB9 Male |
| 5 | SGND | Ground |
TRANSMIT ON DB9 FEMALE
| PIN # | NAME | DESCRIPTION |
| 2 | TxD | Transmit Data on DB9 Female |
| 3 | RxD | Receive Data on DB9 Female |
| 5 | SGND | Ground |
PREPARING AND CONNECTING SYSTEM CAT5 CABLE
Following is the wiring standard for terminating CAT 5 cable using RJ-45 connector:
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
Connectors: RJ-45
Capacitance:
Conductor Gauge:
Impedance:
14 pf/ft (46.2 pf/m)
24 AWG
100 +/- 15 ohms
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Smart-AVII
SMART AUDIOVIDEOINNOVATION
SDX-4P
SUPER RANGE HDBaseT QUAD DVI-D, DUAL RS232, AUDIO, AND USB KEYBOARD AND MOUSE EXTENDER
EXTEND QUAD DVI-D, QUAD RS232, USB KEYBOARD, MOUSE AND AUDIO UP TO 400 FEET OVER FOUR CAT5/5E/6 CABLE
USER MANUAL
INTRODUCTION
Using HDBaseT technology, the SDX-4P DVI extender is capable of sending quad DVI-D signals up to 400 feet over two conventional and inexpensive CAT5/5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special CAT6 shielded cable to go a short distance.
The SDX-4P also has USB keyboard and mouse, audio and RS232 extension, giving you the ability to control your displays or devices remotely.
FEATURES
- Extends quad DVI-D up to 400 feet (120m) from the source
- HDCP Support
Supports up to 1920x1200 resolution @ 60Hz.
Supports 4k / 2k (3840x2160) resolution @ 30Hz.
Automatic EDID Learning - USB Keyboard and Mouse extension
- Uncompressed Video using HDBaseT
- RS-232 extension allows for remote control of displays
Supports Stereo Sound - Compatible with Windows, Mac and Linux Operating Systems
WHAT'S IN THE BOX?
| PART NO. QTY DESCRIPTION | ||
| SDX-4P-RX | 1 SD | X-4P Receiver. Quad DVI-D, Dual RS232, USB & Audio Receiver over CAT5/5e/6 |
| SDX-4P-TX | 1 SD | X-4P Transmitter. Quad DVI-D, Dual RS232, USB & Audio Transmitter over CAT5/5e/6 |
| Power Supply | 2 PS | 5VDC4A |

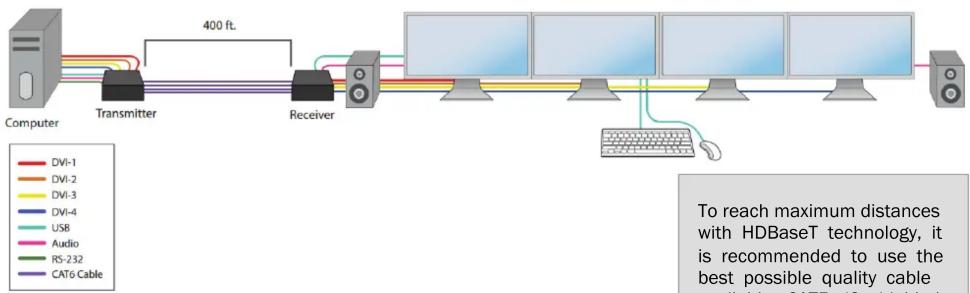

APPLICATION DIAGRAM
SDX-4P-TX FRONT
SDX-4P-TX BACK
SDX-4P-RX FRONT
SDX-4P-RX BACK
CONNECTING THE SDX-4P
- Power off all devices.
- Connect four DVI-D sources from the computer to the four DVI-D input ports on the back of the SDX-4P-TX.
- Connect the computer's USB port to the USB port on the SDX-4P-TX using a USB male (A-to-B) cable.
- Connect the computer's stereo audio output to the audio input port of the SDX-4P-TX using a 3.5 mm (1/8 in) stereo audio cable.
- Optionally connect RS-232 from a computer for control functions.
- Connect Links 1 to 4 of the SDX-4P-TX to Links 1 to 4 of the SDX-4P-RX using four CAT5/5e/6 cables.
- Connect a DVI-D compatible display to each of the four DVI-D ports on the back of the SDX-4P-RX.
- Connect a USB keyboard and mouse to the USB ports on the SDX-4P-RX.
- Optionally connect RS-232 to an RS-232 enabled device for control functions.
- Connect power cables to the SDX-4P-RX and the SDX-4P-TX and turn both units on.
11.Power on all the displays and then the computer.
The EDID of your displays will be learned automatically.
