Caractéristiques techniques	Haut-parleur central SVS Prime Center, conception à 3 voies, puissance nominale de 150 watts, impédance de 8 ohms, fréquence de réponse de 60 Hz à 25 kHz.
Utilisation	Idéal pour les systèmes de home cinéma, améliore la clarté des dialogues et des effets sonores, compatible avec les amplificateurs AV.
Maintenance et réparation	Nettoyer régulièrement avec un chiffon doux, éviter l'exposition à l'humidité, vérifier les connexions et câbles pour assurer un fonctionnement optimal.
Sécurité	Ne pas exposer à des températures extrêmes, éviter de placer des objets lourds sur le haut-parleur, utiliser uniquement des câbles adaptés pour éviter les courts-circuits.
Informations générales	Poids de 9,5 kg, dimensions de 53,3 x 20,3 x 20,3 cm, finition en bois de haute qualité, garantie de 5 ans.

FOIRE AUX QUESTIONS - Prime Center SVS

Comment connecter mon SVS Prime Center à mon amplificateur ?

Utilisez des câbles de haut-parleur pour relier les bornes de sortie de votre amplificateur aux bornes d'entrée de votre SVS Prime Center. Assurez-vous de respecter la polarité (+ et -) pour éviter des problèmes de phase.

Quelle est la puissance nominale du SVS Prime Center ?

Le SVS Prime Center a une puissance nominale de 150 Watts en continu et peut gérer des pics jusqu'à 300 Watts.

Quel type de câble de haut-parleur devrais-je utiliser ?

Il est recommandé d'utiliser des câbles de haut-parleur de 16 AWG ou plus épais pour garantir une bonne qualité audio et minimiser la perte de signal.

Comment positionner mon SVS Prime Center pour une meilleure acoustique ?

Placez le SVS Prime Center à proximité de votre écran, idéalement au niveau de l'oreille lorsque vous êtes assis. Évitez de le placer dans un coin ou derrière des objets qui peuvent obstruer le son.

Que faire si le son est faible ou déformé ?

Vérifiez d'abord vos connexions et assurez-vous que les câbles sont correctement branchés. Ensuite, vérifiez les réglages de votre amplificateur et augmentez le niveau des haut-parleurs si nécessaire.

Puis-je utiliser le SVS Prime Center avec un système audio multiroom ?

Oui, le SVS Prime Center peut être intégré dans un système audio multiroom, mais assurez-vous que votre amplificateur ou votre récepteur prend en charge la configuration souhaitée.

Le SVS Prime Center est-il compatible avec les systèmes Dolby Atmos ?

Oui, le SVS Prime Center est compatible avec les systèmes Dolby Atmos et peut être utilisé comme haut-parleur central dans une configuration de home cinéma.

Comment nettoyer mon SVS Prime Center ?

Utilisez un chiffon doux et sec pour essuyer la surface du haut-parleur. Évitez d'utiliser des produits chimiques ou des nettoyants abrasifs qui pourraient endommager la finition.

MODE D'EMPLOI Prime Center SVS

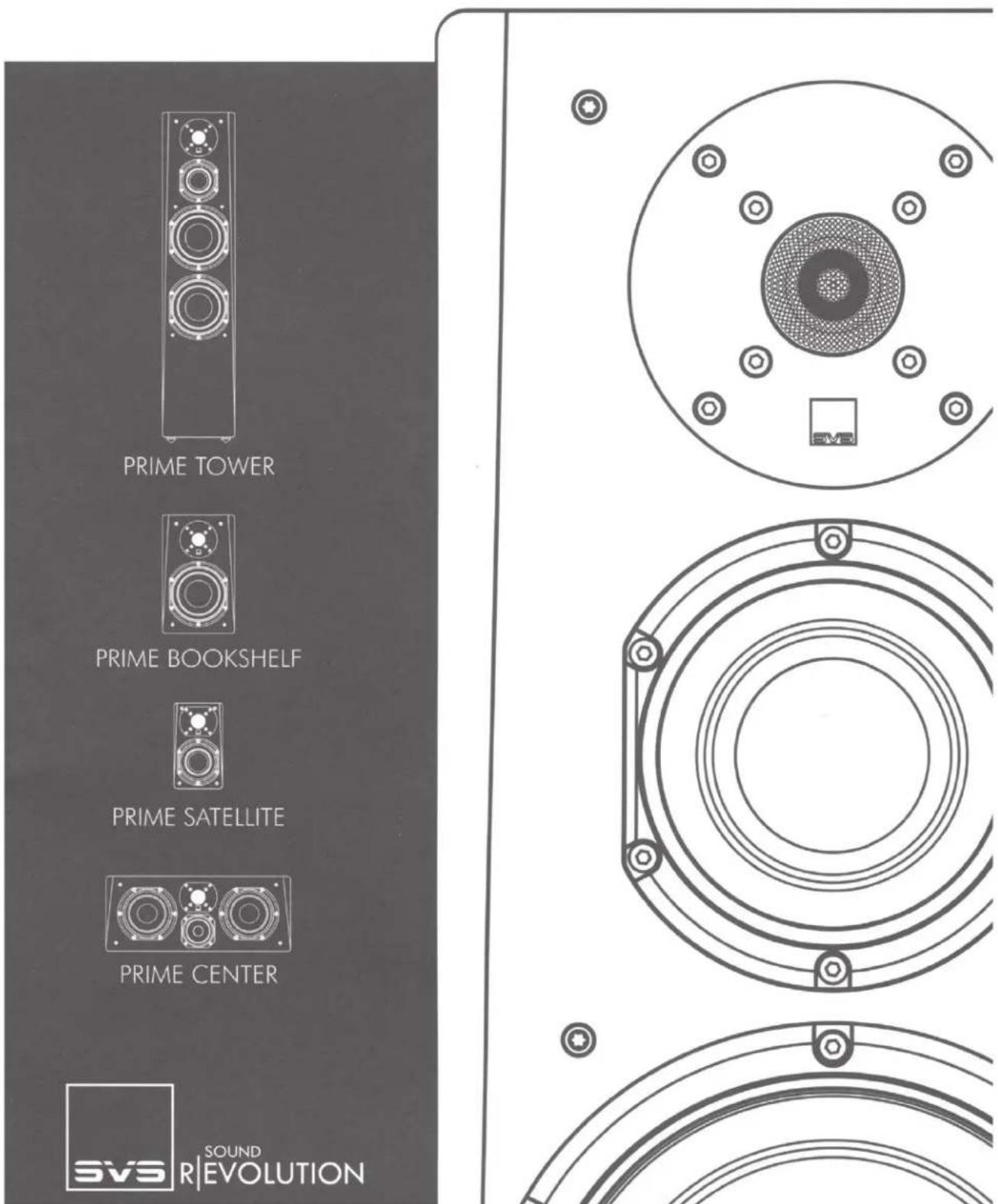

PRIME

SPEAKERS

Thank you, and congratulations on purchasing your new SVS Prime Speaker!

All it takes is one listen to the Prime Speakers to understand just how much passion SVS poured into the development of this new family of loudspeakers. Leveraging design and technology from the SVS Ultra Speaker family, the Prime Speakers feature premium drivers and high-quality crossover components simply not found anywhere else at this level. We're proud to say that you won't find speakers with better sound quality or performance value at this price.

If you ever have any questions about your SVS product, or need help setting them up, feel free to contact us directly.

www.svsound.com • [e-mail] • [phone]

TABLE OF CONTENTS

SETTING UP YOUR PRIME SPEAKERS 3

FOOT OPTIONS. 3

ACOUSTICS & ROOM PLACEMENT 4

ROOM PLACEMENT 6

SPEAKER MOUNTING 8

SPEAKER CONNECTION 10

CARING FOR YOUR PRIME SPEAKERS. 11

WARRANTY 11

SHARE YOUR THOUGHTS. 11

FEATURES & SPECIFICATIONS 12

PRIME TOWER 12

PRIME BOOKSHELF 13

PRIMECENTER 14

PRIMESATELLITE 15

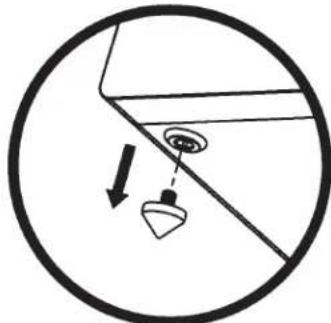

SETTING UP YOUR PRIME SPEAKERS FOOT OPTIONS

The Prime Tower speakers come packaged with two sets of foot support options that allow optimal placement on a variety of floor substrates. The Elastomer Isolation feet that come pre-installed on the Prime Towers can be removed (unscrew to remove) and replaced with the included Threaded Metal Spike kit. Both sets of feet are threaded to allow easy leveling of the Prime Towers if they should stand on an uneven surface.

Elastomer Isolation Feet

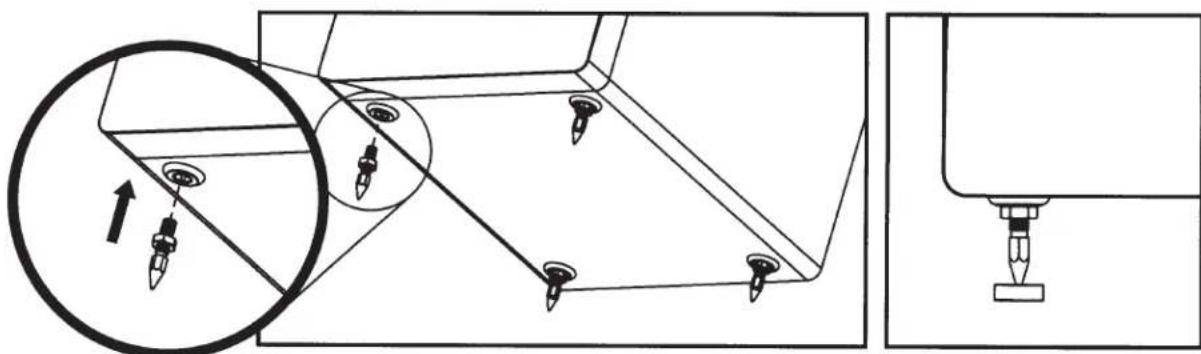

Threaded Metal Spikes

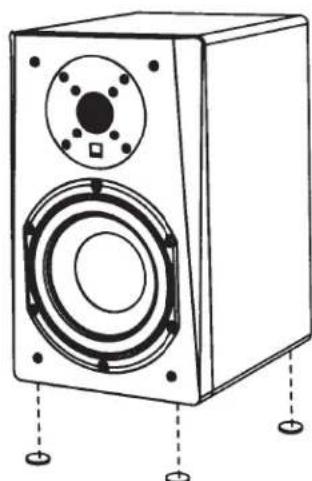

The Prime Bookshelf, Prime Center and Prime Satellite also include stick-on bumper kits that can be attached to the bottom of your speakers to protect them when placed on speaker stands and other surfaces.

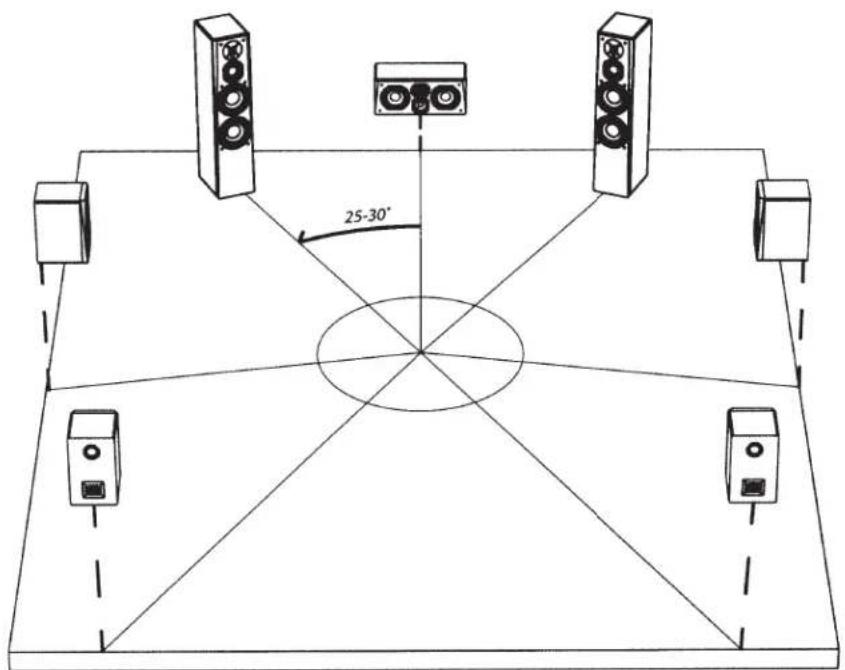

Front Left/Right Loudspeaker Placement and Room Acoustics:

Proper placement of the front left/right speakers is essential to achieve the smoothest frequency response, optimal stereo imaging and the most spacious, three-dimensional soundstage.

Stereo imaging and soundstage are affected by loudspeaker location and the listening position, relative to each other and room boundaries. Moving the loudspeakers away from room boundaries will tend to improve stereo imaging and spaciousness by attenuating and delaying boundary reflections, thus optimizing direct sound and helping to preserve spatial information in the recording.

The amount of exposed glass, drywall and bare flooring in the room will increase the amount of reflected sound and exacerbate problems like slap echo and ringing. Conversely, furnishings like carpeting, drapes and upholstered furniture will reduce the amount of reflected sound in the room. The ratio of direct-to-reflected sound and the decay characteristics of the listening environment will have a large influence on the ultimate sound quality of any loudspeaker system. Dedicated room treatments like absorbers, diffusers and bass traps can greatly improve the sound quality of any listening environment, and are encouraged to extract the absolute best performance from any high-end loudspeaker system.

SVS recommends starting with the front loudspeakers located 30-degrees to the left and right (i.e., a 60-degree total window) of the listening position.

Toeing-in the loudspeakers 5-10 degrees can often improve imaging, however this is also a function of the distance from nearby boundaries and the ratio of direct-to-reflected sound, so experimentation with toe-in is recommended to obtain optimal results.

The location of the front loudspeakers relative to nearby boundaries will excite various room modes (a complex pattern of standing waves with associated peaks and nulls), which will affect the bass response of the loudspeakers. Generally, placing the loudspeakers closer to room boundaries (particularly corners) will increase the bass response. Conversely, moving the loudspeakers away from boundaries and corners will reduce the bass response. Due to the complex interaction of the loudspeakers with nearby boundaries/corners and your listening position, significant changes to the bass response can occur with very small changes in either loudspeaker location or listening position, so experimentation with both placement and listening position is recommended to obtain optimal results.

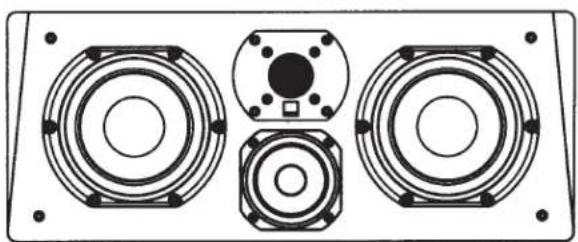

Center Channel Placement

The center channel should be placed directly on-axis, relative to the primary seating position. As with the main front speakers, placing the tweeter at/near head level when seated is optimal. But depending on the placement of the video display or projection screen, this is not always possible.

If the center channel must be located below head level, then an upward tilt of the speaker is recommended to improve mid/high frequency response and dialogue intelligibility.

Prime Center

PrimeSatellite

Note: When purchased as a matching surround package, the versatile Prime Satellite functions as all channels of the system, including the center channel.

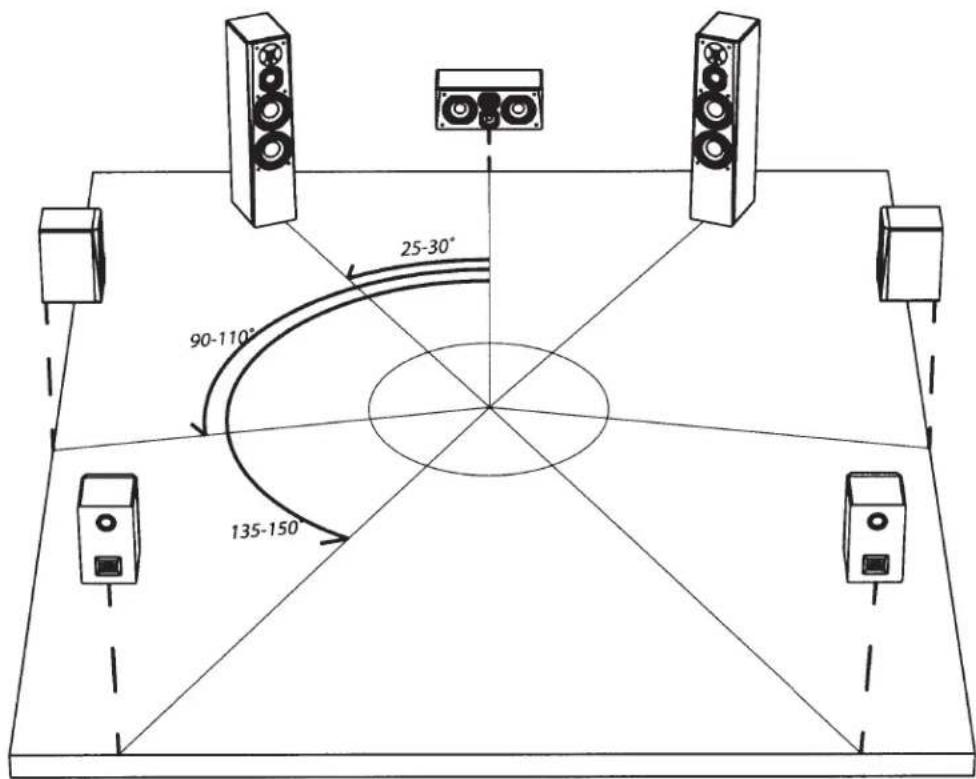

Surround Speakers

In a 5-channel system, the side surround speakers should be located 90-110 degrees off-axis. For the best sense of spaciousness, the tweeter height should be about 2 feet above ear level.

In a 7.1 system, dedicated rear surround speakers are placed behind the primary seating position for enhanced rear panning effects.

Place the rear surround speakers at 135-150 degrees off-axis, relative to the primary seating position. As with the side surround speakers, position the rear surround tweeters about 2 feet above head level when seated.

9.1 and 11.1 Systems

The recent development of 9 and 11 channel surround sound processors brings Wide and Height 'presence' channels into the system to even further enhance sound stage spaciousness and immersion.

Since native Blu-ray formats are currently only available in 7.1, the use of Wide or Height speakers requires the use of an upconverting algorithm in the surround sound processor - like Audyssey DSX, DTS Neo:X and Dolby ProLogic IIz.

Wide Speaker Channels

The wide speaker channels are intended to be placed between the main front speakers and the side surround speakers. The goal of the wide speaker is to minimize any gaps in panning and imaging between the front main speakers and the side surround speakers and provide an additional sense of envelopment.

The optimal location for the wide speakers is about 60 degrees off-axis, relative to the primary seating position. Audyssey recommends that the wide speakers be placed at head level when seated.

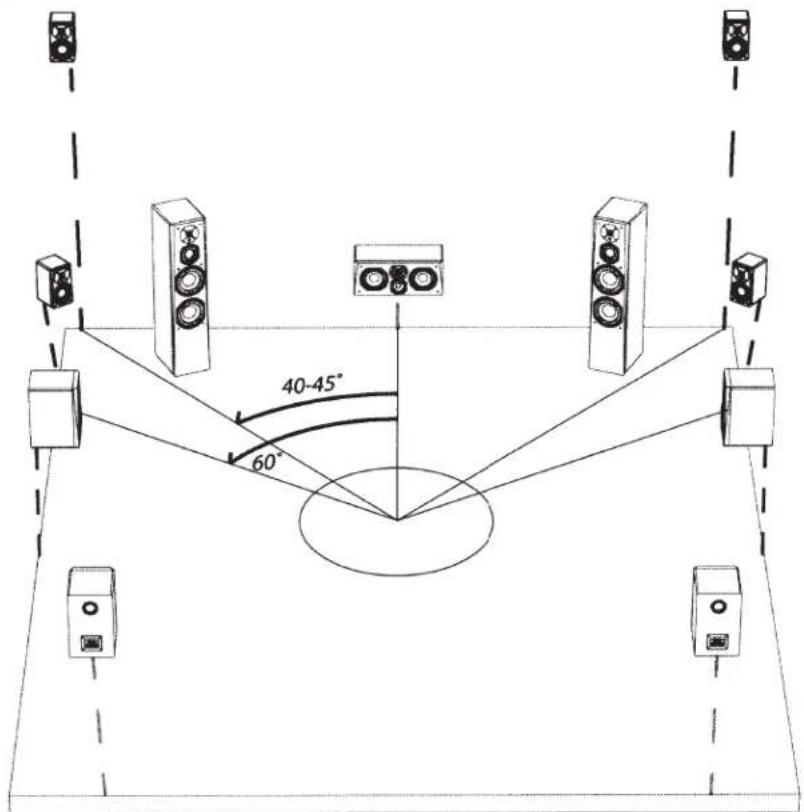

Height Speaker Channels

The height speaker channels should be placed in the upper left/right corners of the front stage. Typically this will be 40-45 degrees off-axis and about 8 feet in height. A downward tilt of the speaker will improve mid/high frequency response and reduce ceiling bounce reflections.

The height speakers enhance imaging in the vertical plane, and can even be used to create sound effects which seem to come from directly above the listening position, which provides total immersion into the surround sound experience.

Mounting Your Prime Satellites

Each Prime Satellite comes from the factory ready to be wall or ceiling mounted. The Prime Satellite features two convenient ways to mount the speaker - an included key-hole bracket and an included 1/4 -20 threaded insert. Both installation methods are discussed below.

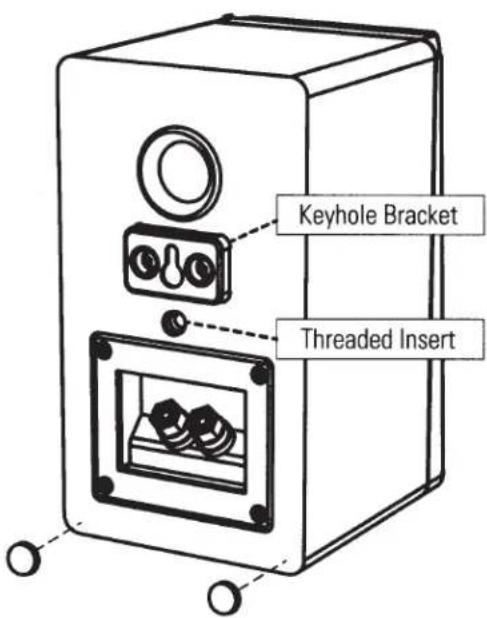

Mounting Prime Satellite Using the Included Key-Hole Bracket

The keyhole bracket makes wall mounting the Prime Satellite a simple and convenient process. Simply attach a screw to the wall at the desired mounting location, and insert the keyhole bracket of the speaker over the head of the screw until the speaker rests securely in place. Before hanging, be sure to attach a set of the included rubber bumpers to each lower back corner of the Prime Satellite. These will help keep the speaker level, and prevent spinning on the wall.

When attaching the screw to your wall, it is best to attach it directly into a structural part of the wall, like a stud. If mounting directly to a stud is not a viable option, use drywall or masonry anchors rated to support weights of 10 pounds or more.

Mounting Prime Satellite Using the 1/4 -20 Threaded Insert

The Prime Satellite features a threaded insert with 14 - 20 size machine screw thread. This threaded insert allows convenient wall or ceiling mounting of the Prime Satellite using a conventional speaker bracket with a 14 - 20 threaded mount. Select a speaker bracket with at least a 7 pound weight rating.

Mount the speaker bracket in accordance with the manufacturer's installation instructions.

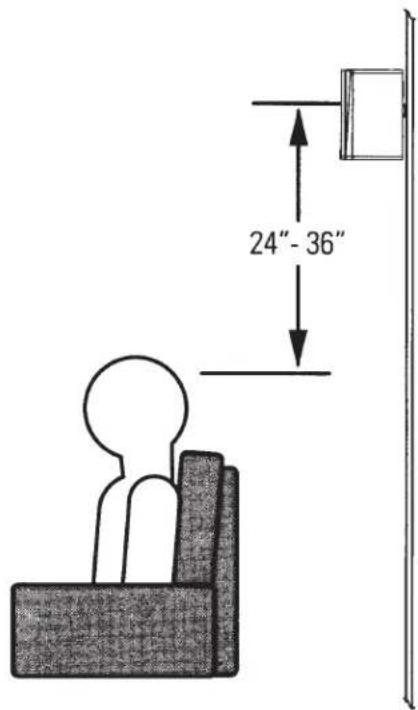

Recommended Mounting Height

For side/rear surround applications without overhead (i.e., Atmos, DTS:X, Auro-3D) speakers, we recommend mounting the Prime Satellite about 2-3 feet above head level when seated.

For side/rear surround applications with overhead (i.e., Atmos, DTS:X, Auro-3D) speakers, we recommend mounting the Prime Satellite 1-2 feet above head level when seated.

For ceiling mounting the Prime Satellite for use as an overhead (i.e., Atmos, DTS:X, Auro-3D) speaker, follow the mounting location recommendations issued by Dolby, DTS or Auro-3D.

Please contact our Sound Experts if you have any questions or concerns about wall or ceiling mounting your Prime Satellite.

[e-mail] [phone]

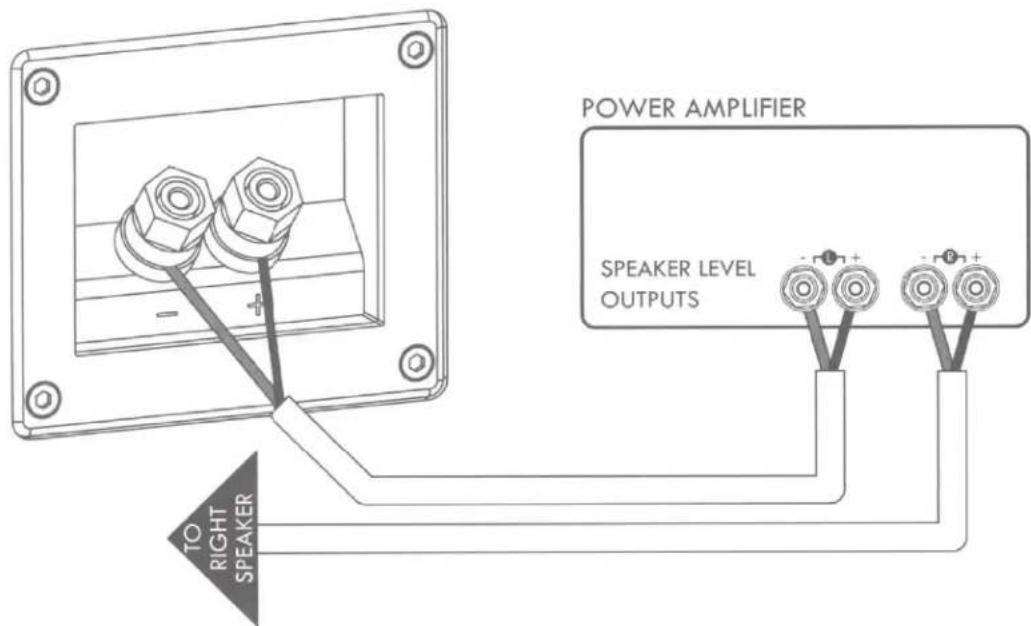

Connecting Your Speakers

All Prime Speakers include terminals with convenient gold-plated 5-way binding posts, which will accept wires terminated with banana plugs, speaker pins, spade connectors and of course, bare wire. Simply attach each Prime Speaker to the appropriate amp channel of your receiver/power amplifier.

To assure proper performance of your speakers, always be sure to maintain proper polarity between the speaker and the amplifier.

SPEAKER WIRE - GAUGE/LENGTH RECOMMENDATIONS
18 gauge (AWG)	< 10ft
16 gauge (AWG)	< 25ft.
14 gauge (AWG)	< 50ft.
12 gauge (AWG)	< 75ft.

CARING FOR YOUR PRIME SPEAKERS

Your Prime Speakers may be gently cleaned as follows:

• Use a dry microfiber duster to remove any loose surface dust.
• Use a water-damp microfiber cloth to remove fingerprints, smudges and other contaminants. Wipe in one direction only.
• Follow any damp cleaning immediately with a dry microfiber cloth. Again dry wipe in one direction only.

5-YEAR UNCONDITIONAL WARRANTY

SVS offers the industry's most comprehensive warranty on all our products. SVS warrants these Prime Speakers and all of its products to be free from defects in the workmanship for 5 years from date of purchase.

This, and all of the SVS customer Bill of Rights can be viewed online at www.svsound.com/bill-of-rights.

SHARE YOUR THOUGHTS

At SVS, we strive to deliver products that surpass every expectation and provide unbeatable value. After you have had an opportunity to install and audition your Prime Speakers, please share your comments for our team and other customers to see.

Write a review at svsound.com

Post at facebook.com/SVSound

Tweet @SVS_Sound

PRIME SPEAKER FEATURES & SPECIFICATIONS

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE. SVS IS CONSTANTLY WORKING TO IMPROVE OUR PRODUCTS AND GIVE YOU, THE CUSTOMER, THE BEST LISTENING EXPERIENCE FROM YOUR PURCHASE.

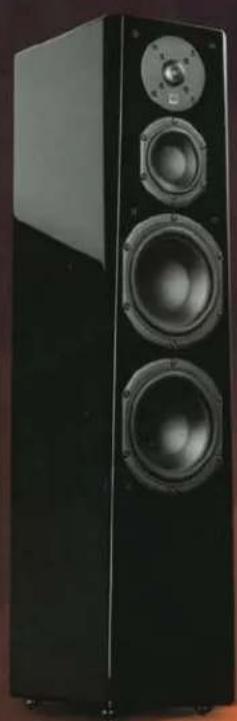

PRIMETOWER

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 30 Hz-25 kHz (+/-3 dB)
  Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
  Recommended amplifier power: 20-250 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• Dual 1.7" wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Cabinet Dimensions: 36" (H) X 8" (W) X 10.8" (D).
• Overall Dimensions: 36.6" (H) X 8" (W) X 11.6" (D) (includes grille, feet and binding posts).
  Weight Unboxed: 40.1 pounds.

Driver Array and Technical Highlights:

• 1" tweeter features FEA-optimized diffuser and aluminum dome.
• 4.5" midrange driver features polypropylene cone, aluminum shorting ring, cast ABS-fiber-glass composite basket and vented voice coil former.
• Dual 6.5" woofers feature long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 3.5-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Tapered woofer array optimizes the transition to the midrange driver and reduces vertical axis lobing.
• Midrange-to-tweeter crossover: 2.1 kHz (12 dB/octave slopes).
• Top woofer (Combined Woofer) to midrange crossover frequency: 350 Hz (12 dB/octave slopes).
• Bottom woofer low pass frequency: 165 Hz (customized filter Q and slope).

Cabinet Construction Technical Highlights:

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality.
• Separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response.
• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Champered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

PRIME BOOKSHELF

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 48 Hz-25 kHz (+/-3 dB).
  Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
  Recommended amplifier power: 20-150 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
  1.7" wide-flared rear-firing port.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Cabinet Dimensions: 13.2" (H) X 8" (W) X 9.4" (D).
• Overall Dimensions: 13.3''(H) × 8''(W) × 10.3''(D) (includes grille, binding posts and bumper feet).
  Weight Unboxed: 15.5 pounds.

Driver Array and Technical Highlights:

• 1" tweeter features FEA-optimized diffuser and aluminum dome.
• 6.5" woofer features long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
  Crossover network delivers outstanding phase coherency and time domain behavior.
• Tweeter-to-woofer crossover: 2.3kHz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Champered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

PRIME CENTER

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 48 Hz-25 kHz (+/-3 dB).
  Nominal impedance: 8 ohms.
• Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz)
  Recommended amplifier power: 20-200 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• Dual 1" wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Cabinet Dimensions: 7.6" (H) X 18.6" (W) X 8.3" (D).
• Overall Dimensions: 7.7'' (H) × 18.6" (W) × 9.2" (D) (includes grille, binding posts and bumper feet).
  Weight Unboxed: 20.2 pounds.

Driver Array and Technical Highlights:

• Vertically aligned tweeter and midrange reduces lobing and comb filtering along the horizontal axis.
• 1" tweeter features FEA-optimized diffuser and aluminum dome.
• 3.5" midrange driver features polypropylene cone, aluminum shorting ring, cast ABS-fiber-glass composite basket and vented voice coil former.
• Dual 5.25" woofers feature long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Midrange-to-tweeter crossover: 2.4kHz (12 dB/octave slopes).
• Wooper-to-midrange crossover: 350 Hz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality.
• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Champered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

PRIME SATELLITE

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 69 Hz-25 kHz (+/-3 dB).
  Nominal impedance: 8 ohms.
• Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz).
  Recommended amplifier power: 20-150 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• 1" wide-flared rear-firing port.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off).
• 1/4 " brass insert for use with other bracket mounting systems.
• Cabinet Dimensions: 8.75" (H) X 4.9" (W) X 5.53" (D).
• Overall Dimensions: 8.85'' (H) × 4.9'' (W) × 6.3'' (D) (includes grille, bracket, binding posts and bumper feet).
  Weight Unboxed: 6.5 pounds.

Driver Array and Technical Highlights:

• 1" tweeter features FEA-optimized diffuser and aluminum dome.
• 4.5" woofer features polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
  Crossover network delivers outstanding phase coherency and time domain behavior.
• Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Champered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

The Perfect Fusion of Audio Innovation and Passion.

World class audio products are created when engineering excellence meets a passion for uncompromised sound quality. SVS speakers, subwoofer and accessories embody this principle and refute the notion that high performance audio needs to be outrageously expensive.

Our energy is evident in every review and award our products earn and is brought to life with every emotionally and viscerally charged sonic moment they inspire.

SVs. Join the Sound R|Evolution.

SVSound.com

SVS Subwooofers

PB16-Ultra Subwoofer

SB16-Ultra Subwoofer

Immense power and bottomless low frequency extension with pitch perfect accuracy and pinpoint speed in transients. The ultimate sealed box subwoofer.

Earth-shaking levels of bass far below human hearing limits, yet incredibly accurate, detailed and controlled. The ultimate ported box subwoofer.

16-Ultra Series Subwooofers

Supreme low frequency output and deep bass extension far below the limits of human hearing, the SYS 16-Ultra subwoofoers also deliver pinpoint accuracy and transient speed and feature groundbreaking audio innovations. The 16-Ultra series are the subwoofoers by which all others are judged.

Massive All New 16" Ultra Driver with Unprecedented 8" Edge Wound Voice Coil.
Stunningly Powerful, New Class D Sledge Amplifier with Fully Discrete Output and 1,500 Watts Continuous, 5,000+ Watts Peak Power.
App for Apple® and Android® Controls all DSP Functions and Stores Custom Presets.

NEW! SVS 4000 Series Subwoofoers

Featuring technology from the 16-Ultra Series; named top subwoofoers in the world by nearly every audio publication and industry group in 2017, the 4000 Series demolish all preconceived notions about subwoofer performance and technology, bringing reference quality bass to the lowest price ever.

1,200 Watts Continuous, 4,200+ Watts Peak Dynamic Amplifier with Fully Discrete MOSFET Output.
High Excursion 13.5" Glass Fiber Composite Driver.
Sophisticated 50Mhz High Resolution Analog Devices Audio DSP.

App for Apple® and Android® Controls all DSP Functions and Stores Custom Presets.

PB-4000 Subwoofer

SB-4000 Subwoofer

Massive output with pinpoint accuracy, a top choice for audiophile music and home theater systems that leaves larger and more expensive subwooferstrembling in its wake.

Staggering low frequency output and deep bass extension down to 13Hz with an amazing degree of subtlety and finesse to thrill both action movie buffs and audiophiles with extreme performance.

With a footprint just 16" in diameter, the iconic cylinder subwoofer design is only available from SVS and achieves unparalleled low frequency output and deep bass extension per inch of foot-space.

PC-4000 Subwoofer

"SVS has taken clean, deep bass to another level. The 16-Ultras push the envelope in every respect."

Audioholics

"A concrete fist inside a velvet glove, the 16-Ultra subwoofoers are fit for the finest of home theaters."

European Imaging and Sound Association

"I've heard almost all of the top subwoofoers currently on the market. The SB16-Ultra sounds like none of them. It's a whole different category of low-frequency sound."

HomeTheaterReview

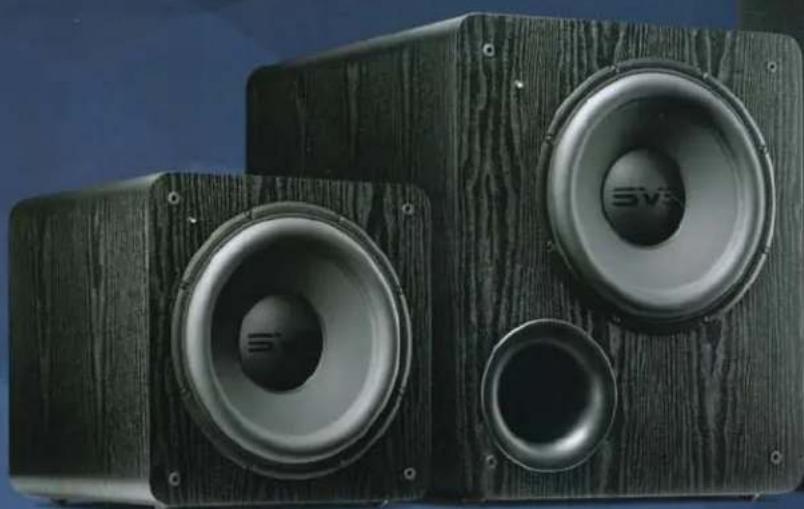

SVS 2000 Series Subwoofoers

The best-selling SVS 2000 Series subwoofoers deliver deep low frequency extension and effortless power with pinpoint accuracy and speed in transients, redefining bass performance under $1,000.

Award-winning technology adapted from SVs Ultra subwoofoers.
Optimized high output, low distortion 12-inch driver.
Powerful and sophisticated 500 watts continuous, 1,100 watts peak Sledge Amplifier.

SB-2000 Subwoofer

Shocking deep bass extension and power with pinpoint accuracy and benchmark setting performance for a subwoofer under $1,000.

PB-2000 Subwoofer

Room-shaking power and unprecedented low frequency extension down to 17Hz while remaining a musical and accurate subwoofer.

PC-2000 Subwoofer

Iconic SVS cylinder design uses cabinet height to reduce footprint while delivering the immense output and low frequency extension of a larger subwoofer.

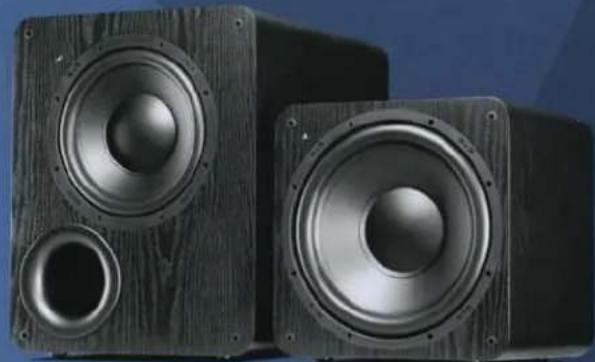

SVS 1000 Series Subwooofers

Compact and commanding with astonishing power, the SVS 1000 Series changed the subwoofer game by bringing legitimately deep palpable, room filling bass to a groundbreaking low price.

Extreme low frequency output and extension from compact cabinets.
Vastly outperform much larger and more expensive subwoofoers.
Powerful and sophisticated 300 watts continuous, 720 watts peak power Sledge amplifier.

PB-1000 Subwoofer

Ported box subwoofer with 10^ driver delivers massive power and ground-shaking low frequency impact without sacrificing detail and accuracy.

SB-1000 Subwoofer

Expectation shattering sealed box subwoofer with 12^ driver sets bar for low frequency performance from a super compact cabinet.

"SVS is offering technology normally reserved for subwoofoers two or three times the asking price of 2000 series."

Audioholics

"Wall-shaking, glass-rattling, floor-rambling boss..."

HomeTheaterHifi

"The PB-2000 gave me a kick in the chest...It sounds great with both music and movies."

HighDefDigest

"The kind of forceful, yet detailed bass that we would expect from more powerful and certainly more expensive subwooers."

AVForums

"The 1000 Series subwoofer astonished me with their depth

and clarity. There's no better value in audio today."

GoodSound

SVS Speakers

From first sketch to final voicing, every step in the SVS speaker design process is aimed at surpassing the audio performance benchmarks of costlier speakers. Music movies and every immersive listening moment are rendered with flawless balance, depth and detail for a level of sonic excellence and value that's unmistakably SVS.

Pinpoint Accuracy

Crisp, clear and precise sound with a convincing and expansive soundstage.

Immersive Full Range Sound

Stunning dynamics with airy, unveiled highs, smooth midrange and deep low frequency extension.

Innovative Engineering

State-of-the-art acoustics developed through rigorous engineering and exhaustive real world testing and critical listening.

Uncompromised Build Quality

Premium materials and internal components assembled with exacting attention to detail.

"This is the speaker system to beat this year and for years to come."

DigitalTrends

"Remarkable speakers at a head turning price... their performance stands toe to toe with much more expensive contenders."

Audioholics

HOMETHEATER

BEST OF AWARD

"Dynamics of a theater system, neutrality and ambience of an audiophile system... Certified and Recommended."

Sound & Vision

ed turning price...e to toe with muchtenders."

"More detailed and more 'hi-fi' than anything at this price."

CNET

"Gone are the days where you need a six figure audio system to be the envy of your friends...a real price-performance achievement."

ThePoorAudiophile

SVS Ultra Series Speakers

Acoustic innovations and uncompromised design elements applied through rigorous design and engineering are at the heart of each reference SVS Ultra Series speaker. Flawless, full-range performance, audiophile refinement, and massive cinema and concert level sound; world class audio experiences are now within everyone's reach.

Proprietary, FEA-optimized technology and sophisticated design elements convey the full emotion, impact and artistry of music and home theater.
High end driver materials, precision construction techniques and innovative SoundMatch crossover design for revealing transparency, ultra-smooth frequency response, enhanced sweet spot and amazingly rich and articulated bass.
Enhanced cabinet geometry and construction yield numerous acoustic benefits to ensure detailed and accurate response at the highest drive levels. Every angle and feature has a sonic purpose.

Ultra Bookshelf Speaker

Reference bookshelf speakers with astonishing dynamics and imaging, unveiled highs and amazing low frequency extension. Unreservedly stakes a claim as the best bookshelf speakers under $1,000.

Ultra Tower Speaker

Standing toe-to-toe with the finest speakers in the world, the flagship SVS model commands a room with deep and articulated bass, incredible resolution, absolute transparency, and crisp powerful dynamics, outperforming speakers many times the price.

Ultra Center Speaker

Reference 3-way center channel speaker delivers airy, unveiled highs with uncompromised clarity for unerring realism and dialogue intelligibility, all with outstanding dispersion characteristics for accurate frequency response at all listening positions.

Ultra Surround Speaker

Unique dual isolated SoundMatch crossovers allowing for bipole, dipole, or unique SVS Duet Mode, which creates two separate speakers within one cabinet. Charged dynamics and detailed soundstage 'ender seamless sonic transitions and hard-hitting home theater effects.

"Knocked it out of the park on sound and build quality with the high-value, full-range Ultra speaker line."

Sound & Vision

"The wondrous boss and effortless, soaring clean and pure highs were able to entertain as well as unnerve."

HomeCinemaChoice

"Delivers the boss and sound of speakers costing twice as much. No other speakers deliver tonal range as accurate."

Consumer Digest

"Superb clarity, classy looks, a wide soundstage and an unbelievable low end. The SVS Ultra is the Best Bookshelf speaker under $1,000."

TheMasterSwitch

"It is far and away the best performing, and looking system at this price point, and even twice the amount."

MissingRemote

SVS Prime Series Speakers

Immersive and high-end in every way, the SVS Prime Series apply innovations from the award-winning Ultra Series to set the benchmark for speaker performance value. Uncompromised sound quality, stunning dynamics, and impeccable design: amazing audio experiences have never been more attainable.

Technology from the Ultra Series applied with rigorous attention to the finest details of acoustic voicing, exacting engineering, component design and build quality.

Proprietary SVS drivers, innovative SoundMatch crossover and high end materials render silky smooth frequency response, crisp dynamics, effortless bass, and a generous, convincing soundstage.
Exhaustive anechoic measurement, real-world testing and critical listening ensure utter transparency, pinpoint accuracy and full-bodied frequency response.

Prime Bookshelf Speaker

Class-defining full range bookshelf speaker delivers amazing sound quality and dynamics as main, surround or other speakers in a 2-channel audiophile, desktop or home theater system.

Prime Center Speaker

True 3-way center channel delivers crystal clear and natural sounding dialogue and vocals with an expansive soundstage and excellent dispersion for a convincing home theater experience.

PrimeSatellite Speaker

A true audiophile experience in an unprecedently compact and decor-friendly design. Serves admirably as front, center, surround or height effect speaker with astonishing detail and output.

Prime Tower Speaker

Exceptional clarity, flawless tonal

balance and room-energizing bass

response set the benchmark for

floorstanding speakers under $1,000

Outclasssspeakers costing two and

three times their price.

Prime Elevation Speaker

An uncompromised height effects speaker for Dolby Atmos

DTS:X and Auro-3D and a multi-purpose high performance

front, center, rear surround, side surround and/or LCR

speaker when ideal room placement isn't possible.

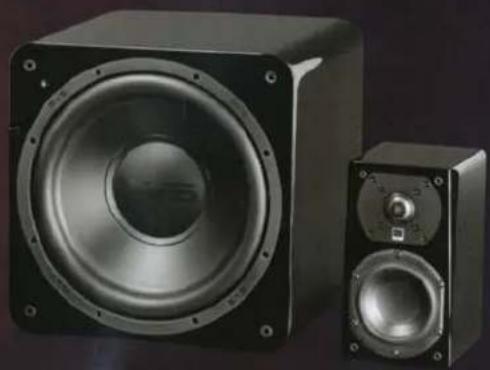

PrimeSatellite5.1 System

Five massive sounding Prime Satellite Speakers and a stunningly powerful SB-1000 Subwoofer punch well above their weight class in a compact, lifestyle friendly 5.1 home theater system that brings bass you can feel and enveloping surround sound to any small-medium sized room.

HOMETHEATER

2016

BEST OF AWARD

The Prime Series are flowless in performance.

Audiophile grade home theater at a fraction of the cost."

AVTechReviews

"Solid performance, striking design, exceptional build quality and all at a price point that is remarkable."

HomeTheaterForum

The best speaker surround sound system under $1,000. Congratulations, SVS. The old king is dead, long live the new king."

HomeTheaterReview

"Performed spectacularly...best-sounding affordable speakers I've heard. I found myself preferring their precision to the sound coming from considerably pricier speakers."

AVSForum

"Effortless performance, elegant design, and striking value. SVS' Prime Series hits the ultimate sweet spot in the audiophile segment."

DigitalTrends

SVS SoundPath Accessories

Filling the void between exorbitantly priced audio accessories, and the cheapest compromised solutions, SVS SoundPath accessories are painstakingly engineered with premium materials to ensure the purest possible connections between all AV components.

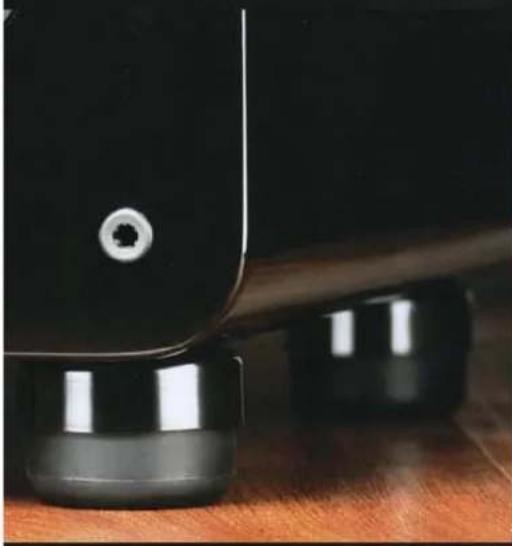

SoundPath Subwoofer Isolation System

Works with nearly every subwoofer brand and model to improve bass performance while reducing floor and wall vibrations, noise artifacts and complaints from neighbors or roommates by de-coupling a subwoofer from the floor.

SoundPath Interconnect Cable

SoundPath Interconnects reject interference while providing a pristine connection between your subwoofer or other components and a receiver or preamplifier.

SoundPath Ultra Speaker Cable

Hand-soldered with custom terminations by our Ohio craftsman to any length you desire, SVS SoundPath Ultra Speaker Cables ensure pristine signal purity so your speakers perform with uncompromising fidelity.

The SVS Community - A shared passion for immersive audio experiences...

"Subtle but punchy with music and then roars to life with movies... the best home theater purchase I've ever made!"

A.Flores

"They have rekindled my love for music and are worth every penny." OCTrainer

"NOTHING even comes close to the power, feel, and subtlety to fill in what you never knew was missing from, well everything!"

Robert

"So delicate when it needs to be, yet so immensely powerful when the time is right."

Zodiarkk

REGISTER

Register Your New SVS Product:

Thank you for choosing SVS! Registering your SVS product expedites any Sound Experts support requests, confirms your warranty registration and provides a proof of purchase. Plus, as a registered customer, you'll be the first to get SVS news and updates.

Register your product now at: www.svsound.com/register

PrimeSatelliteSpeaker

SN:

Design and Engineering by SyS, Ohio USA Made in P.R.C. Exclusively for SyS
