Marque	Intermec
Modèle	Thermal Printhead (EasyCoder 501)
Type de produit	Imprimante thermique industrielle
Technologie d'impression	Thermique direct / Transfert thermique
Résolution d'impression	203 dpi (8 dots/mm) ou 300 dpi (11.81 dots/mm)
Dimensions approximatives (L x P x H)	500 x 300 x 350 mm
Poids approximatif	15 kg
Alimentation	100-240 V AC, 50/60 Hz
Interfaces	Série RS-232, parallèle, RS-422/485, interface industrielle
Mémoire	RAM 1 Mo (extensible via carte mémoire)
Types de supports	Étiquettes, étiquettes sans liner, fanfold, rouleaux
Largeur max. du support	120 mm
Mécanisme de coupe	Coupe papier standard ou sans liner (option)
Capteurs	Fin de ruban, étiquette, prise d'étiquette, faible support/ruban
Variantes de modèles	EasyCoder 501 S, E, SA, LL
Pièces détachées principales	Tête d'impression thermique, rouleau plaque, moteurs, capteurs, cartes CPU
Entretien	Nettoyage régulier de la tête d'impression et du capteur avec des cartes de nettoyage
Sécurité	Fusible 6,3 A, interrupteur marche/arrêt, mise à la terre
Accessoires inclus	Guide d'installation, câbles d'interface selon variante
Notice disponible	PDF 39 pages en français, téléchargeable gratuitement

FOIRE AUX QUESTIONS - Thermal Printhead Intermec

Comment nettoyer la tête d'impression thermique ?

Utilisez une carte de nettoyage (réf. 1-110501-00) après chaque changement de ruban ou en cas de baisse de qualité d'impression. Coupez l'imprimante et ouvrez le capot, nettoyez délicatement la tête avec le côté non abrasif de la carte.

Quelle est la résolution d'impression disponible ?

Deux têtes d'impression sont disponibles : 203 dpi (8 dots/mm) et 300 dpi (11,81 dots/mm). Vérifiez la référence de votre tête pour connaître la résolution.

Comment remplacer le ruban transfert thermique ?

Ouvrez le capot, retirez le ruban usagé (bobine vide) et installez un nouveau ruban en suivant les guides des unités de déroulement et de rembobinage (pages 11-13 de la notice). Assurez-vous que le capteur de fin de ruban est correctement positionné.

Que faire si l'imprimante n'imprime pas ?

Vérifiez d'abord que l'alimentation est branchée et que l'interrupteur est allumé. Inspectez le câble d'interface (RS-232 ou parallèle) et les connections. Assurez-vous que le support et le ruban sont correctement chargés. Si le voyant d'erreur clignote, consultez le code erreur dans la notice.

Quels types d'étiquettes puis-je utiliser ?

L'imprimante accepte des étiquettes en rouleau (maximum 120 mm de large), des étiquettes sans liner (modèle LL), du fanfold, et du support continu. Les rouleaux peuvent être montés sur le mandrin avec adaptateur 3 pouces (option).

Comment ajouter une interface série RS-422/485 ?

Le kit d'interface RS-422/485 (réf. 1-040557-00) s'installe sur la carte CPU. Suivez les instructions fournies dans le kit, incluant câble, plaque de recouvrement et vis. L'imprimante doit être hors tension lors de l'installation.

Où se trouve le fusible de l'imprimante ?

Le fusible (6,3 A, 5x20 mm, norme IEC) est situé sur la carte CPU (repère FY-300). Pour le remplacer, débranchez l'imprimante et ouvrez le capot. Utilisez un fusible identique.

Comment calibrer le capteur d'étiquette ?

Le capteur d'arrêt d'étiquette (label stop sensor) se trouve près du mécanisme d'impression. Pour le calibrer, chargez un rouleau d'étiquettes et lancez une procédure d'auto-calibrage via le logiciel ou le panneau de commande. Ajustez si nécessaire la position du capteur.

Puis-je utiliser l'imprimante sans ruban (thermique direct) ?

Oui, si vous utilisez du papier thermique direct. Dans ce cas, retirez le ruban et désactivez le capteur de fin de ruban via le logiciel. La température d'impression peut être réduite pour éviter de brûler le support.

Quels sont les codes d'erreur courants ?

Les codes d'erreur sont affichés sur le panneau. Par exemple, 'Ribbon End' indique que le ruban est épuisé, 'Label Out' signifie qu'il n'y a plus d'étiquettes, 'Head Open' que le capot est ouvert. Consultez le manuel pour la liste complète des codes.

MODE D'EMPLOI Thermal Printhead Intermec

Spare Parts Catalog

P/N 1-960328-08

Edition 9

October 2001

EasyCoder 501

Bar Code Label Printer

Introduction

Contents

1. Introduction

Contents. 1

Spare Parts Policy 2

EasyCoder 501 S General View 3

EasyCoder 501 E General View 4

EasyCoder 501 SA General View 5

EasyCoder 501 LL General View. 6

2. Spare Parts

Keyboards 7

Bottom Plate 8

Print Unit (EasyCoder 501S, 501 E, & 501 SA) 9

Print Unit (EasyCoder 501 LL) 10

Ribbon Supply Unit. 11

Ribbon Rewind Unit. 12

Ribbon End Sensor 13

Media Supply Spool 14

3-inch Bobbin Adapter 15

Media Roll Retainer 16

Guide Shaft 17

Label Slack Absorber 18

Liner/Batch Takeup Unit. 19

Takeup Guide Plate 20

CPU Board. 21

Transformer Unit 22

Dual Serial Interface Kit. 23

Parallel Interface Kit. 24

RS-422/485 Serial Interface Kit 25

Industrial Interface Kit 26

Memory Card Adapter Kit 27

Label Taken Sensor Kit 28

Sensor Kit (Media Low/Ribbon Low) 29

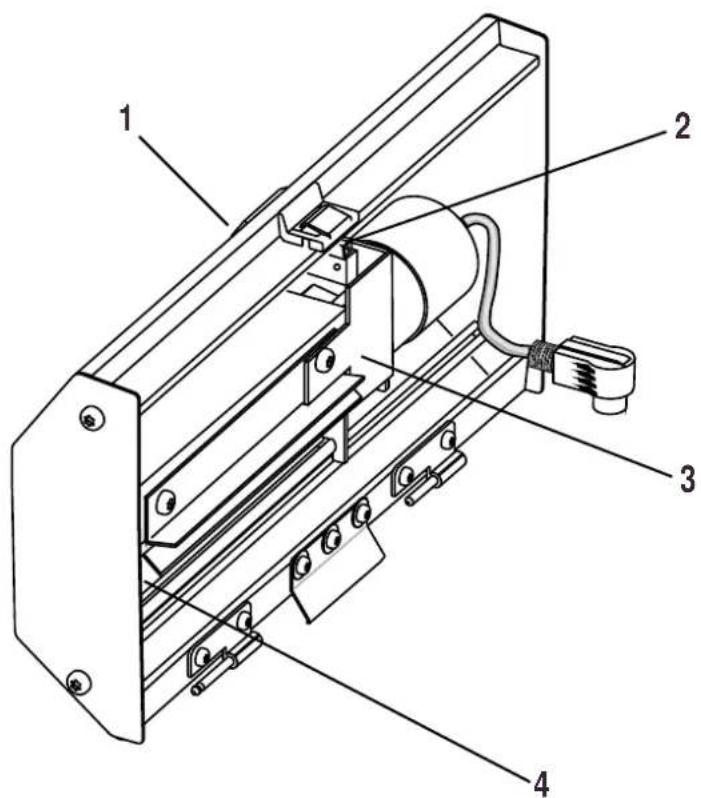

Paper Cutter (Standard model) 30

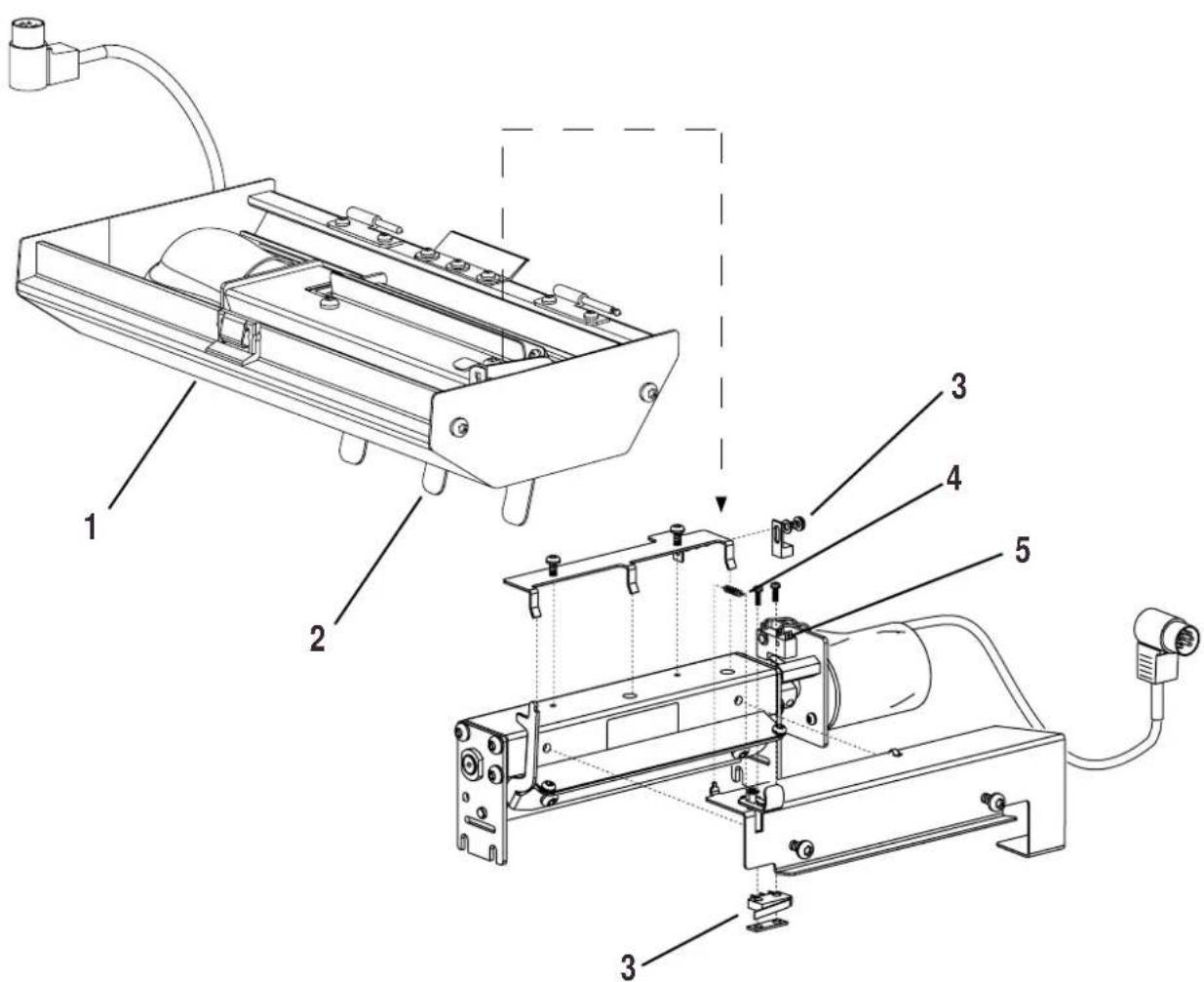

Paper Cutter (LinerLess model) 31

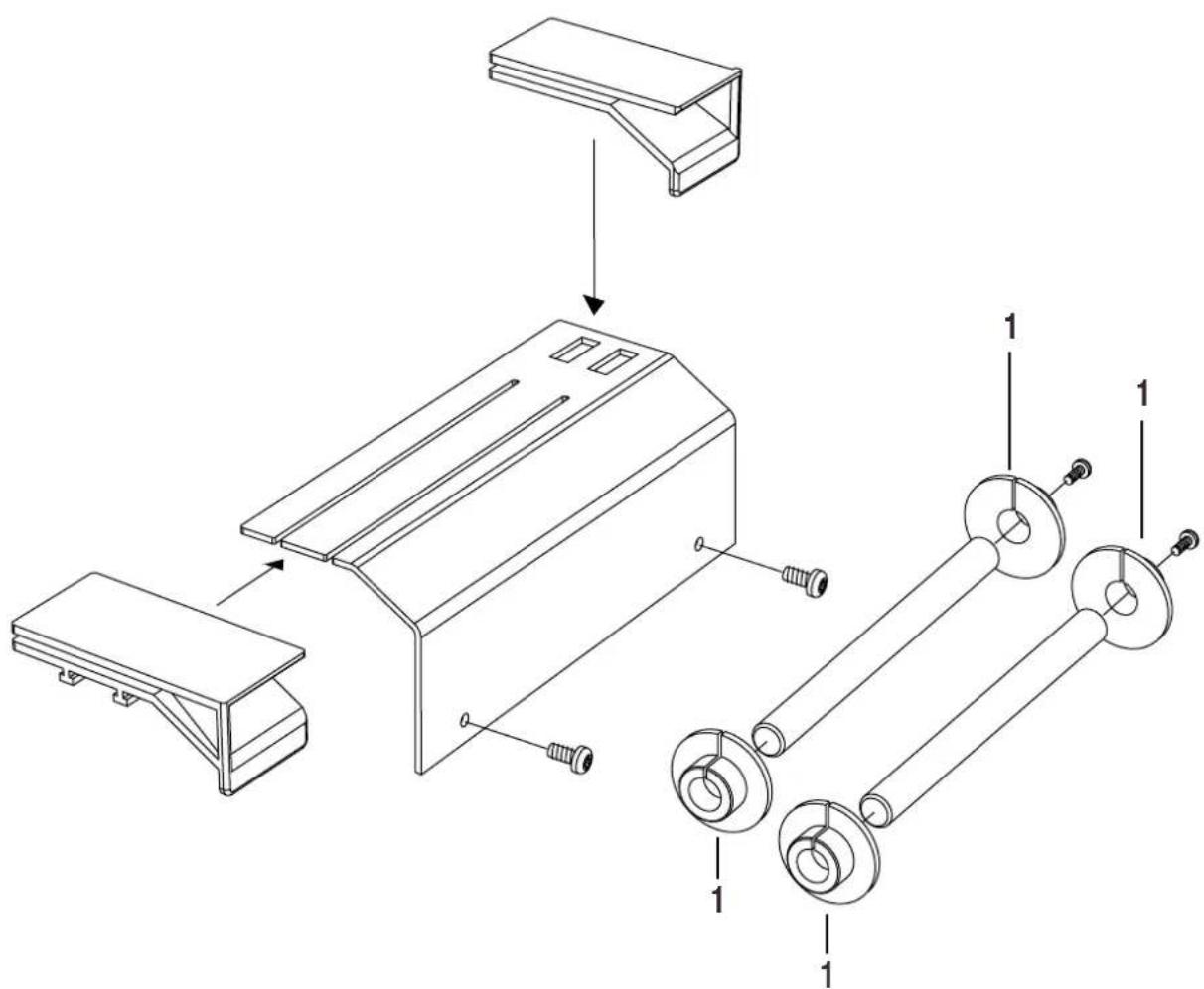

Fan Fold Guides. 32

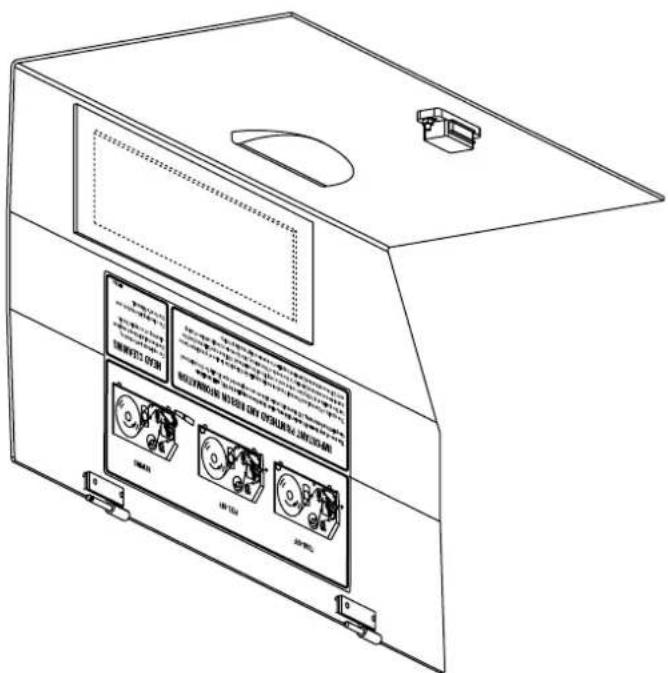

Right-Hand Door with Inspection Window 33

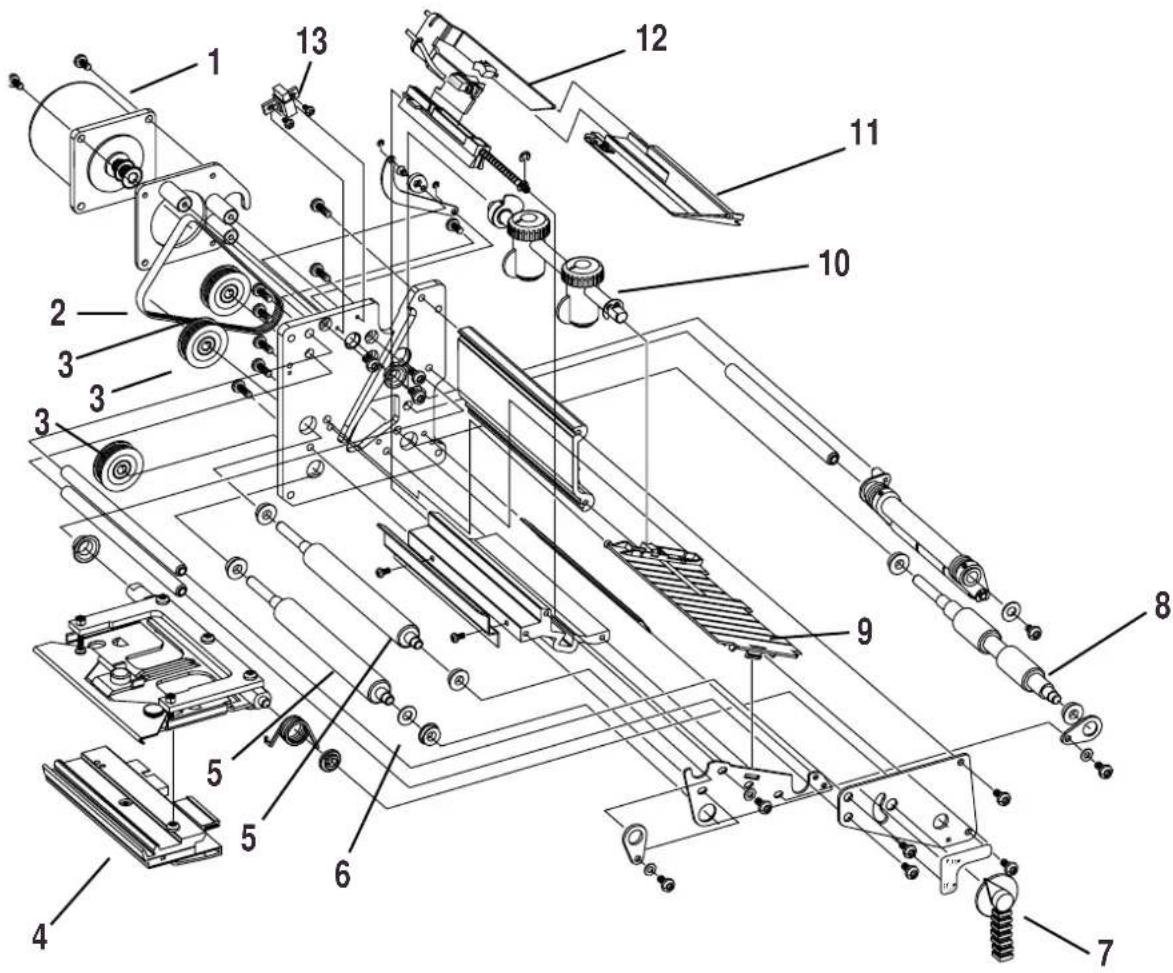

Print Unit (Ribbon Save) 34

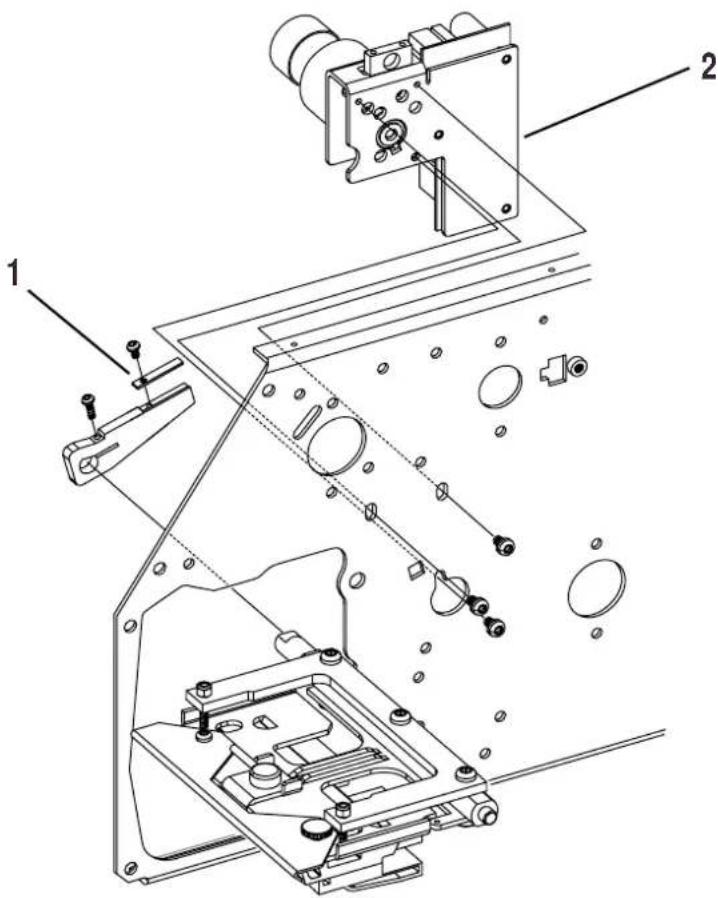

Headlift Mechanism (Ribbon Save) 35

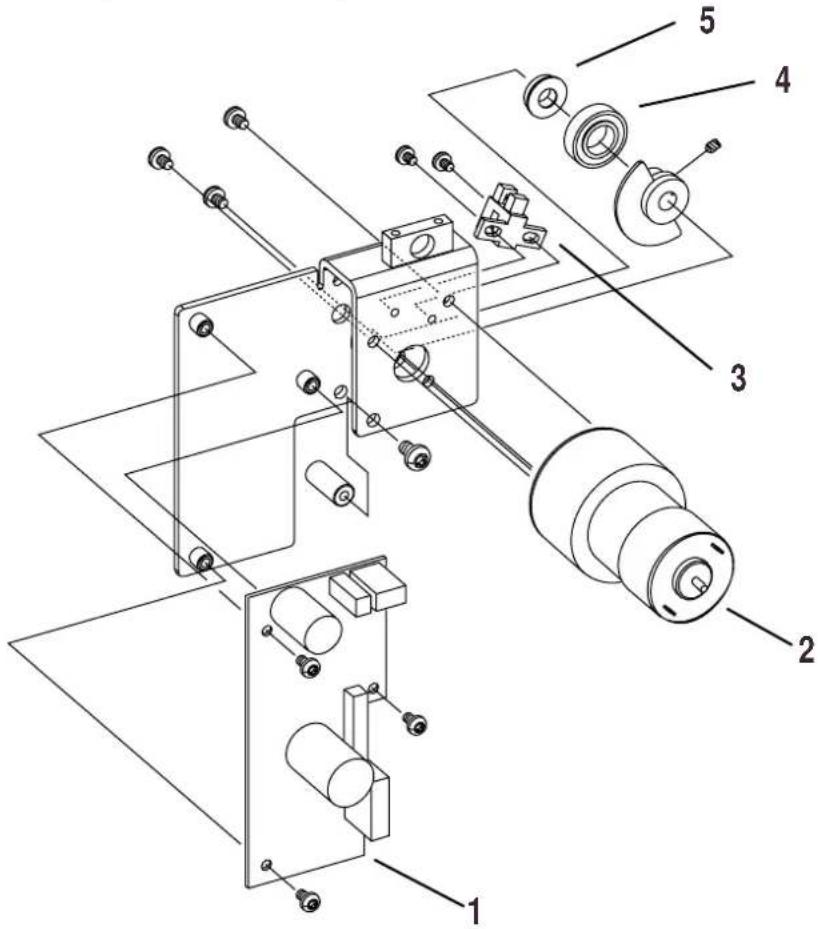

Lifting Appliance (Ribbon Save) 36

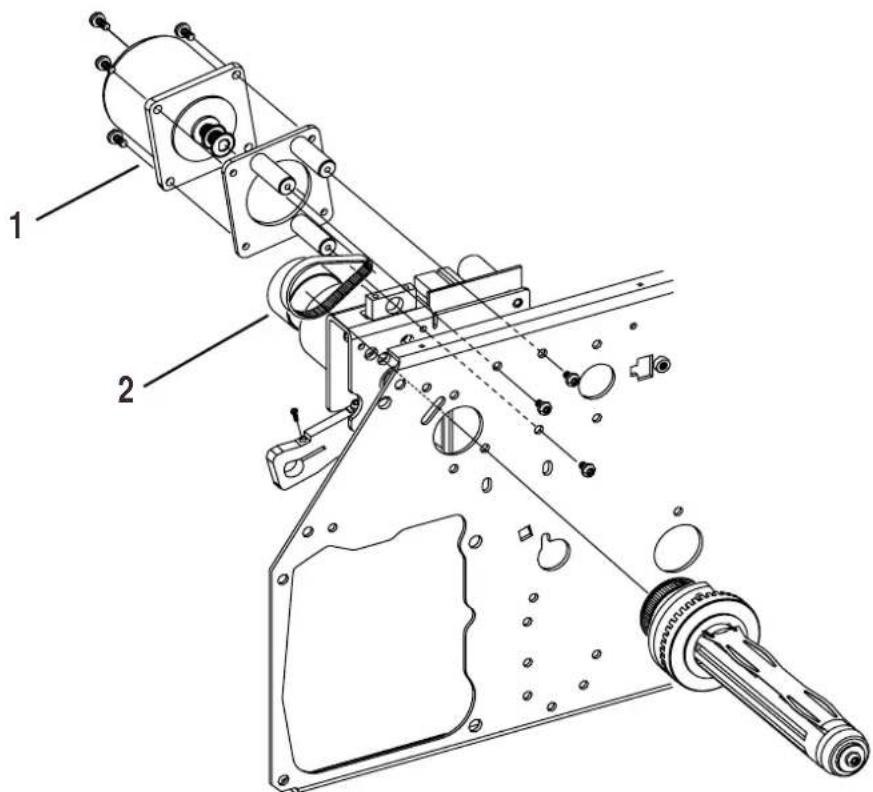

Ribbon Rewind Unit (Ribbon Save) 37

Miscellaneous 38

IntermecEasyCoder501

Spare Parts Catalog

Edition 9, October 2001

Part No. 1-960328-08

Spare Parts Policy

This Spare Parts Catalog contains information on items presently available as spare parts and accessories for the Intermec EasyCoder 501 printer models.

You will notice that, as a rule, we supply only assembled spare parts. Our policy is based on the conviction that this is a more rational way of stocking spares and supplying adequate service as well.

For further information about parts not listed in this volume, please contact our Spare Parts Sales Department.

Information in this manual is subject to change without prior notice and does not represent a commitment on the part of Intermec.

For updated information, please refer to the latest edition of the Spare Parts Price List.

Information in this manual is subject to change without prior notice and does not represent a commitment on the part of Intermec Printer AB.

© Copyright Intermec Printer AB, 2001. All rights reserved. Published in Sweden.

EasyCoder and Fingerprint are registered trademarks of Intermec Technologies Corp. The word Intermec and the Intermec logo are trademarks of Intermec Technologies Corp.

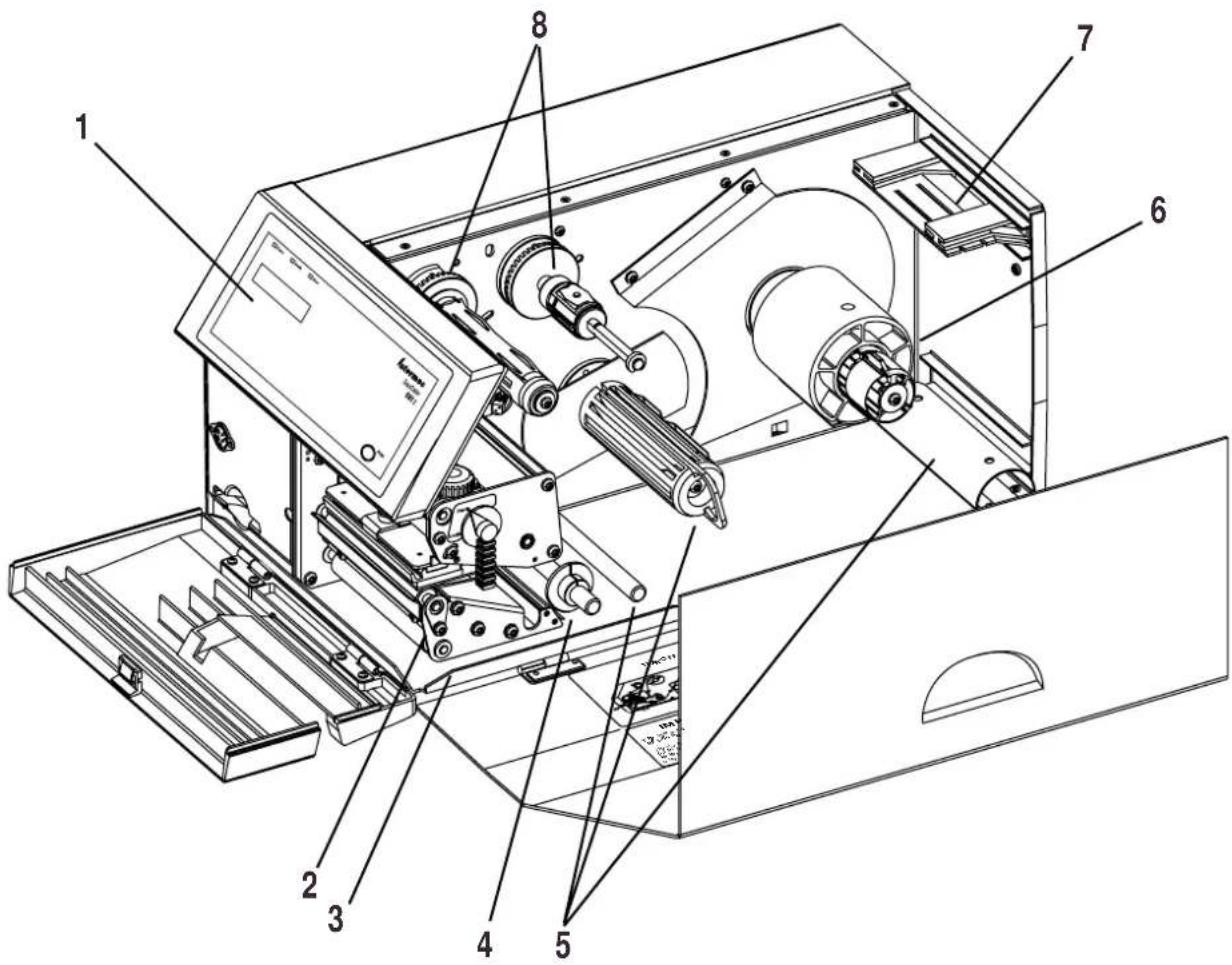

EasyCoder 501 S General View

Pos.	Description	Remarks
1	Keyboard	See page 7
2	Print Unit (Std model)	See page 9
3	Bottom Plate	See page 8
4	Guide Shaft	See page 17
5	Liner/Batch Takeup Kit	See pages 16 & 19
6	Media Supply Spool with 3-inch Adapter (option)	See pages 14-15
7	Fan Fold Guides	See page 32
8	Transfer Ribbon Mechanism	See pages 11-13
-	CPU-board	See page 21
-	Transformer Unit	See page 22
-	Interface Board	See page 24
-	Other Options	See pages 16, 27, 30, 33
-	Miscellaneous	See page 38

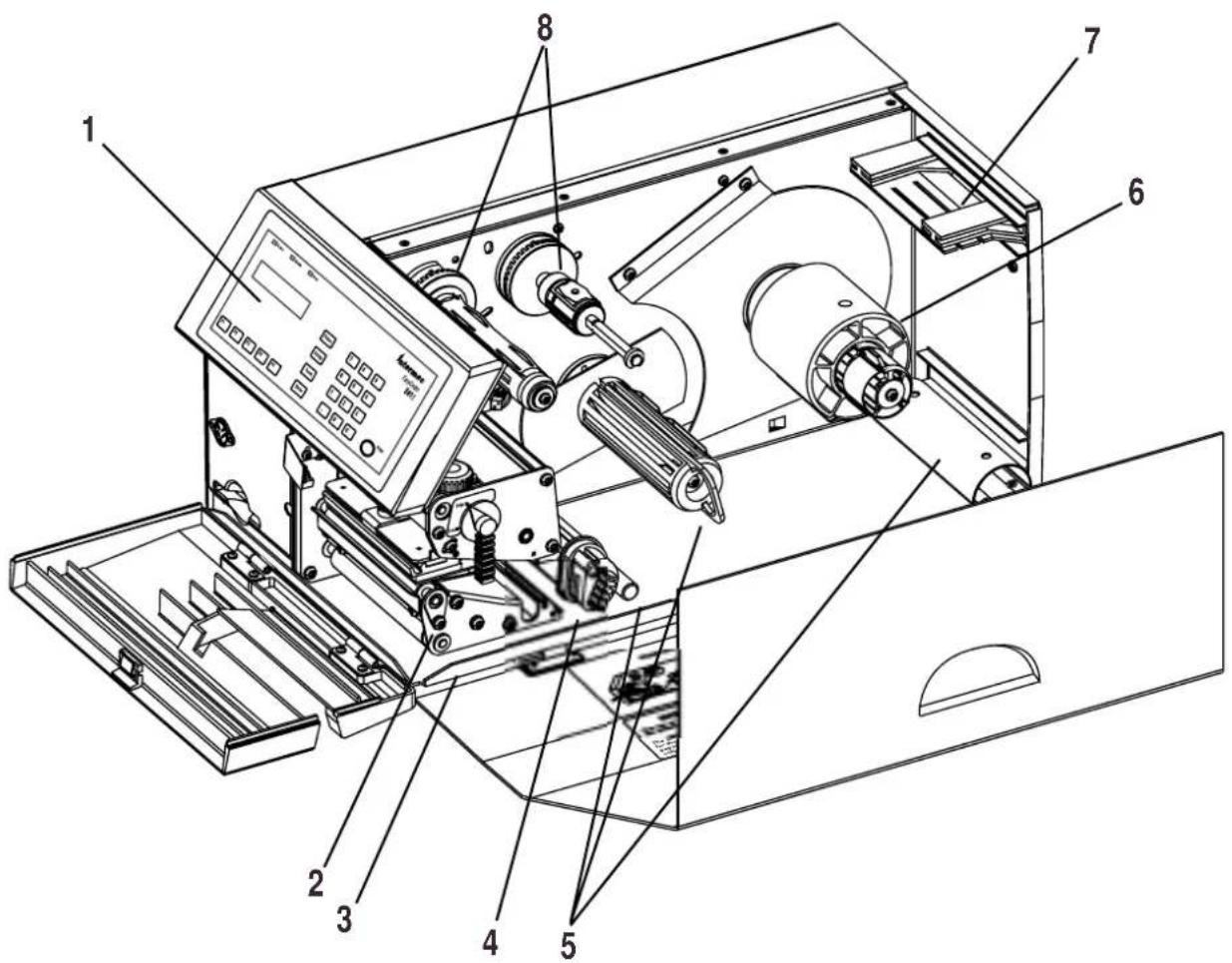

EasyCoder 501 E General View

Pos.	Description	Remarks
1	Keyboard	See page 7
2	Print Unit (Std model)	See page 9
3	Bottom Plate	See page 8
4	Label Slack Absorber	See page 18
5	Liner/Batch Takeup Kit	See pages 16 & 19
6	Media Supply Spool with 3-inch Adapter (option)	See pages 14–15
7	Fan Fold Guides	See page 32
8	Transfer Ribbon Mechanism	See pages 11–13
-	CPU-board	See page 21
-	Transformer Unit	See page 22
-	Interface Boards	See pages 23–26
-	Other Options	See pages 16, 27, 28, 29, 30, 33
-	Ribbon Save Device	See pages 34–37
-	Miscellaneous	See page 38

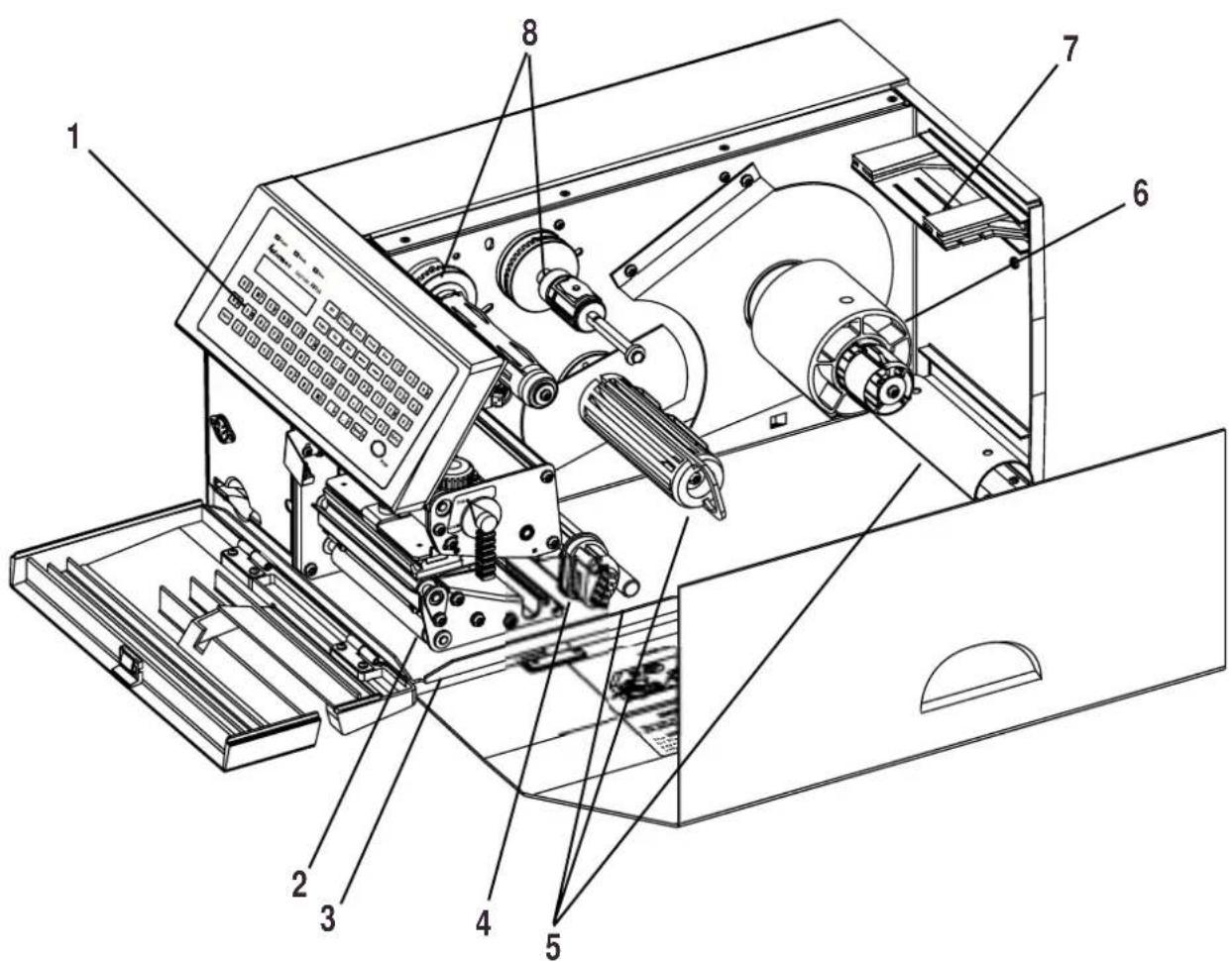

EasyCoder 501 SA General View

Pos.	Description	Remarks
1	Keyboard	See page 7
2	Print Unit (Std model)	See page 9
3	Bottom Plate	See page 8
4	Label Slack Absorber	See page 18
5	Liner/Batch Takeup Kit	See pages 16 & 19
6	Media Supply Spool with 3-inch Adapter (option)	See pages 14-15
7	Fan Fold Guides	See page 32
8	Transfer Ribbon Mechanism	See pages 11-13
-	CPU-board	See page 21
-	Transformer Unit	See page 22
-	Interface Boards	See pages 23-26
-	Other Options	See pages 16, 27, 28, 29, 30, 33
-	Ribbon Save Device	See pages 34-37
-	Miscellaneous	See page 38

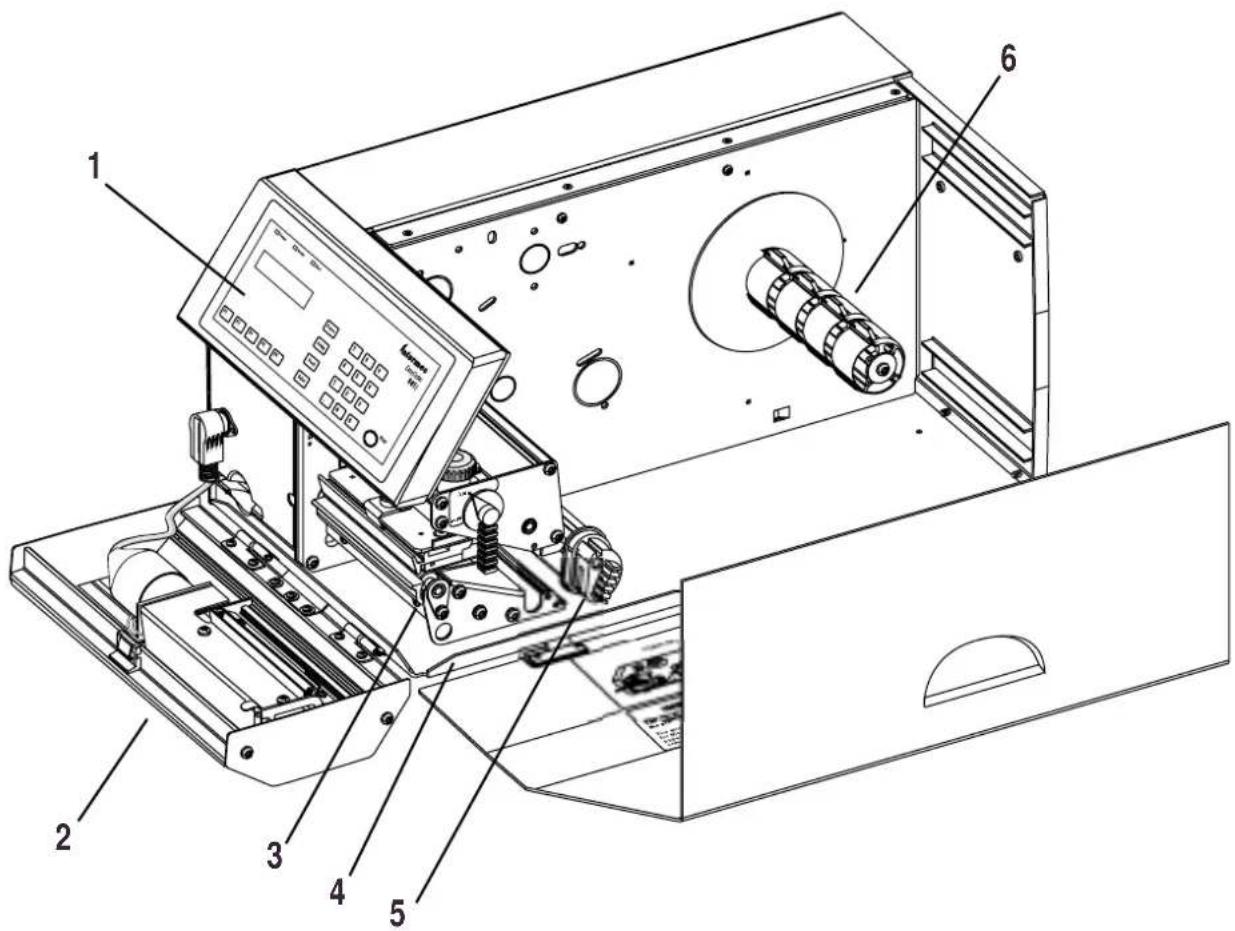

EasyCoder 501 LL General View

Pos.	Description	Remarks
1	Keyboard	See page 7
2	LinerLess Cutter (option)	See page 31
3	Print Unit (LinerLess model)	See page 10
4	Bottom Plate	See page 8
5	Label Slack Absorber	See page 18
6	Media Supply Spool	See pages 14
-	CPU-board	See page 21
-	Transformer Unit	See page 22
-	Interface Boards	See pages 23-26
-	Other Options	See pages 15, 27, 28, 33
-	Miscellaneous	See page 38

Spare Parts

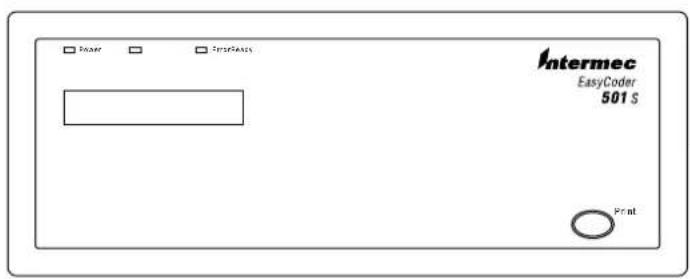

Keyboards

1

2

3

Pos.	Part No.	Description	Remarks
-	1-040067-95	Keyboard Assy. excl. display and slide
		Keyboard, complete unit incl. keyboard, display board, plate, slide, screws and cable to CPU board. Three different slides:
1	1-040337-90	Keyboard EasyCoder 501 S

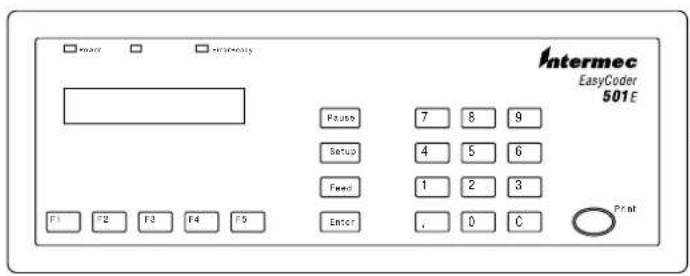

2	1-040337-92	Keyboard EasyCoder 501 E & 501 LL

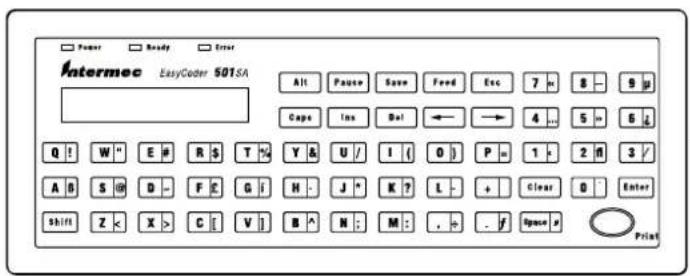

3	1-040337-95	Keyboard EasyCoder 501 SA

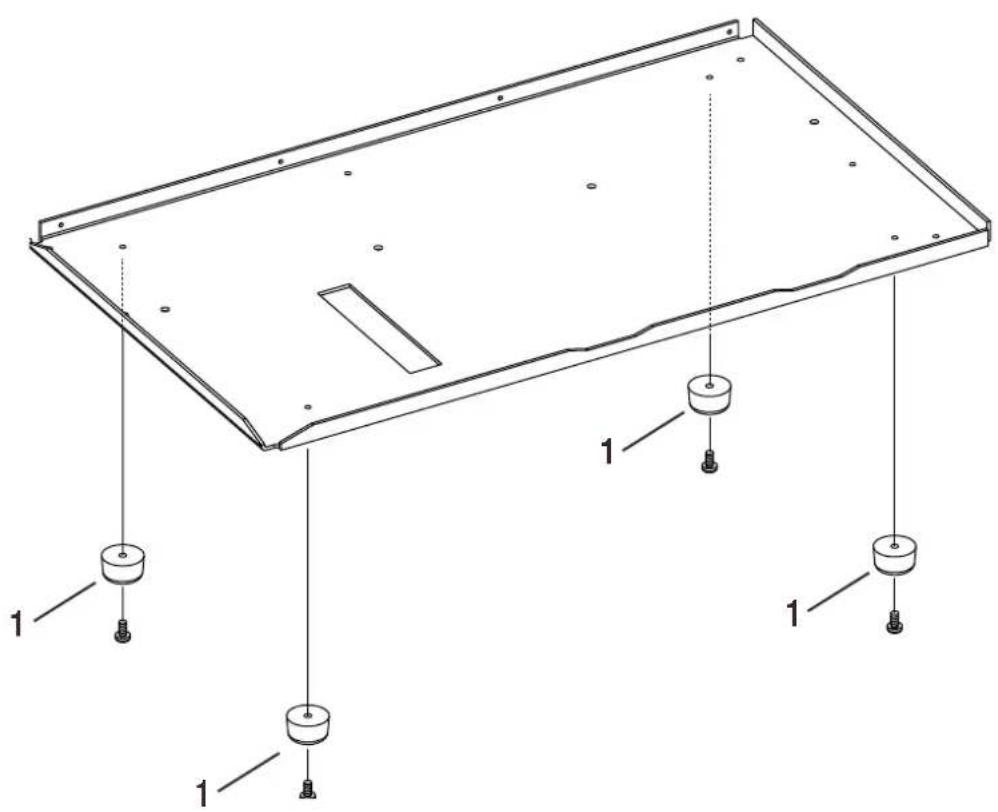

Bottom Plate

Pos.	Part No. Description	Remarks
1	1-992450-04	Rubber Foot Grey D23x13
		Excl. screw

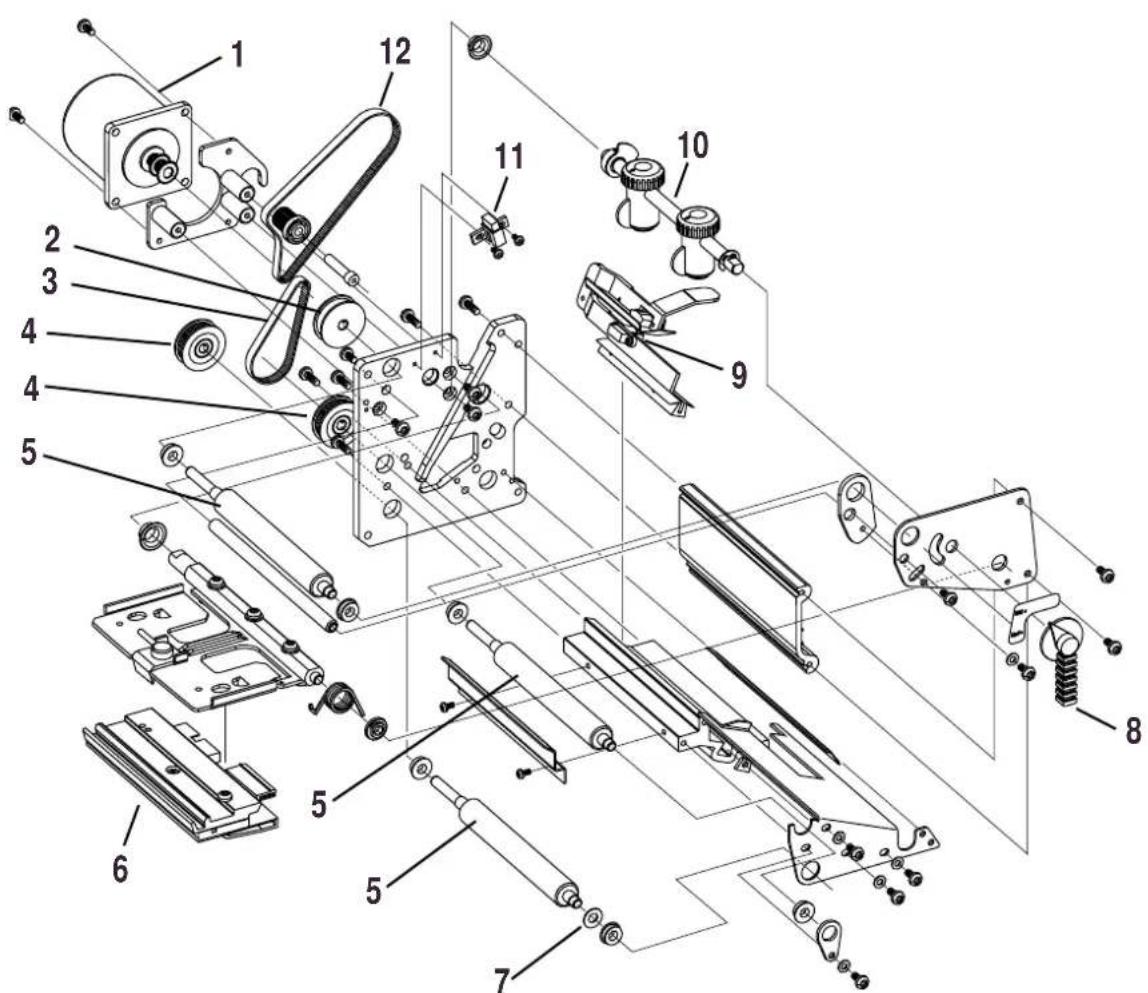

Print Unit (EasyCoder 501 S, 501 E, & 501 SA)

Pos.	Part No. Description	Remarks
1	1-040111-91	Stepper Motor assy.
2	1-040519-90	Tooth Belt Wheel assy.
3	1-995101-20	Tooth Belt 608M XL025 T=76
4	1-040100-02	Tooth Belt Wheel assy.
5	1-040230-90	Platen Roller/Ribbon Assist Roller/
		Liner Drive Roller assy.
6	1-010010-93	Thermal Printhead (8 dots/mm = 203.2 dpi)
6	1-010003-92	Thermal Printhead (11.81 dots/mm = 300 dpi)
7	1-995010-20	Washer DB 6x12x1.0
8	1-040213-00	Cam Handle
9	1-040109-00	Label Stop Sensor assy.
10	1-040138-20	Head Pressure assy.
11	1-975607-25	Reflecting Sensor assy.
12	1-995101-81	Tooth Belt 138MXL025 T=138

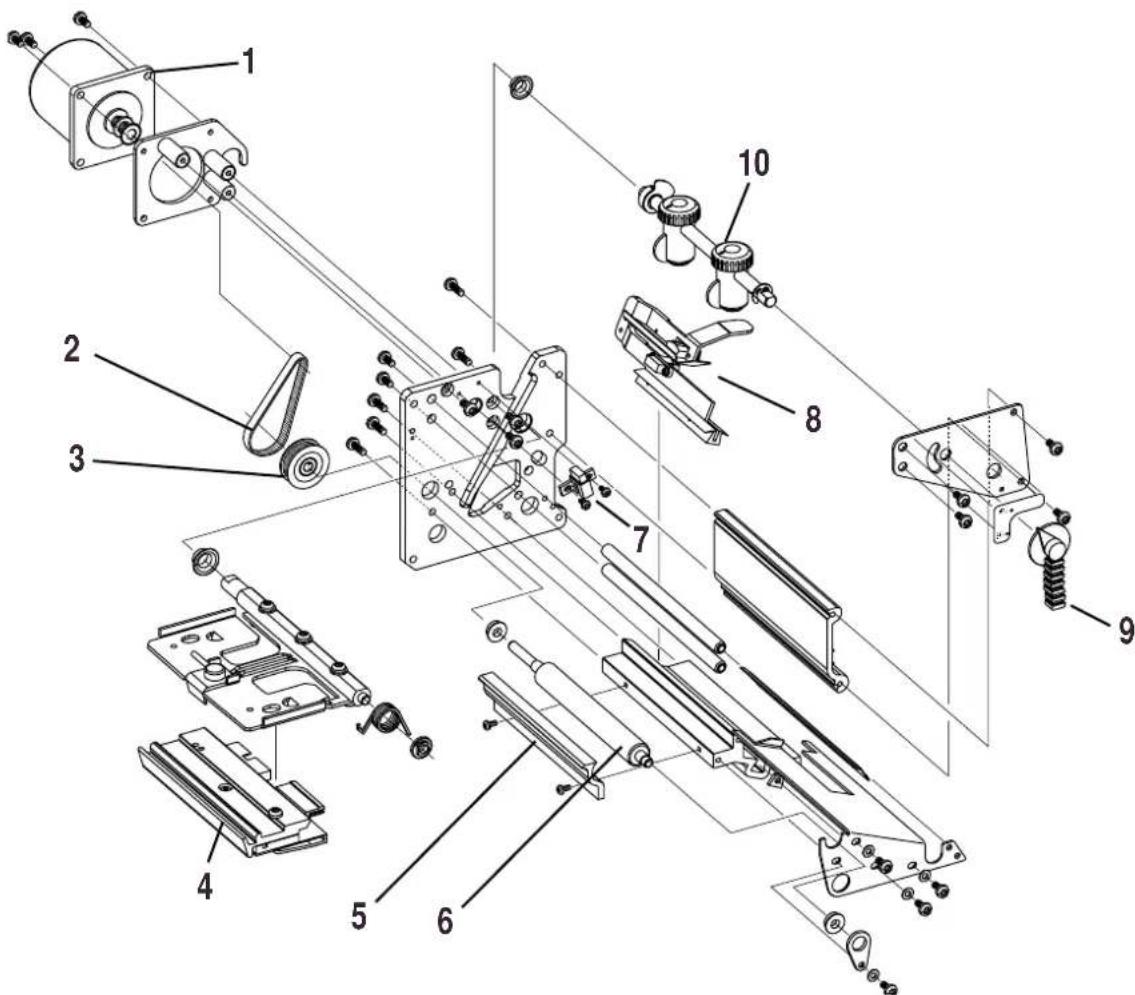

Print Unit (EasyCoder 501 LL)

Pos.	Part No. Description	Remarks
1	1-040111-91	Stepper Motor assy.
2	1-995101-20	Tooth Belt 608M x L025 T=76
3	1-040100-02	Tooth Belt Wheel assy.
4	1-010010-91	Thermal Printhead (8 dots/mm = 203.2 dpi)
5	1-040475-00	Tear Bar
6	1-040467-90	Platen Roller assy.
7	1-975607-25	Reflecting Sensor assy. (Printhead lift)
8	1-040109-00	Label Stop Sensor assy.
9	1-040213-00	Cam Handle
10	1-040138-20	Head Pressure assy.
		Complete unit

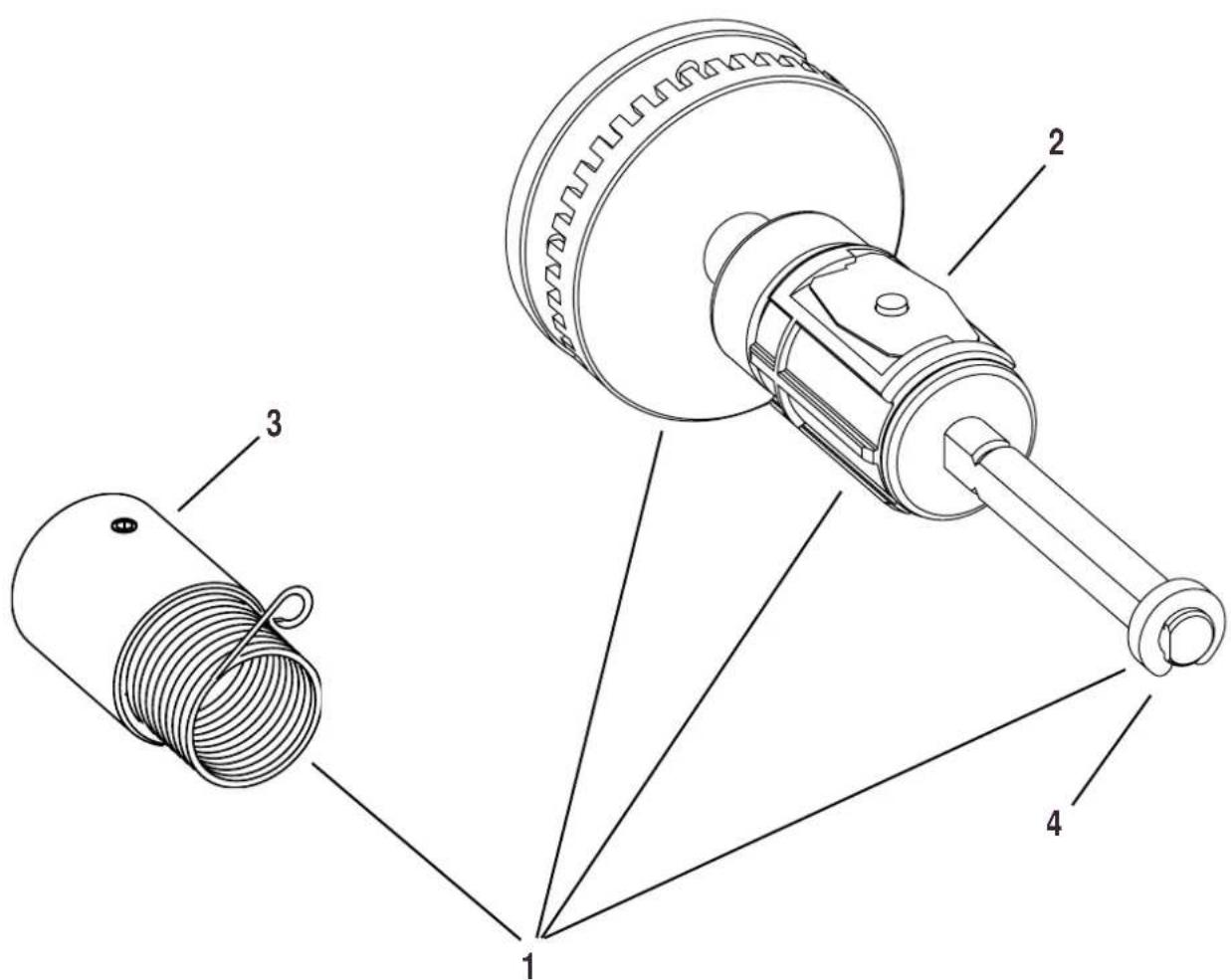

Ribbon Supply Unit

Pos.	Part No. Description		Remarks
1	1-040073-97	Ribbon Supply assy	Complete unit incl brake, pivot, and fixer ring.
2	1-040157-00	Pivot assy.
3	1-040176-00	Spring Brake assy.
4	1-040448-00	Fixer Ring

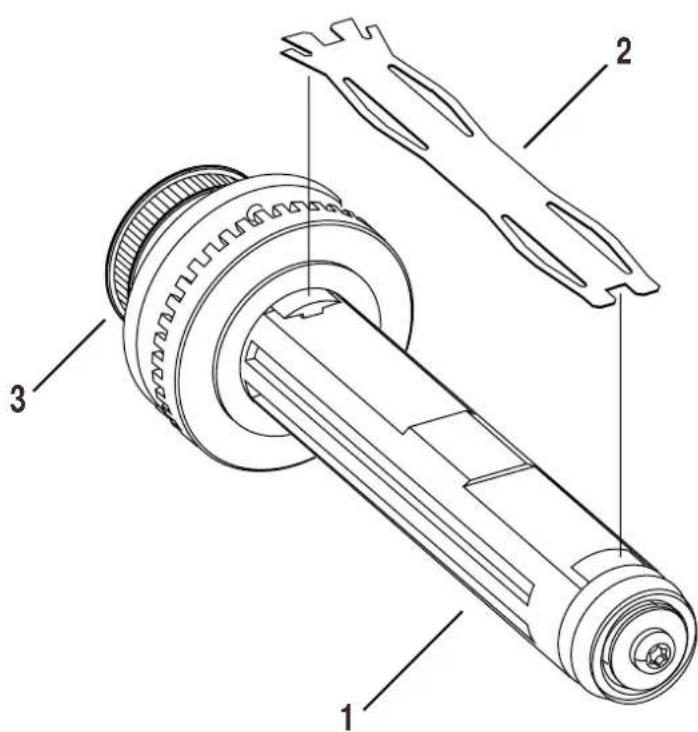

Ribbon Rewind Unit

Pos.	Part No. Description		Remarks
1	1-040065-97	Ribbon Rewind Unit assy.	Complete unit incl. gear wheel and bobbin plate
2	1-040443-11	Bobbin Plate
3	1-040124-00	Gear Wheel assy.

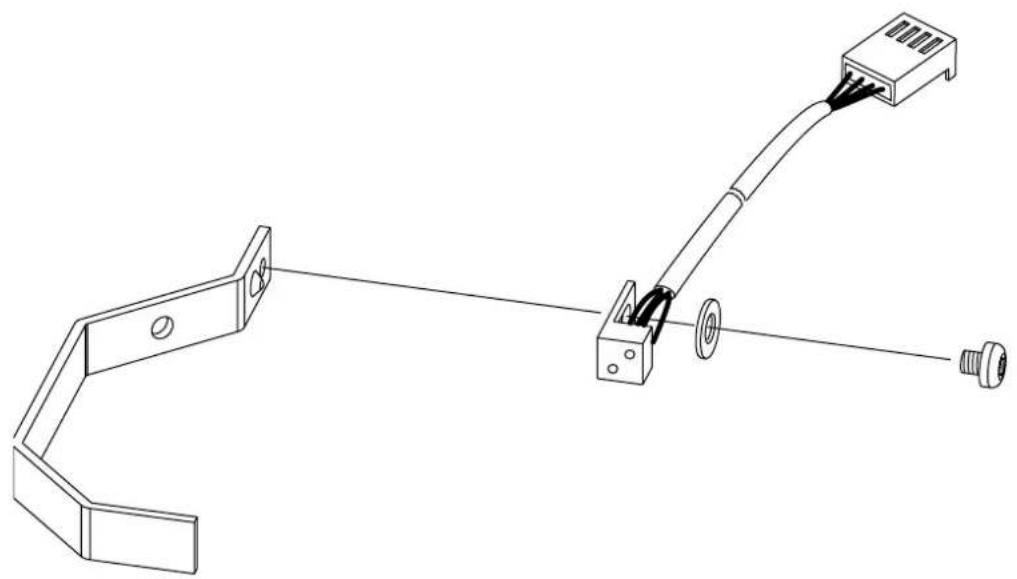

Ribbon End Sensor

Pos.	Part No. Description	Remarks
-	1-040074-00	Ribbon End Sensor assay.	Complete unit

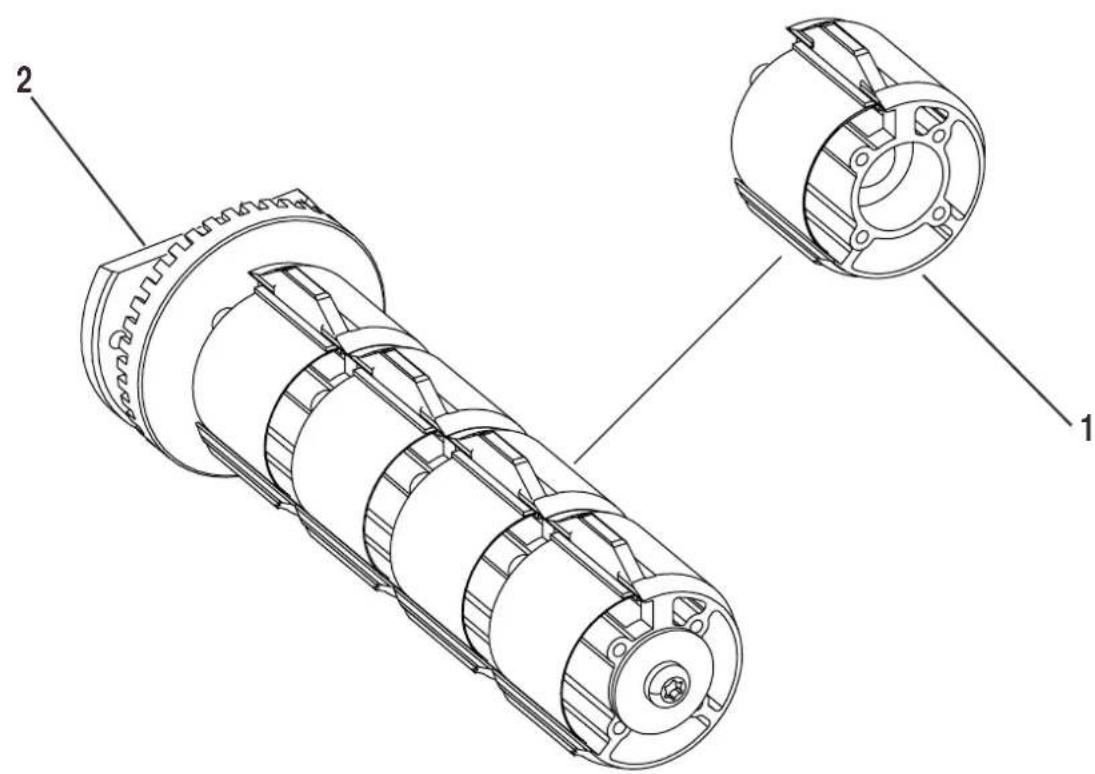

Media Supply Spool

Pos.	Part No. Description	Remarks
1	1-040060-02	Media Supply Unit 4"
2	1-150166-00	Bobbin assy.	Complete unit

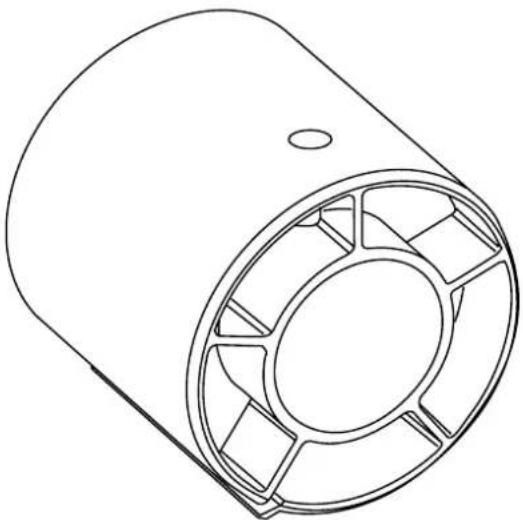

3-inch Bobbin Adapter

Pos.	Part No. Description	Remarks
1	1-040327-52	Bobbin Adapter assay.	Ø 76 mm (3")

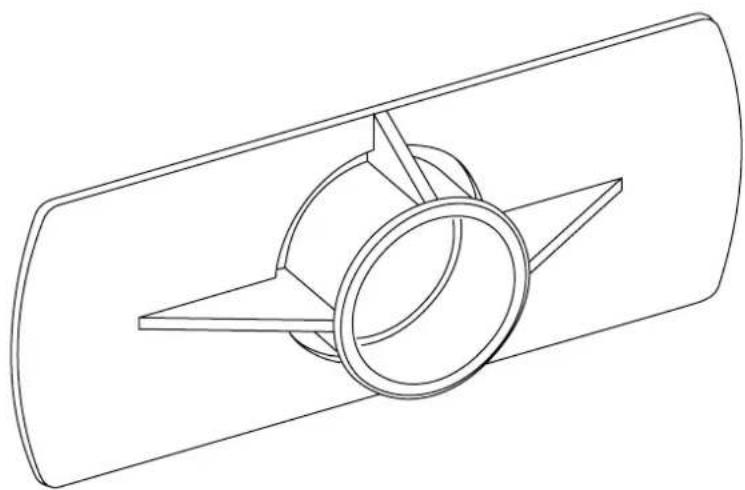

Media Roll Retainer

Pos.	Part No. Description	Remarks
1	1-776290-00	Media Roll Retainer

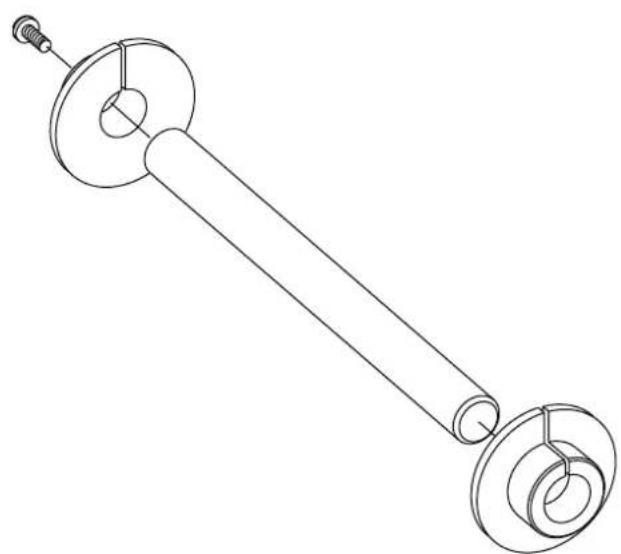

Guide Shaft

Pos.	Part No. Description	Remarks
1	1-776238-10	Edge Guide

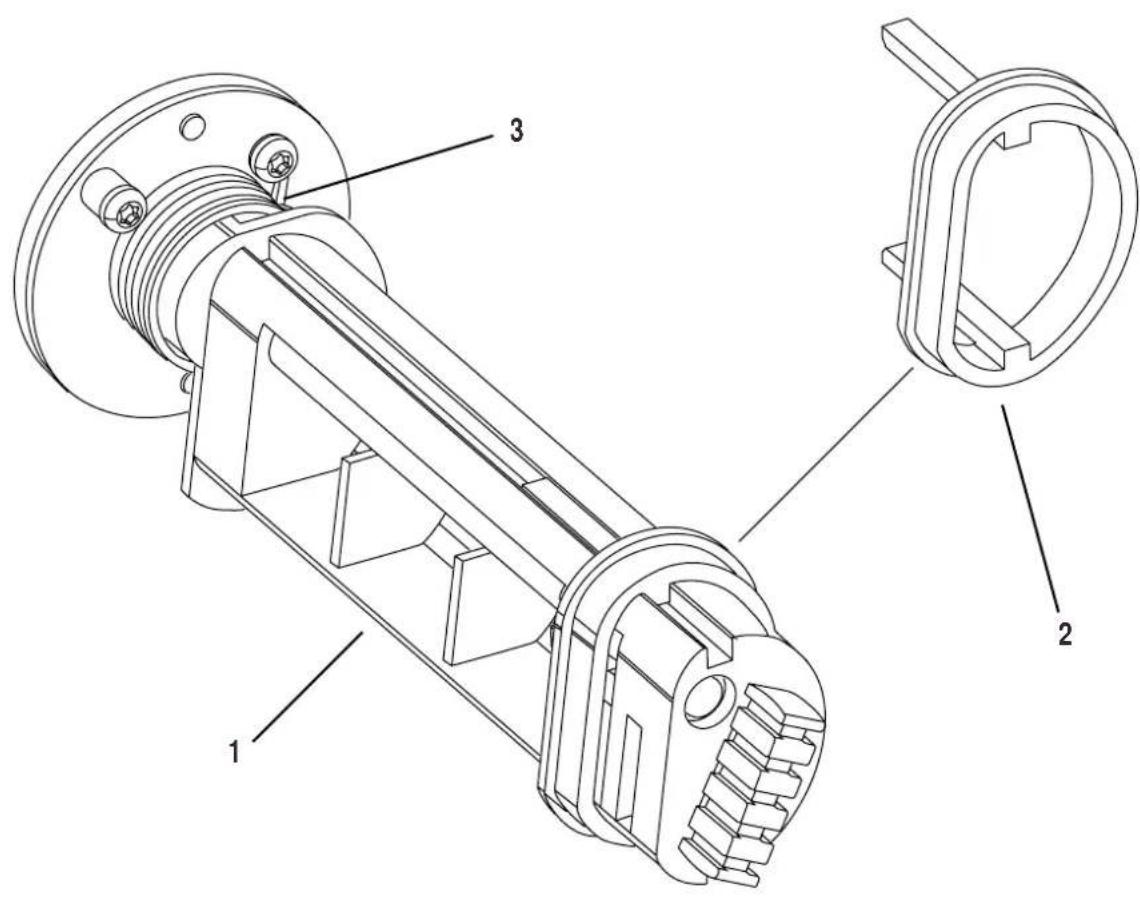

Label Slack Absorber

Pos.	Part No. Description		Remarks
1	1-040061-90	Label Slack Absorber assay.	Complete unit
2	1-040329-00	Edge Guide
3	1-040321-00	Spring

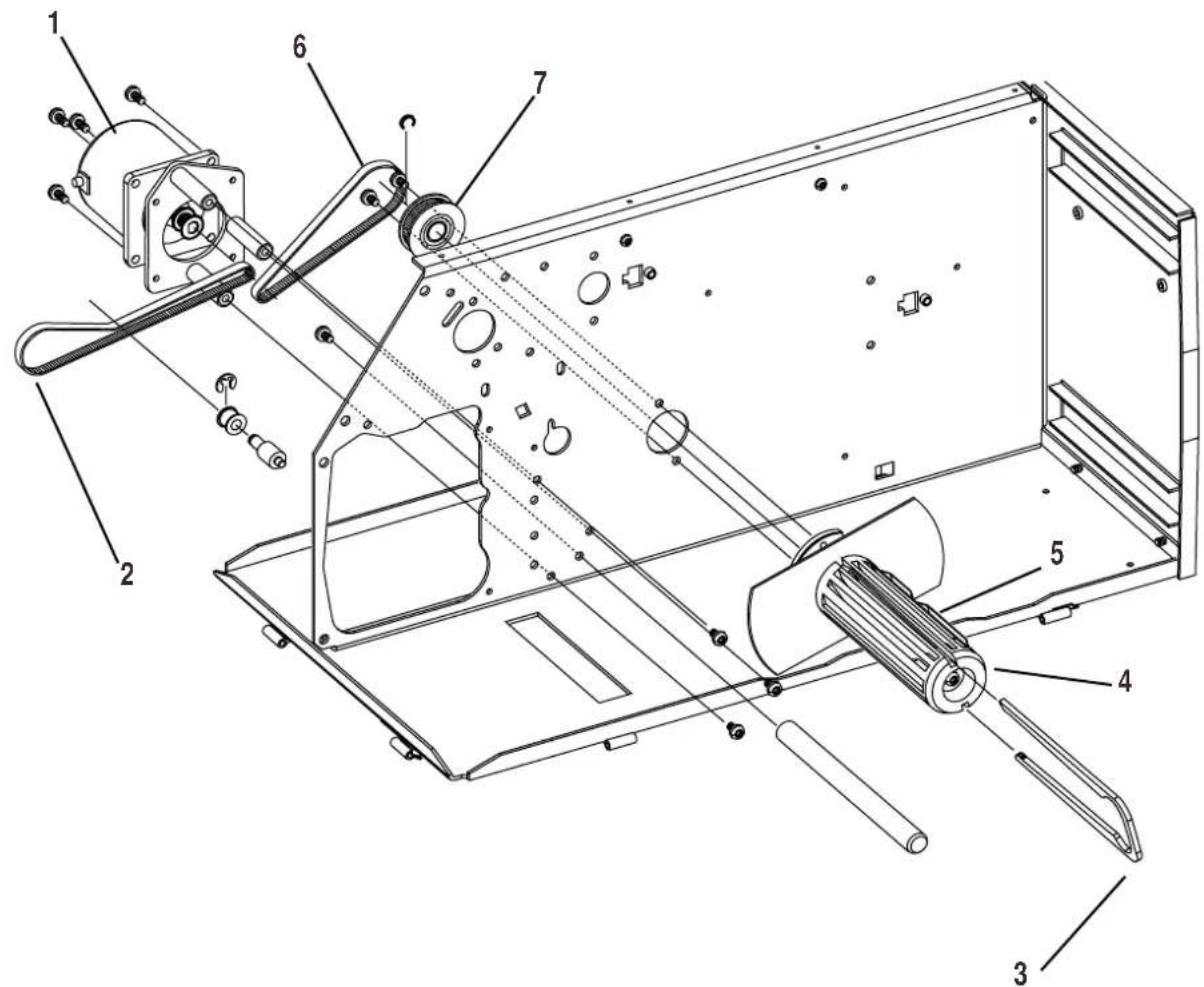

Liner/Batch Makeup Unit

Pos.	Part No. Description		Remarks
1	1-040111-91	Stepper Motor assy.	Cable not shown
2	1-995101-80	Tooth Belt 1240MXL025 T=155
3	1-040317-00	Brace
4	1-040063-90	Takeup Unit assy.	Incl. pulley, plate, and brace
5	1-040335-01 Bob	Pbin Plate (Takeup)
6	1-995101-42	Tooth Belt 880MXL025 T=110
7	1-040124-00	Gear Wheel assy.

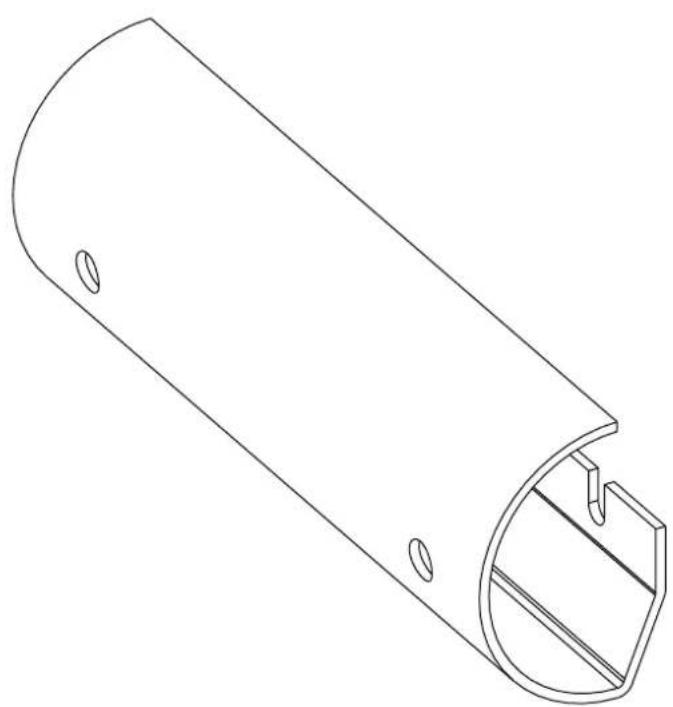

Takeup Guide Plate

Pos.	Part No. Description		Remarks
-	1-040253-01	Takeup Guide Plate

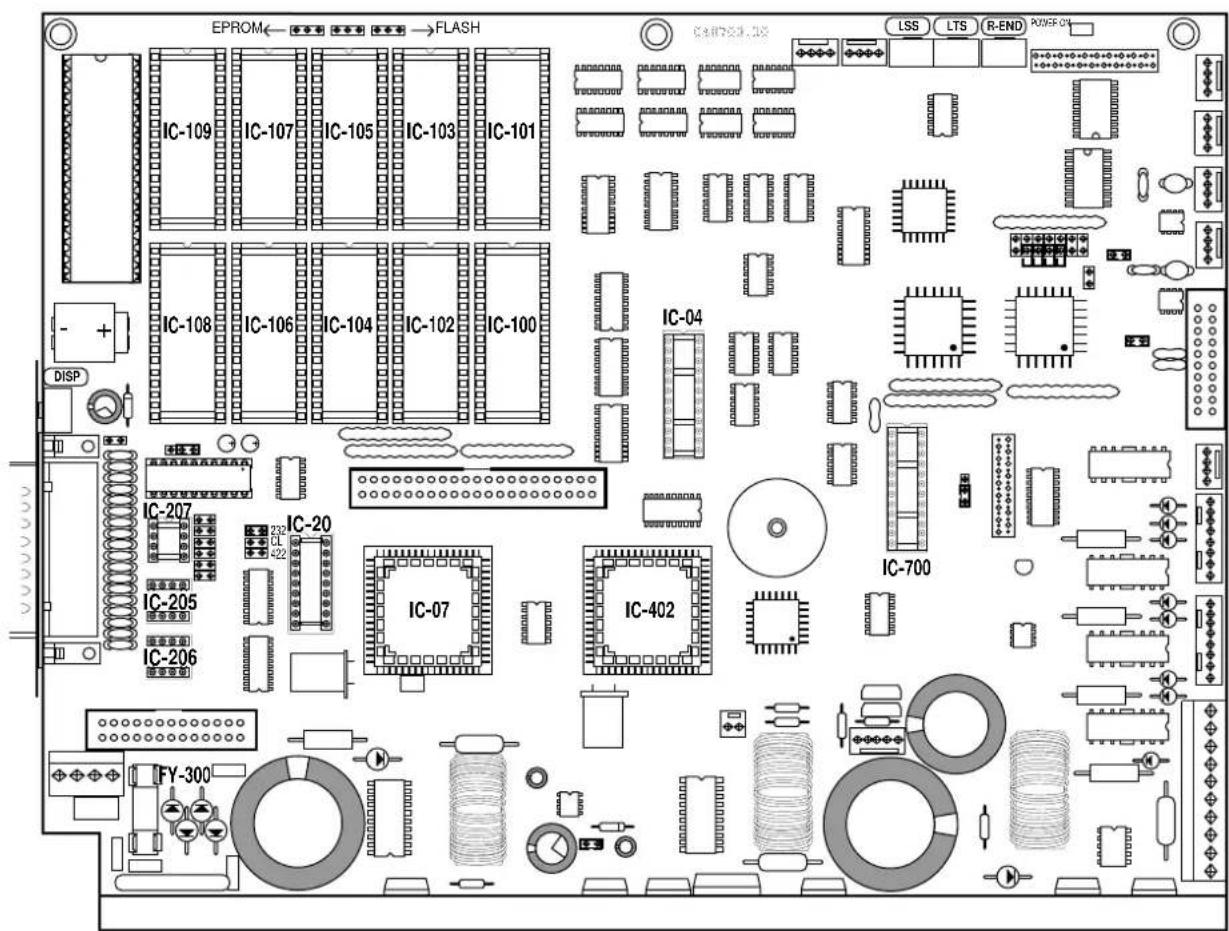

CPU Board

Pos.	Part No. Description	Remarks
-	1-040700-90	CPU-board assy
IC 07	1-989539-15	IC-32CG16-15
IC 402	1-989495-10	IC-HPC 46083-XXX/V20YTM
FY-300	1-985157-25	Fuse 6.3A 5x20 FST IEC (spare part)
		Accessories (not incl. in 1-040700-90):
IC 100-101	1-972xxx-xx	Intermec Fingerprint firmware
IC 102-105	-	Application programs, fonts etc.
IC 106-109	1-989645-00	IC-HN 628128 LP-10 RAM 1 Mb
IC 20	1-989518-00	IC-RTC72421 Clock circuit
IC 205-206	1-985319-00	IC-6N139 Optocoupler
IC 207	1-956036-00	RS 422 Circuit

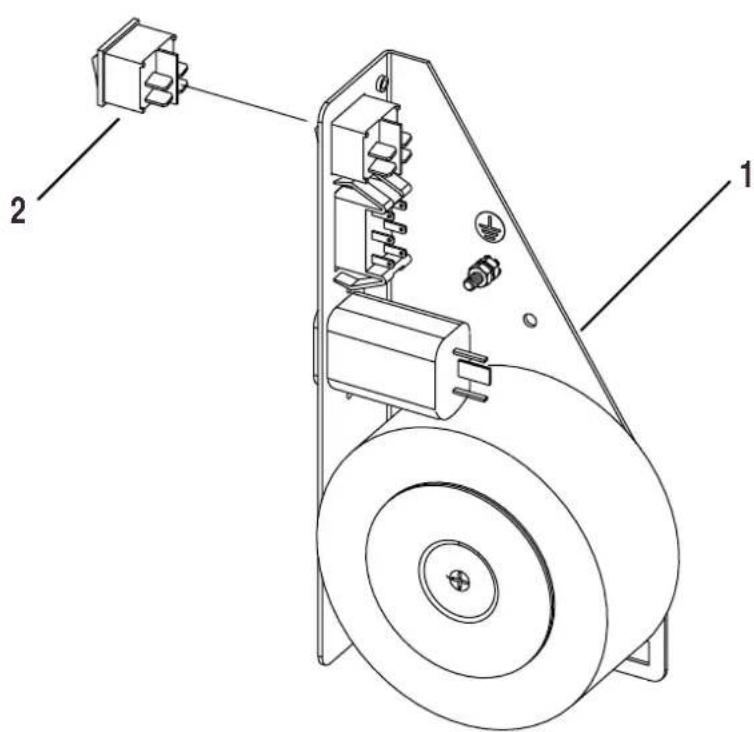

Transformer Unit

Pos.	Part No. Description		Remarks
1	1-040066-02	Transformer Unit assay.
2	1-983345-00	On/Off Switch 2P	Complete unit

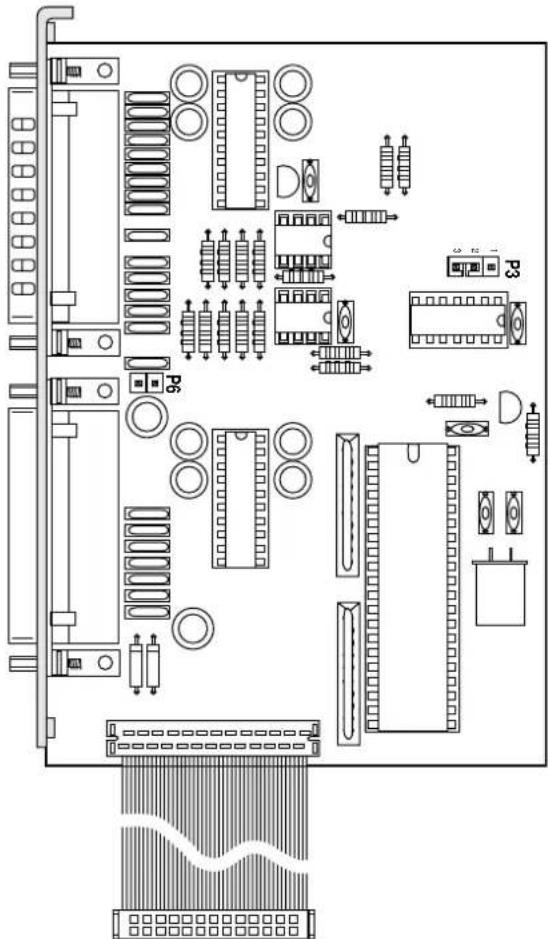

Dual Serial Interface Kit

Pos.	Part No. Description	Remarks
-	1-040554-00	Dual Serial Interface Kit
		Incl. cable, cover plate, and installation instructions

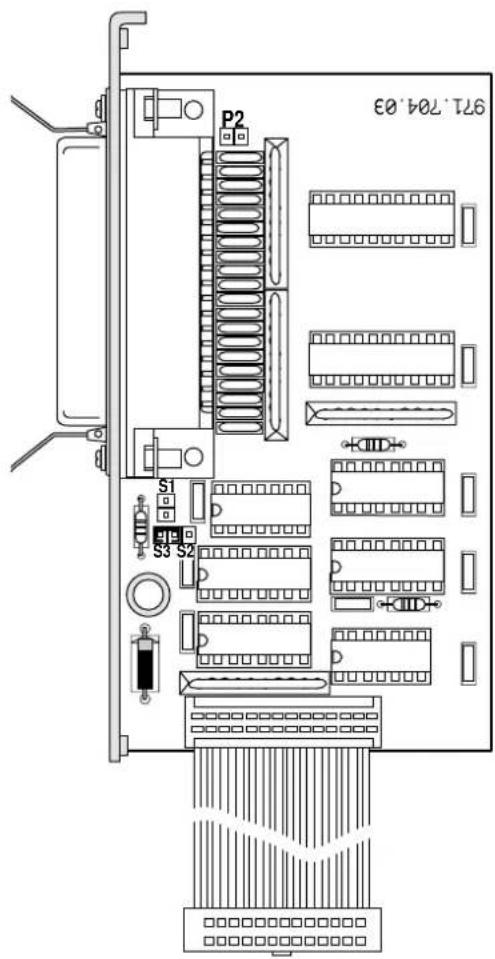

Parallel Interface Kit

Pos.	Part No. Description	Remarks
-	1-040553-00	Parallel Interface Board Kit
		Incl. cable, cover plate, and installation instructions

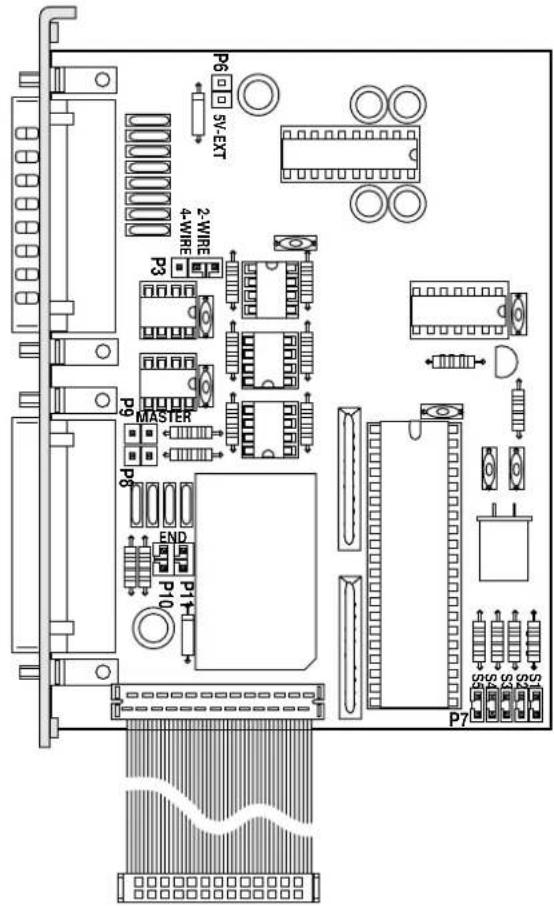

RS-422/485 Serial Interface Kit

Pos.	Part No. Description	Remarks
-	1-040557-00	RS-422/485 Serial Interface Kit
		Incl. cable, cover plate, and installation instructions

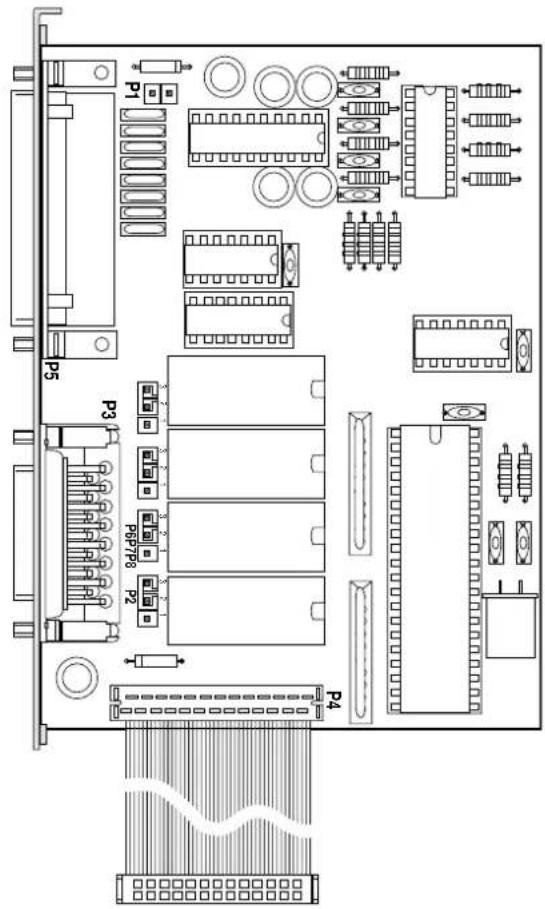

Industrial Interface Kit

Pos.	Part No. Description	Remarks
-	1-040558-00	Industrial Interface Kit
		Incl. cable, cover plate, and installation instructions

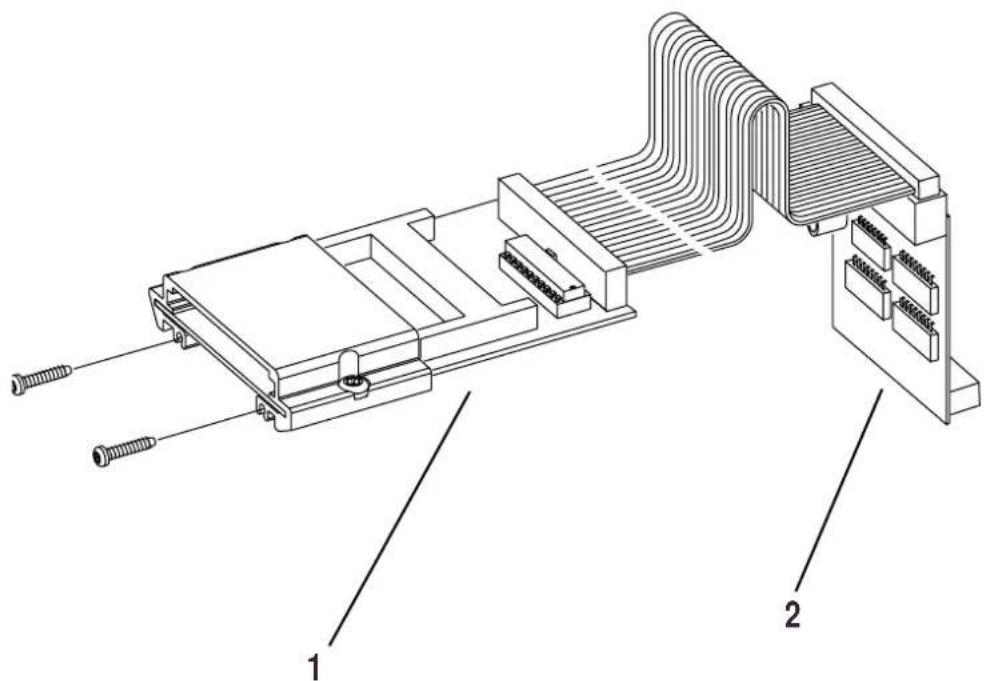

Memory Adapter Kit

Pos.	Part No. Description		Remarks
1	1-040556-01	Memory Adapter Kit assay.	Complete kit incl. bus driver board and installation instruc
2	1-971712-25 Bus	Driver Board	tions.

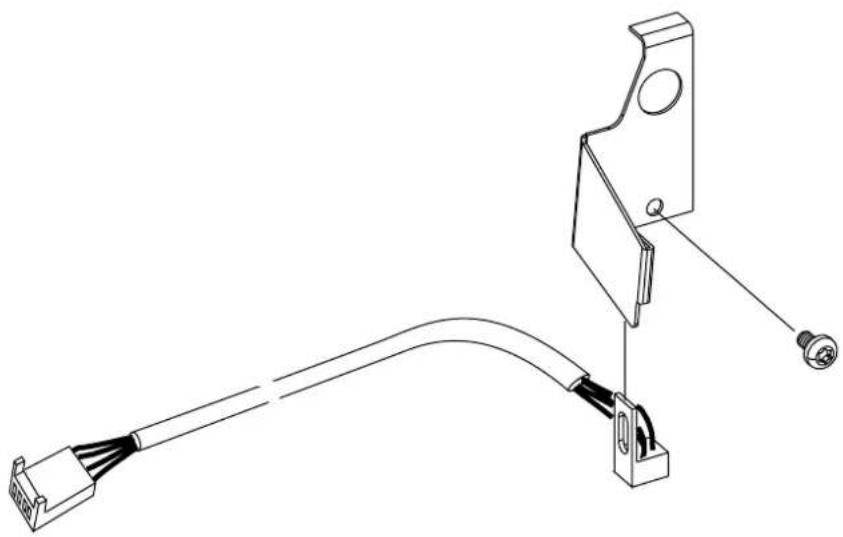

Label Taken Sensor Kit

Pos.	Part No. Description	Remarks
-	1-040559-00	Label Taken Sensor Kit	Complete kit incl. installation instructions.

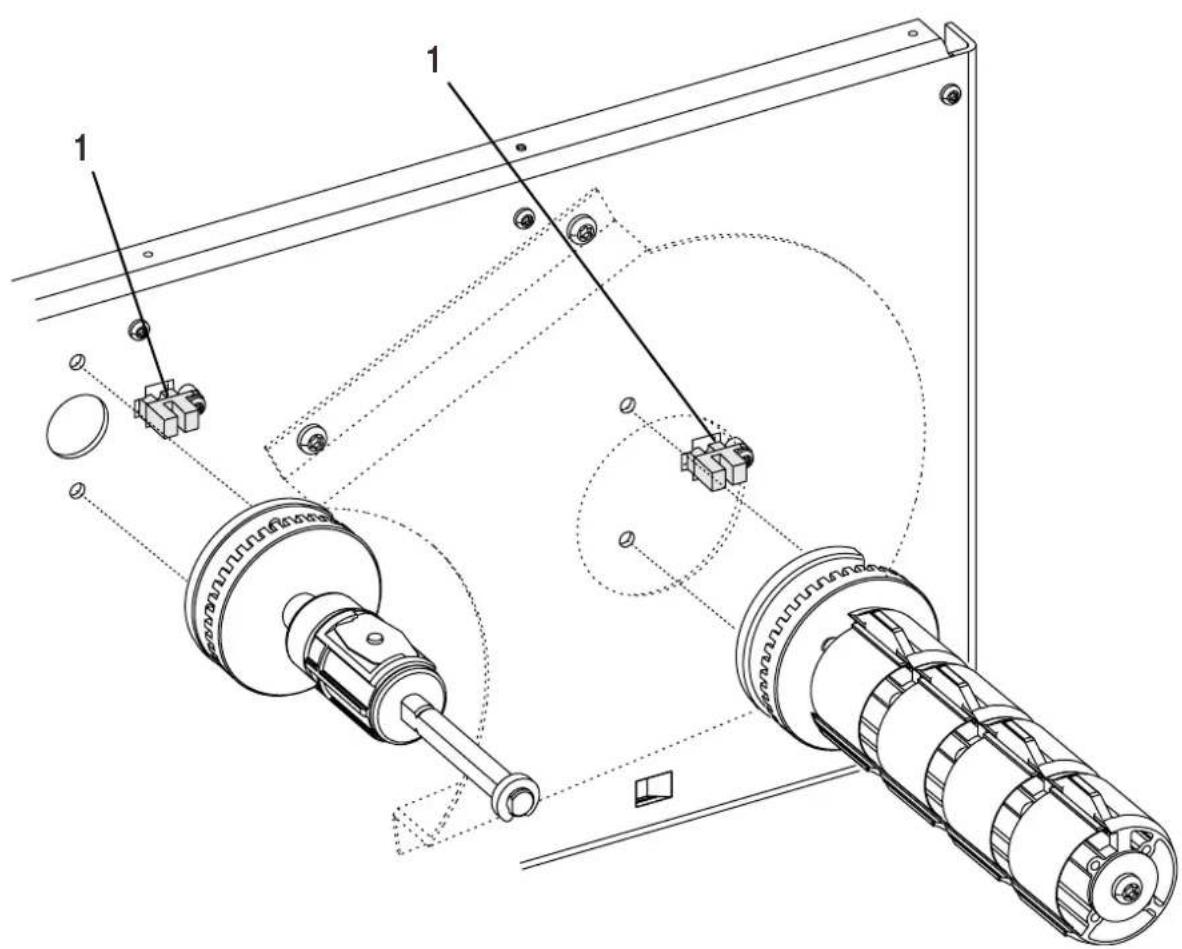

Sensor Kit (Media Low/Ribbon Low)

Pos.	Part No. Description		Remarks
-	1-040562-00	Sensor Kit	Complete kit with two sensors with cables, two screws, and installation instructions
1	1-975605-20	Reflecting Sensor assay.	Cable not shown

Paper Cutter (Standard model)

Pos.	Part No.	Description	Remarks
1	1-040551-00	Paper Cutter Kit assay.	Complete kit incl. installation instructions.
2	1-983353-00	Micro Switch	Cutter width 120 mm
3	1-040122-01	Cutter Mechanism	Not visible
4	1-040450-00	Spring

Paper Cutter (LinerLess model)

Pos.	Part No.	Description	Remarks
1	1-040566-00	Paper Cutter, Linerless assay.	Complete unit
2	1-040466-00	Guide Plate
3	1-040486-00	Sensor Kit (with cables)
4	1-040482-01	Spring
5	1-983353-00	Microswitch (w/o cable)

Fan Fold Guides

Pos.	Part No.	Description	Remarks
-	1-040565-00	Fan Fold Guides for external media supply (complete unit)	Including two shafts, each with two edge guides
1	1-776238-10	Edge Guides

Right-Hand Door with Inspection Window

Pos.	Part No.	Description	Remarks
-	1-040121-00	Right-Hand Door w Window assy.	Can replace 1-040120-00 Right-Hand Door.

Print Unit (Ribbon Save)

Pos.	Part No. Description	Remarks
1	1-040111-91	Stepper Motor assy.
2	1-995101-81	Tooth Belt 138MXL025 T=138
3	1-040100-02	Tooth Belt Wheel assy.
4	1-010010-93	Thermal Printhead (8 dots/mm = 203.2 dpi)
4	1-010003-92	Thermal Printhead (11.81 dots/mm = 300 dpi)
5	1-040230-90	Platen Roller assy.
6	1-995010-20	Washer DB 6x12x1.0
7	1-040213-00	Cam Handle
8	1-040416-90	Pressing Roller assy.
9	1-040150-00	Guide Lower
10	1-040138-20	Head Pressure assy.
11	1-040151-00	Guide Upper
12	1-040109-01	Label Stop Sensor assy.
13	1-975607-25	Reflecting Sensor assy. (Printhead lift)
		Cable not shown

Headlift Mechanism (Ribbon Save)

Pos.	Part No. Description	Remarks
1	1-040405-02	Thrust Plate
2	1-040141-00	Lifting Appliance assy.
		See page 37 for details

Lifting Appliance (Ribbon Save)

Pos.	Part No. Description	Remarks
1	1-040702-28	Driver Board assy.
2	1-150167-00	DC-Motor assy.
3	1-975607-12	Reflecting Sensor assy.
4	1-992435-29	Bearing 10x19x5
5	1-995191-32	Bearing Mini FLAWBC6-12Z

Ribbon Rewind Unit (Ribbon Save)

Pos.	Part No. Description	Remarks
1	1-040111-91	Stepper Motor assy.
2	1-995101-12	Tooth Belt 504 MXL 025 T=63

Miscellaneous (not illustrated)

Pos.	Part No. Description	Remarks
-	1-982731-00	Mains Cable 2.4 m UL/CSA
-	1-982756-00	Mains Cable 2 m
-	1-982735-00	Mains Cable 2.5 m EUR
-	1-975583-18	Parallel Interface Cable
-	1-975580-05	Serial Interface Cable RS-232 DB25 -> DB25
-	1-975581-05	Serial Interface Cable RS-232 DB25 -> DB9
-	1-040950-00	Cable (Power; CPU-board -> Printhead)
-	1-975610-02	Cable (Logics; CPU-board -> Printhead)
-	1-040951-30	Cable (CPU-board -> Cutter connector)
-	1-110501-00	Cleaning Card
		25-pack
