| Type de produit | Téléviseur LED |
| Marque | Westinghouse |
| Modèle | EU50F2G1 |
| Taille de l'écran | 50 pouces (127 cm) |
| Résolution | 1920 x 1080 pixels (Full HD) |
| Format d'image | 16:9 |
| Alimentation | AC 100-240 V, 50/60 Hz |
| Consommation électrique (mode veille) | Moins de 0,5 W |
| Consommation électrique (mode maison) | Moins de 81 W |
| Consommation électrique (max) | 120 W |
| Système TV | ATSC / NTSC |
| Format vidéo pris en charge | PAL / NTSC |
| Puissance audio | 2 x 8 W |
| Connecteurs d'entrée | AV, YPbPr (composante), HDMI (3), VGA (PC), USB, antenne, coaxial (sortie) |
| Connecteurs de sortie | Casque, coaxial (audio numérique) |
| Dimensions avec pied (L x H x P) | 1138 x 728 x 250 mm |
| Dimensions sans pied (L x H x P) | 1138 x 677 x 53 mm |
| Poids net | 9,0 kg |
| Poids brut | 11,5 kg |
| Fonctions principales | Guide d'installation, modes d'image (Standard, Dynamique, Cinéma, Utilisateur), modes son (Standard, Musique, Cinéma, Utilisateur), minuterie de sommeil, verrouillage parental, télétexte, sous-titres, liste des chaînes favorites, lecture multimédia USB (photos, musique) |
| Entretien et nettoyage | Débrancher avant nettoyage. Utiliser un chiffon doux et sec. Ne pas utiliser de solvants ou liquides. |
| Sécurité | Ne pas exposer à l'humidité. Ne pas obstruer les ouvertures de ventilation. Utiliser uniquement les supports recommandés. Débrancher pendant les orages. |
| Pièces détachées et réparabilité | Les réparations doivent être effectuées par un personnel qualifié. Utiliser uniquement des pièces de rechange recommandées par le fabricant. |
| Informations générales | Certifié Energy Star. Consommation réduite en mode maison. |
FOIRE AUX QUESTIONS - EU50F2G1 WESTINGHOUSE
Questions des utilisateurs sur EU50F2G1 WESTINGHOUSE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Téléviseur au format PDF gratuitement ! Retrouvez votre notice EU50F2G1 - WESTINGHOUSE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil EU50F2G1 de la marque WESTINGHOUSE.
MODE D'EMPLOI EU50F2G1 WESTINGHOUSE
USER'S MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DEL USUARIO
EU50F2G1
TABLE OF CONTENTS
| 1 | IMPORTANT INFORMATION | 2 | |
| 2 | HOW TO INSTALL THE STAND | 4 | |
| 3 | PREFACE | 5 | |
| 4 | SAFETY PRECAUTIONS | 5 | |
| 5 | CONTENTS | 7 | |

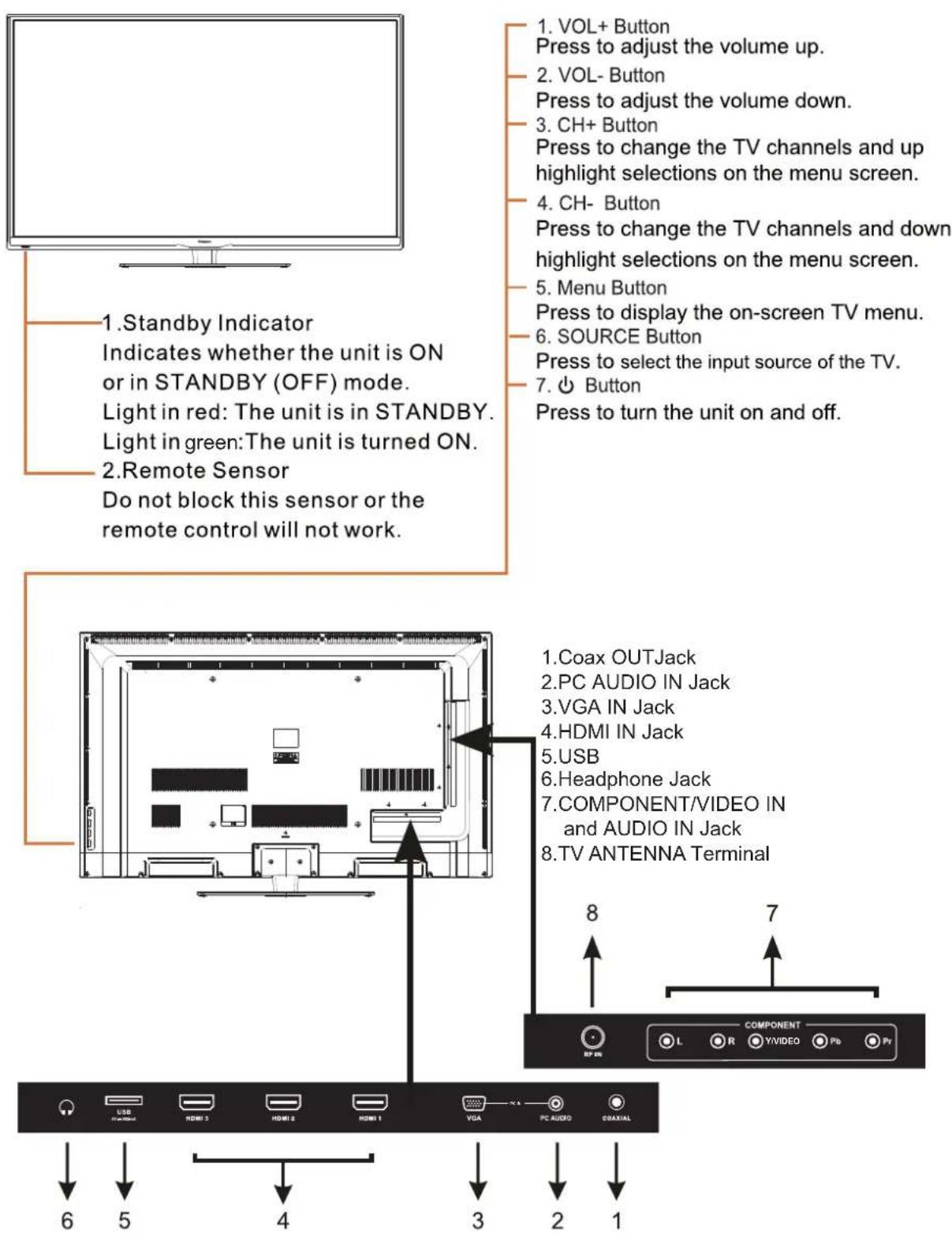

| 6 | FRONT/BACK CONNECTIONS OF TV | 8 | |
| 7 | TV INSTALLATION | Power Cord Connection | 9 |
| Antenna Connection | 9 | ||
| AV Connection | 10 | ||
| YPbPr(component) Connection | 10 | ||
| USB Port Connection | 11 | ||
| VGA(PC)Connection | 11 | ||
| HDMI Connection | 12 | ||
| COAXIALConnection | 12 | ||
| 8 | REMOTE CONTROL | Remote control instructions in TV mode | 13 |
| Remote control setup | 14 | ||
| 9 | MENU OPERATION | SETUP WIZARD | 15 |
| Operating the Menu | 17 | ||
| PICTURE Menu | 18 | ||
| AUDIO Menu | 19 | ||
| TIME Menu | 19 | ||
| SETUP Menu | 20 | ||

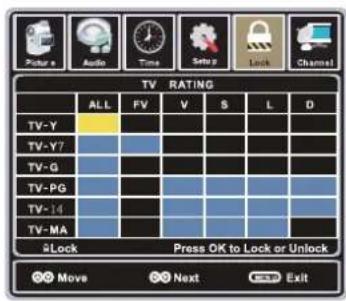

| LOCK Menu | 22 | ||

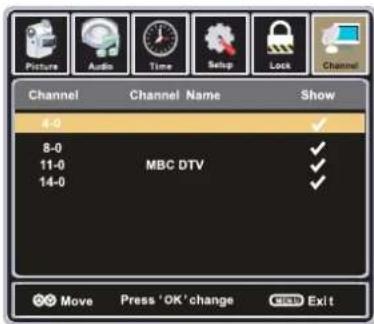

| CHANNEL Menu | 24 | ||
| 10 | MEDIAMENU | PhotoMenu | 26 |
| MusicMenu | 26 | ||
| 11 | TROUBLESHOOTING | 27 | |
| 12 | SPECIFICATIONS | 28 |
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN!
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
Important Safety Instructions
Note:
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments / accessories specified by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
16.WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17.Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
18. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
19.WARNING:The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
20.The ON-MODE Power under Home Mode should be less than 81W.
21.The Sleep Mode power should be less than 0.5W.
22. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
This Westinghouse product has earned the Energy Star for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental Protection agency. The Energy Star program exists to provide energy saving guidelines and help promote energy efficient products and practices. Changes to certain features, settings and functions of this TV can change and/or increase its power consumption. Depending on how settings are changed, power consumption may exceed the limits required for Energy Star qualification. This Westinghouse TV will operate at optimal energy efficiency in "Home" mode.
Licensing and Patent Information
This WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent applications. See http://westinghousedigital.com/compliance/ for details.

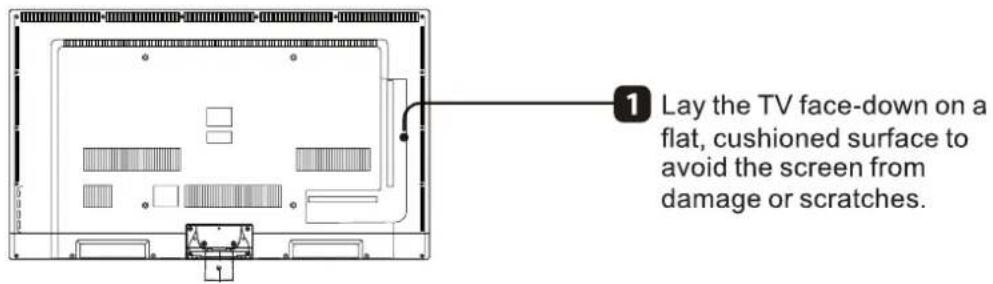

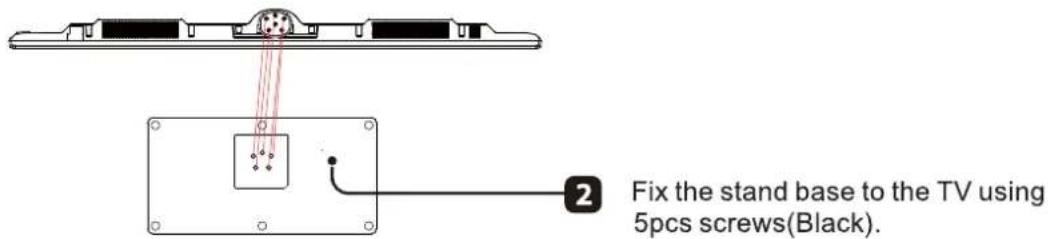

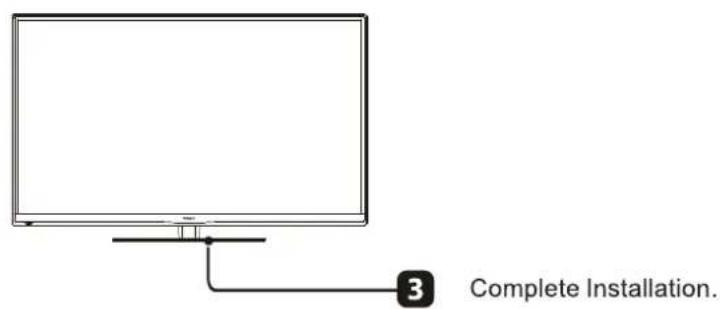

How to install the stand!
Follow the instruction to install the Base Stand of TV. You may reverse the steps to remove the base stand from TV.
3. PREFACE
Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and contact your dealer. Check that you have all the accessories according to the model.
4. SAFETY PRECAUTIONS
Put the TV on a stable surface.
Do not place any material on the TV.
Do not use the TV with fixtures other than those provided or suggested by the manufacturer.
Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.
Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.
Keep the TV dry and away from humidity.
Keep the TV away from heat sources.
Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.
Only clean the TV with a soft and dry cloth.
In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits, fire or other incidents.
Unplug the TV during lightning storms or when unused for long periods of time.
5.CARTON CONTENTS
LED TV SET
Remote Control
USER'S MANUAL
AAA Batteries
Warranty Card
Quick Connect Guide
7. INSTALLATION

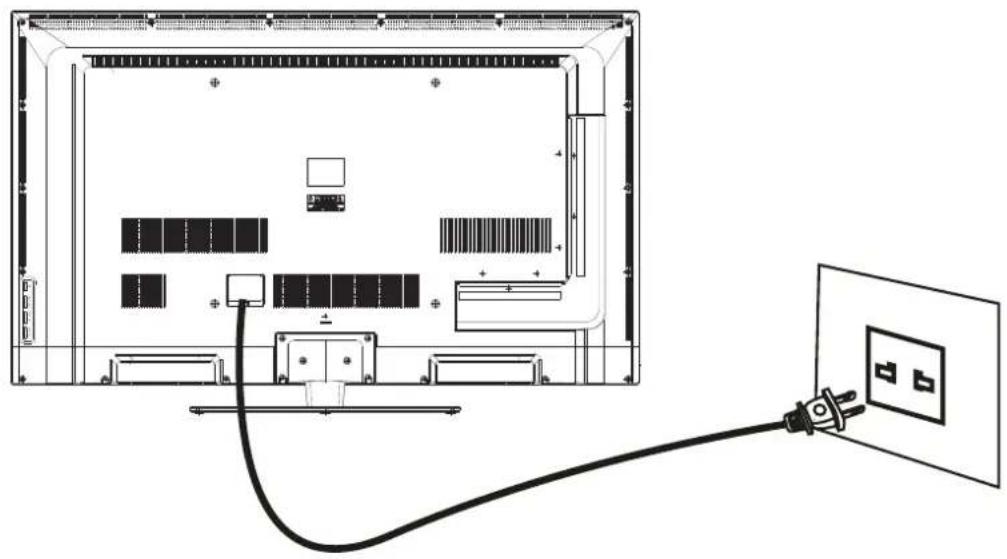

Power Cord Connection
- Connect the power cord into AC Power Source.

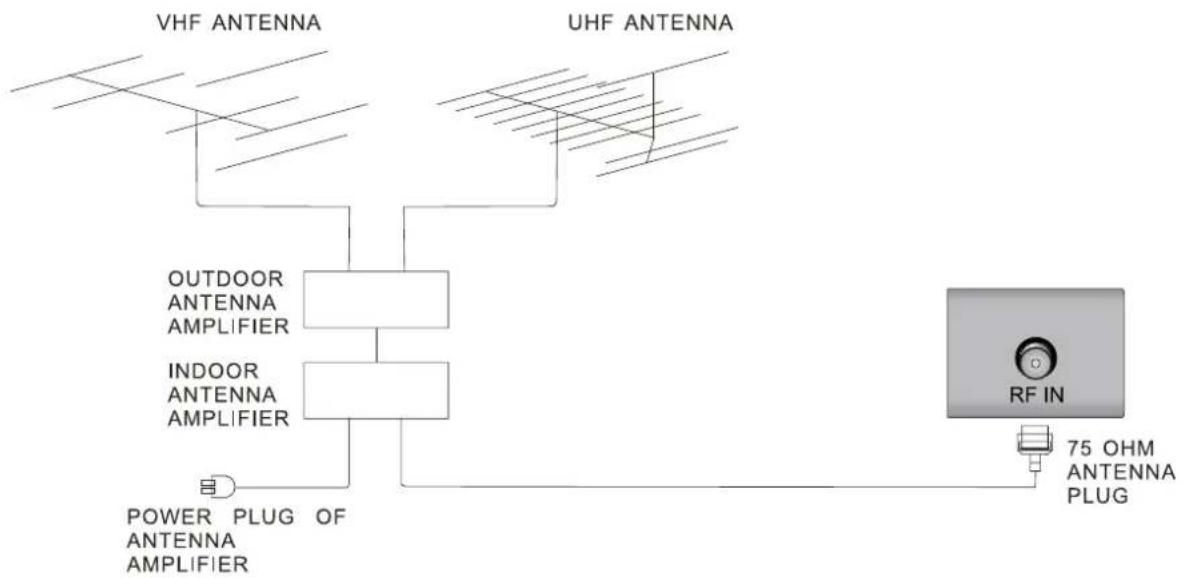

Antenna Connection
To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

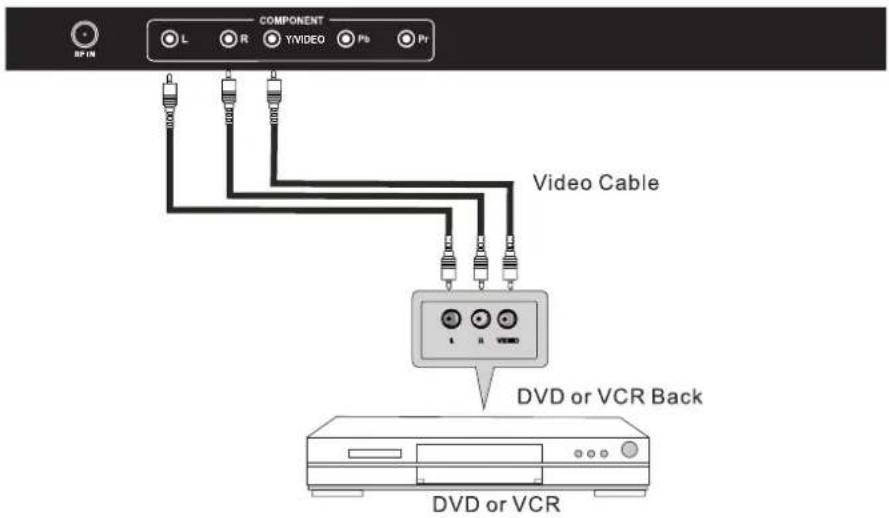

AV Connection
Connect the Video and AUDIO output jack of a DVD or VCR to the AV jacks on the set using a RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source using the SOURCE button on the remote control.
TV Back

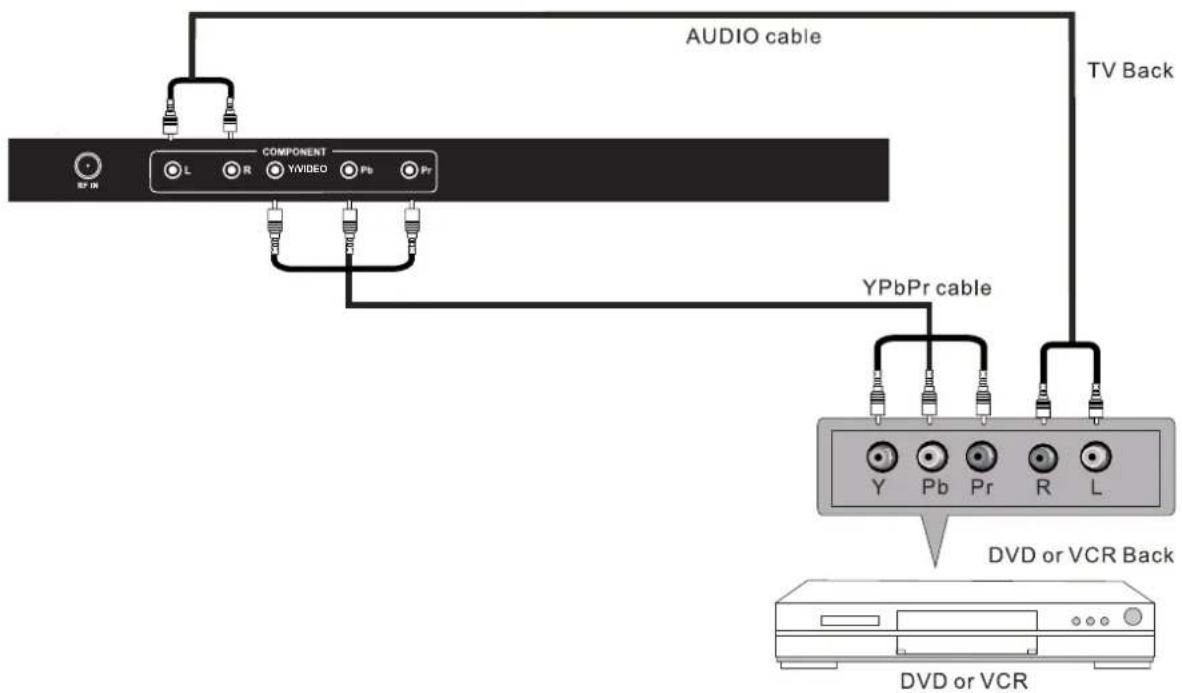

YPbPr(Component) Connection
Connect the YPbPr output of a DVD or VCR to the YPbPr input on the TV. The picture quality is improved compared to connecting a regular VCR to the video input. Connect the Audio output of a DVD or VCR to the Audio input jacks on the set using a RCA cable. Match the jacks colors: Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select component input source using the SOURCE button on the remote control.

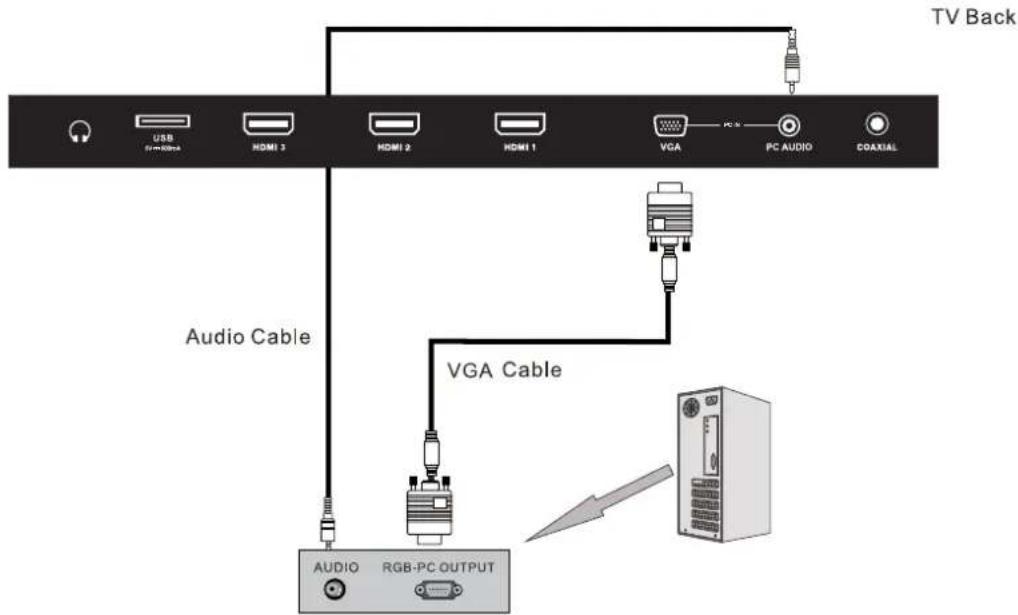

VGA(PC) Connection
Connect the RGB output of a PC to the VGA(PC) jack on the TV. Connect the AUDIO output of a PC to the PC AUDIO jack on the TV. Select the PC input source with the SOURCE button on the remote control.
usu

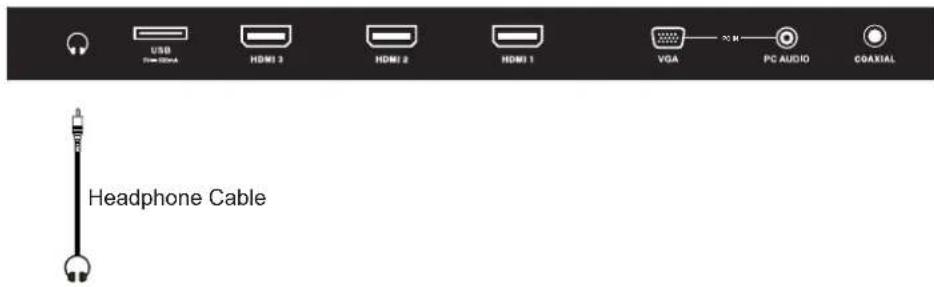

HEADPHONE Connection
Connect to Audio Amplifier device to the Headphone output jack on the TV.
TV Back

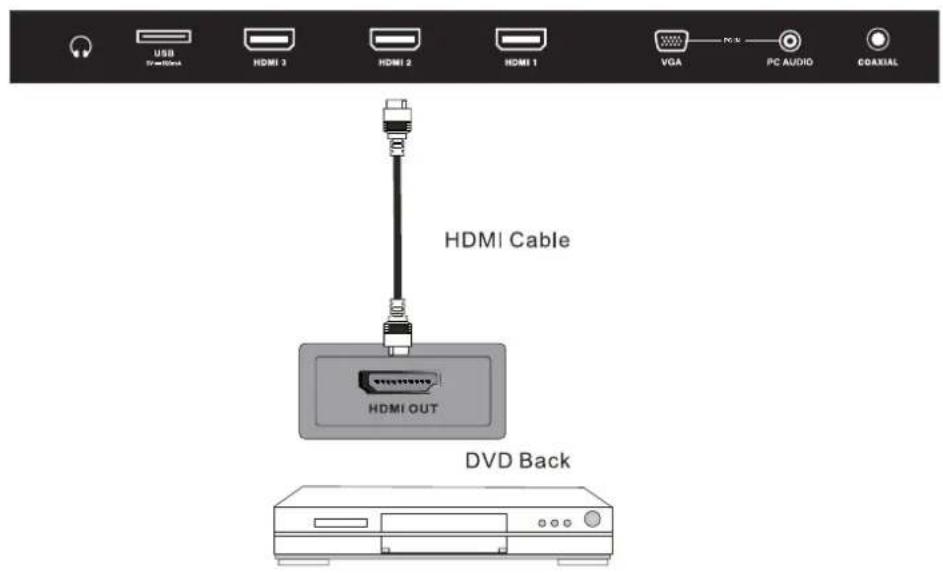

HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control signals through one cable only. These signals are transferred in digital.
TV Back

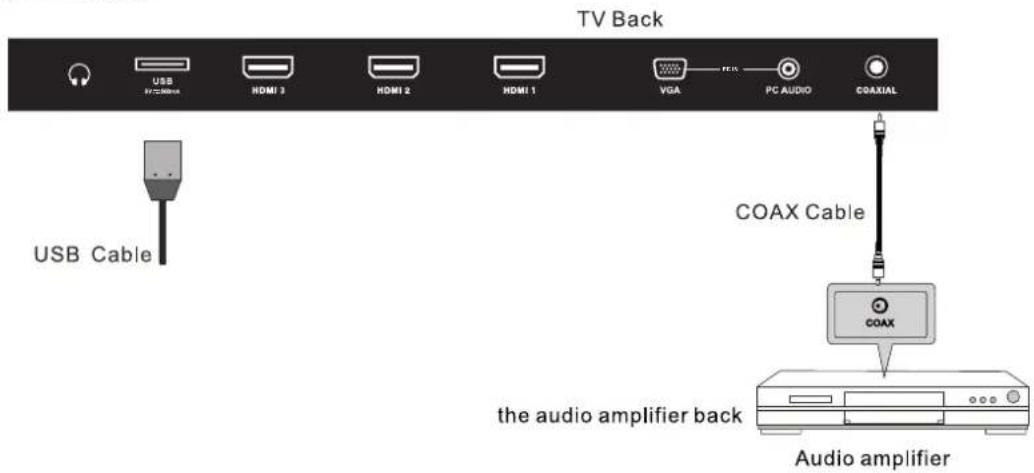

COAXIAL and USB Connection
USB output: DC 5V = 500mA
8. REMOTE CONTROL

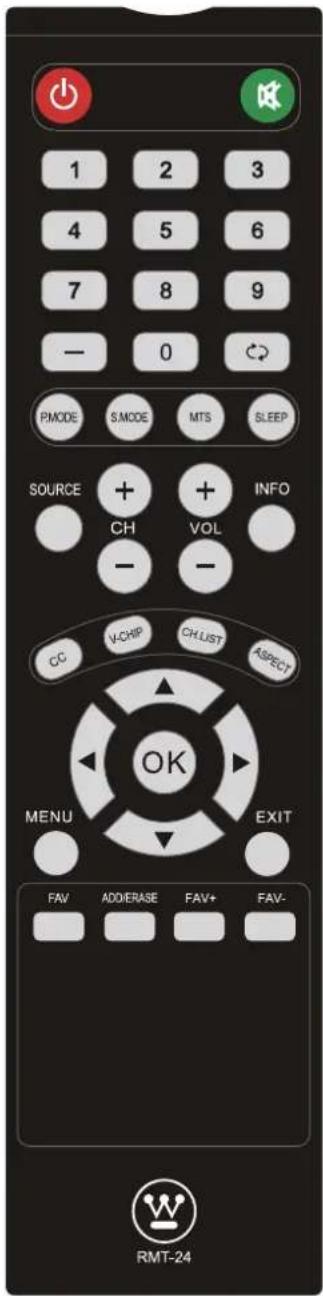

Remote control instructions in TV mode
POWER Turn the LED TV on of off.
MUTE Press once to disable the audio and press again to enable the audio.
NUMBER BUTTONS Press 0-9 to directly change the TV channel.
Press this button to enter a program number for multiple program channel such as 2-1,etc.
Return to the previous channel viewed.
P.MODE Select the picture mode.
S.MODE Select the sound mode.
MTS Press to adjust between available audio channel.
SLEEP Set the Sleep Timer
SOURCE Press Source to display the OSD input source, press to select an input source, and then press OK to confirm
CH+/CH- Press to scan through channels
VOL+VOL- Press to increase / decrease the sound level.
INFO Displays the source and channel information
CC Press to set the closed caption.
V-CHIP Switch to V-CHIP input.
CH.LIST Press to display the TV program list.
ASPECT Press to select Aspect Ratio
THUMBSTICK(▲/▼/▲/▶/OK)
Allows you to navigate the on-screen menus and adjust the system settings to your preference.
MENUDisplaysthemainTVmenu.
EXIT Exit the main TV menu.
FAV Press to display the favourite program list.
ADD/ERASE Add/Erase channel to favourite program list.
FAV+ FAV-
Press these two keys to switch to your favourite programs.

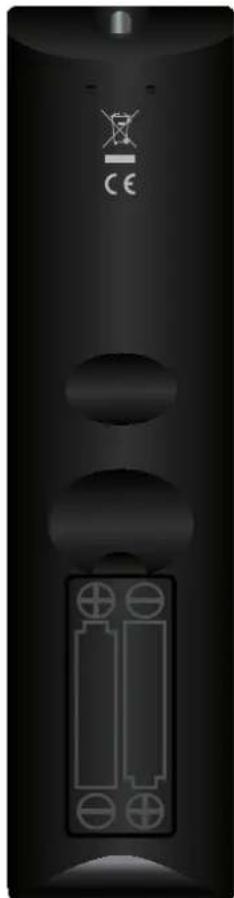

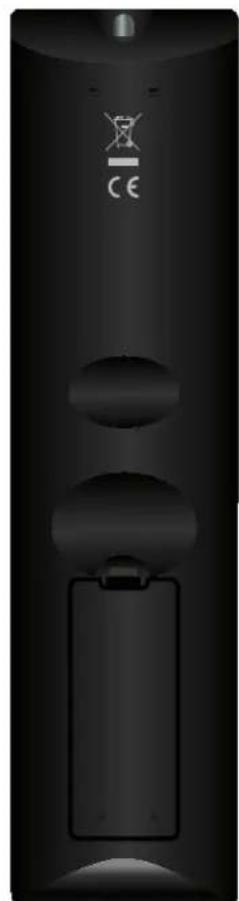

Remote control setup
- Open the cover.
- Uses AAA size batteries. When inserting the batteries, make sure correct polarities "+"and "-" marks on the batteries line up correctly with compartment markings.
- Replace the battery cover.
To prevent battery leakage which may result in bodily injury or damage to the remote:
- Install all batteries correctly, and as marked on the remote control.
- Do not mix batteries: (OLD and NEW or CARBON and ALKALINE, etc) Remove batteries when the remote is not used for a long period of time.
9.Menu Operation
SETUP WIZARD
Select Language
Time Zone
Select Language
Welcome to the Westinghouse HDTV Setup Wizard.
Follow this guide to help setup your
HDTV for Scanning Channels or
accessing your external devices forsmart satellite Blu ray DVD and
cable,satellite,Blu-ray,DVD,and gaming
gyming. Use the Up and Down arrows on your
remote control to select the language
to use for menus and message screens.
09:Salct
English
Français
Espanol
OK Next
Time Zone
Use the Up and Down arrows
on your remote control to
select your local time zone.
Go Back
0000:Select
Hawaii(UTC-10)
Ainskal[UTC-5]
PassNo(UTC-8)
Mountaineer (1)
0
Cenrose (TC-6)
Eastern[UTC-5]
OKNext
Power on Mode
Power on Mode
Use the Up and Down arrows on your
remote control to select power on mode
Home optimizes the video setting for
Energy Star qualification.
Go Back
Home
Retail
0x8a:Select
OK:Next
Power on Mode
Use the Up and Down arrows on your
remote control to select power on mode.
Showroom optimizes the video
setting for use on a retail showroom
[floor or demo environment]
Home picture mode is the mode in which
the product qualifies for ENERGY STAR
Go Back
SELECT
Home
Retail
OK:Next
Setup Wizard
Let's Get Connected...
Click here to connect a Cable Box or Satellite Box
Click here to connect a Game, Blu-Ray, DVD or other player
Cck here to scan channels from the Antenna or coaxial cable input
Go Back
0000:Select
OK Next
Cable or Satellite Source Input
Use the Left/Right arrows on your remote control to select the
type of connection are you using to connect the set top box?
For optimal video quality, we recommend HDMI or Component
(refer to Quick Connect Guide or User Manual to help you
HDMI
Component
Other
Antenna
Go Back
13/14
13/14
0000:Select
OK Next

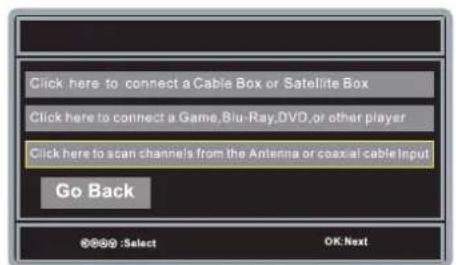

Let's Get Connected...
Click here to connect a Cable Box or Satellite Box
Cick here to connect a Game, Blu-Ray DVD or other player
Click here to scan channels from the Antenna or coaxial cable inpu
Go Back
0889 Select
OK:Next
INPUT SOURCE
TV
Component/AV
HDM1
HDMIZ
HDM13
VGA
USB

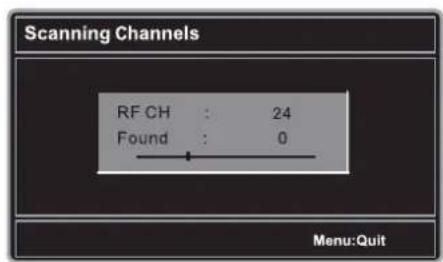

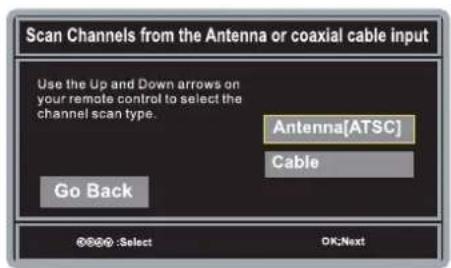

Channel Scan
Operating the Menu
- Press the POWER button to turn the LED TV on.
- Press the MENU button on the remote control, the on-screen menu will appear on the screen.
3.Use the LEFT and RIGHT buttons to select your main menu option.
PICTURE MENU:
Allows you to make adjustments to your picture settings.(select TV source for example)

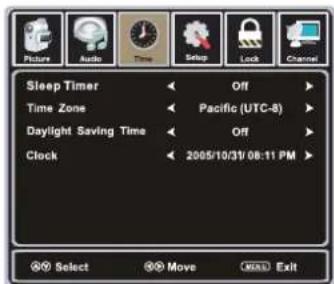

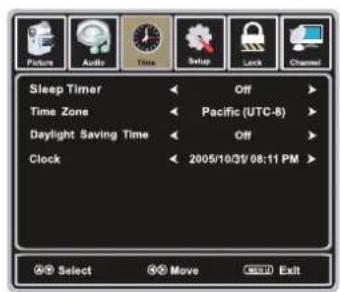

TIME MENU:
Allows you to set up a variety of timer options. (Select TV source for example)

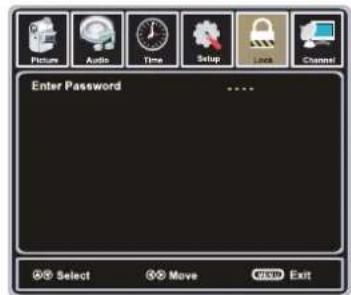

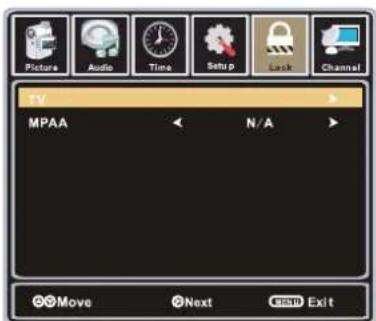

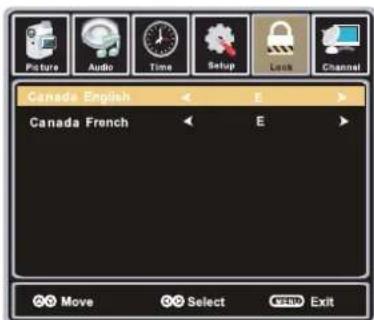

LOCK MENU:
Allows you to set up a variety of lock options. (Select TV source for example)

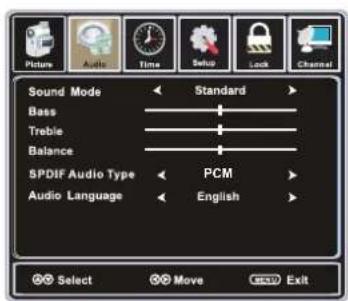

AUDIO MENU:
Allows you to customize the audio options and effects.(select TV source for example)

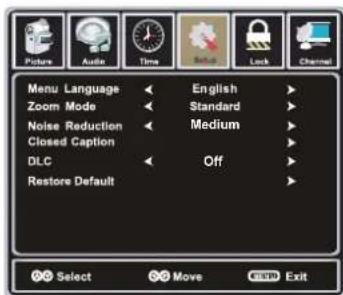

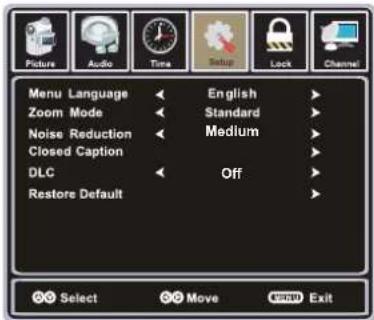

SETUP MENU:
Allows you to set up a variety of setup options. (Select TV source for example)

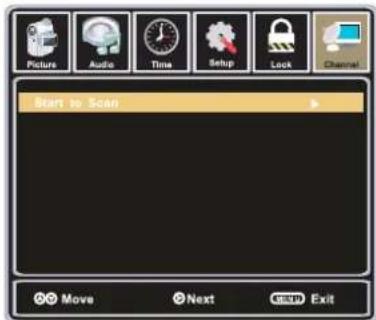

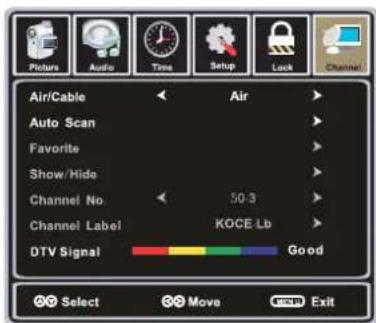

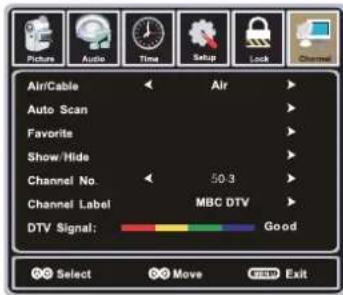

CHANNEL MENU:
Allows you to search channels and set up a variety of channel options. (Select TV source for example)
4.Use the UP/DOWN buttons to select an option of the sub-menu, and press the RIGHT button. While in adjustment mode, use the LEFT/RIGHT button to change the value of the item.
5. Press the MENU button to exit the menu.
Note:
Only when you input the suitable signal, the relevant items can be activated.
- Press the POWER button to turn the LED TV on.
- Press the MENU button on the remote control, the on-screen menu will appear on the screen.
3.Use the LEFT and RIGHT buttons to select your main menu option.

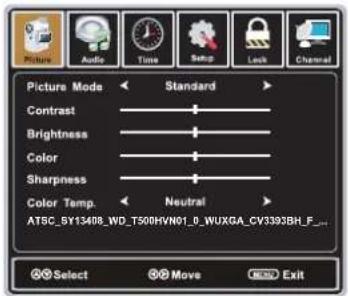

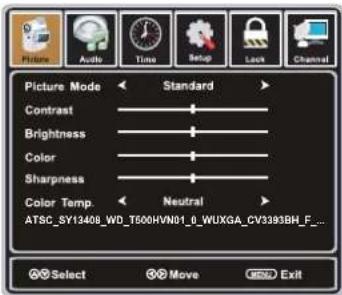

PICTURE Menu
Select TV source for example.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the PICTURE.
- Use the UP and DOWN buttons to highlight an individual PICTURE option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit the menu.
The PICTURE menu includes the following options :
Picture Mode
Cycles among picture display modes: Standard, Dynamic, Movie, User.
Contrast
Controls the difference between the brightest and darkest regions of the picture.
Brightness
Controls the overall brightness of the picture
Color
Control the color.
Sharpness
Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Color Temp.
Cycles among color temp: Neutral, Warm, Cool.

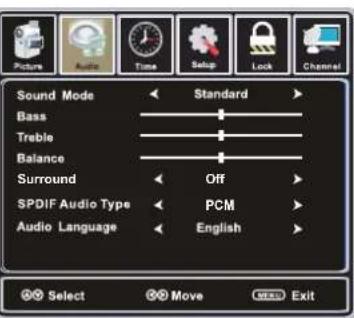

AUDIO Menu
Select TV source for example.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the AUDIO.
- Use the UP and DOWN buttons to highlight an individual AUDIO option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit the menu.
The AUDIO menu includes the following options :
Sound Mode
Allows you to select among: User, Standard, Music, Movie.
Bass
Controls the relative intensity of lower pitched sounds.
Treble
Controls the relative intensity of higher pitched sounds
Balance
To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track.
Surround
Provide an enhanced listening experience.
SPDIF Audio Type
Allows you to select between: PCM and RAW.
Audio Language
Allows you to select audio languages among: English, François and Espanol.
TIME Menu
Select TV source for example.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the TIME.
- Use the UP and DOWN buttons to highlight an individual TIME option, use the LEFT and RIGHT buttons to change the setting, and press the MENU button to exit.
The TIME menu includes the following options :
Sleep Timer
Allows you to set up the sleep timer among: 5Min, 10Min, 15Min, 30Min, 45Min, 60Min, 90Min, 120Min, 180Min, 240Min and Off.
Time Zone
Allows you to set up the time zone : Pacific, Alaska, Hawaii, Eastern, Central and Mountain.
Daylight Saving Time
Allows you to set up the daylight saving between On or Off.
SETUP Menu
Select TV source for example.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT or RIGHT button to select the SETUP.
- Use the UP and DOWN buttons to highlight an individual SETUP option, use the LEFT and RIGHT buttons to change the setting, and press the MENU button to exit.
The SETUP menu includes the following options:
Menu Language
Allows you to select menu language among: English, Français and Espanol.
Zoom Mode
Allows you to select the zoom mode among: Standard,
Fill, Overscan.
Noise Reduction
Allows you to select the noise reduction mode among:
Strong, Off, Weak, Medium.

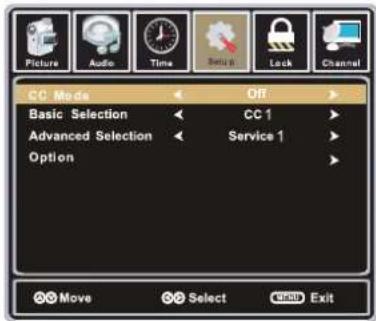

Closed Caption
Use Down button to highlight the Closed Caption item, then press RIGHT button to enter into the following menu.
CC Mode
Allows you to select the CC Mode among: On, Off and CC on Mute.
Basic Selection
Allows you to select the basic selection among:
CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4.
Advanced Selection
Allows you to select the advanced selection among:
Service1, Service2, Service3, Service4, Service 5 and Service 6.

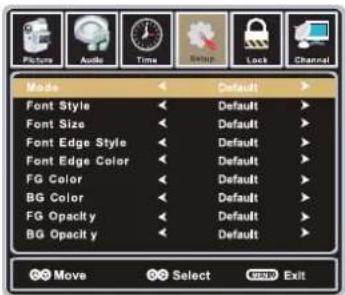

Option
Use Down button to highlight the "Option" item, then press RIGHT button to enter into the following menu.
Use UP and DOWN buttons to highlight the desired item, and use LEFT and RIGHT buttons to select.
DLC
Dynamic luminance control On or Off.

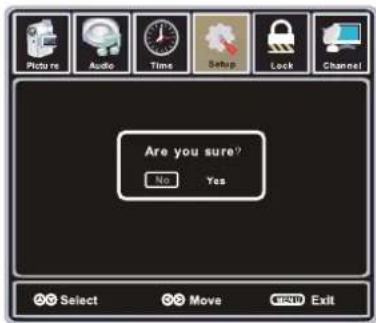

Restore Default
Restores all settings to factory except LOCK settings.

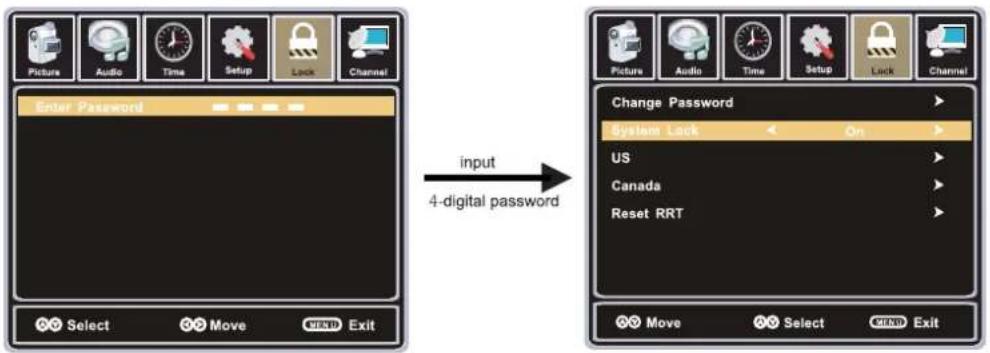

LOCK Menu
Select TV source for example.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the LOCK.
- Use the DOWN button to highlight the "Enter Password" item, use the numeric keys to input 4-digit password, then the screen will display the junior menu. After settings, press menu button to exit.
NOTE: The factory password is 0000.
The LOCK menu includes the following options:

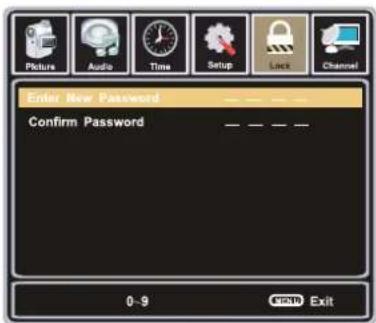

Change Password
Use DOWN button to select the "Change Password" item, then press RIGHT button to enter into the following menu. Input the new 4-digital password and input it again to confirm.
System Lock
Allows you to turn on or off the system lock.
If you turn off the system lock, then the following items (US, Canada and Reset RRT) will unable to use.
US
Use Down button to highlight the "US"item, then press RIGHT button to enter into the following menu.
TV
Use Down button to highlight the "TV"item, then press RIGHT button to enter into the following menu.
Use UP and DOWN buttons to select the desired rating and press OK button to block or unblock rating.
MPAA
The Movie rating (MPAA) is used for original movies rated by the Motion Picture Association of America (MPAA) as broadcasted on cable TV and not edited for television.
Use RIGHT and LEFT button to select N/A, G, PG, PG-13, R, NC-17 or X.
RATING DESCRIPTION
G General Audiences. Movie is appropriate for all ages.
PG Parental Guidance Suggested. May contain material not suited for younger viewers.
PG-13 Contains content that may not be appropriate for viewers under the age of 13.
R Restricted. Contains adult content, no one under 17 admitted without parent.
NC-17 No one 17 and under admitted.
X Adults only.
Canada
Use Down button to highlight the "Canada" item, then press RIGHT button to enter into the following menu.
Canada English
Use LEFT and RIGHT buttons to select among: E, C, C8+, G, PG, 14+ and 18+.
Canada French
Use LEFT and RIGHT buttons to select among: E, G, 8ans+,13ans+,16ans+ and 18ans+.
Reset RRT
Allows you to reset the RRT setting.
CHANNEL Menu
Select TV source.
- Press the MENU button on the remote control to display the Main menu, and use the LEFT and RIGHT buttons to select the CHANNEL.
- Use the UP and DOWN buttons to highlight an individual CHANNEL option, use the LEFT and RIGHT buttons to change the setting, and press the MENU button to exit.
The CHANNEL menu includes the following options :
Air/Cable
Allows you to select antenna between Air, Cable.

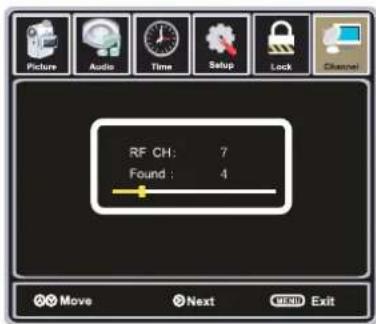

Use Down button to highlight the "Auto Scan" item, then press RIGHT button to enter into the following menu.
If you select "Air" as input signal in Antenna item, you can press RIGHT button to search the channels automatically.
The receivable channels will be stored automatically. When searching channels, press MENU to stop.
If you select "Cable" as input signal in Antenna item, allows you to select Cable System among: AUTO, STD, IRC and HRC. Use DOWN button to highlight the "Start to Scan", then press RIGHT button to search the channels automatically. The receivable channels will be stored automatically. When searching channels, press MENU to stop.

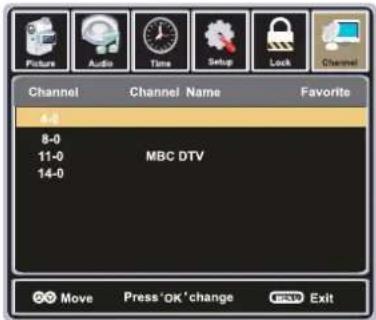

Favorite
Allows you to add these channels which you desired as the favorite channels.
Use UP or DOWN button to highlight the "Favorite"item, then press RIGHT button to enter into the following menu.
Use UP and DOWN button to highlight the desired item, then press OK button to add or remove the highlighted channel as favorite.
Show / Hide
Allows you to show or hide the channels.
Use UP or DOWN button to highlight the "Show / Hide" item, then press RIGHT button to enter into the following menu.
Use UP and DOWN button to highlight the desired item, then press OK button to show or hide the highlighted channel.
Channel No.
Display the number of current channel.
Channel Label
Display the table of current channel.
DTV Signal
Display the quality of current DTV Signal.

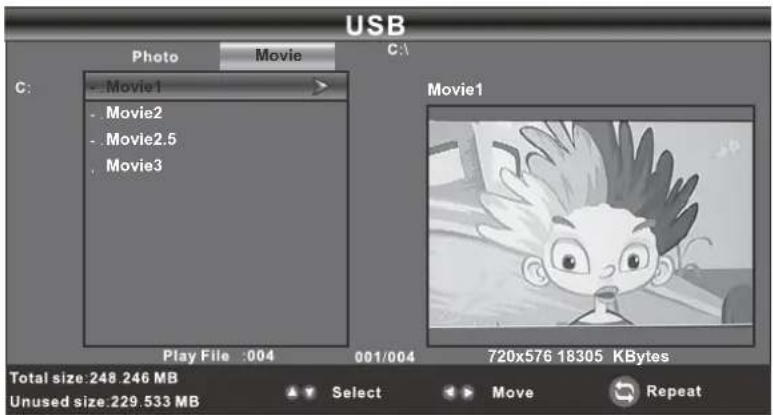

10.MEDIA MENU
Note: Before operating USB menu, plug in USB device, then press SOURCE button to set the Input Source to USB.

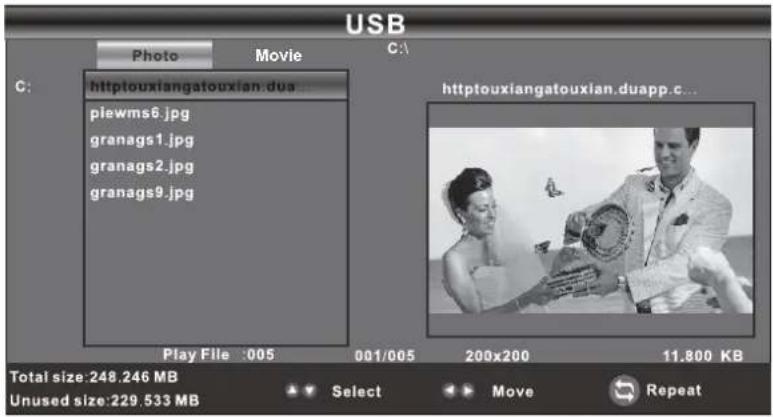

Photo Menu
Press button to select Photo in the main menu.
Press / button to select drive disk you want to watch, then press OK button to enter.
Music Menu
Press button to select Music the main menu.
Press / button to select drive disk you want to watch, then press OK button to enter.
11. Troubleshooting
Please check if you can solve problems by troubleshooting yourself.
| Troubleshooting | Control |
| No signal | Please check that all cables are correctly plugged in. |
| No color shades | Adjust the contrast, the color and the brightness. |
| Stain on the screen | May be the result from a lighting signal from car, motor, neon light and other electrical devices or appliances. |
| Double or multiple display image | May be the result of an electrical wave disturb from other TV, Computer and Game machine or Radio. |
| Snow on the screen | The cables of the antenna are not correctly plugged in. |
| The remote control does not work | Please check the batteries order and alignment. Check that the IR of the remote control is not hidden by something. |
| "Zip" made noise on TV cover | Even if the display image is correct, the noise may come from an unsteady fixation of the panel. |
| No sound | Make sure that you have not press the MUTE button of the remote control. |
12. SPECIFICATIONS
This manual is only for your reference, any change to the design and specification will not be advised.
| Screen Size | 50 Inch | |
| Display Type | TFT LED | |
| Resolution(Pixel) | 1920 X 1080 | |
| Aspect Ratio | 16:9 | |
| Power Supply | AC100-240V 50/60Hz | |
| Power Consumption | 120W | |
| TV System | ATSC/NTSC | |
| Video Input Format | PAL/NTSC | |
| Audio Output Power | L/R 2X8W | |
| SUPPORT | ANTENNA | YES |
| AV-IN | YES | |
| YPbPr - IN | YES | |
| HDMI - IN | YES | |
| VGA(PC) - IN | YES | |
| VGA(PC) AUDIO - IN | YES | |
| SCART - IN | -- | |
| SCART - OUT | -- | |
| HEADPHONE - OUT | YES | |
| S-VIDEO - IN | -- | |
| COAXIAL - OUT | YES | |
| COMMON INTERFACE | -- | |
| USB | YES | |
| IPOD | -- | |
| DVD | Disc Physical Format | -- |
| DVDVideoOutputFormat | -- | |
| Dimensions | Inc Stand (LxWxHmm) | 1138x250x728mm |
| Exc Sand (LxWxHmm) | 1138x53x677mm | |
| Weight | Net (Kgs) | 9.0 |
| Gross (Kgs) | 11.5 | |
www.westinghousedigital.com
S/N:
Westinghouse Digital, LLC
Orange, CA
