MODE D'EMPLOI XPRO 12 Soundstream

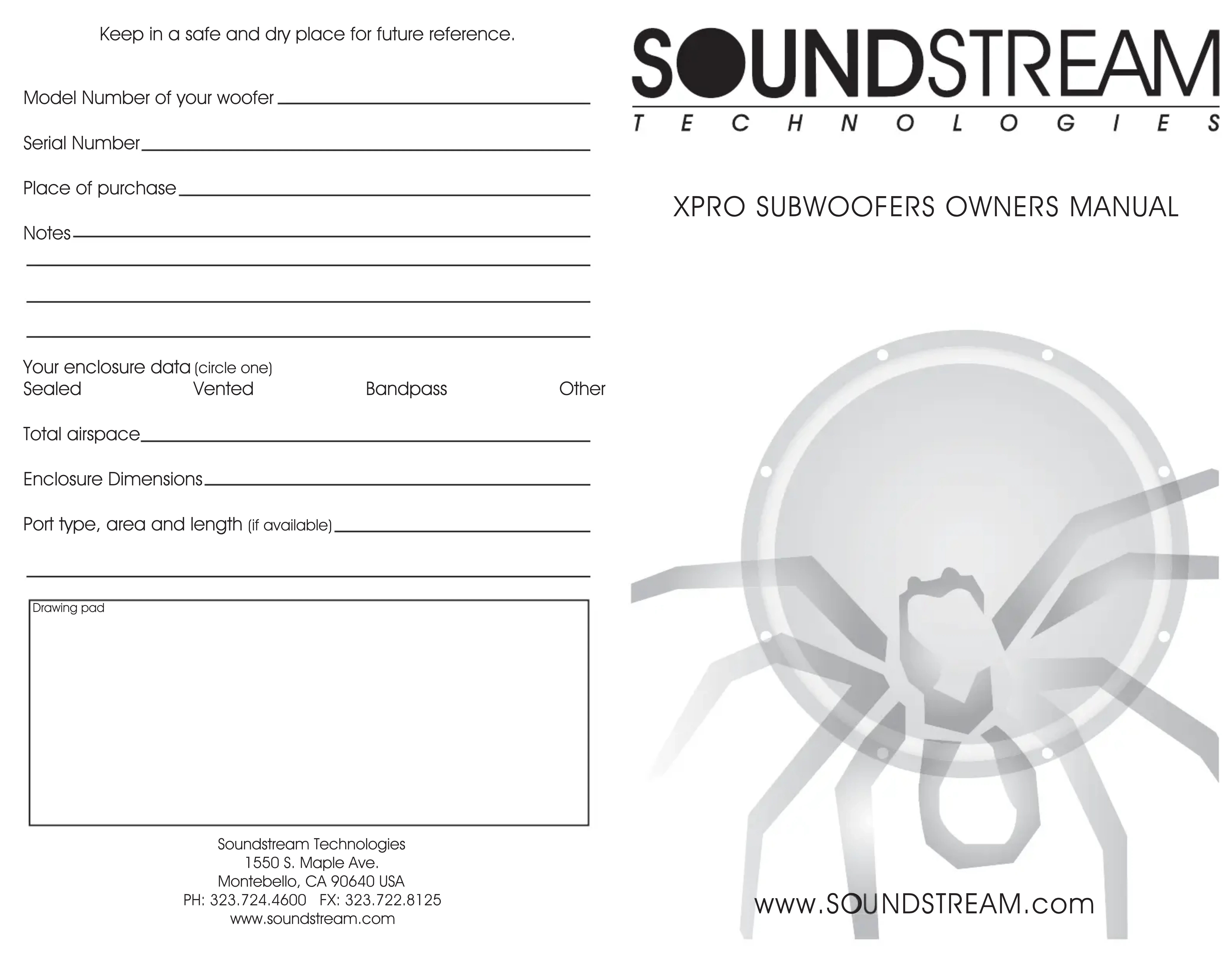

Keep in a safe and dry place for future reference.
Model Number of your woofer
Serial Number
Place of purchase
Notes
Your enclosure data (circle one)
Sealed Vented Bandpass Other
Total airspace
Enclosure Dimensions
Port type, area and length (if available)
Drawing pad
Soundstream Technologies
1550 S. Maple Ave.
Montebello, CA 90640 USA
PH:323.724.4600 FX:323.722.8125
www.soundstream.com
SOUNDSTREAM
T E C H N O L O G I E S
XPRO SUBWOOFERS OWNERS MANUAL
Congratulations and thank you for purchasing Soundstream products from our L.O.S. catalog. We are confident you will enjoy your new subwoofer and appreciate the effort involved in bringing you the best engineered and crafted subwoofer in this category.
We advise you to keep this manual in a safe and dry place. Write down any important information to reference from in the future, such as all of your enclosure information. Draw a simple diagram and write all the parameters of the enclosure incase you ever need to reference from it in the future.
Specifications
| Model | XPRO-10 | XPRO-12 |
| Mounting Depth | 5.375" | 6.375" |
| Outer Diameter | 10.25" | 12.625" |
| Cutout Diameter | 9.125" | 11.125" |
| Driver Displacement | .08 cu.ft. | .10 cu. ft. |
| Impedance | Dual 4 ohm | Dual 4 ohm |
| RMS Power | 150 watts | 200 watts |
| MAX Power | 300 watts | 400 watts |
| PEAK Power | 500 watts | 600 watts |
| Voice Coil | 2" | 2" |
| Magnet Weight | 45 oz. | 60 oz. |
| Frequency Response | 45 - 500Hz | 35 - 500Hz |
| Resonant Frequency | 41.167Hz | 27.322Hz |
| Qts | .480 | .337 |
| Qms | 3.524 | 2.488 |
| Qes | .556 | .389 |
| Vas | 18.864 lfr | 58.723 lfr |
| XMAX | 8.5 mm | 8.5 mm |
| SPL | 85.6 dB | 86.8 dB |
- These numbers are measured with the cosmetic rubber gasket in place. Please measure the driver yourself for precise dimensions or if necessary with out the gasket.
NOTICE
The following enclosure recommendations are only a few in variation of what the woofer requires. If you need specific information for a design and have questions regarding it, please contact your distributor for more information or contact Soundstream directly via email at tech-support@soundstream.com or by phone at +323.724.4600.
Sealed Enclosure Recommendations for XPRO-10 Optimum Enclosure Other Enclosure Recommender
| NET Volume 1 | cuff / 28.3 ITRS |
| Enclosure Q .808 | |
| Max Power 300 watts | |
| Fill | 50% Lock |
All volume suggestions are "Net Volume" before any displacement. Please add accordingly to your design
MAX PowerVolume
| Smallest | .5 cuff / 14.16 ltrs | 300 watts |
| Largest | 2 cuff / 56.6 ltrs | 300 watts |
Sealed Enclosure Recommendations for XPRO-12
Optimum Enclosure Other Enclosure Recommendations
| NET Volume 1.5 cuft / 42.5 liters | |
| Enclosure Q .7 | 07 |
| Max Power 300 watts | |
| Fill | 50% Lock |
All volume suggestions are "Net Volume" before any displacement. Please add accordingly to your design
MAX PowerVolume
| Smallest | .75 cuff / 21.2 ltrs | 300 watts |
| Largest | 3 cuff / 85 ltrs | 300 watts |
Vented Enclosure Recommendations for XPRO-10
Optimum Enclosure
| NET Volume 1.5 cuft / 42.5 liters | |
| Vent Design | 2 - 3" × 9.75" |
| Tuning Freq | 45Hz |
| Max Power 300 watts | |
All volume suggestions are "Net Volume" before any displacement. Please add accordingly to your design
Vented Enclosure Recommendations for XPRO-12
Optimum Enclosure
| NET Volume 2 cuft / 56.6 liters | |
| Vent Design | 2 - 3" X 12" |
| Tuning Freq | 36Hz |
| Max Power 300 watts | |
All volume suggestions are "Net Volume" before any displacement. Please add accordingly to your design
Wiring Configurations
There are a variety of impedance possibilities when using woofers equipped with multiple coils. It is "EXTREMELY" important that ALL coils are used and none are left as spares. Always provide the minimum impedance your amplifier requires. If you need assistance with wiring configurations, please consult a professional installer or contact our Technical Support Department with your questions.
