| Type de produit | Automobile |
| Marque | Lincoln |
| Modèle | Navigator (2007-2014) |
| Dimensions (L x l x H) | 5293 mm x 2002 mm x 1989 mm (208.4 x 78.8 x 78.3 pouces) |
| Empattement | 3023 mm (119.0 pouces) |
| Poids à vide | 2625 kg (5787 lb) en 4x2 ; 2725 kg (6008 lb) en 4x4 |
| Moteur | 5.4 L V8 3 soupapes, 300 ch à 5000 tr/min, 365 lb-pi à 3750 tr/min |
| Transmission | Automatique 6 vitesses avec overdrive |
| Capacité de remorquage | Jusqu'à 4082 kg (9000 lb) en 4x2 ; 3992 kg (8800 lb) en 4x4 |
| Capacité de carburant | Environ 106 L (28 gal) |
| Nombre de places | 7 ou 8 selon configuration |
| Système audio | Audiophile AM/FM avec lecteur CD 6 disques, compatible MP3, entrée auxiliaire ; en option système THX II Certified 600W avec 14 haut-parleurs |
| Système de navigation | Navigation DVD vocale en option (pack Navigation Entertainment) |
| Sécurité active | AdvanceTrac avec RSC (contrôle de stabilité antiroulis), ABS, répartition électronique de freinage |
| Sécurité passive | Airbags frontaux adaptatifs, airbags latéraux avant, rideaux gonflables Safety Canopy sur 3 rangées, colonne de direction à absorption |
| Pneus | P255/70R18 toutes saisons (standard) ; jantes alu 18 pouces ou chromées 20 pouces en option |
| Consommation estimée | Environ 15 L/100 km (mixte) (valeur indicative) |
| Entretien et nettoyage | Entretien programmé inclus la première année ; vidange d'huile synthétique recommandée tous les 8000 km ; nettoyage intérieur avec produits doux |
FOIRE AUX QUESTIONS - Navigator (2007-2014) Lincoln
Questions des utilisateurs sur Navigator (2007-2014) Lincoln
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Automobile au format PDF gratuitement ! Retrouvez votre notice Navigator (2007-2014) - Lincoln et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Navigator (2007-2014) de la marque Lincoln.
MODE D'EMPLOI Navigator (2007-2014) Lincoln
LINCOLN
2007 Navigator


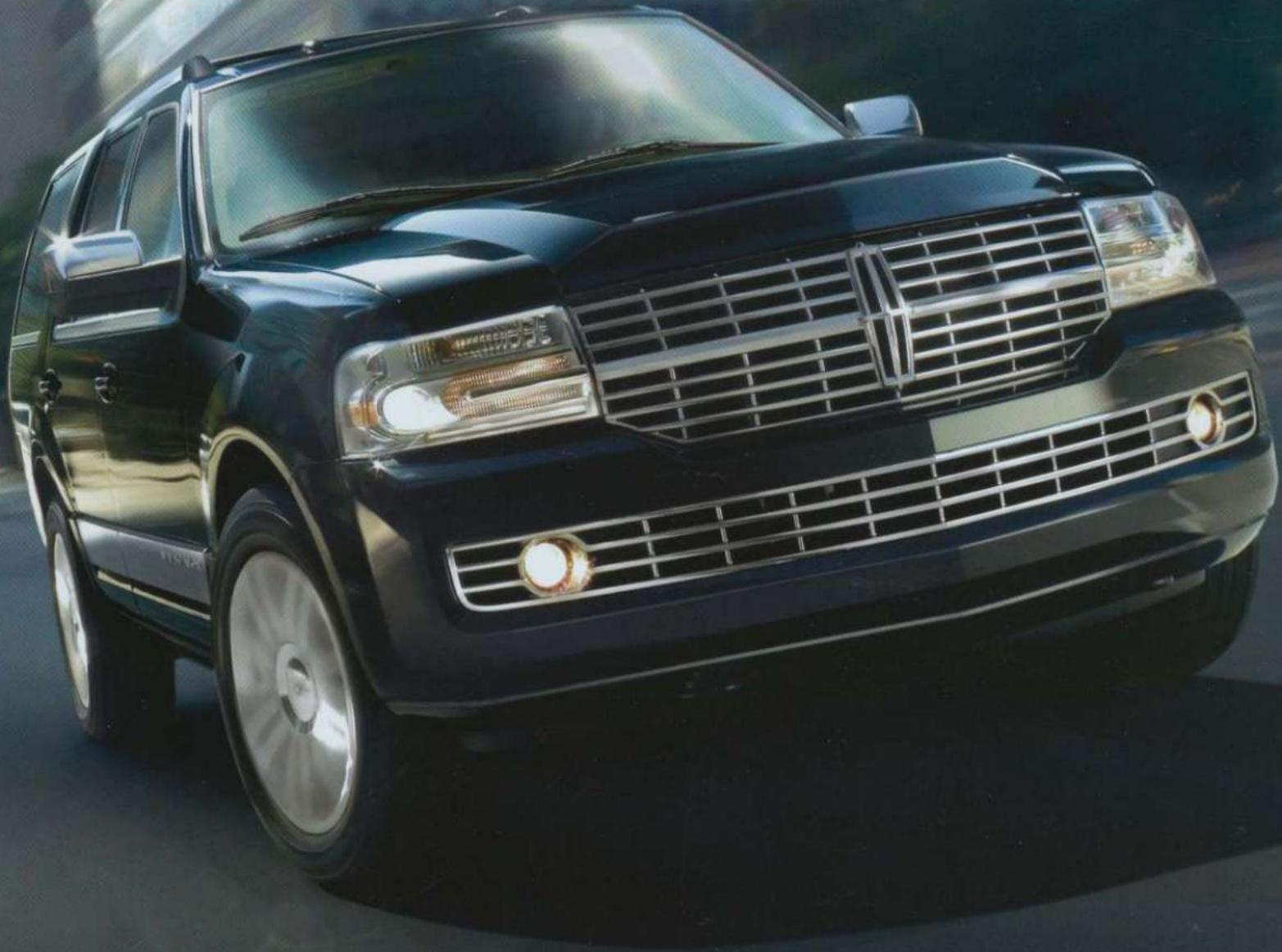

Front view of a black Lincoln SUV with grille grilles and headlights on, parked outdoors (no visible text or symbols)
LINCOLN
Reach Higher


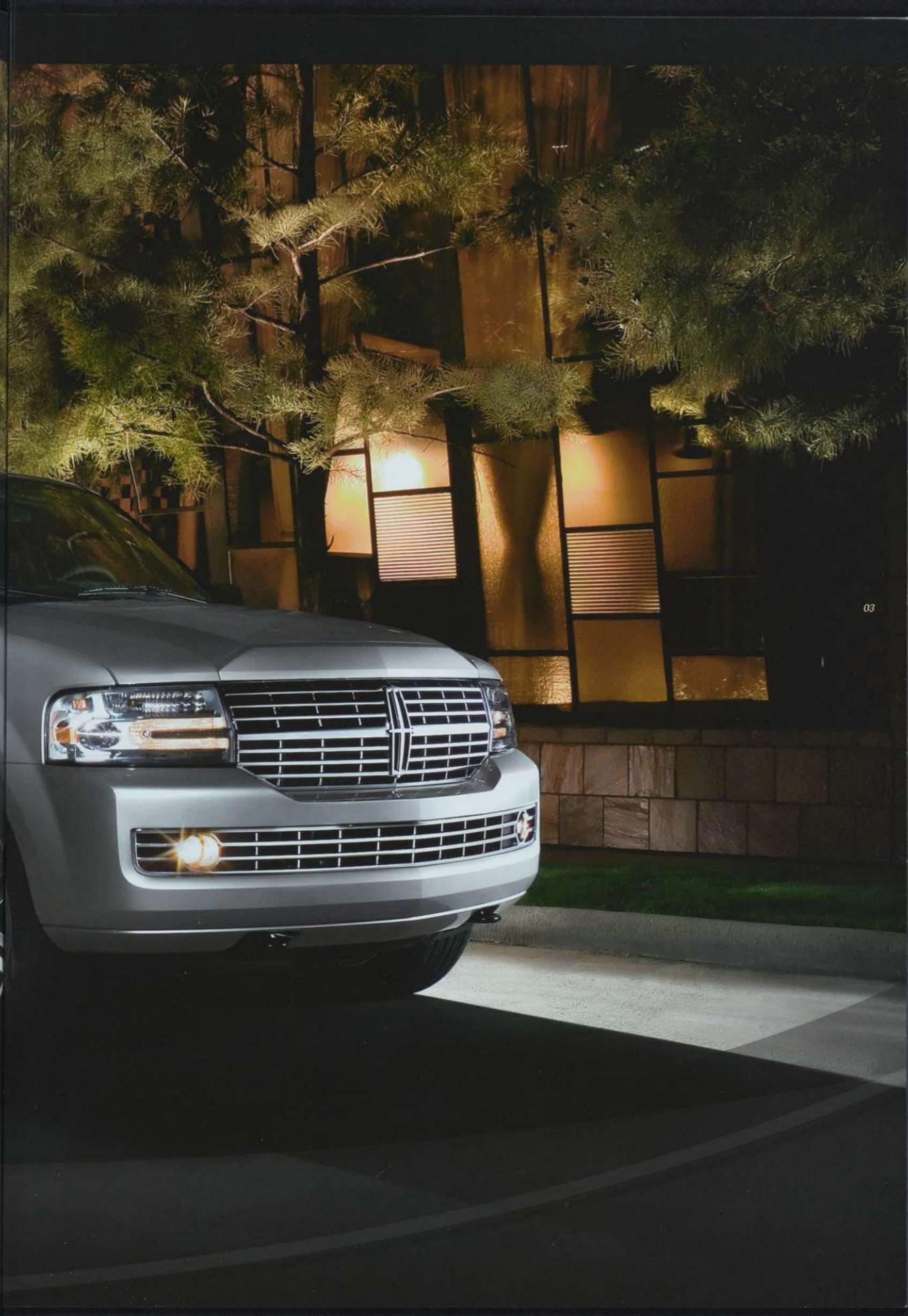

The brilliant Lincoln Star centers Navigator's inspiring new chrome grille, while chiseled lines define its sculpted power dome hood.
An elegant chrome strip accentuates the beltline, while chrome bodyside trim extends front to rear for a neat, tailored appearance.
Strong. Refined. And distinctly American.
It's going to be quite an evening.
Lincoln Navigator Ultimate in Silver Birch Metallic.

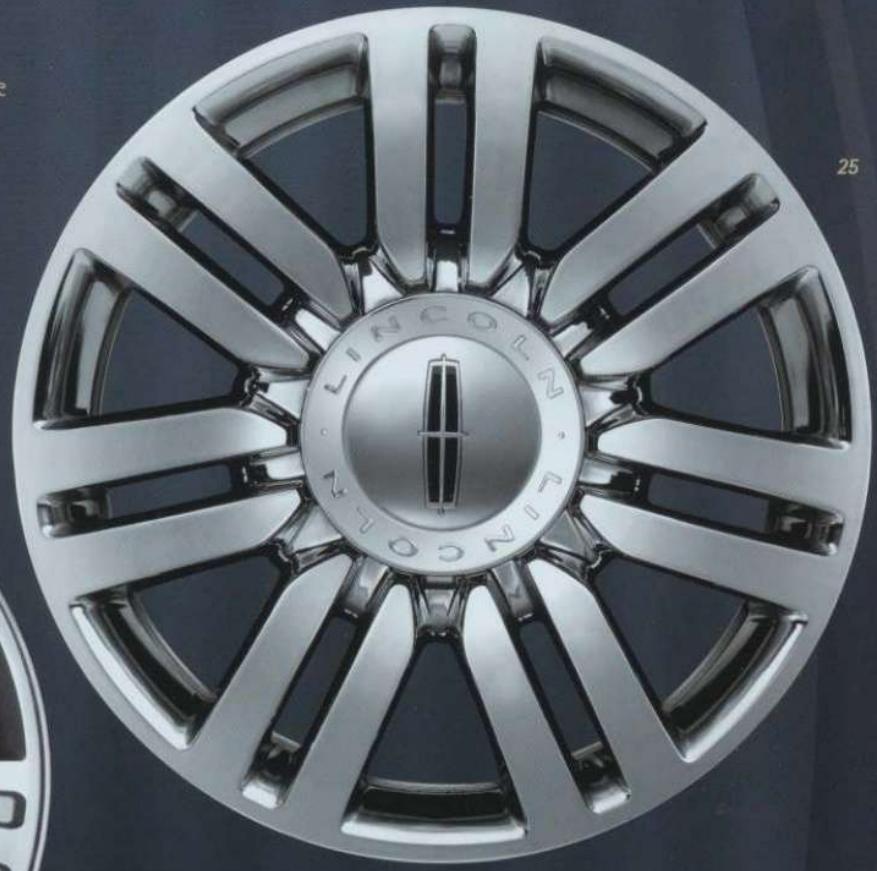

Shown with available 20" chrome-aluminum wheels.


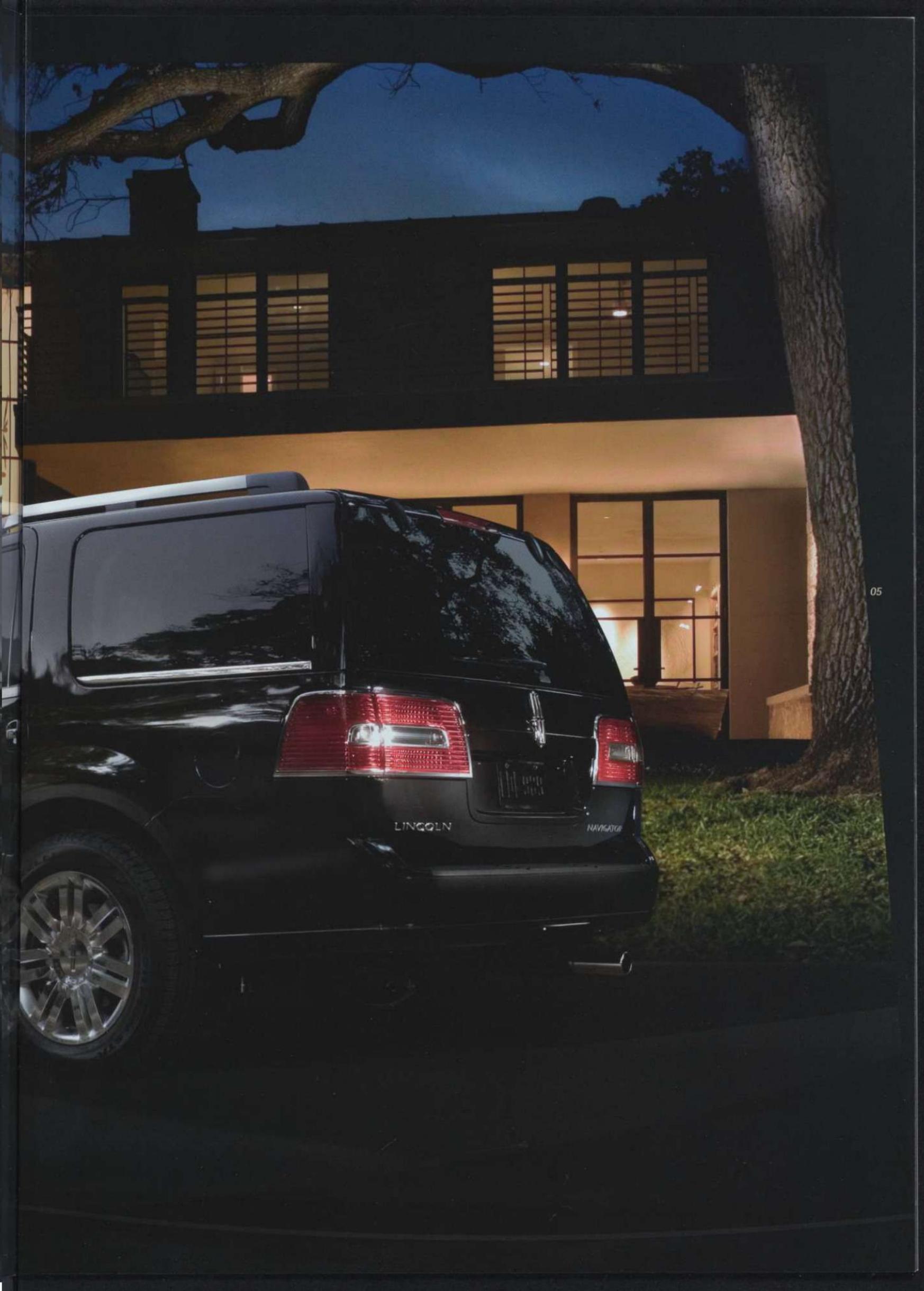

Clean, tapered surfaces define the new Navigator profile.
New wraparound, chrome-surround taillamps add drama. A chrome-tipped exhaust continues the excitement.
Expressive design. Dramatic statement.
The rest is up to you.
Lincoln Navigator Ultimate in Black.
Shown with available 20" chrome-aluminum wheels.


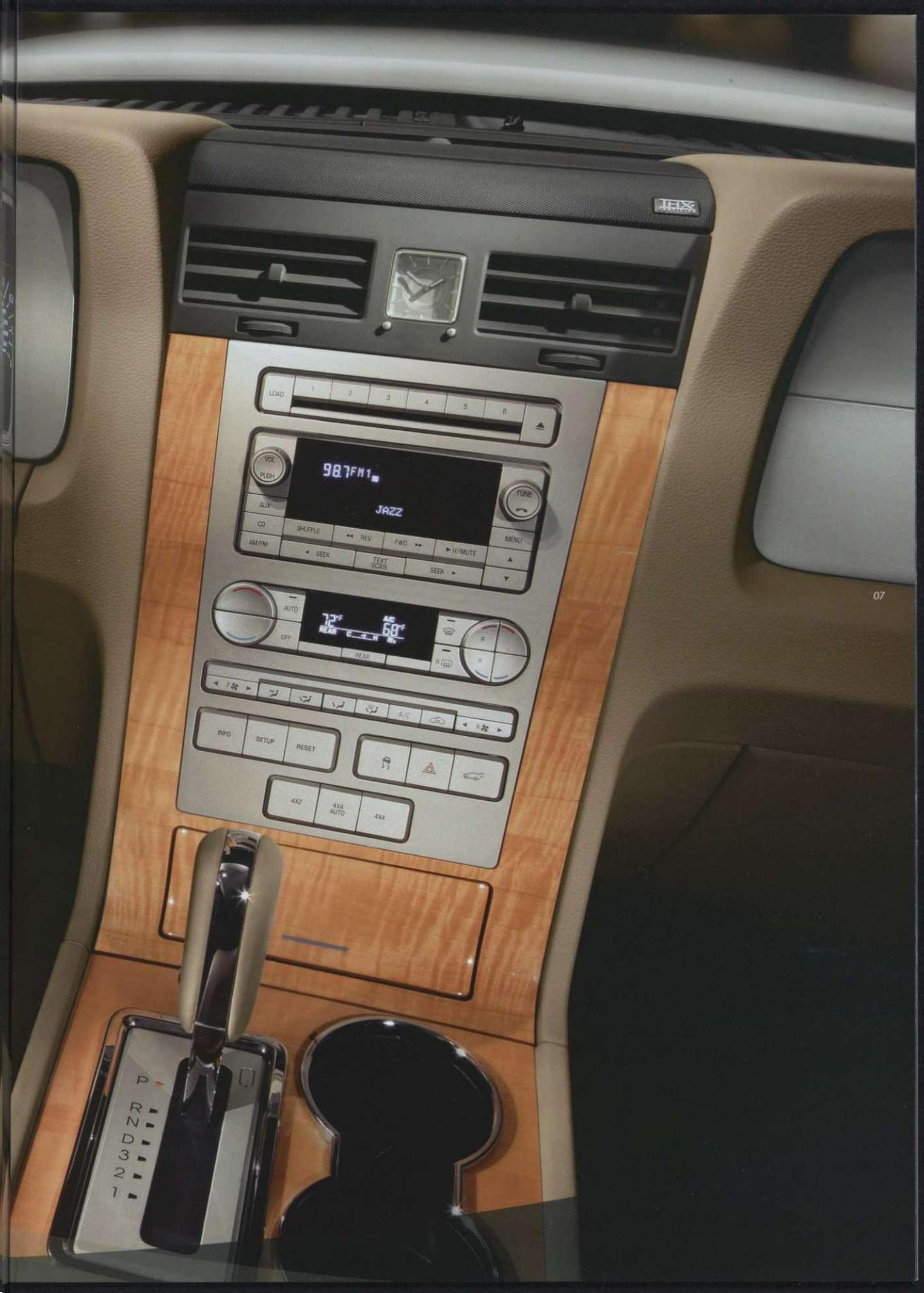

LOAD 1 2 3 4 5 6 987FN1 JAZZ TUNE AUTO OFF AUTO R A/C A/C AUTO AUTO 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X4 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X3 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 4X2 P R N D 3 2 1 R N D 3 2 1NEW 2007 LINCOLN NAVIGATOR

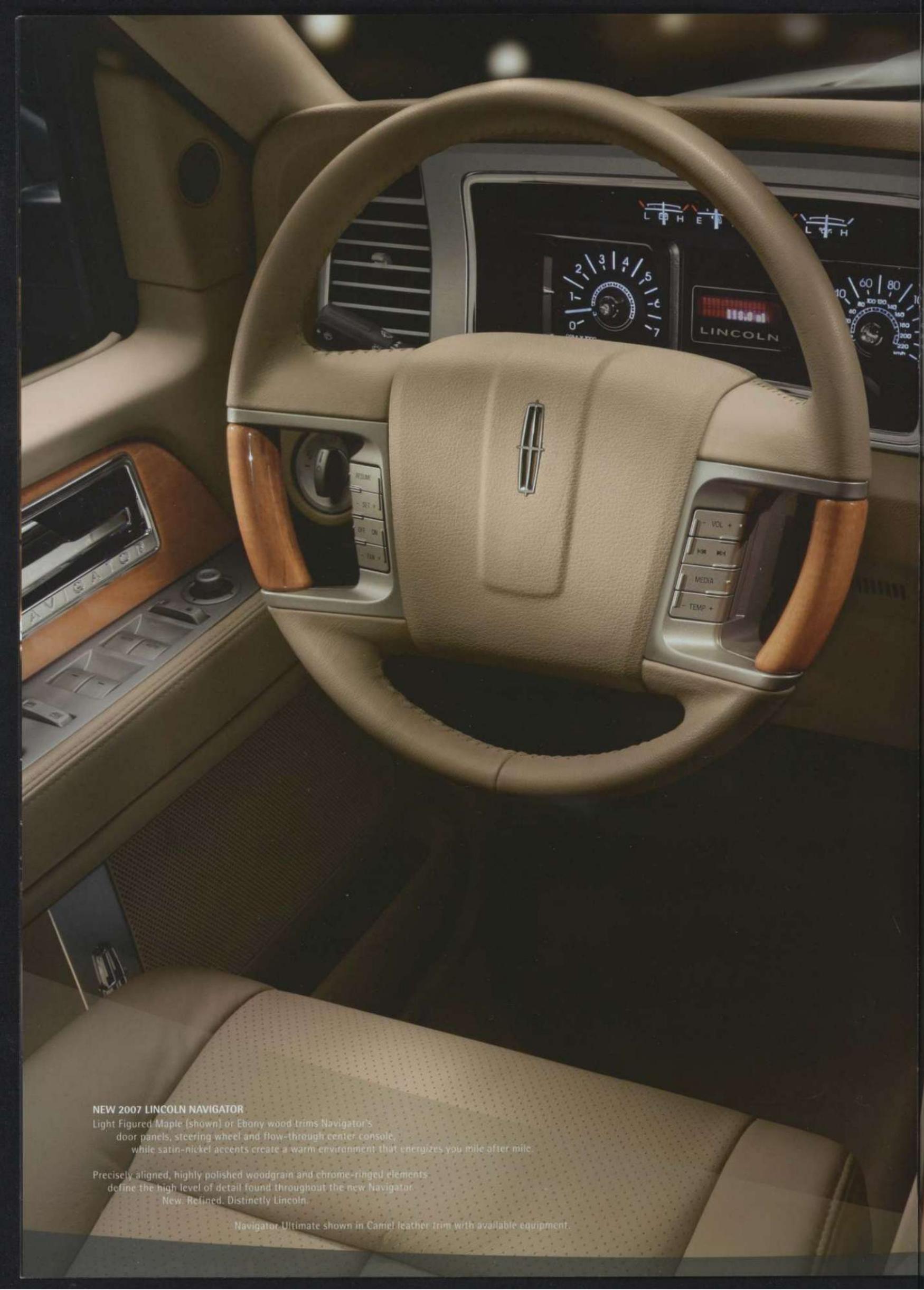

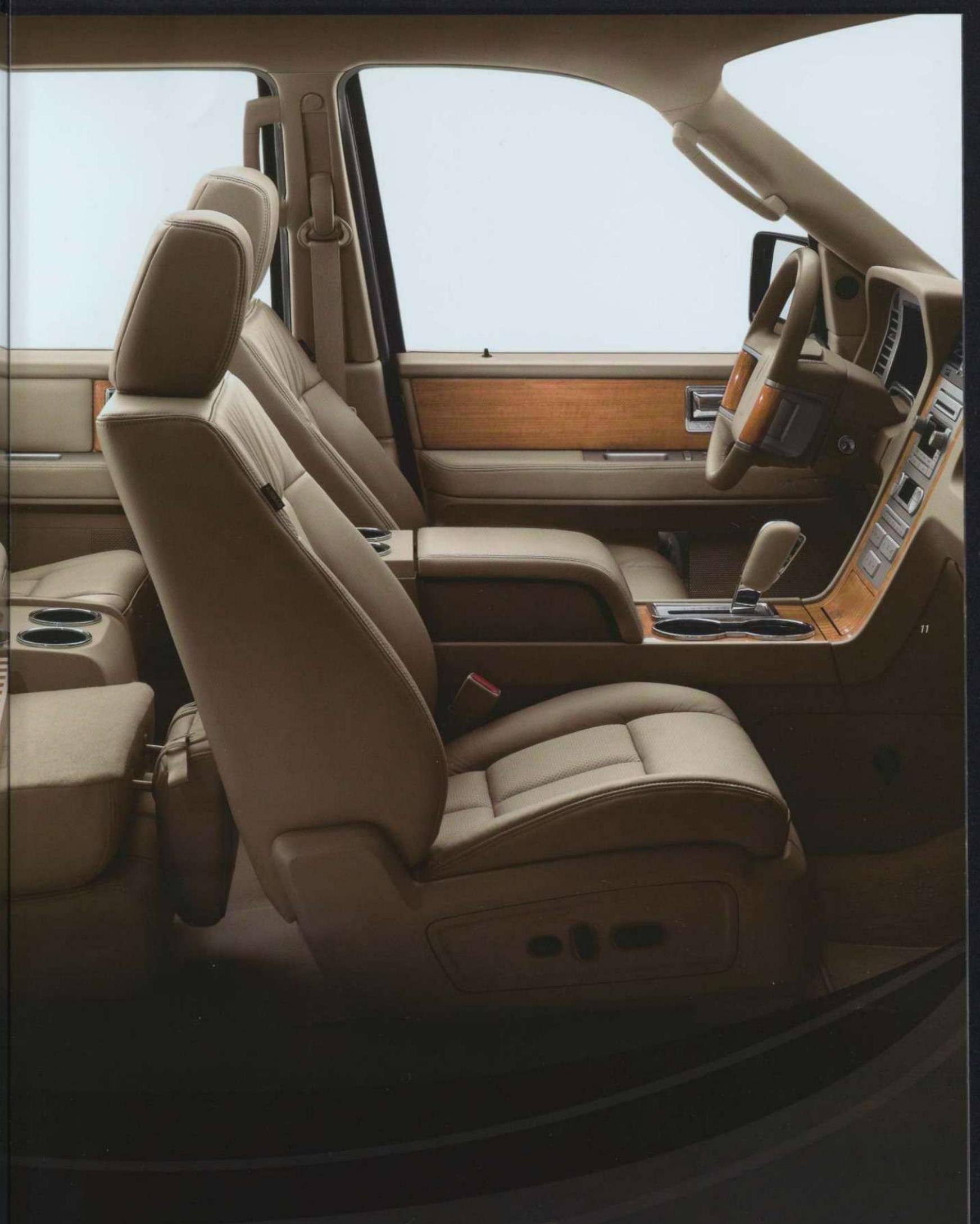

Light Figured Maple (shown) or Ebony wood trims Navigator's
door panels, steering wheel and flow-through center console,
while satin-nickel accents create a warm environment that energizes you mile after mile.
Precisely aligned, highly polished woodgrain and chrome-ringed elements
define the high level of detail found throughout the new Navigator
New. Refined. Distinctly Lincoln.
Navigator Ultimate shown in Camel leather trim with available equipment


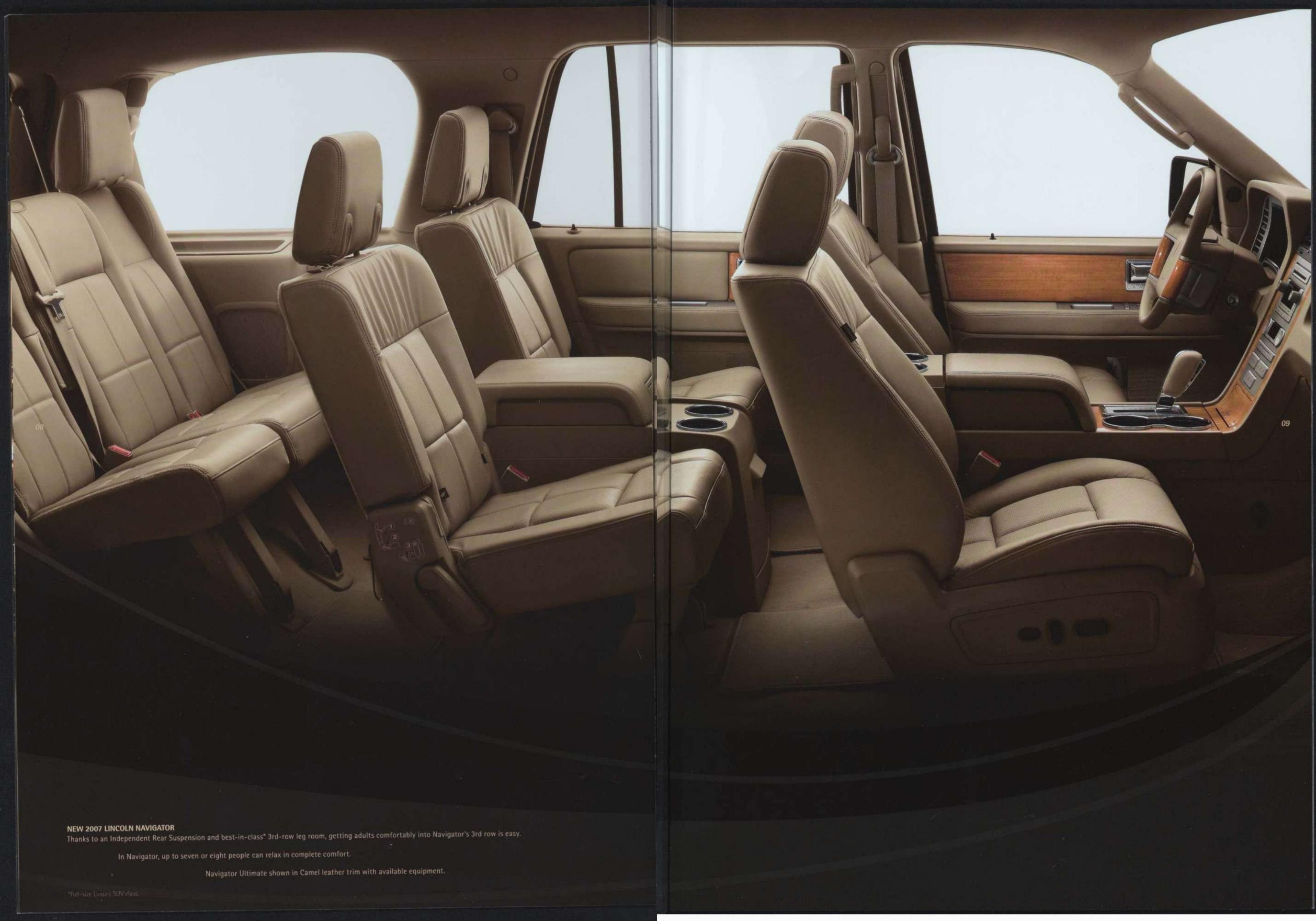

NEW 2007 LINCOLN NAVIGATOR Thanks to an Independent Rear Suspension and beat-in-class" 3rd-row leg room, getting adults comfortably into Navigator's 3rd row is easy. In Navigator, up to seven or eight people can relax in complete comfort. Navigator Ultimate shown in Camel leather trim with available equipment. "Full-size Luxury SUV class.NEW 2007 LINCOLN NAVIGATOR
Thanks to an Independent Rear Suspension and best-in-class* 3rd-row leg room, getting adults comfortably into Navigator's 3rd row is easy.
In Navigator, up to seven or eight people can relax in complete comfort.
Navigator Ultimate shown in Camel leather trim with available equipment.

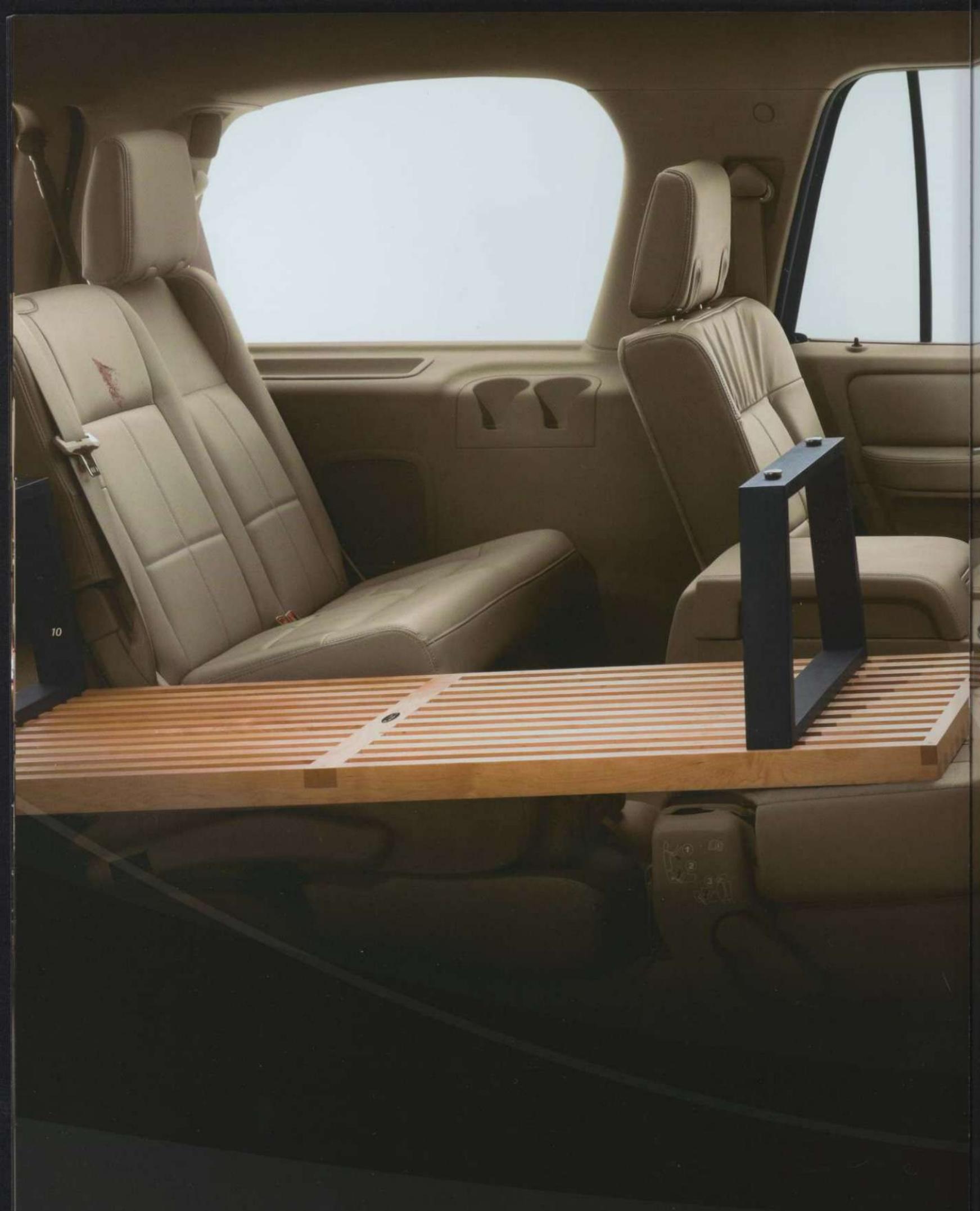

With a class-exclusive PowerFold™ 3rd-row seat and Cargo Mode latches on the backs of the 2nd-row seats, creating a flat loadfloor in Navigator Ultimate is incredibly easy.
The hardest part may be choosing what to fill the 103.3 cu. ft. of space with.
Navigator Ultimate shown in Camel leather trim with available equipment.


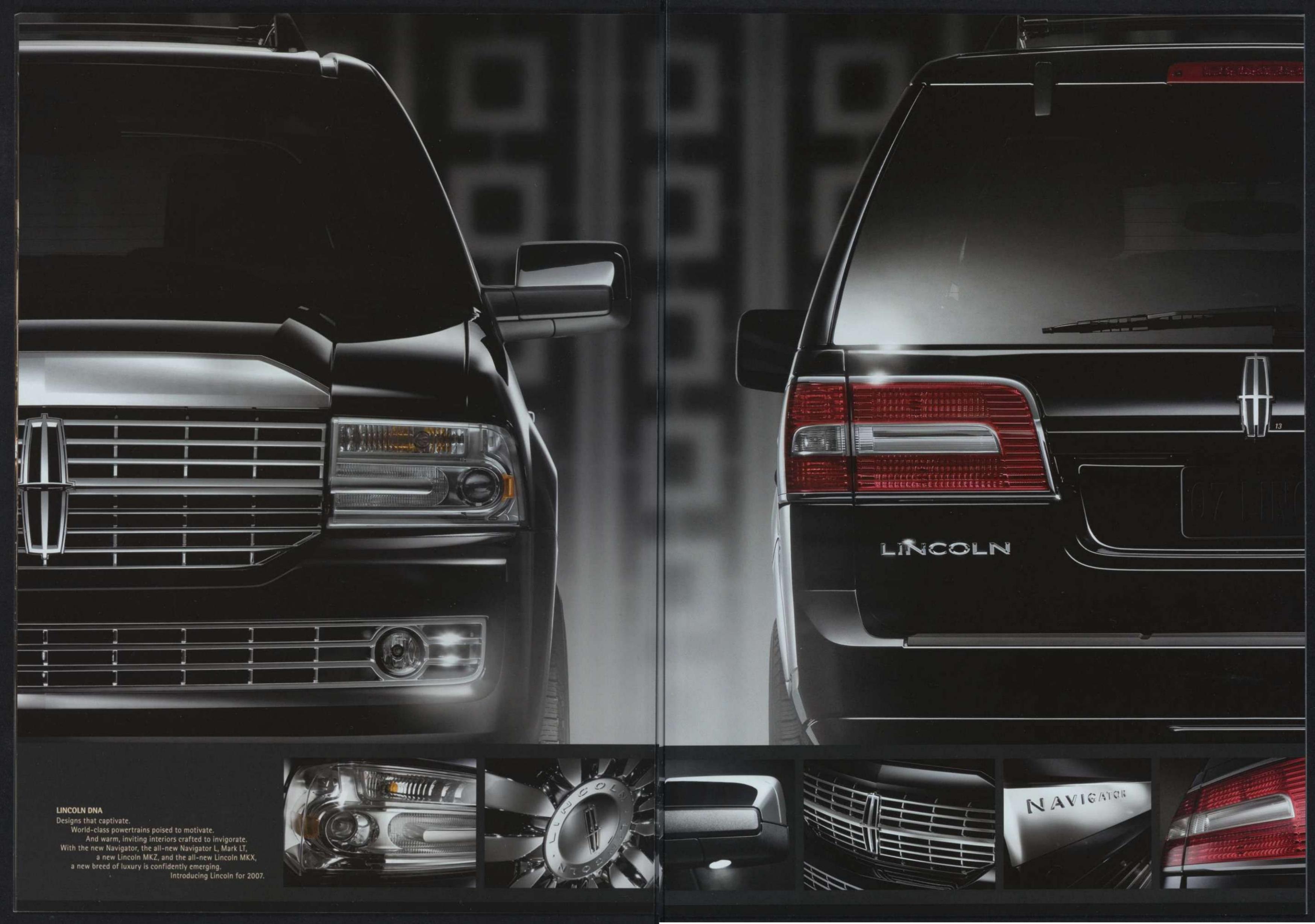

LINCOLN DNA
Designs that captivate.
World-class powertrains poised to motivate.
And warm, inviting interiors crafted to invigorate.
With the new Navigator, the all-new Navigator L, Mark LT,
a new Lincoln MKZ, and the all-new Lincoln MKX,
a new breed of luxury is confidently emerging.
Introducing Lincoln for 2007.
GET IN WITH THE NEW
The new 2007 Lincoln Navigator has arrived. And everywhere you look, feel and listen, you'll be energized and affirmed by the most elegant and accommodating Navigator ever.
New seat structures, blanketed with premium leather trim in Camel, Charcoal Black or Stone, provide the appropriate level of cushioning comfort, as well as the firmness you need for longer trips. 10-way power front seats help the driver and front passenger find their perfect positions, while power-adjustable pedals and a leather-wrapped, power-tilt steering wheel get the driver ready for action.
Dual-zone Electronic Automatic Temperature Control automatically maintains the temperature settings selected for each side of the front cabin. To further delight front-row passengers on Navigator Ultimate, standard heated and cooled front seats provide three levels of warm and cool luxury. To up the ante even more, select Ultimate's Premium Appearance Package, which features contrasting piping on all three rows of seats and a stitched Lincoln Star in the front-row head restraints.
Navigator's standard 7-passenger seating gives 2nd-row passengers dual reclining leather-trimmed seats and a large floor console, while the available 8-passenger configuration features a 2nd-row 40/20/40 split-folding bench seat instead. Navigator's 3rd row features a best-in-class 37.7" of leg room, so all adult passengers ride in complete comfort.

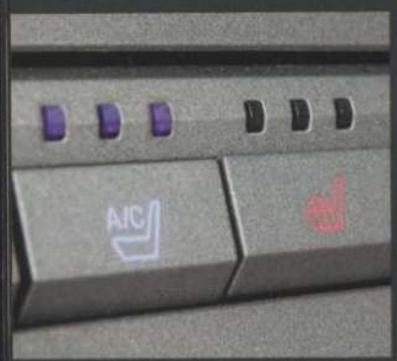

LEFT TO RIGHT: Available heated and cooled front seats indulge you on any trip; an available power moonroof allows quick access to fresh air; Navigator's standard new audio input jack allows plug-and-play capability with your MP3 player; an available ceiling-mounted DVD player makes long trips seem much shorter for those in the 2nd and 3rd rows.
STATE-OF-THE-ART ENTERTAINMENT
In the new Navigator, your choice of entertaining options will literally blow you away. Check this out: A THX® II Certified Audio System, SIRIUS Satellite Radio® and a Rear-Seat DVD Entertainment System are all included in the optional Entertainment Package. Maximizing the benefits of Navigator's standard AM/FM stereo and 6-disc in-dash CD changer with MP3 capability, the THX II Certified Audio System features 600 watts of dynamic sound through 14 strategically placed speakers. SIRIUS Satellite Radio, with over 125 channels of news, sports, personalities, and commercial-free music, comes with a courtesy 6-month subscription. The DVD system keeps rear passengers happy with an 8" color LCD screen, two sets of wireless headphones and a wireless remote control. On Navigator Ultimate, these three items plus a voice-activated, DVD-based Navigation System (right) are included in the optional Navigation Entertainment Package.
*See your Lincoln Mercury Dealer or contact SIRIUS at 1-888-539-7474 for more information.


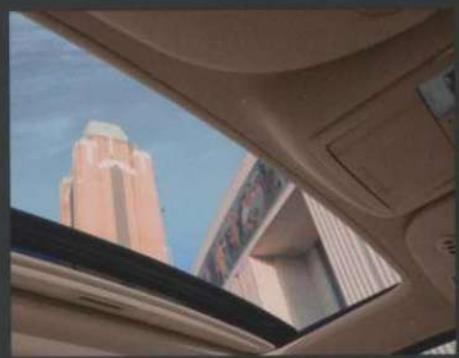

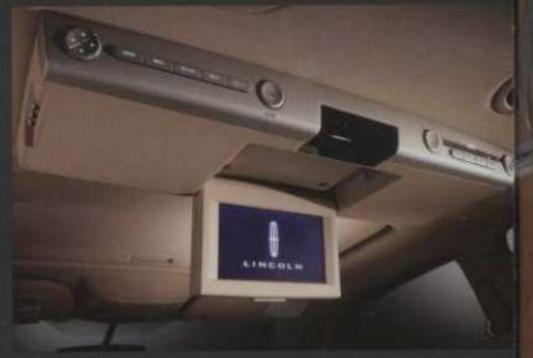

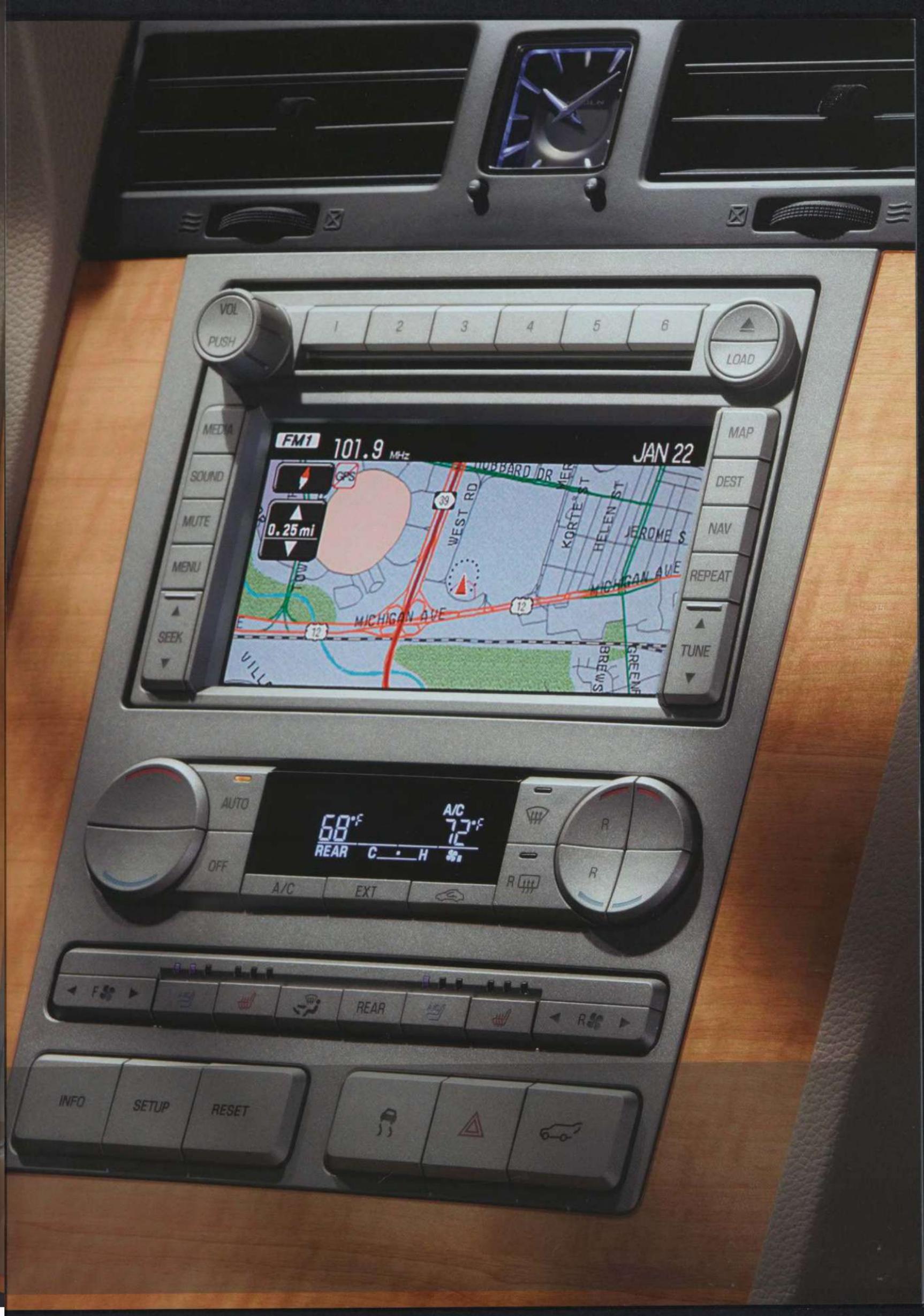

Every day, you're driven to make life better for yourself and those around you. And you've got one powerful ally in the new 2007 Lincoln Navigator. Thanks to its abundant use of power features, Navigator gives you the freedom to live your life to the fullest.
To help you on your upward climb, Navigator Ultimate's available new streamlined power-deployable running boards extend whenever you open a door – making a convenient step for your foot as you enter its luxurious interior. After you're comfortably seated and the doors are shut, the running boards retract and are perfectly integrated into the lower bodyside. Also on Navigator Ultimate, a standard 60/40 split PowerFold™ 3rd-row seat makes quick work of loading cargo, so you have more time for fun. Press the buttons conveniently located in the rear cargo area and each side of the seat disappears, creating a flat loadfloor with 54.4 cu. ft. of space to fill.

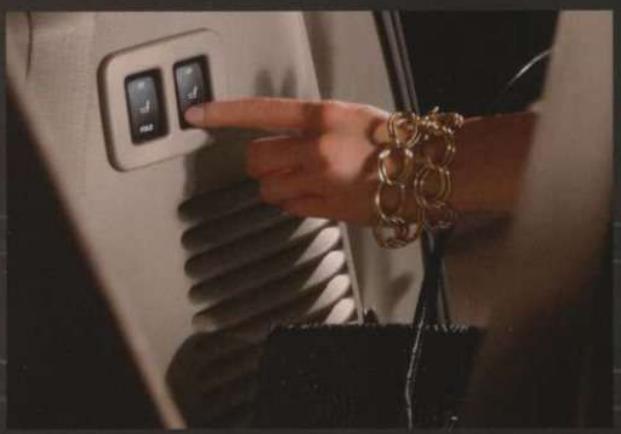

To utilize the PowerFold seat and access Navigator Ultimate's ample cargo area, just press your remote keyless-entry transmitter or pull the liftgate handle and the standard power liftgate raises on its own. You'll understand its appeal the first time you have your hands full and don't need to set anything down. As soon as loading is complete, simply press the transmitter or the button in the rear cargo area and the liftgate closes.

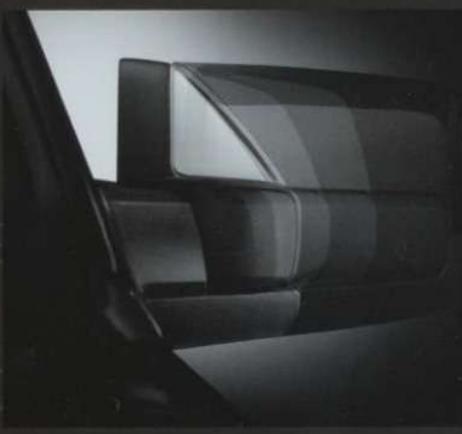

To provide clearance in tight spaces, Navigator's power-folding heated sideview mirrors fold in and out at the touch of a button. Built-in turn-signal indicators announce your lane-change intentions, while security approach lamps on the underside of each mirror cast a warm glow as you return to your vehicle in the dark. Simply press the unlock button on the remote keyless-entry transmitter or lift a door handle to activate the lamps.


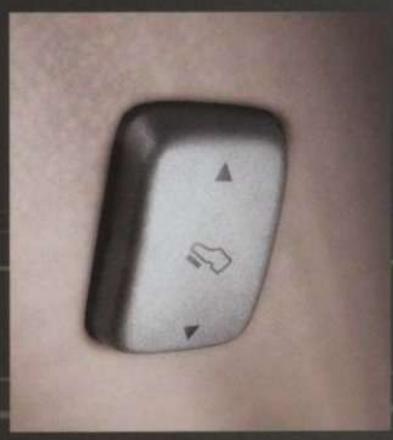

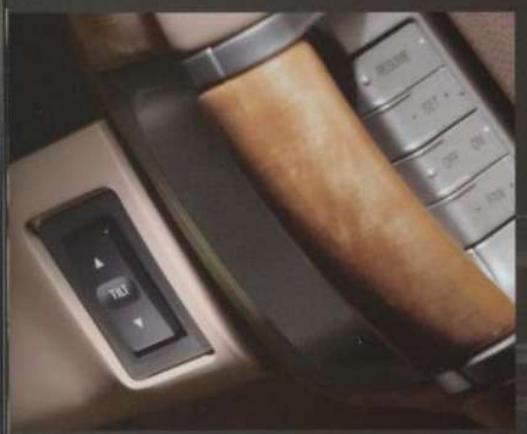

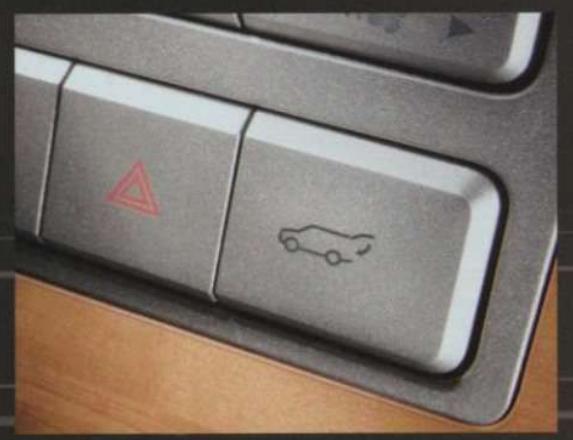

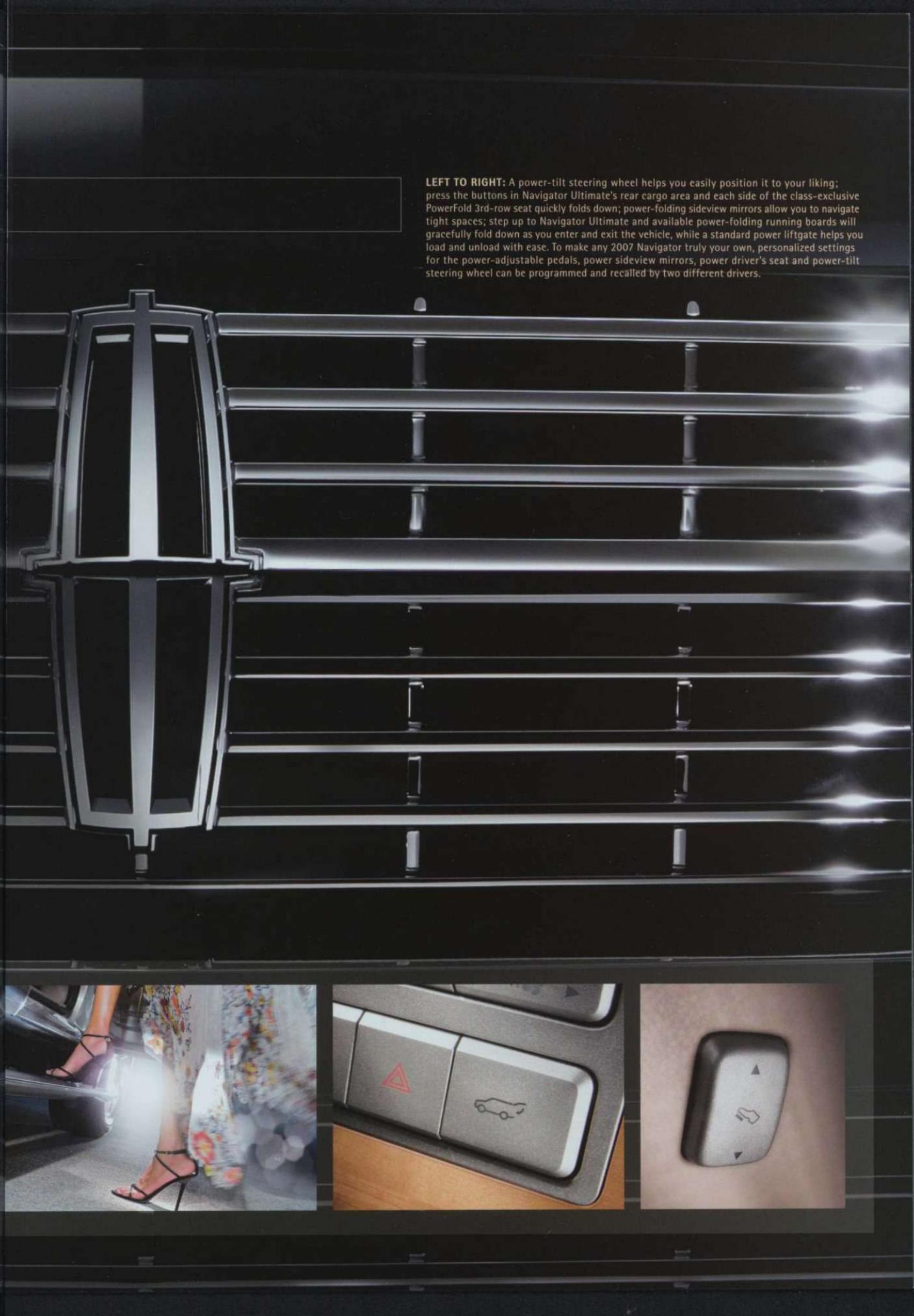

LEFT TO RIGHT: A power-tilt steering wheel helps you easily position it to your liking; press the buttons in Navigator Ultimate's rear cargo area and each side of the class-exclusive PowerFold 3rd-row seat quickly folds down; power-folding sideview mirrors allow you to navigate tight spaces; step up to Navigator Ultimate and available power-folding running boards will gracefully fold down as you enter and exit the vehicle, while a standard power liftgate helps you load and unload with ease. To make any 2007 Navigator truly your own, personalized settings for the power-adjustable pedals, power sideview mirrors, power driver's seat and power-tilt steering wheel can be programmed and recalled by two different drivers.LEFT TO RIGHT: A power-tilt steering wheel helps you easily position it to your liking; press the buttons in Navigator Ultimate's rear cargo area and each side of the class-exclusive PowerFold 3rd-row seat quickly folds down; power-folding sideview mirrors allow you to navigate tight spaces; step up to Navigator Ultimate and available power-folding running boards will gracefully fold down as you enter and exit the vehicle, while a standard power liftgate helps you load and unload with ease. To make any 2007 Navigator truly your own, personalized settings for the power-adjustable pedals, power sideview mirrors, power driver's seat and power-tilt steering wheel can be programmed and recalled by two different drivers.

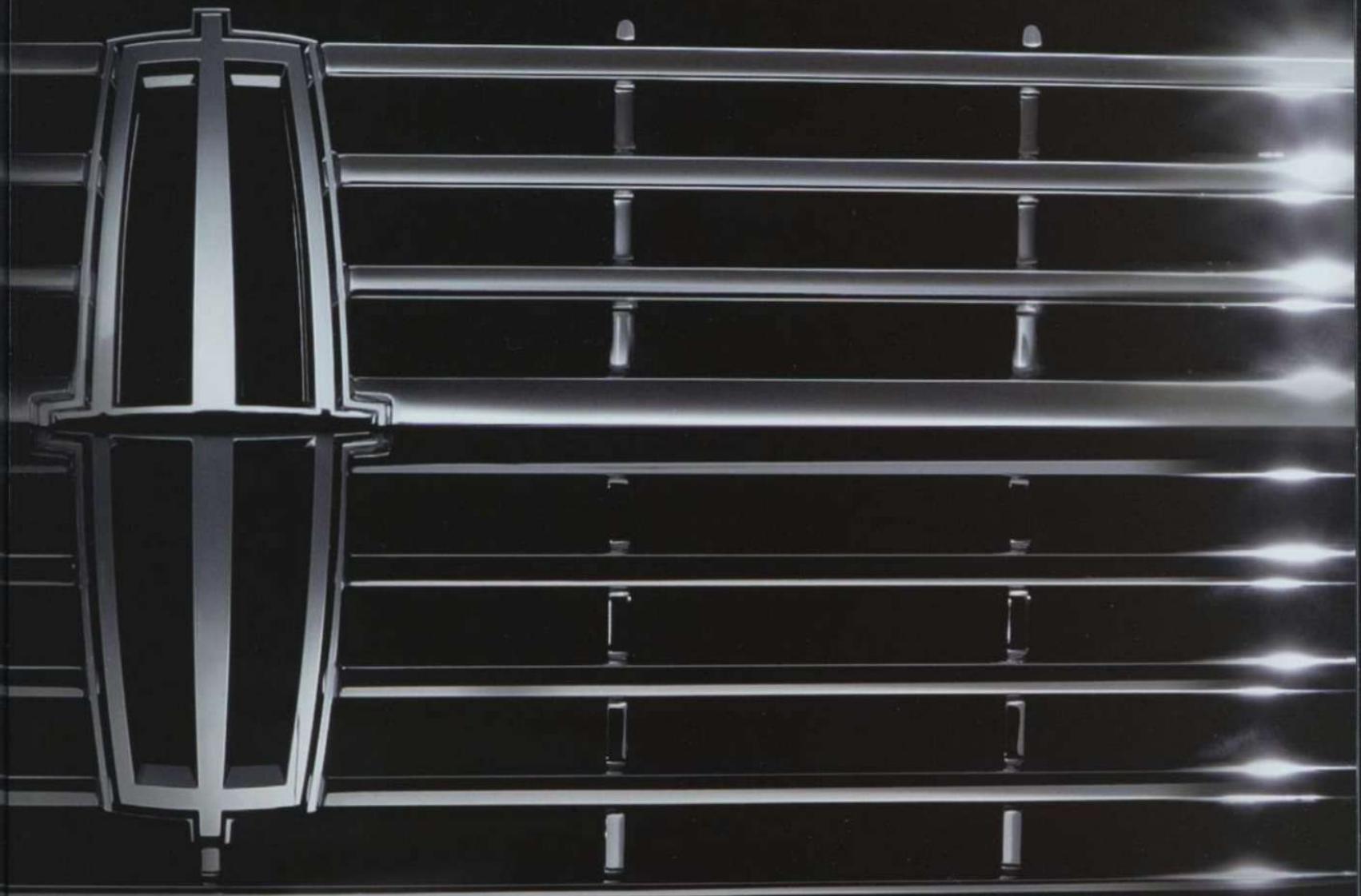

With Lincoln Navigator's authoritative V-8 engine leading the way, you can confidently call any road your own. This tenacious 5.4L 3-valve V-8 produces a commanding 300 hp, plus 365 lb.-ft. of torque, empowering you to tow heavy loads with ease and pass without hesitation. In fact, a properly equipped 4x2 Navigator allows you to tow up to 9000 lbs.; 4x4 models, up to 8800 lbs. A wide-ratio 6-speed automatic transmission makes the perfect mate for Navigator's V-8, improving shift quality through the transmission's small steps between gears. If more capability is what you seek, Navigator's available Control Trac® 4WD System features four modes, including low-range 4WD (4L) for extreme off-road conditions and very-low-speed towing.

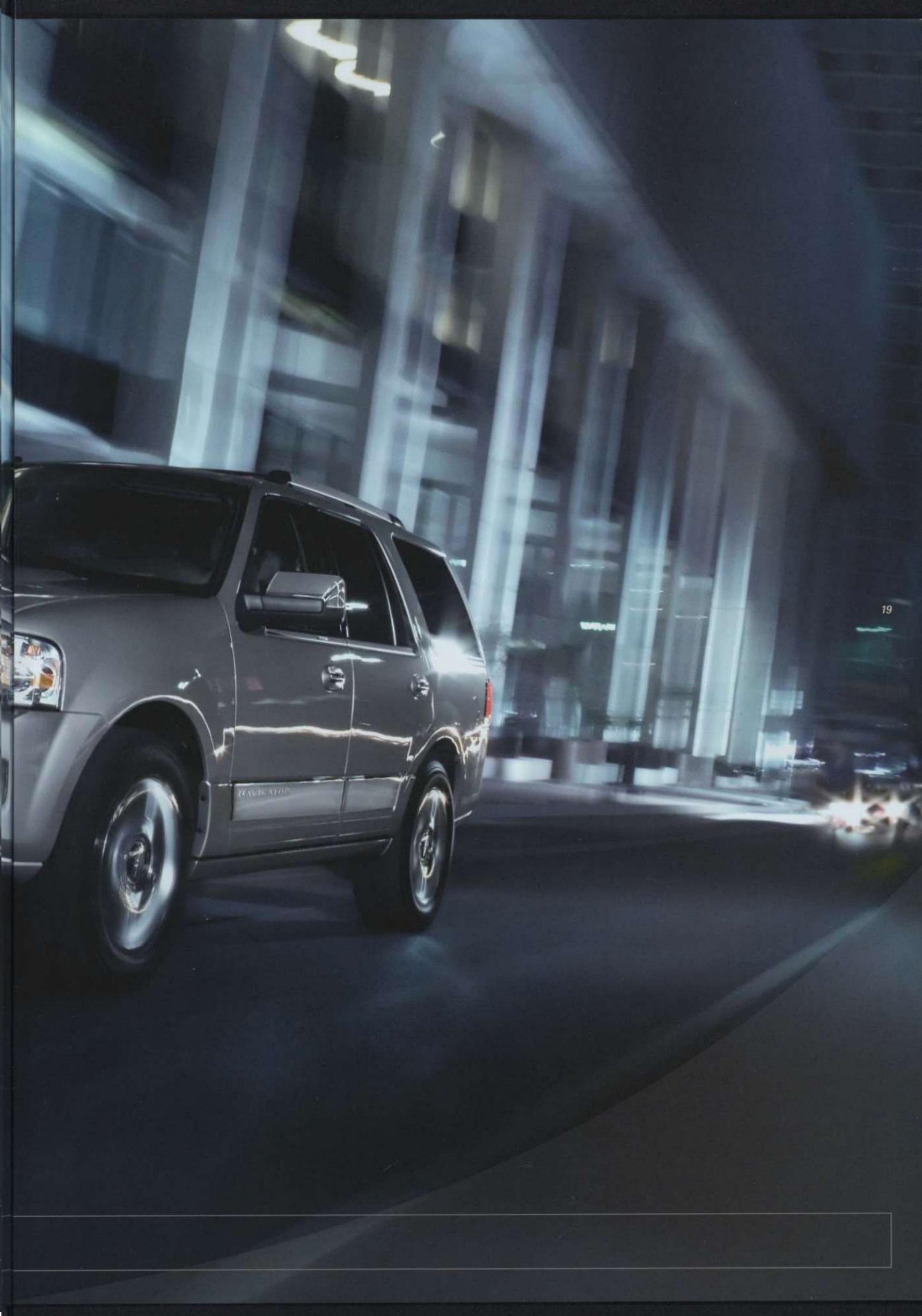

FOUNDATIONAL STRENGTH
A firm foundation contributes greatly to the 2007 Navigator's impressive ride and smooth handling characteristics. Featuring a tube-through-tube design, Navigator's stiff frame works in tandem with updated monotube shocks at all four corners and an all-new multilink Independent Rear Suspension (IRS). Since the IRS allows each rear wheel to react independently, Navigator delivers a refined ride with outstanding handling while easily maintaining its composure over bumpy cobblestone or uneven road surfaces. Bringing everything to a halt are large brakes and rotors that slow Navigator's standard 18" aluminum or available 20" chrome-aluminum wheels.


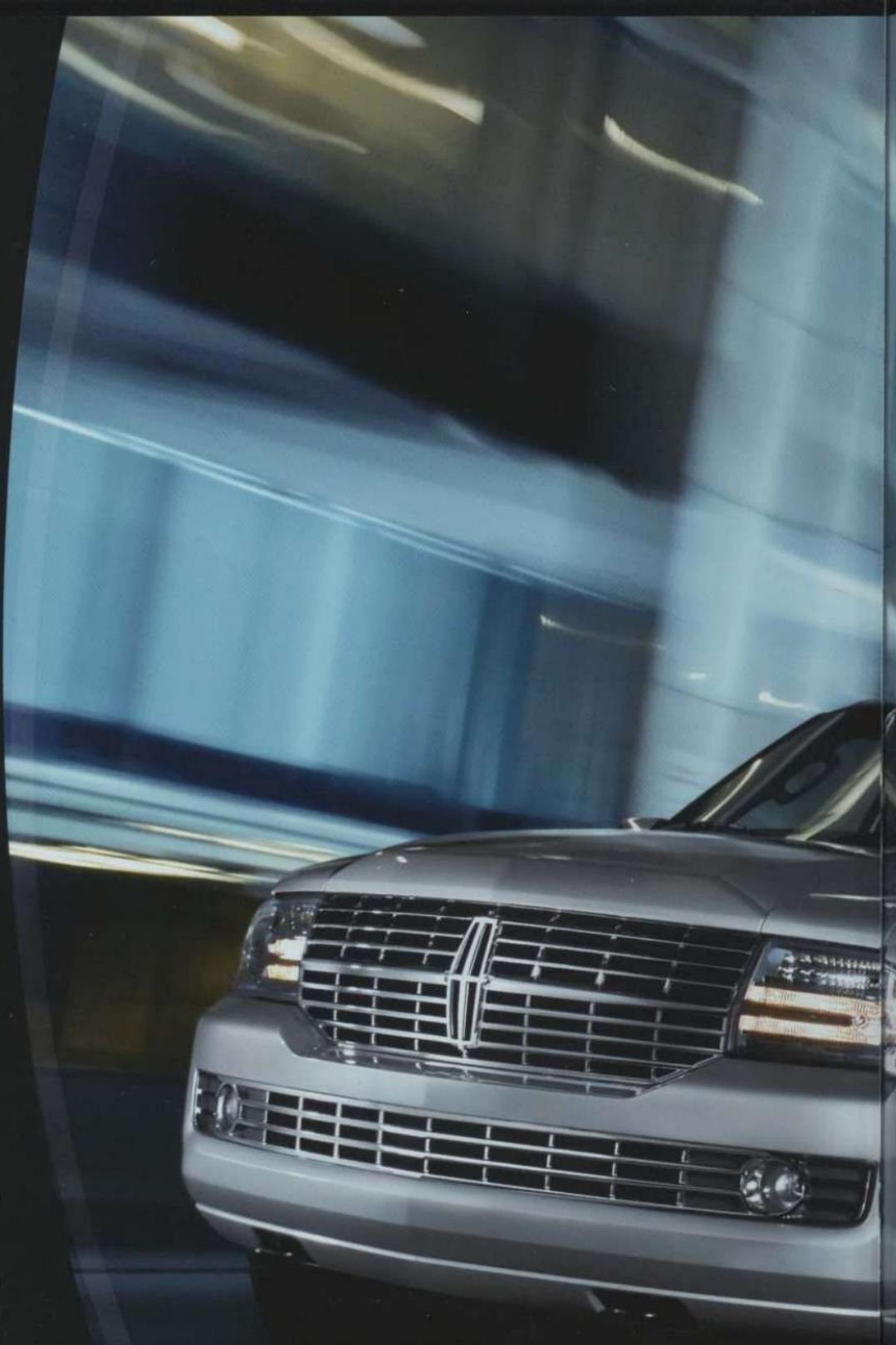

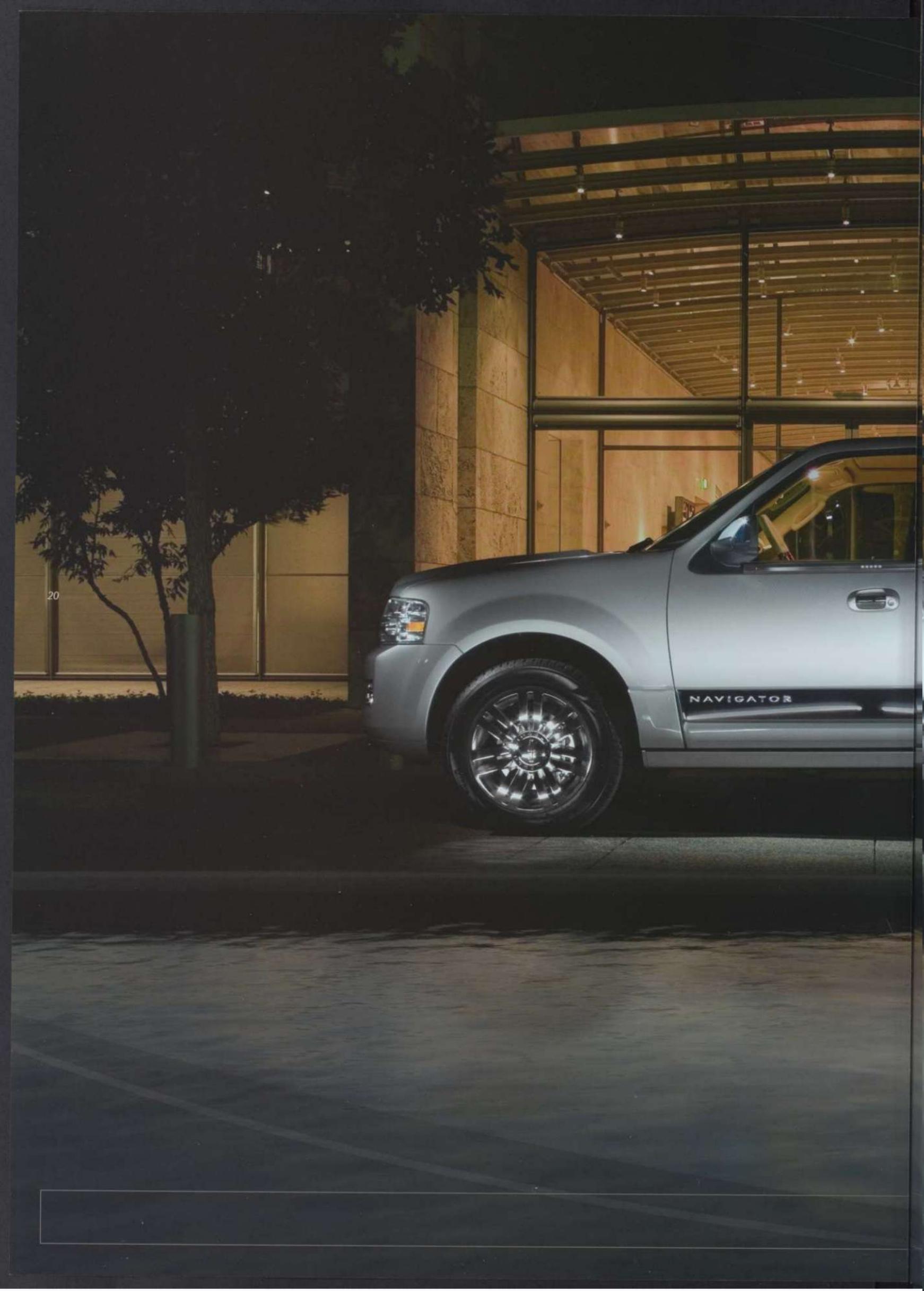

With all the schedules to keep and deadlines to meet, there's no better place to spend some "quiet time" than in the new Navigator's hushed interior. Lincoln engineers went to great lengths to make Navigator a sanctuary of quiet quality. Class-exclusive use of Quiet Steel® technology helps to eliminate the transfer of engine compartment sound and resonance into the passenger cabin, so that the sounds you hear are the ones you want. Like your favorite tune, courtesy of the available THX® II Certified Audio System, with 600 watts and 14 speakers. Or the voices of all your passengers, even those in the 3rd row.
Quiet Steel is a registered trademark of Material Sciences Corporation.
THE QUIETEST NAVIGATOR EVER
Acoustic laminated windshield. Thicker side-window glass than the previous model. Additional layers of sound-deadening material in the roof headliner, instrument panel and within the door panels. Aerodynamically "tuned" sideview mirrors that deflect air away from the glass. Advanced door seals. Thanks to technology like this, engineers soundly beat their already stringent targets for interior quietness in the new Navigator. Instead of stopping there, they raised them even higher. And you're the clear beneficiary. In here, everyone will be able to hear your "inside" voice.
An array of six standard airbags offers enhanced protection for all outboard passengers in the new Navigator. Driver and front passenger are covered by dual-stage front airbags and front-seat side airbags, while all outboard passengers benefit from the side-curtain airbags in the Safety Canopy™ System. In certain types of side-impact events, these airbags deploy from the headliner and cover all three rows of the vehicle. Additional protection for the driver comes from a new stroking steering column, which functions similarly to a shock absorber to help reduce the impact to the chest in the event of a frontal crash.
READY AND STABLE
Navigator's standard AdvanceTrac® with class-exclusive RSC® (Roll Stability Control) is an electronic stability enhancement system that actually measures what competitors' systems ignore or estimate. In addition to AdvanceTrac's Anti-lock Brake System, traction control and yaw control, RSC features a vehicle-roll motion sensor to directly measure the vehicle's roll-rate at least 100 times every second – which helps determine when and how the system will apply individual brakes and modify engine power to help keep all four wheels firmly planted.
NAVIGATOR
PERFORMANCE
- 5.4L SOHC 3-valve V-8 engine with 300 hp @ 5000 rpm and 365 lb.-ft. of torque @ 3750 rpm
- 6-speed automatic transmission with overdrive
• Compression ratio 9.8:1 - Fail-safe engine cooling system
- Front and rear stabilizer bars
• Independent front and rear suspensions
• Variable-assist power steering
• Power 4-wheel disc brakes with Anti-lock Brake System (ABS)
• P255/70R18 all-season black-sidewall tires
INTERIOR
• Analog clock mounted between center vents on instrument panel
- Soft-touch instrument panel with authentic wood and satin-nickel accents
- Dual-zone Electronic Automatic Temperature Control with secondary steering wheel-mounted controls
• Auxiliary Climate Control with 2 overhead vents for 2nd and 3rd rows, plus controls in overhead console and back of 1st-row floor console
- Audiophile® Sound System with AM/FM stereo and 6-disc in-dash CD changer; driver-adjustable, speed-compensated volume control; 9 speakers, including a subwoofer; rear-seat controller; MP3 and SIRIUS Satellite Radio® capabilities and auxiliary audio input jack (located in 1st-row floor console)
- 1st-row leather-trimmed, low-back bucket seats with 10-way power adjustments, including power lumbar and recline, 2-way adjustable head restraints and driver's-side memory feature
- 2nd-row leather-trimmed, low-back fold-down bucket seats with recline and easy entry to 3rd row
- 3rd-row vinyl-trimmed, 60/40 split bench seat that folds flat into the floor with center seat-integrated restraint
- 1st-row flow-through center console with floor shifter, covered storage bin with chrome handle, 2 front cupholders, auxiliary audio input jack, rear audio/climate controls, 2 headphone jacks and 2 rear cupholders
- 2nd-row floor console with padded armrest, covered storage and 2 cupholders
• Power points located in 1st, 2nd and 3rd rows
- Assist handles in 1st and 2nd rows and assist pull on liftgate
• Rear cargo area storage bins
• Sun visors with illuminated mirrors
• Under-floor storage behind 3rd row
INSTRUMENTATION | DRIVER'S CONTROLS
- Accessory timed delays with theater-dimming lighting
• Auto-dimming rearview mirror - White LED backlit instrument cluster with speedometer, tachometer, fuel level gauge, coolant temperature gauge and message center
- Message center with compass display, distance-to-empty, average fuel economy, odometer and trip odometer
• Overhead console with 1st-row map lights, sunglass storage, power rear quarter window switches, conversation mirror and power liftgate switch (if equipped) - Memory setting controls for driver's-seat position, sideview mirrors, power-adjustable pedals and power-tilt steering wheel
- Leather- and wood-trimmed power-tilt steering wheel with secondary audio and climate controls, cruise control and memory feature
• Power-adjustable brake and accelerator pedals with memory feature - Power windows with one-touch-up/-down driver's and passenger-side feature
• Power door locks
• Universal Garage Door Opener in driver's-side visor
Complimentary maintenance makes driving your Lincoln even more of a pleasure. Simply bring it to an authorized Lincoln service center, and scheduled maintenance will be performed at no charge throughout your first year of ownership or 12,000 miles, whichever comes first. Additional peace of mind comes from a 4-year/50,000-mile bumper-to-bumper New Vehicle Limited Warranty that covers repair, replacement or adjustment, of parts at no additional cost, as well as a 6-year/70,000-mile powertrain limited warranty which features no deductible and is fully transferable. And Roadside Assistance for 6 years or 70,000 miles provides the security of knowing that help may be only a phone call away should you run out of fuel, lock yourself out of the vehicle or need towing. Your Lincoln Mercury Dealer will provide complete details on all of these privileges.
FORD CREDIT Get the ride you want. Whether you plan to lease or finance, you'll find the choices that are right for you at Ford Credit. Ask your Lincoln Mercury Dealer for details or check us out at www.fordcredit.com.
FORD MOTOR COMPANY INSURANCE SERVICES Get Ford Motor Company quality in your auto insurance. Our program offers industry-leading benefits and competitive rates. Call 1.877.367.3847, or visit us at www.fordvip.com for a no-obligation quote. Insurance offered by American Road Services Company (in CA, American Road Insurance Agency), a licensed agency and subsidiary of Ford Motor Company.
FORD EXTENDED SERVICE PLAN For a purchase or lease, the Ford Extended Service Plan (ESP) gives you "Peace-of-Mind" protection designed to cover key vehicle components and protect you from the cost of unexpected repairs. Ask your dealer for an ESP, the only service contract backed exclusively by Ford and honored at all Ford Lincoln Mercury dealerships.
EXTERIOR
• Lincoln grille; chrome upper and lower
- Projector-style High-Intensity Discharge (HID) headlamps
• Fog lamps
• Color-keyed upper and lower bumper fascias
• Chrome bodyside cladding with chrome accents
• Tow hooks integrated into front fascia
• Solar-tinted glass in windshield and front doors
• Privacy glass in rear doors, rear quarter windows and liftgate
• Power flip-out rear quarter windows
- Chrome exhaust tip
- Power-folding heated sideview mirrors with chrome caps, security approach lamps, integrated turn signals and memory feature
• Fixed running boards
• Luggage rack with chrome accents and black crossbars
• Liftgate with gas cylinder lift and flip-up glass
• Speed-sensitive intermittent windshield wipers with 3 washers
• 2-speed intermittent rear-window wiper with washer
• Reverse Sensing System integrated in rear bumper

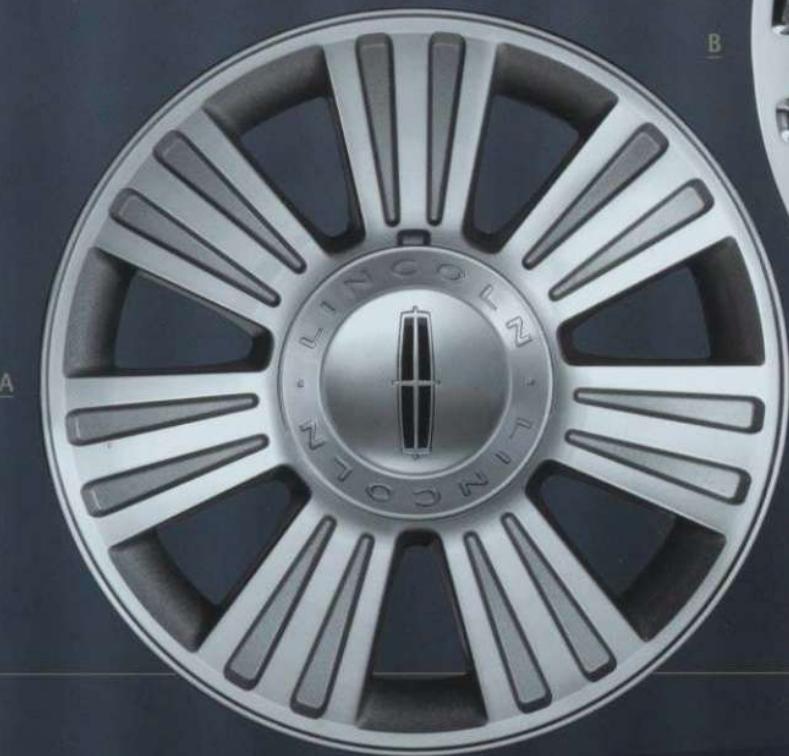

• 18" 7-spoke aluminum wheels with 17" steel spare
• Class IV Standard-Duty Trailer Tow Package with frame-mounted trailer hitch receiver integrated into rear fascia, and 4-pin wiring harness
SECURITY | SAFETY
- Personal Safety System® for driver and front passenger, with dual-stage front airbags,** safety belt pretensioners, safety belt energy-management retractors, safety belt usage sensors, driver's-seat position sensor, crash severity sensor, restraint control module and Front-Passenger Sensing System
• Adaptive stroking steering column - AdvanceTrac® with RSC® (Roll Stability Control)
• Tire Pressure Monitoring System† - Safety Canopy™ System with 1st-, 2nd- and 3rd-row side-curtain airbags and rollover sensor
• 3-point safety belt restraints for all seating positions; height-adjustable in 1st row - Front-seat side airbags
• Side-intrusion door beams - LATCH provides lower anchors and tether anchors for child-safety seats in all 2nd-row seating positions; tether anchor only in 3rd-row center
• Child-safety rear door locks - Remote keyless-entry system with illuminated entry and security approach lamps
• Keyless-entry keypad mounted on driver's door - SecuriLock® passive anti-theft system
• Autolamp automatic on/off headlamps with delay
NAVIGATOR ULTIMATE
In addition to equipment on Navigator:
• Heated and cooled front seats with 3 settings
• Power moonroof with medium overhead console
• PowerFold™ 3rd-row 60/40 split bench seat
• Power liftgate
AVAILABLE PACKAGES
- ENTERTAINMENT PACKAGE includes Rear-Seat DVD Entertainment System with 8" screen, remote control and 2 sets of wireless headphones; SIRIUS Satellite Radio; THX® II Certified Audio System with Audiophile AM/FM stereo/6-disc CD changer, including 14 speakers with 600 watts of peak power, driver-adjusted speed-compensated volume, rear door speakers, subwoofer, MP3 capability and electronic hidden antenna module
- NAVIGATION ENTERTAINMENT PACKAGE includes voice-activated, DVD-based Navigation System, plus all content in Entertainment Package (available on Navigator Ultimate)
- PREMIUM APPEARANCE PACKAGE includes premium leather-trimmed seating with contrasting piping on 1st, 2nd and 3rd rows; and stitched Lincoln Star on 1st-row head restraints (available on Navigator Ultimate)
- CLASS III/IV HEAVY-DUTY TRAILER TOW PACKAGE with rear load-leveling air suspension; frame-mounted, heavy-duty hitch receiver; 4- and 7-pin wiring harness; heavy-duty radiator; heavy-duty flasher; transmission cooler and brake module wiring
- ELITE PACKAGE includes Entertainment Package, Premium Appearance Package, Navigation System and power-deployable running boards (available on Navigator Ultimate)
AVAILABLE EQUIPMENT
• Control Trac® 4-Wheel-Drive (4WD) System
- Chrome hood accent (available on Navigator Ultimate only when Premium Appearance Package or Elite Package is ordered)
• Power-deployable running boards (available on Navigator Ultimate)
- 20" chrome-aluminum wheels (available on Navigator Ultimate)
- 2nd-row leather-trimmed 40/20/40 split-folding bench seat with fold-flat feature, outboard recline, and center section that slides forward almost 11"
• Power moonroof with medium overhead console
- SIRIUS Satellite Radio including SIRIUS Satellite Radio receiver, SIRIUS Satellite Radio low-profile antenna, and 6-month courtesy subscription to SIRIUS
WHEELS
A 18" 7-spoke aluminum
Standard on Navigator and Navigator Ultimate
B 20" 7-spoke chrome-aluminum
Available on Navigator Ultimate
DIMENSIONS
Head Room 39.5" 1st row 39.7" 2nd row 37.5" 3rd row
Shoulder Room 63.3" 1st row 63.7" 2nd row 51.9" 3rd row
Hip Room 60.2" 1st row 59.9" 2nd row 50.1" 3rd row
Leg Room 41.1" 1st row 39.1" 2nd row 37.7" 3rd row
Height 78.3"
Length 208.4"
Width 91.8" (including mirrors)
78.8" (excluding mirrors)
79.7" (mirrors folded)
Wheelbase 119.0"
Track 67.0" Front 67.2" Rear
Ground Clearance 9.2" 4x2 9.0" 4x4
Cargo Volume 103.3 cu. ft. (behind 1st row)
54.4 cu. ft. (behind 2nd row)
18.1 cu. ft. (behind 3rd row)
Curb Weight 5787 lbs. 4x2 6008 lbs. 4x4
Towing Capacity 9000 lbs. 4x2 8800 lbs. 4x4
(max.)
Cargo and load capacity limited by weight and weight distribution.
**Always wear your safety belt and secure children in the rear seat. *Excludes steel spare. "SIRIUS" and related marks are registered trademarks of SIRIUS Satellite Radio Inc.
Audiophile is a registered trademark of Audiophile, Inc. THX and the THX logo are trademarks of THX, Ltd., which may be registered in some jurisdictions.
Comparisons based on 2006 competitive models (Full-size Luxury SUV class), publicly available information and Ford certification data at time of printing. Some features discussed may be optional. Vehicles shown may contain optional equipment. Features shown may be offered only in combination with other options or subject to additional ordering requirements or limitations. Dimensions shown may vary due to optional features and/or production variability. Following publication of the catalog, certain changes in standard equipment, options and the like, or product delays may have occurred which would not be included in these pages. Your Lincoln Mercury Dealer is the best source of up-to-date information. Lincoln Mercury reserves the right to change product specifications at any time without incurring obligations.
WITH LIGHT FIGURED MAPLE WOOD
Available Premium Appearance Package features premium leather trim with Sand piping
WITH EBONY WOOD
Available Premium Appearance Package features premium leather trim with Caramel piping
WITH EBONY WOOD
Available Premium Appearance Package features premium leather trim with Black piping
LINCOLN
Reach Higher
lincoln.com
