TKL Ornata V3 - Clavier gamer RAZER - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Clavier mécanique TKL (Tenkeyless)
Caractéristiques techniques principales	Switches Razer Mecha-Membrane, rétroéclairage RGB Chroma, 10 touches programmables
Alimentation électrique	Connexion USB
Dimensions approximatives	360 mm x 150 mm x 30 mm
Poids	1,2 kg
Compatibilités	Windows 10, Windows 8, Windows 7, Mac OS
Fonctions principales	Rétroéclairage personnalisable, enregistrement de macros, touches multimédia
Entretien et nettoyage	Utiliser un chiffon doux et sec, éviter les produits chimiques agressifs
Pièces détachées et réparabilité	Pas de pièces détachées disponibles, garantie limitée
Sécurité	Conforme aux normes de sécurité électriques, ne pas exposer à l'humidité
Informations générales utiles	Idéal pour les gamers et les utilisateurs de bureau, design ergonomique

FOIRE AUX QUESTIONS - TKL Ornata V3 RAZER

Pourquoi mon RAZER TKL Ornata V3 ne s'allume-t-il pas ?

Vérifiez que le câble USB est correctement connecté à votre ordinateur et à la prise. Essayez de brancher le clavier sur un autre port USB. Si le problème persiste, testez-le sur un autre ordinateur.

Comment personnaliser les éclairages RGB de mon RAZER TKL Ornata V3 ?

Téléchargez et installez le logiciel Razer Synapse. Une fois installé, ouvrez le logiciel, sélectionnez votre clavier et allez dans l'onglet 'Éclairage' pour personnaliser les effets lumineux.

Mon clavier fait un bruit de clic anormal, que faire ?

Assurez-vous qu'aucune saleté ou débris n'est coincé sous les touches. Vous pouvez également essayer de nettoyer les touches délicatement. Si le bruit persiste, contactez le support technique de Razer.

Comment réinitialiser mon RAZER TKL Ornata V3 aux paramètres d'usine ?

Débranchez le clavier, puis maintenez enfoncé le bouton 'Esc' tout en le rebranchant. Cela devrait réinitialiser le clavier aux paramètres d'usine.

Pourquoi certaines touches de mon clavier ne fonctionnent-elles pas ?

Vérifiez si les touches sont coincées ou si elles nécessitent un nettoyage. Vous pouvez également tester le clavier sur un autre ordinateur pour voir si le problème persiste. Si c'est le cas, contactez le support Razer.

Comment mettre à jour le firmware de mon RAZER TKL Ornata V3 ?

Ouvrez Razer Synapse, allez dans l'onglet 'Paramètres', puis vérifiez les mises à jour de firmware. Suivez les instructions pour installer la mise à jour si disponible.

Mon RAZER TKL Ornata V3 ne répond pas aux commandes, que faire ?

Essayez de débrancher le clavier et de le rebrancher. Si cela ne fonctionne pas, testez-le sur un autre ordinateur. Si le problème persiste, envisagez de réinstaller Razer Synapse ou de contacter le support.

Est-ce que le RAZER TKL Ornata V3 est compatible avec Mac ?

Le RAZER TKL Ornata V3 est principalement conçu pour Windows, mais il peut fonctionner sur Mac avec des fonctionnalités limitées. Certaines touches peuvent ne pas être entièrement compatibles.

Comment activer ou désactiver le mode jeu sur mon clavier ?

Appuyez sur la touche 'Fn' + 'F10' pour activer ou désactiver le mode jeu. Cela désactivera les touches de Windows pour éviter les interruptions pendant le jeu.

MODE D'EMPLOI TKL Ornata V3 RAZER

RAZER ORNATA V3 TENKEYLESS

MASTER GUIDE

CONTENTS

1. WHAT'S INSIDE 2
2. WHAT'S NEEDED 3
3. LET'S GET YOU COVERED 3
4. SETTING UP YOUR RAZER ORNATA V3 TENKEYLESS 4
5. USING YOUR RAZER ORNATA V3 TENKEYLESS 5
6. CONFIGURING YOUR RAZER ORNATA V3 TENKEYLESS 8
   7.SAFETY AND MAINTENANCE. 19
7. LEGALESE 21

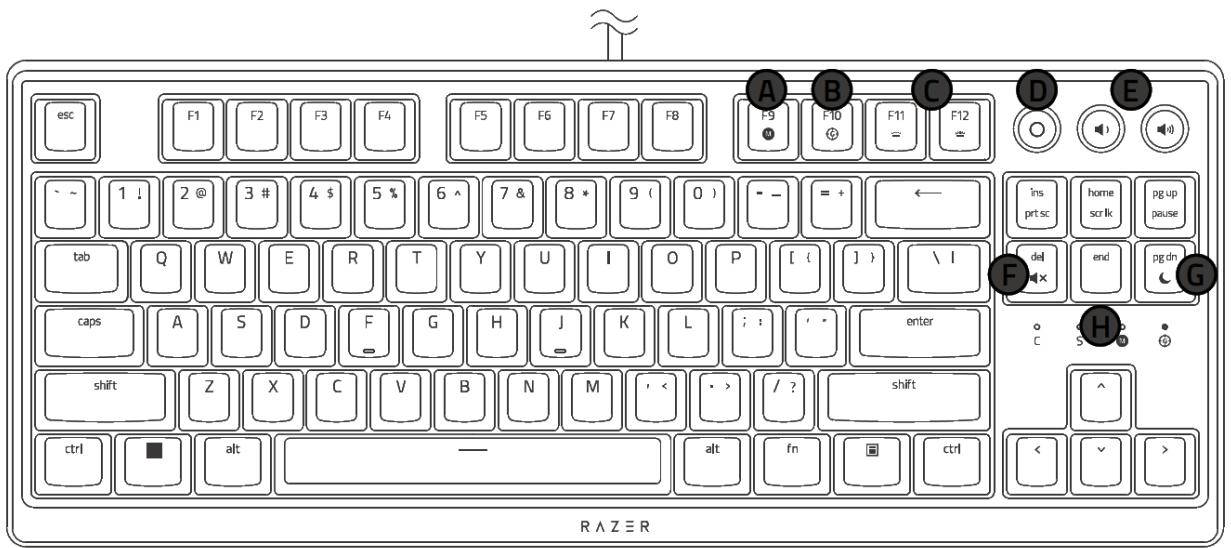

1. WHAT'S INSIDE

Razer Ornata V3 Tenkeyless

A. On-The-Fly macro record key
B. Gaming mode key
C. Backlight control keys
D. Media control button
E. Volume control buttons

F. Mute/unmute key
G. Sleep mode key
H. LED indicators

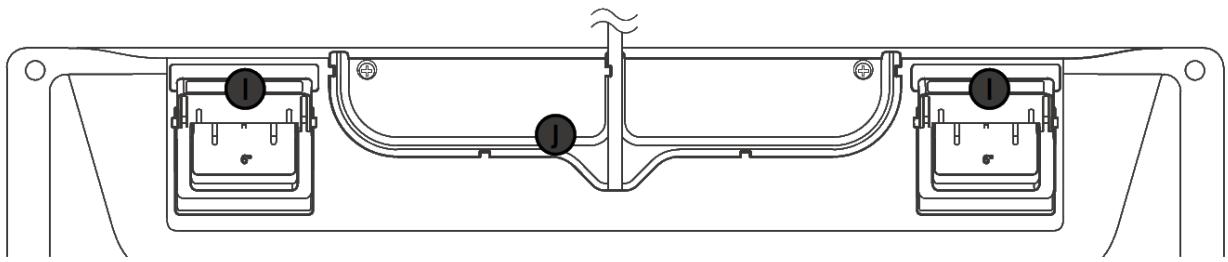

I. Kickstand
J. Cable routing options

Magnetic ergonomic wrist rest

Important Product Information Guide

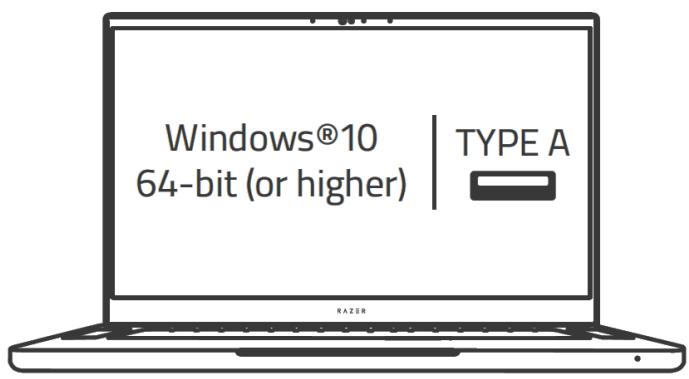

2. WHAT'S NEEDED

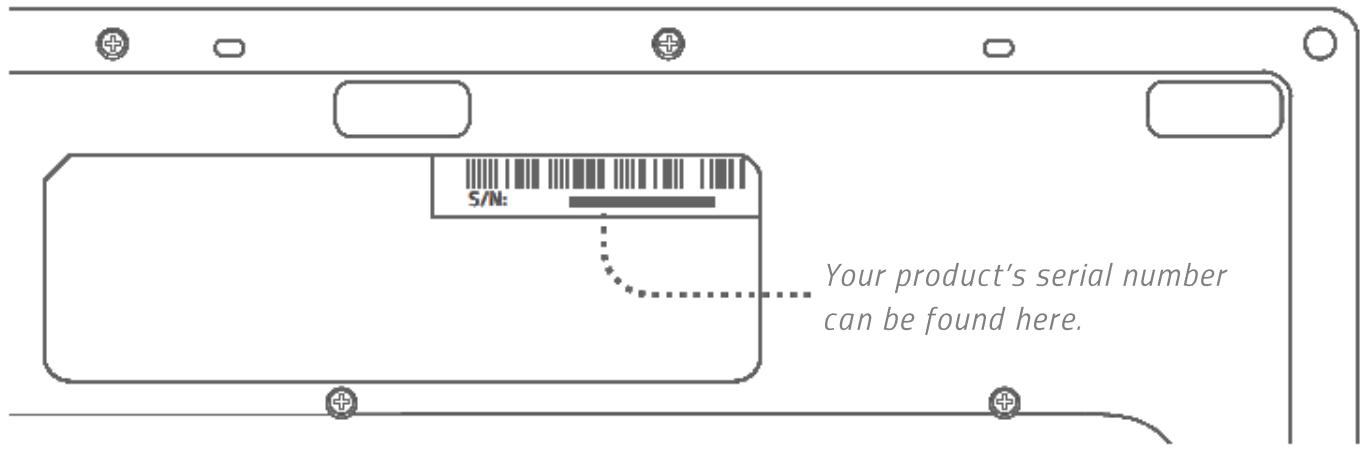

3. LET'S GET YOU COVERED

Register your product and score exclusive benefits

razerid.razer.com/warranty

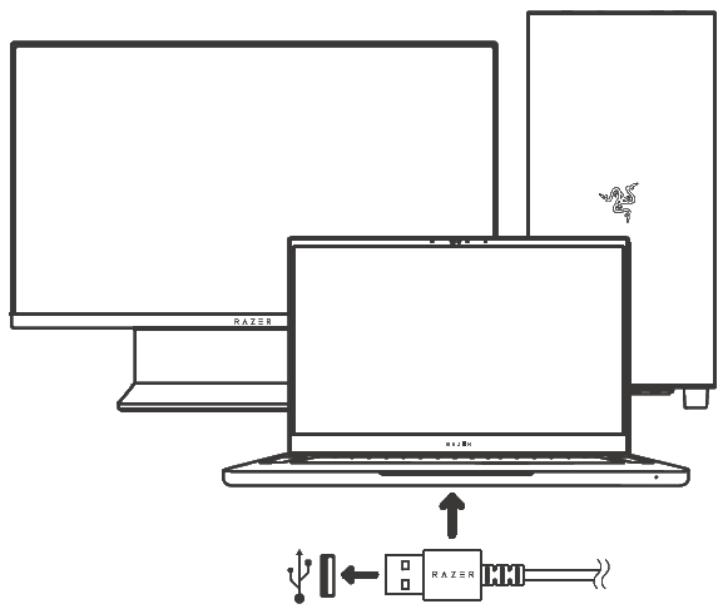

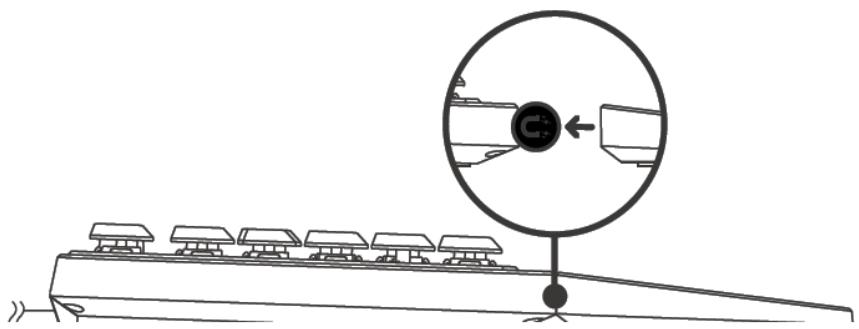

4. SETTING UP YOUR RAZER ORNATA V3 TENKEYLESS

1.

2.

Install Razer Synopsis when prompted or download the installer from razer.com/synapse.

5. USING YOUR RAZER ORNATA V3 TENKEYLESS

MEDIA CONTROLS

Media Control Button

Volume Control Buttons

CHROMAEFFECTS

Hotkey	Chroma Effect
FN + CTRL + 1	Off
FN + CTRL + 2*	Static
FN + CTRL + 3*	Breathing
FN + CTRL + 4	Spectrum cycling
FN + CTRL + 5**	Wave

Press again to change color *Press again to change direction

Use the Razer Synapse app to further customize your keyboard's lighting effects and access other features available on your keyboard.

KEYBOARD FUNCTIONS

Hotkey	Description
FN + F10	Gaming Mode disables the Windows Key, Menu/Apps Key, Alt + Tab, and Alt + F4 functions to avoid accidental usage. You can choose to enable the Alt + Tab and Alt + F4 functions by changing the Gaming Mode settings on Razer Synapse.
FN + F11 / F12	The Backlight Control keys allow you to decrease (▶) or increase (▶) the brightness of your keyboard's LEDs.
FN + DEL	The mute/unmute key enables you to deafen incoming audio. Press the key combination again to restore the audio.
FN + PG DN	The sleep key allows you to suspend all operating system activities. This function lets you save electricity while the computer is idle.

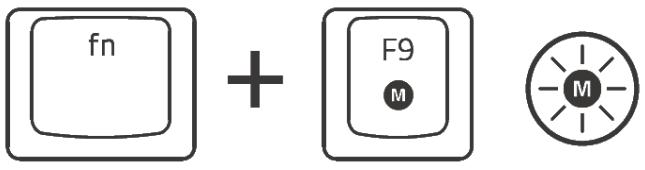

ON-THE-FLY MACRO RECORDING

Follow these steps to create an OTF Macro Recording:

Razer Synapse must be installed and running when recording macros.

1. Press the key combination to start recording. The On-The-Fly macro record key will light up to show that the device is ready to record.
2. Type in the keys you want to record.
3. Press the key combination to stop the recording or the ESC key to cancel the recording. The On-The-Fly macro record key will start blinking to show that the device has stopped recording and is ready to save the macro.
4. Press the desired key where you want to save your macro.

Find out more about your gaming-grade keyboard at support.razer.com.

6. CONFIGURING YOUR RAZER ORNATA V3 TENKEYLESS

Disclaimer: Internet connection is required for installation, updates and cloud-based features. Registering for a Razer ID account is recommended, but optional. All listed features are subject to change based on the current software version, connected device(s), and supported apps and software.

SYNAPSE TAB

The Synapse tab is your default tab when you first launch Razer Synapse.

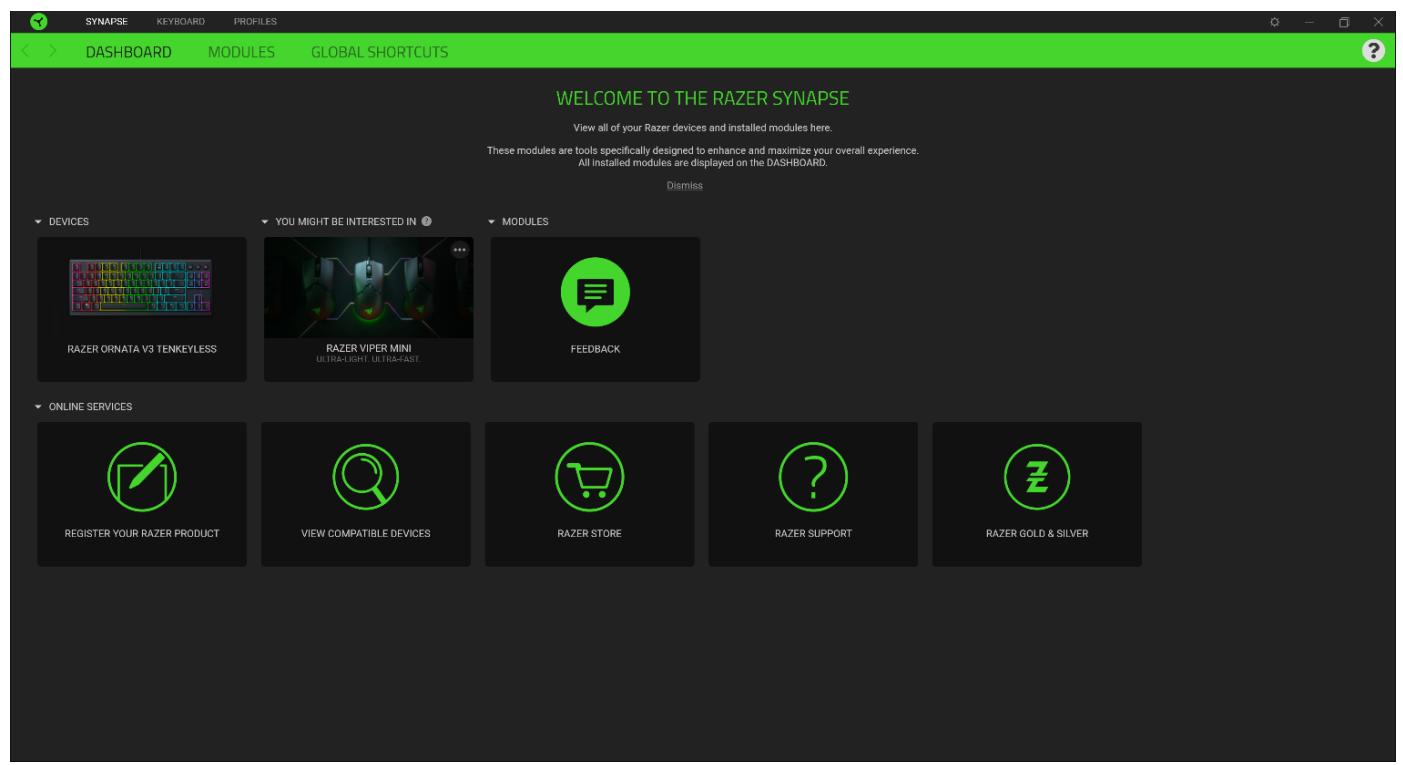

Dashboard

The Dashboard subtab is an overview of your Razer Synapse where you can access all your Razer devices, modules, and online services.

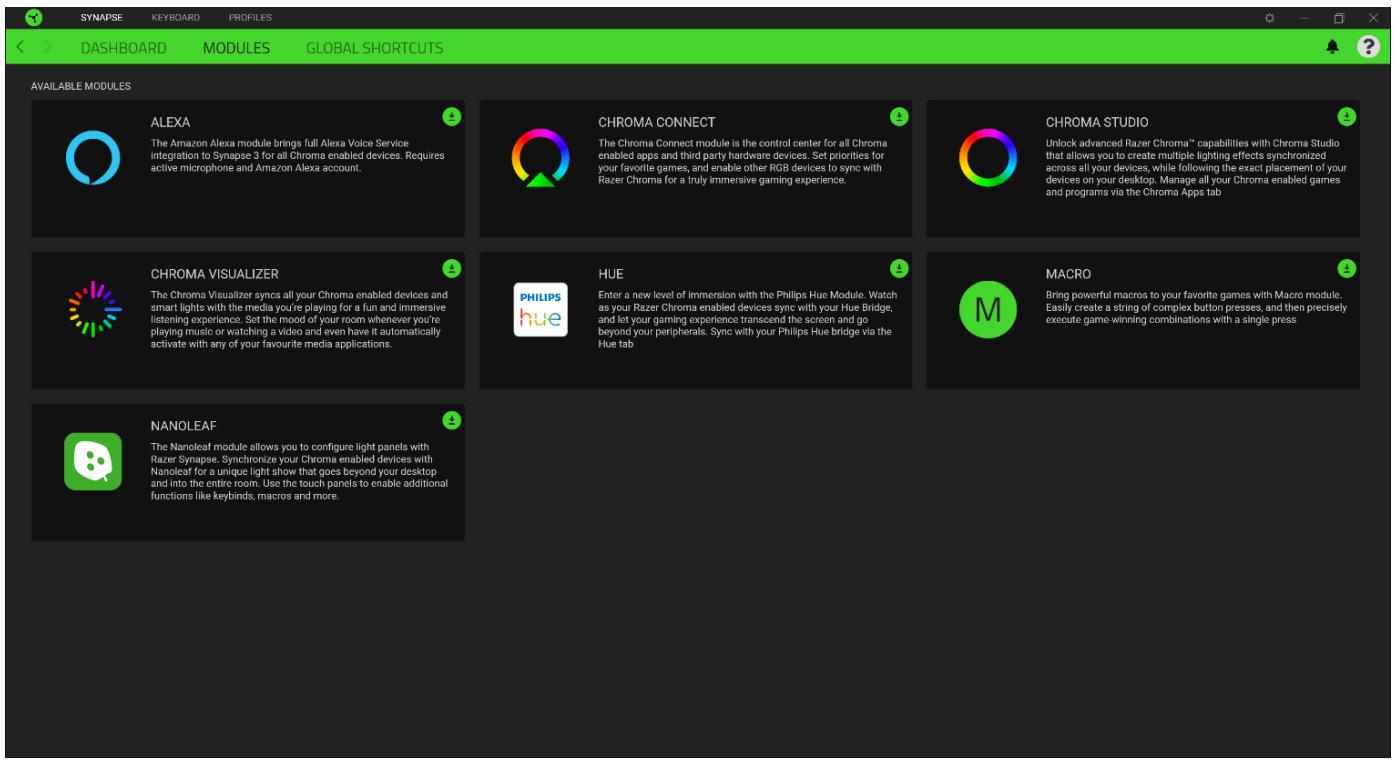

Modules

The Modules subtab displays all installed and available modules for installation.

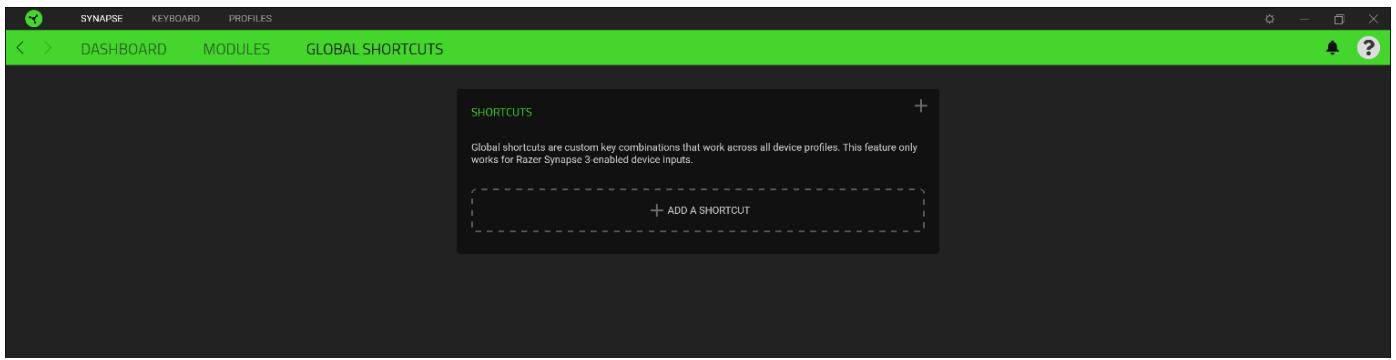

Global Shortcuts

Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse-enabled device inputs which apply across all device profiles. Learn more about Profiles

Only Razer Synapse-enabled device inputs will be recognized.

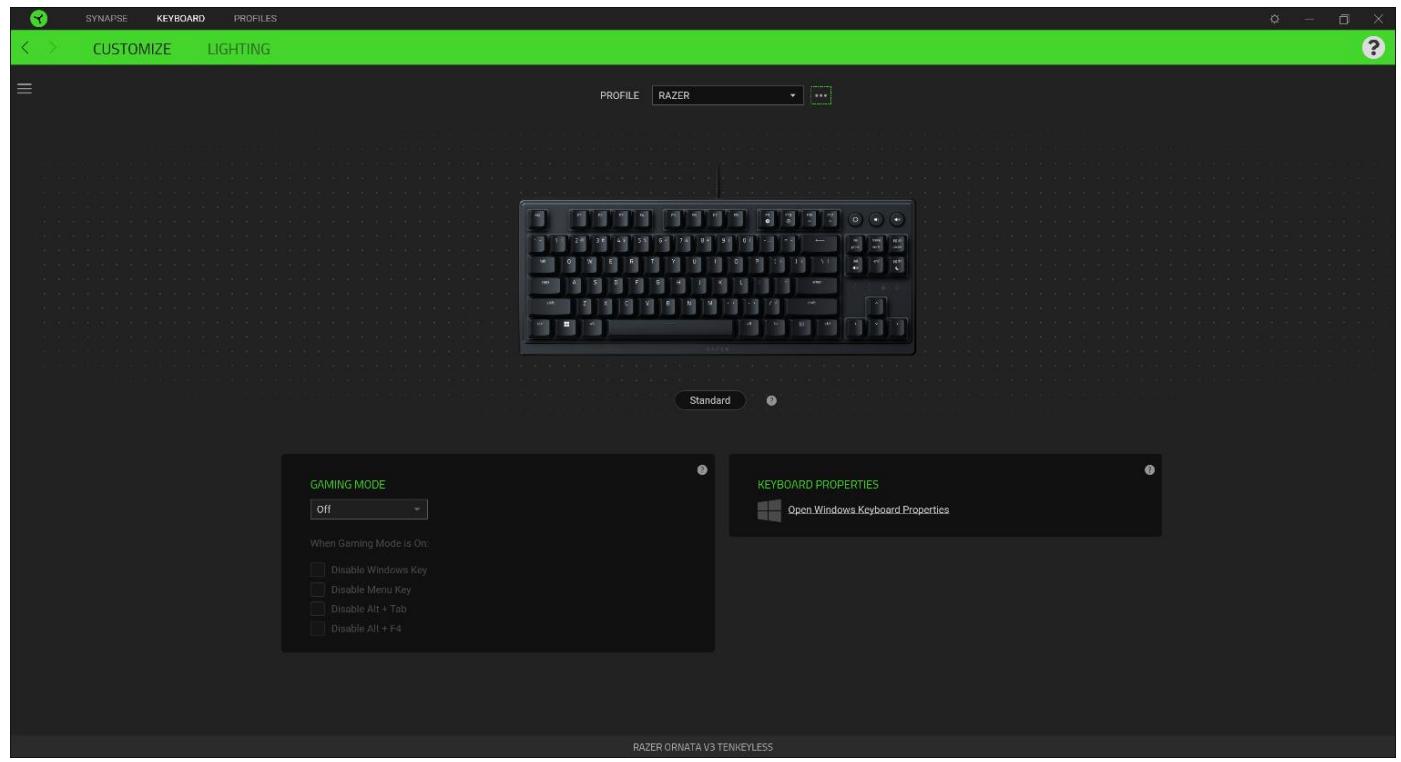

KEYBOARD

The Keyboard tab is the main tab for your Razer Ornata V3 TKL. From here, you can change your device settings such as key assignments and your device's lighting. Changes made under this tab are automatically saved to your system and cloud storage.

Customize

The Customize subtab is for modifying your keyboard's key assignments.

Profile

Profile is a data storage for keeping all your Razer peripheral's settings. By default, the profile name is based on your system's name. To add, import, rename, duplicate, export, or delete a profile, simply press the profile's corresponding Miscellaneous button ( ).

Gaming Mode

Gaming Mode enables you to customize which keys to disable when Gaming Mode is activated. Depending on your settings, you may choose to disable the Windows key, Alt + Tab and Alt + F4.

Keyboard Properties

Allows you to open the Windows Keyboard Properties where you can modify other keyboard settings such as Repeat delay, Repeat Rate, and Cursor blink rate, or view all keyboard drivers installed in your PC.

Hypershift

Hypershift mode is a secondary set of key assignments that is activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse supported keyboard however, you can also assign any key as a Hypershift key.

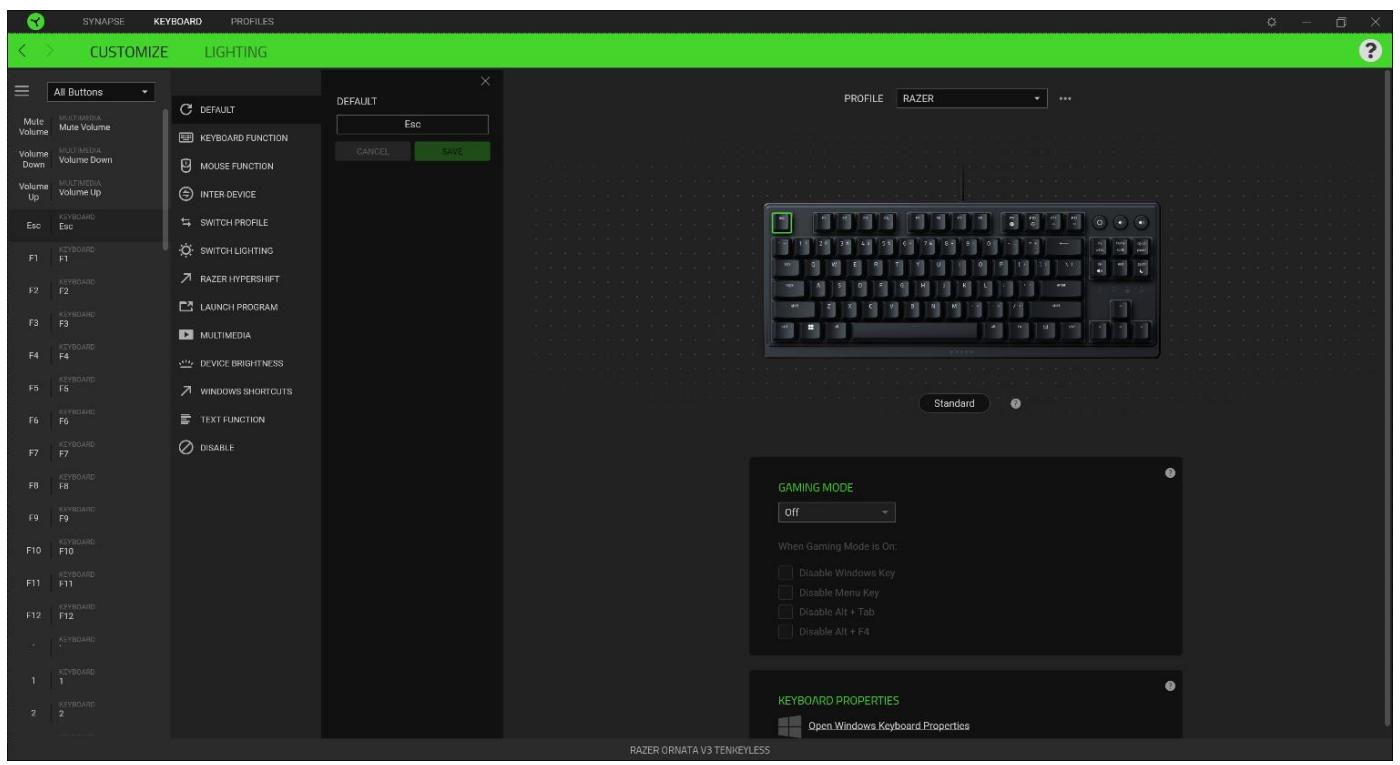

Sidebar

Clicking the Sidebar button ( ) will reveal all current key assignments for your Razer Ornata V3 TKL.

Alternatively, you can skip to a specific key assignment by selecting it on the Customize tab.

Upon selecting a key assignment, you may then change it to one of the following functions:

Default

This option enables you to return the selected key to its original setting.

Keyboard Function

This option changes the key assignment into a keyboard function. You can also choose enable Turbo mode which allows you to emulate repeatedly pressing the keyboard function while the key is held down.

Mouse Function

This option allows you to change any key into a mouse function. You can also choose to enable Turbo mode in some of the mouse functions to control how many times the function will be pressed while the key is held down.

Inter-device

Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific such as using your Razer gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse.

Macro

A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the key function to Macro, you can conveniently execute a chain of commands. This function will only be visible when the Macro module is installed.

Switch Profile

Switch Profile enables you to quickly change profiles and load a new set of key assignments. An on-screen notification will appear whenever you switch profiles.

Switch Lighting

Switch Lighting allows you to easily switch between all advanced lighting effects. This function will only be visible when the Chroma Studio module is installed.

Razer Hypershift

Setting the key to Razer Hypershift will allow you to activate Hypershift mode if the key is held down.

Launch Program

Launch Program enables you to open an app or a website using the assigned key. When you select Launch Program, two choices will appear which requires you to search for a specific app you want to open, or write the address of the website you want to visit.

Multimedia

This option allows you to assign multimedia controls to your Razer device.

Windows Shortcuts

This option allows you to assign your preferred key into a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kb/126449

Text Function

Text Function enables you to type a prewritten text with a touch of a key. Simply write your desired text on the given field and your text will be typed whenever the assigned key is pressed. This function has full Unicode support and you can also insert special symbols from character maps.

This option renders the assigned key unusable. Use Disable if you do not want to use the selected key or if it interferes with your gaming.

Lighting

The Lighting subtab enables you to modify your Razer device's light settings.

Brightness

You can turn off your Razer device's lighting by toggling the Brightness option or increase/decrease the luminance using the slider.

Switch Off Lighting

This is a power saving tool which allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer Ornata V3 TKL has been idle for a set amount of time.

Quick Effects

A number of quick effects can be selected and applied to your device's lighting, as listed here:

Only devices that support the selected lighting effect will synchronize. LED indicators are not customizable.

Name

Description

How to set up

	Ambient awareness	The lighting on the keyboard will reflect the averaged color on the selected screen region	Select or customize a screen region
	Audio meter	The keyboard will light up according to the audio level with a default spectrum of colors	Select a Color Boost level
	Breathing	The keyboard fades in and out of the selected color(s)	Select up to 2 colors or randomize colors
	Spectrum cycling	The lighting will cycle between 16.8 million colors indefinitely	No further customization required
	Static	The LEDs will remain lit in the selected color	Select a color
	Wave	The lighting will scroll in the direction selected	Select either left-to-right or right-to-left wave direction

If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ( ).

Studio Effects

The Studio Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma

Studio button ( CHROMA STUDIO ). Click here to learn more about the Chroma Studio

PROFILES TAB

The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.

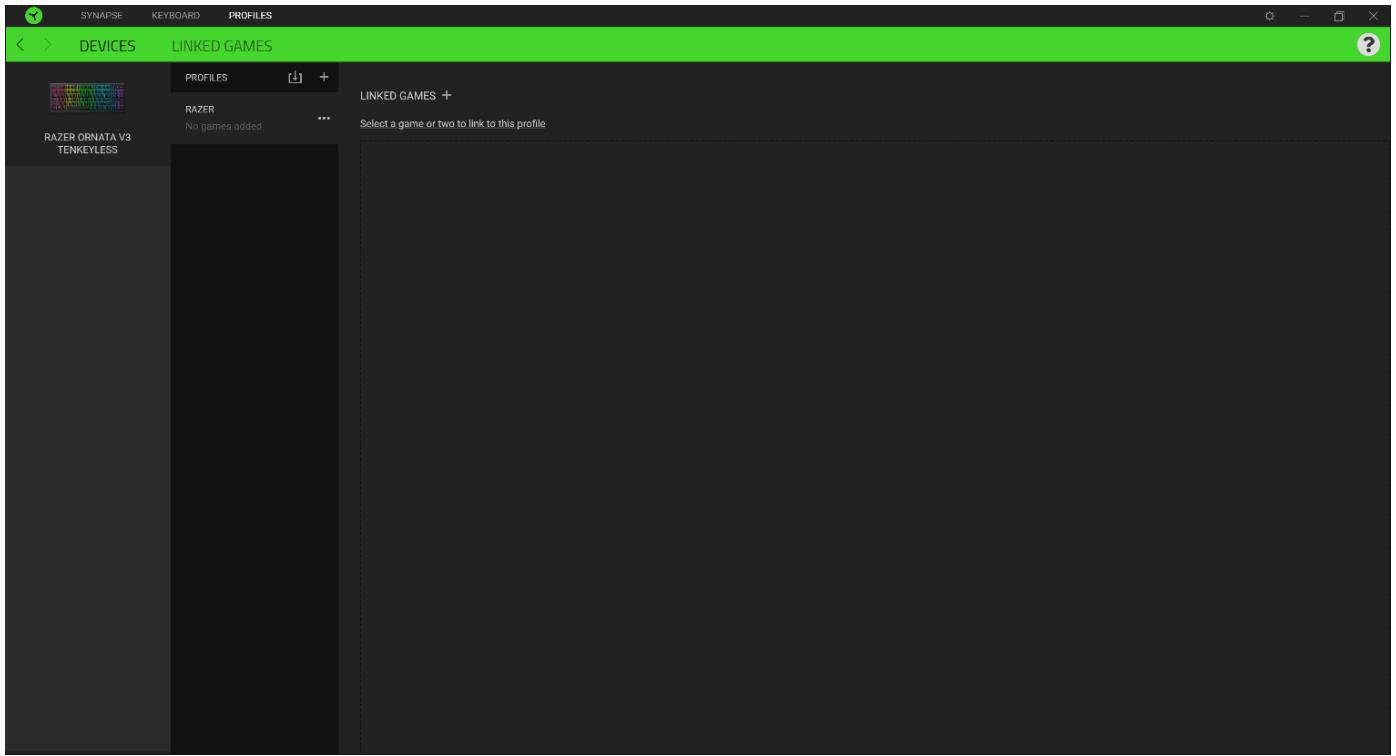

Devices

View which Razer device is using a specific profile using the Devices subtab.

You can import Profiles from your computer or from the cloud through the import button ( ) or create new profiles within the selected device using the add button (+). To rename, duplicate, export, or delete a profile, simply press the Miscellaneous button ( ). Each profile can be set to automatically activate when you run an application using the Linked Games option.

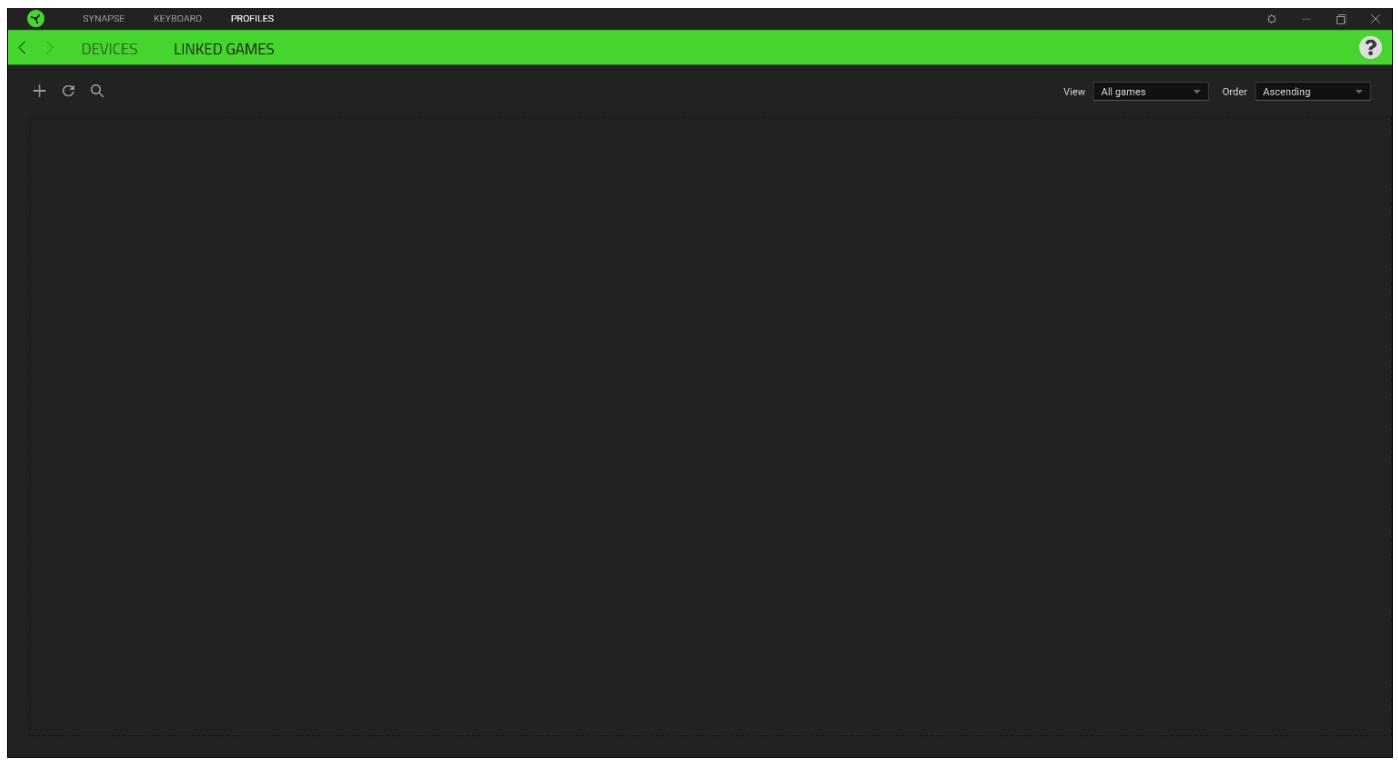

Linked Games

The Linked Games subtab gives you the flexibility to add games, view peripherals that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device.

To link games to connected Razer devices, simply click on a game from the list, and then click Select a device and its profile to launch automatically during gameplay link to select the Razer device it will link with. Once linked, you may click on the Miscellaneous button ( ) of the corresponding device to select a specific profile.

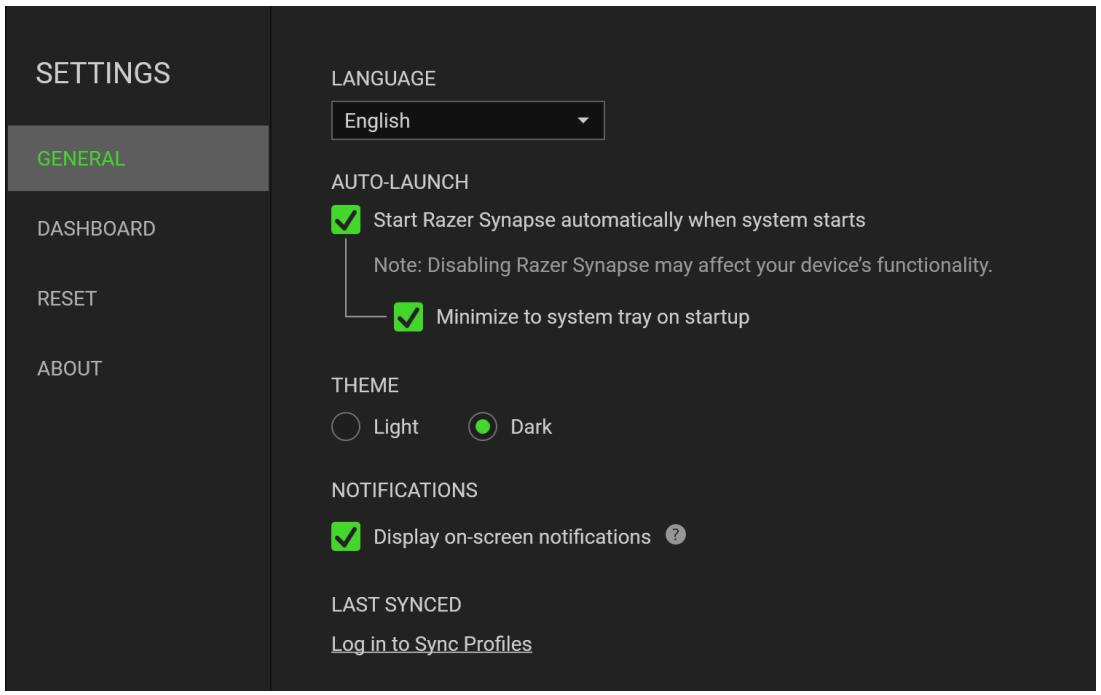

SETTINGS WINDOW

The Settings window, accessible by clicking the ( ) button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, view the master guides of each connected Razer device, or perform factory reset on any connected Razer device.

General tab

The default tab of the Settings window. The General tab enables you to change the software's display language, start-up behavior, and display theme. You may also manually sync your profiles to the cloud ( ) or view the master guide of all connected Razer devices and installed modules.

Reset tab

The Reset tab allows you to perform a factory reset on any connected Razer device and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse's new features on its next launch.

By resetting a Razer device, all profiles on the selected device and its on-board memory (if present) will be erased.

About tab

The About tab displays brief software information and copyright statement and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer's social communities.

7. SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Ornata V3 TKL, we suggest that you adopt the following guidelines:

Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.

Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.

Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0^ ( 32^ ) to 40^ ( 104^ ). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Ornata V3 TKL.

1. Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away and your keyboard within easy reach.
2. Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow height.
3. Keep your feet well supported, posture straight and your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
5. Do not rest your wrists on hard surfaces for long periods.
6. Use the provided wrist rest to support your wrist while gaming.
7. Customize the keys on your keyboard to suit your style of gaming in order to minimize repetitive or awkward motions while gaming.
8. Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

If you should experience any physical discomfort while using your keyboard, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer Ornata V3 TKL requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
