TS7000 - Barre de son TCL - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil TS7000 TCL au format PDF.
| Type de produit | Barre de son |
| Marque | TCL |
| Modèle | TS7000 |
| Nombre de canaux | 2.0 |
| Puissance totale | 80 W RMS |
| Haut-parleurs | 2 tweeters (38 mm) et 2 haut-parleurs large bande (51 x 114 mm) |
| Dimensions (L x H x P) | 920 x 64 x 98 mm |
| Poids | 2,6 kg |
| Consommation électrique (marche) | 40 W |
| Consommation électrique (veille) | <0,5 W |
| Alimentation | Secteur, câble détachable |
| Connectivités | HDMI ARC, Bluetooth 4.2, Optique, USB, Entrée AUX 3,5 mm |
| Formats audio USB | MP3, WAV, FLAC |
| Modes sonores | Musique, Films, Infos |
| Traitement audio | Dolby Digital |
| Télécommande | Oui, piles AAA fournies |
| Fixation murale | Oui, kit inclus |
| Câble IR pass-through | Inclus |
| Touches sur l'appareil | Marche/Arrêt, Entrées, Bluetooth, Volume +/-, Voyant LED multicolore |
| Entretien et nettoyage | Essuyer avec un chiffon doux et sec. Ne pas utiliser de produits abrasifs. |
| Sécurité | Ne pas exposer à l'humidité. Débrancher avant nettoyage. |
| Pièces détachées et réparabilité | Pièces disponibles via SAV TCL. Réparation par un professionnel recommandée. |
FOIRE AUX QUESTIONS - TS7000 TCL
Questions des utilisateurs sur TS7000 TCL
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Barre de son au format PDF gratuitement ! Retrouvez votre notice TS7000 - TCL et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil TS7000 de la marque TCL.

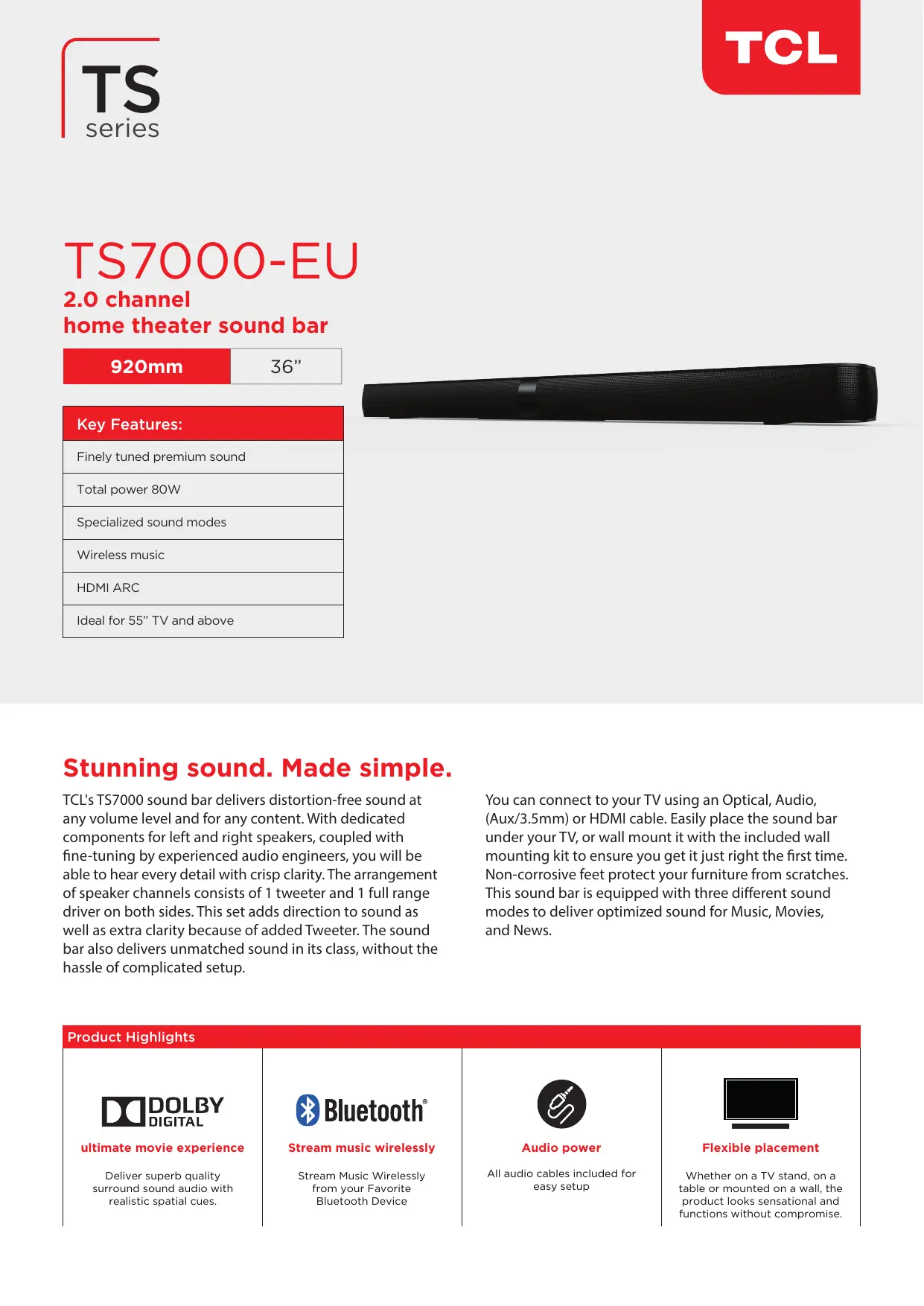

MODE D'EMPLOI TS7000 TCL
TS7000-EU
2.0 channel home theater sound bar
920mm
36”
Key Features:
Finely tuned premium sound
Total power 80W
Specialized sound modes
Wireless music
HDMI ARC
Ideal for 55" TV and above
Stunning sound. Made simple.
TCL's TS7000 sound bar delivers distortion-free sound at any volume level and for any content. With dedicated components for left and right speakers, coupled with fine-tuning by experienced audio engineers, you will be able to hear every detail with crisp clarity. The arrangement of speaker channels consists of 1 tweeter and 1 full range driver on both sides. This set adds direction to sound as well as extra clarity because of added Tweeter. The sound bar also delivers unmatched sound in its class, without the hassle of complicated setup.
You can connect to your TV using an Optical, Audio, (Aux/3.5mm) or HDMI cable. Easily place the sound bar under your TV, or wall mount it with the included wall mounting kit to ensure you get it just right the first time. Non-corrosive feet protect your furniture from scratches. This sound bar is equipped with three different sound modes to deliver optimized sound for Music, Movies, and News.
Product Highlights
DOLBY
DIGITAL
ultimate movie experience
Deliver superb quality
surround sound audio with
realistic spatial cues.
Bluetooth
Stream music wirelessly
Stream Music Wirelessly
from your Favorite
Bluetooth Device
Audio power
All audio cables included for easy setup

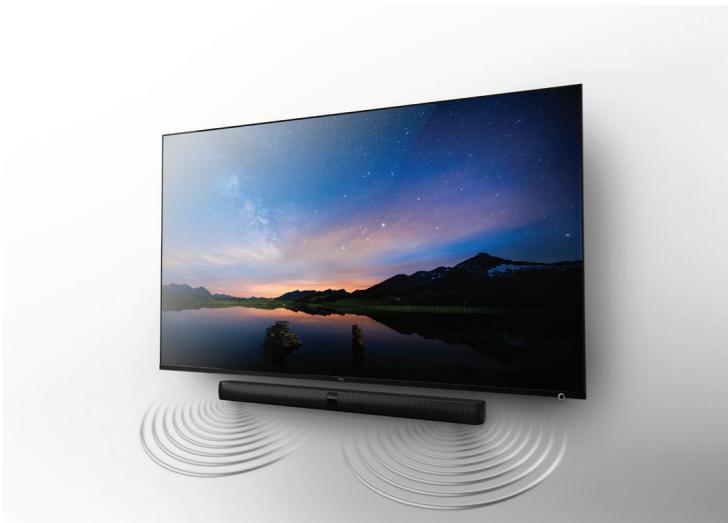

Flexible placement
Whether on a TV stand, on a table or mounted on a wall, the product looks sensational and functions without compromise.
Loud & clearsound
Specialized sound modes
Remote control
Stream music wirelessly
| TCL TS-SERIES | |
| Model | TS7000-EU |
| Soundbar length | 920mm (36") |
| Description | 920mm, 80W, 2.0CH soundbar |
| SOUNDBAR FEATURES | |
| Channels | 2.0 CH |
| Product dimensions (WxHxD) | 920 x 64 x 98mm 36.2" x 2.5" x 3.8" |
| LED indicator | 1 multi-color LED |
| Keypad | On/Off, Inputs, BT, Vol -, Vol+ |
| IR pass-through | Yes, with IR pass-through accessory cable |
| AUDIO (Soundbar) | |
| Audio Power (Watts) Speakers | 20W x 2 + 20W x 2 @ 10% THD |
| Driver Dimensions | 51 x 114mm driver 2” x 4.5” driver |
| Sound Pressure Level | >97dB |
| Tweeter Dimensions | 38mm (1.5”) tweeter |
| Dolby Processing | Dolby Digital |
| EQ Settings | Music/News/Movie |
| CONNECTIONS – Inputs/Outputs | |
| HDMI ARC | Yes |
| Bluetooth | Yes (version 4.2) |
| Optical | Yes |
| USB playback | Yes |
| 3.5mm AUX line-in | Yes |
| USB FEATURE | |
| Audio format support | MP3, WAV, FLAC |
| ENERGY INFORMATION | |
| Power Consumption (W) | 40W |
| Standby Power | <0.5W |
| ACCESSIONS (INcluded) | |
| Warranty Info | Yes |
| Quick Start Guide (QSG) | Yes |
| Power Cord Type (Soundbar) | Detachable |
| IR pass-through cable | Yes |
| Wall Mount kit | Yes |
| Remote Control | Yes |
| Remote Control Battery | Two "AAA" |
| PRODUCT & PACKAGE INFORMATION | |
| Carton | Color-Printed Box |
| Product Size (WxHxD) | 920 x 64 x 98mm 36.2" x 2.5" x 3.8" |
| Product Weight (lbs) | 5.6 |
| Product Weight (kg) | 2.6 |
| Package Size (WxHxD) | 992 x 152 x 134mm 39.1" x 6.0" x 5.3" |
| Total Package Weight (lbs) | 7.2 |
| Total Package Weight (kg) | 3.3 |
- All Product Specifications Are Subjected to Change Without Notice.
TCL
Already one of the top three largestTV manufacturers in the world, TCL(The Creative Life) was founded morethan 35 years ago and prides itselfon delivering high quality products
that feature stylish design and latest technology. TCL sells its products in more than 160 countries. With extensive development expertise, TCL is expanding its footprint to audio products, providing consumers best-in-class sound with excellent quality.
