SERVICE MANUAL

STEREO RADIO

• TYPE. D,Y

製品一卜：81RM2-0117

SPECIFICATIONS

Frequency range:

FM: 76 -108 MHz (100/50kHz STEP)

LW: 150 - 519 kHz

AM: 520 -1710 kHz (10/9kHz STEP)

SW:1.711-29.999MHz

Maximum output:

Using batteries

Headphones 10mW + 10mW (EIAJ/32Ω)

Speaker 400mW (EIAJ/8Ω)

Power source:

Battery DC 6V, LR-6 (UM-3,AA,R6)x4

Domestic AC power (using optional AC adaptor)

Battery life:

Dry cell batteries (UM-3)

Approx. 7.5 hrs. (FM) (speaker)

Approx. 8.0 hrs. (FM) (headphones)

Dimensions:

220(W)×129(H)×40(D) mm

8.66(W)x5.08(H)x1.57(D) inches

Weight:

Approx. 725 g (25.6 oz) incl. dry cell batteries

• Design and specifications are subject to change without notice.

サイバー技術二乗一乗
番号	連絡内容
G- -
G- -
G- -

APW株式会社AIWA CO.,LTD.

DISASSEMBLY INSTRUCTIONS

TO REMOVE BACK COVER

a.Unscrew 1 screw A. and 4 PTP screws B
b.Separate front and back cabinet.

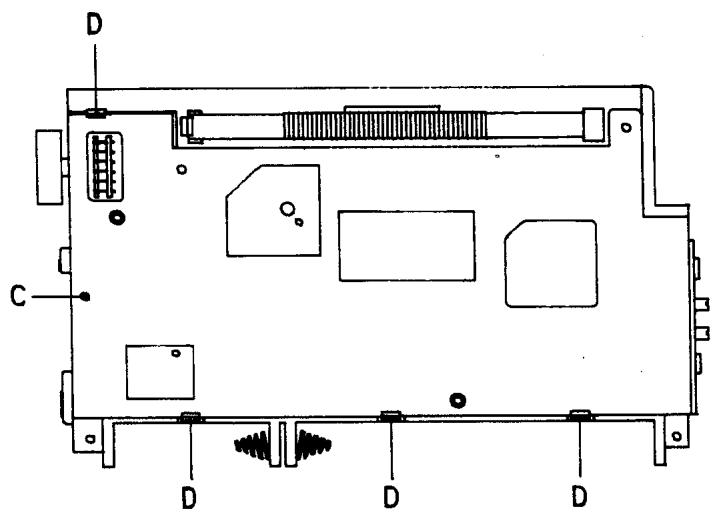

TO REMOVE MAIN PCB

a. Remove screw C.
b. Release Main PCB from hooks D to remove it.

TO REMOVE CONTROL PCB

a. Unscrew 2 screws E.
b. Release Control PCB from hooks F to remove it.

ELECTRICAL MAIN PARTS LIST

REF.NO.	PART NO.	CODE	DESCRIPTION	REF.NO.	PART NO.	CODE	DESCRIPTION
= = = = = IC = = = = =				C100,C101	★87-015-965-010	OE	ELECT 1/50V
	87-020-487-010	1F	IC TA7758P	C73,C74,	★87-015-961-010	OE	ELECT 0.1/50V
	S1-010-031-000	1D	IC AN7415S	C111,C112
	S1-010-000-000	1B	IC AN7117	C126	★87-010-236-000	1B	ELECT 1000/10V
	S1-010-140-000	1D	IC LA5003	JK1	★S1-649-021-000	1C	JACK HSJ 0912-01-022
	S1-011-040-000	1D	IC TA75339F	JK3	★S1-640-060-000	1D	JACK HSJ 0914-01-040
	S1-011-050-000	1F	IC TC40H148F
	S1-010-430-000	2P	IC CXD1118M-1	JK2	★S1-647-040-000	1B	JACK DC(E)
	S1-000-021-000	2C	IC μPD75308GF-508-3B9	L1	★S1-132-900-000	1A	FIXED COIL 22μH
				L2	★S1-134-000-000	1A	FIXED COIL 180μH
	S1-011-360-000	1C	IC S-81230AG-RB-T2	L3,L13	★S1-130-800-000	1A	FIXED COIL 0.39μH
	S1-011-390-000	1B	IC TC4S11F	L4	★S1-134-100-000	1A	FIXED COIL 22μH
				L5	★S1-130-500-000	1A	FIXED COIL 0.22μH
= = = = = TRANSistor = = = =				L6,L12	★S1-130-900-000	1A	FIXED COIL 0.47μH
	87-026-183-010	1A	FET 2SK212E	L7	★S1-131-300-000	1A	FIXED COIL 1μH
	S1-030-061-000	1D	FET 2SK291R	L8	★S1-131-500-000	1A	FIXED COIL 1.5μH
	S1-030-070-000	1A	FET 2SK381A	L10	★S1-131-370-000	1A	FIXED COIL 1μH
	S1-030-071-000	1A	FET 2SK381B	L11	★S1-133-300-000	1A	FIXED COIL 47μH
	S1-030-060-000	1D	FET 2SK291Q	L14,17	★S1-131-700-000	1A	FIXED COIL 2.2μH
	S1-020-181-000	1A	TR 2SC2999D	L15,L16,L18,	★S1-132-400-000	1A	FIXED COIL 8.2μH
	S1-022-000-000	OE	TR 2SC2839E	L21
	S1-020-180-000	1A	TR 2SC2999E	L19,L20	★S1-135-100-000	1A	FIXED COIL 1.5mmH
				S1,S3	★S1-630-280-000	1B	SW SLHA-12BPO4
	S1-022-021-000	OE	TR 2SC3330U	S2	★S1-630-070-000	1C	SW SSS422NA1-SG
	S1-022-020-000	OE	TR 2SC3330S	SVR1,SVR3,	★S1-320-000-000	1A	SVR 10KB 7PNHX-10KB
	S1-022-023-100	OE	TR 2SC3330T/U	SVR4,SVR5
	S1-020-273-100	OE	TR 2SA1317T/U	SVR2	★S1-320-070-000	1A	SVR 1MB 7PNHX-1MB
	89-410-126-010	OE	TR 2SD1012G	T1	★S1-122-211-000	1B	ADJ COIL 0258-404-W038B [Y1,YJ1,YZ1,YU1]
	89-110-203-010	1A	TR 2SA1020Y
	89-316-236-010	OE	TR 2SC1623 L6
	89-108-126-010	OE	TR 2SA812 M6
	89-208-151-010	OE	TR 2SB815 B6/B7	T2	★S1-122-220-000	1B	ADJ COIL 0258-404-W039B [Y1,YJ1,YZ1,YU1]
	= = = = = DIODE = = = =			T3	★S1-122-231-000	1A	IFT 4113 404 W*18
	S1-040-020-000	OE	DIODE 1N4148	T4	★S1-150-000-000	1D	TOROID COIL 720μH
	S1-042-010-T00	1A	DIODE 1SS238	T5	★S1-122-420-000	1B	ADJ COIL 0237-404-W525
	S1-043-060-000	1B	VARACTOR SVC203(AA1/AA2)
	S1-040-020-T00	OE	DIODE 1N4148TR	T6	★S1-122-260-000	1B	ADJ COIL 0237-404-W402
	S1-040-030-000	OE	DIODE 1N60	T7	★S1-122-300-000	1B	ADJ COIL 0237-404-W322A
	S1-044-010-000	1A	DIODE KB362	T8	★S1-122-270-000	1A	IFT 4140-404-W121
			MA27T-A	T9,T11	★S1-122-280-000	1A	IFT 2150-404-W387B
	87-027-499-010	OE	ZENER UZ-15BH	T10	★S1-122-250-000	1A	IFT 2153-404-W275
	S1-058-010-000	1A	LED 3Φ(GRN)	T13	★S1-122-440-000	1B	ADJ COIL 0258-404-W040A
	S1-042-040-000	OE	DIODE 1S2835 A3	T14	★S1-122-290-000	1A	ADJ COIL 4140-404-W120A
	S1-046-010-000	OE	DIODE RLS4148
	S1-042-030-000	1A	DIODE 1S2837 A5	T14	★S1-122-290-000	1A	ADJ COIL 4140-404-W120A
	S1-046-000-T00	1B	DIODE 1SS98-T2	TC1,TC2	★S1-210-010-000	1B	TC 10PF 2222-808-23109
= = = = MAIN CIRCUIT BOARD SECTION = = = =
C20,C28,C44	★87-010-378-010	OE	ELECT 10/16V	VR1	★S1-300-020-000	1E	VR 50KAX2
,C80,C84				X1	★S1-650-020-000	1E	X'TAL 55.405MHZ
C55,C75,	★87-010-374-010	OE	ELECT 47/10V	C94	★87-010-404-010	OE	ELECT 4.7/50V
C119,C120				C104	★87-015-972-010	OE	ELECT 10/16V
C56	★87-010-379-010	OE	ELECT 22/16V
C58,C63,C64	★87-010-401-010	OE	ELECT 1/50V	C105,C107	★87-010-248-010	OE	ELECT 220/10V
,C70,C76				C117	★87-010-248-010	OE	ELECT 220/10V
				C123	★87-010-221-010	OE	ELECT 470/10V
C61	★87-015-391-010	1A	ELECT 0.22/50	CF1,CF2	★S1-660-080-000	1B	CF SFE10.7MA8-A
C62	★87-010-400-010	OE	ELECT 0.47/50V
C67,C110,	★87-010-263-010	OE	ELECT 100/10V	CF3	★S1-660-170-000	1H	CF SFP45OI
C118,C121,				CF4	★S1-660-360-000	2A	CF SFR45OJ
LF1	★S1-122-200-000	-	LC FILTER 0247-036	S204	★S1-630-040-000	1B	SWITCH SSSS2-S-019
MCF1	★S1-650-041-000	2M	MCF 55.845 MHz	TC201	★S1-210-003-000	1B	TRIMMER 10PF VCT 31C213A
T1	★S1-122-660-000	1B	ADJ COIL 2660 (B)	TC202	★S1-210-000-000	1B	TRIMMER 20PF VCT 31E122A
T2	★S1-122-650-000	1B	ADJ COIL 2650 (B)
T12	★S1-136-100-000	1B	FIXED COIL 10mmH	X201	★S1-650-031-000	1D	X'TAL 4.500MHZ
= = = = = CONTROL CIRCUIT BOARD SECTION = = = =				X202	★S1-650-071-000	1D	X'TAL 4.194304MHZ
C219	★87-015-975-010	OE	ELECT 220/6.3V	= = = = =ENCODER CIRCUIT BOARD SECTION = = = =
C229	★87-015-972-010	OE	ELECT 10/16V
C240,C243	★87-010-367-010	OE	ELECT 4.7/25V	VR2	★S1-730-000-000	2A	ROTARY ENCODER EVQ-WWH
C241	★87-010-079-010	OE	ELECT 100/6.3V
LCD1	★S1-600-150-000	2B	LCD	= = = = =MiscELLANEOUS = = = =
S201	★S1-630-280-000	1B	SW SLHA-12BP04
S202	★S1-630-280-000	1B	SW SLHA-12BP04	ANT1	★S1-110-360-000	1D	BAR & COIL
S203	★S1-630-440-000	1C	SWITCH SSSS2-S-011	SP2	★S1-625-000-000	1D	PIEZO BUZZER 20235
				SP1	★S1-620-030-000	2A	SPEAKER 3'' 8Ω 0.5W

2SK212

2SC2999

2SC2839

2SC3350

2SA1317

2SD1012

2SA1020

2SK381

2SC1623

2SA812

2SB815

2SK291

PRACTICAL SERVICE FIGURE

Sensitivity: FM 16 ± 4dB (at 92.0 MHz)

(IHF, THD 3%) MW 54 ± 4dB (at 1000 kHz)

(S/N 10dB) LW 60± 4dB (at 218~kHz )

SW 18± 4dB (at 2300~kHz )

16 ± 4dB (at 15100 kHz)

16± 4dB (at 25600kHz )

Intermediate Frequency: AM 1ST.IF. 55.845 MHz

2ND.IF.450 kHz

FM 10.7 MHz ± 0.05 MHz

Stereo Separation: FM 18 ± 4dB (at 1 kHz)

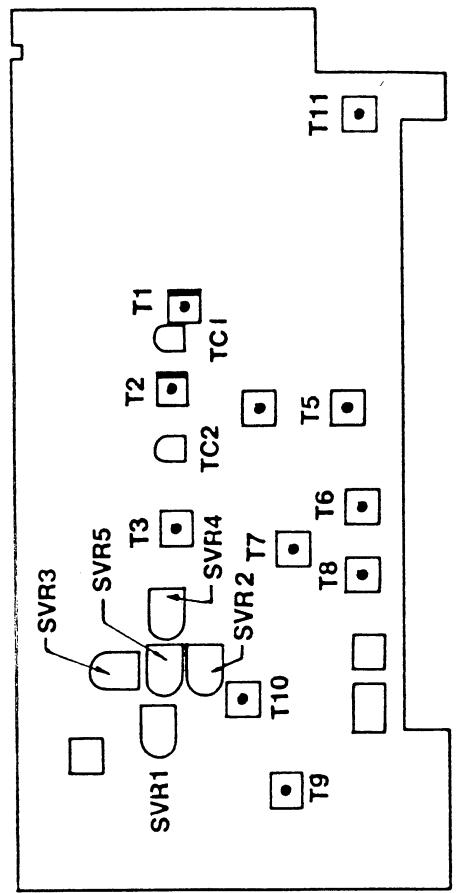

ADJUSTMENT

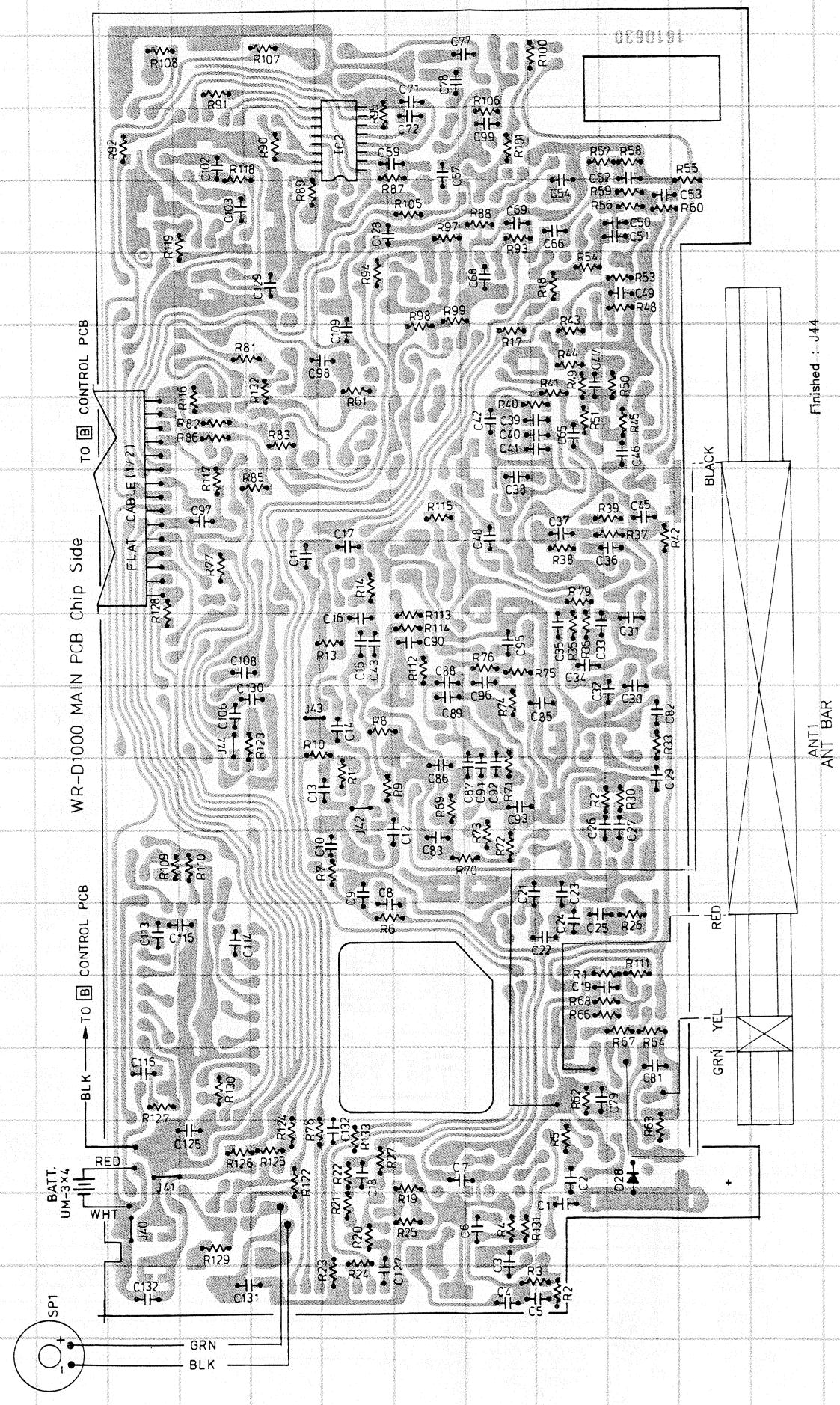

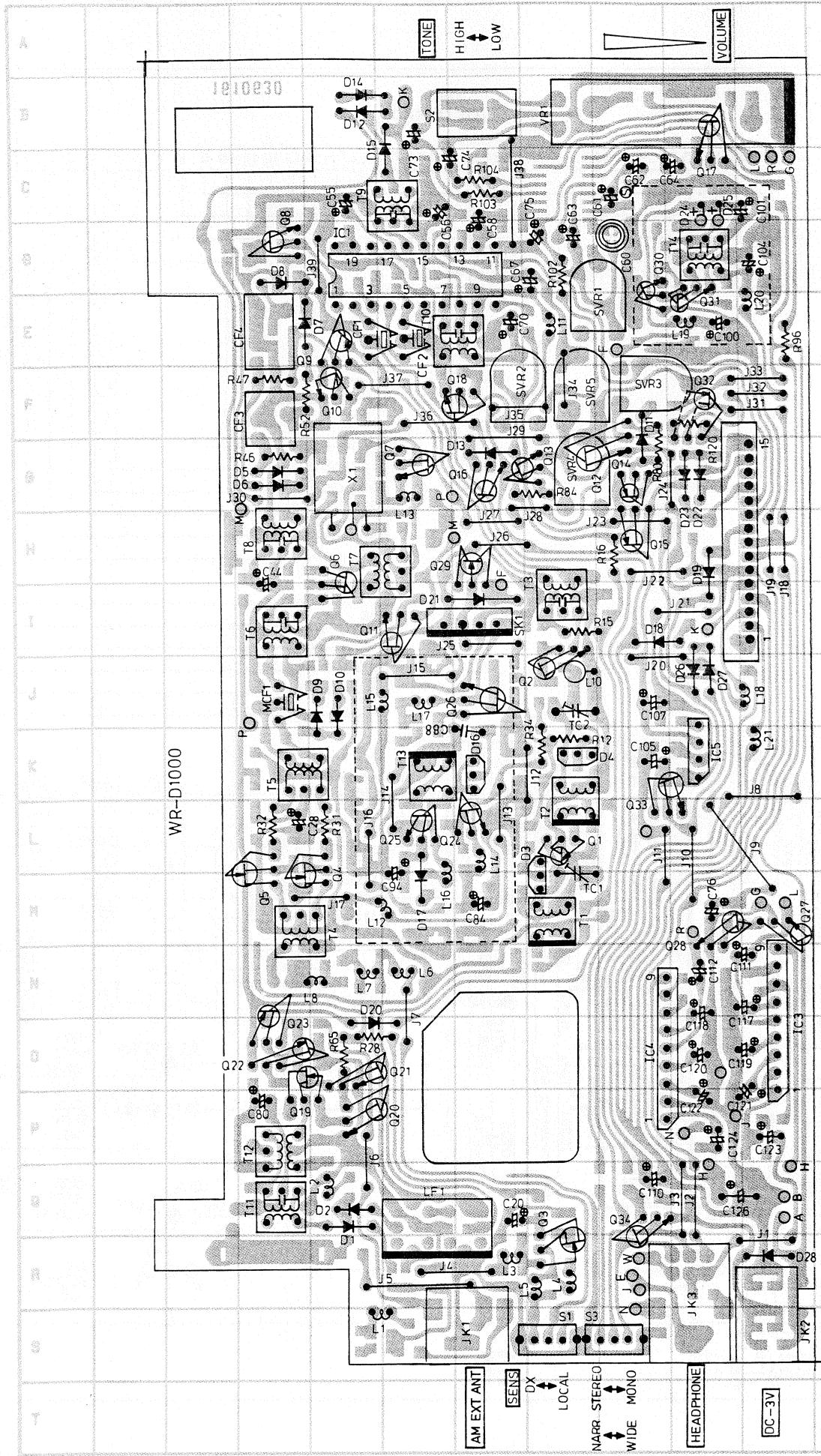

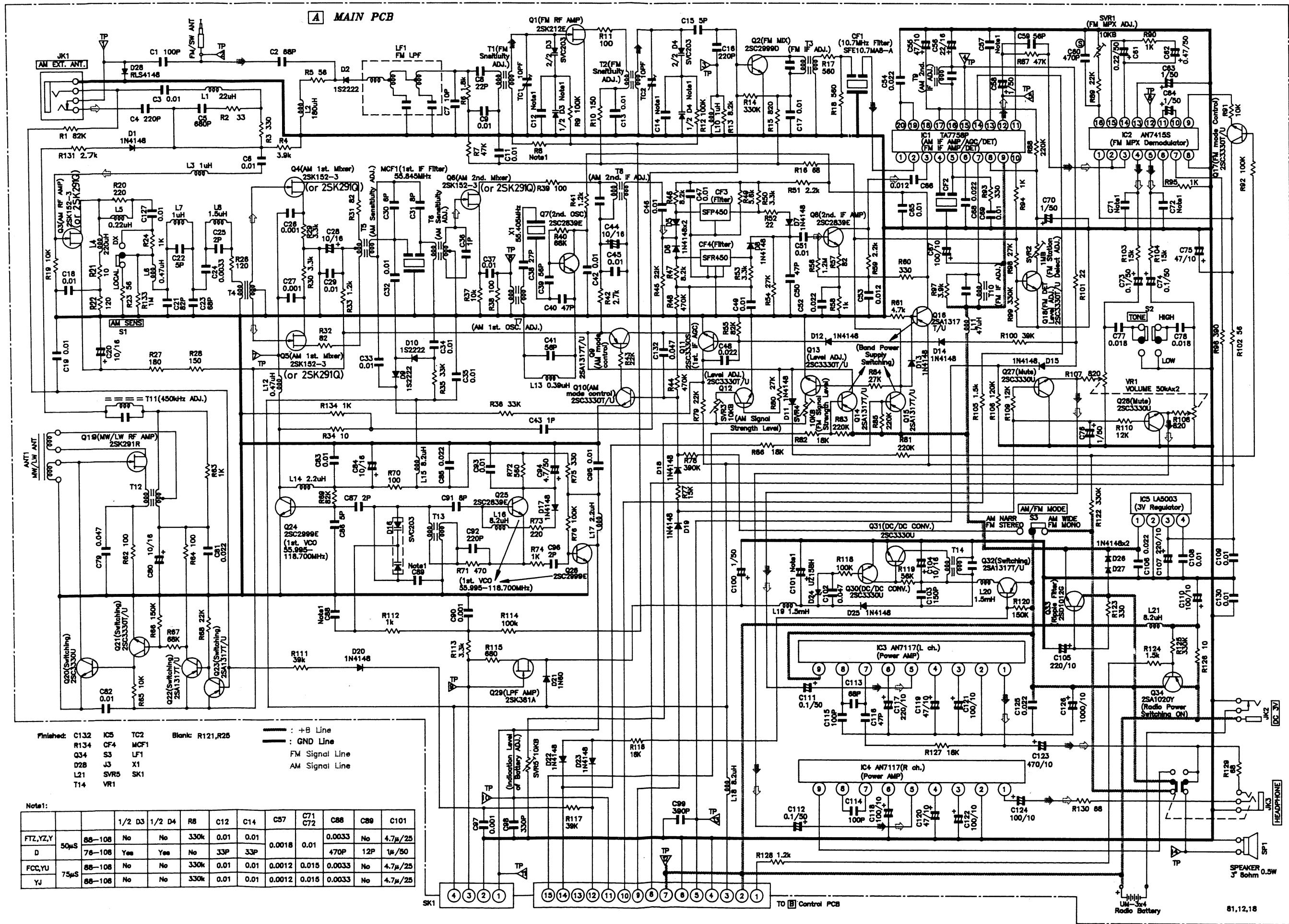

MAINPCB

① AM 2ND IF Adjustment

T7 55.394858-55.395150 MHz

② AM 1ST IF Adjustment

T8,T9 450 kHz

③ FM,IF Adjustment

T3,T10 10.7 MHz

④ AM Sensitivity.Adj

T5,T6 450kHz

⑤ FM Sensitivity.Adj

T1,T2 80 MHz

TC1,TC2 104 MHz

⑥ FM Mpx. Adj

SVR1 18.95-19.05 kHz

⑦ Indication Level Of Battery

SVR5 2th. scale

⑧ Signal Strength Levelatery

FM.SVR4 6th-scale

AM.SVR3 5th-scale

⑨ AM Adjustment

T11 450 kHz

FM Station Delect

SVR2 0.3V

○ ヤフリ抵抗部品コーダ/NCHIP RESISTOR PART CODE

TPP抵抗部品一卜の成立立

Chip resistor part coding

千万抵抗
Chip resistor

Wattage 容量	Type 種類	Tolerance 許容誤差	Symbol 記号	Dimensions/寸法（mm）				Resistor code：A 抵抗コロド：A
				Form/外形	L	W	t
1/32W	1608	±5%	CJ	L→L→t	1.6	0.8	0.35	108
1/10W	2125	±5%	CJ		2	1.25	1.45	118
1/8W	3216	±5%	CJ		3.2	1.6	0.5~0.7	128

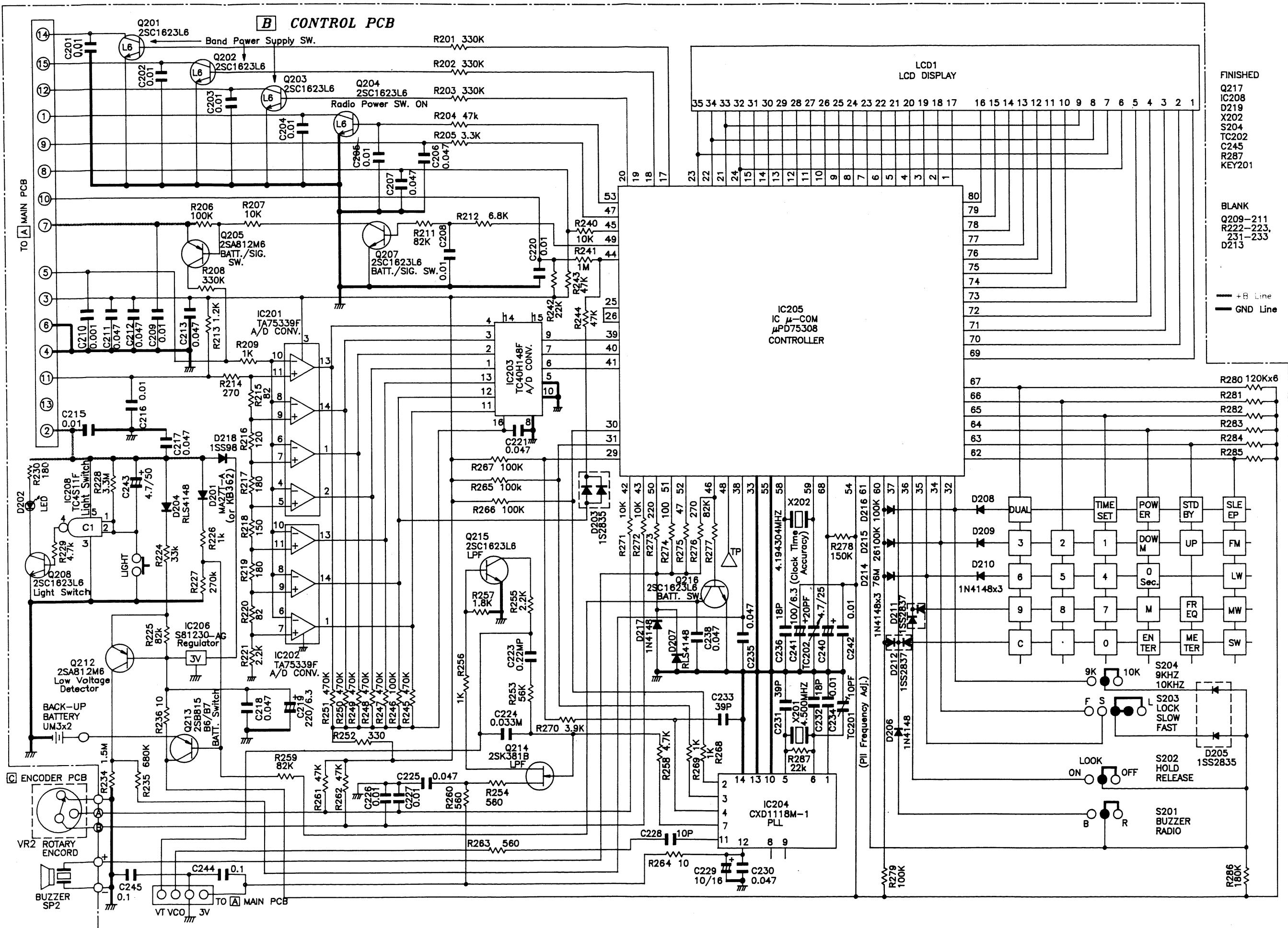

CONTROLPCB

① Clock Time Accuracy

TC202 52.4288 ± 4 MHz

② PII Frequency. Adj

TC201 97.29975-97.30025 MHz

IC DESCRIPTION

ICS' & TRANSISTORS' VOLTAGE LIST

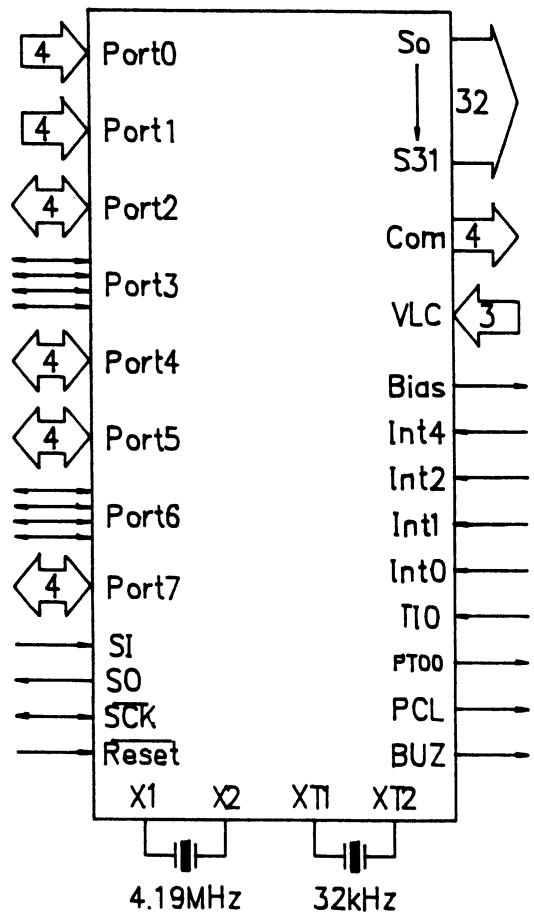

IC,UPD75308-508-3B9

PIN.NO	I/O	DESCRIPTION
1-1569-80	O	LCD SEGMENT DRIVER OUTPUTS
21-24	O	LCD BACKPLANE DRIVER OUTPUTS
16	O	NOT USED AND WITHOUT ANY FUNCTION SET
17	O	RADIO ON N FM RECEPTION: H RADIO ON BUT W/O FM RECEPTION: L RADIO OFF: H
18	O	RADIO ON BUT W/O FM RECEPTION: H RADIO ON N FM RECEPTION: L RADIO OFF: H
19	O	RADIO ON N MW RECEPTION: H RADIO ON BUT W/O MW RECEPTION: L RADIO OFF: H
20	O	RADIO ON N SW RECEPTION: H RADIO ON BUT W/O SW RECEPTION: L RADIO OFF: H
25	O	LCD POWER SUPPLY BIAS CONTROL
26-28	I	LCD BIAS VOLTAGE INPUT
29	O	DATA
30	O	CLOCK
31	O	LATCH FOR TRANSMISSION OF REFERENCE DIVIDER FREQ. DIVISION NUMBER AND PROGRAMMABLE DIVIDER FREQ. DIVISION NUMBER
3234-3760-67	O	KEY MATRIX - STROBE OUTPUT
	I	* KEY MATRIX - INPUT* D214, D215, D216: MODE SELECT FOR DIFFERENT AREA DEMANDD214: FOR FM76-108MHzD215: FOR STOP FREQ. AT AM26100kHzD216: FOR FM AUTO SCAN'S STEP AT 100kHz
33		VSS
38	I	* INHIBIT INPUT* RADIO ON CAN BE CONTINUED ONLY WHEN INPUT IS H* USUAL POWER SUPPLY - IF THERE IS ENOUGH BATTERY VOLTAGE, POWER SUPPLYS AT H EVEN RADIO IS OFF.
39	I	* SIGNAL STRENGTH LEVEL/BATTERY LEVEL INDICATION
40		* INDICATION AND INPUT:
41		0 1 2 3 4 5 6 739 H L H L H L H L40 H H L H H L L41 H H H H L L L L# WHEN INDICATION IS OVER INPUT 'Z', STOP AM AUTO SCAN
42-43	I	ROTARY ENCODER INPUT
44	I	WHEN INPUT IS L, STOP FM AUTO SCAN
45	I	* CONTROL 'STEREO' INDICATION OR NOT ON LCD* STEREON INDICATION ONLY WHEN INPUT L, RADIO ON N FM RECEPTION
46	O	* BUZZER OUTPUT: ALARM AND BEEP SOUNDS* NO OUTPUT: L
50	O	* HWS BUZZER ALARM CONTROL
51		* OUTPUT STEP AND TIME:
52		TIME 0 5 10 15 20 25 30 35 SECLSB 50 L H L H L H L HMSB 52 L L L L H H H H H: HIGH IMPEDANCE* W/O ALARM OUTPUT: HIGH IMPEDANCE
47	O	MUTE OUTPUT: ACTIVE H
48	O	* CHECK PIN WITH MAIN SYSTEM CLOCK FREQ.:AT SLEEP STATUS AND WHEN PIN 38 INHIBIT IS L,524288Hz SQUARE WAVE IS CONTINUOUSLY OUTPUT* OUTPUT PIN OF TIMER START:TIMER START BY STANDBY, OUTPUT IS H AT FIRST ONE SEC.
49	O	* BATTERY LEVEL INDICATION IS H AT FIRST 60-80MS* OTHERS : L
53	O	RADIO ON: H RADIO OFF: L
54		VDD. APPLY VOLTAGE FROM 2.8 TO 3.1V
55		* SUBSYSTEM CLOCK OSCILLATION
56		* NOT NECESSARY IN UPD75308-508-3B9
57		NO CONNECTION
58-59		MAIN SYSTEM CLOCK OSCILLATION
68	I	* RESET INPUT* NORMAL: HINITIALIZED: L

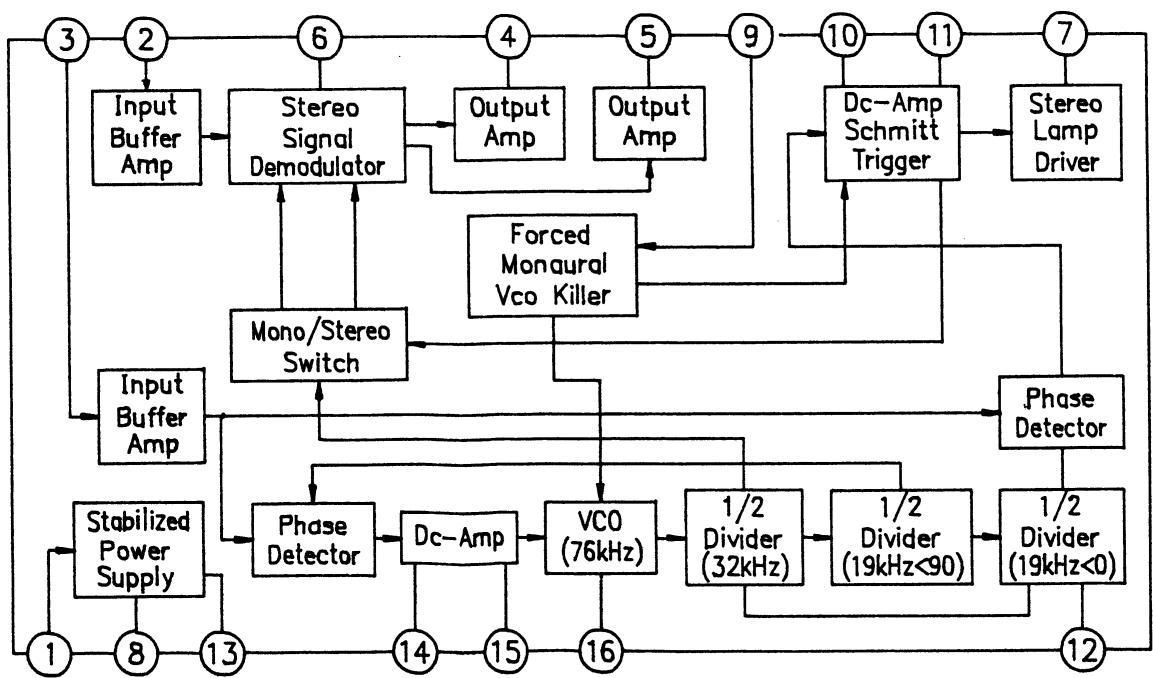

IC1

PIN NO.	FM	AM
1	4.39	3.80
2	1.66	1.66
3	1.83	1.60
4	1.27	1.79
5	1.38	1.60
6	1.38	1.60
7	5.04	4.99
8	2.60	2.25
9	5.04	4.99
10	4.93	0
11	0	0
12	1.50	1.59
13	0	2.35
14	2.97	2.97
15	1.12	1.08
16	1.12	1.08
17	2.38	2.33
18	1.77	1.46
19	1.66	1.66
20	1.66	1.66

IC2

PIN NO.	FM	AM
1	2.86	2.86
2	0.46	0.46
3	0.46	0.46
4	0.93	0.93
5	0.93	0.93
6	0.02	0.02
7	2.99	2.99
8	0	0
9	1.04	1.04
10	0.45	0.45
11	1.17	1.17
12	1.32	1.32
13	1.43	1.43
14	1.15	1.15
15	1.15	1.15
16	0.02	0.02

IC4

PIN NO.	FM	AM
1	0	0
2	0	0
3	0	0
4	0	0
5	0	0
6	0	0
7	0	0
8	0	0
9	0	0

IC3

PIN NO.	FM	AM
1	2.76	2.76
2	0	0
3	2.76	2.76
4	2.75	2.75
5	2.74	2.74
6	5.92	5.92
7	4.65	4.65
8	3.34	3.34
9	5.97	5.97

TESTING CONDITION:

1. WITHOUT ANY INPUT SIGNAL AND SETTING VOLUME TO MIN.
2. SPEAKER MODE
3. EXTERNAL ANT. IS NOT USED
4. AM IS RECEIVED BY 150kHz AND PUT ON THE WIDE BW & LOCAL POSITION.
5. FM IS RECEIVED BY 98MHz AND PUT ON THE STEREO POSITION.
6. LOAD IN RADIO BATTERY 6.0V AND BACK UP BATTERY 3.0V.
7. UNIT OF MEASURE: VOLTS

IC201

PIN NO.	FM	AM
1	3.00	3.00
2	3.00	3.00
3	3.00	3.00
4	0.75	0.70
5	1.11	0.94
6	0.75	0.70
7	1.19	1.00
8	0.75	0.70
9	1.24	1.04
10	0.75	0.70
11	1.27	1.07
12	0	0
13,14	3.00	3.00

IC202

PIN NO.	FM	AM
1	3.00	3.00
2	3.00	3.00
3	3.00	3.00
4	0	0
5	1.05	0.88
6	0.75	0.70
7	0.94	0.79
8	0.75	0.70
9	0.97	0.82
10	0.75	0.70
11	1.05	0.88
12	0	0
13, 14	3.00	3.00

IC203

PIN NO.	FM	AM
1	3.00	3.00
2	3.00	3.00
3	3.00	3.00
4	3.00	3.00
5	0	0
6	3.00	3.00
7	3.00	3.00
8	0	0
9	3.00	3.00
10	0	0
11	3.00	3.00
12	3.00	3.00
13	3.00	3.00
14	0	0
15, 16	3.00	3.00

IC204

PIN NO.	FM	AM
1	-1.38	-1.37
2	0	0
3	0	0
4	3.00	3.00
5	1.20	1.20
6	1.11	1.11
7	0.68	0.69
8	0.01	0.01
9	0.01	0.01
10	0	0
11	1.40	1.39
12	2.88	2.88
13,14	0	0

IC208

PIN NO.	FM	AM
1	4.6	4.6
2	4.6	4.6
3	0	0
4	0	0
5	6.0	6.0

IC206

PIN NO.	FM	AM
1	3V	3V
2	0	0
3	6V	6V

IC205

PIN NO.	FM	AM
1-15	LCD SEGMENT
16	1.57	1.57
17	3.20	0
18	0	3.20
19	0	0
20	0	0
21-24	LCD back plane
25	3.22	3.22
26	3.22	3.22
27	2.15	2.15
28	1.08	1.08
29	3.00	3.00
30	0	0
31	0	0
32	0	0
33	0	0
34	0	0
35	0	0
36	0	0
37	3.0	3.0
38	3.20	3.20
39	3.00	3.00
40	3.00	3.00
41	3.00	3.00
42	3.00	3.00
43	3.00	3.00
44	3.00	3.00
45	3.00	3.00

PIN NO.	FM	AM
46	0	0
47	0	0
48	0	0
49	0	0
50	0	0
51	0	0
52	0	0
53	3.22	3.22
54	3.22	3.22
55	0	0
56	3.22	3.22
57	0	0
58	1.47	1.47
59	1.50	1.50
60	3.1	3.1
61	3.22	3.22
62	3.22	3.22
63	3.22	3.22
64	3.22	3.22
65	3.22	3.22
66	3.22	3.22
67	3.22	3.22
68	3.22	3.22
69-80	LCD SEGMENT

TRANSISTORS

		FM	AM
Q1	S	0	0
	G	0	0
	D	4.02	0
Q2	E	0	0
	B	0.65	0
	C	4.00	0
Q3	S	0	0.43
	G	0	0
	D	0	3.85
Q4	S	0	0.92
	G	0	0
	D	0	3.55
Q5	S	0	0.92
	G	0	0
	D	0	3.55
Q6	S	0	0.78
	G	0	0
	D	0	4.34
Q7	E	0	0
	B	0	0.65
	C	0	1.40
Q8	E	0	0.28
	B	0	0.93
	C	0	2.40
Q9	E	0	4.91
	B	0.01	4.35
	C	0	0.01
Q10	E	0	0
	B	0.56	0
	C	0.01	4.35

		FM	AM
Q11	E	0	0
	B	0.29	0.29
	C	3.00	3.00
Q12	E	0	0
	B	0	0.66
	C	1.38	0.02
Q13	E	0	0
	B	0.66	0
	C	0.02	1.16
Q14	E	5.05	5.00
	B	4.93	4.29
	C	0	4.91
Q15	E	5.05	5.00
	B	4.36	5.30
	C	4.99	0
Q16	E	3.00	3.00
	B	4.35	2.32
	C	0	2.98
Q17	E	2.85	2.85
	B	3.45	3.45
	C	2.86	2.86
Q18	E	0	0
	B	0.64	0
	C	0.01	2.25
Q19	S	0	0.37
	G	0	0
	D	0	4.20
Q20	E	0	0
	B	0	0.04
	C	0	0

		FM	AM
Q21	E	0	0
	B	0	0.64
	C	0	0.04
Q22	E	0	4.91
	B	0	4.22
	C	0	4.85
Q23	E	0	4.91
	B	0	4.78
	C	0	4.22
Q24	E	0	0
	B	0.75	0.75
	C	2.64	2.64
Q25	E	0.75	0.75
	B	1.40	1.40
	C	1.68	1.68
Q26	E	0	0
	B	0.74	0.74
	C	2.04	2.04
Q27	E	0	0
	B	0	0
	C	0	0
Q28	E	0	0
	B	0	0
	C	0	0
Q29	S	10.15	1.97
	G	9.97	1.78
	D	14.90	2.77
Q30	E	0	0
	B	0.53	0
	C	0.68	0

		FM	AM
Q31	E	0	0
	B	0.68	0
	C	5.81	0
Q32	E	5.97	5.97
	B	5.27	5.96
	C	5.87	0
Q33	E	5.15	5.13
	B	5.84	5.83
	C	5.97	5.97
Q34	E	6.00	6.00
	B	5.31	5.31
	C	5.97	5.97
Q201	E	0	0
	B	0.61	0
	C	0.07	5.30
Q202	E	0	0
	B	0	0.61
	C	4.93	0.07
Q203	E	0	0
	B	0	0
	C	0.46	5.96
Q204	E	0	0
	B	0.66	0.66
	C	0.07	0.07
Q205	E	6.00	6.00
	B	6.00	6.00
	C	0.75	0.70
Q207	E	0	0
	B	0	0
	C	6.00	6.00
Q208	E	6.00	6.00
	B	5.42	5.42
	C	3.52	3.52
Q209	E	0	0
	B	0.48	0.48
	C	5.32	5.32
Q210	E	0	0
	B	0.53	0.53
	C	0.48	0.48

		FM	AM
Q211	E	0	0
	B	0.51	0.51
	C	1.35	1.35
Q212	E	3.22	3.22
	B	2.70	2.70
	C	3.21	3.21
Q213	E	3.00	3.00
	B	4.42	4.42
	C	3.22	3.22
Q214	S	0.93	0.94
	G	0.68	0.69
	D	2.63	2.63
Q215	E	0	0
	B	0.61	0.61
	C	9.3	9.3
Q216	E	0	0
	B	0	0
	C	4.42	4.42

(1) IC1-TA7758P

(2) IC2-AN7415S

(3) IC3, 4-AN7117

(6) IC203-TC40H148F

(8) IC205-uPD75308GF-508-3B9

(4) IC5-LA5003

(5) IC201, 202-TA75339F

(7) IC204-CXD1118M-1

(9) IC206-S-81230AG-RB-T2

TOP VIEW

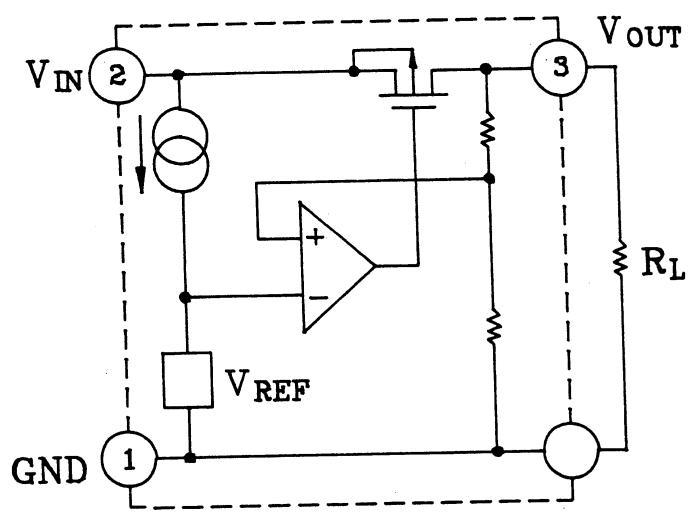

NO.	S-802	S-812
1	VOUT	GND
2	GND	VIN
3	VIN	VOUT

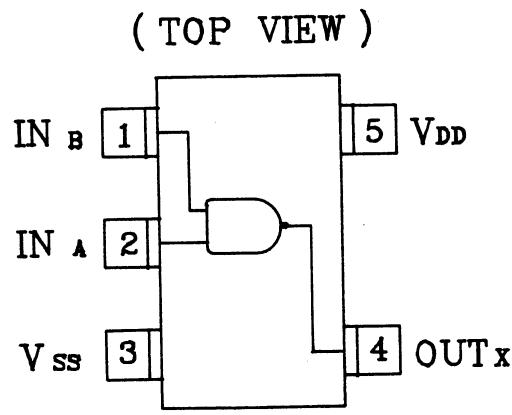

(10) IC208-TC4S11F

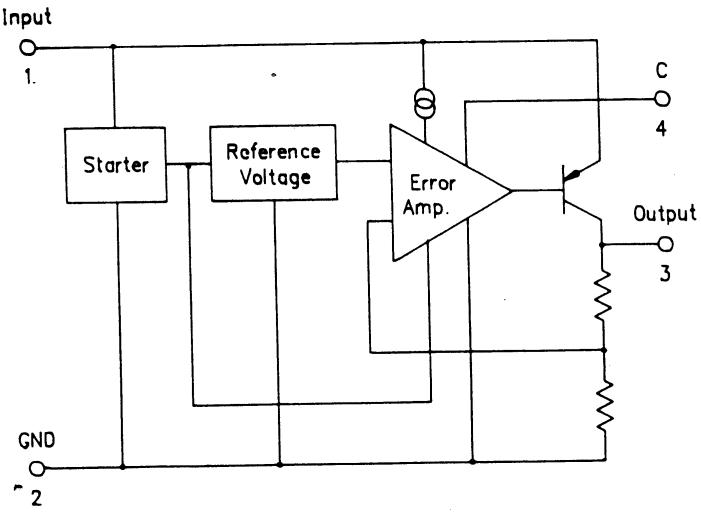

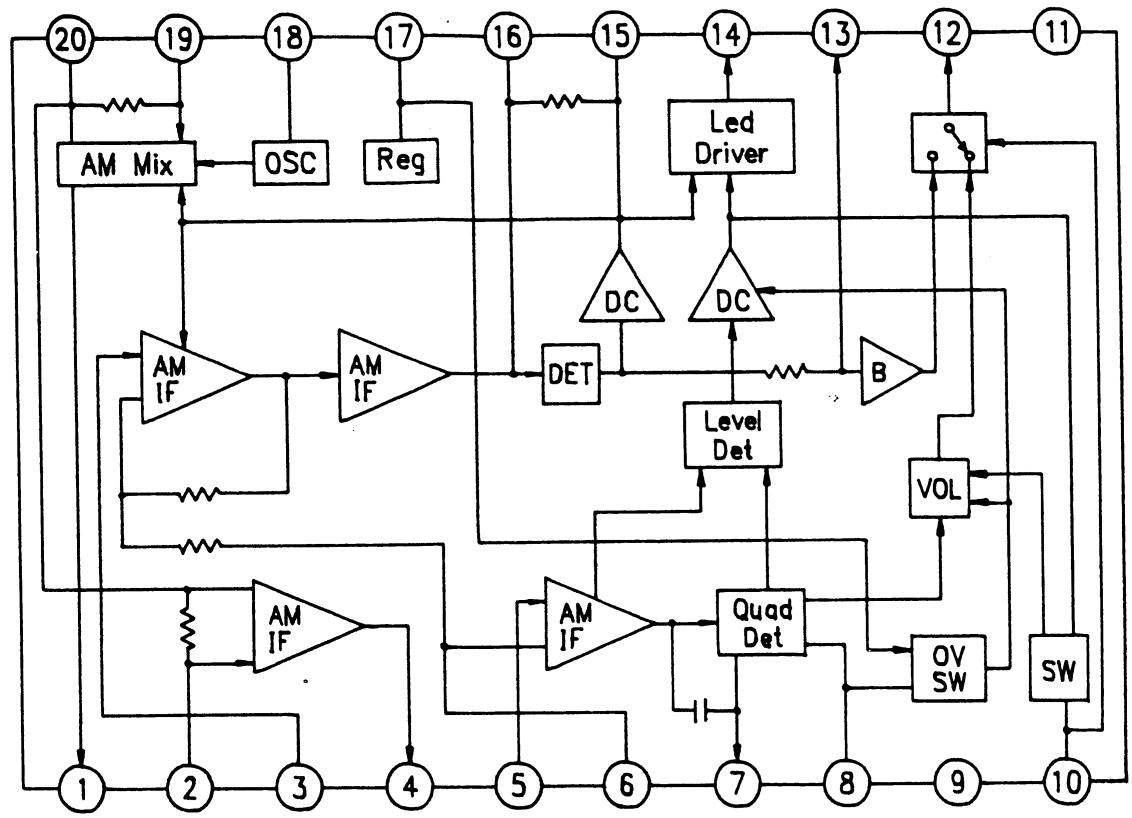

BLOCK DIAGRAM

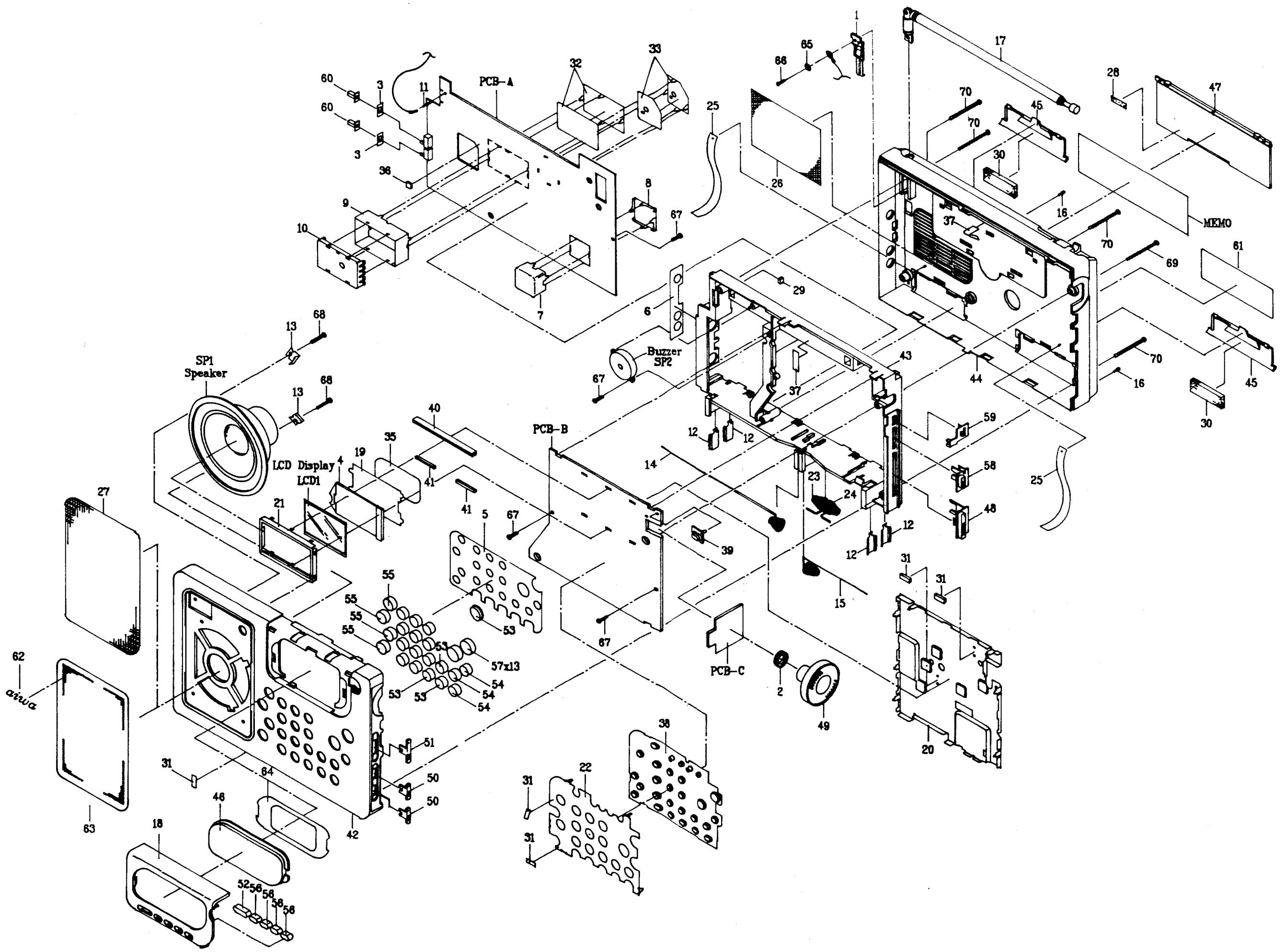

MECHANICAL PARTS LIST

REF. NO.	PART NO.	CODE	DESCRIPTION	COMMO MODEL	Q'TY
1	★S2-049-010-000	OE	ROD ANT HOLDER	*	1
2	★S2-049-020-000	OE	TUNING HOLDER	*	1
3	★S2-049-030-000	OE	SWITCH SPACER	*	2
4	★S2-067-000-000	1B	LCD ILLUMINATOR	*	1
5	★S2-067-010-000	1B	KEYBOARD SPACER	*	1
6	★S2-067-020-000	1A	PVC SHEET	*	1
7	★S2-149-020-000	-	DC/DC SHIELD (UP)	*	1
8	★S2-149-030-000	-	DC/DC SHIELD (DOWN)	*	1
9	★S2-149-040-000	-	VCO SHIELD (FRAME)	*	1
10	★S2-149-050-000	-	VCO SHIELD (COVER)	*	1
11	★S2-149-120-000	-	ANT. TERMINAL PIN	*	1
12	★S2-149-070-000	1A	BATTERY CONTACT
			PLATE(+)	*	4
13	★S2-149-080-000	OE	SPEAKER FIXER	*	2
14	★S2-149-090-000	1A	BATT. CONT. SPRING(-)(B)	*	1
15	★S2-149-100-000	1A	BATT. CONT. SPRING(-)(C)	*	1
16	★S2-449-000-000	-	FOOT RUBBER	*	2
17	★S3-604-902-000	2A	ROD ANT	*	1
18	★S3-456-783-000	1B	PANEL A	*	1
19	★S2-167-000-000	-	LCD SHIELD	*	1
20	★S2-167-010-000	-	CONTROL PCB SHIELD	*	1
21	★S2-167-020-000	1A	LCD(DISPLAY) HOLDER	*	1
22	★S2-167-030-000	1B	KEYBOARD SHIELD	*	1
23	★S2-167-040-000	OE	BATT. CONT. SPRING(-)(A)	*	1
24	★S2-167-050-000	OE	BATT. CONT. SPRING(-)(D)	*	1
25	★S2-249-010-000	-	RIBBON	*	2
26	★S2-249-020-000	1A	BACK SALON NET	*	1
27	★S2-267-000-000	1A	SPEAKER HEMELON	*	1
28	★S2-316-010-000	-	SPACER	*	1
29	★S2-335-060-000	-	BAR ANT SPACER(II)	*	1
30	★S2-348-020-000	OE	BATTERY EVA	*	2
31	★S2-349-030-000	-	SHIELD EVA	*	5
32	★S2-349-050-000	-	1st OSC SHIELD MYLAR	*	1
33	★S2-349-060-000	-	2nd OSC SHIELD MYLAR	*	1
35	★S2-367-000-000	1A	LCD MYLAR	*	1
36	★S2-449-050-000	-	RUBBER SPACER	*	1
37	★S2-265-000-000	-	P.C.B HEMELON (0.3)	*	2
38	★S2-467-010-000	1E	KEYBOARD RUBBER	*	1
39	★S2-467-020-000	OE	POWER RUBBER	*	1
40	★S2-467-030-000	1B	CONTACT RUBBER	*	1
41	★S2-467-040-000	-	SPACE RUBBER	*	2
42	★S3-016-783-000	1F	FRONT CABINET	*	1
43	★S3-024-902-000	1Ei	MIDDLE CHASSIS	*	1
44	★S3-036-783-000	1H	BACK COVER	*	1
45	★S3-046-783-000	1A	BATTERY COVER	*	2
46	★S3-056-783-000	1B	LCD WINDOW	*	1
47	★S3-064-983-000	1C	BACK SUPPORTER	*	1
48	★S3-114-901-000	OE	VOLUME KNOB	*	1
49	★S3-126-783-000	1C	TUNING KNOB ASS'Y	*	1
50	★S3-146-783-000	OE	SW. KNOB A	*	2
51	★S3-156-783-000	OE	SW. KNOB B	*	1
52	★S3-166-783-000	OE	LIGHT KEY KNOB	*	1
53	★S3-176-783-000	1C	P/M/C/E KEY KNOB ASS'Y	*	1
54	★S3-186-783-000	OE	FREQUICE KNOB	*	3
55	★S3-196-783-000	1A	BAND KNOB ASS'Y	*	1
56	★S3-206-783-000	OE	TIME-KEY KNOB	*	4
57	★S3-216-783-000	1C	KEY KNOB ASS'Y	*	1
58	★S3-224-901-000	OE	TONE KNOB	*	1
59	★S3-234-901-000	-	9K-1OK SW. KNOB	*	1
60	★S3-244-902-000	OE	SELECT KNOB	*	2
REF. NO.	PART NO.	CODE	DESCRIPTION	COMMON MODEL	Q'TY
61	★S3-406-783-000	-	ID PLATE [D]	*	1
61	★S3-406-788-000	-	ID PLATE [YU1,YZ1,Y1]	*	1
61	★S3-406-789-000	-	ID PLATE [YJ1]	*	1
62	★S3-416-783-000	1D	AIWA BADGE	*	1
63	★S3-436-783-000	1E	SP GRILL	*	1
64	★S3-446-783-000	1B	DISPLAY PLATE	*	1
65	★S9-910-010-000	1B	WASHER INNER GEAR 2.8mm	*	1
66	★S9-002-052-000	OE	M SCREW 2.6x5 P Ni	*	1
67	★S9-101-052-000	OE	TP SCREW 2x5 P Ni	*	4
68	★S9-102-082-000	OE	TP SCREW 2.6x8 P Ni	*	2
69	★S9-202-221-000	OE	TAP SCREW 2.6x22 P (ZK)S	*	1
70	★S9-202-281-000	OE	PTP SCREW 2.6x28 BL(S)	*	4

ACCESSIONS/PACKAGE LIST

REF. NO.	PART NO.		DESCRIPTION	Q'TY	CODE
1	★S3-816-783-000	INSTRUCTION BOOK,D		1	1F
2	★S3-816-788-000		INSTRUCTION BOOK,EX	1
3	★S3-800-283-000	WAVE HANDBOOK,D		1	1C
4	★S3-800-288-000	WAVE HANDBOOK,EX		1
5	★S3-850-083-000	HEADPHONE	HEADPHONE	1	2B
6	★S3-826-783-000	CARRYING CASE	CARRYING CASE	1	2M
7	★S3-836-783-000	ADAPTOR		1	2B
8	★S3-866-783-000	REEL ANTENNA	REEL ANTENNA	1	2M
