FROSTKALL - Climatiseur IKEA - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Réfrigérateur-congélateur
Marque	IKEA
Modèle	FROSTKALL
Hauteur	2000 mm
Largeur	595 mm
Profondeur	677 mm
Volume net du réfrigérateur	250 L
Volume net du congélateur	91 L
Classe énergétique	A+++
Consommation annuelle d'énergie	0,452 kWh/24h
Bruit	41 dB(A)
Tension	230-240 V / 50 Hz
Capacité de congélation	13 kg/24h
Autonomie en cas de panne	20 heures
Dégivrage	Automatique (No-Frost)
Nombre d'étoiles du congélateur	4 étoiles
Réfrigérant	Isobutane (R600a)
Fonctions principales	Mode vacances, Eco, Congélation rapide, Shopping, Extra humidité, Bottle Chill
Entretien et nettoyage	Nettoyer avec un chiffon doux humide et détergent neutre ; ne pas utiliser de produits abrasifs
Sécurité	Verrouillage enfant non précisé ; alarme de température et de porte ouverte
Pièces détachées et réparabilité	Filtre à charbon remplaçable ; éclairage LED non remplaçable par l'utilisateur ; service agréé IKEA
Garantie	5 ans (sauf LAGAN : 2 ans)

FOIRE AUX QUESTIONS - FROSTKALL IKEA

Comment régler la température du réfrigérateur et du congélateur ?

Sélectionnez le compartiment souhaité avec les boutons Fridge ou Freezer, puis utilisez les touches + et - pour ajuster la température. La valeur par défaut est +4°C pour le réfrigérateur et -18°C pour le congélateur.

Que faire si l'alarme sonore se déclenche ?

L'alarme peut indiquer une température trop élevée (par exemple après une ouverture prolongée de la porte) ou une porte laissée ouverte. Appuyez sur n'importe quelle touche pour l'arrêter. Si l'alarme de température s'active, vérifiez que la porte est bien fermée et que l'appareil n'est pas surchargé.

Comment activer le mode Congélation rapide ?

Sélectionnez le compartiment congélateur, puis appuyez sur la touche Mode jusqu'à ce que l'icône Fast Freezing s'affiche. La fonction s'arrête automatiquement après 52 heures.

Que faire si de l'eau s'écoule à l'intérieur ou au sol ?

À l'intérieur, vérifiez que les aliments ne bloquent pas le collecteur d'eau. Au sol, assurez-vous que le tuyau d'évacuation est correctement raccordé au bac d'évaporation situé au-dessus du compresseur.

Comment nettoyer l'appareil ?

Débranchez l'appareil. Nettoyez l'intérieur avec de l'eau tiède et un savon neutre. N'utilisez jamais de produits abrasifs ou de solvants. Séchez soigneusement. Pour le condenseur, utilisez une brosse si accessible.

Que signifie l'affichage 'DEMO' ?

L'appareil est en mode démonstration. Maintenez la touche Mode enfoncée pendant environ 10 secondes jusqu'à ce qu'un son long retentisse et que l'affichage s'éteigne brièvement.

Comment activer le mode Vacances ?

Videz le réfrigérateur de tous les aliments. Appuyez sur Mode jusqu'à ce que l'icône Vacation s'affiche. Le réfrigérateur passera en mode économie d'énergie tout en évitant les mauvaises odeurs.

Puis-je mettre des boissons chaudes dans le réfrigérateur ?

Non, laissez les aliments refroidir à température ambiante avant de les placer dans l'appareil pour éviter une surconsommation d'énergie et un échauffement des autres aliments.

Comment changer l'ampoule intérieure ?

L'éclairage est à LED et ne peut être remplacé que par un technicien agréé. Contactez le service après-vente IKEA.

Quelle est la durée de garantie et que couvre-t-elle ?

La garantie IKEA est de 5 ans (sauf pour la gamme LAGAN : 2 ans) à compter de la date d'achat. Elle couvre les défauts de fabrication et de matériau, mais pas l'usure normale, les dommages volontaires ou dus à une mauvaise installation.

MODE D'EMPLOI FROSTKALL IKEA

FROSTKALL

ENGLISH

Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.

ENGLISH

Contents

Safety information	4	Hints and tips	18
Safety instructions	5	Care and cleaning	19
Installation	7	Troubleshooting	21
Product description	9	Technical data	25
Operation	10	ENVIRONMENTAL CONCERNS	26
Daily use	14	IKEA GUARANTEE	26

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

• This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments

• By clients in hotels, motels, bed and breakfast and other residential type environments

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instruction supplied with the appliance.

Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
Make sure the air can circulate around the appliance.
- At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
- Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

• Do not install the appliance close to radiators or cookers, ovens or hobs.
• Do not install the appliance where there is direct sunlight.
• Do not install this appliance in areas that are too humid or too cold, such as the construction appendices, garages or wine cellars.
• When you move the appliance, lift it by the front edge to avoid scratching the floor.

Electrical connection

Warning! Risk of fire and electrical shock.

The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

Warning! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

Internal light

• The type of lamp used for this appliance is not suitable for household room illumination

Care and cleaning

Warning! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person

must do the maintenance and the recharging of the unit.
- Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

Installation

Warning! Refer to Safety chapters.

Positioning

This appliance should be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to + 32°C
N	+16°C to + 32°C
ST	+16°C to + 38°C
T	+16°C to + 43°C

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Location

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Caution! In order to guarantee proper functioning in ambient temperature above 38^ircC , it is advised to have a 30mm separation between the sides of the appliance and surrounding furniture.

Electrical Connection

Caution! Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Warning! This appliance must be earthed. The manufacturer declines any liability should these safety measures not be observed.

The wires in the mains lead are coloured in accordance with the following code:

A - green and yellow: Earth
C - brown: Live
D - blue: Neutral

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

1. Connect the wire coloured green and yellow to the terminal marked either with the letter "E" or by the earth symbol or coloured green and yellow.
2. Connect the wire coloured blue to the terminal either marked with the letter "N" or coloured black.
3. Connect the wire coloured brown to the terminal either marked with the "L" or coloured red.
4. Check that no cut, or stray strands of wire is present and the cord clamp (E) is secure over the outer sheath. Make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.
5. Switch on the appliance.

The appliance is supplied with a 13 amp fuse (B). In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.

Warning! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely.

Product description

Product overview

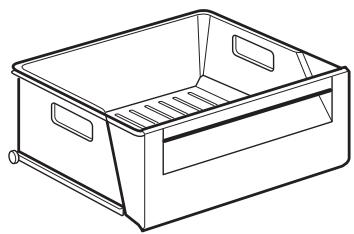

1 Vegetable drawer

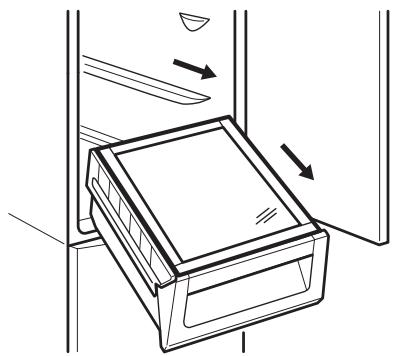

2 Low temperature compartment
3 Glass shelves

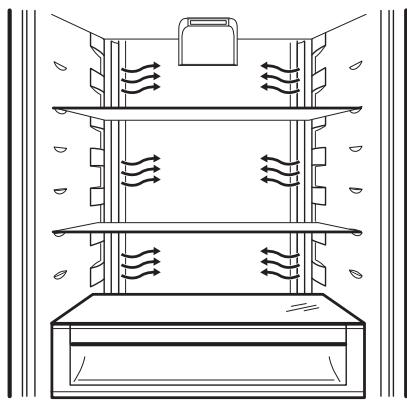

4 No-Frost cooling

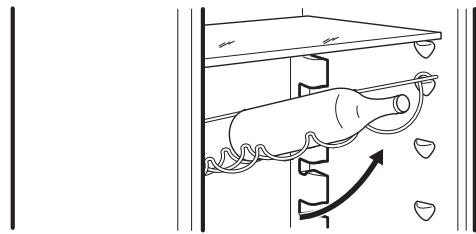

5 Bottle rack
6 Control panel
7 Dairy compartment with lid

8 Door balconies
9 Bottle balcony
10 Freezer drawer
1 Freezer drawer
12 Freezer drawer

Operation

Control panel

1 Display
2 Bottle Chill and Appliance ON/OFF button
3 Temperature colder button
4 Temperature warmer button
5 Fridge compartment button
6 Freezer compartment button

7 Mode button

It is possible to change the predefined sound of buttons to a louder one by pressing together Mode button and Temperature colder button for approximately 5 seconds. Change is reversible.

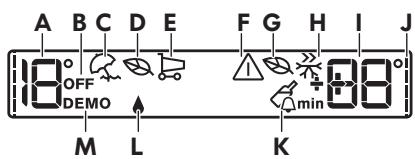

Display

A. Fridge temperature indicator
B. Fridge OFF mode
C. Vacation function
D. Fridge Eco Mode
E. Shopping Function
F. Alarm indicator
G. Freezer Eco Mode

H. Fast Freezing function
I. Freezer temperature indicator
J. Bar indicators
K. Bottle Chill function
L. Extra Humidity function
M. Demo mode

i After selection of the fridge or freezer compartment the animation starts After selection of the temperature the animation flashes for a few minutes.

Bar indicators

The bars guide the user when interacting with the unit and indicate at what level the unit is performing. The bars indicate:

which compartment is in focus (active), when animation stops
the desired temperature on the scale
- whether the set temperature is higher or lower than the previous one (increasing or decreasing animation).

Switching on

Connect the mains plug to the power socket

1. Press the ON/OFF if the display is off. The temperature indicators show the set default temperature.
2. The alarm buzzer may sound after a few seconds. To reset the alarm refer to "High temperature alarm". If "DEMO" appears on the display, the appliance is in demonstration mode. Refer to "Troubleshooting...".

To select a different set temperature refer to "Temperature regulation".

Switching off

Press ON/OFF for 3 seconds.
The display switches off.
To disconnect the appliance from the power, disconnect the mains plug from the power socket.

Switching on the fridge

To switch on the fridge press the fridge compartment button. The fridge OFF indicator goes off.

To select a different set temperature refer to "Temperature regulation".

Switching off the fridge

To switch off the fridge press the fridge compartment button for few seconds. The fridge OFF indicator is shown.

Temperature regulation

1. Select the fridge or freezer compartment.
2. Press the temperature button to set the temperature.
3. Set default temperature: +4^ircC for the fridge and -18^ircC for the freezer. The set temperature will be reached within 24 hours.

The temperature indicators show the set temperature.

After power failure the set temperature remains stored.

High temperature alarm

An increase in the temperature in the freezer compartment (for example due to an earlier power failure or opening of the door) is indicated by:

• flashing the alarm and freezer temperature indicators;
• sounding of buzzer.

To reset the alarm press any button.

The buzzer switches off.

The freezer temperature indicator shows the highest temperature reached for a few seconds. Then show again the set temperature.

The alarm indicator continues to flash until the normal conditions are restored.

When the alarm has returned the alarm indicator goes off.

Door open alarm

An acoustic alarm will sound if the door is left open for approximately 5 minutes. The door open alarm conditions are indicated by:

• flashing alarm indicator;
• acoustic buzzer.

When normal conditions are restored (door closed), the alarm will stop. During the alarm, the buzzer can be switched off by pressing any button.

Shopping Function

If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the Shopping Function to cool the products more rapidly and to avoid warming food already stored in the refrigerator.

The Shopping Function shuts off automatically after approximately 6 hours.

1. To switch on the function:

a. Select the fridge compartment if it is not already selected.
b. Press Mode until the corresponding icon appears.

The Shopping Function indicator is shown.

1. To switch off the function before it deactivates automatically:

a. Select the fridge compartment if it is not already selected.
b. To deactivate the function, press Mode to select another function or until no function icon is visible on the display.

The Shopping Function indicator goes off.

The function switches off by selecting a different fridge set temperature.

Fast Freezing function

This function stops automatically after 52 hours.

1. To switch on the function:

a. Select the freezer compartment.
b. Press Mode until the corresponding icon appears.

The Fast Freezing indicator is shown.

1. To switch off the function before it deactivates automatically:

a. Select the freezer compartment.
b. To deactivate the function, press Mode to select another function or until no function icon is visible on the display.

The Fast Freezing indicator goes off.

The function switches off by selecting a different freezer set temperature.

Eco Mode

For optimal food storage select the Eco Mode.

1. To switch on the function:

a. Select the fridge/freezer compartment.
b. Press Mode until the corresponding icon appears.

The temperature indicator shows the set temperature for the fridge: +4^ircC and for the freezer: -18^ircC .

The Eco Mode indicator is shown.

1. To switch off the function:

a. Select the fridge/freezer compartment.
b. To deactivate the function, press Mode to select another function or until no function icon is visible on the display.

The Eco Mode indicator goes off.

The function switches off by selecting a different set temperature.

Extra Humidity function

If you notice that the food stored in the fridge compartment is drying out too quickly, you can stop this process by increasing humidity in the cabinet by activating Extra Humidity function.

Extra Humidity can function simultaneously with Shopping Function and Eco Mode.

1. To switch on the function press Mode until the corresponding icon appears. The Extra Humidity indicator goes on.
2. To deactivate the function, press Mode to select another function or until no function icon is visible on the display. The Extra Humidity indicator goes off.

Bottle Chill function

Bottle Chill function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down a mixture for a certain period of time, or when a reminder is needed in order not to forget the bottles placed in the freezer for fast cooling.

1. To switch on the function press Bottle Chill.
   Bottle Chill indicator appears. Wait until the timer shows the set value (30 minutes).
2. Press the temperature colder button and temperature warmer button to change the timer set value from 1 to 90 minutes.

The timer indicator is shown (min).

At the end of the countdown Bottle Chill indicator flashes and an audible alarm sounds

1. Remove any bottle stored in the freezer compartment.
2. Press Bottle Chill to switch off the sound and terminate the function.

It is possible to deactivate the function at any time during the countdown by pressing Bottle Chill. Bottle Chill indicator goes off
It is possible to change the time during the countdown and at the end by pressing the temperature colder button and the temperature warmer button.

Vacation Function

This function allows you to keep the refrigerator closed and empty during a long holiday period without the formation of a bad smell.

i Remove all food from fridge compartment before activating Vacation Function.

1. To switch on the function press Mode until the corresponding icon appears. Vacation Function indicator goes on. The fridge temperature indicator shows the set temperature.
2. To deactivate the function, press Mode to select another function or until no function icon is visible on the display. Vacation Function indicator goes off.

The function switches off by selecting a different fridge set temperature.

Daily use

Freezing Calendar

1-2

3-4

3-6

3-6

3-6

3-6

10-12

10-12

10-12

10-12

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

Accessories

Egg tray

Ice tray

x1

x1

Freezer blocks

x2

Ice-cube production

This appliance is equipped with tray for the production of ice-cubes.

1. Fill the tray with water.
2. Put the tray in the freezer compartment

Caution! Do not use metallic instruments to remove the tray from the freezer.

Freezer blocks

Two freezer blocks are supplied in the freezer; this increase the length of time for which food will keep in the event of a power failure or breakdown.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze small amount of fresh foods it is not necessary to change the present setting.

To freeze fresh food activate the Fast Freezing function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the bottom compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

When the freezing process is completed, return to the required temperature (see "Fast Freezing function").

i

In this condition, the refrigerator compartment temperature might drop below 0^ircC . If this occurs reset the temperature regulator to a warmer setting.

Storage of frozen food

When activating an appliance for the first time or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours with the Fast Freezing function turned on.

The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom drawer which needs to be in place to provide good air circulation. Keep the food on all shelves no closer than 15mm from the door.

Warning! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately, cooled and then re-frozen.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature,

depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights.

To make these adjustments proceed as follows: gradually pull upwards the balcony until it comes free, then reposition as desired.

Storage of the food in a fridge compartment

Cover or wrap the food, particularly if it has a strong flavour.

Position the food so that air can circulate freely around it.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the safety glass shelves can be positioned as desired.

Caution! Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Removal of freezing baskets from the freezer

The freezing baskets have a limit stop to prevent their accidental removal or falling out.

At the time of its removal from the freezer, pull the basket towards yourself (1) and, upon reaching the end point, remove the basket by tilting its front upwards (2).

At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position.

VegetableDrawer

The drawer is suitable for storing fruit and vegetables.

There is a grille on the bottom of the drawer to separate the fruit and vegetables from any humidity that may form on the bottom surface.

Low Temperature Compartment

The drawer is suitable for storing fresh food like fish, meat, seafood, because the temperature is lower here than in the rest of the fridge.

Caution! Before placing or removing the Low Temperature Compartment inside the appliance, pull out the vegetable drawer and glass cover.

The Low Temperature Compartment is equipped with runners. To remove it from the fridge compartment, pull the drawer towards yourself and remove the module by tilting its front downwards.

Bottle rack

Place the bottles (with the opening facing front) in the pre-positioned rack.

If the rack is positioned horizontally, place only closed bottles.

This bottle rack can be tilted to store unsealed bottles. To obtain this result, place front hooks of the rack one level higher than the rear hooks.

No-Frost Cooling

No-Frost cooling allows rapid cooling of food and keeps a more uniform temperature in the appliance.

The refrigerator compartment is equipped with a fan that activates by itself when needed, for example for a quick temperature recovery after door opening or when the ambient temperature is high.

The fan stops when you open the door and restarts immediately when you close it.

Carbon Air Filter

The appliance is equipped with a Carbon Air Filter situated in an air lever drawer of a fan-cooling device. The filter purifies the air from unwanted odours meaning that the storage quality will be further improved. On delivery the carbon filter is in a plastic bag to preserve performance. The filter should be placed in the air lever drawer before the

appliance is turned on. To get the best performance the filter should be replaced once every year. In order to obtain information on the new filter purchase, contact the Authorised Service Centre.

Caution! Make sure that the air lever drawer is closed to obtain proper functioning. Handle the filter carefully so that fragments do not loosen from the surface.

1. Open the air lever drawer.
2. Remove the filter from the plastic bag.
3. Insert the filter in the drawer.
4. Close the drawer.

Hints and tips

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
  If foreseen, do not remove the cold accumulators from the freezer basket.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
  Cooked foods, cold dishes: cover and place on any shelf.
• Fruit and vegetables: clean thoroughly and place in a special drawer. Bananas, potatoes, onions and garlic must not be kept in the refrigerator if not packed.
  Butter and cheese: place in a special airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
• Bottles: close with a cap and place on the door bottle shelf, or (if available) on the bottle rack.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

the maximum quantity of food which can be frozen in 24 hours is shown on the rating plate;
- the freezing process takes 24 hours no further food to be frozen should be added during this period;
- freeze only top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
  water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
  not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

Care and cleaning

Warning! Refer to Safety chapters.

General warnings

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

Caution! Do not use detergents or abrasive powders, as these will damage the finish.

Initial power on

Caution! Before inserting the power plug in to the outlet and switching on the cabinet for the first time, leave the appliance standing upright for at least 4 hours. This will assure a sufficient amount of time for the oil to return to the compressor. Otherwise the compressor or electronic components may sustain damage.

Periodic cleaning

Caution! Do not pull, move or damage any pipes and/or cables inside the cabinet.

Caution! Do not damage the cooling system.

Caution! When moving the cabinet, lift it by the front edge to avoid scratching the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe clean to ensure they are clean and free from debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save energy consumption.

The lowest shelf, dividing the cooler compartment from the rest of the cabinet, can be removed only for cleaning. Pull out the shelf straight to remove it. The cover plates above the drawers in the compartment can be taken out for cleaning.

To ensure the best performance of Low Temperature Compartment, the lowest shelf and cover plates must be put back in their original position after cleaning.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

1. Disconnect the appliance from electricity supply.
2. Remove all food.
3. Clean the appliance and all accessories.
4. Leave the door/doors open to prevent unpleasant smells.

Warning! If you want to keep the appliance switched on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

We recommend activating Vacation function.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special

container at the back of the appliance, over the motor compressor, where it evaporates.

when it is in operation, neither on the internal walls nor on the foods.

Defrosting the freezer

The freezer compartment is frost free. This means that there is no build up of frost

Troubleshooting

Warning! Refer to Safety chapters.

What to do if...

Problem	Possible cause	Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The appliance does not operate.	The mains plug is not connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
The appliance does not operate.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy.	The appliance is not supported properly.	Check if the appliance stands stable.
Audible or visual alarm is on.	The cabinet has been recently switched on or the temperature is still too high.	Refer to "Door Open Alarm".
Audible or visual alarm is on.	The cabinet has been recently switched on or the temperature is still too high.	Refer to "High Temperature Alarm".
Audible or visual alarm is on.	The door is left open.	Close the door.
Audible or visual alarm is on.	The temperature in the appliance is too high.	Contact a qualified electrician or contact the nearest Authorised Service Centre.
A square symbol is shown instead of numbers on the temperature display.	Temperature sensor prob-lém.	Contact the nearest Author-ised Service Centre (the cool-ing system will continue to keep food products cold, but temperature adjustment will not be possible).
The lamp does not work.	The lamp is in stand-by mode.	Close and open the door.
The lamp does not work.	The lamp is defective.	Contact the nearest Author-ised Service Centre.
The compressor operates continually.	Temperature is set incor-rectly.	Refer to "Operation" chapter.
The compressor operates continually.	Many food products were inserted at the same time.	Wait a few hours and then check the temperature again.
The compressor operates continually.	The room temperature is too high.	Refer to climate class chart on the rating plate.
The compressor operates continually.	Food products placed in the appliance were too warm.	Allow food products to cool to room temperature before stor-ing.
The compressor operates continually.	The door is not closed cor-rectly.	Refer to "Closing the door".
The compressor operates continually.	The Fast Freezing function is switched on.	Refer to "Fast Freezing func-tion".
The compressor operates continually.	The Shopping Function is switched on.	Refer to "Shopping Function".
The compressor does not start immediately after pressing Fast Freezing, or after the change of the tem-perature.	This is normal, no error has occurred.	The compressor starts after some time.
The compressor does not start immediately after pressing Shopping Function, or after the change of the temperature.	This is normal, no error has occurred.	The compressor starts after some time.
Water flows inside the re-frigerator.	Food products prevent water from flowing into the water collector.	Make sure that food products do not touch the rear plate.
Water flows on the floor.	The melting water outlet is not connected to the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
Temperature cannot be set.	The Shopping Function is switched on.	Switch off Shopping Function manually, or wait until the function resets automatically to set the temperature. Refer to "Shopping Function".
Temperature cannot be set.	The Fast Freezing function is switched on.	Switch off Fast Freezing function manually, or wait until the function resets automatically to set the temperature. Refer to "Fast Freezing function".
DEMO appears on the dis-play.	The appliance is in demonstration mode.	Keep the Mode pressed for approximately 10 seconds until a long sound is heard and display shuts off for a short time.
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/ lower temperature.
The temperature in the appliance is too low/too high.	The door is not closed correctly.	Refer to "Closing the door".
The temperature in the appliance is too low/too high.	The food products temperature is too high.	Let the food products temperature decrease to room temperature before storage.
The temperature in the appliance is too low/too high.	Many food products were inserted at the same time.	Insert less food products at the same time.
The temperature in the appliance is too low/too high.	The door has been opened too often.	Open the door only if necessa-ry.
The temperature in the appliance is too low/too high.	The Fast Freezing function is switched on.	Refer to "Fast Freezing func-tion".
The temperature in the ap- pliance is too low/too high.	The Shopping Function is switched on.	Refer to "Shopping Function".
The temperature in the ap- pliance is too low/too high.	There is no cold air circula- tion in the appliance.	Make sure that there is cold air circulation in the appliance.
Side panels of the appliance are warm.	This is a normal state caused by operation of the heat exchanger.	Make sure that there is at least 30 mm of space between each side of the appliance and the surrounding furniture when the ambient temperature exceeds 38°C.
There is too much con- densed water on the rear wall of the refrigerator.	Door was opened too fre- quently.	Open the door only when nec- essary.
There is too much con- densed water on the rear wall of the refrigerator.	Door was not closed com- pletely.	Make sure the door is closed completely.
There is too much con- densed water on the rear wall of the refrigerator.	Stored food was not wrap- ped.	Wrap food in suitable pack- aging before storing it in the appliance.
Door does not open easily.	You attempted to re-open the door immediately after closing.	Wait a few seconds between closing and re-opening of the door.

If your appliance is still not working properly after making the above checks, contact the Authorised Service Centre. You can find the list at the end of this manual.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to the assembly instructions.

3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Replacing the lamp

The appliance is equipped with a longlife LED interior light.

Only service is allowed to replace the lighting device. Contact your Authorised Service Centre.

Technical data

Product category
Appliance Type	Refrigerator - Freezer
Installation Type	Freestanding
Product dimensions
Height	2000 mm
Width	595 mm
Depth	677 mm
Net volume
Fridge	250 Litre
Freezer	91 Litre
Defrost system
Fridge	auto
Freezer	auto
Star rating	**********
Rising time	20 hours
Freezing capacity	13 kg/24h
Energy consumption	0,452 kWh/24h
Noise level	41 dB (A)
Energy class	A+++
Voltage	230 - 240 V
Frequency	50 Hz

The technical information is situated in the rating plate on the internal left side of the appliance and in the energy label.

ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance,

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole

discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

Normal wear and tear.
- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.
- Consumable parts including batteries and lamps.
Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.
- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.
- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.
- Cases where no fault could be found during a technician's visit.
- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.
- Repairs caused by installation which is faulty or not according to specification.

The use of the appliance in a nondomestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;

• the Assembly Instructions and User Manual Safety Information;
  The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guarantee;

2. ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won't provide clarifications related to:

3. the overall IKEA kitchen installation;

4. connections to electricity (if machine comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

5. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) for the appliance of which you need our assistance.

SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do You need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Country	Phone number	Call Fee	Opening time
België	070 246016	Binnenlandse gespreskosten	8 tot 20 Weekdagen
Belgique		Tarif des appel nationaux	8 à 20. En semaine
Бълария	003598881640800035924274080	Такся за повираве отстанатa	От 9 до 18 в габOTи дим
Česká republika	246 019721	Cena za místné hovor	8 až 20 v pracovnich dnech
Danmark	70 15 09 09	Landstakst	man. - fre. 09.00 - 20.00lær. 09.00 - 16.001 søndag pr. måned, normalt første søndag i måneden
Deutschland	[phone]*	* 0,20 €/Verbindung aus dem Fest-netz max. 0,60 €/Verbindung aus dem Mobilfunknetz	Werktags von 8.00 bis 20.00
Еλάδа	211 176 8276	Yт��разmicý клánη	8 éwс 20 katá tic ᵠуááüeç ημέρeç
España	91 1875537	Tarifa de llamadas naciales	De 8 a 20 en días laborables
France	0170 36 02 05	Tarif des appel nationaux	9 à 21. En semaine
Hrvatska	00385 1 6323 339	Trošak poziva 27 lipa po minuti	radnim danom od ponedjeljka do petka od 08:00 do 16:00
Ireland	0 14845915	National call rate	8 till 20 Weekdays
Island	5880503	Innanlandsgjald fyrir sima	9 til 18. Virka daga
Italia	02 00620818	Tariffa applicataalle chiamate nazionali	dalle 8 alle 20 nei giorni feriali
Kūnpoc	22 030 529	Yт��разmicý кlánη	8 éwс 20 katá tic ᵠуááüeç ημέρeç
Lietuva	5 230 06 99	NacionaliniuPokalbiu tarifai	Pr. - Kétv.: 8:00 - 12:00, 12:45 - 17:00Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország	061 998 0549	Belföldi dijszabás	Hétköznap 8 és 10 ora között
Nederland	0900 235 45 32 en/of0900 BEL ILEKA	15 cent/min., starttarief 4.54 cent en gebruikelijke belkosten	ma - vr 08.00 - 20.00, zat 09.00 - 20.00 (zondag gesloten)
Norge	815 22052	Takst inland	8 til 20 ukedager
Österreich	0810 300486	max. 10 Cent/min.	Mo - Fr 8.00 - 20.00 Uhr
Polska	801 400 711	Stawka wg taryfy krajowej	Od 8 do 20 w dni robocze
Portugal	211557985	Chamada Nacional	9 ás 21. Dias de Semana*excepto feriados
România	021 211 08 88	Tarif apel national	8 - 20 òin zilele lucrătoare
Rosción	8 495 6662929	Демстуюшце телесоюнье tup dinb	c 8do 20 по робочим димВremя мockовский
Schweiz	031 5500 324	Tarif für Anrufe im Bundesgebiet	8 bis 20 Werktage
Suisse		Tarif des appel nationaux	8 à 20. En semaine
Swizzera		Tariffa applicataalle chiamate nazionali	dalle 8 alle 20 nei giorni feriali
Slovensko	[phone]	Cena vnútrostátnehovoru	8 až 20 v pracovných dnoch
Suomi	030 6005203	Lankapuhelinverkosta0,0835 €/puhelu + 0,032 €/minMatkapuhelinverkosta 0,192 €/min	arkipäivisin 8.00 - 20.00
Sverige	0775 700 500	lokalsamtal (lokal taxa)	män-fre 8.30 - 20.00lör-sön 9.30 - 18.00
Türkije	212 244 0769	Ulusal arama ücreti	Hafta;iç saat 09:00'dan 18:00'a kadar
Уркова	044 586 2078	Míxmécьдзвінкі платни	9 - 21 B робочи ди
United Kingdom	020 3347 0044	National call rate	9 till 21. Weekdays
Србija	[phone](ako позиаве издан СрбиJE)011 7 555 444(ako позиаве и зрбиJE)	Цара позива у националом caobpaḥajу	Почendeьак - субота: 09 - 20Небъа: 09 - 18
Eesti, Latvija, Slovenija		www.ikea.com
