KERAM 10 - KERAM 30 - Vélo ORBEA - Notice d'utilisation et mode d'emploi gratuit

Modèle	KERAM 10 / KERAM 30
Marque	ORBEA
Type de produit	Vélo électrique tout-terrain (MTB), Asphalte, Confort
Matériau du cadre	Aluminium
Tailles disponibles	S (27,5"), M, L, XL (29")
Moteur	Bosch Gen4 ou Gen3 selon version
Batterie interne	Bosch PowerPack 400 ou 500 Wh, dans le tube diagonal
Option double batterie	Oui (sauf taille S), nécessite achat complet
Affichage	Bosch Purion
Transmission	10, 11 ou 12 vitesses, mono plateau
Freins	Disque, montage post
Débattement fourche	MTB : 100 ou 120 mm ; Confort : 63 mm ; Asphalte : rigide
Roues	29" (700C)
Pneus max	29" x 2.4
Poids estimé	22-25 kg selon configuration
Puissance moteur	250 W (assistance jusqu'à 25 km/h)
Autonomie	Jusqu'à 100 km selon assistance et terrain
Hauteur de selle	400-515 mm
Hauteur d'enjambement	798-893 mm selon taille
Angle de direction	67°-68° selon taille
Plateau max	38 dents
Pédalier max	170 mm
Entretien	Nettoyage à l'eau savonneuse douce, lubrification chaîne, inspection avant chaque sortie
Sécurité	Vérifier freins, pneus, jeu de direction ; après choc, inspection par un professionnel
Pièces détachées	Patte de dérailleur, protecteurs, kits de visserie (références dans la notice)
Garantie	2 ans légale + garantie à vie Orbea sur cadre (sous réserve d'enregistrement dans les 30 jours)

FOIRE AUX QUESTIONS - KERAM 10 - KERAM 30 ORBEA

Quelle taille de cadre choisir pour ma taille ?

Consultez le tableau des tailles : S pour 150-165 cm, M pour 165-175 cm, L pour 175-185 cm, XL pour 185-195 cm. Ces mesures sont indicatives.

Comment entretenir la batterie ?

Ne pas exposer à des températures extrêmes. Recharger régulièrement, même en hiver. Utiliser le chargeur Bosch fourni. Stocker à 30-60% de charge si inutilisé longtemps.

Puis-je installer une double batterie après achat ?

L'option double batterie n'est compatible qu'avec les cadres taille M, L, XL équipés d'un moteur Bosch Gen4. L'installation nécessite des compétences avancées et doit être réalisée par un revendeur Orbea ou Bosch agréé.

Quel type de moteur équipe mon vélo ?

Les modèles KERAM 10 et 30 sont équipés du moteur Bosch Gen4. Les versions antérieures peuvent avoir le Gen3, qui utilise des plaques de montage différentes.

Comment nettoyer mon vélo électrique ?

Utilisez de l'eau savonneuse douce et un chiffon. Évitez le nettoyeur haute pression. Ne dirigez pas l'eau vers les roulements, le moteur ou les composants électriques.

Que faire après une chute ?

Vérifiez votre état de santé, puis inspectez le cadre, la fourche et les composants pour détecter fissures, cintrages ou jeu. Si vous avez le moindre doute, n'utilisez pas le vélo et consultez un revendeur Orbea.

Quelle est la garantie Orbea ?

Garantie légale de 2 ans. Enregistrez votre vélo dans les 30 jours sur www.orbea.com pour bénéficier de la garantie à vie Orbea Lifetime sur le cadre et la fourche rigide.

Comment régler la transmission ou les freins ?

Consultez la notice détaillée fournie avec le vélo ou un tutoriel sur la chaîne YouTube Orbea. Pour des réglages complexes, adressez-vous à un revendeur Orbea.

Où trouver des pièces de rechange spécifiques ?

Les pièces détachées (patte de dérailleur, protecteurs, kits de visserie) sont identifiées par des numéros de kit dans la notice. Commandez-les auprès d'un revendeur Orbea.

Puis-je utiliser d'autres affichages Bosch que le Purion ?

Le vélo est livré avec l'affichage Bosch Purion. D'autres affichages Bosch (Kiox, Nyon) peuvent être compatibles, mais leur installation doit être vérifiée par un revendeur Bosch agréé.

MODE D'EMPLOI KERAM 10 - KERAM 30 ORBEA

BLUE PAPER KERAM BOSCH GEN4

2020

INDEX

GEOMETRY & ERGONOMY 4
TECHNICAL SPECIFICATIONS 6
HEADTUBE AND HEADSET 8
REAR DERRAILLEUR 9
PROTECTORS 10
CABLING 13
BOSCHGEN4 MOTOR ASSEMBLY 15
INTERNAL BATTERY ASSEMBLY 16
DUAL BATTERY ASSEMBLY 17
MAINTENANCE 20
ORBEA WARRANTY 22

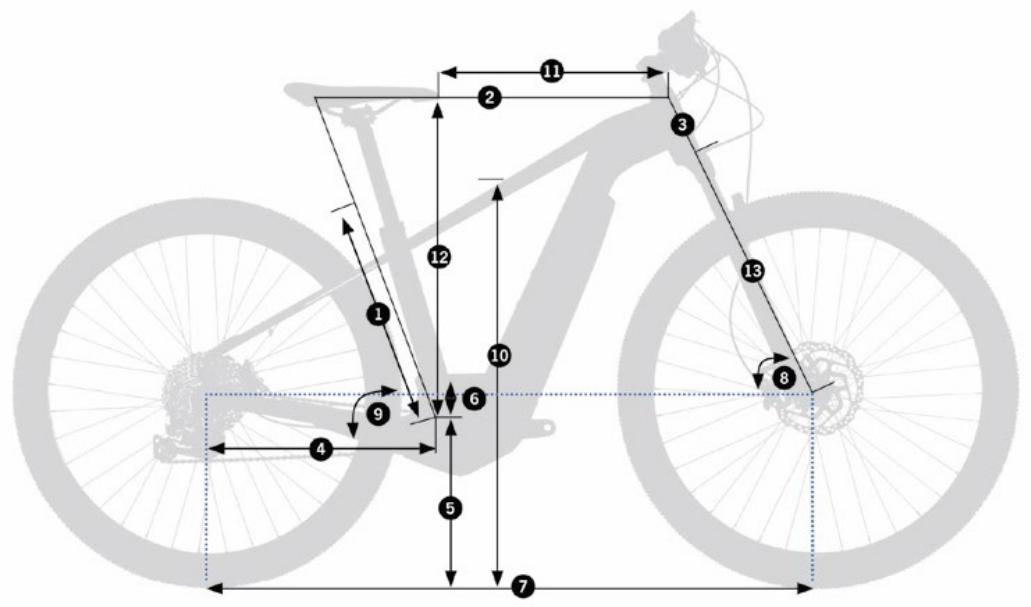

GEOMETRY & ERGONOMY

SIZE	S-27,5"	M-29"	L-29"	XL-29"
1 - Seat tube (c-t)	400	405	457	515
2 - Top tube (eff)	538	569	603	638.4
3 - Head tube	105	114	133	158
4 - Chainstay	475	475	475	475
5 - Bb height	307	313	313	313
6 - Bb drop	43	63	63	63
7 - Wheelbase	1112	1149	1173	1210
8 - Head angle	67°	67°	68°	68°
9 - Seat angle	73°	73°	73°	73°
10 - Standover heigh	798	825	861	893
11 - Reach	355	375	402	430
12 - Stack	600	636	659	752
13 - Fork length	518	530	530	530

• The headtube angle measurement on MTB, Asphalt and Comfort models may change slightly depending on the travel of the fork specified.

HEIGHT (CM)	HEIGHT (IN)	SIZE
150-165	59.1"-65.0"	S-27.5"
165-175	65.0"-68.9"	M-29"
175-185	68.9"-72.8"	L-29"
185-195	72.8"-76.8"	XL-29"

• The sizing measurements are orientative.

TECHNICAL SPECIFICATIONS

NOTE: This technical document describes the Keram models (MTB, Asphalt and Comfort) equipped with a Bosch Gen4 motor. For 2019 and onwards models equipped with a previous generation Bosch motor, consult the technical document Bluepaper Keram 2019 from the manuals section of the Orbea's website.

FRAME MATERIAL	ALUMINUM
INTENDED USE	MTB: CROSS COUNTRY, TRAIL
	ASPHALT: URBAN, LEISURE
	COMFORT: URBAN, LEISURE
SIZES	S,M,L,XL
FORK TRAVEL	MTB: 100MM O 120MM
	ASPHALT: RIGID FORK
	COMFORT: 63MM
WHEEL SIZE	700C-29"
MAX. TYRE SIZE	29"x2.4
FORK OFFSET	42MM OR 51MM. DEPENDING ON MODEL
BOTTOM BRACKET	MOTOR BOSCH GEN4
HEADSET	INTEGRATED 1 1/8-1 1/2
REAR AXLE STANDARD	135MM X 9MM QR
SEATPOST DIAMETER	31.6MM
SEATPOST CLAMP DIAMETER	34,9MM SPECIFIC KERAM 19 FRAME
FRONT DERAILLEUR	N/A. 1X ONLY
CHAINRING MAXIMUM SIZE	38T
MAXIMUM CRANK LENGTH	170MM
BRAKES	DISCO POST MOUNT *
REAR ROTOR MX. SIZE	180MM
REAR ROTOR MIN. SIZE	160MM

CHAINGGUIDE	NO
ICGS	NO
CABLING	INTERNAL (FULL SLEEVE)
LEFT-ROAD CABLING READY	YES. ALL CABLES ENTER THE FRAME ON THE LEFT SIDE
BOTTLE HOLDER	1. ALL SIZES
COMPATIBLE DI2	NO
COMPATIBLE SRAM AXS	YES
DRIVETRAIN COMPATIBILITY	10, 11 AND 12 SPEED
COMPATIBILIDAD POTENCIOMETRO	NO
INTERNAL BATTERY	YES. IN DOWNTUBE. 400WH OR 500WH. BOSCH POWERPACK
DUAL BATTERY OPTION	YES. ONLY AS A COMPLETE OPTION AT THE MOMENT OF PURCHASE. NOT COMPATIBLE WITH SIZE S FRAME
MOTOR	ONLY BOSCH GEN4 AND GEN3 (USES DIFFERENT MOTOR MOUNTING PLATES)
DISPLAY BOSCH	PURION
MOTOR ASSEMBLY ANGLE	6,5°

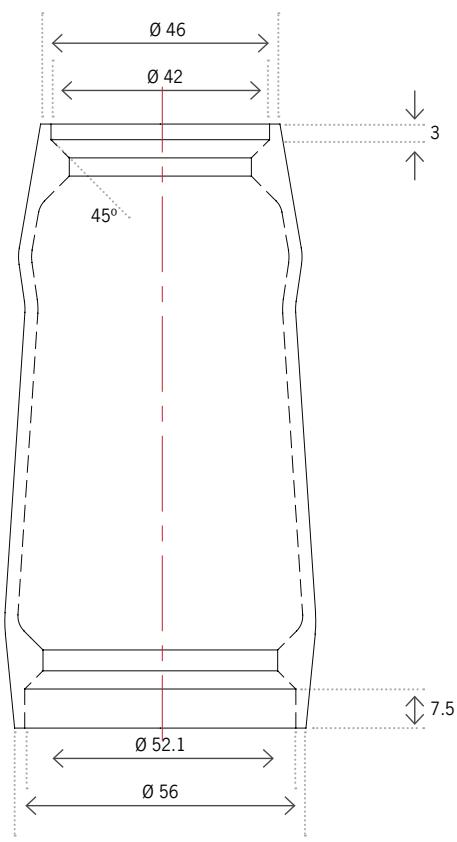

HEADTUBE AND HEADSET

HEADSET 1 1/8-1 1/2 INTEGRATED (INCLUDES TOPCAP AND STARNUT)

KIT N°: Y0000127	QUANTITY
HEADSET 1 1/8-1 1/2 INTEGRATED	1

1 1/8 LOWER BEARING ADAPTOR (FOR 1 1/8 STRAIGHT STEERER TUBE FORKS)

ART N°: 14031591	QUANTITY
1 1/8 LOWER BEARING ADAPTOR	1

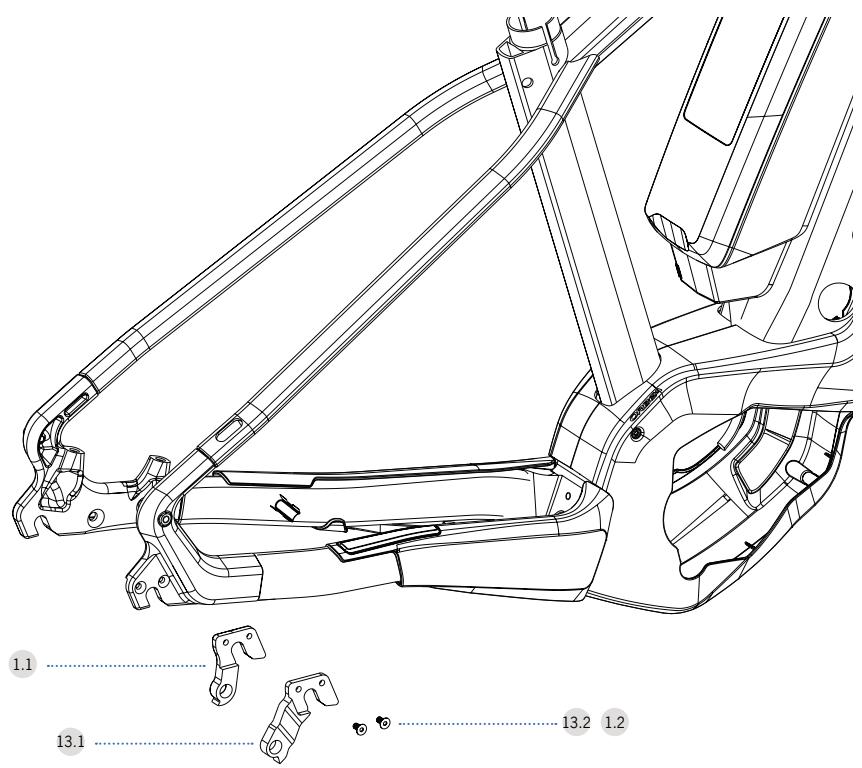

REAR DERRAILLEUR

QR STANDARD REAR DER. HANGER

01	KIT N°: Y0000117	QUANTITY
1.1	QR STANDARD REAR DER. HANGER	1
1.2	BOLT M4x9	2

QR DIRECT MOUNT REAR DER. HANGER

13	KIT N°: Y0000118	QUANTITY
13.1	QR DM REAR DER. HANGER	1
13.2	BOLT M4x9	2

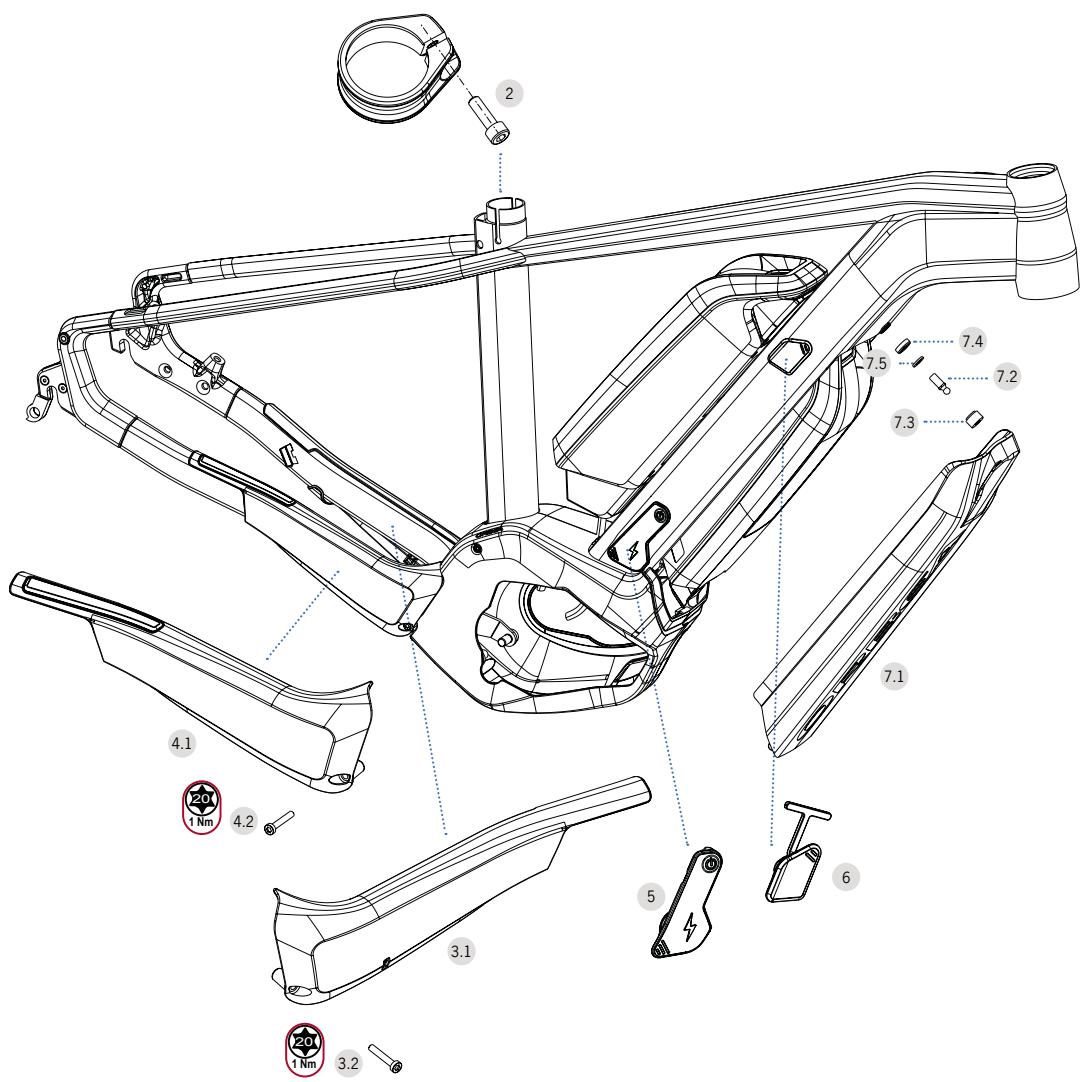

PROTECTORS

KERAM 19 SEATPOST CLAMP

02 ART N°: 11160252	QUANTITY
KERAM 19 SEATPOST CLAMP	1

LEFT CHAINSTAY PROTECTOR

03	KIT N°: Y0000224	QUANTITY
3.1	LEFT CHAINSTAY PROTECTOR	1
3.2	BOLT M4x25	1

RIGHT CHAINSTAY PROTECTOR

04	KIT N°: Y0000225	QUANTITY
4.1	RIGHT CHAINSTAY PROTECTOR	1
4.2	BOLT M4x25	1

CHARGING PORT RUBBER PROTECTOR

05 ART N°: 11000468	QUANTITY
CHARGING PORT RUBBER PROTECTOR	1

BATTERY KEYHOLE RUBBER PROTECTOR

06 ART N°: 11000467	QUANTITY
BATTERY KEYHOLE RUBBER PROTECTOR	1

BATTERY COVER KIT

07	KIT N°: Y0000226	QUANTITY
7.1	BATTERY COVER KERAM 19 BLACK	1
7.2	BATTERY COVER LOCK MALE	1
7.3	BATTERY COVER LOCK FEMALE	1
7.4	WASHER 4,5mm	1
7.5	WASHER M6	1

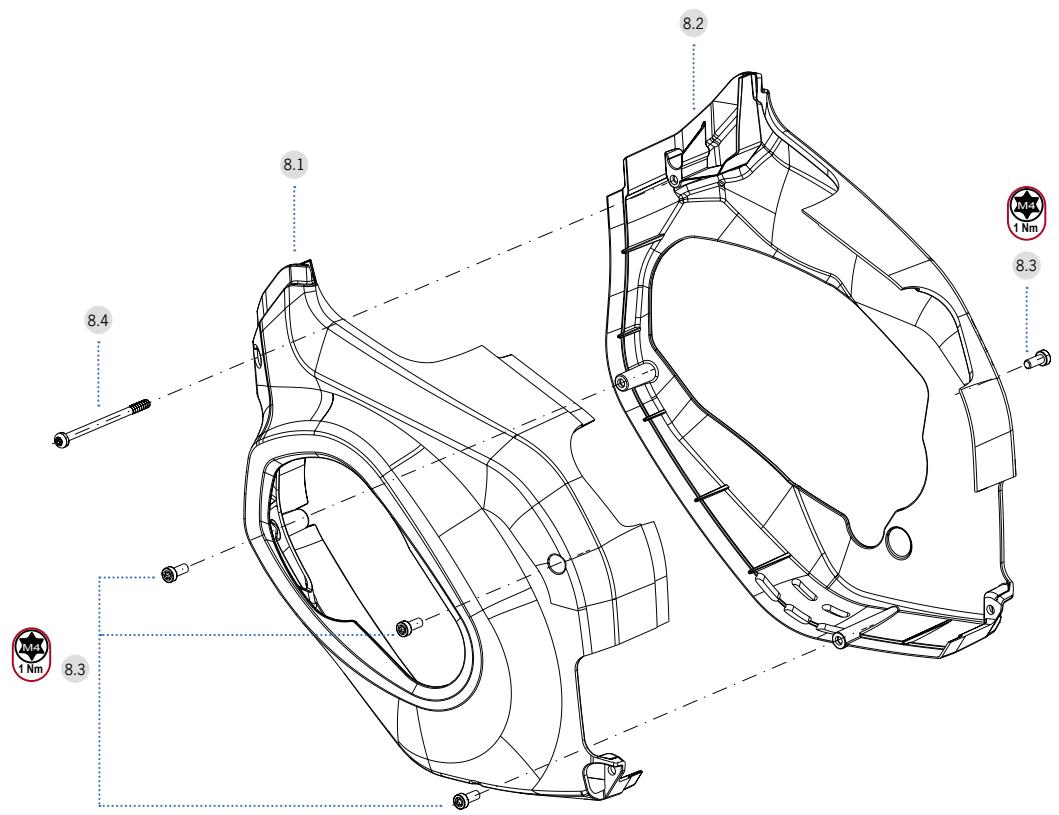

KERAM BOSCH GEN4 MOTOR PROTECTOR

08	KIT N°: Y0000223	QUANTITY
8.1	RIGHT MOTOR PROTECTOR	1
8.2	LEFT MOTOR PROTECTOR	1
8.3	BOLT M4x10	4
8.4	BOLT M4x60	1

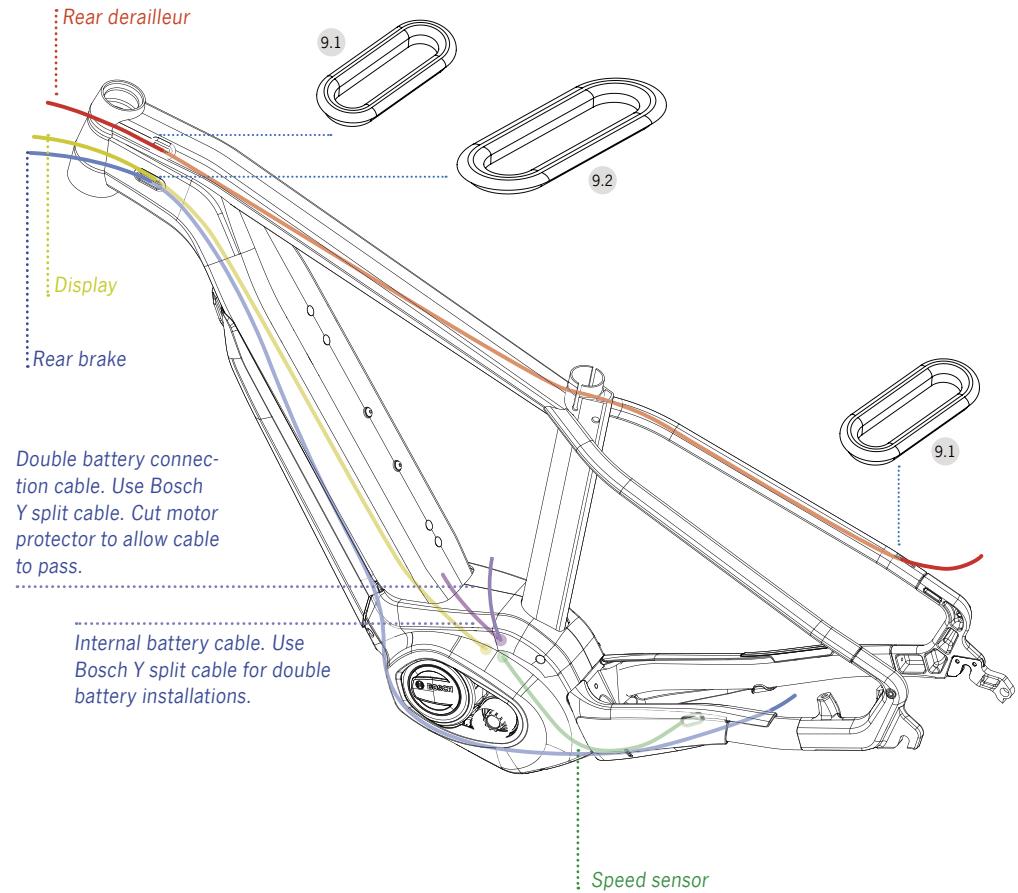

CABLING

KERAM 19 CABLEGUIDE KIT

09	KIT N°: Y0000227	QUANTITY
9.1	RUBBER GROMMET 2mm 22x8	2
9.2	RUBBER GROMMET 5mm 30x10	1

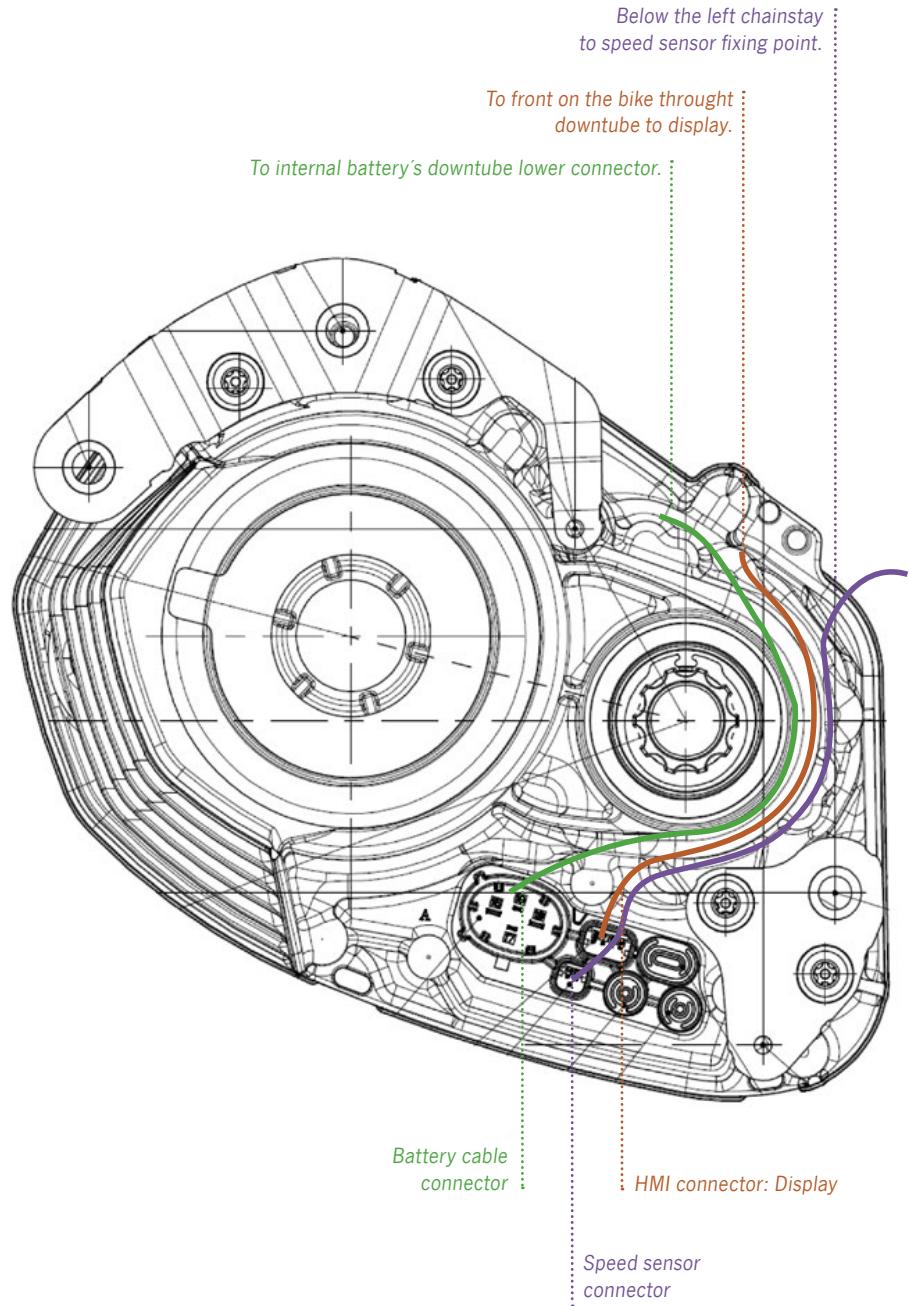

ALL CONNECTIONS ARE MADE ON THE NON-DRIVE SIDE OF THE MOTOR

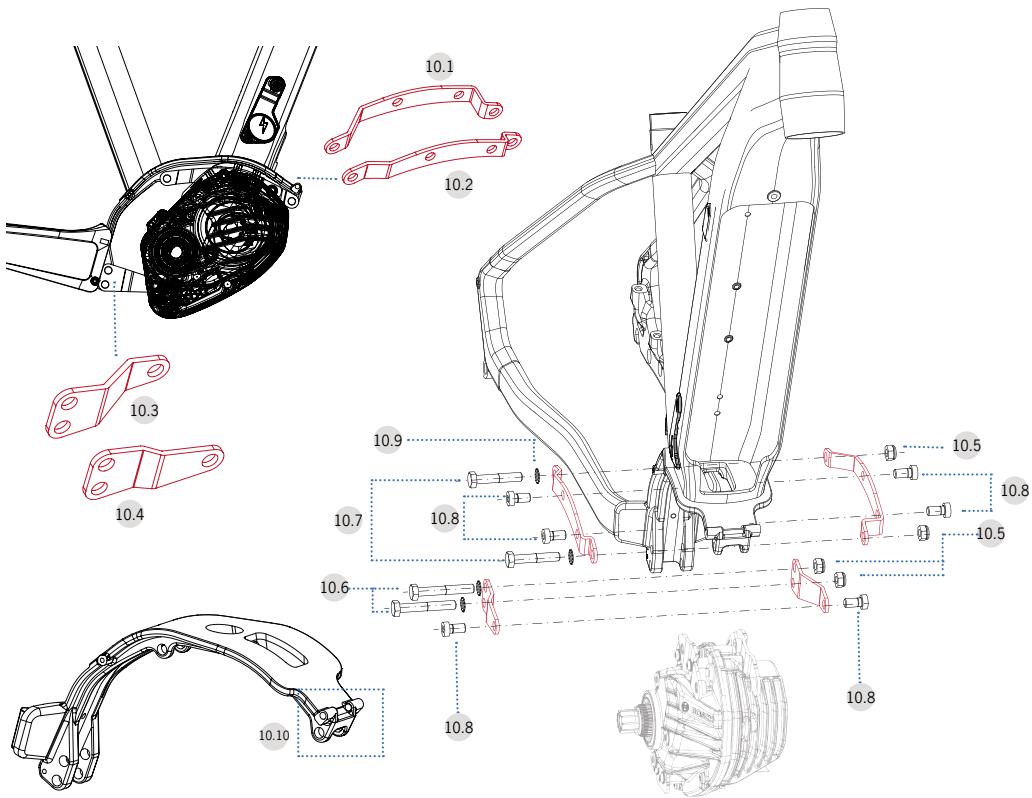

BOSCH GEN4 MOTOR ASSEMBLY

TORQUE SETTING: 30Nm

BOSCH GEN4 MOTOR ASSEMBLY KIT

10	KIT N°: Y0000228	QUANTITY
10.1	BOSCH G4 ASSEMBLY PLATE LONG LEFT	1
10.2	BOSCH G4 ASSEMBLY PLATE LONG RIGHT	1
10.3	BOSCH G4 ASSEMBLY PLATE SHORT LEFT	1
10.4	BOSCH G4 ASSEMBLY PLATE SHORT RIGHT	1
10.5	NUT M8	4
10.6	BOLT M8x55	2
10.7	BOLT M8x50	2
10.8	BOLT M8x16	6
10.9	TOOTHED WASHER M8	4
10.10	SPACER 20.2mm	2

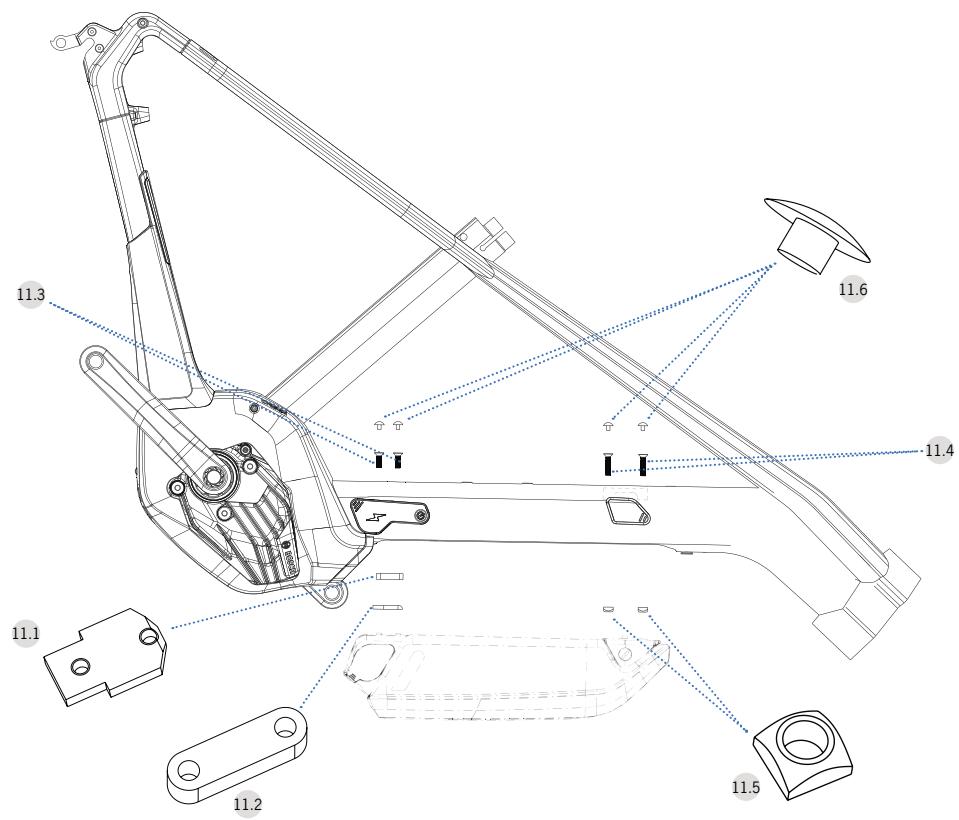

INTERNAL BATTERY ASSEMBLY

INTERNAL BATTERY ASSEMBLY HARDWARE KIT

BOSCH OR ABUS COMPONENTS NOT INCLUDED.

11	KIT N°: Y0000229	QUANTITY
11.1	THREADED BATTERY LOWER MOUNT PLATE	1
11.2	SPACER 6,5mm LOWER BATTERY MOUNT	1
11.3	BOLT M5x18	2
11.4	BOLT M5x30	2
11.5	M5 SQUARE NUT	2
11.6	RUBBER ALLEN BOLT HEAD COVER	4

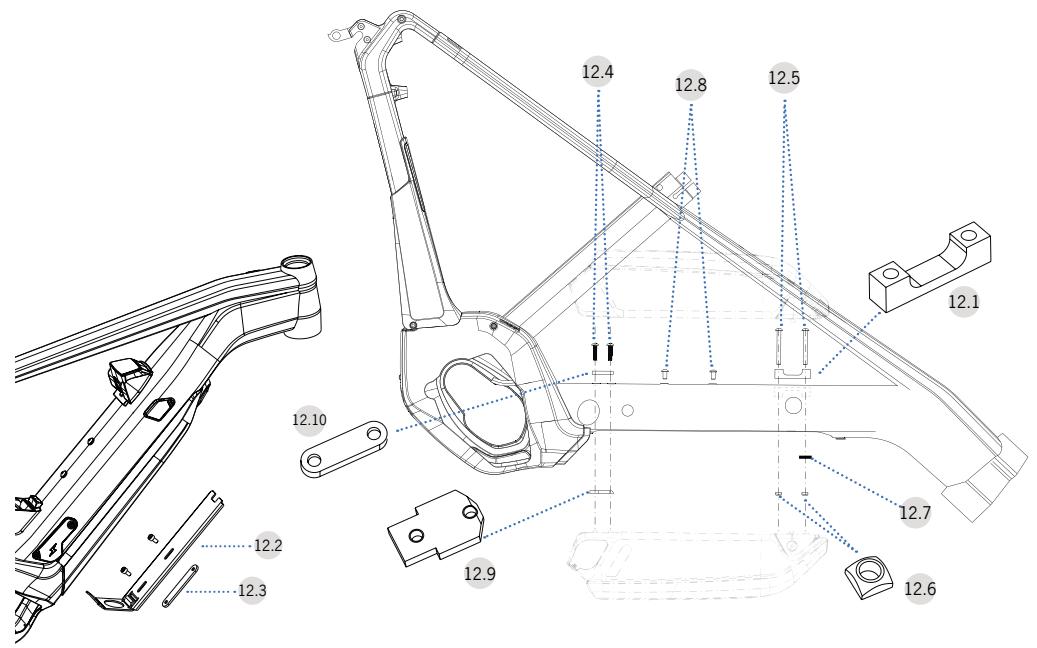

DUAL BATTERY ASSEMBLY

The complete external battery connection kit is only available as an option when purchasing a keram from Orbea.

For bikes that were purchased with the internal battery only, Orbea will facilitate the components that are Orbea's own and specific to the Keram frame for the installation of the external battery. These items are included in the kit Y0000230.

The electric components, like cables and powerpack battery brackets, as well as the locks, may be purchased through a Bosch or Abus distributor. These components are in the next page. Contact your Abus and Bosch ebike dealer to know the exact list of components needed for the installation of a powerpack dual battery system.

The installation of these components needs an advanced mechanical and electrical knowledge and can only be performed by a certified Orbea dealer.

The use of a dual battery requires the electric system to be updated for the correct operation of all components. This update must be carried out by a Bosch ebike dealer.

The dual battery option is not compatible with size S Keram frames.

The aftermarket assembly of the dual battery option is only compatible with Keram frames equipped with a Bosch Gen4 motor. Orbea cannot guarantee the components compatibility on Keram frames with a Bosch GEN3 motor.

DUAL BATTERY ASSEMBLY HARDWARE KIT

BOSCH OR ABUS COMPONENTS NOT INCLUDED

12	KIT N°: Y0000230	QUANTITY
12.1	U SHAPED TOP BATTERY BRACKET SPACER	1
12.2	BOTTLE HOLDER PLATE DUAL BATTERY	1
12.3	THREADED PLATE BOTTLE HOLDER	1
12.4	BOLT M5x20	2
12.5	BOLT M5x45	2
12.6	M5 SQUARE NUT	2
12.7	M5 TOOTHED WASHER	1
12.8	BOLT M5x15 BOTTLE HOLDER	2
12.9	THREADED BATTERY LOWER MOUNT PLATE	1
12.10	SPACER 6,5mm LOWER BATTERY BRACKET.	1

• Not included. Already on bike or on internal battery hardware kit.

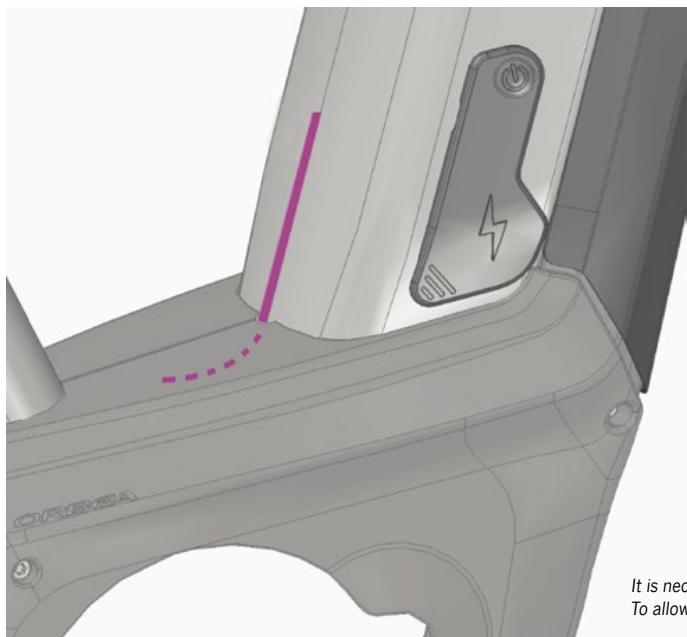

It is necessary to cut the motor protector
To allow clearance for the external battery cable.

ABUS COMPONENTS	REFERENCE	DESCRIPTION
POWERPACK LOCK PLUS + KEY When ordering the new lock, facilitate your abus distributor the Key number on your wild fs so the new lock is made to match the key, Enabling you to use the same key for both batteries.	33261	BLO BOS DT2 PLUS

BOSCH COMPONENTS	REFERENCE	DESCRIPTION
STANDARD BATTERY CABLE	1.270.015.067	Battery Cable Standard
LOWER POWERPACK BATTERY HOLDER LEFT	0.275.007.425	Battery holder kit
LOWER POWERPACK BATTERY HOLDER RIGHT
SCREW 3,5x12 (x2)
ALUMINUM BRACKET HOLDER	0.275.007.426	Mounting set for bracket battery frame
BATTERY BRACKET BOLT (x2)
PLASTIC CASING LOCK TOP	1.270.020.605	Kit plastic casing lock frame
PLASTIC CASING LOCK BOTTOM
SCREW 3,5x12 (x1)
BOLT M5x12 (x2)
CABLE "Y" DUAL BATTERY 515/430mm	0.275.007.930	Bosch Dual Battery Y-Adapter kit
CHARGING SOCKET BLANK PLUG (x2)
TAPÔN PIN SOPORTE BATERIA

MAINTENANCE

Orbea products are carefully designed to be long-lasting, efficient and easy to maintain. The carbon and aluminum frames on the Keram are extremely corrosion-resistant. However, your Orbea bicycle needs regular maintenance of its components in order to work properly and to ensure their longevity.

1) KEEP YOUR KERAM CLEAN

Washing your bike with mild soap and water will keep you looking stylish and allow you to check the condition of the frame and components. Don't use high water pressure and avoid spraying water into bearings or frame tubes. Citrus degreasers are biodegradable and do a great job of remo-ving dirty grease from gears and chain.

2) KEEP YOUR KERAM LUBED

Once your bike is clean, it's a good time to put fresh lube on the chain. Use only enough to get inside the links and wipe off any excess because it will attract dirt. Headset and pivot bearings should be inspected every few months for smoothness and to ensure that the seals are intact and lube is clean.

3) INSPECT YOUR KERAM BEFORE YOU RIDE

Do a quick check before every ride to make sure your bike is in excellent condition. It is very common to discover small issues at home that can become big problems on the trail. CHAIN Is the chain dirty, noisy or dry? Clean and lube your chain before riding. BRAKES Check your brakes to make sure they are working correctly. Check for missing/ loose caliper and rotor bolts. TIRES Look for damage to the sidewalls of your tires. Check and adjust tire pressu-re. WHEELS Spin the wheels and look for wobbles, check for loose or broken spokes. Check quick release levers to make sure they are functioning properly. FRONT END Stand over the saddle, pull on the brakes and rock the bike back and forth. Feel for any play or knocking that might indicate a loose headset, loose brake rotors or calipers, or worn fork bushings.

TEST RIDE Take a quick ride up and down the street to make sure your bike is shifting and braking properly. Listen for unusual noises.

4) BEARINGS

Bearings are one element subject to wear and tear. They must be in good condition to ensure that the other parts of the bicycle work correctly: on the wheels, the steering column and the bottom bracket.

Regularly check to make sure that the bearings turn freely in their housing and there are no signs of lateral play. Bearings that do not turn properly or that have any lateral play must be replaced immediately in order to prevent wear and tear to the parts of the frame. Very damp weather conditions can cause the bearings to wear out faster. Avoid washing your bicycle with pressurized water hoses. If you have any questions, take your bicycle to an Orbea dealer for correct diagnosis and maintenance.

5) BOSCH EBIKE ELECTRIC SYSTEM

Ebikes' electric systems use complex electronic components that require your attention. Always read the available documentation before using your ebike and follow the recommended use and maintenance instructions.

This documentation will allow you to get the maximum performance out of your ebike.

To know more about the Bosch system on your Keram, go to:

https://www.bosch-ebike.com/

AFTER A CRASH OR IMPACT

Falling is part of riding and it's impossible to avoid minor accidents. If you crash your Keram, please make sure you are okay and seek medical attention if necessary. If you are not injured, you should check your bike before continuing:

1) Inspect your frame and components for damage.

Do not ride your bike if any problems are detected.

WHAT TO LOOK FOR

Inspect Frame and fork for evidence of cracking or bending. If cracks are discovered, discontinue use immediately.

Check the drivetrain and spin the wheels to make sure components are operating correctly. If you discover da-mage to your components, discontinue use immediately.

Even if you don't find any damage, pay careful attention to the sound of your bike when you continue riding. Unusual noises can be caused by cracks or other problems. A well-maintained bike will be quiet and free of creaks or squeaks. Investigate and locate the source of any new noises.

2) Bring your bike to your Orbea dealer for profess-sio-nal inspection. Some damage can only be detected by disassembling the bike to check for cracks or other signs of stress.

A crash or impact can put extraordinary stress on your bike and components, causing them to fail or to fa-tigue prematurely. Failure can happen suddenly with no warning, causing loss of control, serious injury or death.

ORBEA WARRANTY

The constant effort we make every day to produce the highest quality bicycles enables us to offer the following warranty and coverage conditions:

LEGAL WARRANTY

Orbea guarantees its products by law for a period of 2 years or whatever has been stipulated as the legal warranty period in the country where the purchase was made, to the original owner of the bicycle/component.

This warranty covers Orbea products against manufactu-ring defects and/or lack of conformity and guarantees the repair or replacement of the defective product at no cost to the affected customer. Likewise, this warranty also co-verts paint, varnish and corrosion defects on all frames and rigid forks assembled on our bicycles during the period specified in the first paragraph of this warranty.

This warranty does not cover in any case damage derived from misuse or the lack of maintenance, or from the normal wear and tear of perishable parts, such as, but not limited to: seals, bearings, handlebar tape, spokes, hub, threads, tires, seat, etc.

See the full description of the coverage and the legal warranty conditions at:

https://www.orbea.com/int-en/warranty-benefits/

ORBEA LIFETIME WARRANTY

As a complement to the legal warranty, Orbea offers the original buyer of the bicycle, under the condition of having registered their bicycle on the Orbea website within a period of 30 days following its purchase, the Orbea Li-fetime Warranty, which covers the frames and rigid forks we assemble on our bicycles, with no time limit, against manufacturing defects.

This warranty extends the original period of coverage against pain, varnish or corrosion defects on our frames and rigid forks for one additional year after the end of the legal warranty period.

See the full description of the coverage and the Lifetime Warranty conditions at:

https://www.orbea.com/int-en/warranty-benefits/

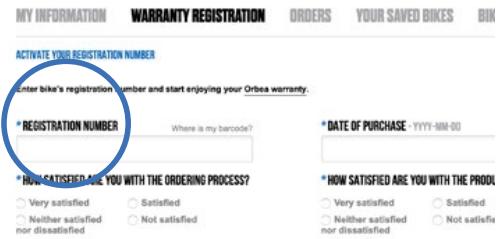

REGISTER YOUR BICYCLE

In order to benefit from the extension of the Orbea Lifeti-me Warranty, register your bike within the first 30 days of having purchased it at www.orbea.com

1. REGISTER YOUR ACCOUNT

1. REGISTRATION NUMBER

1. WHERE TO FIND YOUR NUMBER

WARRANTYCLAIMPROCESS

All warranty claim processes must be processed through an Orbea dealer, who will provide the company with the necessary documentation for the diagnosis of said claim. The dealer will inform the customer of the decision made by Orbea.

BOSCH EBIKE PRODUCTS

Bosch ebike components are covered by a two year warranty from the moment of purchase. Consult the complete warranty terms and conditions on https://www.bosch-ebike.com/

For any question or claim about the Bosch system on your Wild HT, contact your Orbea dealer.

ADDITIONAL INFORMATION

ORBEA participates actively on facebook and Twitter with our fantastic global community of riders. Looking to find spots to ride or plan a vacation? Someone will have the answers:

FACEBOOK

www.facebook.com/OrbeaBicycles

TWITTER

www.twitter.com/Orbea/

YOUTUBE

Visit our Orbea Channel on You Tube for a variety of helpful setup and tech videos:

www.youtube.com/user/OrbeaBicycles

INSTAGRAM

www.instagram.com/orbeabicycles

ORBEA CONTENT

View and download photos, videos and documents.

content.orbea.com/us-en/

BLOG ORBEA

www.orbea.com/es-es/blog/

YOUR ORBEA DEALER

Our dealers are experts and should be able to assist you with setting up and maintaining your Orbea bicycle. A complete listing of Orbea dealers and distributors can be located on our website:

www.orbea.com/us-en/dealers/?country=INT

SUPPORT

For technical questions about Orbea products, write to:

[e-mail]

For any other question:

[e-mail]
