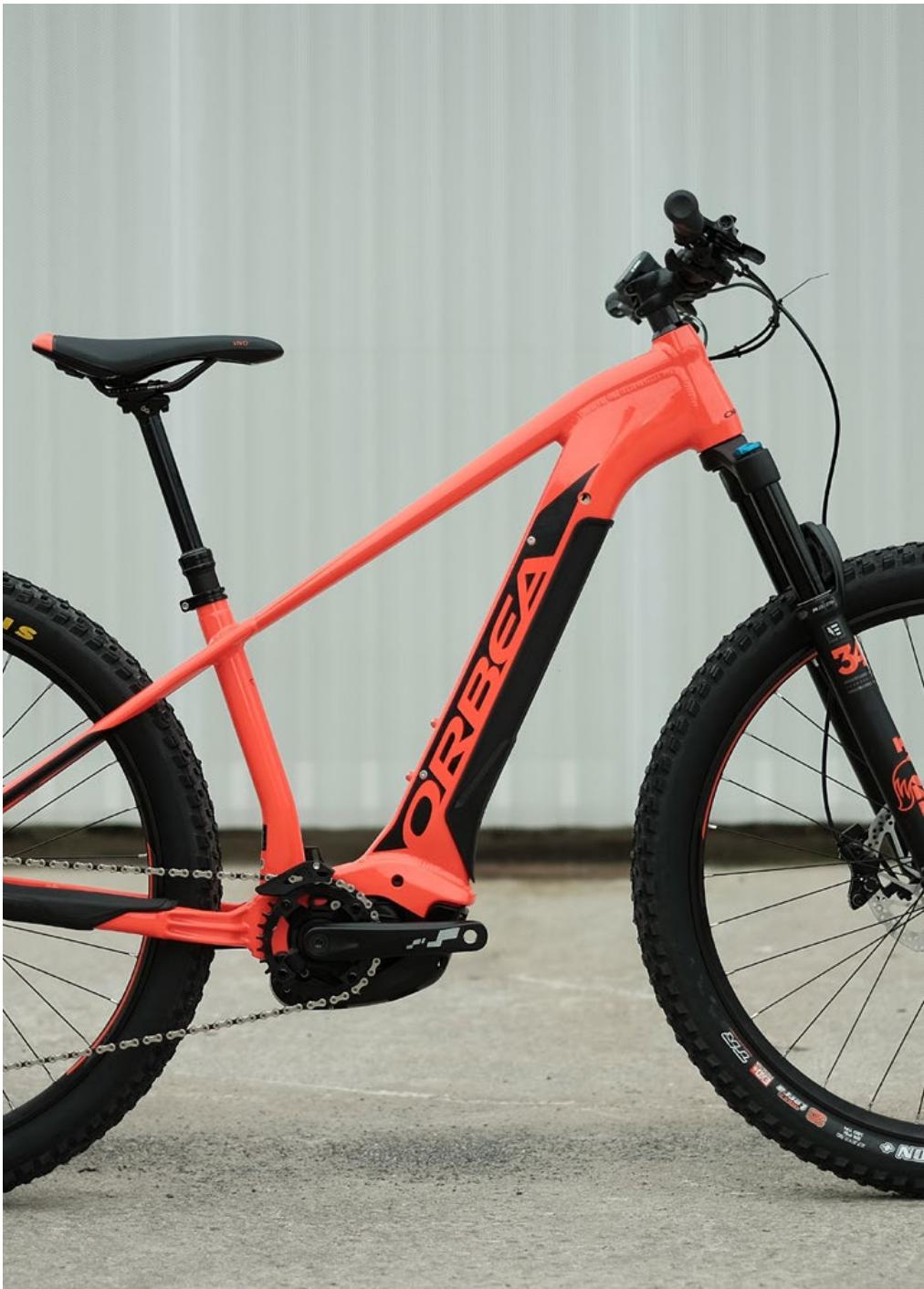

MODE D'EMPLOI WILD HT 20 - WILD HT 30 ORBEA
BLUE PAPER
WILDHT
2020
INDEX
GEOMETRY & ERGONOMY 4
TECHNICAL SPECIFICATIONS 6
HEADTUBE AND HEADSET 8
REARAXLE 10
PROTECTORS 12
CHAINGUIDE 14
CABLING 15
OG COMPONENTS KIOX HOLDER 17
INTERNAL BATTERY PLATE 19
MOTOR ASSEMBLY 22
MAINTENANCE 24
ORBEA WARRANTY 26

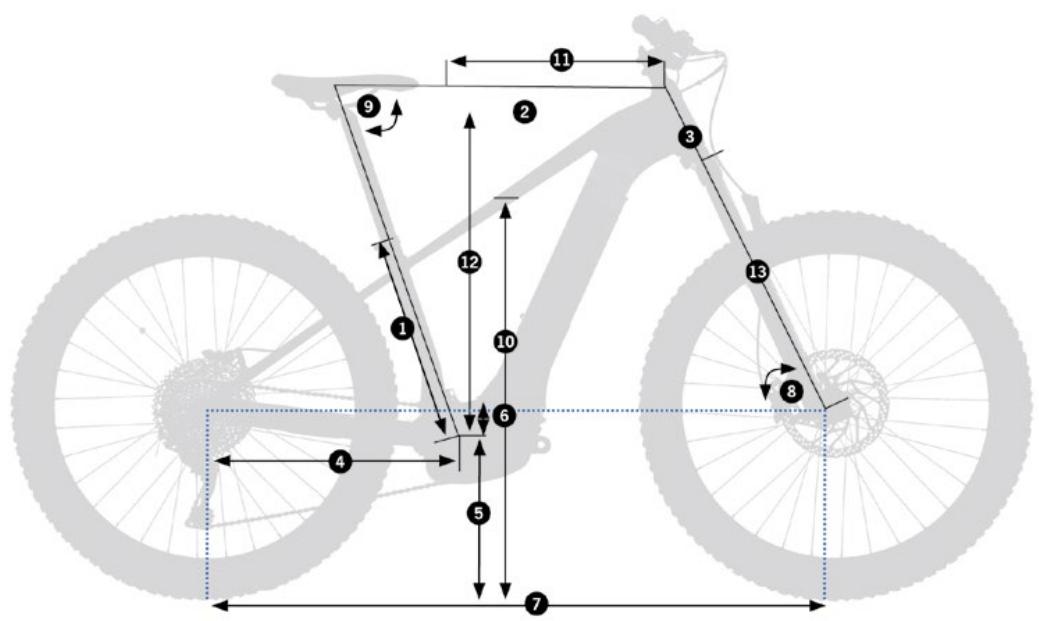

GEOMETRY AND ERGONOMY
| SIZE | S | M | L | XL |
| 1 - Seat tube (c-t) | 390 | 390 | 415 | 440 |
| 2 - Top tube (eff) | 575 | 595 | 624 | 653 |
| 3 - Head tube | 115 | 130 | 145 | 160 |
| 4 - Chainstay | 470 | 470 | 470 | 470 |
| 6 - Bb drop | 63 | 63 | 63 | 63 |
| 7 - Wheelbase | 1139 | 1160 | 1190 | 1221 |
| 8 - Head angle | 67° | 67° | 67° | 67° |
| 9 - Seat angle | 72,5° | 72,5° | 72,5° | 72,5° |
| 10 - Standover heigh | 798 | 805 | 816 | 826 |
| 11 - Reach | 375 | 390 | 415 | 440 |
| 12 - Stack | 634 | 647 | 661 | 675 |
| 13 - Fork length | 527 | 527 | 527 | 527 |
| HEIGHT (CM) | HEIGHT (IN) | SIZE |
| <165 | <65.0" | S |
| 165-175 | 65.0"-68.9" | M |
| 175-185 | 68.9"-72.8" | L |
| >185 | >72.8" | XL |
*The sizing measurements are orientative.
TECHNICAL SPECIFICATIONS
| FRAME MATERIAL | ALUMINUM |
| INTENDED USE | TRAIL, ALL MOUNTAIN |
| SIZES | S,M,L,XL |
| FORK TRAVEL | 120MM (27,5 Y 29) |
| WHEEL SIZE | 27,5+ AND 29" |
| MAX. TYRE SIZE | 29"x2.6 (EXTERNAL DIAMETER 746MM, WIDTH 70MM) |
| 27,5"x3.0 (EXTERNAL DIAMETER 735MM, WIDTH 77MM) | |
| FORK OFFSET | 44MM |
| BOTTOM BRACKET | BOSCH GEN4 MOTOR |
| HEADSET | INTEGRATED 1 1/8-1 1/2 |
| REAR AXLE STANDARD | BOOST 12X148 |
| REAR AXLE MEASUREMENTS | 12X179 |
| REAR AXLE THREAD PITCH | 1.25MM |
| SEATPOST DIAMETER | 31.6MM |
| SEATPOST CLAMP DIAMETER | 35MM |
| SEATPOST MAX. INSERTION | S(220MM) M(220MM) LG(245MM) XL(270MM) |
| FRONT DERAILLEUR | N/A. 1X ONLY |
| MAX. CHAINRING SIZE | 38T |
| Q FACTOR | 190MM |
| COMPATIBLE WITH CRANKS WITH A MINIMUM Q FACTOR OF 177MM | |
| CHAINLINE | 53MM |
| MAX. CRANK LENGTH | 160MM |
| BRAKES | DISC POST MOUNT* |
| REAR ROTOR MAX. SIZE | 180MM |
| REAR ROTOR MIN. SIZE | 160MM |
| CHAINGUIDE | YES. BOSCH GEN4 SPECIFIC |
| ICGS | NO |
| CABLING | INTERNAL (FULL SLEEVE) |
| LEFT-ROAD CABLING READY | ALL CABLES ENTER THE FRAME ON THE LEFT SIDE |
| BOTTLE HOLDER | 1. IN ALL SIZES |
| COMPATIBLE DI2 | NO |
| COMPATIBLE SRAM AXS | YES |
| DRIVETRAIN COMPATIBILITY | 10, 11 AND 12 SPEED |
| POWERMETER COMPATIBLE | NO |
| INTERNAL BATTERY | YES. IN DOWNTUBE. 500WH ONLY. BOSCH POWERTUBE |
| DUAL BATTERY OPTION | NO |
| MOTOR | BOSCH GEN4 ONLY |
| MOTOR ASSEMBLY ANGLE | -12° |
| BOSCH DISPLAY | KIOX OR PURION |
| DISPLAY HOLDER | OC COMPONENTS. 3 POSITIONS (IN MODELS WITH KIOX DISPLAY) |
| BOSCH PURION |

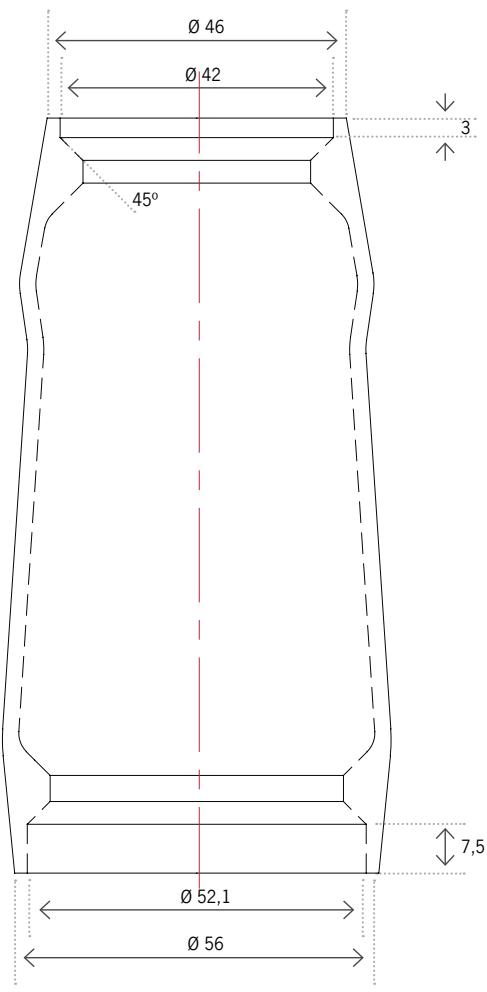

HEADTUBE AND HEADSET
INTEGRATED HEADSET 1 1/8-1 1/2
(BEARINGS INCLUDED, STARNUT NOT INCLUDED)
| ART N°: 14030201 | QUANTITY |
| INTEGRATED HEADSET 1 1/8-1 1/2 | 1 |

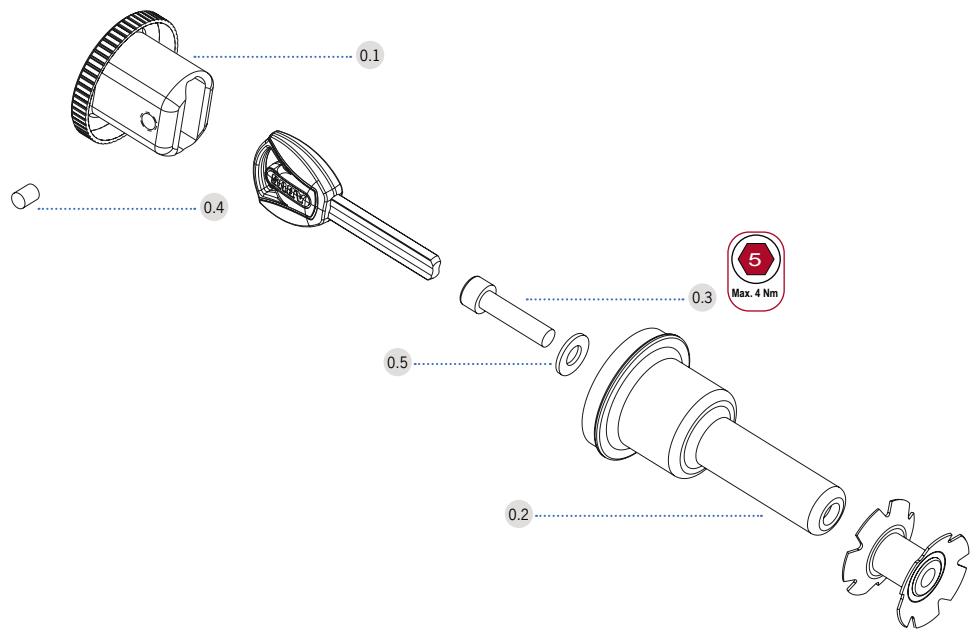

STEERER TUBE BATTERY KEY HOLDER KIT
| 00 | KIT N°: Y0000200 | QUANTITY |
| 0.1 | KEY HOLDER SCREWCAP | 1 |
| 0.2 | EXTENDER HOLDER TOPCAP | 1 |
| 0.3 | BOLT M6x30 | 1 |
| 0.4 | KEY HOLDER SETSCREW | 1 |
| 0.5 | M6 WASHER | 1 |
For the correct installation of the extended holder topcap, the starnut must be set deeper than usual into the fork's steerer tube to allow the headset to be adjusted correctly.

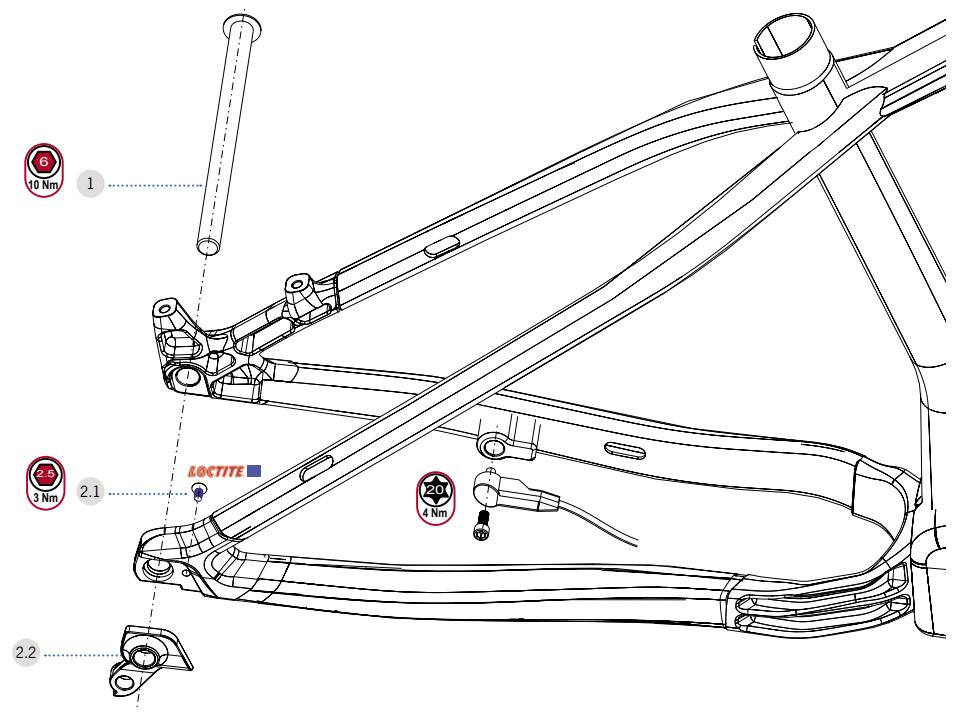

REAR AXLE
LOCTITE
Serie 200
REAR AXLE 12X148
| 01 ART N°: 11100065 | QUANTITY |
| REAR AXLE 12x148 | 1 |
REAR DERAILLEUR HANGER
| 02 | KIT N°: Y0000144 | QUANTITY |
| 2,1 | BOLT M4x15 | 1 |
| 2,2 | REAR DER. HANGER STD X12 | 1 |

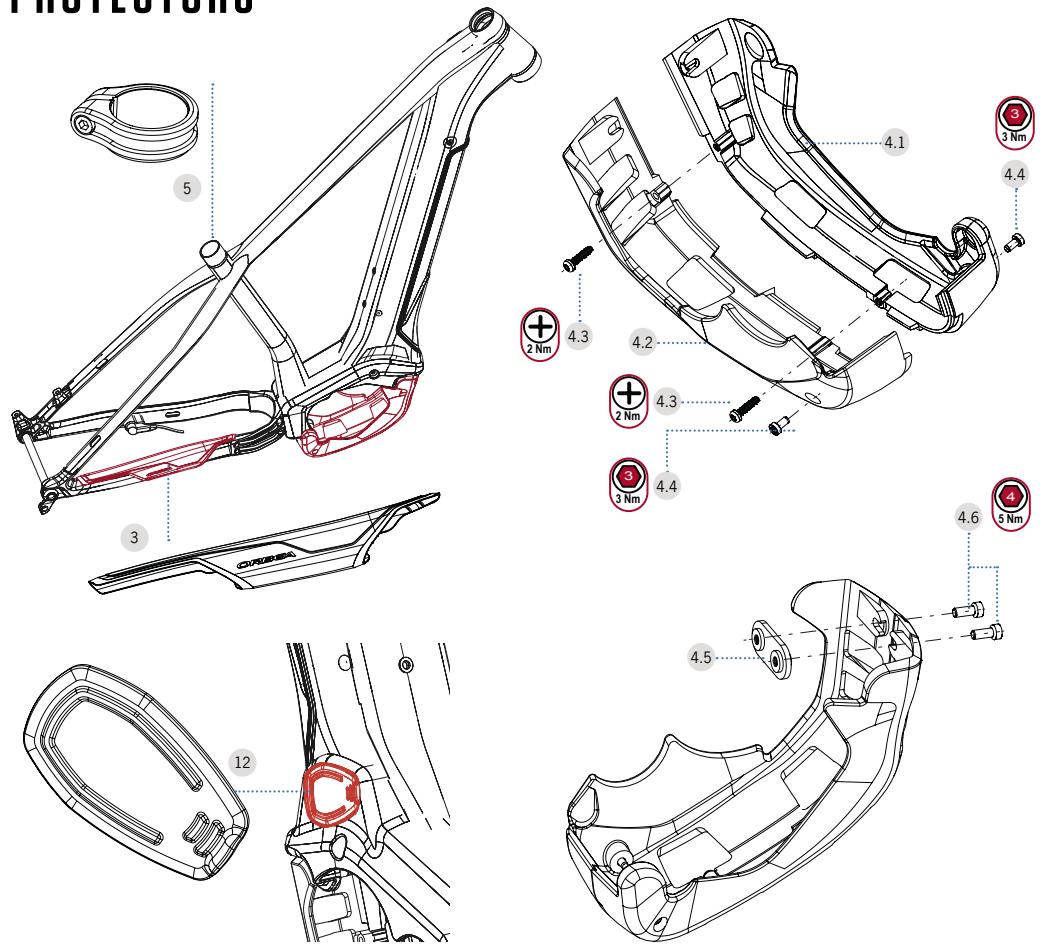

PROTECTORS
CHAINSTAY RUBBER PROTECTOR
| 03 ART N°: 11000410 | QUANTITY |
| CHAINSTAY RUBBER PROTECTOR | 1 |
MOTOR PROTECTOR KIT
| 04 | KIT N°: Y0000211 | QUANTITY |
| 4.1 | RIGHT MOTOR PROTECTOR | 1 |
| 4.2 | LEFT MOTOR PROTECTOR | 1 |
| 4.3 | BOLT M4.1x16 | 2 |
| 4.4 | BOLT M4x8 | 2 |
| 4.5 | MOTOR PROTECTOR FIXING PLATE | 1 |
| 4.6 | BOLT M5x12 | 2 |
SEATPOST CLAMP 34,9MM
| 05 ART N°: 11160004 | QUANTITY |
| SEATPOST CLAMP 34,9mm | 1 |

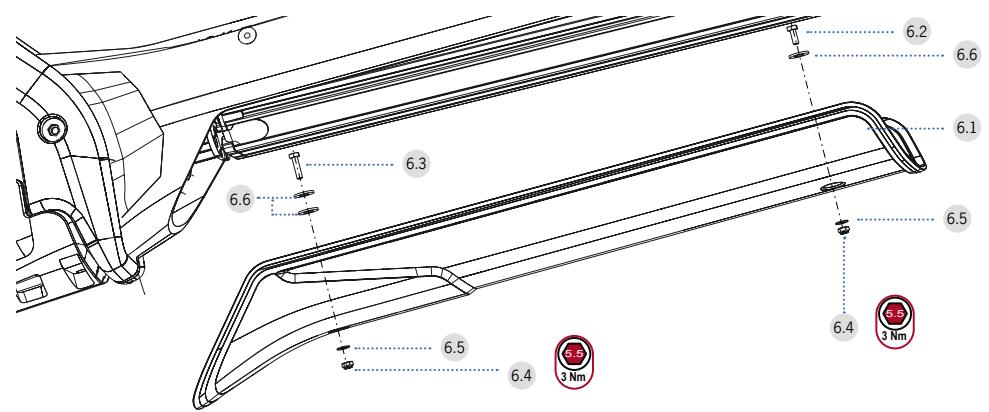

WILD HT BATTERY COVER KIT
| 06 | KIT N°: Y0000220 | QUANTITY |
| 6.1 | BATTERY COVER WILT HT BLACK | 1 |
| 6.2 | BOLT M3x8 | 1 |
| 6.3 | BOLT M3x10 | 1 |
| 6.4 | M3 LOCKING WASHER | 2 |
| 6.5 | WASHER M3 | 1 |
| 6.6 | WASHER 5x10x2 | 3 |
CHARGING PORT RUBBER COVER
| 12 ART N°: 11209614 | QUANTITY |
| CHARGING PORT RUBBER COVER | 1 |

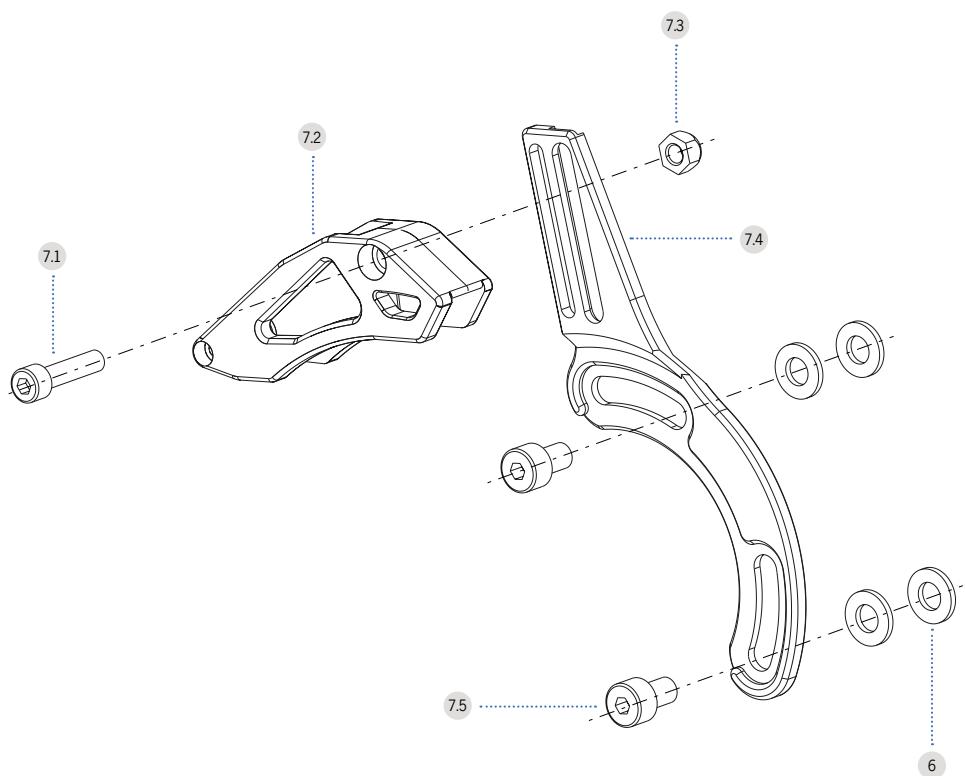

CHAINGuide
Install 2,5mm worth of washers on each bolt to separate the chainguide bracket from the motor.
CHAINGGUIDE OC BOSCH GEN4 32-38T
| 07 | ART N°: 11250034 | QUANTITY |
| 7.1 | BOLT M5x20 | 1 |
| 7.2 | CHAINGUIDE BODY | 1 |
| 7.3 | NUT M5 | 1 |
| 7.4 | CHAINGUIDE BRACKET BOSCH GEN4 | 1 |
| 7.5 | BOLT M6x10 | 2 |
| 7.6 | WASHER M6 | 4 |

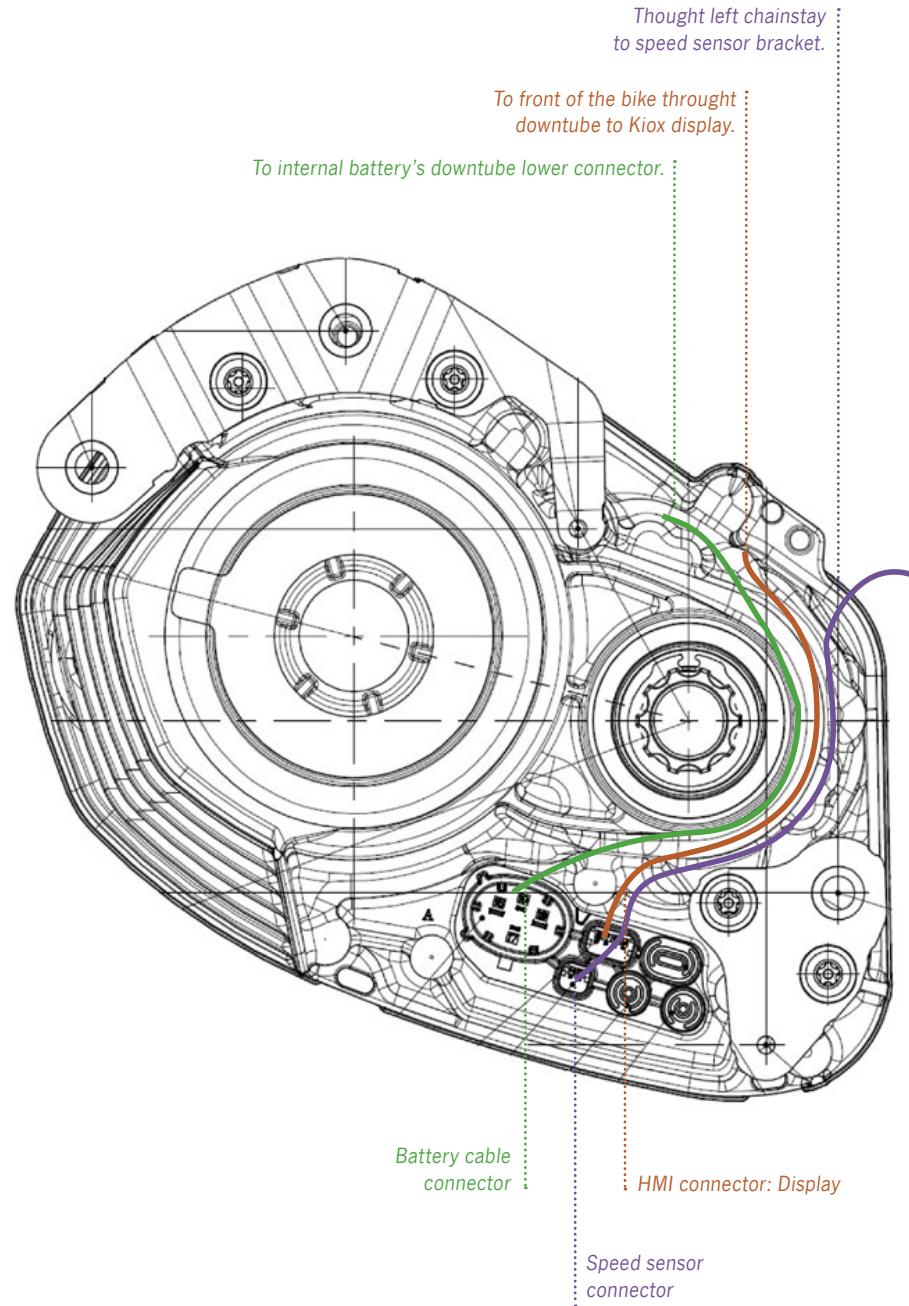

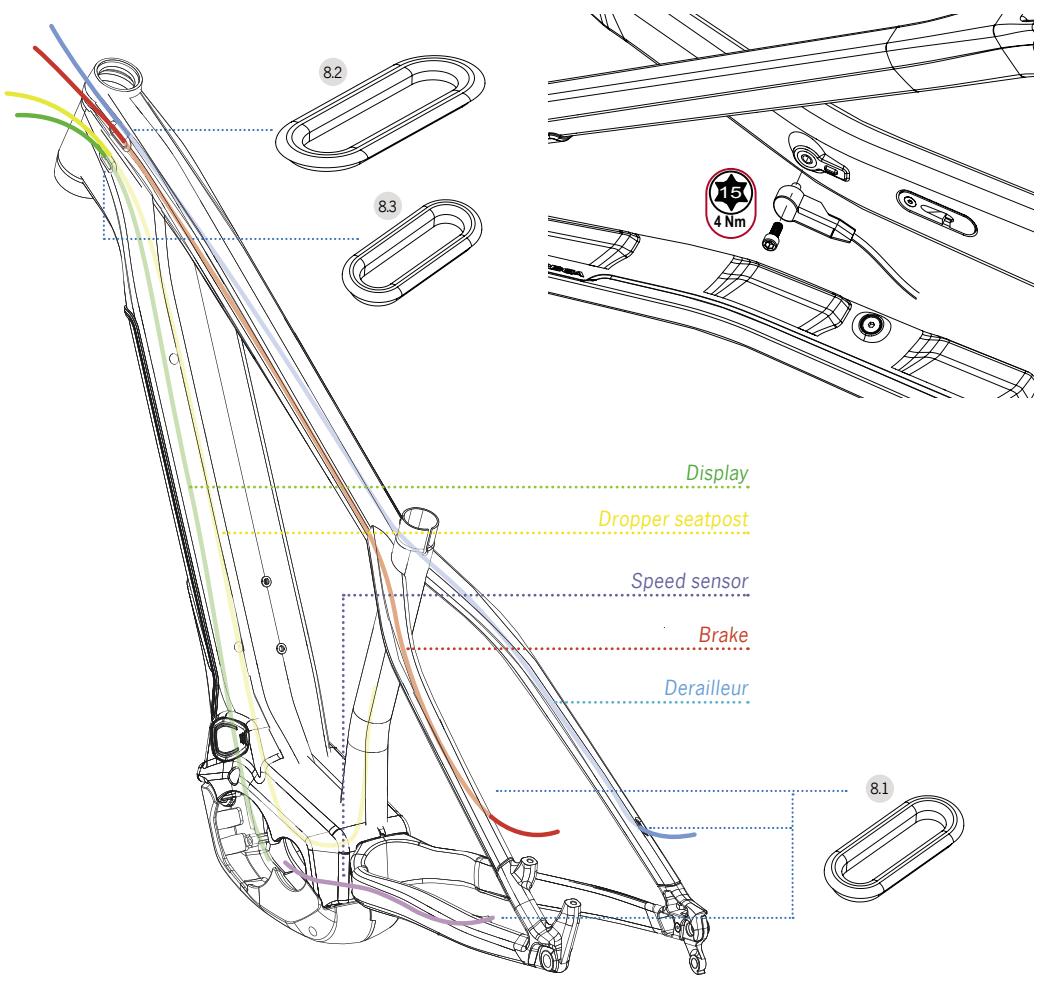

CABLING
FRAME CABLEGUIDE KIT
| 08 | KIT N°: Y0000219 | QUANTITY |
| 8.1 | RUBBER GROMMET 2mm 22x8 | 3 |
| 8.2 | RUBBER GROMMET 3mm 30x10 | 1 |
| 8.3 | RUBBER GROMMET 3mm 22x8* | 1 |
| * Not in size S. All cables enter the frame through the top hole. Cable routing through the frame stays the same. | ||
ALL CONNECTIONS ARE MADE ON THE MOTOR'S NON-DRIVE SIDE

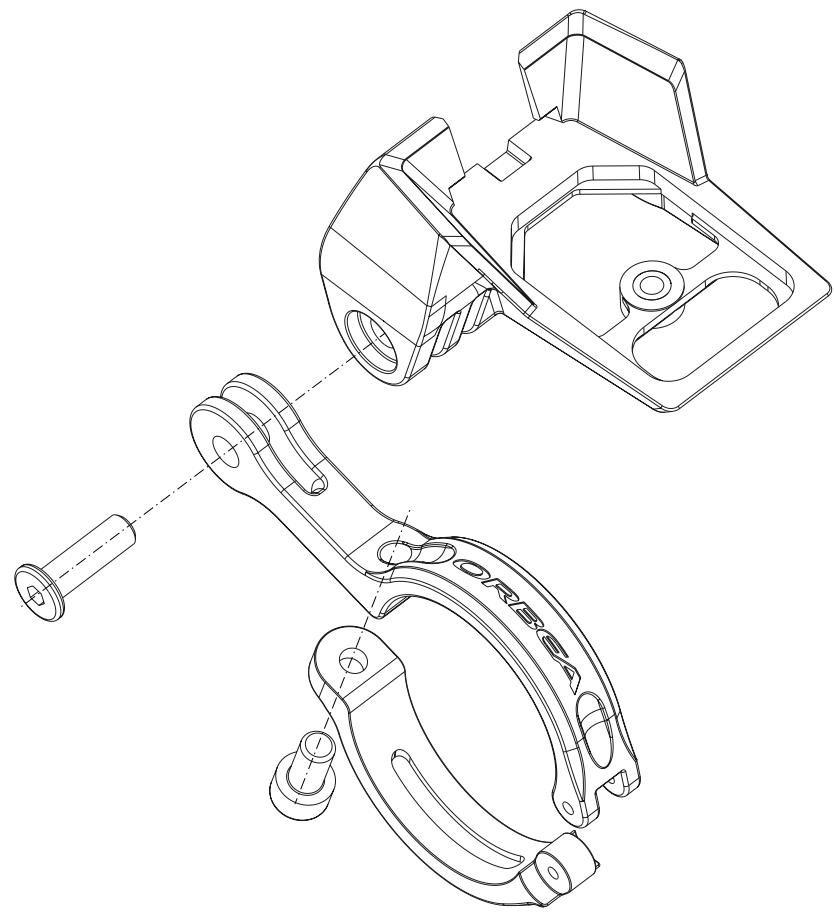

OC COMPONENTS KIOX HOLDER

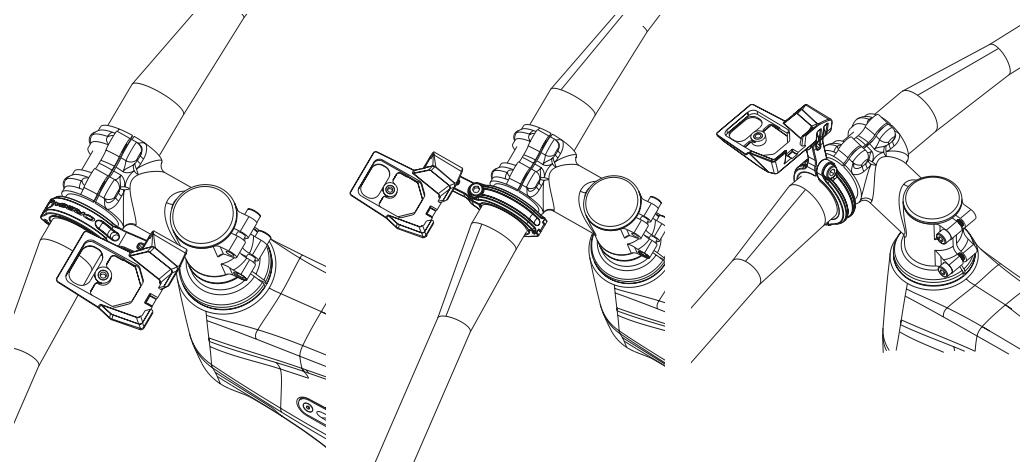

OC COMPONENTS KIOX DISPLAY HOLDER 35MM
09 ART N°: 11000527
QUANTITY
OC COMPONENTS KIOX DISPLAY HOLDER 35mm
The OC Components Kiox display bracket allows three positions of the display.
- In front of the handlebar
- On top of the handlebar
- Behind the handlebar
Turn the bracket around the handlebar and adjust the pivot point between the bracket and the display holder until the desired position is achieved.
To remove the Kiox display from the OC Components holder, unscrew first the bolt on the back of the holder with a 2.5mm Allen key.
Using a bolt longer than the original may damage the display.
Consult the complete Kiox display user's manual here: https://www.bosch-ebike.com/fileadmin/EBC/Service/ Downloads/NA_MY19/BUI330_Kiox_MY19_US_ohne. pdf?_ = 1539780786

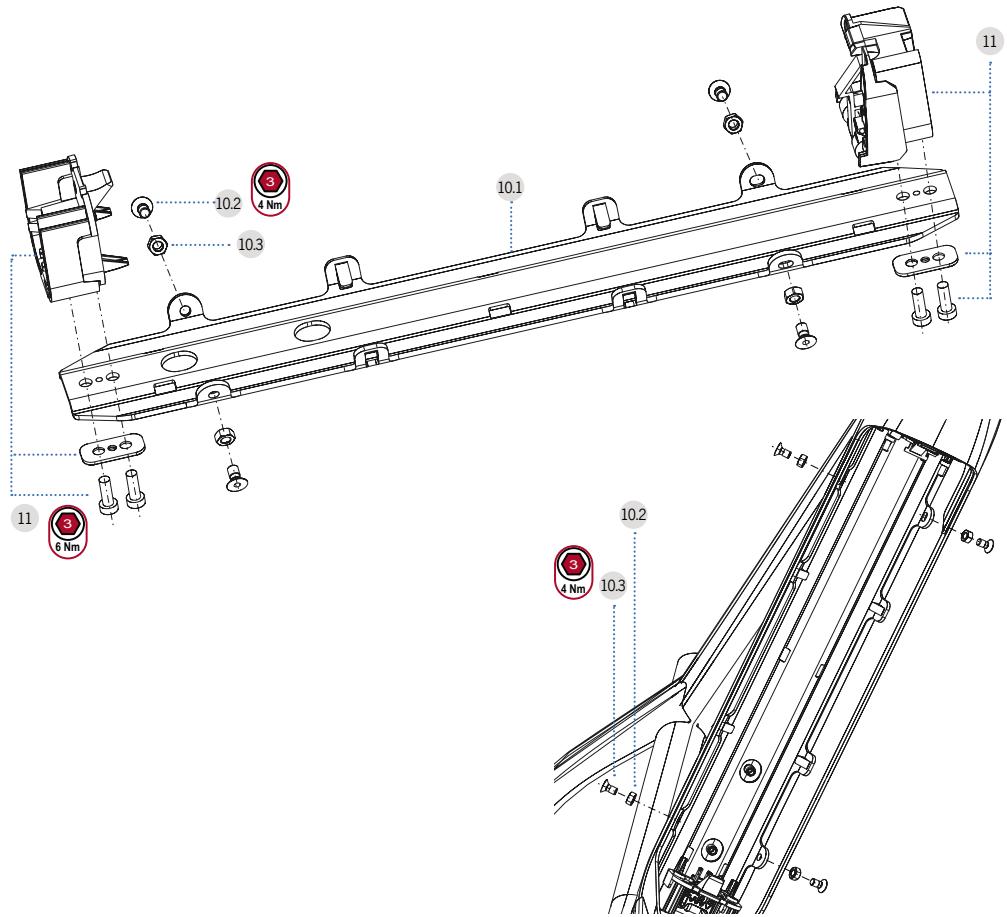

INTERNAL BATTERY PLATE
INTERNAL BATTERY MOUNTING PLATE KIT
| 10 | KIT N°: Y0000221 | QUANTITY |
| 10.1 | INTERNAL BATTERY MOUNTING PLATE | 1 |
| 10.2 | BOLT M4x10 DIN 7991 | 4 |
| 10.3 | NUT M4 DIN934 | 4 |
BOSCH POWERTUBE AND ABUS (LOCK) SPECIFIC COMPONENTS
11
For the Bosch specific electronic components, Powertube battery and battery brackets, contact a Bosch Ebike dealer. Consult
the diagram on the next page for the break down of these components.
For the Powertube bracket lock and key, contact and Abus dealer.

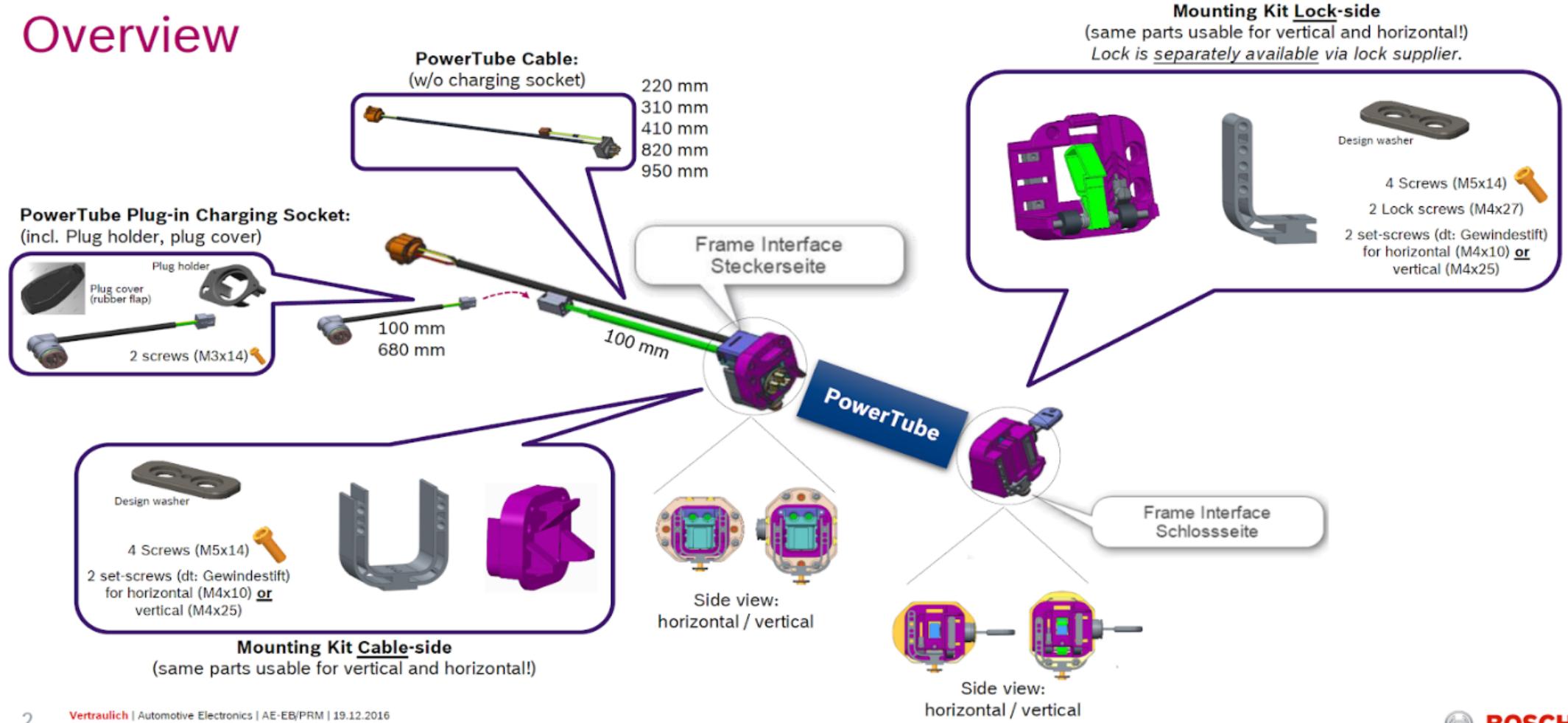

PowerTube: Holder Kits & Cables
Overview

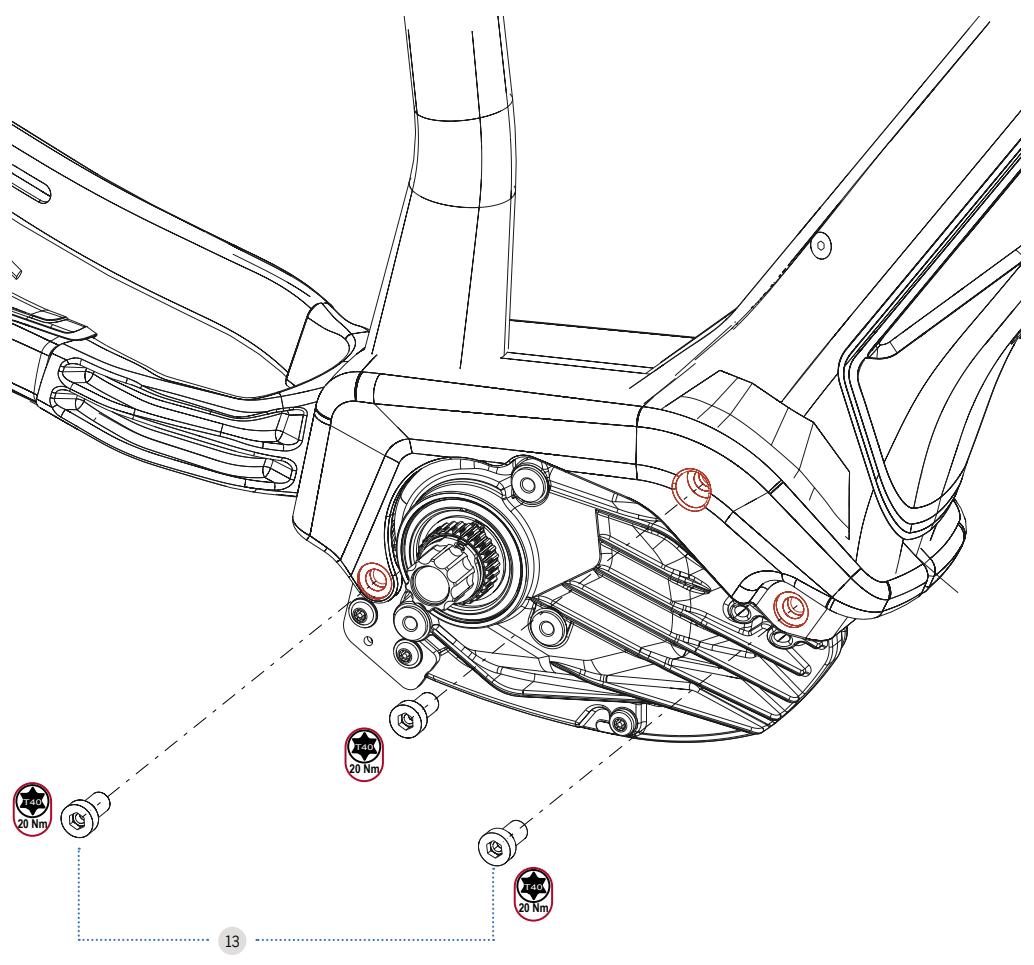

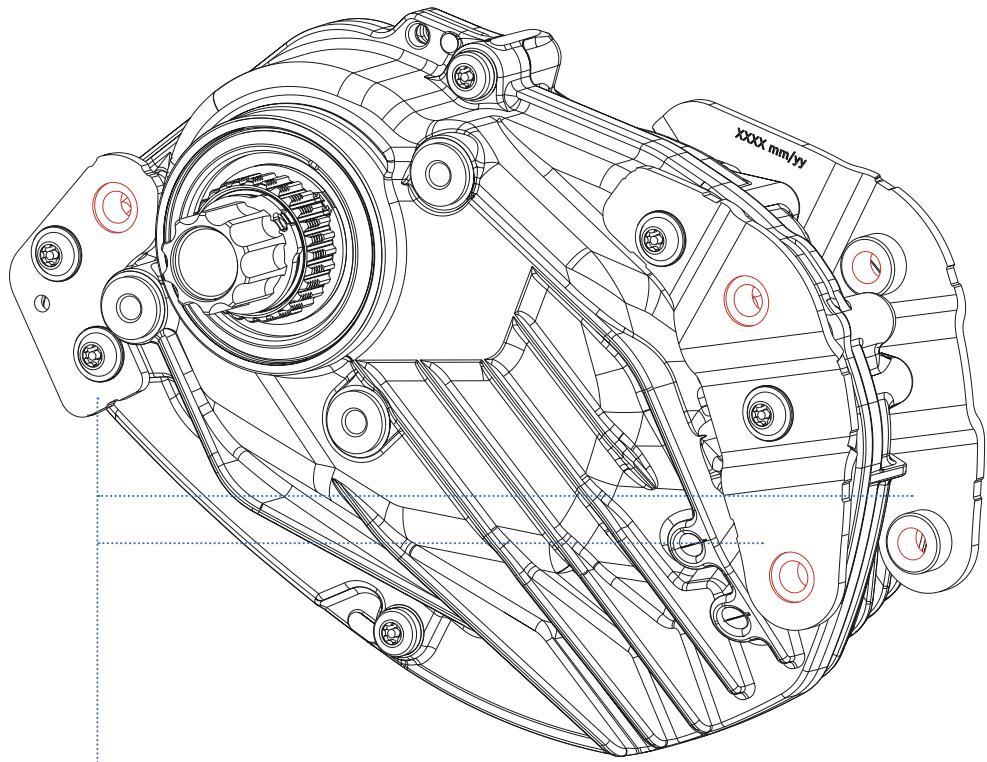

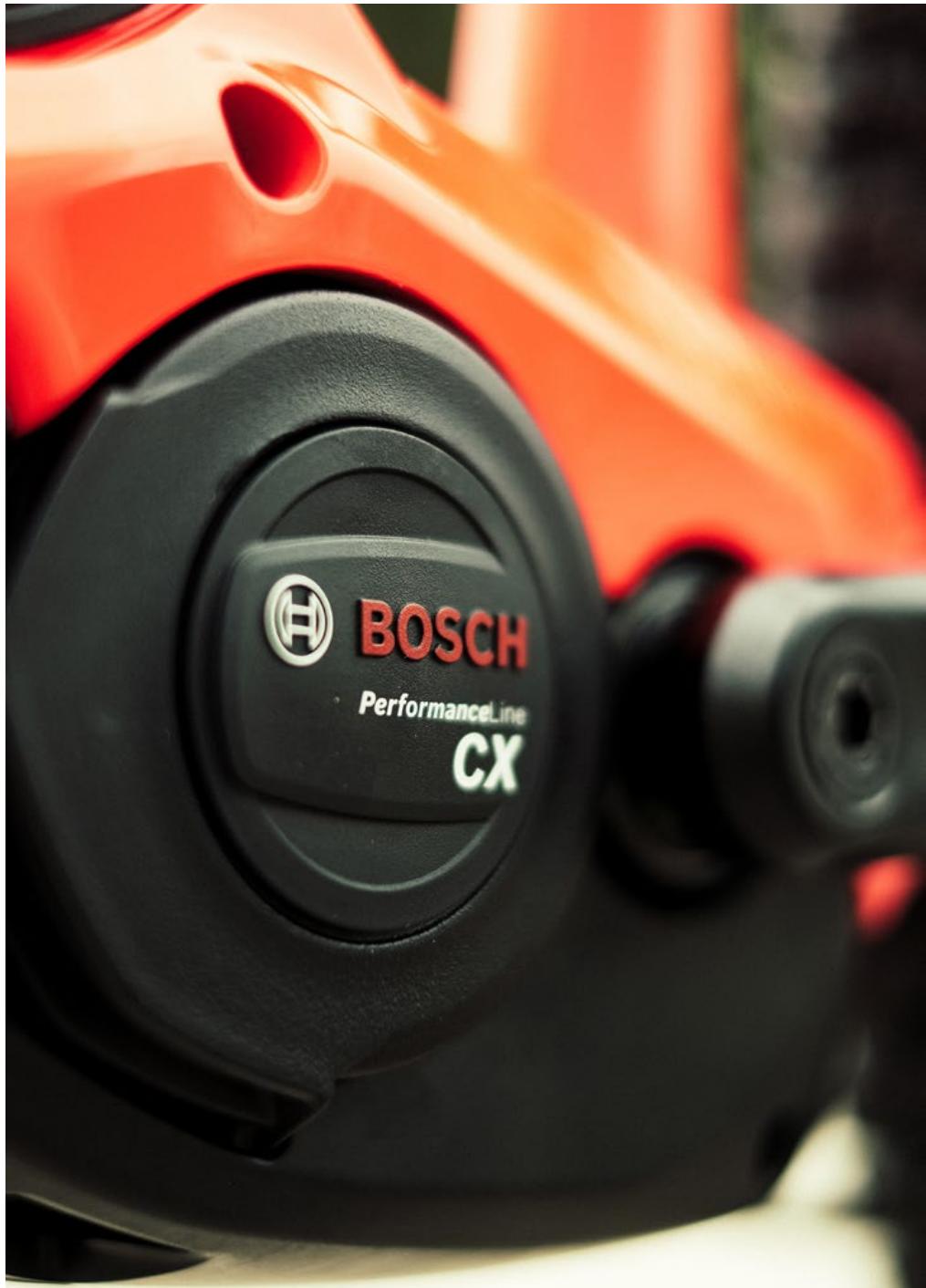

MOTOR ASSEMBLY
MOTOR FIXING BOLTS BOSCH GEN4
13 KIT N°: Y0000212
QUANTITY
BOLT M8x16 TORX BOSCH GEN4
The Bosch Gen4 fixing plates are available through
a Bosch ebike distributor.
MAINTENANCE
Orbea products are carefully designed to be long-lasting, efficient and easy to maintain. The carbon and aluminum frames on the Wild HT are extremely corrosion-resistant. However, your Orbea bicycle needs regular maintenance of its components in order to work properly and to ensure their longevity.
1) KEEP YOUR WILD HT CLEAN
Washing your bike with mild soap and water will keep you looking stylish and allow you to check the condition of the frame and components. Don't use high water pressure and avoid spraying water into bearings or frame tubes. Citrus degreasers are biodegradable and do a great job of remo-ving dirty grease from gears and chain.
2) KEEP YOUR WILD HT LUBED
Once your bike is clean, it's a good time to put fresh lube on the chain. Use only enough to get inside the links and wipe off any excess because it will attract dirt. Headset and pivot bearings should be inspected every few months for smoothness and to ensure that the seals are intact and lube is clean.
3) INSPECT YOUR WILD HT BEFORE YOU RIDE
Do a quick check before every ride to make sure your bike is in excellent condition. It is very common to discover small issues at home that can become big problems on the trail. CHAIN Is the chain dirty, noisy or dry? Clean and lube your chain before riding. BRAKES Check your brakes to make sure they are working correctly. Check for missing/ loose caliper and rotor bolts. TIRES Look for damage to the sidewalls of your tires. Check and adjust tire pressu-re. WHEELS Spin the wheels and look for wobbles, check for loose or broken spokes. Check quick release levers to make sure they are functioning properly. FRONT END Stand over the saddle, pull on the brakes and rock the bike back and forth. Feel for any play or knocking that might indicate a loose headset, loose brake rotors or calipers, or worn fork bushings.
TEST RIDE Take a quick ride up and down the street to make sure your bike is shifting and braking properly. Listen for unusual noises.
4) BEARINGS
Bearings are one element subject to wear and tear. They must be in good condition to ensure that the other parts of the bicycle work correctly: on the wheels, the steering column and the bottom bracket.
Regularly check to make sure that the bearings turn freely in their housing and there are no signs of lateral play. Bearings that do not turn properly or that have any lateral play must be replaced immediately in order to prevent wear and tear to the parts of the frame. Very damp weather conditions can cause the bearings to wear out faster. Avoid washing your bicycle with pressurized water hoses. If you have any questions, take your bicycle to an Orbea dealer for correct diagnosis and maintenance.
5) BOSCH EBIKE ELECTRIC SYSTEM
Ebikes' electric systems use complex electronic components that require your attention. Always read the available documentation before using your ebike and follow the recommended use and maintenance instructions.
This documentation will allow you to get the maximum performance out of your ebike.
To know more about the Bosch system on your Wild HT, go to:
https://www.bosch-ebike.com/
AFTER A CRASH OR IMPACT
Falling is part of riding and it's impossible to avoid minor accidents. If you crash your Wild HT, please make sure you are okay and seek medical attention if necessary. If you are not injured, you should check your bike before continuing:
1) Inspect your frame and components for damage.
Do not ride your bike if any problems are detected.
WHAT TO LOOK FOR
Inspect Frame and fork for evidence of cracking or bending. If cracks are discovered, discontinue use immedi- dia-tely.
Check the drivetrain and spin the wheels to make sure components are operating correctly. If you discover da-mage to your components, discontinue use immediately.
Even if you don't find any damage, pay careful attention to the sound of your bike when you continue riding. Unusual noises can be caused by cracks or other problems. A well-maintained bike will be quiet and free of creaks or squeaks. Investigate and locate the source of any new noises.
2) Bring your bike to your Orbea dealer for professionnal inspection. Some damage can only be detected by disassembling the bike to check for cracks or other signs of stress.
A crash or impact can put extraordinary stress on your bike and components, causing them to fail or to fa-tigue prematurely. Failure can happen suddenly with no warning, causing loss of control, serious injury or death.
ORBEA WARRANTY
The constant effort we make every day to produce the highest quality bicycles enables us to offer the following warranty and coverage conditions:
LEGAL WARRANTY
Orbea guarantees its products by law for a period of 2 years or whatever has been stipulated as the legal warranty period in the country where the purchase was made, to the original owner of the bicycle/component.
This warranty covers Orbea products against manufactu-ring defects and/or lack of conformity and guarantees the repair or replacement of the defective product at no cost to the affected customer. Likewise, this warranty also co-verts paint, varnish and corrosion defects on all frames and rigid forks assembled on our bicycles during the period specified in the first paragraph of this warranty.
This warranty does not cover in any case damage derived from misuse or the lack of maintenance, or from the normal wear and tear of perishable parts, such as, but not limited to: seals, bearings, handlebar tape, spokes, hub, threads, tires, seat, etc.
See the full description of the coverage and the legal warranty conditions at:
https://www.orbea.com/int-en/warranty-benefits/
ORBEA LIFETIME WARRANTY
As a complement to the legal warranty, Orbea offers the original buyer of the bicycle, under the condition of having registered their bicycle on the Orbea website within a period of 30 days following its purchase, the Orbea Li-fetime Warranty, which covers the frames and rigid forks we assemble on our bicycles, with no time limit, against manufacturing defects.
This warranty extends the original period of coverage against pain, varnish or corrosion defects on our frames and rigid forks for one additional year after the end of the legal warranty period.
See the full description of the coverage and the Lifetime Warranty conditions at:
https://www.orbea.com/int-en/warranty-benefits/

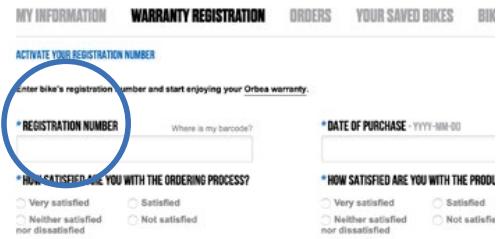

REGISTER YOUR BICYCLE
In order to benefit from the extension of the Orbea Life- ti-me Warranty, register your bike within the first 30 days of having purchased it at www.orbea.com
- REGISTER YOUR ACCOUNT
- REGISTRATION NUMBER
- WHERE TO FIND YOUR NUMBER
WARRANTYCLAIMPROCESS
All warranty claim processes must be processed through an Orbea dealer, who will provide the company with the necessary documentation for the diagnosis of said claim. The dealer will inform the customer of the decision made by Orbea.
BOSCH EBIKE PRODUCTS
Bosch ebike components are covered by a two year warranty from the moment of purchase. Consult the complete warranty terms and conditions on https://www.bosch-ebike.com/
For any question or claim about the Bosch system on your Wild HT, contact your Orbea dealer.
