RACER 250 - Drone de course EACHINE - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Drone de course
Marque	Eachine
Modele	Racer 250
Dimensions	220 x 233 x 50 mm
Poids (sans batterie)	400 g
Alimentation	Batterie LiPo 11.1 V 1300-2200 mAh 25C 3S
Autonomie de vol	10 a 14 minutes
Frequence de la telecommande	2.4 GHz 6 canaux
Controleur de vol	CC3D
Moteurs	Brushless 2204 (2300 KV)
Variateurs ESC	Brushless 12 A
Helices	5030 (reversibles et avant)
Camera	HD 1000 TVL, angle reglable
Transmission video	5.8 GHz 600 mW, 32 canaux, OSD integre
Phare avant	LED blanc 3 W
Feu arriere	LED bleu
Matiere du chassis	Fibre de carbone
Portee de la telecommande	Jusqu'a 300 m (video) / 50 m (visuel)
Temperature de fonctionnement	-10 °C a +40 °C
Age recommande	A partir de 14 ans
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Eviter l'eau. Verifier les helices et moteurs apres chaque vol.
Securite	Ne pas voler par mauvais temps, pres de lignes haute tension, foules ou animaux. Toujours garder le drone en vue.
Pieces detachees et reparabilite	Helices, moteurs, ESC, camera, antenne et batterie sont remplacables. Ref. 5030 pour helices, 2204 pour moteurs.
Informations generales	Notice d'utilisation en francais disponible. Concu pour pilotes experimentes.

FOIRE AUX QUESTIONS - RACER 250 EACHINE

Quelle batterie utiliser pour le Eachine Racer 250 ?

Utilisez une batterie LiPo 3S 11.1 V d'une capacite de 1300 a 2200 mAh avec un taux de decharge d'au moins 25C.

Quel est le temps de vol du Racer 250 ?

Le temps de vol est d'environ 10 a 14 minutes selon le style de pilotage et la batterie utilisee.

Comment armer et desarmer les moteurs ?

Pour armer : mettez la manette des gaz au plus bas et poussez le joystick de direction a droite. Pour desarmer : gaz au plus bas et joystick de direction a gauche.

Quelle est la portee de la telecommande et de la video ?

La portee video en 5.8 GHz est d'environ 300 m, et la portee de la telecommande 2.4 GHz est d'environ 50 m en visuel direct.

Le drone est-il adapte aux debutants ?

Non, ce drone est recommande aux pilotes experimentes (a partir de 14 ans) en raison de sa vitesse elevee et de sa sensibilite.

Comment ajuster l'angle de la camera ?

Desserrez les quatre vis a metal pour incliner la camera a l'angle desire, puis resserrez-les.

Quels types d'helices sont fournis ?

Le drone est equipe d'helices 5030 reversibles et d'helices avant. Elles sont facilement remplacables.

Comment activer les lumieres LED ?

Assurez-vous que l'interrupteur des lumieres sur le drone est en position 'on', puis utilisez l'interrupteur SWB sur la telecommande pour allumer/eteindre les phares avant et arriere.

Que faire en cas d'ecran neige (snowflakes) ?

L'ecran neige est normal lors de la recherche de frequence. Appuyez brievement sur le bouton de recherche automatique pour synchroniser le canal video.

Ou trouver la notice complete en francais ?

La notice complete en francais est disponible en telechargement gratuit sur notice-facile.com.

MODE D'EMPLOI RACER 250 EACHINE

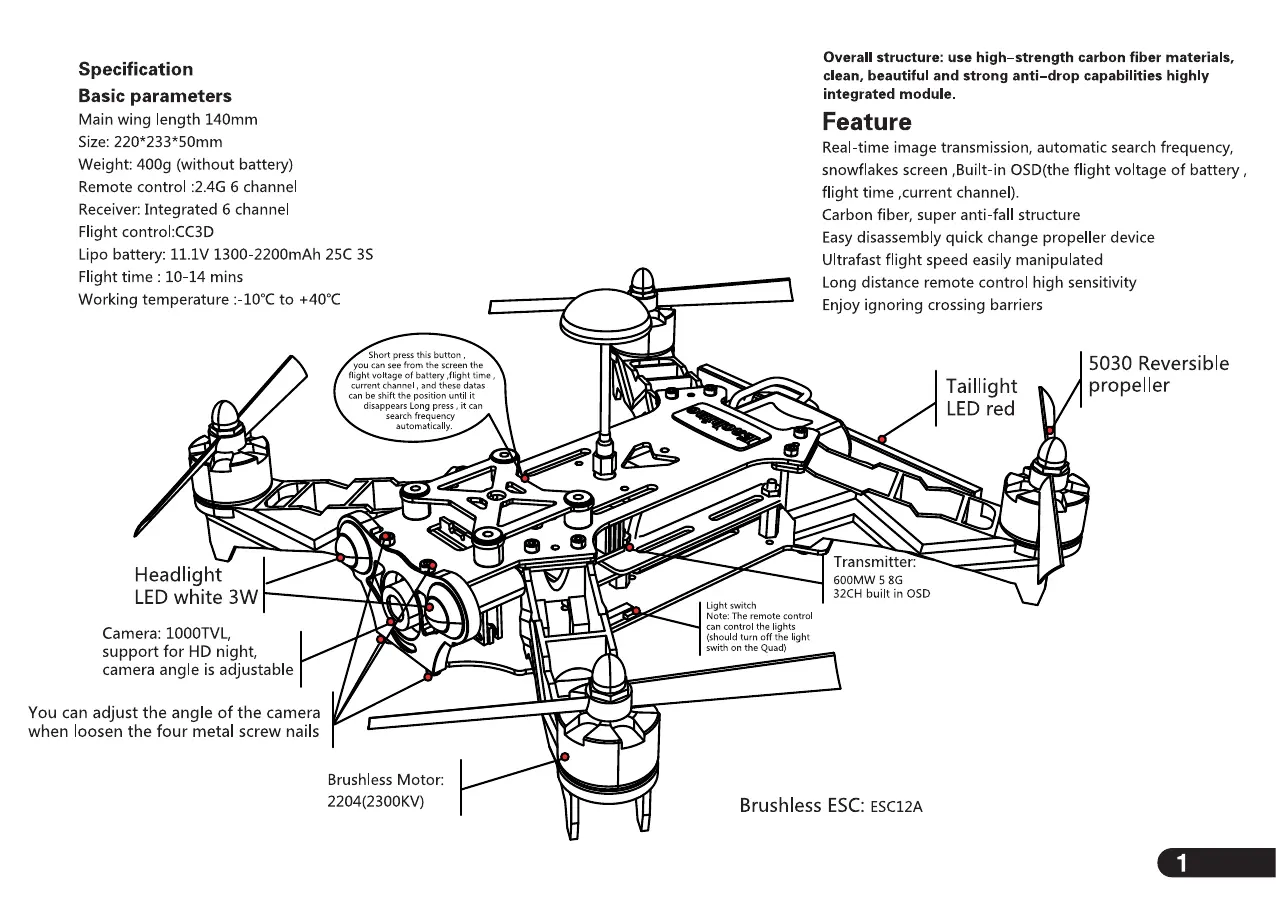

Specification

Basic parameters

Main wing length 140mm

Size: 220*233*50mm

Weight: 400g (without battery)

Remote control :2.4G 6 channel

Receiver: Integrated 6 channel

Flight control:CC3D

Lipo battery: 11.1V 1300-2200mAh 25C 3S

Flight time : 10-14 mins

Working temperature : -10°C to +40°C

Overall structure: use high-strength carbon fiber materials, clean, beautiful and strong anti-drop capabilities highly integrated module.

Feature

Real-time image transmission, automatic search frequency, snowflakes screen, Built-in OSD (the flight voltage of battery, flight time, current channel).

Carbon fiber, super anti-fall structure

Easy disassembly quick change propeller device

Ultrafast flight speed easily manipulated

Long distance remote control high sensitivity

Enjoy ignoring crossing barriers

Flight time : 10-14 mins Working temperature :-10°C to +40°C Short press this button, you can see from the screen the flight voltage of battery, flight time, current channel, and these data can be shift the position until it disappears Long press, it can search frequency automatically. Short distance remote control high sensitivity Enjoy ignoring crossing barriers 5030 Reversible propeller Taillight LED red Transmitter: 600MW 5.8G 32CH built in OSD Headlight LED white 3W Camera: 1000TVL, support for HD night, camera angle is adjustable You can adjust the angle of the camera when loosen the four metal screw nails Light switch Note: The remote control can control the lights (should turn off the light switch on the Quad) Brushless Motor: 2204(2300KV) Brushless ESC: ESC12A

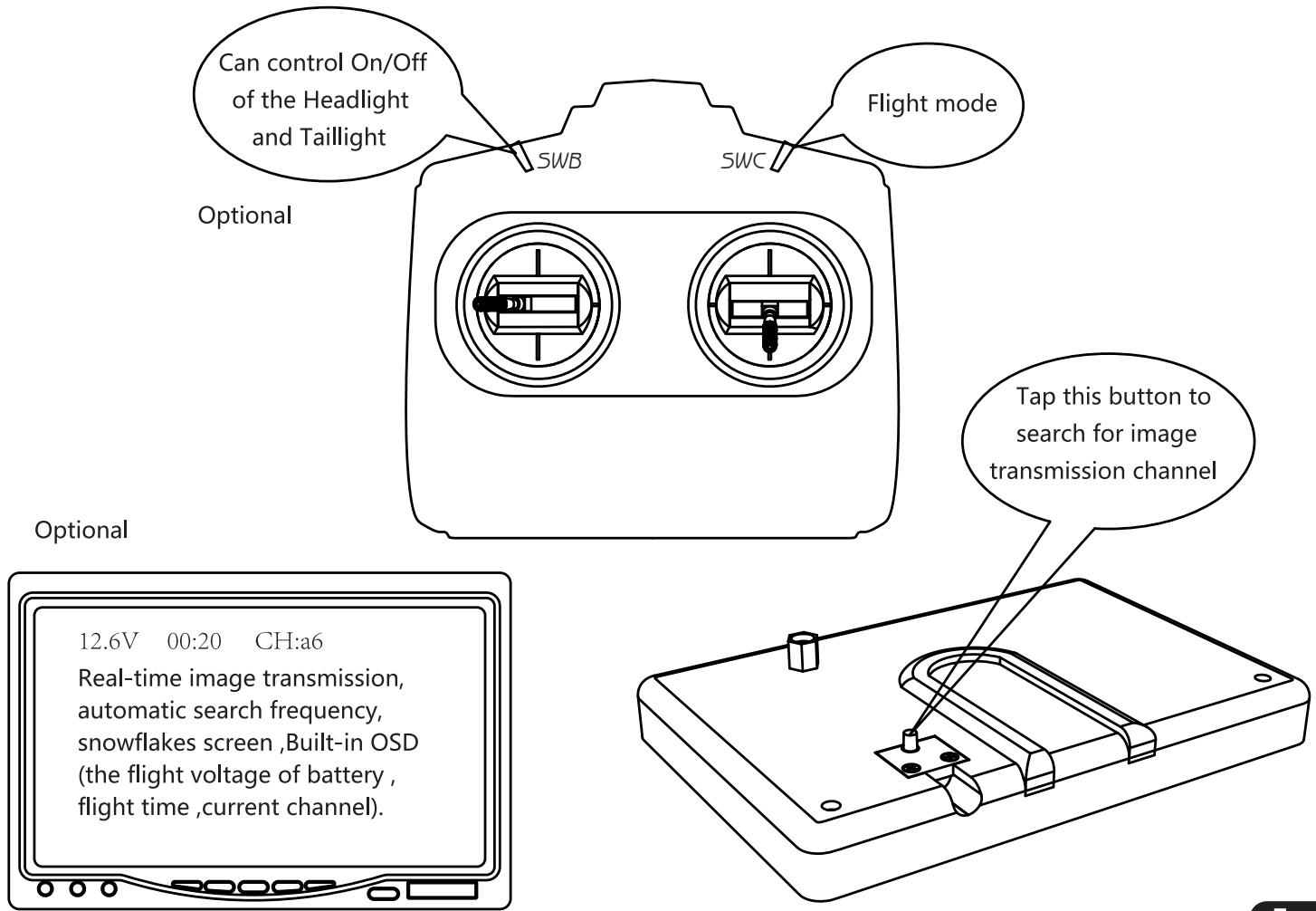

Special features

Can control On/Off of the Headlight and Taillight SWB SWC Flight mode Optional Tap this button to search for image transmission channel 12.6V 00:20 CH:a6 Real-time image transmission, automatic search frequency, snowflakes screen ,Built-in OSD (the flight voltage of battery , flight time ,current channel).

233mm 50mm

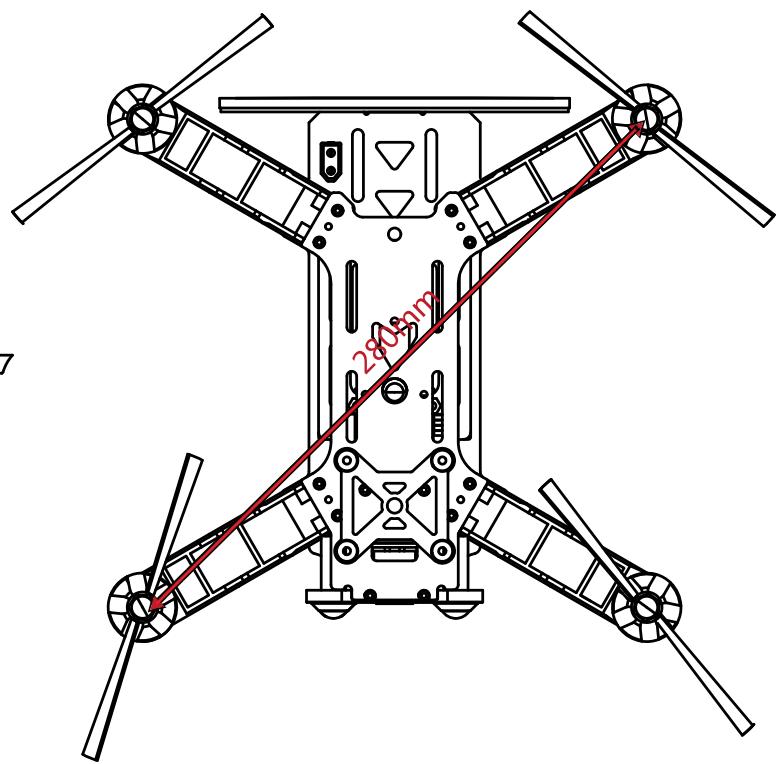

280.85mm

Flying Notice:

1 This product is suitable for the people who are not less than 14 years of age who have experience operating model,
2 Do not fly under adverse weather conditions, such as strong wind, rainy, snowy, fog weather.
3 Select the open and legal space.
4 When flying, please stay away from high-speed rotating component (such as a propeller, brushless motor)
5 Do not fly in areas with high-voltage lines, communication base stations or towers, etc., in order to avoid interference on the remote control.
6 Do not fly in the no-fly area.

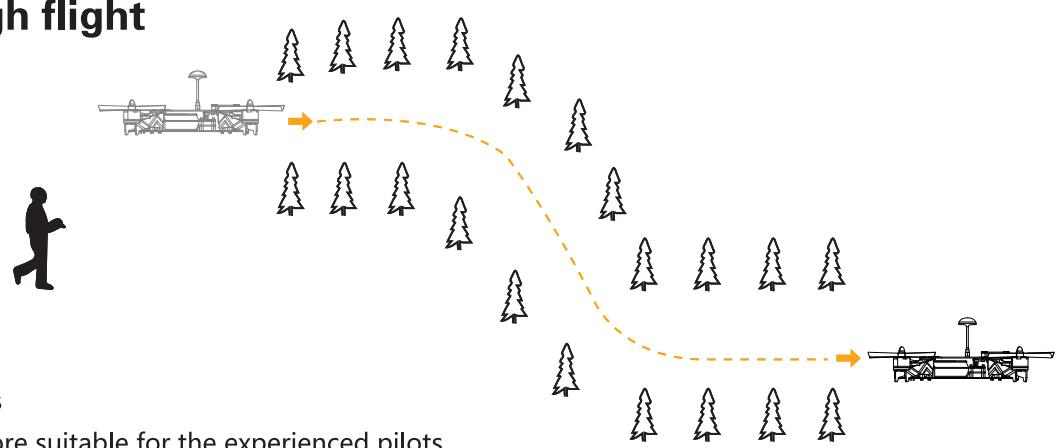

Through flight

Cautions

1 This is more suitable for the experienced pilots.
2 When flying, Please keep in sight 50 meters or video reception range within 300 meters to control the flight (actual range depends on the flight environment and weather conditions)
3 When flying, please avoid the crowd, animals and high-voltage wires and other obstructions.

Eachine Racer 250

INSTRUCTION MANUAL

Technical line drawing of a multi-rotor drone with visible propellers and structural components (no text or labels)

Motor unlocked /locked

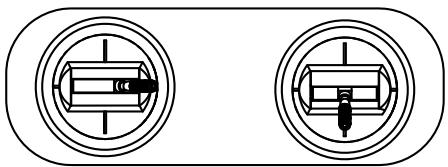

Motor unlocked

Put the throttle stick to the lowest point, turn the direction of the joystick to the right --the motor is unlocked.

MODEL 1 (Right hand throttle)

Pure electrical circuit lines without any symbols

direction of the joystick
Throttle Stick

MODEL 2 (Left hand throttle)

Pure electrical circuit lines without any symbols

Throttle Stick
Lift rocker

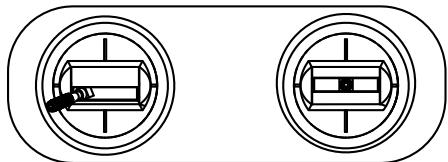

Motor Locked

Put the throttle stick to the lowest point, turn the direction of the joystick to the left --the motor is locked.

MODEL 1 (Right hand throttle)

Pure electrical circuit lines without any symbols

direction of the joystick
Throttle Stick

MODEL 2 (Left hand throttle)

Pure electrical circuit lines without any symbols

Throttle Stick
Lift rocker

1 LED white Headlight 2 HD Camera 3 5030 Rotating Propeller 4 5030 Forward Propeller 5 2204(2300KV) Brushless Motor 6 Mushroom Antenna ( optional ) 7 600mw 5.8G Transmitter 8 2.4G Receiver ( optional ) 9 CC3D Flight control 10 11.1V 1500mAh 25C 3S Lipo battery (optional) 11 LED blue Taillight 12 Brushless ESC 12 V

1 LED white Headlight
2 HD Camera
3 5030 Rotating Propeller
4 5030 Forward Propeller
5 2204(2300KV) Brushless Motor
6 Mushroom Antenna (optional)

7 600mw 5.8G Transmitter
8 2.4G Receiver (optional)
9 CC3D Flight control
10 11.1V 1500mAh 25C 3S Lipo battery (optional)
11 LED blue Taillight
12 Brushless ESC 12 V

Aircraft Sets

15 150Cr-4 Model Number: 150Cr-4 Description: 150Cr-4 Rating: 150Cr-4 Performance: 150Cr-4

15 150Cr + 8.5V Model: 150Cr 150Cr + 8.5V Model: 150Cr + 8.5V
