KD 2070 - Platine vinyle KENWOOD - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Platine vinyle à entraînement direct
Marque	Kenwood
Modèle	KD 2070
Dimensions (L x H x P)	468 x 147 x 365 mm
Poids	7,0 kg
Alimentation	120 V CA, 60 Hz (modèle USA/Canada) ; 240 V CA, 50 Hz (modèle UK) ; 120/220 V CA, 50/60 Hz (autres pays)
Consommation électrique	7,0 watts
Moteur	Moteur servocommandé CC à 20 pôles et 30 encoches
Plateau	Diamètre 31 cm (12-3/16 pouces), alliage d'aluminium moulé sous pression, poids 1,1 kg
Vitesses	33-1/3 et 45 tr/min
Plage de réglage de vitesse	±3%
Pleurage et scintillement	Moins de 0,04% (WRMS)
Ronflement (pondéré DIN)	Meilleur que -65 dB
Ronflement (non pondéré DIN)	Meilleur que -45 dB
Bras de lecture	Type équilibré statique, bras tubulaire en S
Longueur effective du bras	225 mm (8-7/8 pouces)
Débord (overhang)	15 mm (9/16 pouce)
Erreur de suivi	±1,5 degré
Plage de force d'appui	0 à 3 grammes
Poids de cellule compatible	4 à 10 grammes
Cellule fournie	V-47 (selon destination)
Style de saphir	N-47, diamant 0,5 mil
Réponse en fréquence	20 Hz à 20 000 Hz
Tension de sortie	2,0 mV (1 000 Hz, 5 cm/s)
Force d'appui optimale	2,0 ±0,5 grammes
Impédance de charge	50 kΩ
Fonctions supplémentaires	Dispositif d'élévation amorti (cueing), dispositif antiskating, stroboscope avec lampe, réglages fins de vitesse, support de coquille
Accessoires fournis	Adaptateur EP, coquille avec cellule, contrepoids, poids antiskating, vis pour couvercle
Entretien et nettoyage	Nettoyer le boîtier et le couvercle avec un chiffon doux ou silicone ; ne pas utiliser de diluant, alcool, benzène
Sécurité	Ne pas exposer à la pluie ou à l'humidité ; vérifier la tension avant utilisation
Réparabilité - Pièces détachées	Cellule de remplacement N-47 disponible chez le revendeur

FOIRE AUX QUESTIONS - KD 2070 KENWOOD

Comment assembler la platine KD 2070 ?

Suivez l'ordre : retirez les deux boulons de transport, insérez la coquille dans le bras, fixez le contrepoids, placez le plateau et le tapis, branchez les câbles audio puis secteur, et installez le couvercle à l'aide des vis fournies.

Comment régler la force d'appui du bras ?

Retirez le capuchon du saphir et débranchez la prise secteur. Placez le levier de lecture sur PLAY. Équilibrez le bras horizontalement en tournant le contrepoids principal. Remettez le bras au repos, tournez l'anneau du contrepoids sur 0, puis tournez le contrepoids pour atteindre la force recommandée (ex. 2 g pour la cellule V-47).

Comment installer le poids antiskating ?

Accrochez le fil du poids antiskating sur la rainure correspondant à la force d'appui de votre cellule. Cela compense la tendance du bras à se déplacer vers le centre du disque.

Comment ajuster la vitesse de rotation ?

Placez le sélecteur de vitesse sur 33 tr/min et le levier de lecture sur ON. Tournez le bouton de réglage fin jusqu'à ce que les stries du stroboscope (motif du plateau) paraissent immobiles. Le réglage est correct pour 45 tr/min également.

Comment remplacer la cellule ?

Débranchez la platine. Retirez l'ancienne coquille du bras. Dévissez la cellule de la coquille, connectez les quatre fils aux bornes de la nouvelle cellule (voir schéma dans la notice), puis fixez-la avec les vis. Ajustez le débord (overhang) à 15 mm et réglez la force d'appui selon les recommandations du fabricant.

Comment remplacer le saphir ?

Le saphir de rechange pour la cellule V-47 est le modèle N-47. Retirez l'ancien saphir en tirant doucement, insérez le nouveau en poussant jusqu'au clip. Vous pouvez l'obtenir auprès de votre revendeur.

Que faire en cas de ronflement (hum) ?

Vérifiez que le câble audio et le fil de terre sont correctement connectés entre la platine et l'amplificateur. Assurez-vous que la coquille est bien enfoncée. Essayez de déplacer les câbles ou de changer la position de la platine. Inversez la fiche secteur.

Comment éviter l'effet Larsen (howling) ?

Placez la platine loin des enceintes, de préférence sur un sol solide (non sur des planches de bois lâches). Les vibrations des enceintes peuvent être transmises à la platine et provoquer des sifflements.

Comment nettoyer le boîtier et le couvercle ?

Utilisez un chiffon doux ou un chiffon silicone. En cas de salissures tenaces, essuyez avec un chiffon bien essoré trempé dans de l'eau savonneuse. N'utilisez jamais de diluant, alcool ou benzène.

Quand effectuer une révision périodique ?

Il est recommandé de faire vérifier la platine tous les deux ans par un revendeur agréé, même si elle fonctionne normalement, pour garantir une longue durée de vie et un fonctionnement stable.

MODE D'EMPLOI KD 2070 KENWOOD

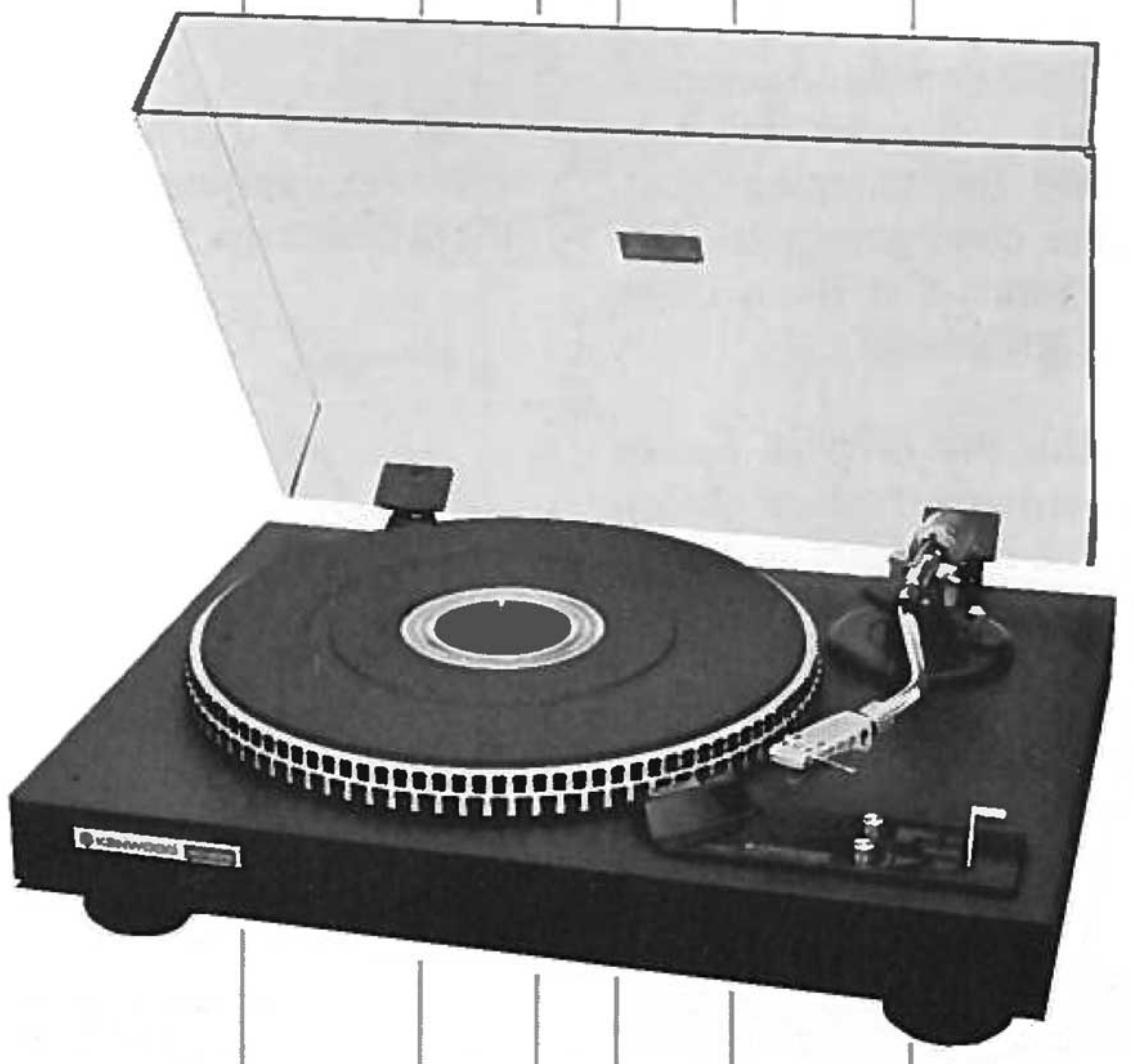

DIRECT-DRIVE TURNTABLE

KD-2070

INSTRUCTION MANUAL

INTRODUCTION

Thank you for purchasing our turntable. Because we take great pride in the long tradition of quality components the name KENWOOD represents, your choice of our product places you in a distinguished family of connoisseurs of superb high-fidelity sound reproduction.

The purpose of this manual is to acquaint you with the operating features of your new turntable. You will notice that in every detail of planning, engineering, styling, operating convenience, and adaptability, we have sought to anticipate your needs and desires.

We suggest that you read this manual carefully. Knowing how to set up your turntable, to the best advantage, will enhance your listening pleasure right from the start. You will also become aware of the ease with which you can adjust your turntable to meet your special requirements.

SERIAL NUMBER

Record your SERIAL NUMBER on the spaces designated on the warranty card. You will find the serial number on the back of the unit.

AFTER UNPACKING

After unpacking, we recommend you inspect and examine the unit for any possible shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage.

We recommend you retain the original carton and packing materials to prevent any damage should you transport or ship your unit in the future.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

NOTES

CONCERNING LINE VOLTAGE

• Units shipped to the countries listed in the table below are designed to be operated with the AC line voltages that are shown, which are standard in those countries.

Destination	AC Voltage
U.S.A.	120V
CANADA	120V
U.K.	240V

These units are therefore not equipped with an AC Voltage Selector. The owners of such units should disregard all reference to these items in this Instruction Manual.

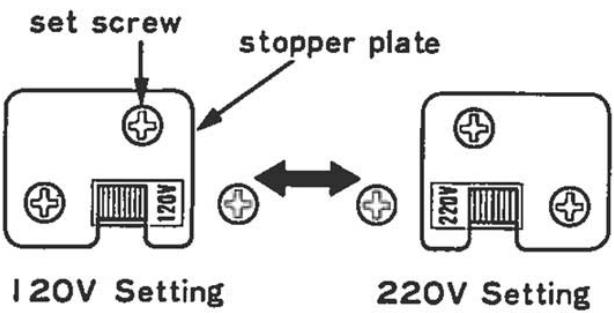

AC VOLTAGE SELECTOR

• Units shipped to countries not listed in the above table are equipped with an AC Voltage Selector beneath the Turntable Platter that is preset at the factory to the voltage generally available in the destination area. Before operating this turntable, make sure that the position of the AC Voltage Selector matches your line voltage.

If not, it must be changed to the proper setting.

• Be sure to remove the AC Plug when setting the AC Voltage Selector.

Our warranty does not cover damage caused by excessive line voltage due to improper setting of the AC Voltage Selector.

1. Remove the set screw and stopper plate.
2. Switch the lever to opposite side.
3. Lock the lever by attaching stopper plate with the set screw.

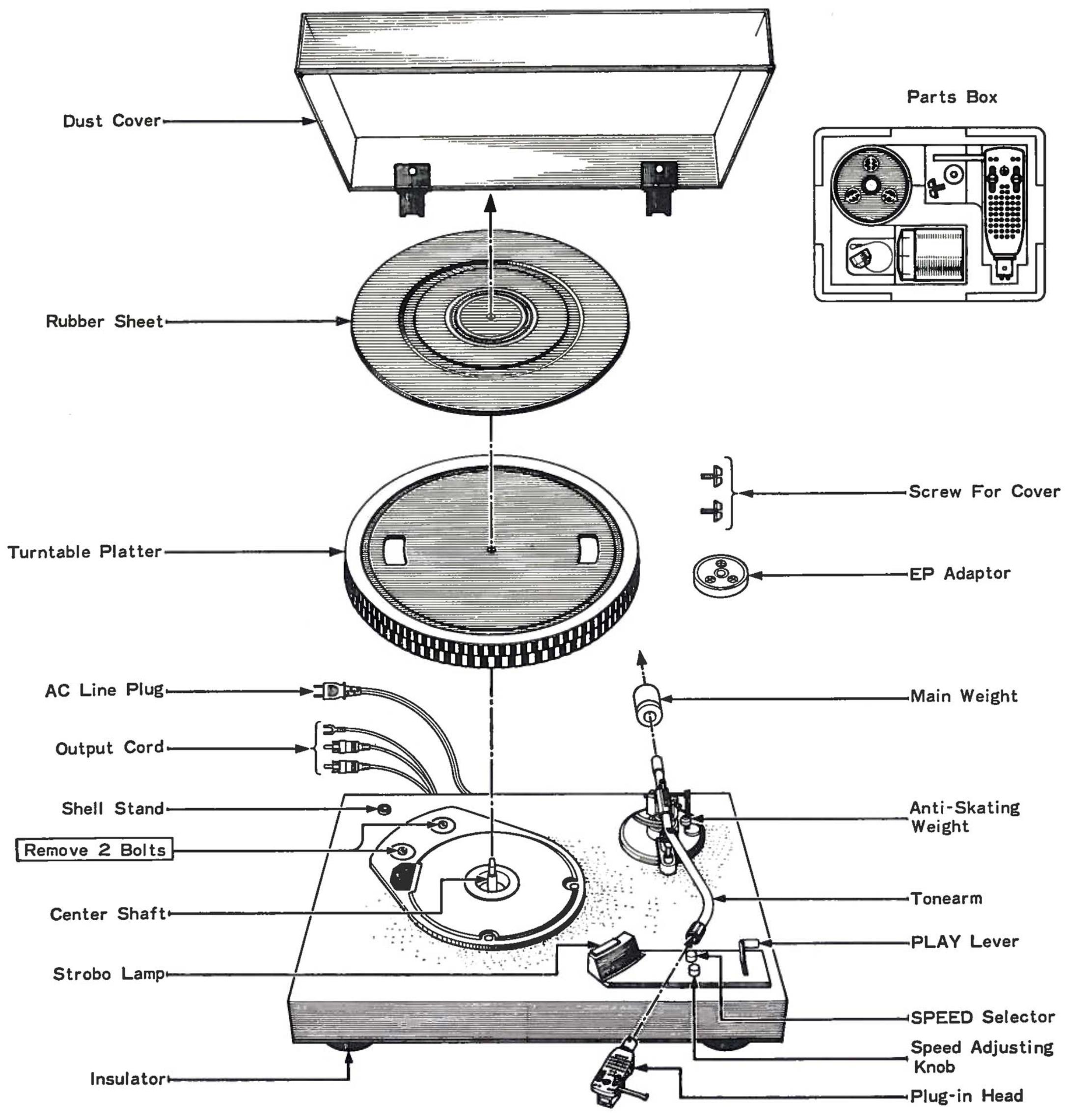

PARTS NOMENCLATURE

• Check to see that the packing carton contains all the component parts shown in the Figure below, before you begin to assemble the turntable.
  See page 4 for assembly procedure.

• You will find the smaller parts in the small parts box, also included in the carton.

Plug-in Head

EP Adaptor

Main Weight

Anti-Skating Weight

Screw For Cover

ASSEMBLY PROCEDURE

• Be sure to follow steps 1 to 6 in that order.

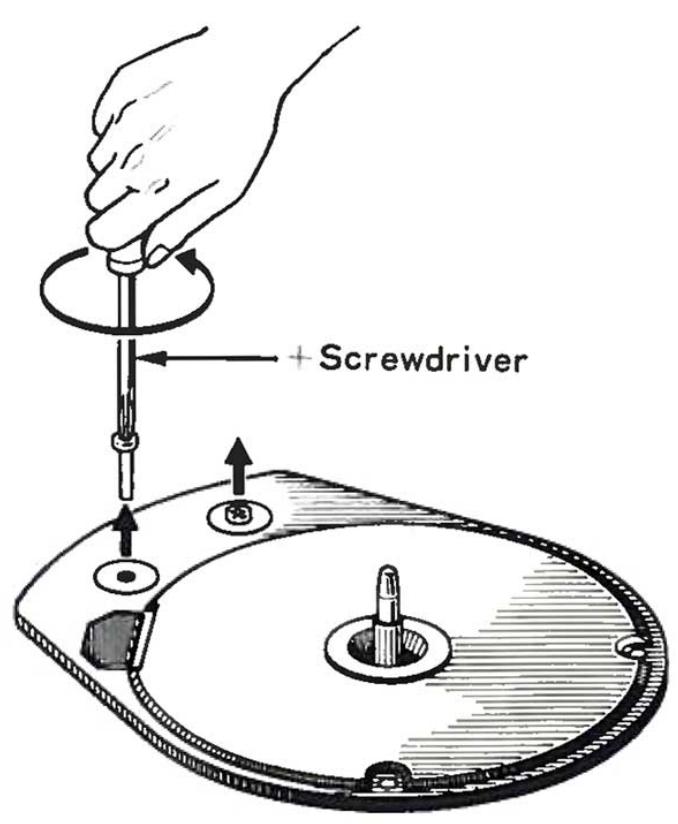

• Remove the two bolts shown in the diagram. (Painted red for easy identification) These bolts were used to lock the turntable assembly to protect it during shipment.

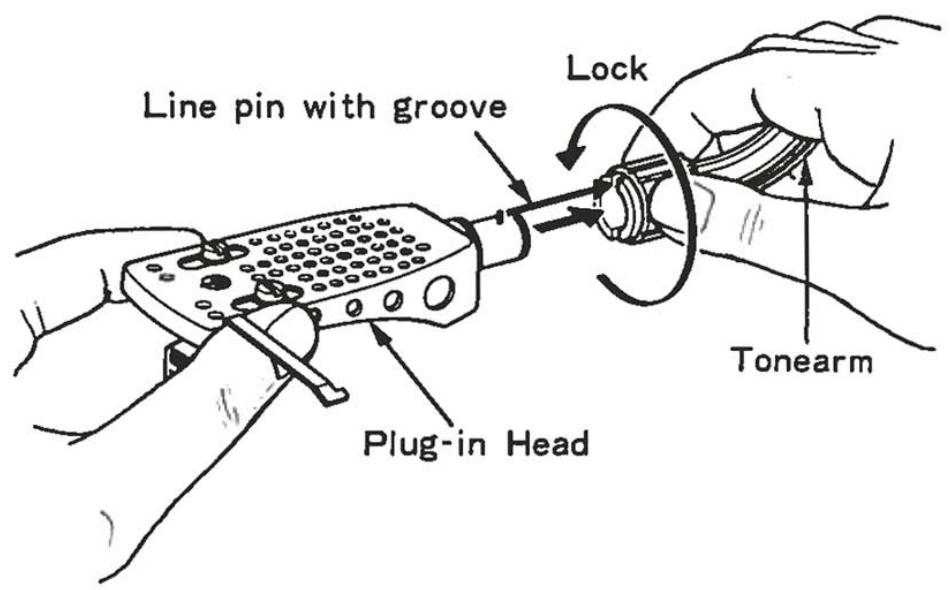

1. Insert the plug-in head into the tonearm.

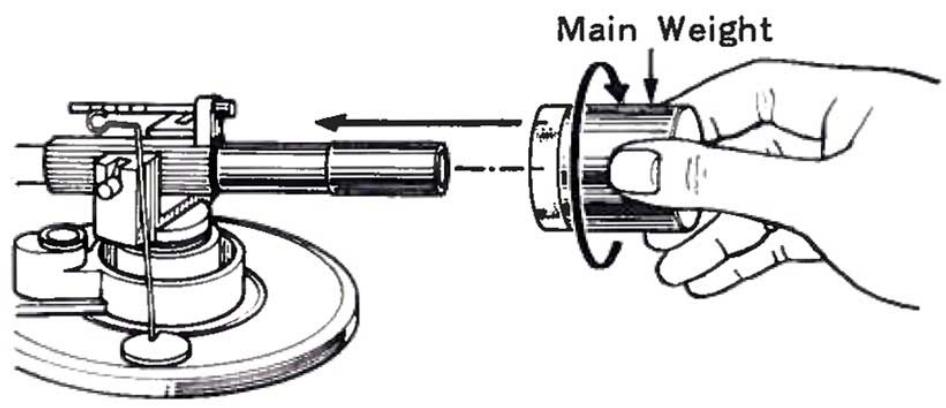

1. Attach the main weight to the rear of the tonearm.

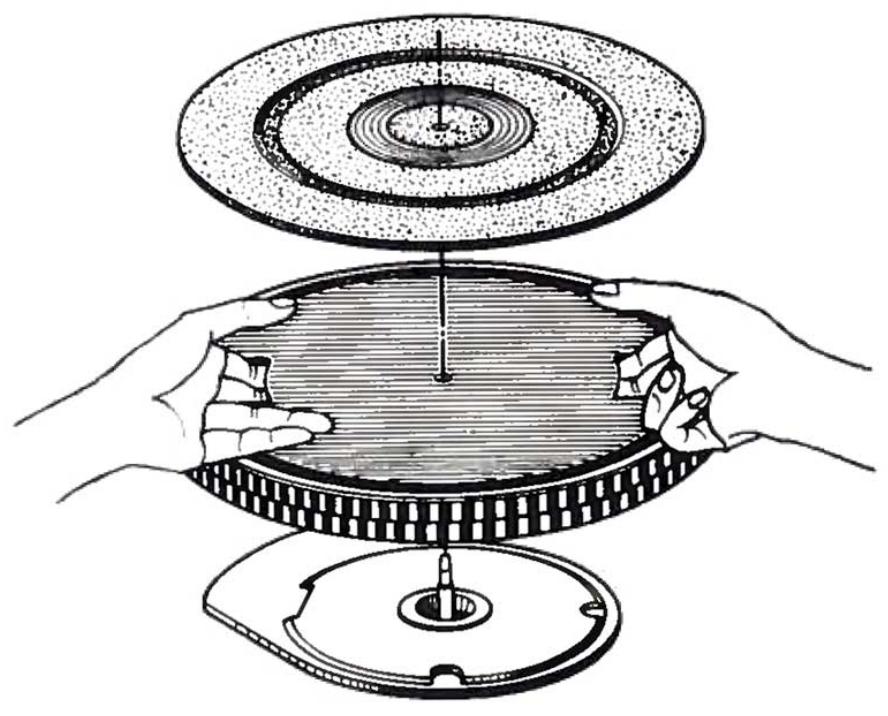

1. Place the turntable platter and rubber sheet on the center shaft.

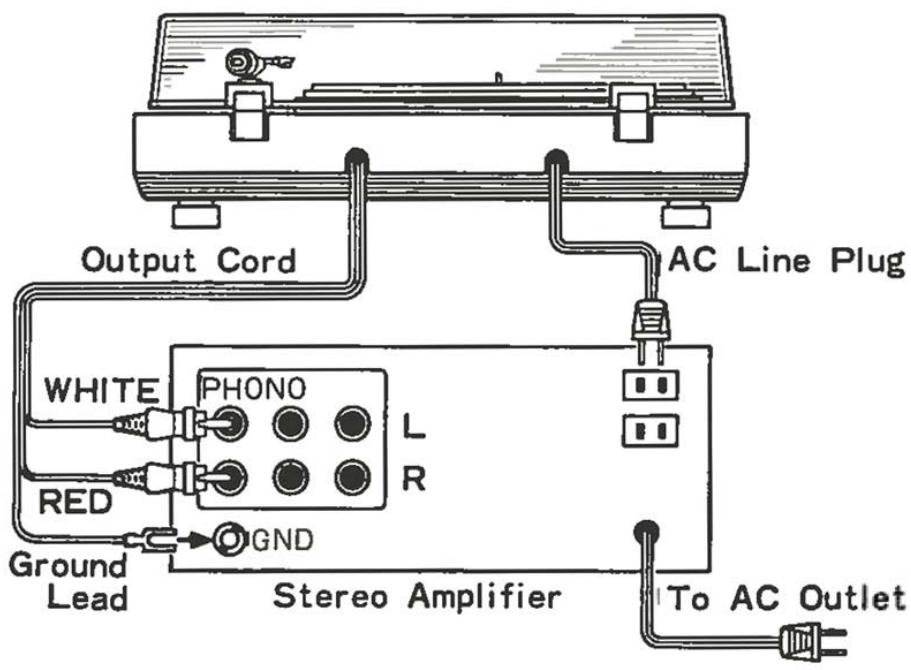

1. Connect the audio cord, then the AC cord.

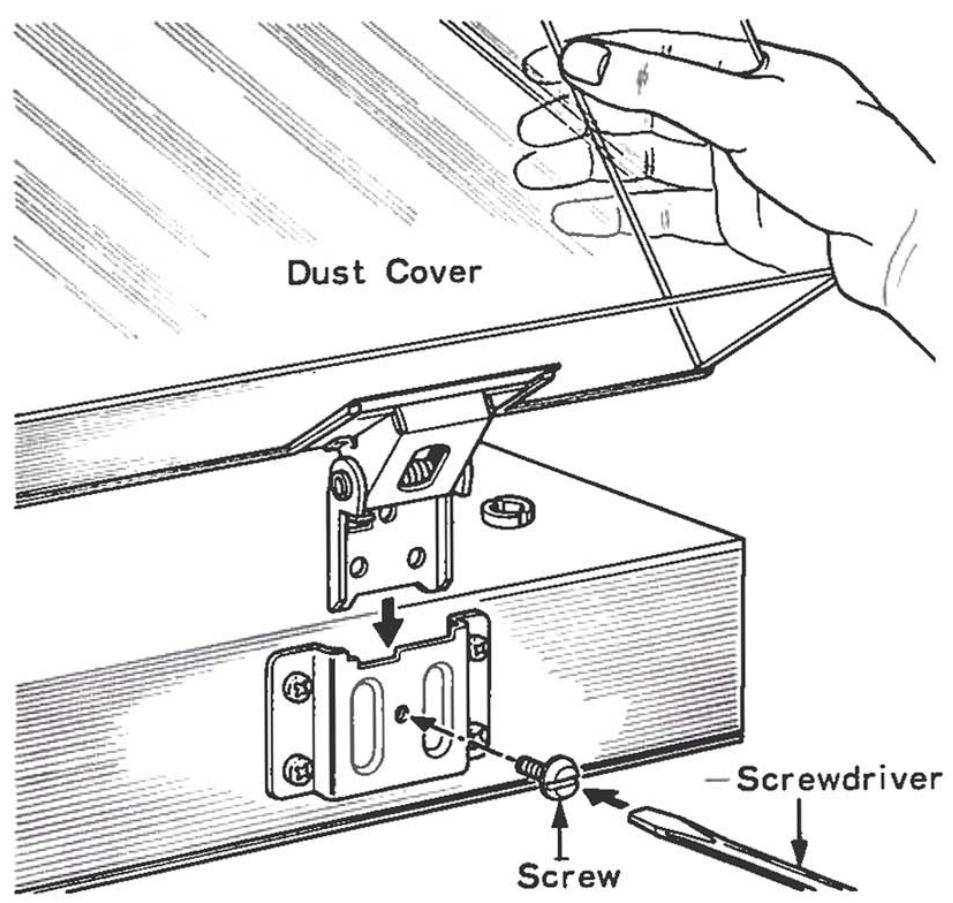

1. Install the dust cover. Use the screws that are supplied. They will ensure a closer fit.

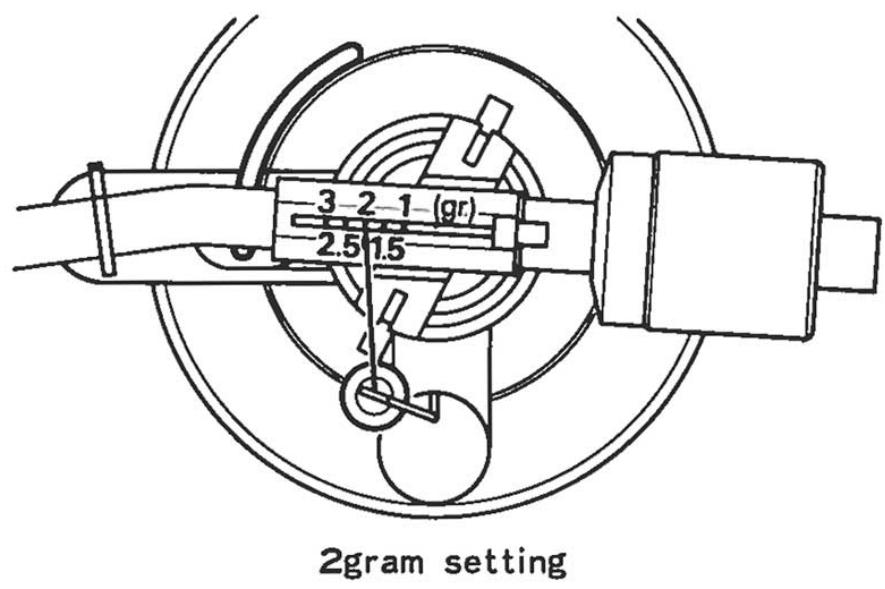

TRACKING FORCE ADJUSTMENT

1. Remove the stylus cover and also the AC plug. Set the play lever to "PLAY."
2. Release the tonearm from the arm rest.

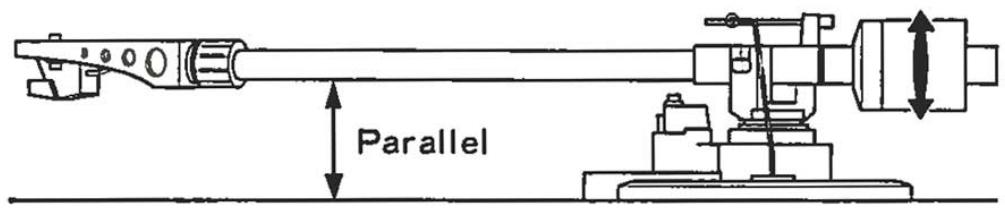

3. Turn the main weight either to the right or left so that the tonearm balances perfectly in a horizontal position.

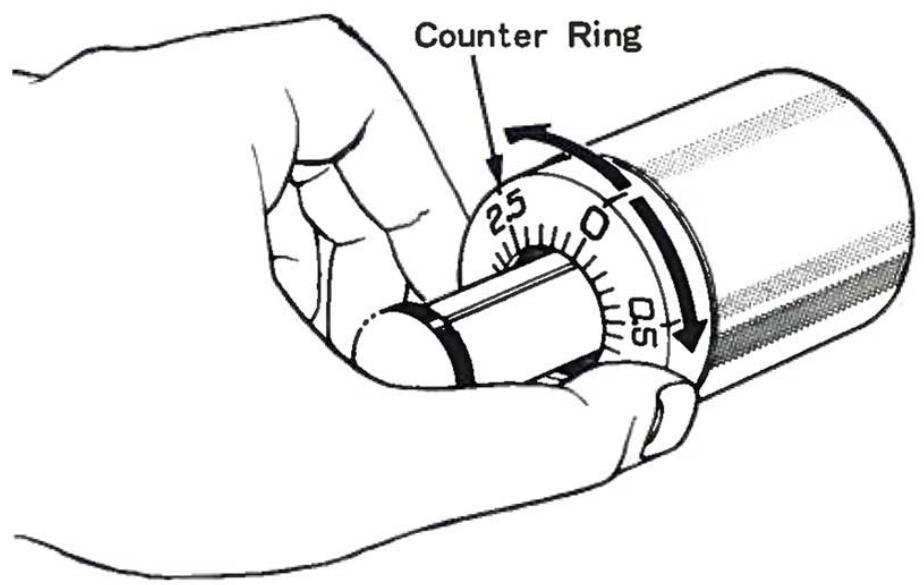

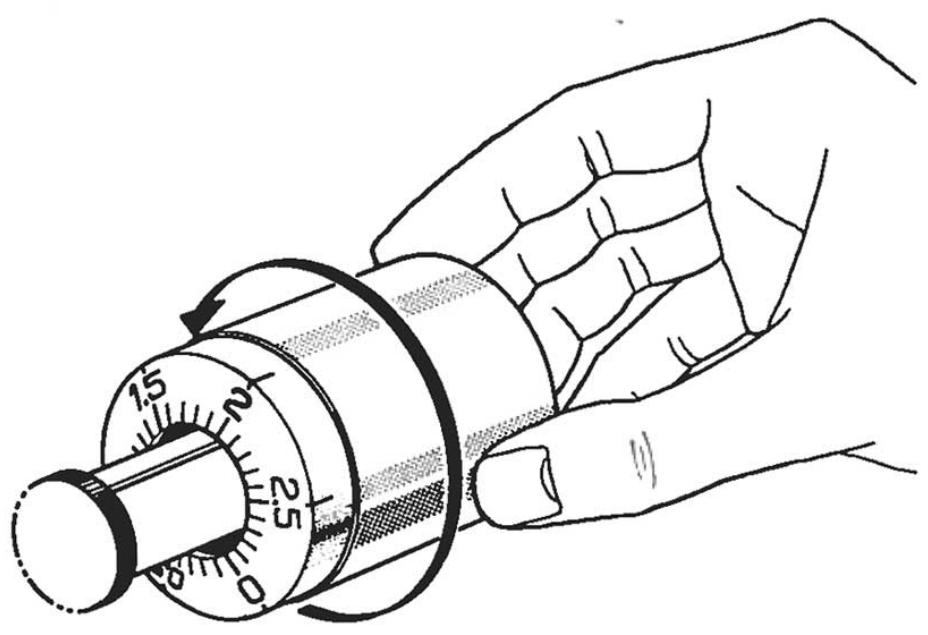

1. Return the tonearm to the arm rest. Now hold the main weight in place and turn only the counter ring so that it points to "0" position.

1. Turn the main weight to the right until the counter ring points to the tracking force recommended for the cartridge that is used.

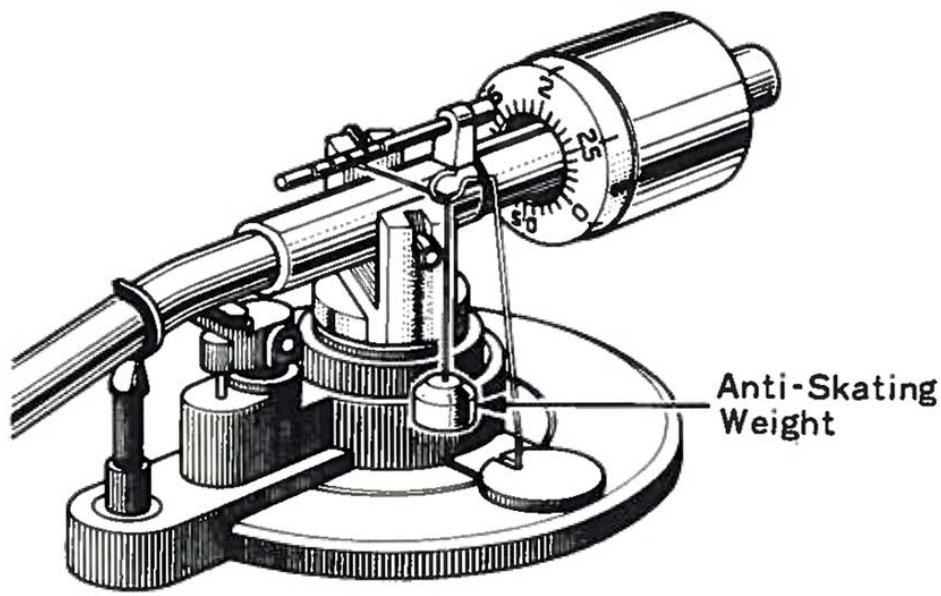

1. Next install the anti-skating weight by hooking its string over the groove that corresponds to the tracking force of the cartridge.

This will place appropriate counteracting force on the tonearm to offset its natural tendency to swing to the center and exert increased pressure against the inside groove wall.

1. Switch the play lever to "OFF" and then connect the AC cord.

Note: The V-47 cartridge is supplied with turntables that are shipped to certain areas of the world. Two grams is the recommended optimum tracking force for this V-47 cartridge.

OPERATING INSTRUCTIONS

1. Check the turntable connections to the amplifier. Also see that the amplifier's function knobs are set in correct positions.
2. Make adjustment for correct speed. See section under "How To Adjust Speed" on the next item.
3. Place the desired record on the turntable platter. If a 45 rpm "donut" style record is selected, use the EP adaptor that is supplied with this turntable.
4. Set the speed selector to the correct speed of the record that is chosen.
5. Remove the stylus cover and swing the tonearm over the starting position.
6. Switch the play lever to "PLAY." The tonearm will descend gently until the stylus engages the groove and record play will begin.
7. If you wish to interrupt record play temporarily, you may switch the play lever to "CUE." The tonearm will then rise to disengage the stylus from the record groove, but the platter will continue to turn. The stylus will remain stationary in this position so that record play can be resumed at this point at any time.
8. Switch the play lever to "OFF" at the end of record play and return the tonearm to the arm rest.

TROUBLE SHOOTING

Check the following if . . .

...hum (boom, zzz noise) is encountered.

• Check whether the audio cord and the ground wire are respectively connected between the turntable and amplifier.
• Check whether the plug-in head is perfectly mounted.
• Rearrange the audio cord and try changing the turntable position.
• Reverse the AC line plug insertion.

...howling occurs.

• Howling occurs when vibrating air pressures of speaker cone movements cause resonant vibrations in the turntable. This can be transmitted directly to the turntable, or it can happen through resonant vibrations of loose floorboards. Place the turntable away from the speaker system, preferably in a room with solid flooring to avoid this disturbance.

HOW TO ADJUST THE SPEED

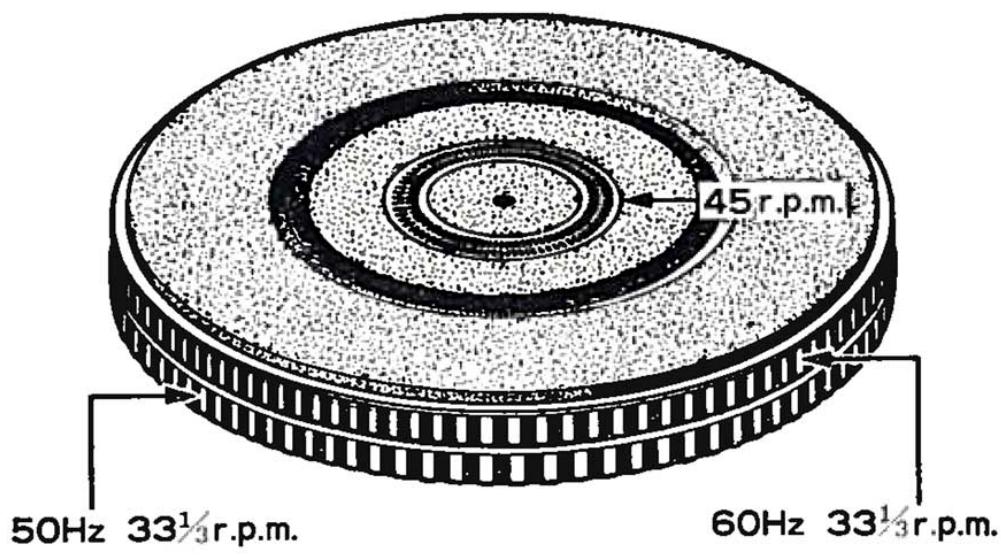

The stroboscope pattern on the turntable platter permits easy accurate adjustment of turntable speed.

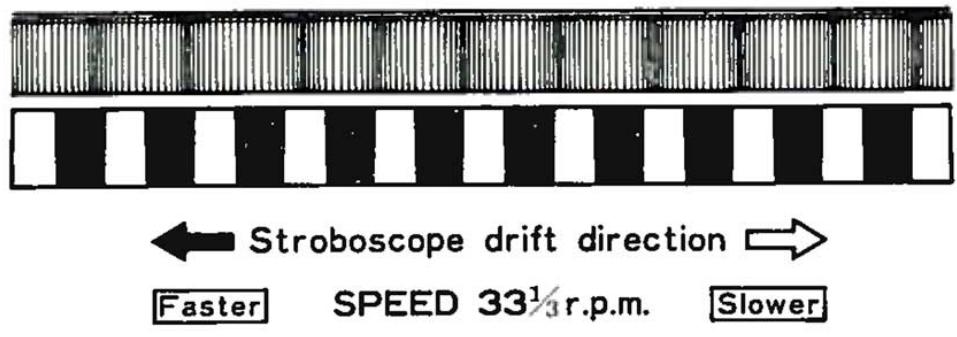

Two 33-1/3 rpm stroboscope patterns are etched on the rim of the turntable platter. The upper pattern should be used in 60Hz power line areas, and the lower pattern in 50Hz areas. This unit is designed so that when speed is adjusted correctly for 33 - 1 / 3 rpm, it will also be correct for 45 rpm when the speed lever is switched to "45." A double check of speed accuracy can be made by using the stroboscope pattern on the rubber sheet.

1. Set speed selector to "33."
2. Switch the play lever to "ON"

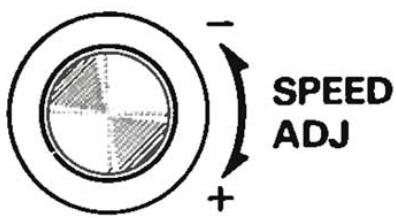

3. Adjust the speed adjustment knob until the stripes of the stroboscope appear to become stationary.

Note: The driving motor is DC type which is never influenced by modification of the source frequency (50-60 Hz).

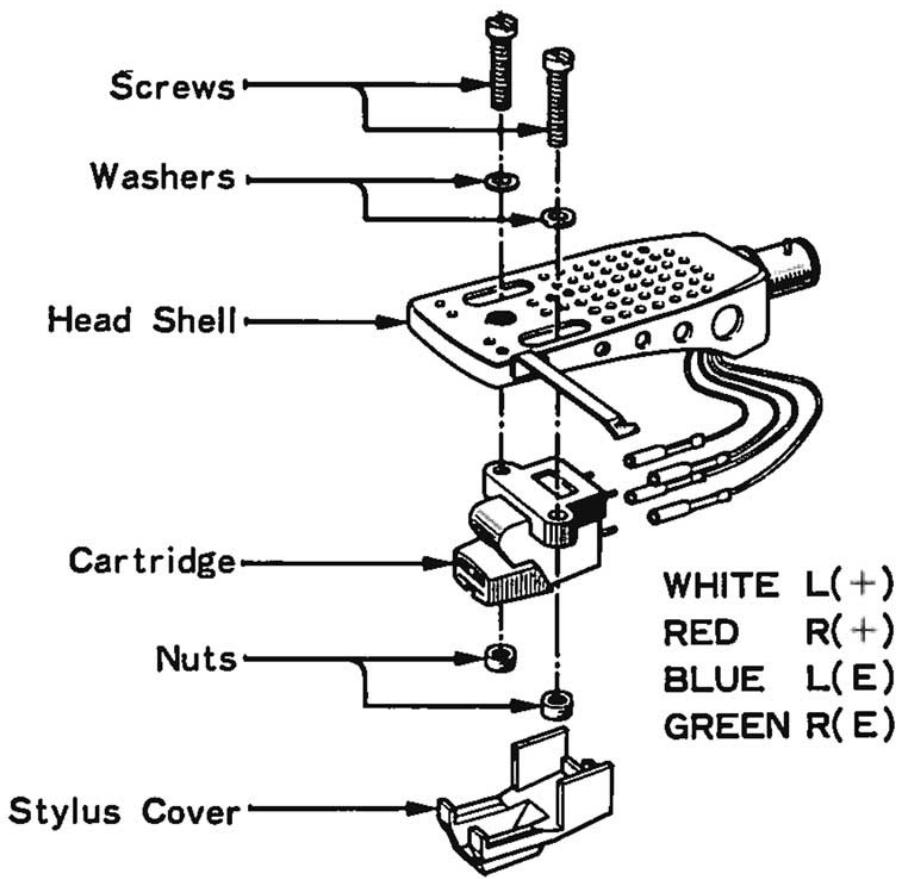

HOW TO ATTACH THE CARTRIDGE

Cartridge can be attached easily as follows. The tone arm uses EIA standard connectors that can accept any head shell on the market that conforms to this standard.

1. Connect four leads to the cartridge, as shown in below.

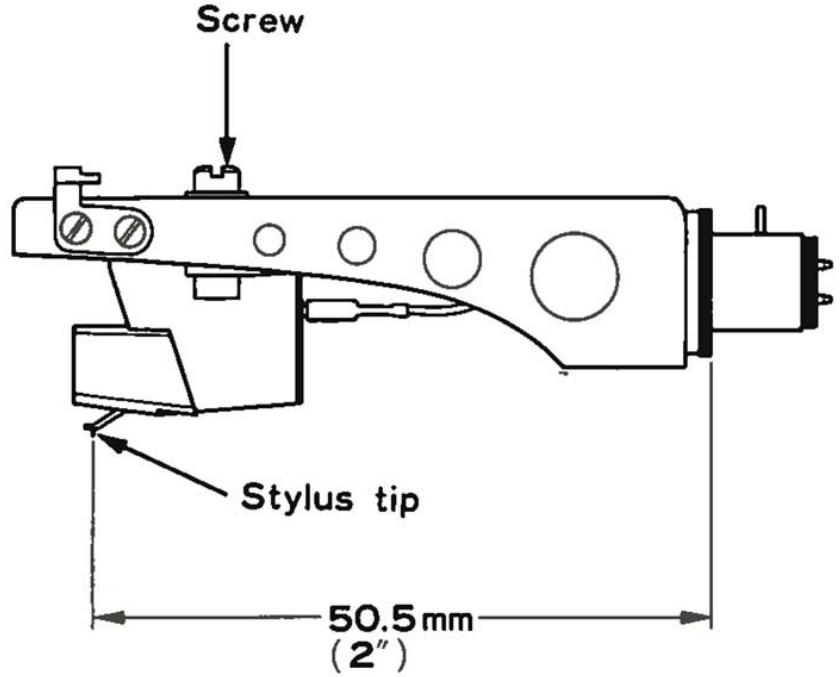

1. Attach the cartridge lightly to the head shell with the bolts and nuts that are supplied. Next you must make the overhang adjustment as follows. The figure below shows the head shell and cartridge in about the actual size and correct position. Adjust your cartridge to the head shell accordingly, and lock it in place by tightening the bolt nuts securely.

1. Plug the head with the cartridge into the tone arm, and readjust tracking force as explained on page 5 so that it conforms to the cartridge manufacturer's recommendation.

Cartridge can be replaced easily by removing the old one and attaching the replacement in the above manner.

MAINTENANCE

LIFE OF A STYLUS

A diamond stylus is used in most cartridges. It is normally good for 500 hours for LP records on one side, but this varies greatly depending on how it is used.

A worn stylus will cause treble tones to increase in harshness. To prevent excessive record wear, a stylus should be replaced as soon as this becomes noticeable.

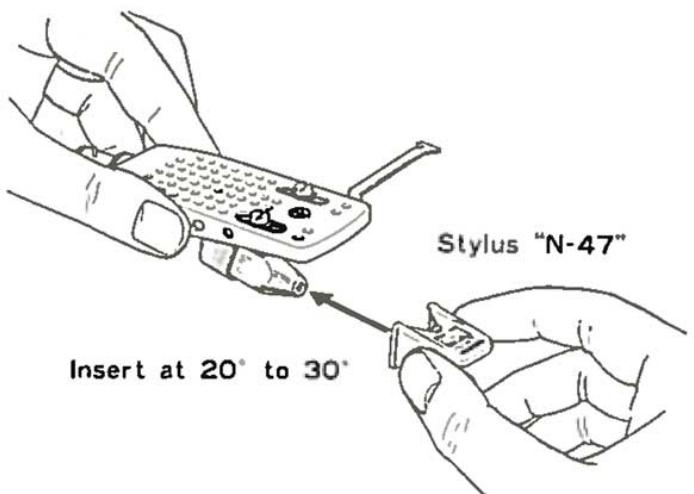

HOW TO REPLACE THE STYLUS

N-47 is the designation of the replacement stylus for that used in the V-47 cartridge.

Replacement stylus may be obtained from the dealer from whom you purchased this turntable.

You can replace the stylus easily as shown below.

CLEANING THE CASE AND THE DUST COVER

Clean the case and dust cover gently with dry cloth or silicone cloth. In case they are badly dirtied, wipe them with a well wrung cloth that has been wetted in soapsuds.

Never use thinner, alcohol, benzine or other volatile liquids.

PERIODICAL CHECK-UP

Generally, machines operated over long periods without proper care and maintenance may develop trouble due to poor lubrication, wear, deterioration or the like. To ensure a long service life and stable operation, periodical check-up at an interval of two years or so, if possible, is recommended even if the equipment appears to be working normally.

Please have such a periodical check-up made through the dealer.

SPECIFICATIONS

MOTOR & TURNTABLE:

Drive System: Direct drive system

Motor: 20-pole 30-slot D.C. servo motor

Turntable Platter: 31 cm (12-3/16 inch) Diameter

Aluminum Alloy Die-Cast

Weight 1.1 kg (2.4 lbs)

Speeds: 2 speeds, 33-1/3 and 45 rpm.

Speeds Control Range: . . . . . . . Within ±3%

Wow & Flutter: .Less than 0.04% (WRMS)

Rumble: (DIN weighted) Better than -65 dB

(DIN unweighted) . . . . . Better than -45 dB

TONEARM:

Type: Static-balance type, S-shaped pipe arm

Effective Tonearm Length: 225 mm (8-7/8 inch)

Overhang: 15 mm (9/16 inch)

Tracking Error: ±1.5 degree

Stylus Pressure Variable Range: . . . 0 to 3 grams

Usable Cartridge Weight: 4 to 10 grams

CARTRIDGE:

Furnished Cartridge: V-47

(Certain destination models are not equipped with the V-47 cartridge.)

Stylus: N-47 with 0.5 mil Diamond

Frequency Response: 20 Hz to 20,000 Hz

Output Voltage: 2.0 mV (1,000 Hz, 5 cm/sec.)

Optimum Tracking Force: 2.0 ±0.5 grams

Load Impedance: 50 k ohms

Replacement Stylus: N-47

ADDITIONAL FEATURES: Viscous-damped cueing device,

Anti-skating device,

Stroboscope with lamp,

Fine speed adjusting controls,

Head shell stand,

MISCELLANEOUS:

Power Requirement: AC 120V, 60 Hz — USA and Canada Model

AC 240V, 50 Hz — U.K. Model

AC 120/220V, 50/60 Hz (Switchable) — other countries.

Power Consumption: 7.0 watts

Dimensions: W 468 mm (18-7/16")

H 147 mm (5-3/4")

D 365 ~mm (14-3/8")

Weight: 7.0 kg (15.4 lbs)

SUPPLIED ACCESSORIES: . . . . . . EP adapter,

Note: Kenwood follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
