MODE D'EMPLOI SA15S1 & SA15S2,MV MARANTZ

HiFi ENGINE

For more Hi-Fi manuals and set-up information

please visit www.hifiengine.com

SERVICE

MANUAL

CD-73

MARANTZ SA15S1 & SA15S2,MV - HiFi ENGINE - 1

manantz

model CD-73

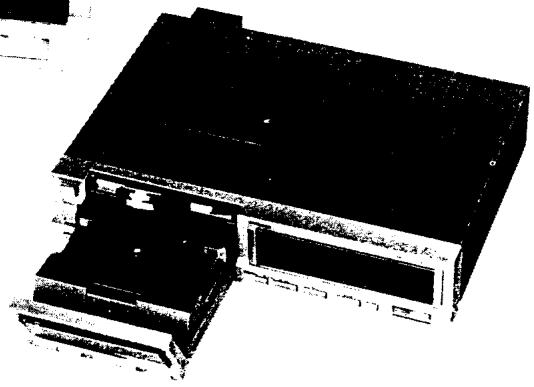

Compact Disc Player

TABLE OF CONTENTS

SECTION

PAGE

  1. INTRODUCTION 1
  2. P.W. BOARDS 1
  3. DRAWER MOTOR CONTROL P.W. BORAD WORKING PRINCIPLE 2
  4. ADJUSTMENT PROCEDURES FOR DISC CLAMPER 3
  5. VOLTAGE CONVERSION 4

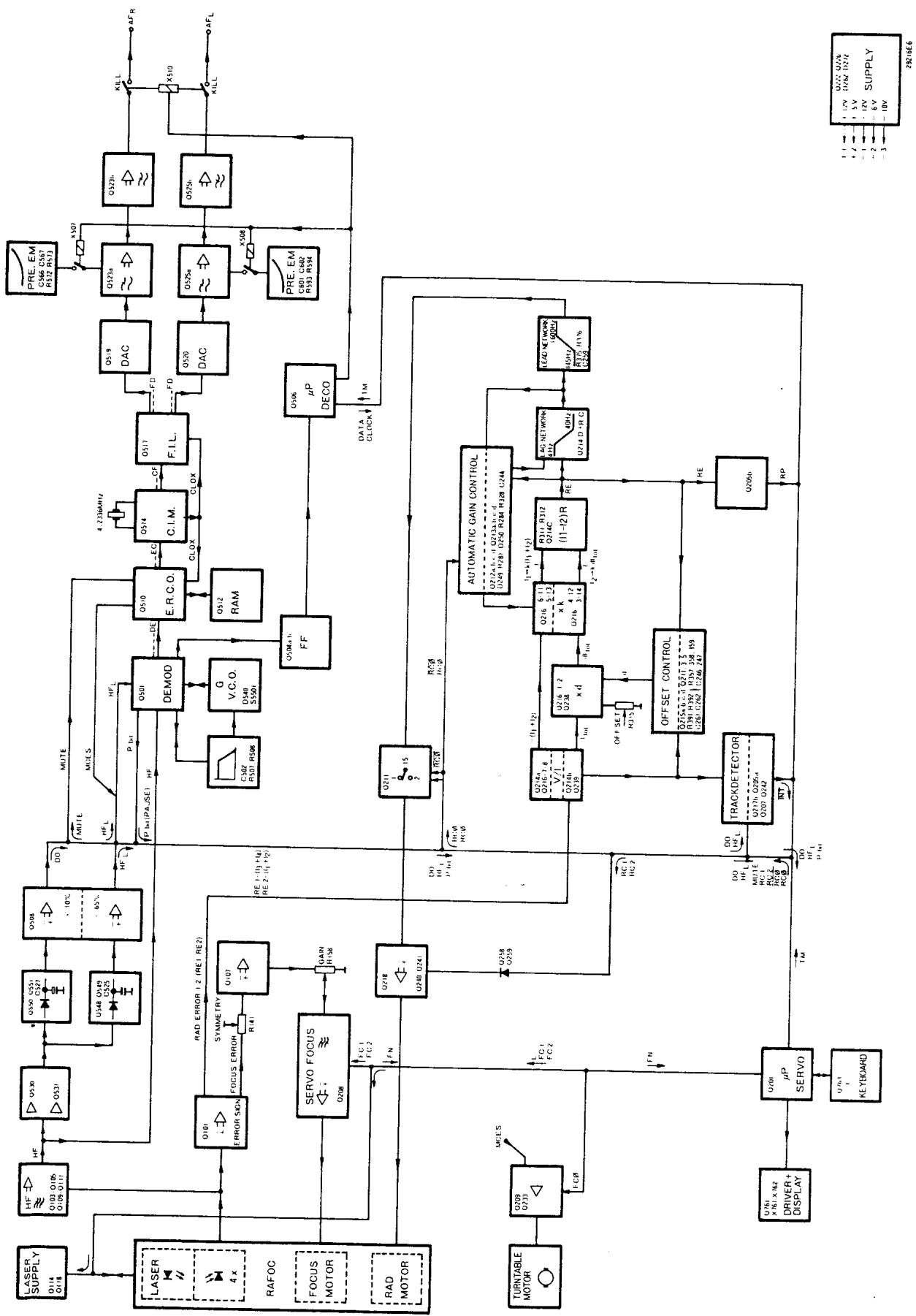

  6. SIGNAL BLOCK DIAGRAM 5

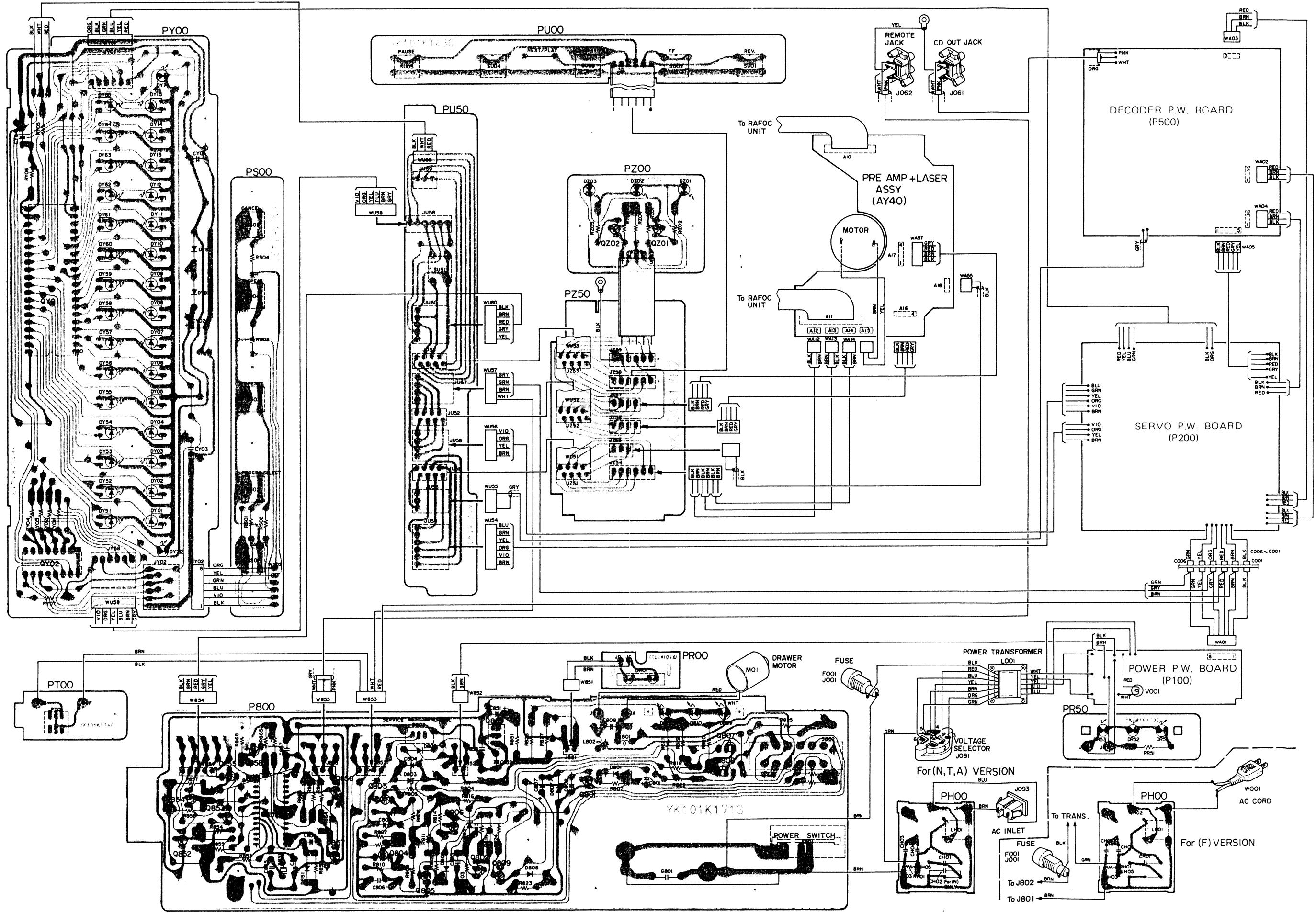

  7. COMPONENT LOCATIONS (AND WIRE CONNECTIONS) 6
  8. DIAGRAM AND COMPONENT LOCATIONS 8

8.1 Servo (P200) Schematic Diagram and Component Locations 8

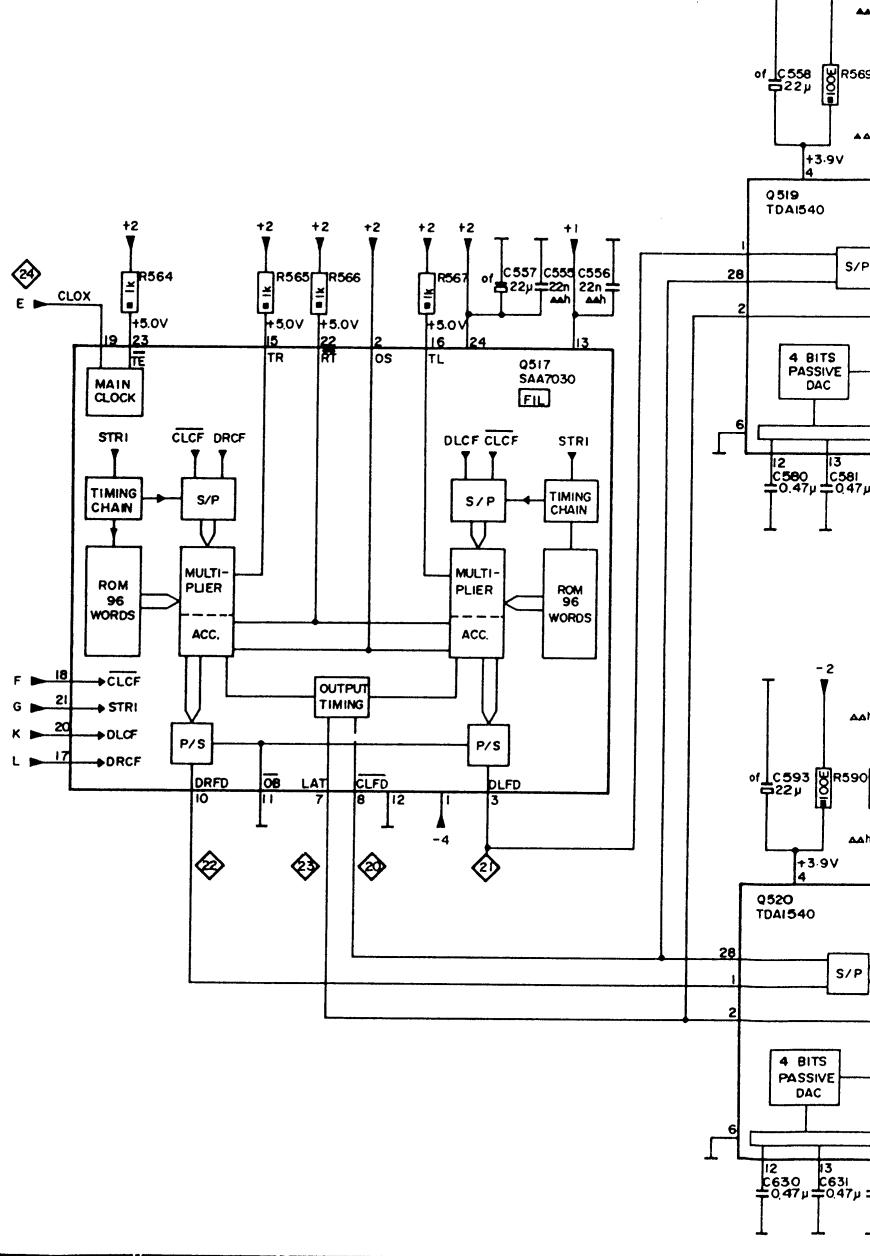

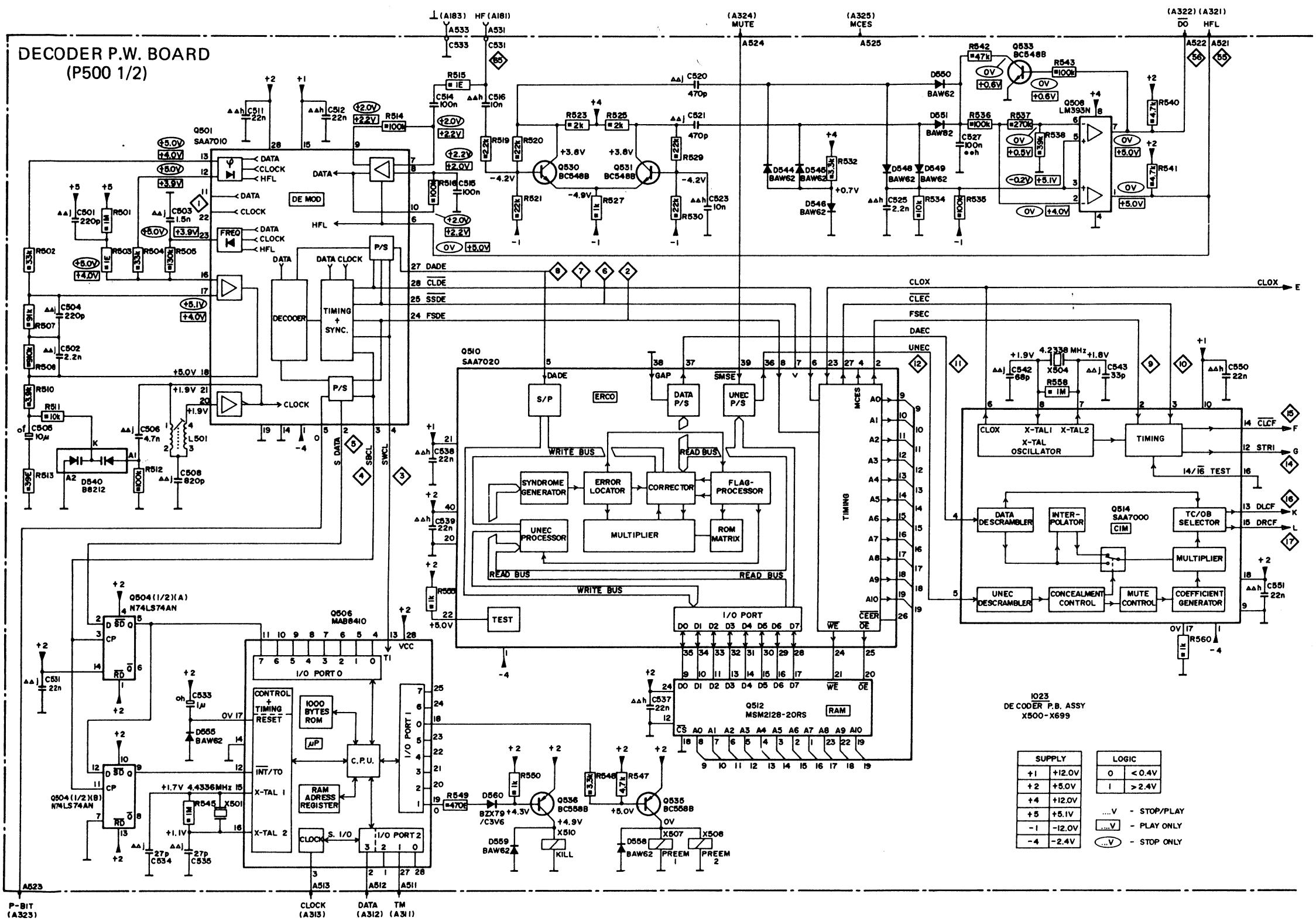

8.2 Decoder (P500) Schematic Diagram and Component Locations 13

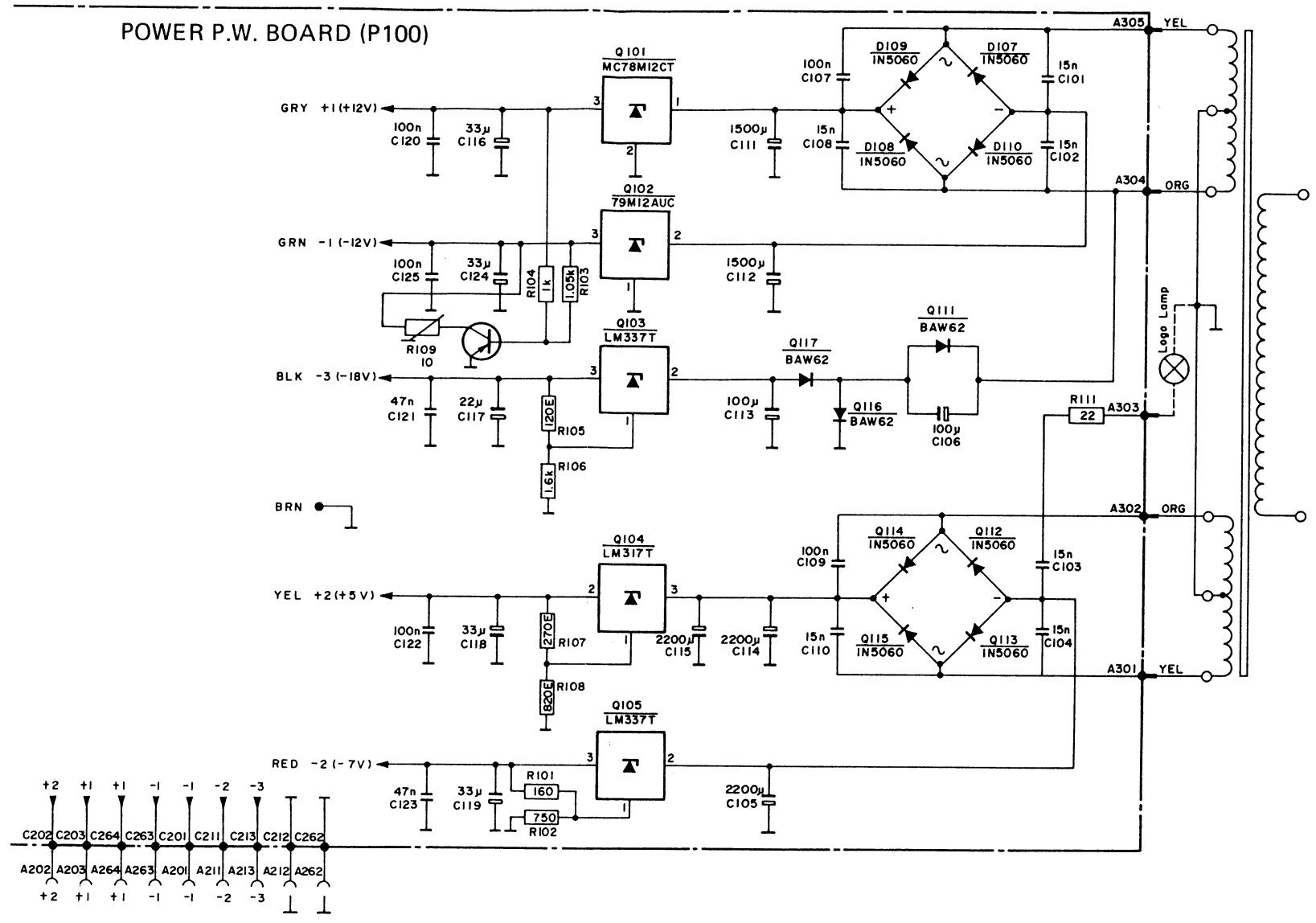

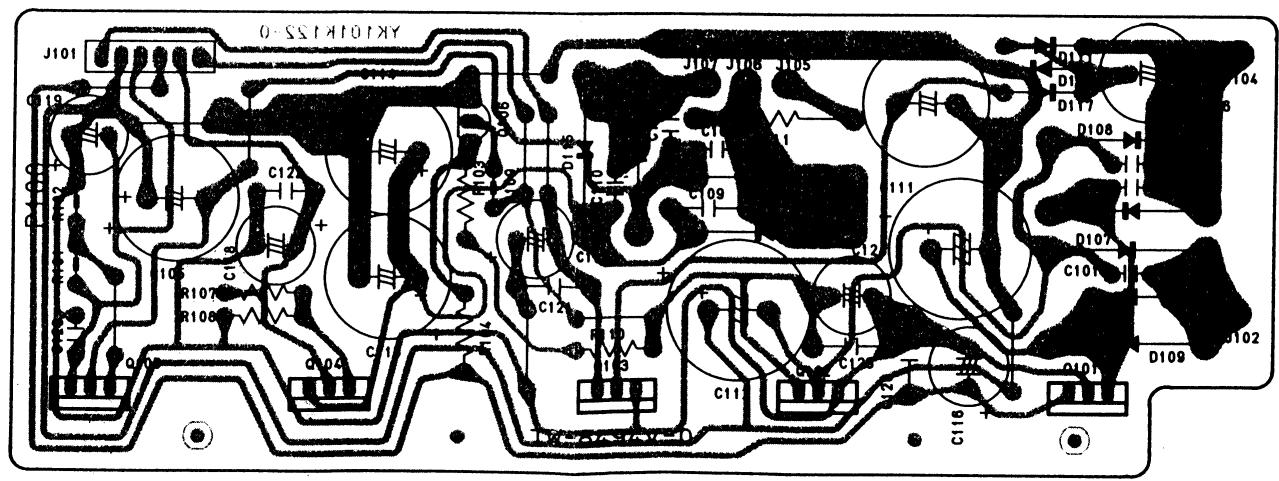

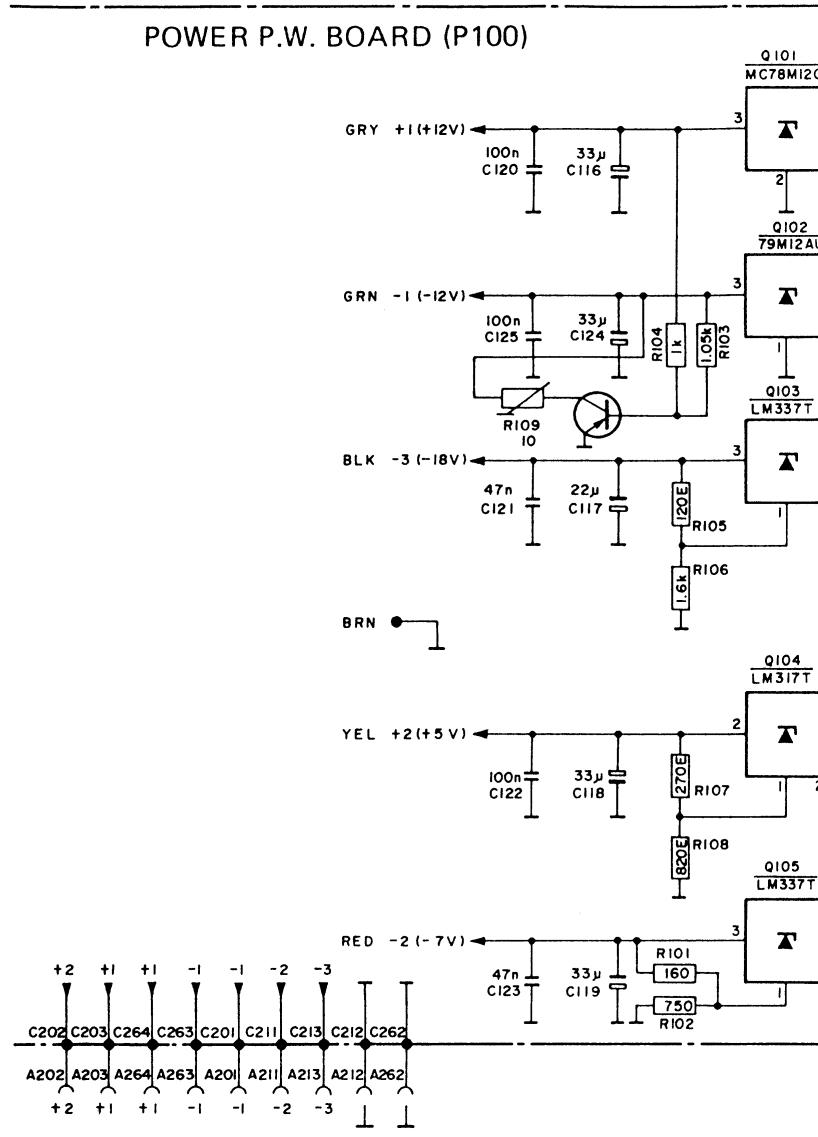

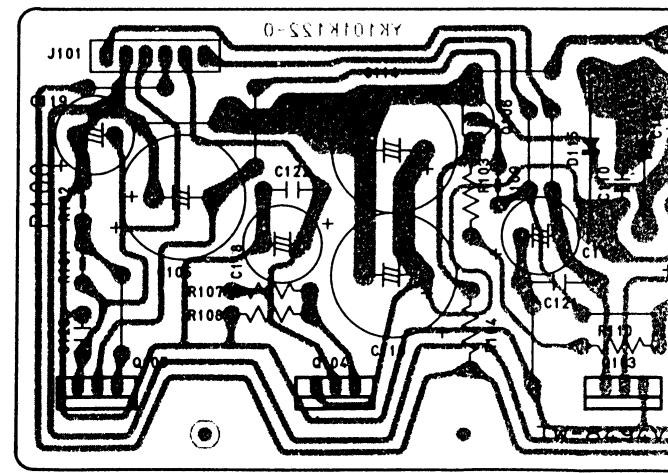

8.3 Power Supply (P100) Schematic Diagram and Component Locations 18

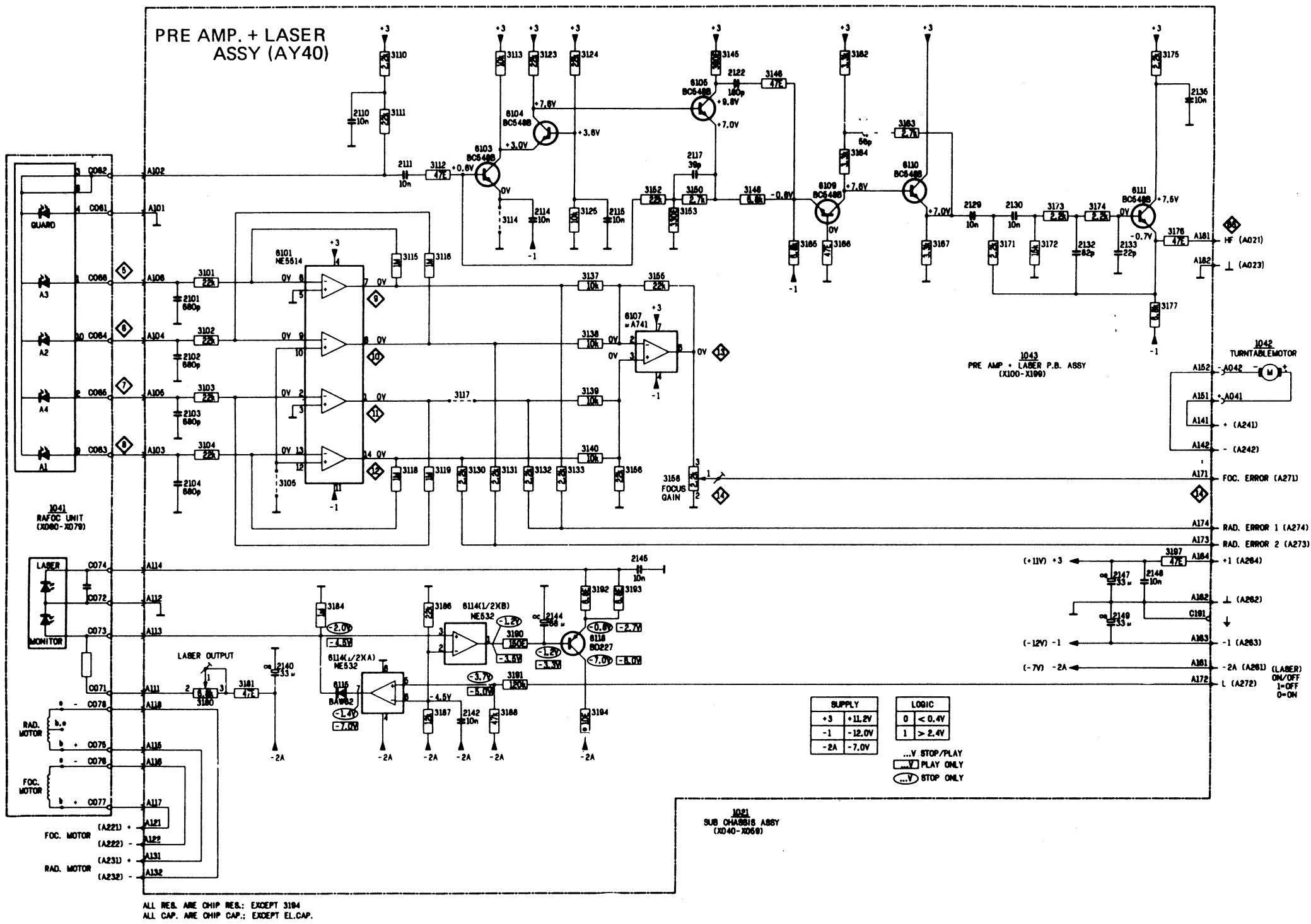

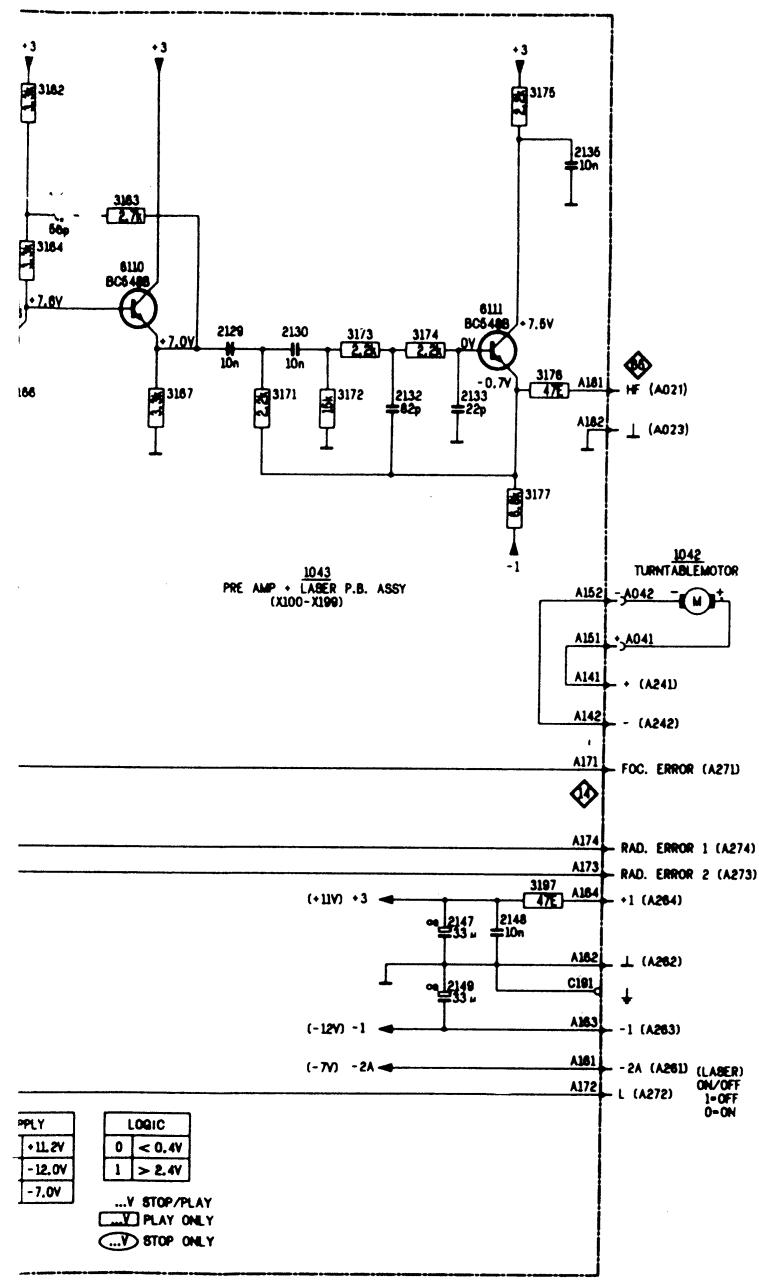

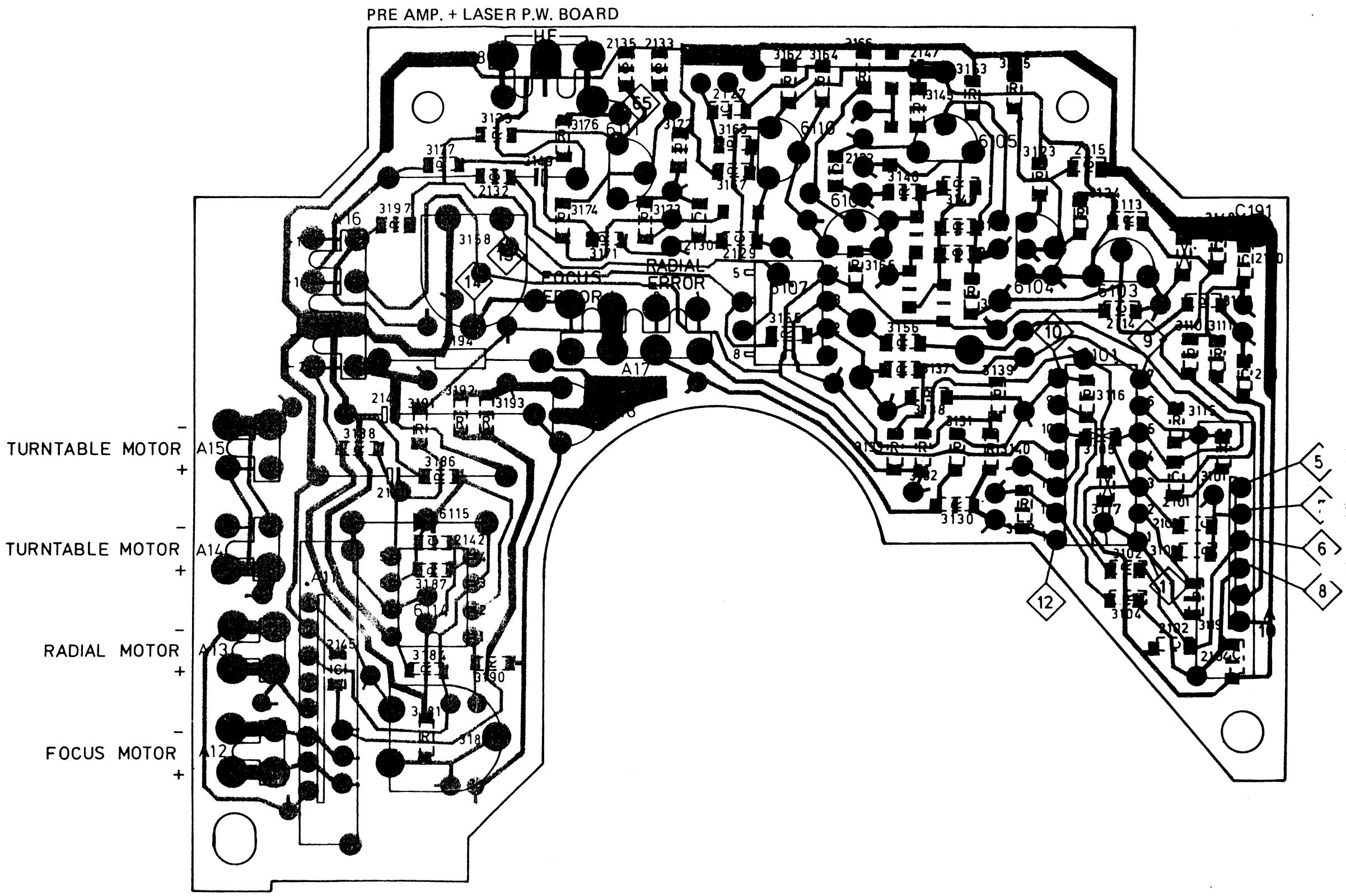

8.4 Pre Amp. + Laser (AY40) Schematic Diagram and Component Locations 19

  1. EXPLODED VIEW AND PARTS LIST 22
  2. ELECTRICAL PARTS LIST 30
  3. TECHNICAL SPECIFICATIONS 38
  4. SCHEMATIC DIAGRAM 40

MARANTZ SA15S1 & SA15S2,MV - SECTION - 1

MARANTZ SA15S1 & SA15S2,MV - SECTION - 2

1. INTRODUCTION

This service manual was prepared for use by Authorized Warranty Stations and contains service information for Marantz Model CD-73 Compact Disc Player.

Servicing information and voltage data included in this manual are intended for use by the knowledgeable and experienced technician only. All instructions should be read carefully. No attempt should be made to proceed without a good understanding of the operation of the Compact Disc Player.

The parts list furnishes information by which replacement parts may be ordered from the Marantz Company. A simple description is included for parts which can usually be obtained through local suppliers.

2. P.W. BOARDS

  1. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  2. Power Supply 1. P.W. Board P100
  3. Servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. mounted on P.W. Board P200
  4. Decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P500
  5. Motor/Remocon......mounted on P.W. Board P800
  6. Main Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.W. Board PH00
  7. Power Indicator . . . . . . mounted on P.W. Board PR00
  8. Disc Inside Indicator . .mounted on P.W. Board PR50
  9. Program Key Switch ..mounted on P.W. Board PS00
  10. Mode Key Switch . . . . . . mounted on P.W. Board PU00
  11. Signal Relay 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.W. Board PU50
  12. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.W. Board PY00
  13. Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.W. Board PZ00
  14. Signal Relay 1 . . . . . . . mounted on P.W. Board PZ50
  15. Pre Amp. + Laser . . . . mounted on P.W. Board AY40

3. DRAWER MOTOR CONTROL P.W. BORAD WORKING PRINCIPLE

Drawer motor control P. W. Borad includes the following.

(1) Drawermotor drive circuit
(2) Remote control circuit (Marantz Bus System decoder circuit)

3.1Drawer Motor Drive Circuit

A. Outline of the system

This circuit revolves and reverses the drawer motor by the OPEN/CLOSE switch of S802 on the front panel to open and close the drawer. It includes a circuit to increase starting torque and a safety circuit which stops automatically when something is caught in the drawer.

B. Operation of each part

a) Q809, Q808 and Q807 are motor drive circuits. Especially Q808 increases motor starting torque.
b) When the voltage of R820 becomes over about 0.6V , the base current begins to flow through Q803. That is, the motor is locked to detect the excessive current.
c) Q805 and Q806 make up a set/reset flip flop, which is set whell positive voltage is put into the base of Q805. And it is reset when the base becomes 0. As long as it is set, D806 is "ON" and motor drive circuit does not operate.
d) Q802 becomes "ON" just for a few msec when the OPEN/CLOSE switch of S802 is pushed. (S802 is non-shorting type.)

e) Q801 becomes "ON" just for the time-constant t1 based on R816/R801/C801only afterS802 is changed from CLOSE to OPEN, and makes the base of Q809 0V to stop the motor drive circuit.

Meanwhile, the voltage of C807 is discharged to increase the torque for the time-constant t_2 of C807/ R822 just after the end of t_1 .

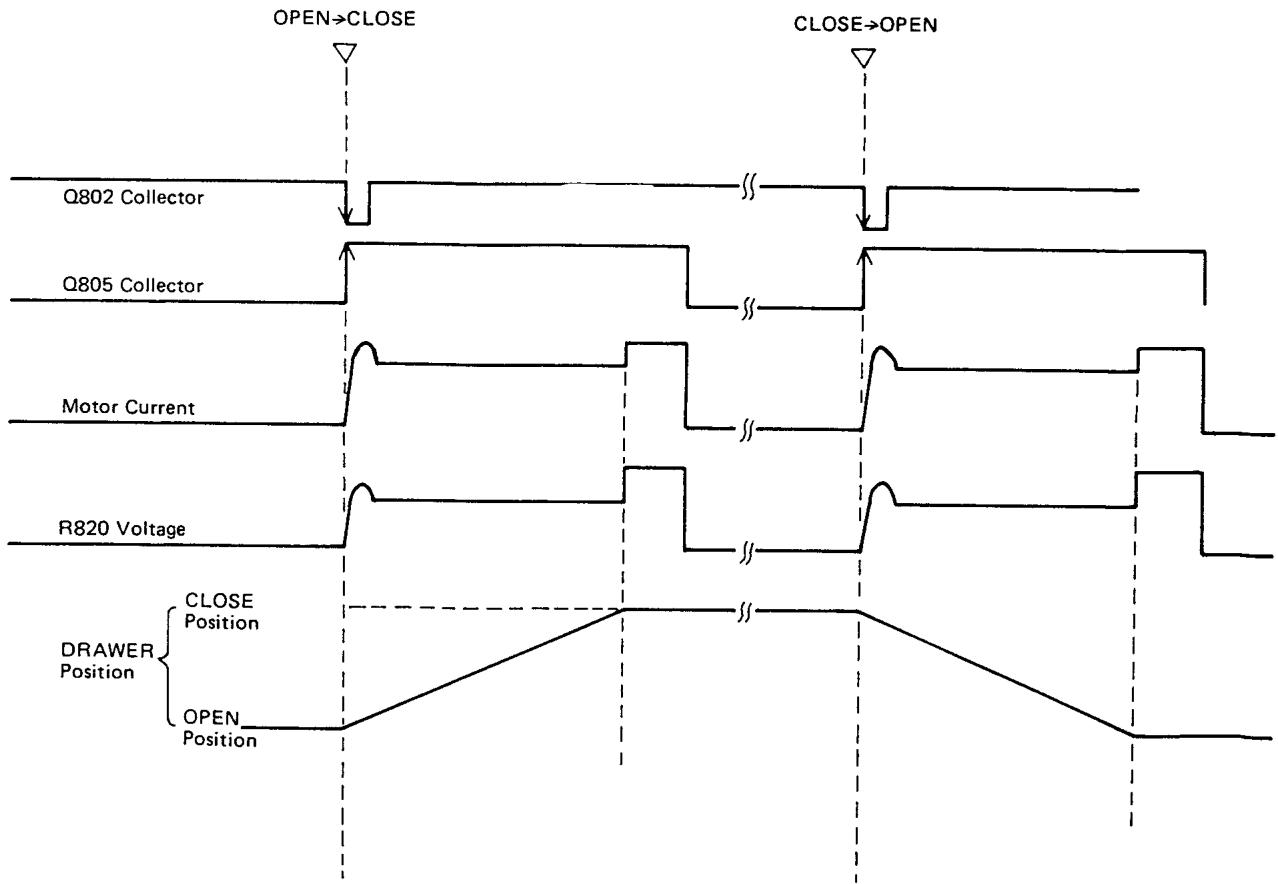

C. Explanation of overall operation

a) During the shift of OPEN/CLOSE switch S802, from OPEN to CLOSE, Q802 becomes "ON" in an instant and flip flop which is composed of Q805 and Q806 is reset to cut off D806.
b) Consequently motor drive circuit which is composed of Q809, Q808 and Q807 begins to operate to switch on the drawer motor.
c) When the drawer comes to the mechanical end, short-circuit current begins to flow to the motor to generate voltage of R820 about 1V. This voltage reverses Q803 to cut off D804.
d) After D804 is cut off, C805 is discharged through R807 and Q804, and Q804 becomes OFF after about 2.5 sec.
e) As a result, the collector voltage of Q804 rises to set the above flip flop through R809/R810. In this way, the motor drive circuit becomes OFF again.
f) You have the same operation also when S802 is changed from CLOSE to OPEN. But Q801 has been added so that Q808 which increases start up torque can become ON without fail.

MARANTZ SA15S1 & SA15S2,MV - Explanation of overall operation - 1

3.2 Remote Control Circuit

A. Outline of the system

Marantz Bus System is a general term to this remote control circuit. Remocon transmitter and remocon receiver are necessary to operate it.

The output of the remocon receiver is connected to the remocon "IN" terminal on the rear panel of the CD-73.

The remocon transmitter has 4 keys for play/next, puase, repeat and stop.

B. Operation of each part

a) Q851 is N channel Micro Processor for remocon.
b) Q857 amplifies a signal from the remocon receiver and transmits it to pin 24 of the Micro Processor.
c) Q858 is a transistor switch. When a laser signal "S" becomes Low level, it switches "ON" and changes the Micro Processor pin 25 to High level to generate an easy operation signal at pin 19.

This easy operation signal is reversed at Q856 and put out from the easy "OUT" terminal of the CD-73. This signal makes easy operation possible.

d) Q853, Q854 and Q855 are used as analogue switches and controlled by output pin 9, 10 and 15 respectively. Q852 is a transistor switch, which lowers a sense signal to GND level to stop operation.
e) R852/D851/C856 are used for initial setting of the Micro Processor.

C. Overall operation

When any key of the remocon transmitter is pushed, a pulse signal is transmitted to the CD-73 remote "IN" terminal through the remocon receiver. This signal is put into the Micro Processor pin 24 after being amplified at Q857 and the Micro Processor comes to correspond to the key to generate High signal at the output pin as follows.

play/next . pin 9

pause . pin 10

repeat . pin 15

stop . pin 4

Besides, only when the play/next key is pushed, an easy operation signal occurs at pin 19 for 60 msec to mute the other sources.

4. ADJUSTMENT PROCEDURES FOR DISC CLAMPER

4.1 Adjusting the height of the pressure ring holder

The height of the holder must be adjusted to maintain braking by keeping the appropriate distance between the holder and pressure ring.

With the drawer in the unit, lift the holder manually, and place the positioning tool on the turntable.

If the drawer is in the "out" position, the alminum cap will come in contact with the front chassis and front panel, and will be scratched when the drawer is pushed into the unit.

With a screwdriver, turn the adjustment screw clockwise 2 or 3 turns. Push down the holder several times to confirm that it sinks a few millimeters until it makes contact with the positioning tool. If there is no play between the holder and tool, turn the adjustment screw further until a few millimeters play is obtained.

Turn the adjustment screw counterclockwise until the play between the holder and tool becomes zero.

For optimum adjustment, do not exert excess pressure on the adjustment screw with the screwdriver.

Apply lock paint to the adjustment screw.

Lift the holder with the drawer in the "in" position, and remove the positioning tool.

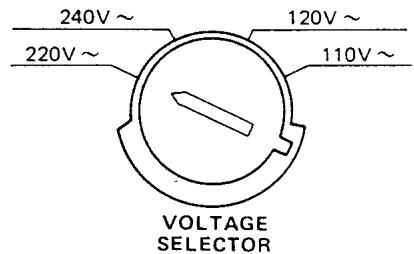

5. VOLTAGE CONVERSION

- EUROPEAN MODEL ONLY

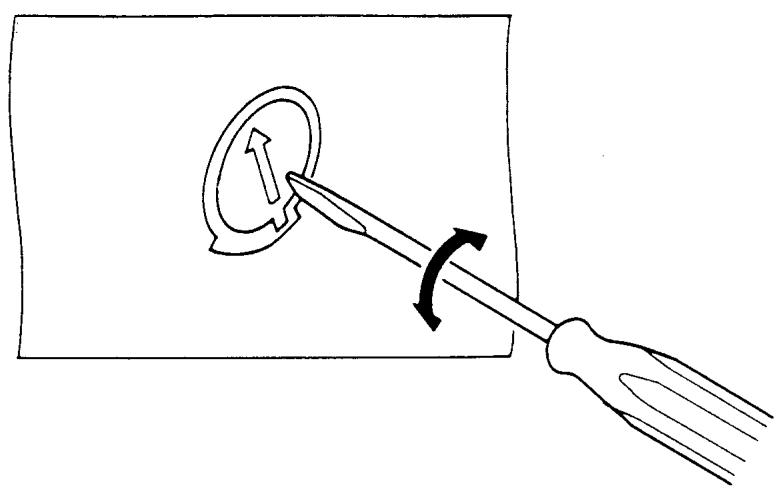

To convert the unit to a different power source voltage, change the position as illustrated in the drawing below.

CAUTION

DISCONNECT POWER SUPPLY CORD FROM AC OUTLET BEFORE CONVERTING VOLTAGE.

MARANTZ SA15S1 & SA15S2,MV - - EUROPEAN MODEL ONLY - 1
Voltage Conversion Chart

MARANTZ SA15S1 & SA15S2,MV - - EUROPEAN MODEL ONLY - 2

Note on safety: Symbol Fire or electrical shock hazard. Only original parts should be used to replace any part marked with symbol Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

MARANTZ SA15S1 & SA15S2,MV - - EUROPEAN MODEL ONLY - 3

MARANTZ SA15S1 & SA15S2,MV - - EUROPEAN MODEL ONLY - 4

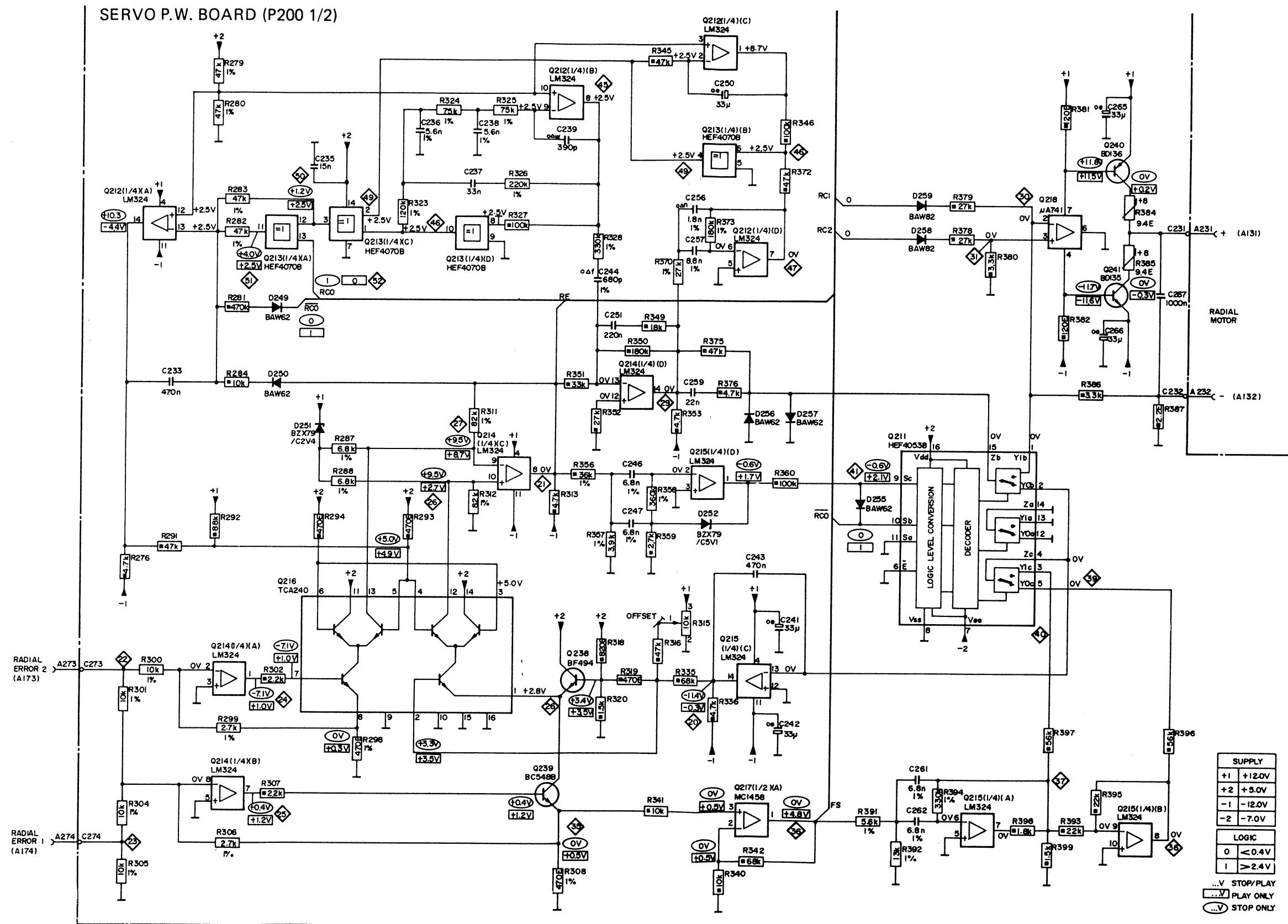

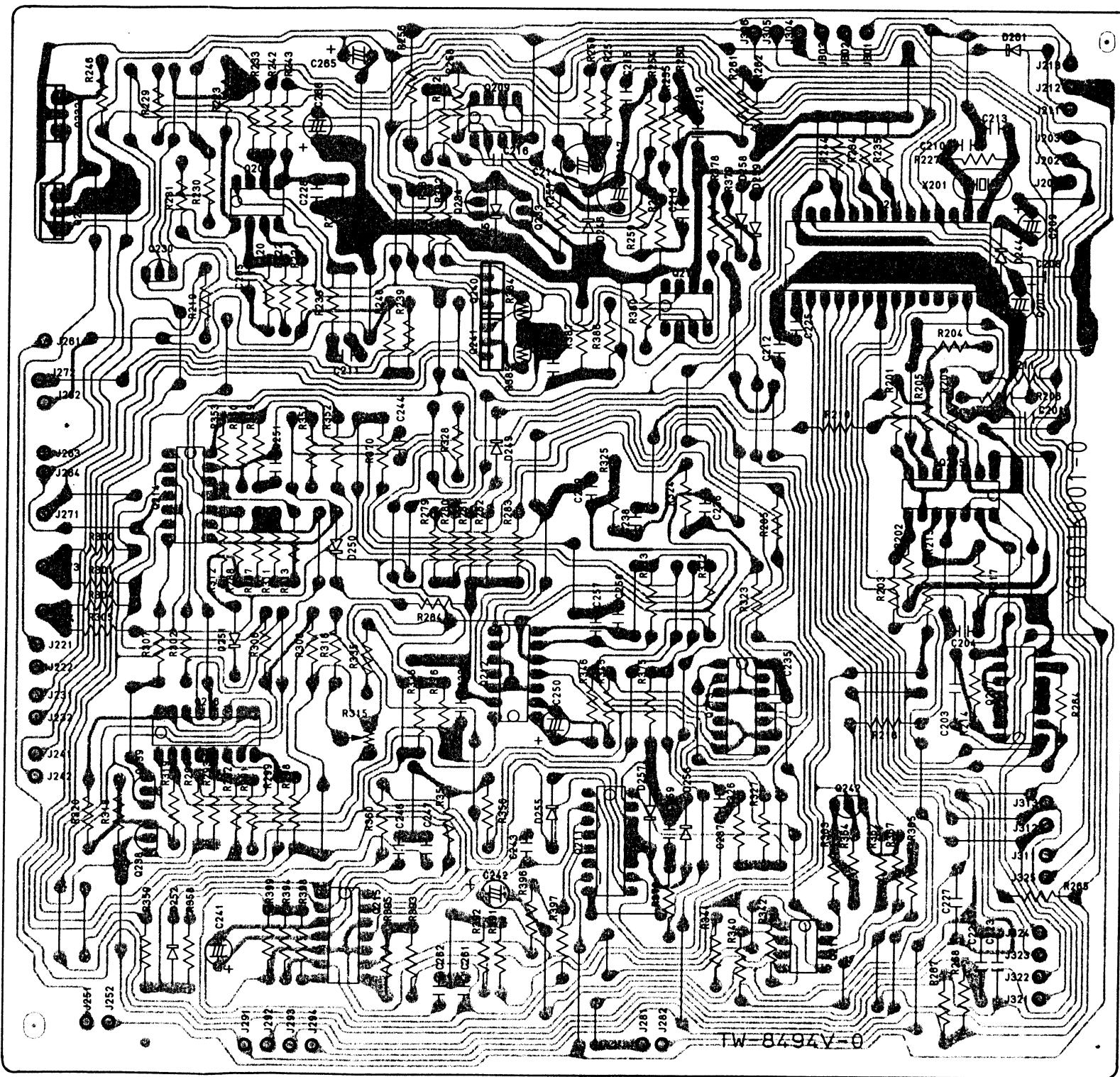

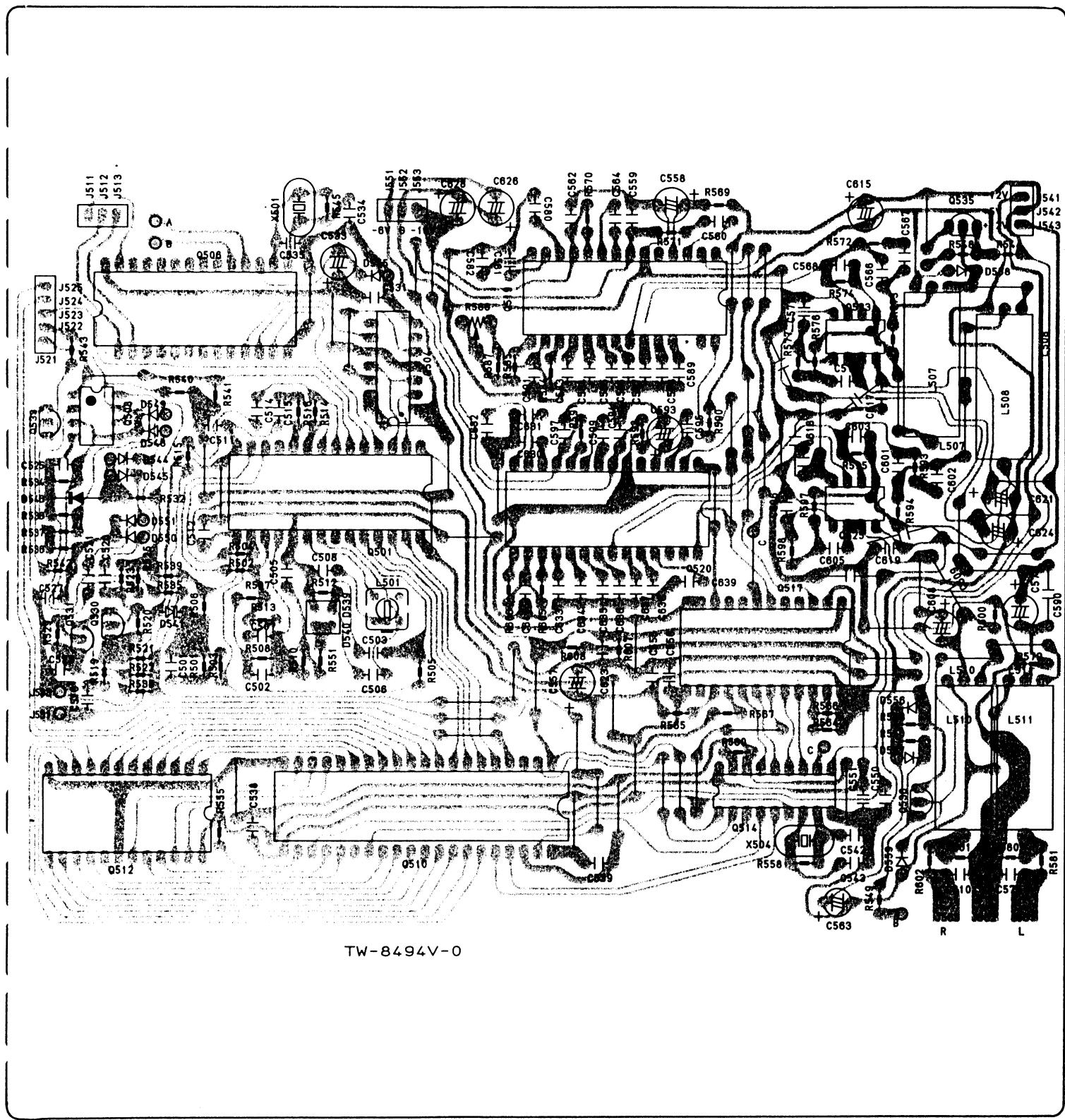

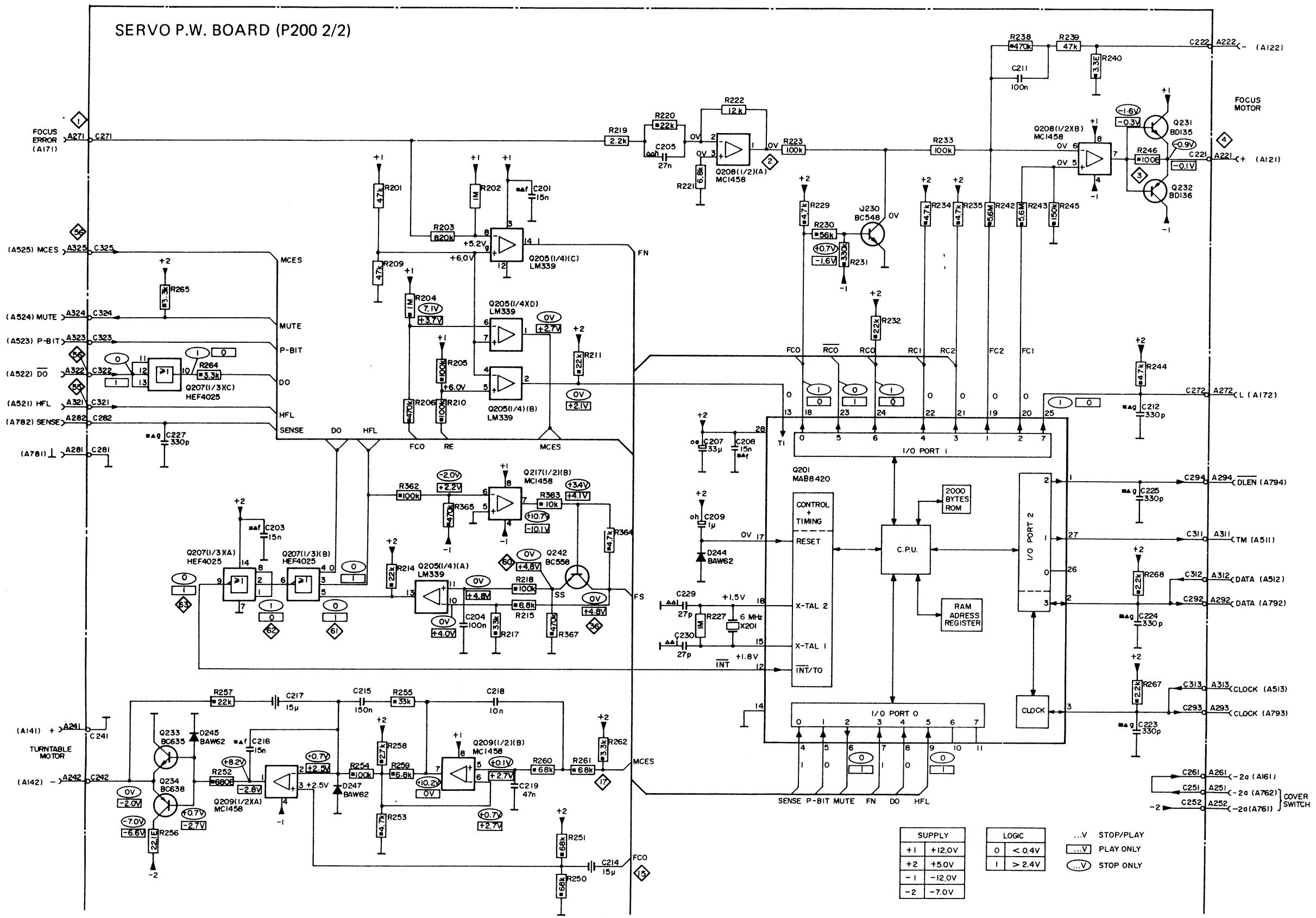

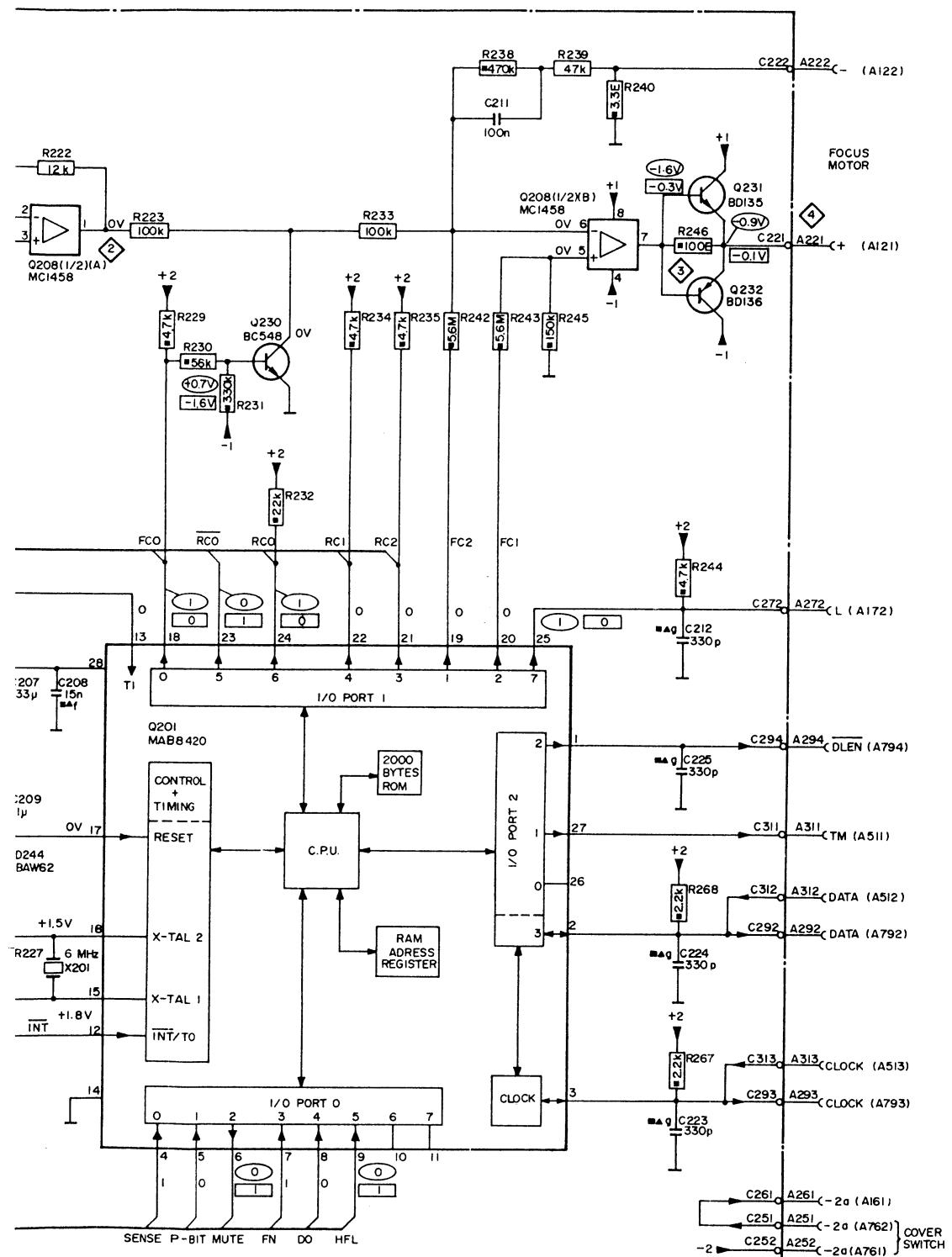

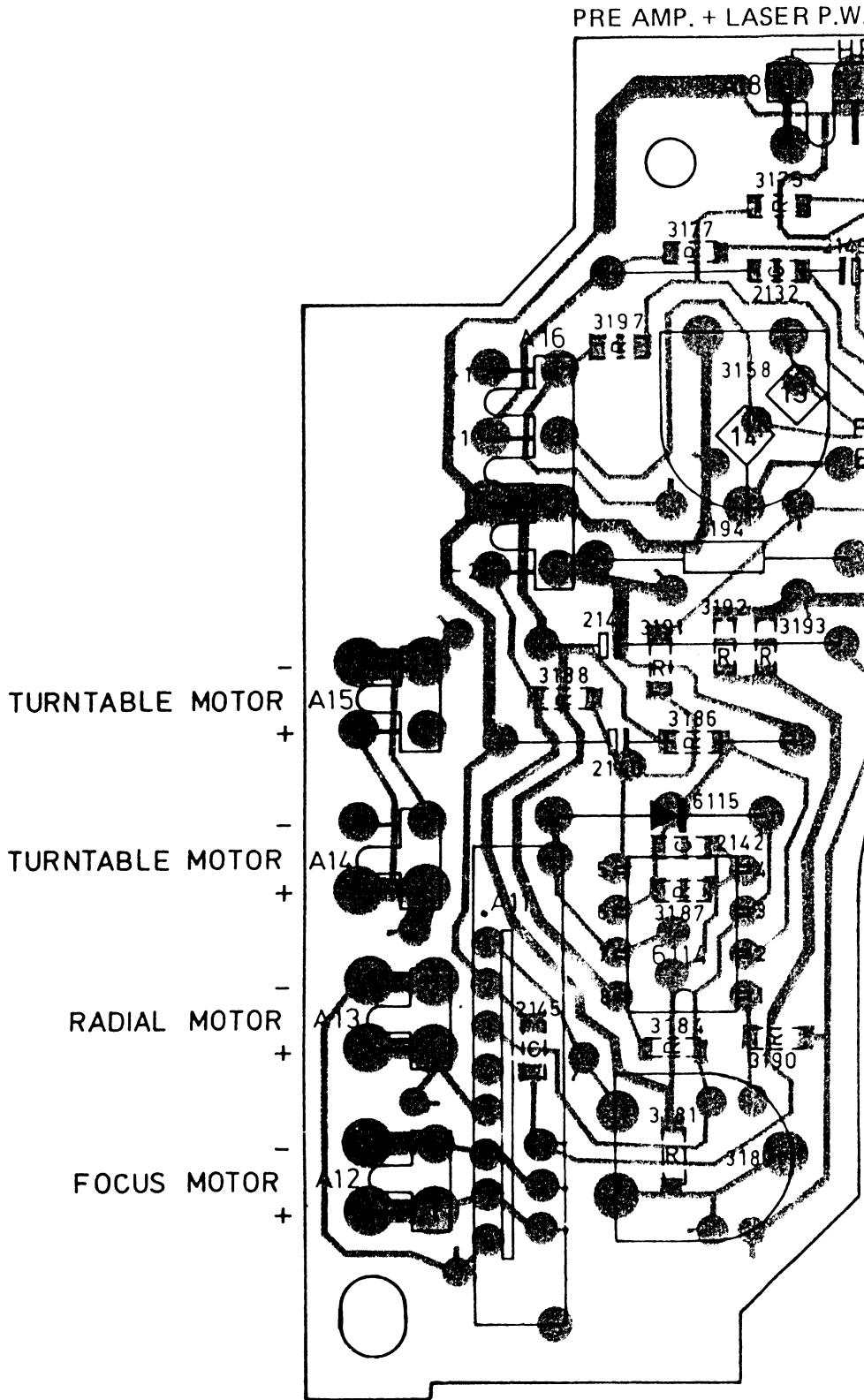

8.1 Servo (P200) Schematic Diagram and Component Locations

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 1

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 2

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 3

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 4

SUPPLYLOGIC
+1+12.0V0< 0.4V
+2+5.0V1> 2.4V
-1-12.0V
-2-7.0V

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 5

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 6

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 7

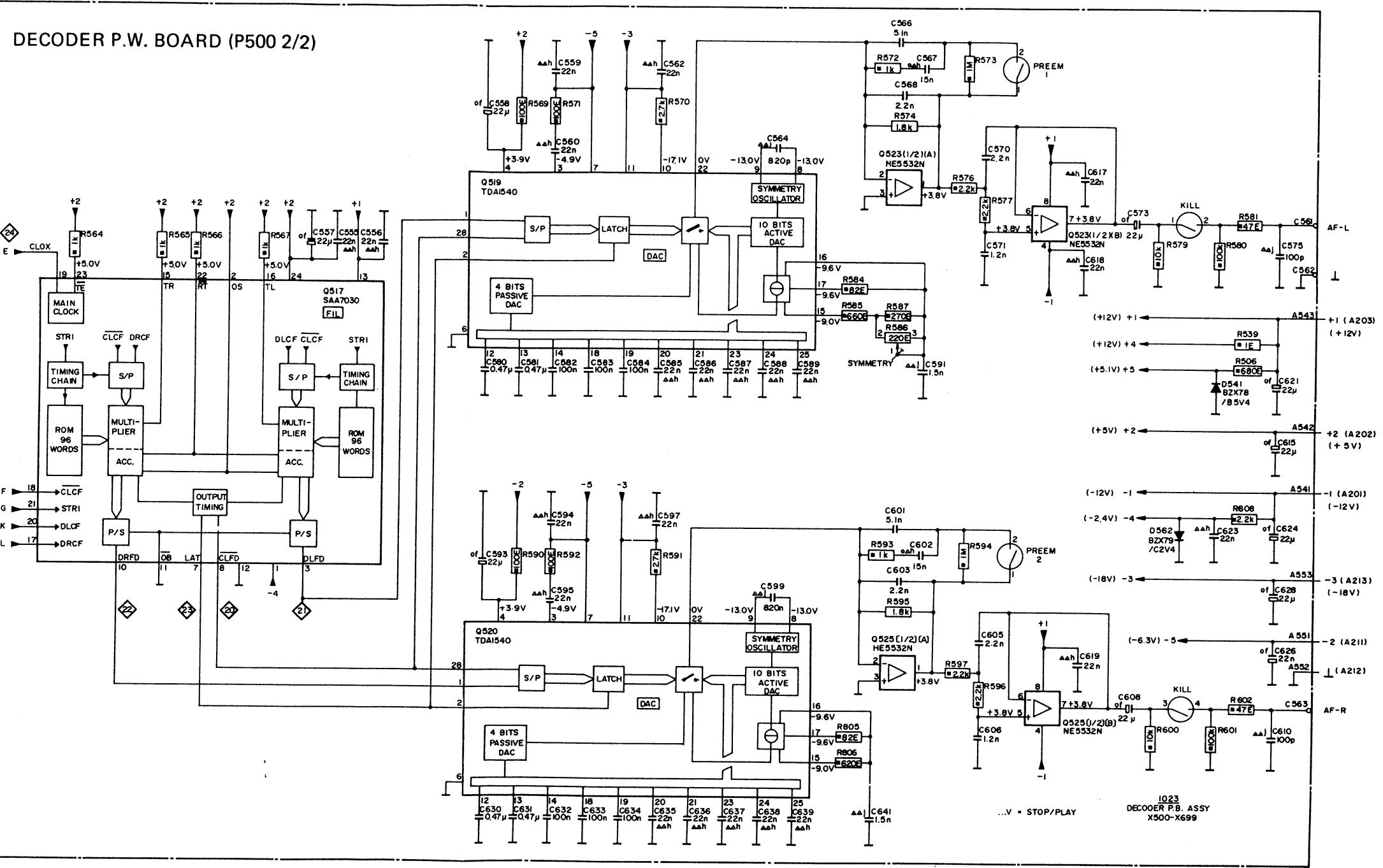

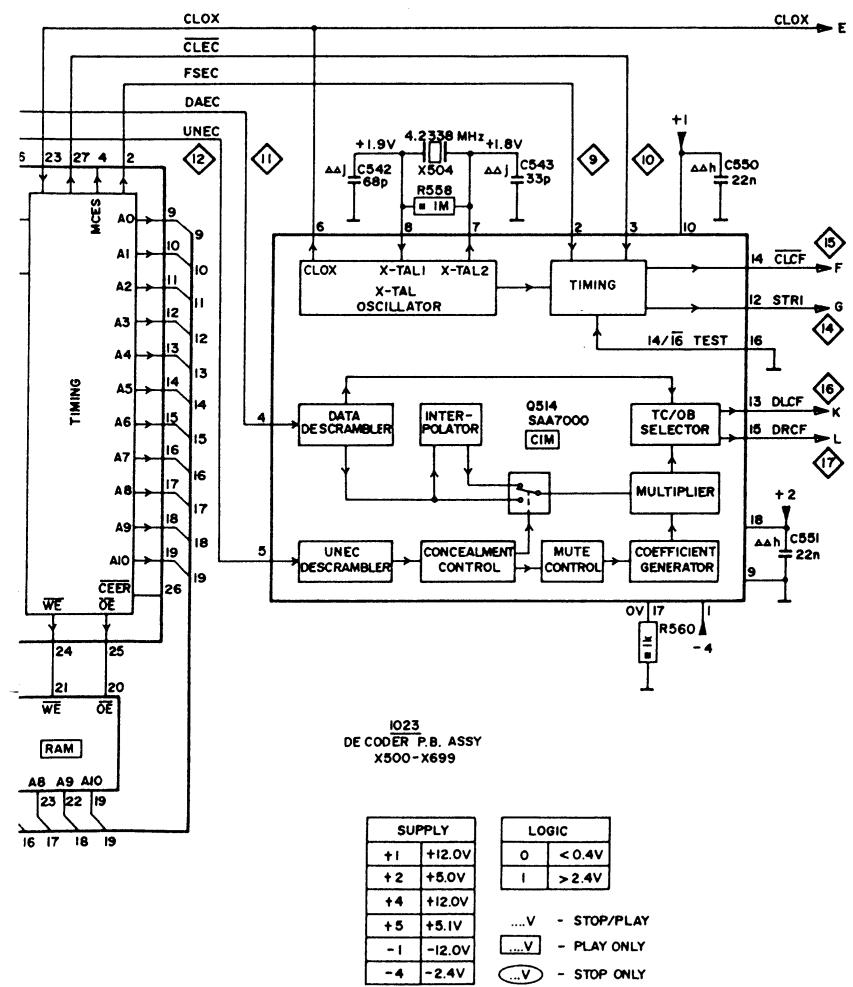

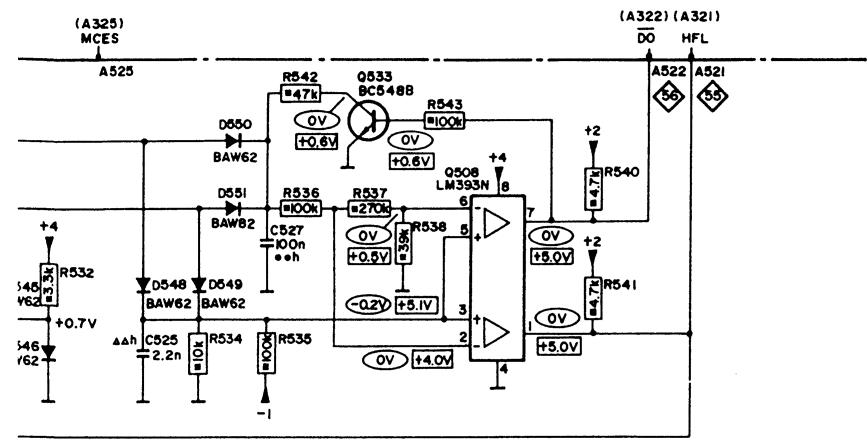

DECODER P.W. BOARD (P500 2/2)

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 8

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 9

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 10

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 11

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 12

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 13

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 14

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 15

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 16

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 17

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 18

MARANTZ SA15S1 & SA15S2,MV - Servo (P200) Schematic Diagram and Component Locations - 19

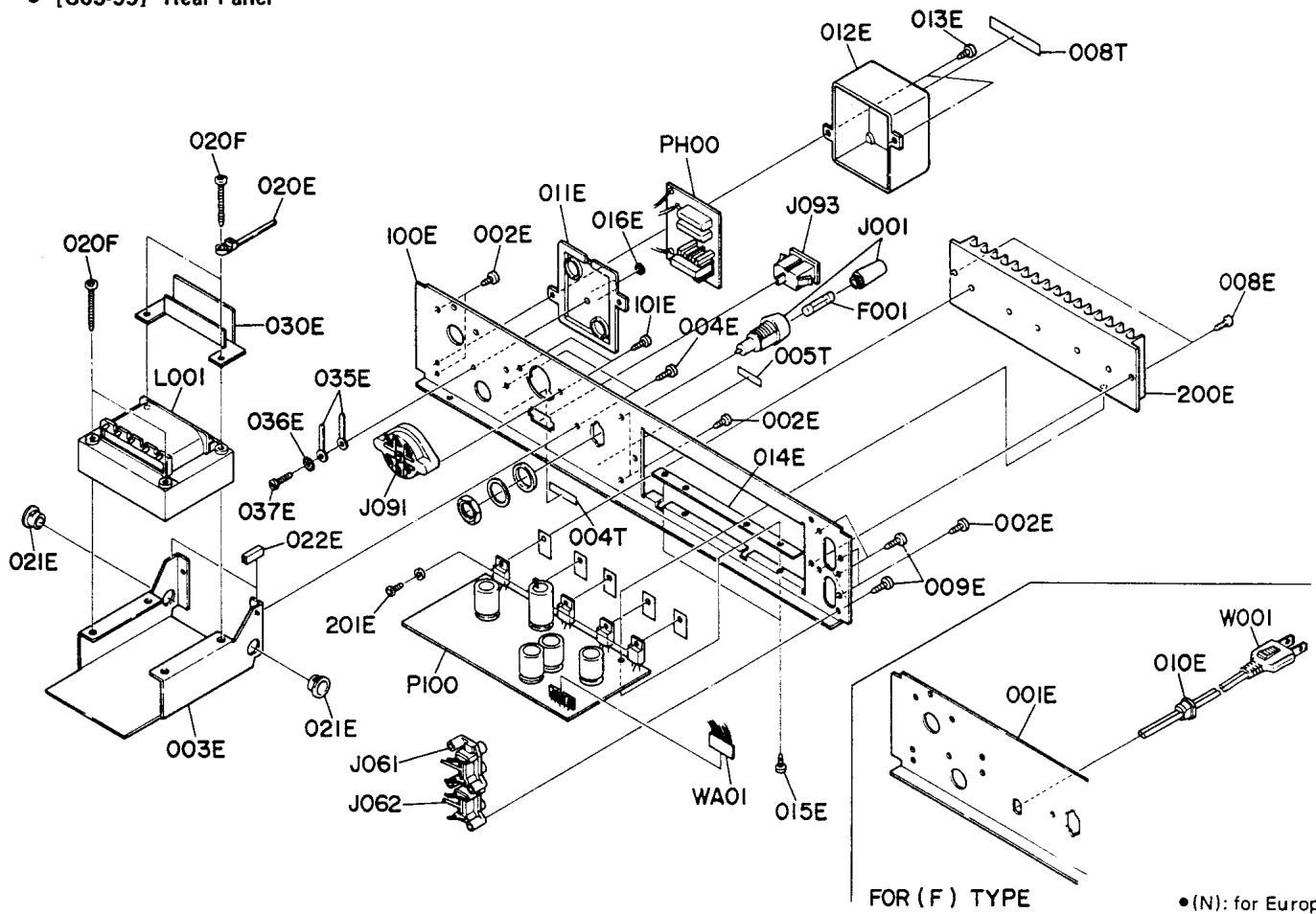

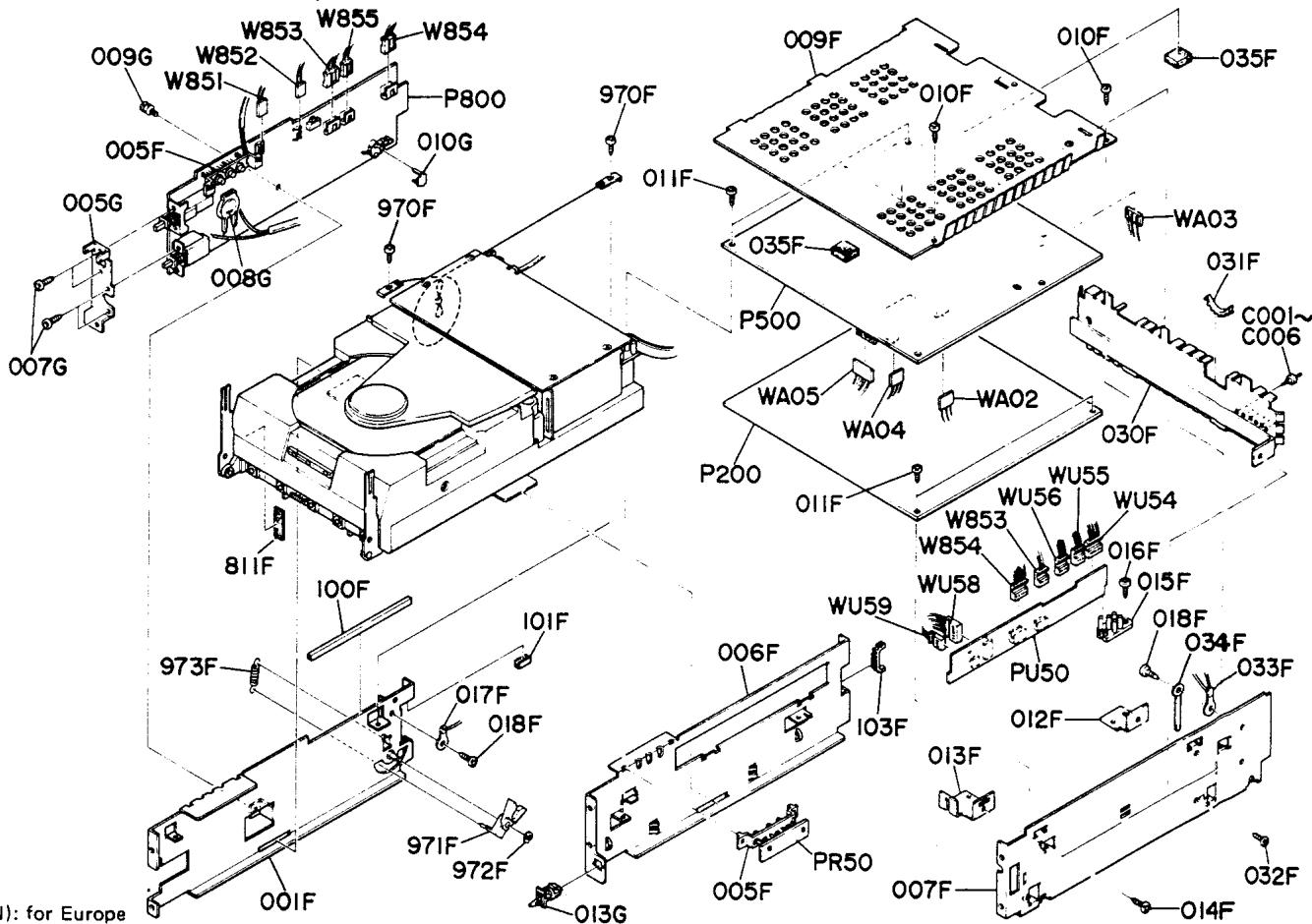

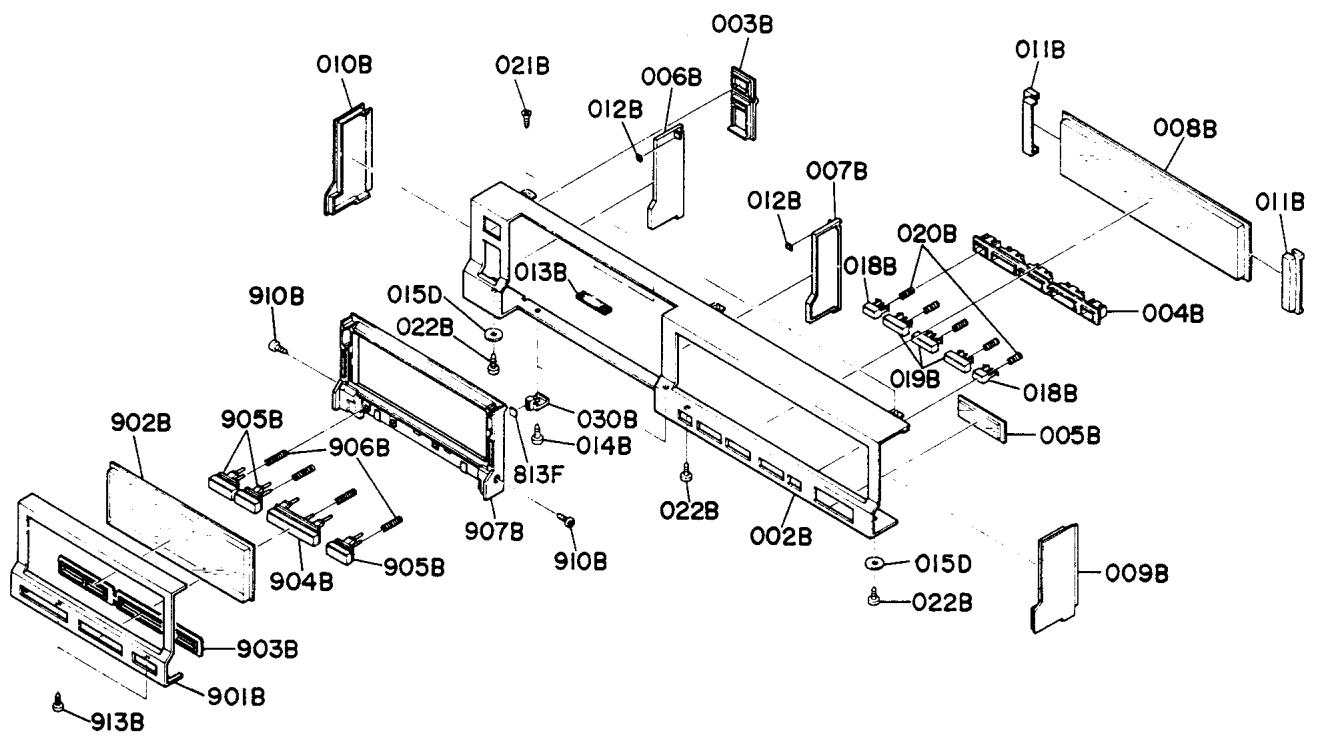

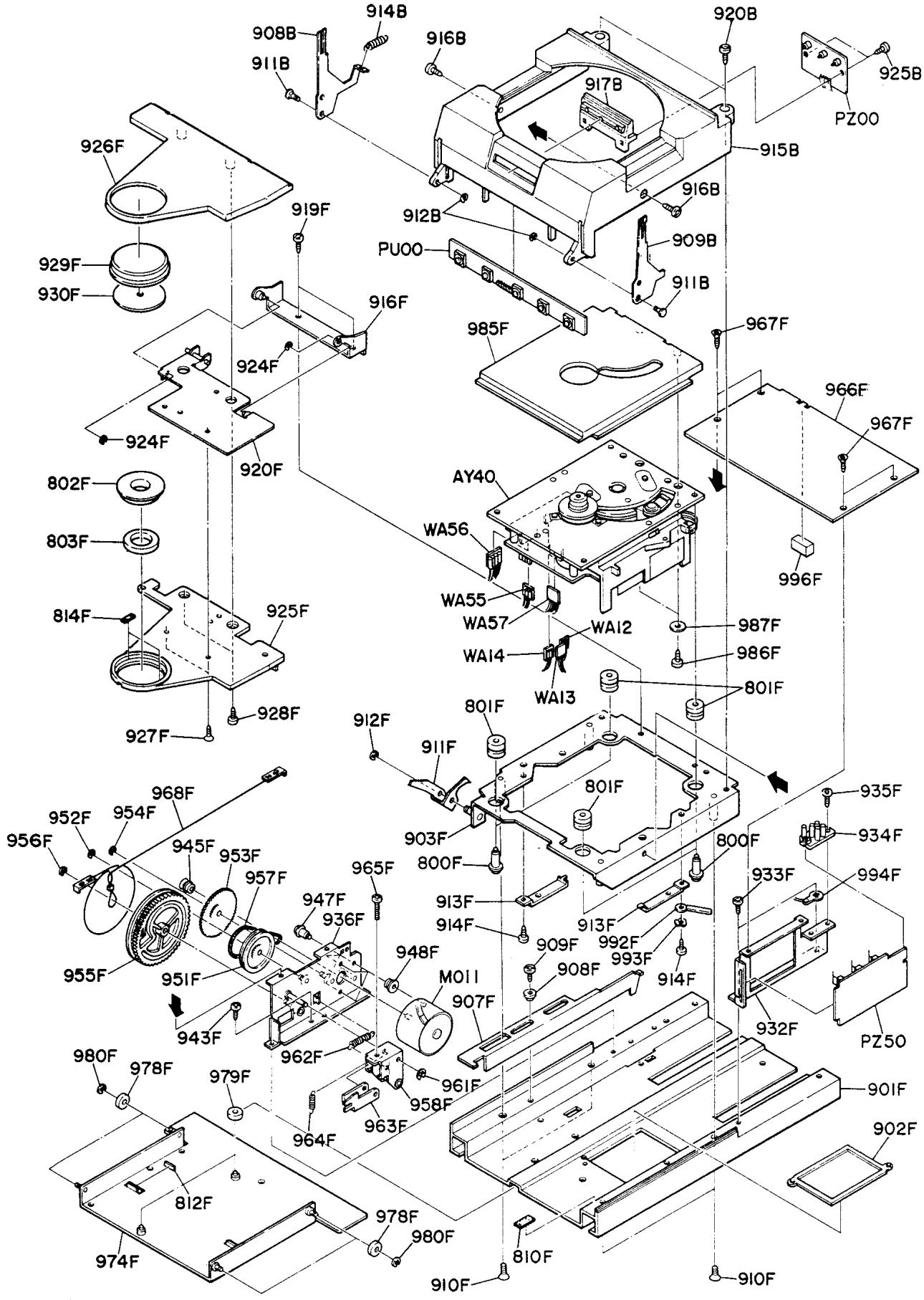

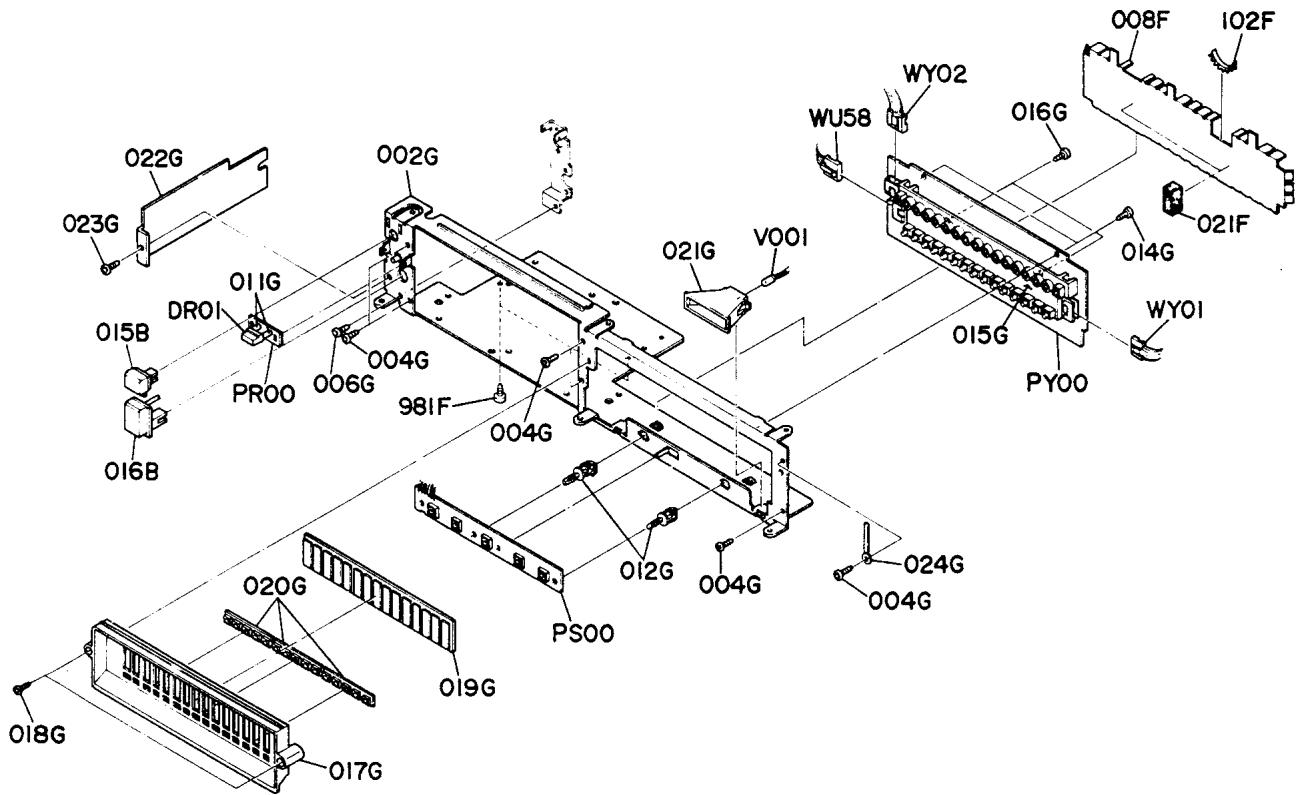

9. EXPLODED VIEW AND PARTS LIST

C01-99] Front Panel

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 1

(N) : for Europe

(F) : for Japan

REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
A11101K063400Front Panel Assembly
002B11101K063010Escutcheon, Front Panel
003B11101K259030Bushing, Power
004B11101K259010Bushing, Function
005B11101K251010Badge
006B11101K201020Divition, (L)
007B11101K201010Divition, (R)
008B11101K158010Window
009B11101K067010Cap, (R)
010B11101K067020Cap, (L)
011B22101K005010Clamper
012B22101K056010Buffer
013B22101K056030Buffer
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
014B225128030880B.H. Tapped Screw B3 x 8
018B22101K154010Knob, Stop/Cancel
019B33101K154020Knob
020B55101K115130Spring, Knob
021B225150030680F.H. Taptite Screw F3 x 6
022B335128030880B.H. Tapped Screw B3 x 8
030B22101K114020Stopper
901B11101K063020Escutcheon, Door
902B11101K158030Window, Door
903B11101K259060Bushing
904B11101K154050Knob, Play
905B33101K154060Knob, FF/REV/Pause
906B44101K115130Spring, Knob
907B11101K271040Holder, Door
910B2251060305A9P.H.M. Screw P3 x 5
913B225128030880B.H. Tapped Screw B3 x 8
015D2254110149A0Flat Washer, L
813F22101K056060Buffer

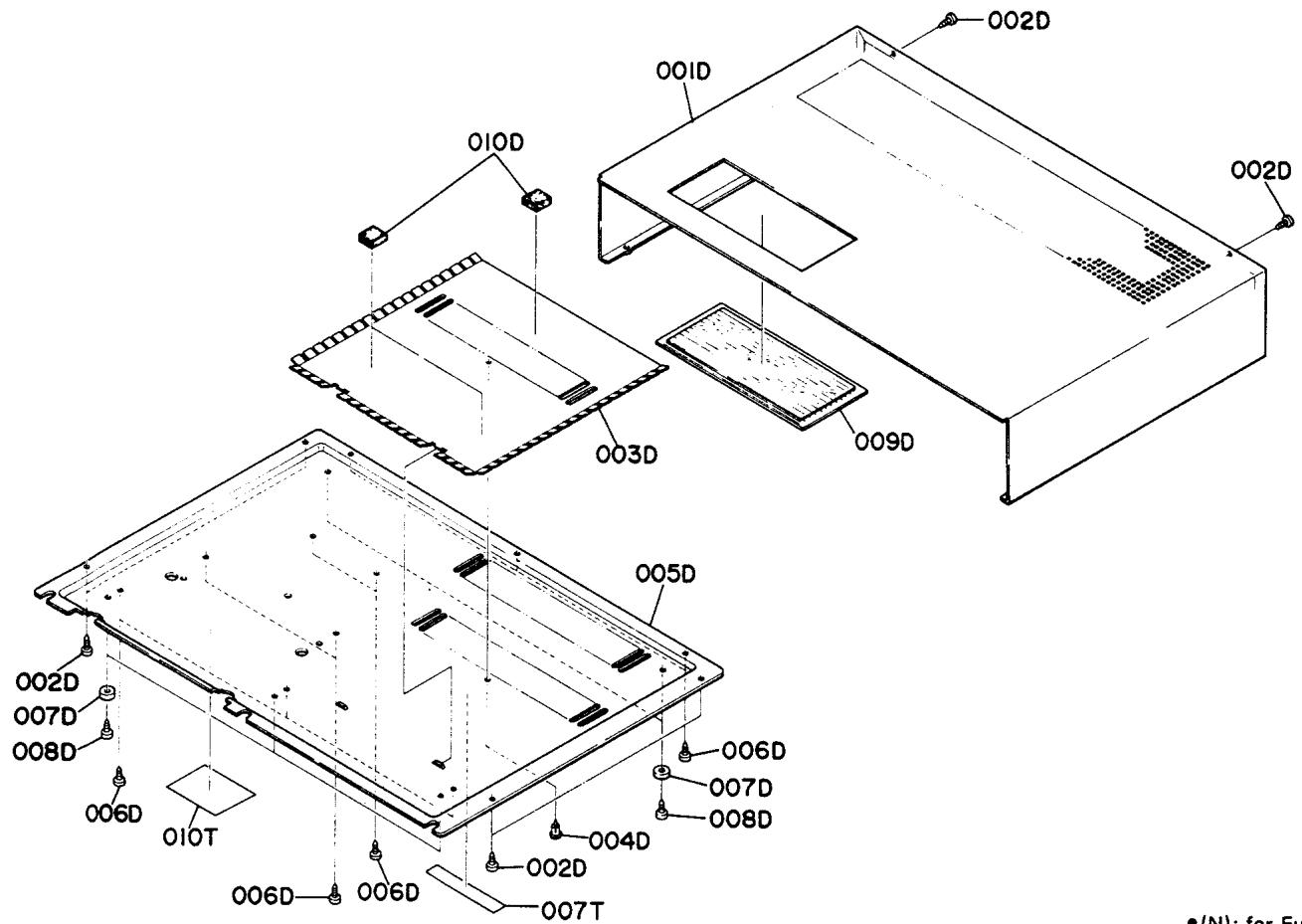

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 2
(N) : for Europe
(F) : for Japan

REF. DESIGN.Q'TYPART NO.DESCRIPTION
NF
001D11101K257030Lid, Top Cover
002D665128030580B.H. Tapped ScrewB3 x 5
003D11101K109030Shield
004D112912259020Bushing
005D11101K257010Lid, Bottom Cover
006D10105128030580B.H. Tapped ScrewB3 x 5
007D55136T057010Leg
008D555128030580B.H. Tapped ScrewB3 x 5
009D11101K158020Window
010D33228H056010Buffer
REF. DESIGN.Q'TYPART NO.DESCRIPTION
NF
007T112911861110Label, Caution
010T101K861030Label, Laser Caution

[CO3-99] Rear Panel

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 3

FOR（F）TYPE

(N) : for Europe
(F) : for Japan

REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
001E1101K053080Cover, Rear Panel
002E6651280305U0B.H. Tapped ScrewB3 x 5
003E11101K160030Bracket, Transformer
004E2251280305U0B.H. Tapped ScrewB3 x 5
008E2251280308U0B.H. Tapped ScrewB3 x 8
009E4451280308U0B.H. Tapped ScrewB3 x 8
010E11455259030Bushing, AC Cord
011E11101K064020Case, Filter; Bottom
012E11101K064030Case, Filter; Top
013E2251280310U0B.H. Tapped ScrewB3 x 10
014E11101K120030Insulator
015E2251280310U0B.H. Tapped ScrewB3 x 10
016E11101K056020Buffer
020E22101K005030Clamper
021E22101K259080Bushing
022E22101K259090Bushing
030E1101K120040Insulator
035E224220005030Clamper
036E1154050300R0T.L. Washer, OR
037E1151280308B0B.H. Tapped ScrewB3 x 8
100E1101K053050Cover, Rear Panel
101E251280308U0B.H. Tapped ScrewB3 x 8
200E11101K267020Heatsink
201E5551100308S9B.H.M. ScrewB3 x 8
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
020F4451280435U0B.H. Tapped Screw B4 x 35
004T112112265010Indicator
005T14581861010Label
008T112991861010Label
▲F0011FS10025800Fuse 250mA 250V
▲F0011FS10100600Fuse 1A 250V
▲J0011YJ08000290Jack, Fuse Holder
▲J0011YT08000300Jack, Fuse Holder
J06111YT02020320Terminal, RCA Pin (2P)
J06211YT02020370Terminal, RCA Pin (2P)
▲J0911BY05080030Voltage Selector
▲J0931YP04000580Plug, AC Inlet
▲L0011TS17627020Power Transformer
▲L0011TS17627010Power Transformer
▲W00111YC01800190A.C. Power Cord
WA0111YB00070040Connective Cord, (6P)

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 4

(N) : for Europe
(F) : for Japan

REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
015811101K154040Knob, Open/Close
016B11101K154030Knob, Power
008F11101K109040Shield, Front
021F222818056030Buffer
102F11101K259110Bushing
981F2251280305B0B.H. Tapped Screw B3 x 5
002G11101K105010Chassis, Front
004G6651280305B0B.H. Tapped Screw B3 x 5
006G1151280305B0B.H. Tapped Screw B3 x 5
011G11101K118020Spacer
012G223896101010Support
014G2251280305B0B.H. Tapped Screw B3 x 5
015G11101K271010Holder, LED
016G2251500306B0F.H. Tapped Screw F3 x 6
017G11101K280010Housing, Display
018G2251280308B0B.H. Tapped Screw B3 x 8
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
019G11101K265010Indicator, Display
020G33101K265020Indicator, Display
021G11101K274010Reflector, Lamp
022G11101K120020Insulator
023G1151280308B0B.H. Tapped Screw B3 x 8
024G114220005030Clamper
V00111IN10080500Lamp 60mA 8V
DR0111HI10032030L.E.D., SLP171D
WU5811YB00250170Connective Cord, (6P)
WY0111YB00240050Connective Cord, (6P)
WY0211YB00150340Connective Cord, (6P)
  • [P02-99] Chassis Assembly and General Parts
    MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 5
    (N) : for Europe
    (F) : for Japan
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
001F11101K105400Chassis Assembly, (L)
005F22101K271080Holder, LED
006F11101K105020Chassis, Center
007F11101K105030Chassis, (R)
009F11101K109020Sheild, Top
010F2251280305B0B.H. Tapped Screw B3 x 5
011F4451280305B0B.H. Tapped Screw B3 x 5
012F11101K160150Bracket
013F11101K160160Bracket
014F2251280305B0B.H. Tapped Screw B3 x 5
015F11101K271050Holder
016F1151280305B0B.H. Tapped Screw B3 x 5
017F1162030039W0Lug, Earth
018F2251280305B0B.H. Tapped Screw B3 x 5
030F11101K109070Shield, Rear
031F11101K259110Bushing
032F1151280305B0B.H. Tapped Screw B3 x 5
033F1162030049W0Lug, Earth
034F114220005030Clamper
035F33228H056010Buffer
100F11101K259100Bushing
101F11101K259090Bushing
103F11101K259110Bushing
811F11101K056050Buffer
970F2251280305B0B.H. Tapped Screw B3 x 5
971F11101K002050Arm, Lock
972F1164000300R0RG Ring, E Type
973F11101K115080Spring, Lock Arm
REF. DESIGN.Q'TYPART NO.DESCRIPTION
NF
005G11101K160050Bracket, Power Switch
007G4451100305A9B.H.M. Screw B3 x 5
008G11403H120010Insulator
009G11101K118010Spacer
010G11101K271070Holder
013G11203H101010Support
C00166DC18202060Feedthru Cap. 2000p F
C006
W85111YB00150360Connective Cord, (2P)
W85211YB00500310Connective Cord, (2P)
W85311YB00700180Connective Cord, (4P)
W85411YB00650030Connective Cord, (5P)
W85511YB00580010Connective Cord, (3P)
WA0211YB00180160Connective Cord
WA0311YB00170060Connective Cord
WA0411YB00170070Connective Cord
WA0511YB00170080Connective Cord
WU5111YB00380030Connective Cord, (8P)
WU5211YB00380030Connective Cord, (8P)
WU5311YB00380030Connective Cord, (8P)
WU5411YB00380040Connective Cord, (6P)
WU5511YB00300640Connective Cord, (3P)
WU5611YB00400340Connective Crod, (4P)
WU5811YB00250170Connective Cord, (6P)
WU5911YB00130080Connective Cord, (3P)

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 6

REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
908B11101K160120Bracket, Door (L)
909B11101K160130Bracket, Door (R)
911B22101K112120Shaft, Door
912B2264000300R0RG Ring, E Type
914B11101K115120Spring
915B11101K064010Case, Mecha
916B2251100308A9B.H.M. ScrewB3 x 8
917B11101K160020Bracket, LED
920B2251280308B0B.H. Tapped ScrewB3 x 8
925B2251280308B0B.H. Tapped ScrewB3 x 8
800F44101K112170Shaft
801F44101K259050Bushing, Mecha
802F11101K353010Ring
803F11101K252010Pad
810F11101K056040Buffer
812F11101K056050Buffer
814F22101K056070Buffer
901F11101K051020Guide
902F11101K067040Cap
903F11101K160420Bracket Assembly, Mecha
907F11101K354020Lever, Door Open
908F11101K055010Collar
909F1151280308B0B.H. Tapped ScrewB3 x 8
910F4451040308A9F.H.M. ScrewF3 x 8
911F11101K002040Arm, Door Open
912F1164000300R0RG Ring, E Type
913F22101K104020Retainer
914F2251280305B0B.H. Tapped ScrewB3 x 5
916F11101K104400Retainer Assembly
919F2251280305B0B.H. Tapped ScrewB3 x 5
920F11101K160400Bracket, Assembly
924F2264000300R0RG Rign, E Type
925F11101K271030Holder, Pressure Ring
926F11101K053070Cover, Pressure Ring
927F2251040305A9F.H.M. ScrewF3 x 5
928F2251280308B0B.H. Tapped ScrewB3 x 8
929F11101K067030Cap, Pressure Ring
930F11101K263020Brake
932F11101K160110Bracket
933F2251280308B0B.H. Tapped ScrewB3 x 8
934F11101K271050Holder
935F1151280308B0B.H. Tapped ScrewB3 x 8
936F11101K160410Bracket Assembly, Motor
943F2251280308B0B.H. Tapped ScrewB3 x 8
945F11101K262020Pulley, Motor
947F334367112150Shaft, Motor
948F33313Y259010Bushing
951F11101K262010Pulley, Idler
952F1164001500R0RG Ring, E Type
953F11101K058010Gear, Idler
954F1164001500R0RG Ring, E Type
955F11101K058030Gear, Drive
956F1164000200R0RG Ring, E Type
957F11101K264010Belt, Drive
958F11101K002400Arm, Drive Assembly
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
961F1164000300R0RG Ring, E Type
962F11101K115090Spring
963F11101K002030Arm
964F11101K115070Spring
965F1151100315A9B.H.M. Screw B3 x 15
966F11101K257020Lid, Mecha
967F4451500306B0F.H. Taptite Screw F3 x 6
968F11101K125500Joint, (K)
974F11101K051400Guide Assembly, Rai
978F44101K358010Roller, B
979F22101K358020Roller, A
980F4464000200R0RG Ring, E Type
985F11101K053060Cover, Mecha
986F2251380205A0P.H. Tapped Screw P2 x 5
987F2254022601A0Flat Washer, P.
992F114220005020Clamper
993F1154050300R0T.L. Washer, OR
994F1162030039W0Lug, Earth
996F112818056030Buffer
AY4011AY101K0040Sub Chassis Assembly
M01111MM01500020D.C. Motor, Drive
WA1211YB00209010Connective Cord, (2P)
WA1311YB00219010Connective Cord, (2P)
WA1411YB00229010Connective Cord, (2P)
WA5511YB00279010Connective Cord, (3P)
WA5611YB00259010Connective Cord, (4P)
WA5711YB00279020Connective Cord, (4P)
11QR11718120Pre-Amp. + Laser P.W. Board Assembly

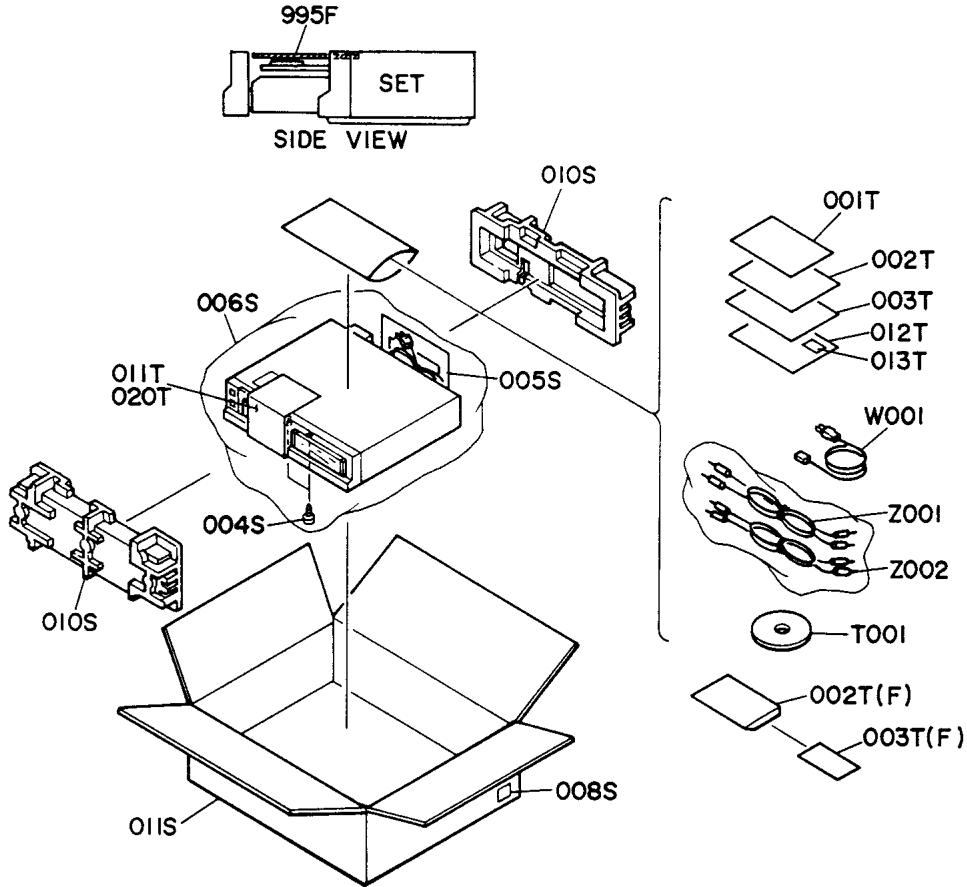

MARANTZ SA15S1 & SA15S2,MV - EXPLODED VIEW AND PARTS LIST - 7
(N) : for Europe
(F) : for Japan

REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
004S2251400350Y0B.H. Tapped Screw B3 x 50
005S12864804010Sleeve
006S119090808030Polyethylene Sheet
008S49526019060Serial No. Card
008S49526019040Serial No. Card
010S11101K809030Cushion, Front/Rear
011S11101K801030Packing Case
001T1101K851310Instructions
001T1101K851110Instructions
002T1101K851320Instructions, Spec
002T19631000130Guarantee Card
003T1101K856010Circuit Diagram
003T1128T854010Guarantee Card
011T1101K861040Label, Transportation
012T19611000050User's Card
013T19540000010License
020T1101K861050Label, Transportation
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
T00111UD01200020Disc, Demo
W0011ZC01805010A.C. Power Cord
Z00111ZD01000240Connective Cord, Audio Out
Z00211ZD01000220Connective Cord, Remocon
995F11101K269010Protector
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
P10011YK101K1220ZZ101K8220P100-POWER SUPPLYCIRCUIT BOARDP.W. Board, Power SupplyP.W. Board Assembly
C10111DK18153300Ceramic 0.015μF
C10211DK18153300Ceramic 0.015μF
C10311DK18153300Ceramic 0.015μF
C10411DK18153300Ceramic 0.015μF
C10511EA22801630Elect 2200μF16V
C10611OA47702510Elect 470μF25V
C10711DF17104350Film 0.1μF ±20%
C10811DK18153300Ceramic 0.015μF
C10911DF17104350Film 0.1μF ±20%
C11011DK18153300Ceramic 0.015μF
C11111OA33802510Elect 3300μF25V
C11211OA33802510Elect 3300μF25V
C11311OA47702510Elect 470μF25V
C11411OA33801610Elect 3300μF16V
C11511OA33801610Elect 3300μF16V
C11611OA47601610Elect 47μF16V
C11711EA22602530Elect 22μF25V
C11811EA33601630Elect 33μF16V
C11911EA33601630Elect 33μF16V
C12011DF16104510Film 0.1μF ±10%
C12111DF16104510Film 0.1μF ±10%
C12211DF16104510Film 0.1μF ±10%
C12311DK18473320Ceramic 0.047μF
C12411OA47601610Elect 47μF16V
C12511DF16104510Film 0.1μF ±10%
P100-RESISTORS(All Resistors are ±5% and %W)
R10111GD05121140120Ω
R10211GD05561140560Ω
R10311GD051021401KΩ
R10411GD051021401KΩ
R10711GD05271140270Ω
R10811GD05821140820Ω
R10911HH00001490Thermistor
R11011GD0547014047Ω
R11111GA0522002022Ω 2W
P100-SEMICONDUCTORS
D10711HD20009290Diode S2V20
D10811HD20009290Diode S2V20
D10911HD20009290Diode S2V20
D11011HD20009290Diode S2V20
D11111HD20009290Diode S2V20
D11211HD20009290Diode S2V20
D11311HD20009290Diode S2V20
D11411HD20009290Diode S2V20
D11511HD20009290Diode S2V20
D11611HD20003210Diode 1S2471
D11711HD20003210Diode 1S2471
Q10111HC10043060IC μPC7812H
Q10211HC10044060IC μPC7912H
Q10311HC10079060IC μPC7918H
Q10411HC10013360IC LM317T
Q10511HC10014360IC LM337T
Q10611HT106831D0Transistor 2SA683(S)
REF. DESIG.QTYPART NO.DESCRIPTION
NF
P100-MISCELLANEOUSPlug, (6P)
J10111YP06002420Plug, (6P)Connective Cord, (6P)
WA0111YB00070040
P200-SERVO CIRCUIT BOARD
P20011YG101K0010P.W. Board, Servo
ZZ101K8010P.W. Board Assembly
P200-CAPACITORS
C20111DA17103010Ceramic0.01μF ±20%
C20311DA17103010Ceramic0.01μF ±20%
C20411DF15104350Film0.1μF ±5%
C20511DF74273010Film0.027μF ±2%
C20711EA33601630Elect33μF 16V
C20811DA17103010Ceramic0.01μF ±20%
C20911EA10505030Elect1μF 50V
C21011DD15270370Ceramic27pF ±5%
C21111DF15104350Film0.1μF ±5%
C21211DK16331300Ceramic330pF ±10%
C21311DD15270370Ceramic27pF ±5%
C21411EQ22601630Elect22μF 16V
C21511DF15154350Film0.15μF ±5%
C21611DA17103010Ceramic0.01μF ±20%
C21711EQ22601630Elect22μF 16V
C21811DF15103350Film0.01μF ±5%
C21911DF15473350Film0.047μF ±5%
C22311DA16331010Ceramic330pF ±10%
C22411DA16331010Ceramic330pF ±10%
C22511DK16331300Ceramic330pF ±10%
C22811DF15104350Film0.1μF ±5%
C22711DA16331010Ceramic330pF ±10%
C23311DF15474350Film0.47μF ±5%
C23511DA17103010Ceramic0.01μF ±20%
C23611DF74562010Film5600pF ±2%
C23711DF15333350Film0.033μF ±5%
C23811DF74562010Film5600pF ±2%
C23911DF55391090Film390pF ±5%
C24111EA33601630Elect33μF 16V
C24211EA33601630Elect33μF 16V
C24311DF15474350Film0.47μF ±5%
C24411DF55681090Film680pF ±5%
C24611DF74682010Film6800pF ±2%
C24711DF74682010Film6800pF ±2%
C25011EA33601630Elect33μF 16V
C25111DF15224350Film0.22μF ±5%
C25611DF74182010Film1800pF ±2%
C25711DF74682010Film6800pF ±2%
C25911DF15223350Film0.022μF ±5%
C26111DF74682010Film6800pF ±2%
C26211DF14682010Film6800pF ±2%
C26511EA33601630Elect33μF 16V
C26611EA33601630Elect33μF 16V
C26711DF15105350Film1μF ±5%
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
P200-RESISTORS(All Resistors are ±5% and 1/4W)
R20111GM2144752047.5KΩ
R20211GM214100401MΩ
R20311GM21482530825KΩ
R20411GD051051401MΩ
R20511GD05104140100KΩ
R20611GD05474140470KΩ
R20911GM2144752047.5KΩ
R21011GD05104140100KΩ
R21111GD0522314022KΩ
R21411GD0522314022KΩ
R21511GD056821406.8KΩ
R21611GD05104140100KΩ
R21711GD0533314033KΩ
R21911GM214221102.21KΩ
R22011GM214221102.21KΩ
R22111GD056821406.8KΩ
R22211GM2141212012.1KΩ
R22311GM21410030100KΩ
R22711GD051051401MΩ
R22911GD054721404.7KΩ
R23011GD0556314056KΩ
R23111GD05334140330KΩ
R23311GM21410030100KΩ
R23411GD054721404.7KΩ
R23511GD054721404.7KΩ
R23811GD05474140470KΩ
R23911GD0547314047KΩ
R24011GD050331403.3Ω
R24211GD055651405.6MΩ
R24311GD055651405.6MΩ
R24411GD054721404.7KΩ
R24511GD05154140150KΩ
R24611GD05101140100Ω
R25011GD0568314068KΩ
R25111GD0568314068KΩ
R25211GD05681140680Ω
R25311GD054721404.7KΩ
R25411GD05104140100KΩ
R25511GD0533314033KΩ
R25611GA0522002022Ω 2W
R25711GD0522314022KΩ
R25811GD052721402.7KΩ
R25911GD056821406.8KΩ
R26011GD0568314068KΩ
R26111GD0568314068KΩ
R26211GD053321403.3KΩ
R26411GD053321403.3KΩ
R26511GD053321403.3KΩ
R26711GD052221402.2KΩ
R26811GD052221402.2KΩ
R27611GD054721404.7KΩ
R27911GM2144752047.5KΩ
R28011GM2144752047.5KΩ
R28111GD05474140470KΩ
R28211GM2144752047.5KΩ
R28311GM2144752047.5KΩ
R28411GD0510314010KΩ
R28511GD0522314022KΩ
R28711GM214681106.81KΩ
R28811GM214681106.81KΩ
REF. DESIGN.Q'TYPART NO.DESCRIPTION
NF
R29111GD0547314047KΩ
R29211GD0568314068KΩ
R29311GD05471140470Ω
R29411GD05471140470Ω
R29811GM21447500475Ω
R29911GM214267102.67KΩ
R30011GM2141002010KΩ
R30111GM2141002010KΩ
R30111GD052221402.2KΩ
R30411GM2141002010KΩ
R30511GM2141002010KΩ
R30611GM214267102.67KΩ
R30711GD052221402.2KΩ
R30811GM21447500475Ω
R31111GM2148252082.5KΩ
R31211GM2148252082.5KΩ
R31311GD054721404.7KΩ
R31511RA0103007010KΩ, Trimming
R31611GD0547314047KΩ
R31811GD05821140820Ω
R31911GD05471140470Ω
R32011GD051521401.5KΩ
R32311GM21412130121KΩ
R32411GM2147502075KΩ
R32511GM2147502075KΩ
R82611GM21422130221KΩ
R32711GD05104140100KΩ
R32811GM21433230332KΩ
R33511GD0568314068KΩ
R33611GD054721404.7KΩ
R34011GD0510314010KΩ
R34111GD0510314010KΩ
R34211GD0568314068KΩ
R34511GD0547314047KΩ
R34611GD0547314047KΩ
R34911GD0518314018KΩ
R35011GD05184140180KΩ
R35111GD0533314033KΩ
R35211GD0527314027KΩ
R35311GD054721404.7KΩ
R35611GM2143562035.6KΩ
R35711GM214392103.92KΩ
R35811GM21435630356KΩ
R35911GD052721402.7KΩ
R36011GD05104140100KΩ
R36211GD05104140100KΩ
R36311GD0510314010KΩ
R36411GD054721404.7KΩ
R36511GD05474140470KΩ
R36711GD05474140470KΩ
R37011GM2142632026.3KΩ
R37211GD0547314047KΩ
R37311GM21418230182KΩ
R37511GD0547314047KΩ
R37611GD054721404.7KΩ
R37811GD0527314027KΩ
R37911GD0527314027KΩ
R38011GD053321403.3KΩ
R38111GD05121140120Ω
R38211GD05121140120Ω
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
R38411HH00001490Thermistor
R38511HH00001490Thermistor
R38611GD053321403.3KΩ
R38711GD050221402.2Ω
R39111GM214562105.62KΩ
R39211GM2141302013KΩ
R39311GD0522314022KΩ
R39411GM21433230332KΩ
R39511GD0522314022KΩ
R39611GD0556314056KΩ
R39711GD0556314056KΩ
R39811GD051821401.8KΩ
R39911GD051521401.5KΩ
P200-SEMICONDUCTORS
D24411HD20001000Diode1S2473
D24511HD20001000Diode1S2473
D24611HD20001000Diode1S2473
D24911HD20001000Diode1S2473
D25011HD20001000Diode1S2473
D25111HD30041010ZenerHZ2C2
D25211HD30004020ZenerMA1051
D25511HD20001000Diode1S2473
D25611HD20001000Diode1S2473
D25711HD20001000Diode1S2473
D25811HD20001000Diode1S2473
D25911HD20001000Diode1S2473
D26111HD20001000Diode1S2473
Q20111HC10027270ICMAB8420
Q20511HC10081060ICμPC339C
Q20711HC10055010ICHD14025B
Q20811HC10080060ICμPC1458C
Q20911HC10080060ICμPC1458C
Q21111HC10056010ICHD14053B
Q21211HC10082060ICμPC324C
Q21311HC10057010ICHD14070B
Q21411HC10082060ICμPC324C
Q21511HC10082060ICμPC324C
Q21611HC10020270ICTCA240
Q21711HC10080060ICμPC1458C
Q21811HC10083060ICμPC741C
Q23011HT309452B0Transistor2SC945(Q)
Q23111HT328241Y0Transistor2SC2824(Y)
Q23211HT111841Y0Transistor2SA1184(Y)
Q23311HT313841R0Transistor2SC1384(R)
Q23411HT106841R0Transistor2SA684(R)
Q23811HT309452B0Transistor2SC945(Q)
Q23911HT309452B0Transistor2SC945(Q)
Q24011HT111841Y0Transistor2SA1184(Y)
Q24111HT328241Y0Transistor2SC2824(Y)
Q24211HT107332A0Transistor2SA733(Q)
P200-MISCELLANEOUS
WA0211YB00180160Connective Cord
WA0311YB00170060Connective Cord
WA0411YB00170070Connective Cord
WA0511YB00170080Connective Cord
X20111XB108002L3Crystal, 6MHz
250E22415H267010Heatsink
251E2251280306B0B.H. Tapped Screw B3 x 6
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
P500-DECODER CIRCUIT BOARD
P50011YK101K1210P.W. Board, Decoder
1ZZ101K8210P.W. Board Assembly
P500-CAPACITORS
C50111DF74223010Film0.022μF ±2%
C50211DF74223010Film0.022μF ±2%
C50311DK1622300Ceramic2200pF ±10%
C50511DF55272090Film2700pF ±5%
C50611DK16472300Ceramic4700pF ±10%
C50811DK16821300Ceramic820pF ±10%
C51111DK18223310Ceramic0.022μF
C51211DK18223310Ceramic0.022μF
C51411DF15104350Film0.1μF ±5%
C51511DF15104350Film0.1μF ±5%
C51611DK18103310Ceramic0.01μF
C52011DK16471300Ceramic470pF ±10%
C52111DK16471300Ceramic470pF ±10%
C52311DK18103310Ceramic0.01μF
C52511DK16222300Ceramic2200pF ±10%
C52711DF15104350Film0.1μF ±5%
C53111DK18104020Ceramic0.1μF
C53311EA10505030Elect1μF 50V
C53411DD15270370Ceramic27pF ±5%
C53511DD15270370Ceramic27pF ±5%
C53711DK18223310Ceramic0.022μF
C53811DK18223310Ceramic0.022μF
C53911DK18223310Ceramic0.022μF
C54211DD15680370Ceramic68pF ±5%
C54311DD15330370Ceramic33pF ±5%
C55011DK18223310Ceramic0.022μF
C55111DK18223310Ceramic0.022μF
C55511DK18223310Ceramic0.022μF
C55611DK18223310Ceramic0.022μF
C55711EA22602530Elect22μF 25V
C55811EA22602530Elect22μF 25V
C55911DK18223310Ceramic0.022μF
C56011DK18223310Ceramic0.022μF
C56211DK18223310Ceramic0.022μF
C56311EA22700630Elect220μF 6.3V
C56411DK16821300Ceramic820pF ±10%
C56611DF74512010Film5100pF ±2%
C56711DF74153010Film0.015μF ±2%
C56811DF74222010Film2200pF ±2%
C57011DF74222010Film2200pF ±2%
C57111DF74122010Film1200pF ±2%
C57311OA47601610Elect47μF 16V
C57511DD15101370Ceramic100pF ±5%
C58011DF15474350Film0.47μF ±5%
C58111DF15474350Film0.47μF ±5%
C58211DF15104350Film0.1μF ±5%
C58311DF15104350Film0.1μF ±5%
C58411DF15104350Film0.1μF ±5%
C58511DK18223310Ceramic0.022μF
C58611DK18223310Ceramic0.022μF
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
C58711DK18223310Ceramic0.022μF
C58811DK18223310Ceramic0.022μF
C58911DK18223310Ceramic0.022μF
C59011DF16104510Film0.1μF±10%
C59111DK16152300Ceramic1500pF±10%
C59311EA22602530Elect22μF25V
C59411DK18223310Ceramic0.022μF
C59511DK18223310Ceramic0.022μF
C59711DK18223310Ceramic0.022μF
C59911DK16321300Ceramic820pF±10%
C60111DF74512010Film5100pF±2%
C60211DF74153010Film0.015μF±2%
C60311DF74222010Film2200pF±2%
C60511DF74222010Film2200pF±2%
C60611DF74122010Film1200pF±2%
C60811OA47601610Elect47μF16V
C60911DF16104510Film0.1μF±10%
C61011DD15101370Ceramic100pF±5%
C61511EA22602530Elect22μF25V
C61711DF16104510Film0.1μF±10%
C61811DF16104510Film0.1μF±10%
C61911DF16104510Film0.1μF±10%
C62111EA22602530Elect22μF25V
C62311DK18223310Ceramic0.022μF
C62411EA22602530Elect22μF25V
C62611EA22602530Elect22μF25V
C62811EA22602530Elect22μF25V
C63011DF15474350Film0.47μF±5%
C63111DF15474350Film0.47μF±5%
C63211DF15104350Film0.1μF±5%
C63311DF15104350Film0.1μF±5%
C63411DF15104350Film0.1μF±5%
C63511DK18223310Ceramic0.022μF
C63611DK18223310Ceramic0.022μF
C63711DK18223310Ceramic0.022μF
C63811DK18223310Ceramic0.022μF
C63911DK18223310Ceramic0.022μF
C64111DK16152300Ceramic1500pF±10%
P500-RESISTORS(All Resistors are ±5% and %W)
R50111GD058251408.2MΩ
R50211GD05824140820KΩ
R50311GM2141782017.8KΩ
R50411GD05824140820KΩ
R50511GM21417830178KΩ
R50611GD05681140680Ω
R50711GM2141782017.8KΩ
R50811GD058251408.2MΩ
R51011GM214392103.92KΩ
R51111GM2141002010KΩ
R51211GM21410030100KΩ
R51311GM21410030100KΩ
R51411GD051051401MΩ
R51511GD050101401Ω
R51611GD051051401MΩ
R51911GD052221402.2KΩ
R52011GD0522314022KΩ
R52111GD0510314010KΩ
R52311GD052221402.2KΩ
R52511GD052221402.2KΩ
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
R52711GD05391140390Ω
R52911GD0522314022KΩ
R53011GD0510314010KΩ
R53211GD053321403.3KΩ
R53411GD0510314010KΩ
R53511GD05104140100KΩ
R53611GD05104140100KΩ
R53711GD05274140270KΩ
R53811GD0539314039KΩ
R53911GD050101401Ω
R54011GD054721404.7KΩ
R54111GD054721404.7KΩ
R54211GD0547314047KΩ
R54311GD05104140100KΩ
R54411GD054721404.7KΩ
R54511GD051051401MΩ
R54711GD054721404.7KΩ
R54811GD053321403.3KΩ
R54911GD054721404.7KΩ
R55011GD058221408.2KΩ
R55511GD051021401KΩ
R55811GD051051401MΩ
R56011GD051021401KΩ
R56311GD055621405.6KΩ
R56411GD051021401KΩ
R56511GD051021401KΩ
R56611GD051021401KΩ
R56711GD051021401KΩ
R56911GM21410000100Ω
R57011GM214267102.67KΩ
R57111GM21410000100Ω
R57211GM214100101KΩ
R57311GD051051401MΩ
R57411GM214282101.82KΩ
R57611GM214221102.21KΩ
R57711GM214221102.21KΩ
R57911GM2141002010KΩ
R58011GM21410030100KΩ
R58111GD0547014047Ω
R58411GM214825G082.5Ω
R58511GM21456200562Ω
R586.11RA05010050500Ω, Trimming
R58711GM21426700267Ω
R59011GM21410000100Ω
R59111GM214267102.67KΩ
R59211GM21410000100Ω
R59311GM214100101KΩ
R59411GD051051401MΩ
R59511GM214182101.82KΩ
R59711GM214221102.21KΩ
R59811GM214221102.21KΩ
R60011GM2141002010KΩ
R60111GM21410030100KΩ
R60211GD0547014047Ω
R60511GM214825G082.5Ω
R60611GM21461900619Ω
R60711GD05151140150Ω
R60811GD05471140470Ω
P500-SEMICONDUCTOR:
D53911HD40004030Varicap SVC303 : GR
D54011HD40004030Varicap SVC303Y-GR
D54111HD30004020Zener MA1051
D54411HD20001210Diode 1S2473C
D54511HD20001210Diode 1S2473C
D54611HD20001210Diode 1S2473C
D54811HD20001210Diode 1S2473C
D54911HD20001210Diode 1S2473C
D55011HD20001210Diode 1S2473C
D55111HD20001210Diode 1S2473C
D55511HD20001210Diode 1S2473C
D55611HD20001210Diode 1S2473C
D55711HD20001210Diode 1S2473C
D55811HD20001210Diode 1S2473C
D55911HD20001210Diode 1S2473C
Q50111HC10022270IC SAA7010(M4290A)
Q50411HC10058010IC HD74LS74
Q50611HC10026270IC MAB8410
Q50811HC10084060IC μPC393C
Q51011HC10023270IC SAA7020(M4280)
Q51211HC10059010IC HM6116P-4
Q51411HC10021270IC SAA7000(M4300)
Q51711HC10024270IC SAA7030(M4550)
Q51911HC10025270IC TDA1540D
Q52011HC10025270IC TDA1540D
Q52311HC10023090IC NJM5532
Q52511HC10023090IC NJM5532
Q53011HT309452B0Transistor 2SC945(Q or P)
Q53111HT309452B0Transistor 2SC945(Q or P)
Q53311HT309452B0Transistor 2SC945(Q or P)
Q53511HT107332A0Transistor 2SA733(Q or P)
Q53611HT107332A0Transistor 2SA733(Q or P)
P500-MISCELLANEOUS
J51011YP10001990Plug, (3P)
J52011YP10002010Plug, (5P)
J54011YP10001990Plug, (3P)
J55011YP10001990Plug, (3P)
L50111LO71020020OSC Coil
L50711LY10050040Relay
L50811LY10050040Relay
L51011LY10050040Relay
L51111LY10050040Relay
X50111XB108001L3Crystal, 4.4336MHz
X50411XB108002L2Crystal, 4.2336MHz
REF. DESIGN.QTYPART NO.DESCRIPTION
NF
P80011YK101K1710P800-MOTOR/REMOCON CIRCUIT BOARD P.W. Board, Motor/Remocon P.W. Board Assembly
1ZZ101K8710
C80111EA22601630Elect 22μF 16V
C80211EA10505030Elect 1μF 50V
C80311DK18103300Ceramic 0.01μF
C80411EA10701030Elect 100μF 10V
C80511EA47601030Elect 47μF 10V
C80611DK18103300Ceramic 0.01μF
C80711EA10701030Elect 100μF 10V
C80811EQ10505030Elect 1μF 50V
C85111EA22602530Elect 22μF 25V
C85211EA10701030Elect 100μF 10V
C85311DK18103300Ceramic 0.01μF
C85411DK16221300Ceramic 220pF ±10%
C85511DK16221300Ceramic 220pF ±10%
C85611EA10505030Elect 1μF 50V
C85711DK18103300Ceramic 0.01μF
C85811EA22601630Elect 22μF 16V
C58911OA47601610Elect 47μF 16V
▲G8011DK18103840Ceramic 0.01μF, Spark Killer
▲G8011DK18103850Ceramic 0.01μF, Spark Killer
P800-RESISTORS (All Resistors are ±5% and %W)
R80111GD053921403.9KΩ
R80211GD0510314010KΩ
R80311GD0510314010KΩ
R80411GA05181010180Ω 1W
R80511GD055621405.6KΩ
R80611GD054721404.7KΩ
R80711GD0522314022KΩ
R80811GD0522314022KΩ
R80911GD0510314010KΩ
R81011GD056821406.8KΩ
R81111GD056821406.8KΩ
R81211GD0510314010KΩ
R81311GD0510314010KΩ
R81411GD053321403.3KΩ
R81511GD0533314033KΩ
R81611GD054721404.7KΩ
R81711GD053921403.9KΩ
R81811GD053321403.3KΩ
R81911GD0510314010KΩ
R82011GG050821208.2Ω ½W
R82111GD0510314010KΩ
R82211GD052221402.2KΩ
R82311GD05821140820Ω
R82411GD054721404.7KΩ
R82511GA0533002033Ω 2W
R82611GG051221201.2KΩ ½W
R82711GG051221201.2KΩ ½W
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
ΔR85111GA0582001082Ω1W
R85211GD0547314047KΩ
R85311GD051051401MΩ
R85411GD0510314010KΩ
R85511GD0510314010KΩ
R85611GD0510314010KΩ
R85711GD0510314010KΩ
R86211GD0547314047KΩ
R86311GD0510314010KΩ
R86411GD05104140100KΩ
R86511GD0547314047KΩ
R86611GD0510314010KΩ
R86711GD0510314010KΩ
R86811GD0515314015KΩ
P800-SEMICONDUCTORS
D80111HD20011050Diode1S1555
D80211HD30052090ZenerWZ056
D80311HD30091090ZenerBZ081
D80411HD20011050Diode1S1555
D80511HD20011050Diode1S1555
D80611HD20011050Diode1S1555
D80711HD20011050Diode1S1555
D80811HD20011050Diode1S1555
D80911HI10016050L.E.D.TLUG-143
D81011HI10016050L.E.D.TLUG-143
D81111HI10016050L.E.D.TLUG-143
D85111HD20011050Diode1S1555
Q80111HT80547180TransistorBC547B
Q80211HT80547180TransistorBC547B
Q80311HT80547180TransistorBC547B
Q80411HT80547180TransistorBC547B
Q80511HT80547180TransistorBC547B
Q80611HT60557180TransistorBC557B
Q80711HT313841R0Transistor2SC1384(R)
Q80811HT313841R0Transistor2SC1384(R)
Q80911HT80547180TransistorBC547B
Q85111HC10102030ICLM6416E
Q85211HT80547180TransistorBC547(B)
Q85311HT80547180TransistorBC547(B)
Q85411HT80547180TransistorBC547(B)
Q85511HT80547180TransistorBC547(B)
Q85611HT80547180TransistorBC547(B)
Q85711HT80457180TransistorBC547(B)
Q85811HT60557180TransistorBC557(B)
Q85911HC10031060ICMPC78L05
P800-MISCELLANEOUS
J80111YP10001200Plug
J80211YP10001200Plug
J85111YP06003000Plug
J85211YP06003000Plug
J85311YP06003020Plug
J85411YP06003030Plug
J85511YP06003010Plug
L80111LC14730040Choke Coil, 47μH
L80211LC14730040Choke Coil, 47μH
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
S8011SP01010600Push Switch, Power
S8011SP01010620Push Switch, Power
S80211SP04010430Push Switch, ON/OFF
S80311SS01020370Slide Switch, Service
S80411SM01010980Mini Switch, Safety
W85111YB00150360Connective Cord, (2P)
W85211YB00500310Connective Cord, (2P)
W85311YB00700180Connective Cord, (4P)
W85411YB00650030Connective Cord, (5P)
W85511YB00580010Connective Cord, (3P)
X85111FQ04003010Ceramic Vib. 400KHz
PH0011YK101K1770PH00-MAIN FILTER CIRCUIT BOARD P.W. Board, Main Filter P.W. Board Assembly
ZZ101K8770
JCH011DF17154810PH00-CAPACITORS Film 0.15μF ±20%
JCH011DF17104810Film 0.1μF ±20%
JCH021DF17154810Film 0.15μF ±20%
JCH031DK16471800Ceramic 470pF ±10%
JCH031DK16221800Ceramic 220pF ±10%
JCH041DK16471800Ceramic 470pF ±10%
JCH041DK16221800Ceramic 220pF ±10%
JH0144YP10001130PH00-MISCELLANEOUS Plug
JH04
LH0111LC11560010Choke Coil, 15mH x 2
PR0011YK101K1720PR00-Power IND. CIRCUIT BOARD P.W. Board, Power Ind.
ZZ101K8720P.W. Board Assembly
DR0111HI10032030L.E.D. SLP171D
-
PR5011YK101K1730PR50-DISC INSIDE IND. CIRCUIT BOARD P.W. Board, Disc Inside Ind.
ZZ101K8730P.W. Board Assembly
RR5111GG05122120Resistor 1.2KΩ ±5% ½W
DR5111HI10016050L.E.D. TLUG-143
DR5211HI10016050L.E.D. TLUG-143
DR5311HI10016050L.E.D. TLUG-143
PS00-PROGRAM KEY SW. CIRCUIT BOARD
PS0011YK101K1420P.W. Board, Program Key SW.
1ZZ101K8420P.W. Board Assembly
PS00-RESISTORS
RS0111GD05821140820Ω ±5% ¼W
RS0211GD05821140820Ω ±5% ¼W
RS0311GD05821140820Ω ±5% ¼W
RS0411GD05821140820Ω ±5% ¼W
PS00-SWITCHES
SS0111SP01010580Push Switch, All Cancel
SS0211SP01010580Push Switch, Program Sel
SS0311SP01010580Push Switch, Preset
SS0411SP01010580Push Switch, Repeat
SS0511SP01010580Push Switch, Cancel
PU00-MODE KEY SWITCH CIRCUIT BOARD
PU0011YK101K1430P.W. Board, Mode Key Switch
1ZZ101K8430P.W. Board Assembly
SU0111SP01010580Push Switch, REV
SU0211SP01010580Push Switch, FF
SU0311SP01010580Push Switch, PLAY/NEXT
SU0411SP01010580Push Switch, PLAY/NEXT
SU0511SP01010580Push Switch, PAUSE
PU50-SIGNAL RELAY 2 CIRCUIT BOARD
PU5011YK101K1440P.W. Board, Signal Relay 2
1ZZ101K8440P.W. Board Assembly
JU5111YJ06002680Jack
JU5211YJ06002680Jack
JU5311YJ06002680Jack
JU5411YP06003040Plug
JU5511YP06003010Plug
JU5611YP06003020Plug
JU5711YP06003020Plug
JU5811YP10002020Plug
JU5911YP10001990Plug
JU6011YP06003030Plug
SU5111SP01010580Push Switch, Play
WU5111YB00380030Connective Cord, (8P)
WU5211YB00380030Connective Cord, (8P)
WU5311YB00380030Connective Cord, (8P)
WU5411YB00380040Connective Cord, (6P)
WU5511YB00300640Connective Cord, (3P)
WU5611YB00400340Connective Cord, (4P)
WU5811YB00250170Connective Cord, (6P)
WU5911YB00130080Connective Cord, (3P)
REF. DESIG.QTYPART NO.DESCRIPTION
NF
PY0011YK101K1410PY00-DISPLAY CIRCUIT BOARD P.W. Board, Display P.W. Board Assembly
1ZZ101K8410
CY0111EA33601030PY00-CAPACITORS Elect 33μF 10V Elect 33μF 10V
CY0211EA33601030
CY0311DK18103300Ceramic 0.01μF Ceramic 0.01μF
CY0411DK18103300
RY0111GD05821140820Ω
RY0211GD05821140820Ω
RY0311GD05821140820Ω
RY0411GD05821140820Ω
RY0511GD0568014068Ω
RY0611GD053321403.3KΩ
RY0711GD05821140820Ω
QY0111HC10012360PY00-SEMICONDUCTORS IC MM5450N IC HEF4094
QY0211HC10017270
DY0111HI10017050L.E.D. TLPG-144
DY0211HI10017050L.E.D. TLPG-144
DY0311HI10017050L.E.D. TLPG-144
DY0411HI10017050L.E.D. TLPG-144
DY0511HI10017050L.E.D. TLPG-144
DY0611HI10017050L.E.D. TLPG-144
DY0711HI10017050L.E.D. TLPG-144
DY0811HI10017050L.E.D. TLPG-144
DY0911HI10017050L.E.D. TLPG-144
DY1011HI10017050L.E.D. TLPG-144
DY1111HI10017050L.E.D. TLPG-144
DY1211HI10017050L.E.D. TLPG-144
DY1311HI10017050L.E.D. TLPG-144
DY1411HI10017050L.E.D. TLPG-144
DY1511HI10017050L.E.D. TLPG-144
DY511515HI10040020L.E.D. LN422YP
DY65
DY7111HI10030020L.E.D. LN224RP
DY7211HI10030020L.E.D. LN224RP
DY8111HD20005010Diode WD6B
DY8211HD20005010Diode WD6B
PY00-MISCELLANEOUS
JY0111YP06003040Plug
JY0211YP06003040Plug
JY5811YP06003040Plug
WY0111YB00240050Connective Cord, (6 P)
WY0211YB00150340Connective Cord, (6 P)
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
PZ0011YK101K1750ZZ101K8750PZ00-MODE INDICATORCIRCUIT BOARDP.W. Board, Mode IndicatorP.W. Board, Assembly
RZ0111GD0510314010KΩ
RZ0211GD051521401.5KΩ
RZ0311GD0510314010KΩ
RZ0411GD0522314022KΩ
RZ0511GD05121140120Ω
DZ0111HI10021300PZ00-SEMICONDUCTORSL.E.D. PR2533DL.E.D. BG2533DL.E.D. AY2533D
DZ0211HI10022300
DZ0311HI10023300
QZ0111HT60557180Transistor BC557(B)
QZ0211HT60557180Transistor BC557(B)
REF. DESIG.Q'TYPART NO.DESCRIPTION
NF
PZ5011YK101K1760ZZ101K8760PZ50-SIGNAL RELAY 1CIRCUIT BOARDP.W. Board, Signal Relay 1P.W. Board Assembly
JZ5111YJ06002680Jack
JZ5211YJ06002680Jack
JZ5311YJ06002680Jack
JZ5411YJ06002450Jack, (6P)
JZ5511YJ06002430Jack, (3P)
JZ5611YJ06002440Jack, (4P)
JZ5711YJ06002440Jack, (4P)
JZ5811YJ06002450Jack, (6P)
JZ5911YJ06002450Jack, (6P)
WZ5811YU06340260Jumper Lead, (6P)
WZ5911YU05320260Jumper Lead, (5P)
(W01-99)Assembly and Wiring
(T01-99)Adjustment
(X01-00)Correction

NOTE ON SAFETY:

Symbol Fire or electrical shock hazard. Only original parts should be used to replace any part marked with symbol Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.

11. TECHNICAL SPECIFICATIONS

AUDIO PERFORMANCE

Number of Channels2
Frequency Range20–20,000 Hz
Dynamic Range>90 dB
Signal-to-Noise Ratio>90 dB
Channel Separation>90 dB
Total Harmonic Distortion (incl. noise)<0.005%
Wow and Flutterquartz crystal precision
D/A Conversion16 bit with digital filtering
Error Correction SystemCross Interleave Reed Solomon Code (CIRC)
Audio Output Level2 V rms

OPTICAL READOUT SYSTEM

Lasersemi-conductor AlGaAs
Wave length0.78 μm

SIGNAL FORMAT

Sampling Frequency44.1 kHz
Quantization16 bit linear/channel

DISC

Diameter120 mm
Thickness1.2 mm
Sense of rotation (seen from reading side)anti-clockwise
Scanning velocity1.2-1.4 m/s
Rotation speed500-200 rpm
Playing time (max)60 min (stereo)
Track pitch1.6 μm
Materialplastic

POWER SUPPLY

Mains Voltagesee type plate at the bottom of the player
Mains Frequencies50 and 60 Hz
Power Consumption40 W approx
Safety RequirementsIEC

CABINET, GENERAL

Material/finishpolystyrene with extruded aluminium profiles
This model is convertible to 110/120/220/240 volts by changing voltage selector on the rear panel.
Dimensions (W x H x D)
with drawer closed416 x 81 x 300 mm
with drawer open416 x 130 x 483 mm
Weight8 kg approx
Connection Cablefitted with molded cinch plugs

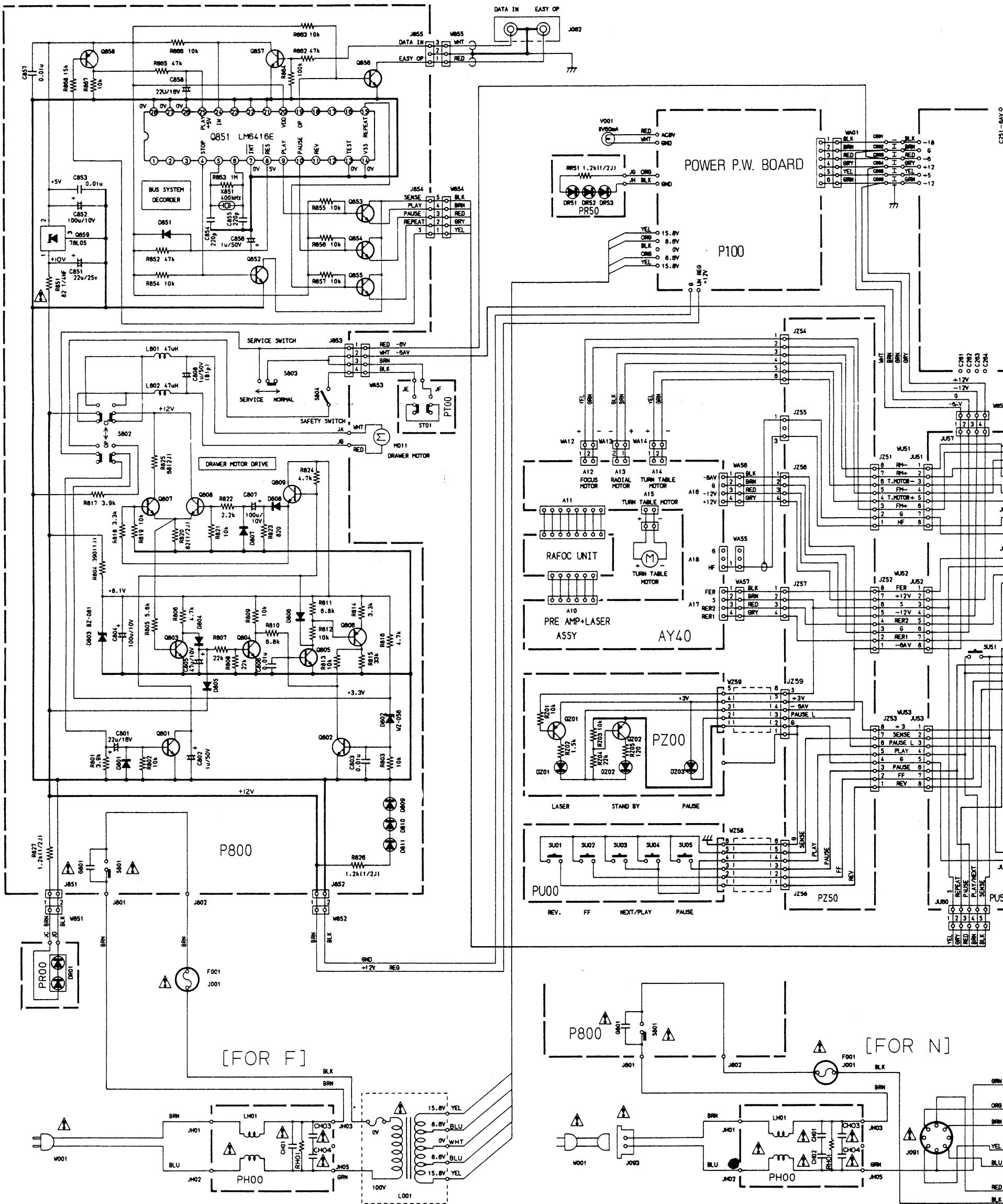

MARANTZ SA15S1 & SA15S2,MV - CABINET, GENERAL - 1

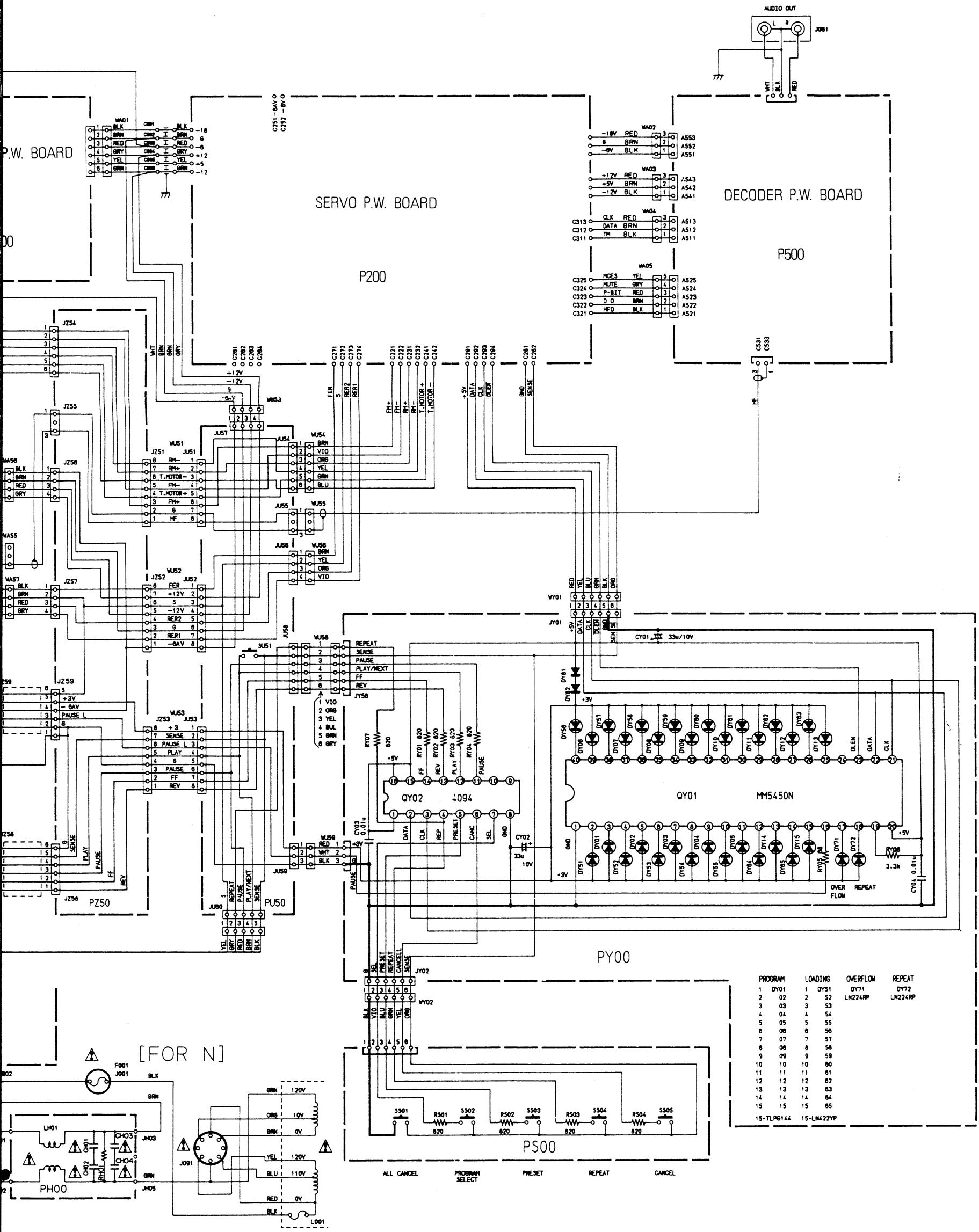

MARANTZ SA15S1 & SA15S2,MV - CABINET, GENERAL - 2

Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : MARANTZ

Modèle : SA15S1 & SA15S2,MV

Catégorie : Lecteurs de CD haut de gamme
