| Type de produit | Système de masquage motorisé pour projection |
| Marque | DA-LITE |
| Modèle | PRO IMAGER MASKING SYSTEM |
| Format de masquage | Vertical ou horizontal |
| Alimentation électrique | 120 V (60 Hz), 1,2 A max ; option 220 V (50 Hz) |
| Consommation | ≤ 1,2 A |
| Type de moteur | Moteur intégré dans le rouleau, inversion rapide, frein électrique, protection thermique |
| Matériau du cadre | Aluminium extrudé, peinture noire mate |
| Matériau du voile | Fibre de verre ignifuge et antimicrobienne |
| Couleur | Noir mat |
| Dimensions (exemple) | Hauteur : hauteur de vision + 12" ; Largeur : largeur de vision + 9" ; Profondeur : 33,4" ? (842 mm) |
| Poids (exemple) | De 38 lb (17 kg) à 95 lb (43 kg) selon la taille |
| Fonctions principales | Masquage motorisé pour changer de format (NTSC, HDTV, Letterbox, Cinemascope) |
| Commandes | Filaire (3 boutons) ou sans fil (RF/IR); interface RS-232; Ethernet |
| Options | Télécommande RF, télécommande IR, plaque de verrouillage, interrupteur à clé, interface projecteur, Pro-Trim |
| Sécurité | Coupe-circuit thermique automatique, frein électrique anti-roulis libre |
| Normes | Listé UL |
| Entretien | Nettoyer avec un chiffon doux et sec |
| Compatibilité écrans | Imager, Da-Snap, Perm-Wall (écran vendu séparément) |
| Formats personnalisés | Disponibles sur demande |
| Garantie | Consulter le revendeur |
FOIRE AUX QUESTIONS - PRO IMAGER MASKING SYSTEM DA-LITE
Questions des utilisateurs sur PRO IMAGER MASKING SYSTEM DA-LITE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Système de masquage pour projection au format PDF gratuitement ! Retrouvez votre notice PRO IMAGER MASKING SYSTEM - DA-LITE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil PRO IMAGER MASKING SYSTEM de la marque DA-LITE.
MODE D'EMPLOI PRO IMAGER MASKING SYSTEM DA-LITE
PRO IMAGER MASKING SYSTEM
Motorized Screen Masking System
When ordering, make appropriate selections:
- Select size from charts below.
2 Select masking format:
Vertical
Horizontal
-
Options:
-
Single motor low voltage control, 3 button with one (1) Switch - external.
-
Radio Frequency Wireless Remote Control for LVC System.
-
Radio Frequency R Extender available.
-
Infrared Wireless Remote Control Unit for LVC System.
- Locking Switch Cover Plate for 120 V or 3-Button Switch.
- Key Operated Switch for 120V only (NOTE: Cannot be used with low voltage system).
220 Volt (50 Hz) motor. - Video Projector Interface Control - external.
- Pro-Trim": Pro-Trim" is a fabric covering that aesthetically enhances the appearance of the installation. Pro-Trim" provides a stylish masked border while absorbing the light that surrounds the viewing area.
External SCB-100 - RS-232 Serial Control Board - NET-100 Ethernet-Serial Adapter
- Motorized System for masking HDTV format to NTSC format or NTSC format to HDTV or Letterbox format.
- Fits Imager, Da-Snap® or Perm-Wall screens. (screen sold separately)
SUGGESTED SPECIFICATIONS: VERTICAL AND HORIZONTAL
masks system(s), (H) x (W), electrically operated 120V (60 Hz) not more than 1.2 amp, for use with a fixed wall projection screen. Shall have specially designed motor mounted inside the roller, to be three wire with ground, quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor and an electric brake to prevent coasting. Motorized roller to be extruded aluminum. Channels and roller boxes to be aluminum custom extruded shapes finished matte black powder coat. Masking fabric to be flame retardant and mildew resistant fiberglass. For use with Perm Wall, Da-Snap and Imager fixed wall projection screens.

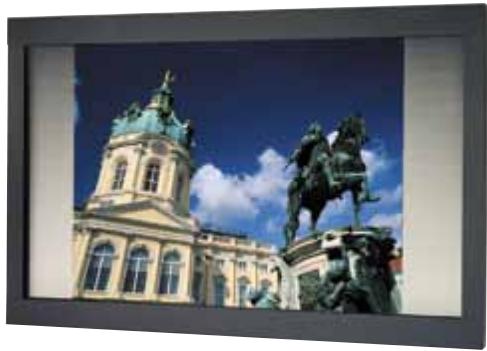

Horizontal Masking:
System shall mask screen equally from each side, closing to a predetermined alternate format. Vertical strips of masking fabric mounted to horizontal aluminum slat bar powder coated black. Bar and masking fabric to lower from top on operation, and bar to be concealed by bottom channel when lowered.

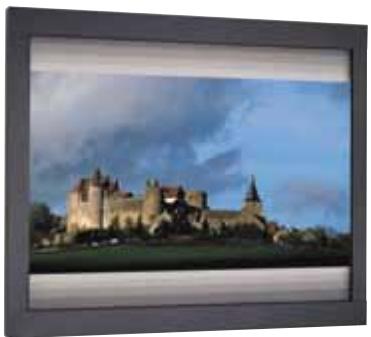

Vertical Masking:
System shall mask screen equally from top to bottom, closing symmetrically to a predetermined alternate format. Motorized roller shall oppose a spring roller institutional quality, with heavy-duty spring, in one-piece steel roller. Masking fabric mounted to aluminum slat bar, finished matte black, and operated by two take-up straps of black woven polypropylene, minimum break strength 200 lbs., completely concealed by side channels at all times. Listed by Underwriter's Laboratories.
Detailed dimensional drawings, wiring diagrams and installation instructions available upon request.
Specifications subject to change without notice.
Frame depth is 334 . Frame height = viewing area plus 12". Frame width = viewing area plus 9".
VERTICAL FORMAT DIMENSIONS
| NTSC (1.33) Viewing Area H x W | HDTV (1.78) Viewing Area H x W | Overall Dimensions | Nominal Diagonal Size Open | Nominal Diagonal Size Closed | Approx. Shipping Wt. Lbs. |
| 36" x 48" | 27" x 48" | 48" x 57" | 60" | 55" | 38 |
| 43" x 57½" | 32" x 57½" | 55" x 66½" | 72" | 66" | 44 |
| 50½" x 67" | 37" x 67" | 62½" x 76" | 84" | 77" | 50 |
| 57½" x 77" | 43" x 77" | 69½" x 86" | 96" | 89" | 56 |
| 60" x 80" | 45" x 80" | 72" x 89" | 100" | 92" | 58 |
| 72" x 96" | 54" x 96" | 84" x 105" | 120" | 110" | 68 |
| 90" x 120" | 67½" x 120" | 102" x 129" | 150" | 138" | 85 |
VERTICAL FORMAT DIMENSIONS
| NTSC (1.33) Viewing Area H x W | Letterbox (1.85) Viewing Area H x W | Overall Dimensions | Nominal Diagonal Size Open | Nominal Diagonal Size Closed | Approx. Shipping Wt. Lbs. |
| 36" x 48" | 26" x 48" | 48" x 57" | 60" | 55" | 38 |
| 43" x 57½" | 31" x 57½" | 55" x 66½" | 72" | 65" | 44 |
| 50½" x 67" | 36" x 67" | 62½" x 76" | 84" | 76" | 50 |
| 57½" x 77" | 41" x 77" | 69½" x 86" | 96" | 87" | 56 |
| 60" x 80" | 43" x 80" | 72" x 89" | 100" | 91" | 58 |
| 72" x 96" | 51" x 96" | 84" x 105" | 120" | 109" | 68 |
| 90" x 120" | 65" x 120" | 102" x 129" | 150" | 136" | 85 |
HORIZONTAL FORMAT DIMENSIONS
| HDTV (1.78) Viewing Area H x W | NTSC (1.33) Viewing Area H x W | Overall Dimensions | Nominal Diagonal Size Open | Nominal Diagonal Size Closed | Approx. Shipping Wt. Lbs. |
| 45" x 80" | 45" x 60" | 57" x 89" | 92" | 75" | 58 |
| 49" x 87" | 49" x 65" | 61" x 96" | 100" | 82" | 63 |
| 52" x 92" | 52" x 69" | 64" x 101" | 106" | 86" | 66 |
| 54" x 96" | 54" x 72" | 66" x 105" | 110" | 90" | 69 |
| 58" x 104" | 58" x 77" | 70" x 113" | 119" | 96" | 74 |
| 65" x 116" | 65" x 86" | 77" x 125" | 133" | 108" | 81 |
| 78" x 139" | 78" x 104" | 90" x 148" | 159" | 130" | 95 |
HORIZONTAL FORMAT DIMENSIONS
| Cinemascope (2.35) Viewing Area H x W | HDTV (1.78) Viewing Area H x W | Overall Dimensions | Nominal Diagonal Size Open | Nominal Diagonal Size Closed | Approx. Shipping Wt. Lbs. |
| 37½" x 88" | 37½" x 67" | 49½" x 97" | 96" | 77" | 65 |
| 45½" x 95" | 40½" x 72" | 52½" x 104" | 103" | 82" | 70 |
| 45" x 106" | 45" x 80" | 57" x 115" | 115" | 92" | 75 |
| 49" x 115" | 49" x 87" | 61" x 124" | 125" | 100" | 81 |
| 52" x 122" | 52" x 92" | 64" x 131" | 133" | 106" | 85 |
| 54" x 126" | 54" x 96" | 66" x 135" | 138" | 110" | 88 |
Overall dimensions ± 1 / 4
Custom formats and sizes available upon request.
