| Type de produit | Écran de projection fixe mural |
| Marque | DA-LITE |
| Modèle | DA-SNAP |
| Formats d'image | 4:3, 16:9, 16:10, CinemaScope |
| Tailles disponibles (diagonale) | De 60" à 240" (4:3), de 77" à 220" (16:9), jusqu'à 164" (16:10), jusqu'à 138" (CinemaScope) |
| Dimensions du cadre (selon taille) | Voir tableau des dimensions dans la notice |
| Poids approximatif | De 20 lb à 90 lb selon taille |
| Matériau du cadre | Aluminium carré de 1 1/2 pouce, revêtement poudre noir mat |
| Assemblage du cadre | Joints à glissière aux coins |
| Fixation murale | Supports muraux standard inclus |
| Type de projection | Frontale ou arrière |
| Surfaces de projection disponibles | Da-Mat, High Contrast Da-Mat, Cinema Vision, High Contrast Cinema Vision, Pearlescent, High Power, Audio Vision, High Contrast Audio Vision, High Contrast Cinema Perf, Da-Tex (arrière), Dual Vision |
| Caractéristiques de la surface | Ignifuge, résistant à la moisissure, bordure noire renforcée, fixation par snaps métalliques |
| Options disponibles | Pieds en T (T-Legs), fixation Velcro, Pro-Trim (cadre en tissu), système de masquage Pro Imager |
| Certification | GREENGUARD et GREENGUARD Gold (Enfants et Écoles) |
| Entretien et nettoyage | Dépoussiérer avec un chiffon doux et sec. Ne pas utiliser de produits chimiques agressifs. |
| Sécurité | Utiliser les fixations murales fournies pour éviter tout risque de basculement. |
| Pièces détachées et réparabilité | Contacter le service client DA-LITE pour les pièces de rechange et réparations. |
FOIRE AUX QUESTIONS - DA-SNAP DA-LITE
Questions des utilisateurs sur DA-SNAP DA-LITE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Écran de projection au format PDF gratuitement ! Retrouvez votre notice DA-SNAP - DA-LITE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil DA-SNAP de la marque DA-LITE.

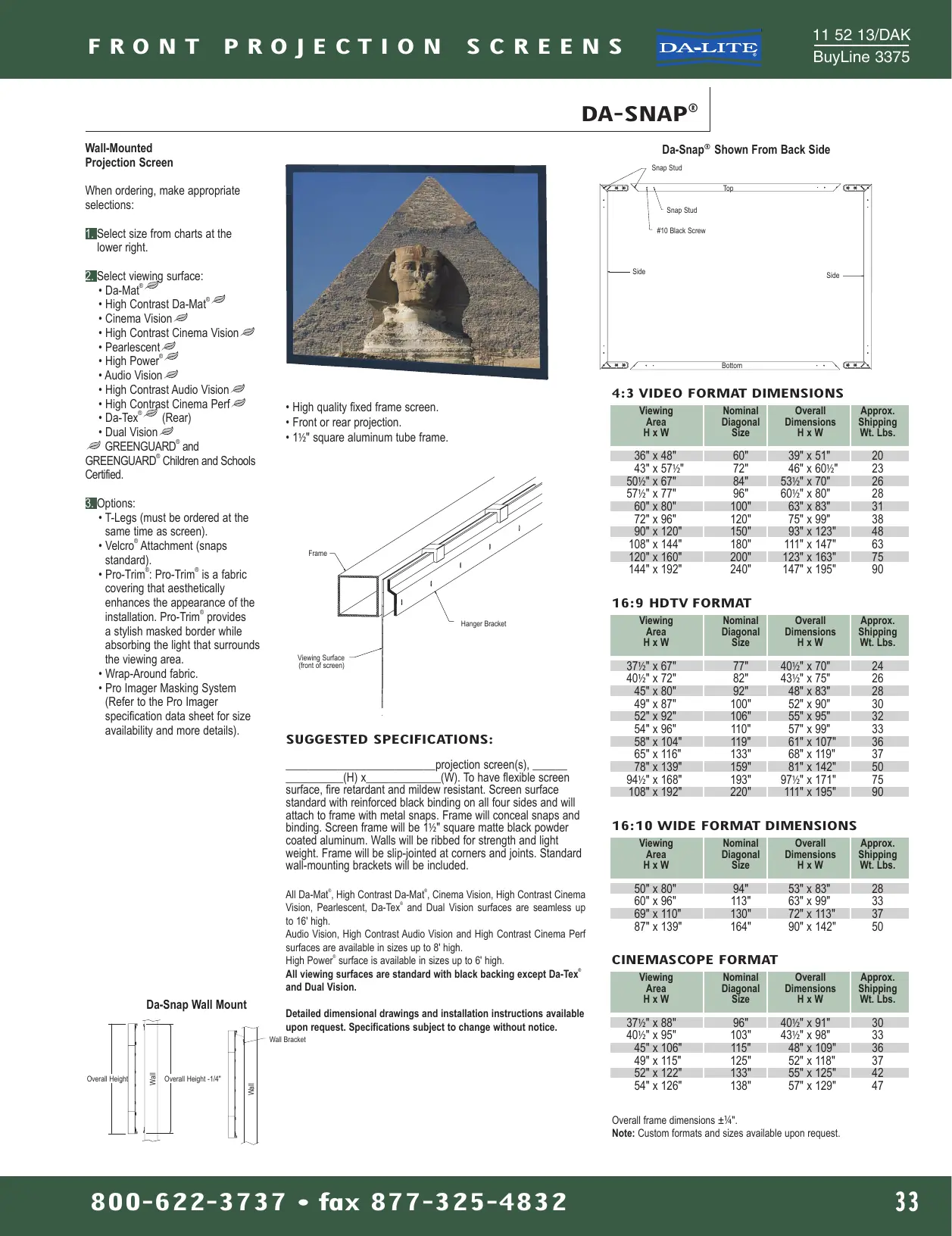

MODE D'EMPLOI DA-SNAP DA-LITE
DA-SNAP
Wall-Mounted
Projection Screen
When ordering, make appropriate selections:
1. Select size from charts at the lower right.
2. Select viewing surface:
- Da-Mat
High Contrast Da-Mat
- Cinema Vision
High Contrast Cinema Vision
- Pearlescent
High Power
Audio Vision
High Contrast Audio Vision
High Contrast Cinema Perf
Da-Tex (Rear)
Dual Vision
GREENGUARD and GREENGUARD Children and Schools Certified.
3. Options:
- T-Legs (must be ordered at the same time as screen).
- Velcro® Attachment (snaps standard).
- Pro-Trim®: Pro-Trim® is a fabric covering that aesthetically enhances the appearance of the installation. Pro-Trim® provides a stylish masked border while absorbing the light that surrounds the viewing area.
- Wrap-Around fabric.
- Pro Imager Masking System (Refer to the Pro Imager specification data sheet for size availability and more details).
High quality fixed frame screen.
- Front or rear projection.
- 1 12 square aluminum tube frame.
SUGGESTED SPECIFICATIONS:
projection screen(s),
(H) x (W). To have flexible screen

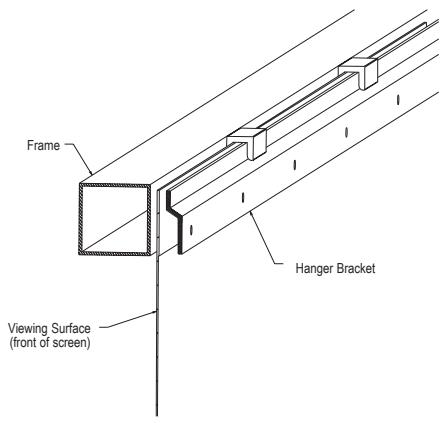

surface, fire retardant and mildew resistant. Screen surface standard with reinforced black binding on all four sides and will attach to frame with metal snaps. Frame will conceal snaps and binding. Screen frame will be 1 12 square matte black powder coated aluminum. Walls will be ribbed for strength and light weight. Frame will be slip-jointed at corners and joints. Standard wall-mounting brackets will be included.
All Da-Mat, High Contrast Da-Mat, Cinema Vision, High Contrast Cinema Vision, Pearlescent, Da-Tex and Dual Vision surfaces are seamless up to 16' high.
Audio Vision, High Contrast Audio Vision and High Contrast Cinema Perf surfaces are available in sizes up to 8^ high. High Power surface is available in sizes up to 6^ high.
All viewing surfaces are standard with black backing except Da-Tex and Dual Vision.
Detailed dimensional drawings and installation instructions available upon request. Specifications subject to change without notice.
Da-Snap® Shown From Back Side
4:3VIDEO FORMAT DIMENSIONS
| Viewing Area H x W | Nominal Diagonal Size | Overall Dimensions H x W | Approx. Shipping Wt. Lbs. |
| 36" x 48" | 60" | 39" x 51" | 20 |
| 43" x 57½" | 72" | 46" x 60½" | 23 |
| 50½" x 67" | 84" | 53½" x 70" | 26 |
| 57½" x 77" | 96" | 60½" x 80" | 28 |
| 60" x 80" | 100" | 63" x 83" | 31 |
| 72" x 96" | 120" | 75" x 99" | 38 |
| 90" x 120" | 150" | 93" x 123" | 48 |
| 108" x 144" | 180" | 111" x 147" | 63 |
| 120" x 160" | 200" | 123" x 163" | 75 |
| 144" x 192" | 240" | 147" x 195" | 90 |
16:9 HDTV FORMAT
| Viewing Area H x W | Nominal Diagonal Size | Overall Dimensions H x W | Approx. Shipping Wt. Lbs. |
| 37½" x 67" | 77" | 40½" x 70" | 24 |
| 40½" x 72" | 82" | 43½" x 75" | 26 |
| 45" x 80" | 92" | 48" x 83" | 28 |
| 49" x 87" | 100" | 52" x 90" | 30 |
| 52" x 92" | 106" | 55" x 95" | 32 |
| 54" x 96" | 110" | 57" x 99" | 33 |
| 58" x 104" | 119" | 61" x 107" | 36 |
| 65" x 116" | 133" | 68" x 119" | 37 |
| 78" x 139" | 159" | 81" x 142" | 50 |
| 94½" x 168" | 193" | 97½" x 171" | 75 |
| 108" x 192" | 220" | 111" x 195" | 90 |
16:10 WIDE FORMAT DIMENSIONS
| Viewing Area H x W | Nominal Diagonal Size | Overall Dimensions H x W | Approx. Shipping Wt. Lbs. |
| 50" x 80" | 94" | 53" x 83" | 28 |
| 60" x 96" | 113" | 63" x 99" | 33 |
| 69" x 110" | 130" | 72" x 113" | 37 |
| 87" x 139" | 164" | 90" x 142" | 50 |
CINEMASCOPE FORMAT
| Viewing Area H x W | Nominal Diagonal Size | Overall Dimensions H x W | Approx. Shipping Wt. Lbs. |
| 37½" x 88" | 96" | 40½" x 91" | 30 |
| 40½" x 95" | 103" | 43½" x 98" | 33 |
| 45" x 106" | 115" | 48" x 109" | 36 |
| 49" x 115" | 125" | 52" x 118" | 37 |
| 52" x 122" | 133" | 55" x 125" | 42 |
| 54" x 126" | 138" | 57" x 129" | 47 |
Overall frame dimensions ± 1 / 4
Note: Custom formats and sizes available upon request.
