MODE D'EMPLOI SENSORS VDO

Parallèlement à nos solutions particulières et multiples pour les constructeurs automobiles, nous offrons des solutions et des activités de service étendues pour l'Aftermarket (marché de pièces de rechange et d'accessoires). En font partie en particulier les pièces détachées qualitativement équivalentes que nous proposons avec le savoir et la compétence de longue durée d'un premier équipementier de série. La gamme étendue de fournitures, disponibles à brève échéance, de pièces détachées représente la précision de l'assemblage, un montage simple ainsi qu'une qualité constante. Ainsi les pièces détachées qualitativement équivalentes offrent des avantages nets de la même manière aux grossistes, aux garages et aux clients finaux.

Envoi et réception d'informations

De nombreuses informations sont nécessaires pour assurer le bon fonctionnement, la sécurité et la fiabilité d'un véhicule. Les capteurs seront à collecter et à transmettre de telles données. Pour effectuer la tâche qui leur est assignée, ces capte[teurs] doivent résister aux variations de température, à l'humidité, à la saleté et aux produits chimiques. Pour pouvoir fournir des informations aussi fiables que possible, les capteurs doivent, outre leur grande durabilité, fonctionner parfaitement dans un milieu électromagnétique et en présence d'autres capteurs.

Les capteurs peuvent, par exemple, permettre de réduire la consommation de carburant et les émissions polluantes. Ils jouent un rôle important dans l'efficacité du moteur et la sécurité du véhicule et assurent un plus grand confort de conduite. Des capteurs défectueux peuvent entraîner une panne moteur et, dans le pire des cas, l'endommager.

Длгобсесеня наджног,бзэоасони nэффсьнов pa6otы abTOMOBиЯ Heo6xODIM ShIpOKn CNeKTP daHHbIX. Heo6xOIMyI INHΦOPMaIQU CHTbIBaIOT n IpepaIOT DaTNUK.Длг ВьИОЛнeHЯ DAHHbIXФуHKUH Heo6xOIMO, YTO6bl DaTCHK 6bl yCTOnuHb K TempepaTyPbHm HarpU3kam, BnaJXHOCTN, ГрЗИ N XIMMHeCKOMY BO3dEiCTBIO.Длгобсесеня мakcimmaJIbHoor DoCTOBerHOCSTn NOlyuaeMoI INHΦOPMaIQU DaTCHK DOJIKeH NcPpABHO ФуHKUHINPOBaTb B 3JIeKTPOMaRTHHom NOLE n HeNoCpeDCTBeHNO 6JIIm3OCTN OT dpyrIX DaTCHKOB, a TAKKE IMeTB DInTeJIbHbI CpOK cLyXbI.ДATCHNK CnOCObHbВ 3NaHTeJIbHOB CTeNEHn CHN3ITb NOTpe6JIeHne TOJIINBa N KOJIYeCEtBO BbIbPoCob. OHN TaKxe IGraIOT BaxHyIO pOLB N IOBbIWeHIN əΦΦeKTHBHOCTNs pa60tbl DBIrataTeJn I obecsceHEn 6e3OJaCHocHTNs ABTomObNiJ, DeJIa BQJDeHne BoJee KOMΦOprTHbIM.ИСПЛБЗOBaHne NOBpeJdeHbIX DaTCHKOB MOXET npIVBcETN K OShIbKaM KOHTpOJI NaD pa6OToI DBIratela, a B XUYIeM Cnyae - K erO IOBpeXJeHIO.

L'intérêt accru pour la réduction des gaz carboniques signifie que les capteurs débit masse sont de plus en plus importants pour assurer un rapport air/carburant optimal. Les capteurs débit masse sont placés juste après le filtre à air dans le collecteur d'air et fournissant des informations sur la température, l'humidité et le volume d'air entrant. Malgré leur taille réduite, ces capteurs sont d'une grande précision technologique et les informations enregistrées sont utilisées avec les autres données moteur pour assurer la gestion optimale du moteur.

Ces données sont

Température de l'air entrant - Humidité de l'air entrant Volume d'air entrant

Dans les moteurs à essence, le calcul du débit masse est utilisé avec les données fournies par les autres capteurs pour réguler l'arrêté de carburant dans le moteur.

Dans les moteurs diesel, les capteurs débit masse sont utilisés pour réguler le taux de recirculation des gaz de carter et calculer l'injection optimale.

Les capteurs débit masse VDO sont particulièrement fiables et parfaitement adaptés pour supporter leur environnement. Les données dynamiques qu'ils fournissent contribuent à la réduction des émissions polluantes.

Capteurs de vitesse de roue

La vitesse de roue est une donnée essentielle pour les systèmes électroniques tels que l'ABS ou l'ASC.

Capteurs d'arbres à cames

Le capteur d'arbre à cames est situé sur la tête de cylindre et lit la position du pignon pour déterminer celle de l'arbre à cames. Ce type de donnée est nécessaire pour des fonctions telles que le lancement de l'injection sur des moteurs à injection séquentielle, le signal du régulateur de pression de la valve électromagnétique de la pompe à injection et le contrôle du cliquetis d'un cylindre particulier.

Le capteur de vilebrequin fournit des informations sur la position du vilebrequin que le système de gestion moteur utilise pour calculer le régime moteur. Ces données permettent de déterminer l'injection de carburant la plus économique et le moment de l'amorçage.

Capteurs de cliquetis

Les moteurs modernes qui permettent des taux de compression élevés ont un inconvénient particulier : leur conception augmente les vibrations qui peuvent endommager le moteur. Les capteurs de cliquetis mesurent précisément les vibrations du bloc-moteur qui caractérisent les cognées du moteur. Cela permet de configurer l'angle d'amorçage et les autres paramètres de façon que le moteur fonctionne correctement sans dépasser le seuil de vibrations maximum. Cela permet également de protéger le moteur et de réduire la consommation de carburant. Pour assurer une précision optimale, les capteurs de cliquetis VDO renferment toutes les technologies modernes.

Les capteurs MAP et T-MAP mesurent la pression de l'air dans le collecteur d'air derrière le papillon des gaz pour déterminer l'arrivée d'air. Ces données sont extrêmement importantes pour calculer la quantité de carburant qui doit être injectée et assurer un mélange gazeux adéquat. Les informations dynamiques fournies par ces composants sont essentielles à la réduction des gaz polluants.

Le capteur de pression MAP des moteurs turbo mesure la pression de l'air derrière le turbocompresseur (échelle de 500 à 3 000 hPa).
Le capteur de pression T-MAP est doté d'un capteur de température intégré.

C4 (LC_) C4 Coupé (LA_) C6 (TD_)

307 (3A/C); 307 Break (3E); 307 SW (3H); 307 CC (3B); 607 (9D, 9U)

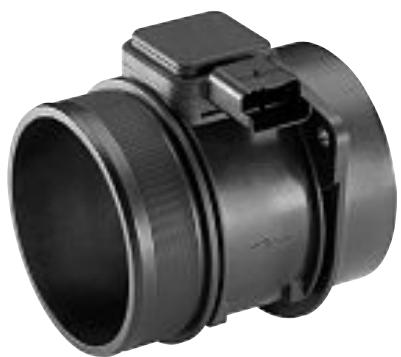

VDO SENSORS - Capteurs de cliquetis - 1

1.0 i (38 kW \| 1.0 Litre)
02.97 → 09.99			A2C59512887	MAFS
1.0 i (48 kW \| 1.0 Litre)
09.99 → 01.02			A2C59512887	MAFS
1.1 (37 kW \| 1.1 Litre)
09.95 → 12.96			A2C59512887	MAFS
1.25 i 16V (55 kW \| 1.2 Litre)
01.96 → 11.98	DHA, DHB, DHC, DHD, DHE, DHF, DHG		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
12.98 → 03.02	DHA, DHB, DHC, DHD, DHE, DHF, DHG		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
08.95 → 01.02	DHA, DHB, DHC, DHD, DHE, DHF, DHG		A2C59512887	MAFS
08.95 → 01.02	DHA, DHB, DHC, DHD, DHE, DHF, DHG		S107542002Z	CaSS
1.3 i (37 kW \| 1.3 Litre)
12.98 → 03.02	JJA, JJC, JJE, JJJ, JJK, JJM		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
01.96 → 11.98	JJA, JJC, JJE, JJJ, JJK, JJM		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
08.95 → 01.02	JJA, JJC, JJE, JJJ, JJK, JJM		A2C59512887	MAFS
钩	钩	钩	VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

Fiesta IV (JA_, JB_)

1.3 i (44 kW \| 1.3 Litre)
01.96 → 11.98	J4C, J4J, J4L, J4Q, J4R, J4T	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
12.98 → 03.02	J4C, J4J, J4L, J4Q, J4R, J4T	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
08.95 → 01.02	J4C, J4J, J4L, J4Q, J4R, J4T	A2C59512887	MAFS
1.4 i 16V (66 kW \| 1.4 Litre)
02.96 → 11.98	FHA, FHE	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
12.98 → 03.02	FHA, FHE	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
1.6 16V Sport (76 kW \| 1.6 Litre)
10.99 → 03.02	L1T, L1V	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
02.00 → 01.02	L1T, L1V	S107543002Z	CrSS
1.8 D (44 kW \| 1.8 Litre)
01.96 → 11.98	RTK, RTJ	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
12.98 → 03.02	RTK, RTJ	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
1.8 DI (55 kW \| 1.8 Litre)
03.00 → 03.02	RTN, RTP, RTQ	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2

FIESTA V (JH_, JD_)

1.3 (44 kW \| 1.3 Litre)
11.01 →	BAJA	5WK96812Z	PS
1.3 (51 kW \| 1.3 Litre)
11.01 →	A9JA, A9JB	5WK96812Z	PS

FIESTA Box (J5_, J3_)

1.3 (44 kW \| 1.3 Litre)
01.96 → 03.02	J4C		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
02.96 →	J4C		A2C59512887	MAFS
1.4 i (66 kW \| 1.4 Litre)
04.96 → 10.99	FHA		A2C59512887	MAFS
1.8 D (44 kW \| 1.8 Litre)
01.96 → 03.02	RTK		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
1.8 DI (55 kW \| 1.8 Litre)
03.00 → 03.02	RTP, RTN		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FIESTA Box (JV_)

D 1.8 (44 kW \| 1.8 Litre)
01.96 → 03.02	RTK, RTJ	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
TD 1.8 (55 kW \| 1.8 Litre)
01.96 → 03.02	RTN, RTP, RTQ	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2

FOCUS (DAW, DBW)

1.4 16V (55 kW \| 1.4 Litre)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513067	WSS	T1: Rear Right (T29)
10.98 → 11.04	FXDA, FXDC, FXDB, FXDD		S107542002Z	CaSS
1.6 16V (74 kW \| 1.6 Litre)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513067	WSS	T1: Rear Right (T29)
1.8 16V (85 kW \| 1.8 Litre)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513067	WSS	T1: Rear Right (T29)
2.0 16V (96 kW \| 2.0 Litre)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513067	WSS	T1: Rear Right (T29)
ST170 (127 kW \| 2.0 Litre)
03.02 → 09.04	ALDA		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
03.02 → 09.04	ALDA		A2C59513058	WSS	T1: Rear Left (T26)
钩			VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FOCUS (DAW, DBW)

ST170 (127 kW \| 2.0 Litre)
03.02 → 09.04	ALDA		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
03.02 → 09.04	ALDA		A2C59513067	WSS	T1: Rear Right (T29)
RS (158 kW \| 2.0 Litre)
10.02 → 09.04	HMDA		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.02 → 09.04	HMDA		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.02 → 09.04	HMDA		A2C59513058	WSS	T1: Rear Left (T26)
10.02 → 09.04	HMDA		A2C59513067	WSS	T1: Rear Right (T29)
1.8 DI / TDDi (55 kW \| 1.8 Litre)
10.98 → 09.04	BHDA, BHDB		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	BHDA, BHDB		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	BHDA, BHDB		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	BHDA, BHDB		A2C59513067	WSS	T1: Rear Right (T29)
1.8 Turbo DI / TDDi (66 kW \| 1.8 Litre)
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (74 kW \| 1.8 Litre)
03.01 → 09.04	FFDA		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
03.01 → 09.04	FFDA		A2C59513058	WSS	T1: Rear Left (T26)
03.01 → 09.04	FFDA		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
03.01 → 09.04	FFDA		A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (85 kW \| 1.8 Litre)
03.01 → 09.04	F9DA, F9DB		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
03.01 → 09.04	F9DA, F9DB		A2C59513058	WSS	T1: Rear Left (T26)
03.01 → 09.04	F9DA, F9DB		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
03.01 → 09.04	F9DA, F9DB		A2C59513067	WSS	T1: Rear Right (T29)
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FOCUS Saloon (DFW)

1.4 16V (55 kW \| 1.4 Litre)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513067	WSS	T1: Rear Right (T29)
02.99 → 11.04	FXDA, FXDC, FXDB, FXDD		S107542002Z	CaSS
1.6 16V (74 kW \| 1.6 Litre)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513067	WSS	T1: Rear Right (T29)
1.8 16V (85 kW \| 1.8 Litre)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513067	WSS	T1: Rear Right (T29)
2.0 16V (96 kW \| 2.0 Litre)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513067	WSS	T1: Rear Right (T29)
1.8 Turbo DI / TDDi (66 kW \| 1.8 Litre)
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	C9DC, C9DA, C9DB		A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (74 kW \| 1.8 Litre)
03.01 → 09.04	FFDA		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
03.01 → 09.04	FFDA		A2C59513058	WSS	T1: Rear Left (T26)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FOCUS Saloon (DFW)

1.8 TDCi (74 kW \| 1.8 Litre)
03.01 → 09.04	FFDA	A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
03.01 → 09.04	FFDA	A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (85 kW \| 1.8 Litre)
03.01 → 09.04	F9DA, F9DB	A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
03.01 → 09.04	F9DA, F9DB	A2C59513058	WSS	T1: Rear Left (T26)
03.01 → 09.04	F9DA, F9DB	A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
03.01 → 09.04	F9DA, F9DB	A2C59513067	WSS	T1: Rear Right (T29)

FOCUS Estate (DNW)

1.4 16V (55 kW \| 1.4 Litre)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FXDA, FXDC, FXDB, FXDD		A2C59513067	WSS	T1: Rear Right (T29)
02.99 → 11.04	FXDA, FXDC, FXDB, FXDD		S107542002Z	CaSS
1.6 16V (74 kW \| 1.6 Litre)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	FYDA, FYDC, FYDB, FYDD, FYDH		A2C59513067	WSS	T1: Rear Right (T29)
1.8 16V (85 kW \| 1.8 Litre)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
10.98 → 09.04	EYDC, EYDB, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL		A2C59513067	WSS	T1: Rear Right (T29)
2.0 16V (96 kW \| 2.0 Litre)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59512221Z	WSS	T1: Front Both Sides (T32); T2: 2
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Left (T26)
10.98 → 09.04	EDDC, EDDB, EDDD, EDDF		A2C59513058	WSS	T1: Rear Both Sides (T31); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FOCUS Estate (DNW)

2.0 16V (96 kW \| 2.0 Litre)
10.98 - 09.04	EDDC, EDDB, EDDD, EDDF	A2C59513067	WSS	T1: Rear Right (T29)
ST170 (127 kW \| 2.0 Litre)
03.02 - 09.04	ALDA	A2C59512221Z	WSS	T1: Front Both Sides (T32);T2: 2
03.02 - 09.04	ALDA	A2C59513058	WSS	T1: Rear Left (T26)
03.02 - 09.04	ALDA	A2C59513058	WSS	T1: Rear Both Sides (T31);T2: 2
03.02 - 09.04	ALDA	A2C59513067	WSS	T1: Rear Right (T29)
1.8 DI / TDDI (55 kW \| 1.8 Litre)
10.98 - 09.04	BHDA, BHDB	A2C59512221Z	WSS	T1: Front Both Sides (T32);T2: 2
10.98 - 09.04	BHDA, BHDB	A2C59513058	WSS	T1: Rear Left (T26)
10.98 - 09.04	BHDA, BHDB	A2C59513058	WSS	T1: Rear Both Sides (T31);T2: 2
10.98 - 09.04	BHDA, BHDB	A2C59513067	WSS	T1: Rear Right (T29)
1.8 Turbo DI / TDDi (66 kW \| 1.8 Litre)
10.98 - 09.04	C9DC, C9DA, C9DB	A2C59512221Z	WSS	T1: Front Both Sides (T32);T2: 2
10.98 - 09.04	C9DC, C9DA, C9DB	A2C59513058	WSS	T1: Rear Left (T26)
10.98 - 09.04	C9DC, C9DA, C9DB	A2C59513058	WSS	T1: Rear Both Sides (T31);T2: 2
10.98 - 09.04	C9DC, C9DA, C9DB	A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (74 kW \| 1.8 Litre)
03.01 - 09.04	FFDA	A2C59512221Z	WSS	T1: Front Both Sides (T32);T2: 2
03.01 - 09.04	FFDA	A2C59513058	WSS	T1: Rear Left (T26)
03.01 - 09.04	FFDA	A2C59513058	WSS	T1: Rear Both Sides (T31);T2: 2
03.01 - 09.04	FFDA	A2C59513067	WSS	T1: Rear Right (T29)
1.8 TDCi (85 kW \| 1.8 Litre)
03.01 - 09.04	F9DA, F9DB	A2C59512221Z	WSS	T1: Front Both Sides (T32);T2: 2
03.01 - 09.04	F9DA, F9DB	A2C59513058	WSS	T1: Rear Left (T26)
03.01 - 09.04	F9DA, F9DB	A2C59513058	WSS	T1: Rear Both Sides (T31);T2: 2
03.01 - 09.04	F9DA, F9DB	A2C59513067	WSS	T1: Rear Right (T29)

FOCUS C-MAX

2.0 TDCi (100 kW \| 2.0 Litre)
10.03 → 03.07	G6DD, G6DA, G6DB		5WK97002Z	MAFS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FOCUS II (DA_)

1.4 (59 kW \| 1.4 Litre)
11.04 →	ASDA, ASDB	5WK96812Z	PS
2.0 TDCi (100 kW \| 2.0 Litre)
11.04 →	G6DA, G6DB, G6DD	5WK97002Z	MAFS

FOCUS II saloon (DA_)

1.4 (59 kW \| 1.4 Litre)
04.05 →	ASDA, ASDB		5WK96812Z	PS

FOCUS II Turnier (daw_)

1.4 (59 kW \| 1.4 Litre)
11.04 →	ASDA, ASDB	5WK96812Z	PS
2.0 TDCi (100 kW \| 2.0 Litre)
11.04 →	G6DA, G6DB, G6DD	5WK97002Z	MAFS

1.4 TDCi (50 kW \| 1.4 Litre)
08.02 →	F6JA, F6JB		5WK9681Z	PS

GALAXY (WGR)

2.0 i (85 kW \| 2.0 Litre)
11.95 →	NSE, ZVSA		A2C59512888	MAFS
09.97 → 03.00	NSE, ZVSA		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00	NSE, ZVSA		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.3 16V (103 kW \| 2.3 Litre)
09.01 →	E5SB		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.01 →	E5SB		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.3 16V (107 kW \| 2.3 Litre)
01.97 →	Y5B, E5SA		A2C59512888	MAFS
09.97 → 03.00	Y5B, E5SA		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00	Y5B, E5SA		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.3 4x4 (107 kW \| 2.3 Litre)
09.97 → 03.00			A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00			A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
钩	钩	钩	VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

GALAXY (WGR)

2.8 i V6 (128 kW \| 2.8 Litre)
09.97 → 03.00	AAA, AMY	A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00	AAA, AMY	A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.8 i V6 4x4 (128 kW \| 2.8 Litre)
09.97 → 03.00	AAA, AMY	A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00	AAA, AMY	A2C5913056	WSS	T1: Rear Both Sides (T31); T2: 2
1.9 TDI (66 kW \| 1.9 Litre)
09.97 → 03.00	AHU, 1Z, ANU	A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 03.00	AHU, 1Z, ANU	A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
1.9 TDI (81 kW \| 1.9 Litre)
10.97 → 03.00	AFN, AVG	A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
10.97 → 03.00	AFN, AVG	A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2

KA (RB_)

1.0 i (38 kW \| 1.0 Litre)
11.96 → 08.04			A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
1.0 i (48 kW \| 1.0 Litre)
11.96 → 08.04			A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
1.3 i (36 kW \| 1.3 Litre)
11.96 → 08.04	JJD, JJF, JJG, JJH, JJL		A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
1.3 i (37 kW \| 1.3 Litre)
11.96 → 08.04	JJB		A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
1.3 i (44 kW \| 1.3 Litre)
11.96 → 08.04	J4D, J4K, J4M, J4N, J4P, J4S, BAA		A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
09.96 →	J4D, J4K, J4M, J4N, J4P, J4S, BAA		S107542002Z	CaSS
1.3 i (51 kW \| 1.3 Litre)
08.02 →	A9A, A9B		5WK96812Z	PS
11.96 → 08.04	A9A, A9B		A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2
钩	钩	钩	VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

KA (RB_)

1.3 i (51 kW \| 1.3 Litre)
08.02 →	A9A, A9B	S107542002Z	CaSS
1.6 i (70 kW \| 1.6 Litre)
08.03 → 08.04	CDB, CDC	A2C59512220Z	WSS	T1: Front Both Sides (T32); T2: 2

MONDEO I (GBP)

1.8 i 16V (82 kW \| 1.8 Litre)
07.94 → 08.96	RKB	A2C59512888	MAFS
1.8 i 16V (85 kW \| 1.8 Litre)
02.93 → 08.96	RKA	A2C59512888	MAFS
1.8 i 16V 4x4 (85 kW \| 1.8 Litre)
02.93 → 08.96	RKA	A2C59512888	MAFS
1.8 TD (65 kW \| 1.8 Litre)
06.93 → 08.96	RFM, RFN	A2C59512888	MAFS
1.8 TD (66 kW \| 1.8 Litre)
10.95 → 08.96	RFN, RFM	A2C59512888	MAFS

MONDEO I Estate (BNP)

1.6 i 16V (65 kW \| 1.6 Litre)
07.94 → 08.96	L1J	A2C59512888	MAFS
1.8 i 16V (82 kW \| 1.8 Litre)
07.94 → 08.96	RKB	A2C59512888	MAFS
1.8 i 16V (85 kW \| 1.8 Litre)
04.93 → 08.96	RKA	A2C59512888	MAFS
1.8 i 16V 4x4 (85 kW \| 1.8 Litre)
04.93 → 08.96	RKA	A2C59512888	MAFS
1.8 TD (65 kW \| 1.8 Litre)
06.93 → 08.96	RFM, RFN	A2C59512888	MAFS
1.8 TD (66 kW \| 1.8 Litre)
11.95 → 08.96	RFN, RFM	A2C59512888	MAFS

ORION III (GAL)

1.6 i 16V (66 kW \| 1.6 Litre)
07.92 → 12.93	L1E, L1K	A2C59512891	MAFS
1.8 i 16V (77 kW \| 1.8 Litre)
02.92 → 12.93	RDA	A2C59512890	MAFS

PUMA (EC_)

1.4 16V (66 kW l 1.4 Litre)
02.98 → 12.98	FHD, FHF		A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

PUMA (EC_)

1.4 16V (66 kW \| 1.4 Litre)
01.99 → 10.00	FHD, FHF	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
1.6 16V (76 kW \| 1.6 Litre)
08.00 → 12.01	L1W	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
1.7 16V (92 kW \| 1.7 Litre)
06.97 → 12.98	MHA, MHB	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
01.99 → 12.01	MHA, MHB	A2C59512218Z	WSS	T1: Front Both Sides (T32); T2: 2
03.97 →	MHA, MHB	A2C59512888	MAFS

C-CLASS Coupé (CL203)

C 180 Kompressor (203.746) (105 kW \| 1.8 Litre)
05.02 →	M 271.946		5WK9638Z	MAFS
C 180 (203.735) (95 kW \| 2.0 Litre)
03.01 → 05.02	M 111.951		5WK9613Z	MAFS
C 200 Kompressor (203.742) (120 kW \| 1.8 Litre)
05.02 →	M 271.940		5WK9638Z	MAFS
C 200 Kompressor (203.745) (120 kW \| 2.0 Litre)
03.01 → 05.02	M 111.955		5WK9613Z	MAFS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

C-Class Coupé (CL203)

C 200 CGI Kompressor (203.743) (125 kW \| 1.8 Litre)
07.03 →	M 271.942	5WK9638Z	MAFS
C 230 Kompressor (203.740) (141 kW \| 1.8 Litre)
05.02 →	M 271.948	5WK9638Z	MAFS
C 230 Kompressor (203.747) (145 kW \| 2.3 Litre)
03.01 → 05.02	M 111.981	5WK9613Z	MAFS

CLK (C208)

200 (208.335) (100 kW \| 2.0 Litre)
06.97 → 06.02	M 111.941, M 111.945	S103995001Z	KS
200 Kompressor (208.344) (120 kW \| 2.0 Litre)
06.00 → 06.02	M 111.956	5WK9613Z	MAFS
200 Kompressor (208.345) (141 kW \| 2.0 Litre)
06.97 → 06.00	M 111.944	S103995001Z	KS
230 Kompressor (208.347) (142 kW \| 2.3 Litre)
06.97 → 06.00	M 111.973, M 111.975	S103995001Z	KS
230 Kompressor (208.348) (145 kW \| 2.3 Litre)
06.00 → 06.02	M 111.982	5WK9613Z	MAFS

CLK Convertible (A208)

200 (208.435) (100 kW \| 2.0 Litre)
03.98 → 03.02	M 111.941, M 111.945	S103995001Z	KS
200 Kompressor (208.444) (120 kW \| 2.0 Litre)
06.00 → 03.02	M 111.956	5WK9613Z	MAFS
200 Kompressor (208.445) (141 kW \| 2.0 Litre)
03.98 → 06.00	M 111.944	S103995001Z	KS
230 Kompressor (208.447) (142 kW \| 2.3 Litre)
03.98 → 06.00	M 111.973, M 111.975	S103995001Z	KS
230 Kompressor (208.448) (145 kW \| 2.3 Litre)
06.00 → 03.02	M 111.982	5WK9613Z	MAFS

CLK (C209)

200 Kompressor (209.342) (120 kW \| 1.8 Litre)
09.02 →	M 271.940	5WK9638Z	MAFS
200 CGI (209.343) (125 kW \| 1.8 Litre)
07.03 →	M 271.942	5WK9638Z	MAFS

CLK Convertible (A209)

200 Kompressor (209.442) (120 kW \| 1.8 Litre)
02.03 →	M 271.940		5WK9638Z	MAFS
200 CGI (209.443) (125 kW \| 1.8 Litre)
07.03 →	M 271.942		5WK9638Z	MAFS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

Saloon (W124)

220 E (124.022) (110 kW \| 2.2 Litre)
10.92 → 06.93	M 111.960	S103995001Z	KS
280 E (124.028) (145 kW \| 2.8 Litre)
10.92 → 06.93	M 104.942	S103995001Z	KS
320 E (124.032) (162 kW \| 3.2 Litre)
10.92 → 06.93	M 104.992	S103995001Z	KS

KOMBI Estate (S124)

220 TE (124.082) (110 kW \| 2.2 Litre)
10.92 → 05.93	M 111.960	S103995001Z	KS
280 TE (124.088) (145 kW \| 2.8 Litre)
10.92 → 06.93	M 104.942	S103995001Z	KS
320 TE (124.092) (162 kW \| 3.2 Litre)
10.92 → 06.93	M 104.992	S103995001Z	KS

COUPE (C124)

220 CE (124.042) (110 kW l 2.2 Litre)
10.92 → 05.93	M 111.960	S103995001Z	KS
320 CE (124.052) (162 kW l 3.2 Litre)
10.92 → 05.93	M 104.992	S103995001Z	KS

E-CLASS (W124)

E 220 (124.022) (110 kW \| 2.2 Litre)
06.93 → 06.95	M 111.960	S103995001Z	KS
E 280 (124.028) (145 kW \| 2.8 Litre)
06.93 → 06.95	M 104.942	S103995001Z	KS
E 280 long (124.029) (142 kW \| 2.8 Litre)
06.93 → 06.95	M 104.942	S103995001Z	KS
E 320 (124.032) (162 kW \| 3.2 Litre)
06.93 → 06.95	M 104.992	S103995001Z	KS

1.616V (80 kW | 1.6 Litre)

03.05 →	NFU (TU5JP4)		S107396001Z	WSS	T1: Front Both Sides (T32); T6
2.0 16V (100 kW \| 2.0 Litre)
10.03 →	RFN (EW10J4)		S107396001Z	WSS	T1: Front Both Sides (T32); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

307 CC (3B)

2.0 16V (100 kW \| 2.0 Litre)
10.03 →	RFN (EW10J4)	S107396002Z	WSS	T1: Front Both Sides (T32)
2.0 16V (103 kW \| 2.0 Litre)
03.05 →	RFJ (EW10A)	S107396001Z	WSS	T1: Front Both Sides (T32); T6
2.0 16V (130 kW \| 2.0 Litre)
10.03 →	RFK (EW10J4S)	S107396001Z	WSS	T1: Front Both Sides (T32); T6
10.03 →	RFK (EW10J4S)	S107396002Z	WSS	T1: Front Both Sides (T32)
2.0 HDi 135 (100 kW \| 2.0 Litre)
06.05 →	RHR (DW10BTED4)	5WK97001Z	MAFS	T35
06.05 →	RHR (DW10BTED4)	S107396001Z	WSS	T1: Front Both Sides (T32); T6

406 (8B)

2.0 HDI 90 (66 kW \| 2.0 Litre)
02.99 → 05.04	RHY (DW10TD)	5WK9621Z	MAFS	T12: (+) VDO; T12: (+) new style
2.0 HDi 110 (79 kW \| 2.0 Litre)
08.01 → 05.04	RHS (DW10ATED), RHZ (DW10ATED)	5WK9621Z	MAFS	T12: (+) new style
2.0 HDI 110 (80 kW \| 2.0 Litre)
06.98 → 08.01	RHZ (DW10ATED)	5WK9621Z	MAFS	T12: (-) new style
2.2 HDi (98 kW \| 2.2 Litre)
03.00 → 05.04	4HX (DW12TED4/FAP)	5WK9628Z	MAFS	T12: New style mechanics

406 Break (8E/F)

2.0 HDI 90 (66 kW \| 2.0 Litre)
02.99 → 10.04	RHY (DW10TD)	5WK9621Z	MAFS	T12: (+) VDO
2.0 HDI 110 (80 kW \| 2.0 Litre)
02.99 → 04.04	RHZ (DW10ATED)	5WK9621Z	MAFS
2.2 HDI (98 kW \| 2.2 Litre)
03.00 → 10.04	4HX (DW12TED4/FAP)	5WK9628Z	MAFS	T12: New style mechanics

406 Coupe (8C)

2.2 HDI (98 kW I 2.2 Litre)
03.00 → 12.04	4HX (DW12TED4/FAP)		5WK9628Z	MAFS	T12: New style mechanics

407 (6D_)

1.6 (74 kW | 1.6 Litre)

06.99 → 09.02	APF, AKL, AEH, AUR	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 → 10.02	APF, AKL, AEH, AUR	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 → 10.02	APF, AKL, AEH, AUR	S105705002Z	WSS	T1: Front Right (T28); T6

1.8 T 20V Cupra (115 kW | 1.8 Litre)

07.00 → 09.02	AQX		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.00 → 10.02	AQX		S105705001Z	WSS	T1: Front Left (T25); T6
钩			VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

CORDOBA Hatchback (6K2)

1.8 T 20V Cupra (115 kW l 1.8 Litre)
07.00 → 10.02	AQX	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (50 kW l 1.9 Litre)
06.99 → 09.02	AQM, AGP	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 → 10.02	AQM, AGP	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 → 10.02	AQM, AGP	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW l 1.9 Litre)
06.99 → 09.02	ALH, AGR	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 → 10.02	ALH, AGR	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 → 10.02	ALH, AGR	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW l 1.9 Litre)
06.99 → 09.02	ASK, ASV	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 → 10.02	ASK, ASV	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 → 10.02	ASK, ASV	S105705002Z	WSS	T1: Front Right (T28); T6

CORDOBA Vario (6K5)

1.4 (44 kW \| 1.4 Litre)
06.99 → 09.02	ANW, AKK, AUD		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	ANW, AKK, AUD		S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	ANW, AKK, AUD		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 16V (55 kW \| 1.4 Litre)
06.99 →	APE	6K-X-400 000→	5WK9693Z	PS
06.99 →	APE	→6K-X-499 999	5WK9693Z	PS
06.99 → 09.02	APE		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	APE		S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	APE		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (55 kW \| 1.6 Litre)
06.99 →	ALM	6K-X-400 000→	5WK9693Z	PS
06.99 →	ALM	→6K-X-499 999	5WK9693Z	PS
06.99 → 09.02	ALM		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	ALM		S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	ALM		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (74 kW \| 1.6 Litre)
06.99 → 09.02	APF, AKL, AEH, AUR		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.99 → 12.99	APF, AKL, AEH, AUR		A2C59512896	MAFS	T39: 6K-X-400 000; T40: 6K-X-499 999
钩			VDO		i钩
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

CORDOBA Vario (6K5)

1.6 (74 kW \| 1.6 Litre)
06.99 →	APF, AKL, AEH, AUR	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	APF, AKL, AEH, AUR	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (50 kW \| 1.9 Litre)
06.99 → 09.02	AQM, AGP	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	AQM, AGP	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	AQM, AGP	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
06.99 → 09.02	ALH, AGR	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	ALH, AGR	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	ALH, AGR	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
06.99 → 09.02	ASK, ASV	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.99 →	ASK, ASV	S105705001Z	WSS	T1: Front Left (T25); T6
06.99 →	ASK, ASV	S105705002Z	WSS	T1: Front Right (T28); T6

CORDOBA (6L2)

1.2 (47 kW \| 1.2 Litre)
10.02 →	AZQ, BME		A2C59513057	WSS	T1: Front Left (T25)
1.4 16V (55 kW \| 1.4 Litre)
09.02 →	BBY		5WK9693Z	PS
10.02 →	BBY		A2C59513057	WSS	T1: Front Left (T25)
09.02 →	BBY		S107646001Z	KS
1.4 16V (74 kW \| 1.4 Litre)
10.02 →	BBZ		5WK9693Z	PS
10.02 →	BBZ		A2C59513057	WSS	T1: Front Left (T25)
10.02 →	BBZ		S107646001Z	KS
1.6 (74 kW \| 1.6 Litre)
04.03 →	BAH		5WK9693Z	PS
02.03 →	BAH		A2C59513057	WSS	T1: Front Left (T25)
04.03 →	BAH		S107646001Z	KS
1.4 TDI (51 kW \| 1.4 Litre)
10.02 →	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
10.02 →	AMF		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
10.02 →	BMS, BNV		A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
10.02 →	ASY		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

CORDOBA (6L2)

1.9 TDI (74 kW \| 1.9 Litre)
10.02 →	ATD, AXR, BMT	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (96 kW \| 1.9 Litre)
10.02 →	ASZ, BLT	A2C59513057	WSS	T1: Front Left (T25)

IBIZA II (6K1)

1.0 i (37 kW l 1.0 Litre)
02.93 - 07.99	AER		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.96 - 08.99	AER		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 - 08.99	AER		S105705002Z	WSS	T1: Front Right (T28); T6
1.0 (33 kW l 1.0 Litre)
02.93 - 07.99	AAU		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
03.93 - 09.96	AAU		S105705001Z	WSS	T1: Front Left (T25); T6
03.93 - 09.96	AAU		S105705002Z	WSS	T1: Front Right (T28); T6
1.3 i (40 kW l 1.3 Litre)
02.93 - 07.99	AAV		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
03.93 - 08.99	AAV		S105705001Z	WSS	T1: Front Left (T25); T6
03.93 - 08.99	AAV		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 i (44 kW l 1.4 Litre)
09.93 - 07.99	ABD, AEX, AKV, APQ		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.93 - 08.99	ABD, AEX, AKV, APQ		S105705001Z	WSS	T1: Front Left (T25); T6
09.93 - 08.99	ABD, AEX, AKV, APQ		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 i 16V (74 kW l 1.4 Litre)
09.96 - 08.99	AFH		5WK9693Z	PS
09.93 - 07.99	AFH		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.96 - 08.99	AFH		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 - 08.99	AFH		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (55 kW l 1.6 Litre)
02.93 - 07.99	1F		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.94 - 06.99	1F		S105705001Z	WSS	T1: Front Left (T25); T6
09.94 - 06.99	1F		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (74 kW l 1.6 Litre)
02.93 - 07.99	AFT		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
04.96 - 08.99	AFT		S105705001Z	WSS	T1: Front Left (T25); T6
04.96 - 08.99	AFT		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZA II (6K1)

1.6 i (55 kW \| 1.6 Litre)
01.97 → 08.99	AEE, ABU, ALM		5WK9693Z	PS
03.93 → 08.99	AEE, ABU, ALM		5WK9693Z	PS
02.93 → 07.99	AEE, ABU, ALM		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
03.93 → 08.99	AEE, ABU, ALM		S105705001Z	WSS	T1: Front Left (T25); T6
03.93 → 08.99	AEE, ABU, ALM		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 i (66 kW \| 1.8 Litre)
02.93 → 07.99	ABS, ADZ		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
03.93 → 08.99	ABS, ADZ		S105705001Z	WSS	T1: Front Left (T25); T6
03.93 → 08.99	ABS, ADZ		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 i 16V (95 kW \| 1.8 Litre)
02.94 → 07.99	ADL		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.93 → 08.96	ADL		S105705001Z	WSS	T1: Front Left (T25); T6
11.93 → 08.96	ADL		S105705002Z	WSS	T1: Front Right (T28); T6
11.93 → 08.96	ADL		S119054003Z	KS
2.0 i (85 kW \| 2.0 Litre)
02.93 → 07.99	2E, AGG		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.99 → 12.99	2E, AGG		A2C59512892	MAFS	T39: 6K-X-000 001; T40: 6K-X-399 999
01.94 → 08.99	2E, AGG		S103957001Z	CrSS
03.93 → 08.99	2E, AGG		S105705001Z	WSS	T1: Front Left (T25); T6
03.93 → 08.99	2E, AGG		S105705002Z	WSS	T1: Front Right (T28); T6
03.93 → 08.99	2E, AGG		S119054003Z	KS
2.0 i 16V (110 kW \| 2.0 Litre)
08.96 → 08.99	ABF		S103957001Z	CrSS
08.96 → 08.99	ABF		S105705001Z	WSS	T1: Front Left (T25); T6
08.96 → 08.99	ABF		S105705002Z	WSS	T1: Front Right (T28); T6
08.96 → 08.99	ABF		S119054003Z	KS
1.7 SDI (44 kW \| 1.7 Litre)
07.97 → 07.99			A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.97 → 08.99			S105705001Z	WSS	T1: Front Left (T25); T6
07.97 → 08.99			S105705002Z	WSS	T1: Front Right (T28); T6
1.9 D (47 kW \| 1.9 Litre)
02.93 → 07.99	1Y		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
04.93 → 08.96	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
04.93 → 08.96	1Y		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZA II (6K1)

1.9 SDI (47 kW \| 1.9 Litre)
09.95 → 07.99	AEY	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.96 → 08.99	AEY	S105705001Z	WSS	T1: Front Left (T25); T6
08.96 → 08.99	AEY	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 D (50 kW \| 1.9 Litre)
02.93 → 07.99	1Y	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.94 → 08.96	1Y	S105705001Z	WSS	T1: Front Left (T25); T6
10.94 → 08.96	1Y	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TD (55 kW \| 1.9 Litre)
02.93 → 07.99	AAZ	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
03.93 → 08.96	AAZ	S105705001Z	WSS	T1: Front Left (T25); T6
03.93 → 08.96	AAZ	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
07.96 → 07.99	1Z, AHU	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.96 → 08.99	1Z, AHU	S105705001Z	WSS	T1: Front Left (T25); T6
08.96 → 08.99	1Z, AHU	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
03.97 → 07.99	AFN	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
02.97 → 08.99	AFN	S105705001Z	WSS	T1: Front Left (T25); T6
02.97 → 08.99	AFN	S105705002Z	WSS	T1: Front Right (T28); T6

IBIZA III (6K1)

1.0 (37 kW \| 1.0 Litre)
08.99 → 01.02	ALD, ANV, AUC		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	ALD, ANV, AUC	6K-X-400 000→ -6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 02.02	ALD, ANV, AUC	6K-X-400 000→ -6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6
1.0 16V (51 kW \| 1.0 Litre)
08.99 → 01.02	AST, AVZ		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.00 → 02.02	AST, AVZ	6K-X-400 000→ -6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
05.00 → 02.02	AST, AVZ	6K-X-400 000→ -6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZA III (6K1)

1.4 (44 kW \| 1.4 Litre)
08.99 → 01.02	ANW, AKK, AUD		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	ANW, AKK, AUD	6K-X-400 000→	S105705001Z	WSS	T1: Front Left (T25); T6
		→6K-X-499 999
08.99 → 02.02	ANW, AKK, AUD	6K-X-400 000→	S105705002Z	WSS	T1: Front Right (T28); T6
		→6K-X-499 999
1.4 16V (55 kW \| 1.4 Litre)
05.00 → 02.02	APE, AUA	6K-X-400 000→	5WK9693Z	PS
		→6K-X-499 999
08.99 → 01.02	APE, AUA		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.00 → 02.02	APE, AUA	6K-X-400 000→	S105705001Z	WSS	T1: Front Left (T25); T6
		→6K-X-499 999
05.00 → 02.02	APE, AUA	6K-X-400 000→	S105705002Z	WSS	T1: Front Right (T28); T6
		→6K-X-499 999
1.4 16V (74 kW \| 1.4 Litre)
08.99 → 02.02	AQQ, AUB	6K-X-400 000→	5WK9693Z	PS
		→6K-X-499 999
08.99 → 01.02	AQQ, AUB		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	AQQ, AUB	6K-X-400 000→	S105705001Z	WSS	T1: Front Left (T25); T6
		→6K-X-499 999
08.99 → 02.02	AQQ, AUB	6K-X-400 000→	S105705002Z	WSS	T1: Front Right (T28); T6
		→6K-X-499 999
08.99 → 02.02	AQQ, AUB	→6L-2-000 001	S107646001Z	KS
1.6 (55 kW \| 1.6 Litre)
08.99 → 02.02	ALM	6K-X-400 000→	5WK9693Z	PS
		→6K-X-499 999
08.99 → 01.02	ALM		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	ALM	6K-X-400 000→	S105705001Z	WSS	T1: Front Left (T25); T6
		→6K-X-499 999
08.99 → 02.02	ALM	6K-X-400 000→	S105705002Z	WSS	T1: Front Right (T28); T6
		→6K-X-499 999
1.6 (74 kW \| 1.6 Litre)
08.99 → 01.02	APF, AEH, AUR, AKL		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	APF, AEH, AUR, AKL	6K-X-400 000→	S105705001Z	WSS	T1: Front Left (T25); T6
		→6K-X-499 999
08.99 → 02.02	APF, AEH, AUR, AKL	6K-X-400 000→	S105705002Z	WSS	T1: Front Right (T28); T6
		→6K-X-499 999
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZA III (6K1)

1.8 T 20V Cupra (115 kW \| 1.8 Litre)
07.00 → 01.02	AQX, AYP		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.00 → 02.02	AQX, AYP	6K-X-400 000→6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
07.00 → 02.02	AQX, AYP	6K-X-400 000→6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (50 kW \| 1.9 Litre)
08.99 → 01.02	AQM, AGP		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	AQM, AGP	6K-X-400 000→6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 02.02	AQM, AGP	6K-X-400 000→6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
08.99 → 01.02	ALH, AGR		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	ALH, AGR	6K-X-400 000→6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 02.02	ALH, AGR	6K-X-400 000→6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
08.99 → 01.02	ASK, ASV		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 → 02.02	ASK, ASV	6K-X-400 000→6K-X-499 999	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 02.02	ASK, ASV	6K-X-400 000→6K-X-499 999	S105705002Z	WSS	T1: Front Right (T28); T6

IBIZA IV (6L1)

1.2 (47 kW \| 1.2 Litre)
02.02 → 10.08	AZQ		A2C59513057	WSS	T1: Front Left (T25)
1.2 12V (51 kW \| 1.2 Litre)
05.06 →	BXV		A2C59513057	WSS	T1: Front Left (T25)
1.4 16V (55 kW \| 1.4 Litre)
02.02 →	BBY, BKY	6L-2-000 001→	5WK9693Z	PS
02.02 → 10.08	BBY, BKY		A2C59513057	WSS	T1: Front Left (T25)
02.02 →	BBY, BKY	→6L-2-000 001	S107646001Z	KS
1.4 16V (63 kW \| 1.4 Litre)
05.06 →	BXW		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZA IV (6L1)

1.4 16V (74 kW \| 1.4 Litre)
02.02 →	AUB, BBZ	6K-X-400 000→6L-2-000 001→6K-X-499 999	5WK9693Z	PS
02.02 →	AUB, BBZ	6L-2-000 001→	5WK9693Z	PS
02.02 → 10.08	AUB, BBZ		A2C59513057	WSS	T1: Front Left (T25)
02.02 →	AUB, BBZ	→6L-2-000 001	S107646001Z	KS
1.6 (74 kW \| 1.6 Litre)
02.03 →	BAH	6L-2-000 001→	5WK9693Z	PS
02.03 → 10.08	BAH		A2C59513057	WSS	T1: Front Left (T25)
02.03 →	BAH	→6L-2-000 001	S107646001Z	KS
1.8 T FR (110 kW \| 1.8 Litre)
12.03 →	BJX, BKV	→6L-2-000 001	S107646001Z	KS
1.8 (132 kW \| 1.8 Litre)
01.04 → 10.08	BBU, BLZ		A2C59513057	WSS	T1: Front Left (T25)
1.8 T Cupra R (132 kW \| 1.8 Litre)
01.04 → 10.08	BBU		A2C59513057	WSS	T1: Front Left (T25)
01.04 →	BBU	→6L-2-000 001	S107646001Z	KS
1.4 TDI (51 kW \| 1.4 Litre)
05.05 →	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
02.02 → 10.08	AMF		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
05.05 →	BMS, BNV		A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
02.02 → 10.08	ASY		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
02.02 → 10.08	ATD, AXR, BMT		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (96 kW \| 1.9 Litre)
02.02 → 10.08	ASZ, BLT		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI Cupra R (110 kW \| 1.9 Litre)
01.04 → 10.08	ARL		A2C59513057	WSS	T1: Front Left (T25)

IBIZAV (6J5)

1.2 (51 kW \| 1.2 Litre)
07.08 →	BZG		A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
07.08 →	BXW		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
07.08 →	BMS		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (66 kW \| 1.9 Litre)
07.08 →	BXJ		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i#
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

IBIZAV (6J5)

1.9 TDI (77 kW \| 1.9 Litre)
07.08 →	BLS		A2C59513057	WSS	T1: Front Left (T25)

IBIZAV SPORTCOUPE (6J1)

1.2 (51 kW \| 1.2 Litre)
07.08 →	BZG	A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
07.08 →	BXW	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
07.08 →	BMS	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (66 kW \| 1.9 Litre)
07.08 →	BXJ	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (77 kW \| 1.9 Litre)
07.08 →	BLS	A2C59513057	WSS	T1: Front Left (T25)

INCA (6K9)

1.4 i (44 kW \| 1.4 Litre)
11.95 →	AEX, AKV, APQ, AUD		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 →	AEX, AKV, APQ, AUD		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 16V (55 kW \| 1.4 Litre)
04.00 →	AUA		5WK9693Z	PS
04.00 →	AUA		S105705001Z	WSS	T1: Front Left (T25); T6
04.00 →	AUA		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (55 kW \| 1.6 Litre)
11.95 → 05.98	1F		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 → 05.98	1F		S105705002Z	WSS	T1: Front Right (T28); T6
11.95 → 05.98	AEE		5WK9693Z	PS
11.95 → 05.98	AEE		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 → 05.98	AEE		S105705002Z	WSS	T1: Front Right (T28); T6
1.7 D (42 kW \| 1.7 Litre)
09.96 →	AHB		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 →	AHB		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 D (47 kW \| 1.9 Litre)
11.95 →	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 →	1Y		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
11.95 →	AEY, AYQ		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 →	AEY, AYQ		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
09.96 →	ALH		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 →	ALH		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

LEON (1M1)

1.4 16V (55 kW \| 1.4 Litre)
11.99 -	APE, AHW, AXP, BCA		5WK9693Z	PS
11.99 -	APE, AHW, AXP, BCA		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 -	APE, AHW, AXP, BCA		S105705002Z	WSS	T1: Front Right (T28); T6
11.99 -	APE, AHW, AXP, BCA		S107023001Z	WSS	T1: Rear Both Sides (T31)
11.99 -	APE, AHW, AXP, BCA		S107646001Z	KS
1.6 (74 kW \| 1.6 Litre)
11.99 -	AKL, AEH		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 -	AKL, AEH		S105705002Z	WSS	T1: Front Right (T28); T6
11.99 -	AKL, AEH		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.6 16 V (77 kW \| 1.6 Litre)
09.00 -	AUS, AZD, BCB		5WK9693Z	PS
09.00 -	AUS, AZD, BCB		S105705001Z	WSS	T1: Front Left (T25); T6
09.00 -	AUS, AZD, BCB		S105705002Z	WSS	T1: Front Right (T28); T6
09.00 -	AUS, AZD, BCB		S107023001Z	WSS	T1: Rear Both Sides (T31)
09.00 -	AUS, AZD, BCB		S107646001Z	KS
1.8 20V (92 kW \| 1.8 Litre)
11.99 -	AGN, APG	-1M-X-025 000	G85530299160Z	KS
11.99 -	AGN, APG		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 -	AGN, APG		S105705002Z	WSS	T1: Front Right (T28); T6
11.99 -	AGN, APG		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.8 20V T (132 kW \| 1.8 Litre)
11.99 -	APP, AUQ	-1M-X-025 000	G85530299160Z	KS
11.99 -	APP, AUQ		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 -	APP, AUQ		S105705002Z	WSS	T1: Front Right (T28); T6
11.99 -	APP, AUQ		S107023001Z	WSS	T1: Rear Both Sides (T31)
11.99 -	APP, AUQ	1M-Y-029 001-	S107646001Z	KS
1.8 20V T 4 (132 kW \| 1.8 Litre)
11.99 -	ARY, AJQ	-1M-X-025 000	G85530299160Z	KS
11.99 -	ARY, AJQ		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 -	ARY, AJQ		S105705002Z	WSS	T1: Front Right (T28); T6
11.99 -	ARY, AJQ	1M-Y-029 001-	S107646001Z	KS
1.8 T Cupra R (154 kW \| 1.8 Litre)
02.02 -	AMK		S105705001Z	WSS	T1: Front Left (T25); T6
02.02 -	AMK		S105705002Z	WSS	T1: Front Right (T28); T6
02.02 -	AMK		S107023001Z	WSS	T1: Rear Both Sides (T31)
02.02 -	AMK		S107646001Z	KS
1.8 T Cupra R (165 kW \| 1.8 Litre)
07.03 -	BAM		S105705001Z	WSS	T1: Front Left (T25); T6
07.03 -	BAM		S105705002Z	WSS	T1: Front Right (T28); T6
07.03 -	BAM		S107023001Z	WSS	T1: Rear Both Sides (T31)
07.03 -	BAM		S107646001Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

LEON (1M1)

2.8 Cupra 4 (150 kW \| 2.8 Litre)
02.01 →	AUE	S105705001Z	WSS	T1: Front Left (T25); T6
02.01 →	AUE	S105705002Z	WSS	T1: Front Right (T28); T6
02.01 →	AUE	S107646001Z	KS
1.9 SDI (50 kW \| 1.9 Litre)
11.99 →	AQM	S105705001Z	WSS	T1: Front Left (T25); T6
11.99 →	AQM	S105705002Z	WSS	T1: Front Right (T28); T6
11.99 →	AQM	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (66 kW \| 1.9 Litre)
11.99 →	ALH, AGR	S105705001Z	WSS	T1: Front Left (T25); T6
11.99 →	ALH, AGR	S105705002Z	WSS	T1: Front Right (T28); T6
11.99 →	ALH, AGR	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (81 kW \| 1.9 Litre)
11.99 →	ASV, AHF	S105705001Z	WSS	T1: Front Left (T25); T6
11.99 →	ASV, AHF	S105705002Z	WSS	T1: Front Right (T28); T6
11.99 →	ASV, AHF	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (96 kW \| 1.9 Litre)
05.03 →	ASZ	S105705001Z	WSS	T1: Front Left (T25); T6
05.03 →	ASZ	S105705002Z	WSS	T1: Front Right (T28); T6
05.03 →	ASZ	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (110 kW \| 1.9 Litre)
02.01 →	ARL	S105705001Z	WSS	T1: Front Left (T25); T6
02.01 →	ARL	S105705002Z	WSS	T1: Front Right (T28); T6
02.01 →	ARL	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI Syncro (110 kW \| 1.9 Litre)
05.02 →	ARL	S105705001Z	WSS	T1: Front Left (T25); T6
05.02 →	ARL	S105705002Z	WSS	T1: Front Right (T28); T6

TOLEDO I (1L)

1.6 i (52 kW \| 1.6 Litre)
05.91 → 12.93	1F		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 → 12.93	1F		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (54 kW \| 1.6 Litre)
05.91 → 03.99	1F, EZ, ABN		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 → 03.99	1F, EZ, ABN		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (55 kW \| 1.6 Litre)
01.93 → 03.99	1F		S105705001Z	WSS	T1: Front Left (T25); T6
01.93 → 03.99	1F		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 i (74 kW \| 1.6 Litre)
11.96 → 03.99	AFT		S105705001Z	WSS	T1: Front Left (T25); T6
11.96 → 03.99	AFT		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

TOLEDO I (1L)

1.8 i (65 kW \| 1.8 Litre)
09.91 - 12.96	RP	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 12.96	RP	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.91 - 12.96	RP		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 12.96	RP		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 i (66 kW \| 1.8 Litre)
09.91 - 12.96	ABS, ADZ	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 12.96	ABS, ADZ	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.93 - 12.96	ABS, ADZ		S105705001Z	WSS	T1: Front Left (T25); T6
11.93 - 12.96	ABS, ADZ		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 16V (92 kW \| 1.8 Litre)
09.91 - 03.99	PL	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 03.99	PL	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.91 - 03.99	PL		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 03.99	PL		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 16V (98 kW \| 1.8 Litre)
09.91 - 03.99	KR	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 03.99	KR	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.91 - 03.99	KR		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 03.99	KR		S105705002Z	WSS	T1: Front Right (T28); T6
2.0 i (85 kW \| 2.0 Litre)
09.91 - 03.99	2E, AGG	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 03.99	2E, AGG	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.99 - 12.99	2E, AGG		A2C59512892	MAFS	T39: 1L-X-009 000
01.92 - 03.99	2E, AGG		S103957001Z	CrSS
05.91 - 03.99	2E, AGG		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 03.99	2E, AGG		S105705002Z	WSS	T1: Front Right (T28); T6
05.91 - 03.99	2E, AGG		S119054003Z	KS
2.0 i 16V (110 kW \| 2.0 Litre)
03.94 - 03.99	ABF	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.93 - 03.99	ABF		S103957001Z	CrSS
11.93 - 03.99	ABF		S105705001Z	WSS	T1: Front Left (T25); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

TOLEDO I (1L)

2.0 i 16V (110 kW \| 2.0 Litre)
11.93 - 03.99	ABF		S105705002Z	WSS	T1: Front Right (T28); T6
11.93 - 03.99	ABF		S119054003Z	KS
1.9 D (47 kW \| 1.9 Litre)
12.95 - 03.99	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
12.95 - 03.99	1Y		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
12.95 - 03.99	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
12.95 - 03.99	1Y		S105705002Z	WSS	t1: Front Right (T28); T6
1.9 D (50 kW \| 1.9 Litre)
05.91 - 03.99	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 03.99	1Y		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TD (55 kW \| 1.9 Litre)
09.91 - 03.99	AAZ	→1L-ZD247298	A2C59512217Z	WSS	T1: Front Both Sides (T32); T2: 2
09.91 - 03.99	AAZ	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.91 - 03.99	AAZ		S105705001Z	WSS	T1: Front Left (T25); T6
05.91 - 03.99	AAZ		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
04.95 - 03.99	1Z, AHU	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.95 - 03.99	1Z, AHU		S105705001Z	WSS	T1: Front Left (T25); T6
08.95 - 03.99	1Z, AHU		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
04.95 - 03.99	AFN	→1L-ZR054453	A2C59512223Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.96 - 03.99	AFN		S105705001Z	WSS	T1: Front Left (T25); T6
11.96 - 03.99	AFN		S105705002Z	WSS	T1: Front Right (T28); T6

TOLEDO II (1m²)

1.4 16V (55 kW \| 1.4 Litre)
01.02 → 05.06	AHW, AXP		5WK9693Z	PS
01.99 → 12.01	AHW, AXP	1M-X-000 001→1M-X-025 000	5WK9693Z	PS
07.99 → 05.06	AHW, AXP		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AHW, AXP		S107023001Z	WSS	T1: Rear Both Sides (T31)
07.99 → 12.01	AHW, AXP	1M-X-000 001→1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
07.99 → 05.06	AHW, AXP		S107646001Z	KS
1.6 (74 kW \| 1.6 Litre)
04.99 → 09.00	AEH, AKL		S105705001Z	WSS	T1: Front Left (T25); T6
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

TOLEDO II (1M2)

1.6 (74 kW \| 1.6 Litre)
04.99 → 09.00	AEH, AKL	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.6 16V (77 kW \| 1.6 Litre)
01.99 → 12.01	AUS, AZD, BCB	1M-X-000 001→ -1M-X-025 000	5WK9693Z	PS
01.02 → 05.06	AUS, AZD, BCB		5WK9693Z	PS
09.00 → 05.06	AUS, AZD, BCB		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AUS, AZD, BCB		S107023001Z	WSS	T1: Rear Both Sides (T31)
09.00 → 12.01	AUS, AZD, BCB	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
09.00 → 05.06	AUS, AZD, BCB		S107646001Z	KS
1.8 20V (92 kW \| 1.8 Litre)
04.99 → 05.06	AGN, APG	-1M-X-025 000	G85530299160Z	KS
04.99 → 05.06	AGN, APG		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AGN, APG		S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 → 12.01	AGN, APG	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 → 05.06	AGN, APG		S107583005Z	KS
1.8 20VT (132 kW \| 1.8 Litre)
05.01 → 05.06	AUQ	-1M-X-025 000	G85530299160Z	KS
05.01 → 05.06	AUQ		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AUQ		S107023001Z	WSS	T1: Rear Both Sides (T31)
05.01 → 12.01	AUQ	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
05.01 → 05.06	AUQ	1M-Y-029 001→ -1M-X-025 000	S107646001Z	KS
2.3 V5 (110 kW \| 2.3 Litre)
04.99 → 05.01	AGZ		S105705001Z	WSS	T1: Front Left (T25); T6
04.99 → 05.01	AGZ	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
2.3 V5 20V (125 kW \| 2.3 Litre)
05.01 → 05.06	AQN		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AQN		S107023001Z	WSS	T1: Rear Both Sides (T31)
05.01 → 12.01	AQN	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
05.01 → 05.06	AQN		S107646001Z	KS
1.9 TDI (66 kW \| 1.9 Litre)
04.99 → 05.06	AGR, ALH		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	AGR, ALH		S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 → 12.01	AGR, ALH	1M-X-000 001→ -1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (81 kW \| 1.9 Litre)
04.99 → 05.06	AHF, ASV		S105705001Z	WSS	T1: Front Left (T25); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

TOLEDO II (1M2)

1.9 TDI (81 kW \| 1.9 Litre)
01.02 → 05.06	AHF, ASV		S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 → 12.01	AHF, ASV	1M-X-000 001→1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (96 kW \| 1.9 Litre)
05.03 → 05.06	ASZ		S105705001Z	WSS	T1: Front Left (T25); T6
05.03 → 05.06	ASZ		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (110 kW \| 1.9 Litre)
10.00 → 05.06	ARL		S105705001Z	WSS	T1: Front Left (T25); T6
01.02 → 05.06	ARL		S107023001Z	WSS	T1: Rear Both Sides (T31)
10.00 → 12.01	ARL	1M-X-000 001→1M-X-025 000	S107023001Z	WSS	T1: Rear Both Sides (T31)

TOLEDO III (5P2)

1.6 (75 kW l 1.6 Litre)
10.04 →	BGU, BSE, BSF, CCSA		S107646001Z	KS

FABIA (6Y2)

1.0 (37 kW \| 1.0 Litre)
12.99 → 08.02	ARV, ATY, AQV	6Y-1-174 001→6Y-1X011 001→6Y-1-174 000→6Y-1X011 000	5WK9693Z	PS
02.00 → 08.02	ARV, ATY, AQV		A2C59513057	WSS	T1: Front Left (T25)
12.99 → 08.02	ARV, ATY, AQV	→6Y-1-286 342	G85530299160Z	KS
1.2 (40 kW \| 1.2 Litre)
08.02 →	AWY, BMD		5WK9693Z	PS
08.02 →	AWY, BMD		A2C59513057	WSS	T1: Front Left (T25)
08.02 →	AWY, BMD		S107646001Z	KS
1.2 (47 kW \| 1.2 Litre)
08.02 →	AZQ, BME		A2C59513057	WSS	T1: Front Left (T25)
1.4 (44 kW \| 1.4 Litre)
08.00 → 08.02	AZE, AZF	6Y-1-174 001→6Y-1X011 001→6Y-1-174 000→6Y-1X011 000	5WK9693Z	PS
02.00 → 08.02	AZE, AZF		A2C59513057	WSS	T1: Front Left (T25)
08.00 → 08.02	AZE, AZF	→6Y-1-286 342	G85530299160Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FABIA (6Y2)

1.4 (50 kW \| 1.4 Litre)
08.99 → 12.04	ATZ, AME, AQW	6Y-1-174 001→6Y-1X011 001→6Y-1-174 000→6Y-1X011 000	5WK9693Z	PS
02.00 →	ATZ, AME, AQW		A2C59513057	WSS	T1: Front Left (T25)
08.99 →	ATZ, AME, AQW	→6Y-1-286 342	G85530299160Z	KS
1.4 16V (55 kW \| 1.4 Litre)
12.99 → 12.04	AUA, BBY, BKY	→6Y-4-893 312	5WK9693Z	PS	T8; T11: PR.-0GG
12.99 → 12.04	AUA, BBY, BKY		5WK9693Z	PS
10.99 →	AUA, BBY, BKY		A2C59513057	WSS	T1: Front Left (T25)
12.99 →	AUA, BBY, BKY		S107646001Z	KS
1.4 16V (74 kW \| 1.4 Litre)
12.99 → 12.04	AUB, BBZ		5WK9693Z	PS
12.99 →	AUB, BBZ		5WK9693Z	PS
10.99 →	AUB, BBZ		A2C59513057	WSS	T1: Front Left (T25)
12.99 →	AUB, BBZ		S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
12.99 →	AQY, AZL		A2C59513057	WSS	T1: Front Left (T25)
12.99 →	AQY, AZL		S107646001Z	KS
1.4 TDI (51 kW \| 1.4 Litre)
04.03 →	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
04.03 →	AMF		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
04.03 →	BNV		A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
12.99 →	ASY		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
02.00 →	ATD, AXR		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI RS (96 kW \| 1.9 Litre)
09.03 →	ASZ, BLT		A2C59513057	WSS	T1: Front Left (T25)

FABIA Saloon (6Y3)

1.2 (40 kW \| 1.2 Litre)
07.01 →	AWY, BMD		5WK9693Z	PS
08.02 →	AWY, BMD		A2C59513057	WSS	T1: Front Left (T25)
07.01 →	AWY, BMD		S107646001Z	KS
1.2 (47 kW \| 1.2 Litre)
08.02 →	AZQ, BME		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FABIA Saloon (6Y3)

1.4 (44 kW \| 1.4 Litre)
04.00 → 08.02	AZE, AZF	6Y-1-174 001→6Y-1X011 001→6Y-1-174 000→6Y-1X011 000	5WK9693Z	PS
02.00 → 08.02	AZE, AZF		A2C59513057	WSS	T1: Front Left (T25)
04.00 → 08.02	AZE, AZF	→6Y-1-286 342	G85530299160Z	KS
1.4 (50 kW \| 1.4 Litre)
07.01 → 12.04	AME, AQW	6Y-1-174 001→6Y-1X011 001→6Y-1-174 000→6Y-1X011 000	5WK9693Z	PS
02.00 →	AME, AQW		A2C59513057	WSS	T1: Front Left (T25)
07.01 →	AME, AQW	→6Y-1-286 342	G85530299160Z	KS
1.4 16V (55 kW \| 1.4 Litre)
10.99 → 12.04	AUA, BBY, BKY	→6Y-4-893 312	5WK9693Z	PS	T8; T11: PR.-OGG
10.99 → 12.04	AUA, BBY, BKY		5WK9693Z	PS
10.99 →	AUA, BBY, BKY		A2C59513057	WSS	T1: Front Left (T25)
10.99 →	AUA, BBY, BKY		S107646001Z	KS
1.4 16V (59 kW \| 1.4 Litre)
10.99 →	BUD		A2C59513057	WSS	T1: Front Left (T25)
1.4 16V (74 kW \| 1.4 Litre)
12.99 → 12.04	AUB, BBZ		5WK9693Z	PS
12.99 →	AUB, BBZ		5WK9693Z	PS
10.99 →	AUB, BBZ		A2C59513057	WSS	T1: Front Left (T25)
12.99 →	AUB, BBZ		S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
12.99 →	AZL		A2C59513057	WSS	T1: Front Left (T25)
12.99 →	AZL		S107646001Z	KS
1.4 TDI (51 kW \| 1.4 Litre)
04.03 →	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
04.03 →	AMF		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
04.03 →	BNV		A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
12.99 →	ASY		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
02.00 →	ATD, AXR		A2C59513057	WSS	T1: Front Left (T25)

FABIA Combi (6Y5)

1.2 (40 kW \| 1.2 Litre)
08.02 →	AWY, BMD		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FABIA Combi (6Y5)

1.2 (47 kW \| 1.2 Litre)
08.02 -	AZQ, BME		A2C59513057	WSS	T1: Front Left (T25)
1.4 (44 kW \| 1.4 Litre)
04.00 - 12.04	AZE, AZF	6Y-1-174 001-6Y-1X011 001-6Y-1-174 000-6Y-1X011 000	5WK9693Z	PS
02.00 -	AZE, AZF		A2C59513057	WSS	T1: Front Left (T25)
04.00 -	AZE, AZF	-6Y-1-286 342	G85530299160Z	KS
1.4 (50 kW \| 1.4 Litre)
04.00 - 12.04	AME, AQW, ATZ	6Y-1-174 001-6Y-1X011 001-6Y-1-174 000-6Y-1X011 000	5WK9693Z	PS
02.00 -	AME, AQW, ATZ		A2C59513057	WSS	T1: Front Left (T25)
04.00 -	AME, AQW, ATZ	-6Y-1-286 342	G85530299160Z	KS
1.4 16V (55 kW \| 1.4 Litre)
05.00 - 12.04	AUA, BBY, BKY	-6Y-4-893 312	5WK9693Z	PS	T8; T11: PR.-0GG
05.00 - 12.04	AUA, BBY, BKY		5WK9693Z	PS
10.99 -	AUA, BBY, BKY		A2C59513057	WSS	T1: Front Left (T25)
05.00 -	AUA, BBY, BKY		S107646001Z	KS
1.4 16V (59 kW \| 1.4 Litre)
10.99 -	BUD		A2C59513057	WSS	T1: Front Left (T25)
1.4 16V (74 kW \| 1.4 Litre)
04.00 - 12.04	AUB, BBZ		5WK9693Z	PS
10.99 -	AUB, BBZ		A2C59513057	WSS	T1: Front Left (T25)
04.00 -	AUB, BBZ		S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
12.99 -	AZL		A2C59513057	WSS	T1: Front Left (T25)
04.00 -	AZL		S107646001Z	KS
1.4 TDI (51 kW \| 1.4 Litre)
04.03 -	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
04.03 -	AMF		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
04.03 -	BNV		A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
12.99 -	ASY		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
02.00 -	ATD, AXR		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

FABIA Praktik

1.2 (40 kW \| 1.2 Litre)
08.02 →	AWY, BMD	A2C59513057	WSS	T1: Front Left (T25)
1.2 (47 kW \| 1.2 Litre)
08.02 →	AZQ, BME	A2C59513057	WSS	T1: Front Left (T25)
1.4 (50 kW \| 1.4 Litre)
02.00 →	AME, AQW, ATZ	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (51 kW \| 1.4 Litre)
04.03 →	BNM	A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
12.99 →	ASY	A2C59513057	WSS	T1: Front Left (T25)

FABIA

1.2 (44 kW \| 1.2 Litre)
03.07 →	BBM	A2C59513057	WSS	T1: Front Left (T25)
1.2 (51 kW \| 1.2 Litre)
03.07 →	BZG, CEVA	A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
03.07 →	BXW	A2C59513057	WSS	T1: Front Left (T25)
1.6 (77 kW \| 1.6 Litre)
03.07 →	BTS	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (51 kW \| 1.4 Litre)
03.07 →	BNM	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
03.07 →	BMS, BVN	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (77 kW \| 1.9 Litre)
03.07 →	BLS, BSW	A2C59513057	WSS	T1: Front Left (T25)

FABIA Combi

1.2 (51 kW \| 1.2 Litre)
03.07 →	BZG, CEVA		A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
03.07 →	BXW		A2C59513057	WSS	T1: Front Left (T25)
1.6 (77 kW \| 1.6 Litre)
03.07 →	BTS		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (51 kW \| 1.4 Litre)
03.07 →	BNM		A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
03.07 →	BMS, BVN		A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (77 kW \| 1.9 Litre)
03.07 →	BSW, BLS		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

1.6 (74 kW | 1.6 Litre)

01.97 → 12.00	AEH, AKL	A2C59512895	MAFS	T40: 1U-V-028 927
01.04 → 12.04	AEH, AKL	A2C59512896	MAFS	T40: 1U-4-000 001
02.97 →	AEH, AKL	S105705001Z	WSS	T1: Front Left (T25); T6
02.97 →	AEH, AKL	S105705002Z	WSS	T1: Front Right (T28); T6
02.97 →	AEH, AKL	S107023001Z	WSS	T1: Rear Both Sides (T31)

1.6 (75 kW | 1.6 Litre)

01.04 → 12.04	AVU, BFQ	A2C59512896	MAFS	T40: 1U-4-000 001
11.00 →	AVU, BFQ	S105705001Z	WSS	T1: Front Left (T25); T6
11.00 →	AVU, BFQ	S105705002Z	WSS	T1: Front Right (T28); T6
11.00 →	AVU, BFQ	S107023001Z	WSS	T1: Rear Both Sides (T31)

1.8 (92 kW | 1.8 Litre)

01.97 → 12.00	AGN		A2C59512895	MAFS	T40: 1U-V-028 927
09.96 →	AGN	→1U-X-232 429	G85530299160Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

OCTAVIA (1U2)

1.8 (92 kW \| 1.8 Litre)
09.96 →	AGN		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 →	AGN		S105705002Z	WSS	T1: Front Right (T28); T6
09.96 →	AGN		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.8 T (110 kW \| 1.8 Litre)
01.97 → 12.00	ARZ, AGU, ARX, AUM		A2C59512895	MAFS	T40: 1U-V-028 927
08.97 →	ARZ, AGU, ARX, AUM	→1U-X-232 429	G85530299160Z	KS
08.97 →	ARZ, AGU, ARX, AUM		S105705001Z	WSS	T1: Front Left (T25); T6
08.97 →	ARZ, AGU, ARX, AUM		S105705002Z	WSS	T1: Front Right (T28); T6
08.97 →	ARZ, AGU, ARX, AUM		S107023001Z	WSS	T1: Rear Both Sides (T31)
08.97 →	ARZ, AGU, ARX, AUM		S107646001Z	KS
1.8 T 4x4 (110 kW \| 1.8 Litre)
05.01 →	AGU, AUM, ARX	→1U-X-232 429	G85530299160Z	KS
05.01 →	AGU, AUM, ARX		S105705001Z	WSS	T1: Front Left (T25); T6
05.01 →	AGU, AUM, ARX		S105705002Z	WSS	T1: Front Right (T28); T6
05.01 →	AGU, AUM, ARX		S107646001Z	KS
RS 1.8 T (132 kW \| 1.8 Litre)
05.01 →	AUQ		S105705001Z	WSS	T1: Front Left (T25); T6
05.01 →	AUQ		S105705002Z	WSS	T1: Front Right (T28); T6
05.01 →	AUQ		S107023001Z	WSS	T1: Rear Both Sides (T31)
05.01 →	AUQ		S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
01.97 → 12.00	AQY, APK, AZH, AEG		A2C59512895	MAFS	T40: 1U-V-028 927
04.99 →	AQY, APK, AZH, AEG		S105705001Z	WSS	T1: Front Left (T25); T6
04.99 →	AQY, APK, AZH, AEG		S105705002Z	WSS	T1: Front Right (T28); T6
04.99 →	AQY, APK, AZH, AEG		S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 →	AQY, APK, AZH, AEG		S107646001Z	KS
1.9 SDI (50 kW \| 1.9 Litre)
01.97 → 12.00	AGP, AQM		A2C59512895	MAFS	T40: 1U-V-028 927
06.97 →	AGP, AQM		S105705001Z	WSS	T1: Front Left (T25); T6
06.97 →	AGP, AQM		S105705002Z	WSS	T1: Front Right (T28); T6
06.97 →	AGP, AQM		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (66 kW \| 1.9 Litre)
01.97 → 12.00	ALH, AGR		A2C59512895	MAFS	T40: 1U-V-028 927
09.96 →	ALH, AGR		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 →	ALH, AGR		S105705002Z	WSS	T1: Front Right (T28); T6
09.96 →	ALH, AGR		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (81 kW \| 1.9 Litre)
01.97 → 12.00	ASV, AHF		A2C59512895	MAFS	T40: 1U-V-028 927
08.97 →	ASV, AHF		S105705001Z	WSS	T1: Front Left (T25); T6
08.97 →	ASV, AHF		S105705002Z	WSS	T1: Front Right (T28); T6
08.97 →	ASV, AHF		S107023001Z	WSS	T1: Rear Both Sides (T31)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

OCTAVIA (1U2)

1.9 TDI (96 kW \| 1.9 Litre)
01.03 →	ASZ	S105705001Z	WSS	T1: Front Left (T25); T6
01.03 →	ASZ	S105705002Z	WSS	T1: Front Right (T28); T6
01.03 →	ASZ	S107023001Z	WSS	T1: Rear Both Sides (T31)

OCTAVIA Combi (1U5)

1.4 16V (55 kW \| 1.4 Litre)
01.97 → 12.00	AXP, BCA		A2C59512895	MAFS	T40: 1U-V-028 927
08.00 →	AXP, BCA		S105705001Z	WSS	T1: Front Left (T25); T6
08.00 →	AXP, BCA		S105705002Z	WSS	T1: Front Right (T28); T6
08.00 →	AXP, BCA		S107023001Z	WSS	T1: Rear Both Sides (T31)
08.00 →	AXP, BCA		S107646001Z	KS
1.6 (55 kW \| 1.6 Litre)
07.98 →	AEE		5WK9693Z	PS
01.97 → 12.00	AEE		A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	AEE		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	AEE		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	AEE		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.6 (74 kW \| 1.6 Litre)
01.97 → 12.00	AEH, AKL		A2C59512895	MAFS	T40: 1U-V-028 927
01.04 → 12.04	AEH, AKL		A2C59512896	MAFS	T40: 1U-4-000 001
07.98 →	AEH, AKL		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	AEH, AKL		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	AEH, AKL		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.6 (75 kW \| 1.6 Litre)
01.04 → 12.04	AVU, BFQ		A2C59512896	MAFS	T40: 1U-4-000 001
09.00 →	AVU, BFQ		S105705001Z	WSS	T1: Front Left (T25); T6
09.00 →	AVU, BFQ		S105705002Z	WSS	T1: Front Right (T28); T6
09.00 →	AVU, BFQ		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.8 20V (92 kW \| 1.8 Litre)
01.97 → 12.00	AGN		A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	AGN	→1U-X-232 429	G85530299160Z	KS
07.98 →	AGN		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	AGN		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	AGN		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.8 T (110 kW \| 1.8 Litre)
01.97 → 12.00	AGU, ARZ, ARX, AUM		A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	AGU, ARZ, ARX, AUM	→1U-X-232 429	G85530299160Z	KS
07.98 →	AGU, ARZ, ARX, AUM		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	AGU, ARZ, ARX, AUM		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	AGU, ARZ, ARX, AUM		S107023001Z	WSS	T1: Rear Both Sides (T31)
07.98 →	AGU, ARZ, ARX, AUM		S107646001Z	KS
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

OCTAVIA Combi (1U5)

1.8 T 4x4 (110 kW \| 1.8 Litre)
05.01 →	ARX, AGU, AUM	→1U-X-232 429	G85530299160Z	KS
05.01 →	ARX, AGU, AUM		S105705001Z	WSS	T1: Front Left (T25); T6
05.01 →	ARX, AGU, AUM		S105705002Z	WSS	T1: Front Right (T28); T6
05.01 →	ARX, AGU, AUM		S107646001Z	KS
RS 1.8 T (132 kW \| 1.8 Litre)
08.02 →	AUQ		S105705001Z	WSS	T1: Front Left (T25); T6
08.02 →	AUQ		S105705002Z	WSS	T1: Front Right (T28); T6
08.02 →	AUQ		S107023001Z	WSS	T1: Rear Both Sides (T31)
08.02 →	AUQ		S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
01.97 → 12.00	APK, AQY, AZH, AEG, AZJ		A2C59512895	MAFS	T40: 1U-V-028 927
04.99 →	APK, AQY, AZH, AEG, AZJ		S105705001Z	WSS	T1: Front Left (T25); T6
04.99 →	APK, AQY, AZH, AEG, AZJ		S105705002Z	WSS	T1: Front Right (T28); T6
04.99 →	APK, AQY, AZH, AEG, AZJ		S107023001Z	WSS	T1: Rear Both Sides (T31)
04.99 →	APK, AQY, AZH, AEG, AZJ		S107646001Z	KS
2.0 4x4 (85 kW \| 2.0 Litre)
05.01 →	AEG, AQY, AZH, AZJ		S105705001Z	WSS	T1: Front Left (T25); T6
05.01 →	AEG, AQY, AZH, AZJ		S105705002Z	WSS	T1: Front Right (T28); T6
05.01 →	AEG, AQY, AZH, AZJ		S107646001Z	KS
2.0 4x4 (88 kW \| 2.0 Litre)
01.97 → 12.00	ATF		A2C59512895	MAFS	T40: 1U-V-028 927
01.00 →	ATF		S105705001Z	WSS	T1: Front Left (T25); T6
01.00 →	ATF		S105705002Z	WSS	T1: Front Right (T28); T6
01.00 →	ATF		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 SDI (50 kW \| 1.9 Litre)
01.97 → 12.00	AGP, AQM		A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	AGP, AQM		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	AGP, AQM		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	AGP, AQM		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (66 kW \| 1.9 Litre)
01.97 → 12.00	ALH, AGR		A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	ALH, AGR		S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	ALH, AGR		S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	ALH, AGR		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI 4x4 (66 kW \| 1.9 Litre)
01.97 → 12.00	AGR		A2C59512895	MAFS	T40: 1U-V-028 927
11.99 → 09.00	AGR		S105705001Z	WSS	T1: Front Left (T25); T6
11.99 → 09.00	AGR		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI 4x4 (74 kW \| 1.9 Litre)
09.00 →	ATD		S105705001Z	WSS	T1: Front Left (T25); T6
09.00 →	ATD		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

OCTAVIA Combi (1U5)

1.9 TDI (81 kW I 1.9 Litre)
01.97 → 12.00	ASV, AHF	A2C59512895	MAFS	T40: 1U-V-028 927
07.98 →	ASV, AHF	S105705001Z	WSS	T1: Front Left (T25); T6
07.98 →	ASV, AHF	S105705002Z	WSS	T1: Front Right (T28); T6
07.98 →	ASV, AHF	S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (96 kW I 1.9 Litre)
01.03 →	ASZ	S105705001Z	WSS	T1: Front Left (T25); T6
01.03 →	ASZ	S105705002Z	WSS	T1: Front Right (T28); T6
01.03 →	ASZ	S107023001Z	WSS	T1: Rear Both Sides (T31)

OCTAVIA (1Z3)

1.4 (55 kW \| 1.4 Litre)
05.04 →	BCA		S107023001Z	WSS	T1: Rear Both Sides (T31)
05.04 →	BCA	1Z-4-000 001→	S107646001Z	KS
1.6 (75 kW \| 1.6 Litre)
06.04 →	BGU, BSE, BSF, CCSA		S107023001Z	WSS	T1: Rear Both Sides (T31)
06.04 →	BGU, BSE, BSF, CCSA	1Z-4-000 001→	S107646001Z	KS
1.6 FSI (85 kW \| 1.6 Litre)
02.04 →	BLF		S107023001Z	WSS	T1: Rear Both Sides (T31)
02.04 →	BLF	1Z-4-000 001→	S107646001Z	KS
2.0 FSI (110 kW \| 2.0 Litre)
11.04 →	BLR, BLY, BVX, BVY, BVZ		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (77 kW \| 1.9 Litre)
06.04 →	BKC, BJB, BXE, BLS		S107023001Z	WSS	T1: Rear Both Sides (T31)
2.0 TDI 16V (103 kW \| 2.0 Litre)
02.04 →	BKD		S107023001Z	WSS	T1: Rear Both Sides (T31)

OCTAVIA Combi (1Z5)

1.6 (75 kW \| 1.6 Litre)
09.04 →	BGU, BSE, BSF, CCSA		S107023001Z	WSS	T1: Rear Both Sides (T31)
09.04 →	BGU, BSE, BSF, CCSA	1Z-4-000 001→	S107646001Z	KS
1.6 FSI (85 kW \| 1.6 Litre)
02.04 →	BLF		S107023001Z	WSS	T1: Rear Both Sides (T31)
02.04 →	BLF	1Z-4-000 001→	S107646001Z	KS
2.0 FSI (110 kW \| 2.0 Litre)
11.04 →	BLR, BLY, BVX, BVY, BVZ		S107023001Z	WSS	T1: Rear Both Sides (T31)
1.9 TDI (77 kW \| 1.9 Litre)
09.04 →	BKC, BJB, BXE, BLS		S107023001Z	WSS	T1: Rear Both Sides (T31)
2.0 TDI 16V (103 kW \| 2.0 Litre)
02.04 →	BKD		S107023001Z	WSS	T1: Rear Both Sides (T31)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

PRACTIK

1.2 (51 kW \| 1.2 Litre)
03.07 →	BZG	A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
03.07 →	BXW	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (51 kW \| 1.4 Litre)
03.07 →	BNM	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
03.07 →	BMS, BVN	A2C59513057	WSS	T1: Front Left (T25)

ROOMSTER (5J)

1.2 (47 kW \| 1.2 Litre)
07.06 → 01.07	BME	A2C59513057	WSS	T1: Front Left (T25)
1.2 (51 kW \| 1.2 Litre)
07.06 →	BZG	A2C59513057	WSS	T1: Front Left (T25)
1.4 (63 kW \| 1.4 Litre)
07.06 →	BXW	A2C59513057	WSS	T1: Front Left (T25)
1.6 (77 kW \| 1.6 Litre)
07.06 →	BTS	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (51 kW \| 1.4 Litre)
07.06 →	BNM	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
07.06 →	BMS, BVN	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (77 kW \| 1.9 Litre)
07.06 →	BLS, BSW	A2C59513057	WSS	T1: Front Left (T25)

SUPERB (3U4)

2.0 (85 kW \| 2.0 Litre)
01.08 → 12.08	AZM	A2C59512896	MAFS	T40: 3U-8-000 001
2.8 V6 (142 kW \| 2.8 Litre)
01.08 → 12.08	AMX	A2C59512894	MAFS	T40: 3U-8-000 001

AGILA

1.0 12V (43 kW \| 1.0 Litre)
09.00 →	Z 10 XE	S107470001Z	WSS	T1: Front Both Sides (T32)
1.2 16V (55 kW \| 1.2 Litre)
09.00 →	Z 12 XE	S107470001Z	WSS	T1: Front Both Sides (T32)

ASTRA Hatchback

1.8 GTE (85 kW l 1.8 litre)
03.83 → 08.86	18 E		S101918001Z	CrSS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk II Hatchback

1.8 GTE (82 kW \| 1.8 Litre)
09.84 → 08.91	18 SE, 18 E	S101918001Z	CrSS
2.0 GTE (95 kW \| 2.0 Litre)
09.86 → 08.91	20 SEH	S101918001Z	CrSS
2.0 GTE 16V (115 kW \| 2.0 Litre)
05.88 → 08.91	20 XE	S101918001Z	CrSS

ASTRA Mk II Belmont

1.8 i (85 kW l 1.8 Litre)
09.85 → 08.91	18 E, 18 SE		S101918001Z	CrSS

ASTRA Mk II Estate

1.8 i (83 kW l 1.8 Litre)
01.90 → 08.91	18 E		S101918001Z	CrSS

ASTRA Mk II Convertible

2.0 i (85 kW \| 2.0 Litre)
01.87 → 12.91	20 NE	S101918001Z	CrSS
2.0 i CAT (85 kW \| 2.0 Litre)
01.91 → 08.93	C 20 NE	S101918001Z	CrSS

ASTRA Mk III Hatchback

1.4 i (60 kW \| 1.4 Litre)
03.92 → 02.98	C 14 SE		S101938001Z	CrSS
1.4 i 16V (66 kW \| 1.4 Litre)
02.96 → 02.98	X 14 XE		S101938001Z	CrSS
1.6 i (52 kW \| 1.6 Litre)
07.94 → 02.98	X 16 SZ		S101938001Z	CrSS
1.6 i (74 kW \| 1.6 Litre)
03.92 → 02.98	C 16 SE		S101938001Z	CrSS
1.6 i 16V (74 kW \| 1.6 Litre)
01.94 → 02.98	X 16 XEL		S101938002Z	CrSS
1.8 i (66 kW \| 1.8 Litre)
09.91 → 02.98	C 18 NZ		S101918001Z	CrSS
1.8 i 16V (85 kW \| 1.8 Litre)
09.94 → 02.98	C 18 XEL		5WK90541Z	CrSS
09.94 → 02.98	C 18 XEL		5WK90551Z	CaSS
09.94 → 02.98	C 18 XEL		5WK90554Z	CaSS
09.94 → 02.98	C 18 XEL		5WK9150Z	MAFS
09.94 → 02.98	C 18 XEL		S103057001Z	KS
1.8 i 16V (92 kW \| 1.8 Litre)
09.94 → 02.98	C 18 XE		5WK90541Z	CrSS
09.94 → 02.98	C 18 XE		5WK90551Z	CaSS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk III Hatchback

1.8 i 16V (92 kW l 1.8 Litre)
09.94 → 02.98	C 18 XE	5WK90554Z	CaSS
09.94 → 02.98	C 18 XE	5WK9150Z	MAFS
09.94 → 02.98	C 18 XE	S103057001Z	KS
2.0 i (85 kW l 2.0 Litre)
09.91 → 02.98	C 20 NE	S101918001Z	CrSS
2.0 i 16V (100 kW l 2.0 Litre)
01.94 → 02.98	X 20 XEV	5WK90541Z	CrSS
01.94 → 02.98	X 20 XEV	5WK90551Z	CaSS
01.94 → 02.98	X 20 XEV	5WK90554Z	CaSS
01.94 → 02.98	X 20 XEV	5WK9150Z	MAFS
01.94 → 02.98	X 20 XEV	S103057001Z	KS
2.0 i 16V (110 kW l 2.0 Litre)
09.91 → 02.98	C 20 XE	S101918001Z	CrSS

ASTRA Mk III

1.4 i (60 kW \| 1.4 Litre)
03.92 → 09.98	C 14 SE		S101938001Z	CrSS
1.4 i 16V (66 kW \| 1.4 Litre)
02.96 → 09.98	X 14 XE		S101938001Z	CrSS
1.6 i (52 kW \| 1.6 Litre)
08.94 → 07.96	X 16 SZ		S101938001Z	CrSS
1.6 i (55 kW \| 1.6 Litre)
03.92 → 09.98	C 16 NZ, X 16 SZR		5WK9150Z	MAFS
03.92 → 09.98	C 16 NZ, X 16 SZR		S101938001Z	CrSS
1.6 i (74 kW \| 1.6 Litre)
05.92 → 12.94	C 16 SE		S101938001Z	CrSS
1.6 i 16V (74 kW \| 1.6 Litre)
08.94 → 09.98	X 16 XEL		S101938002Z	CrSS
1.8 i (66 kW \| 1.8 Litre)
03.92 → 09.98	C 18 NZ		S101918001Z	CrSS
1.8 i 16V (85 kW \| 1.8 Litre)
01.94 → 12.96	C 18 XEL		5WK90541Z	CrSS
01.94 → 12.96	C 18 XEL		5WK90551Z	CaSS
01.94 → 12.96	C 18 XEL		5WK90554Z	CaSS
01.94 → 12.96	C 18 XEL		5WK9150Z	MAFS
01.94 → 12.96	C 18 XEL		S103057001Z	KS
1.8 i 16V (92 kW \| 1.8 Litre)
06.93 → 10.94	C 18 XE		5WK90541Z	CrSS
06.93 → 10.94	C 18 XE		5WK90551Z	CaSS
06.93 → 10.94	C 18 XE		5WK90554Z	CaSS
06.93 → 10.94	C 18 XE		5WK9150Z	MAFS
06.93 → 10.94	C 18 XE		S103057001Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk III

2.0 i (85 kW \| 2.0 Litre)
03.92 → 09.98	C 20 NE	S101918001Z	CrSS
2.0 i 16V (100 kW \| 2.0 Litre)
02.95 → 09.98	X 20 XEV	5WK90541Z	CrSS
02.95 → 09.98	X 20 XEV	5WK90551Z	CaSS
02.95 → 09.98	X 20 XEV	5WK90554Z	CaSS
02.95 → 09.98	X 20 XEV	5WK9150Z	MAFS
02.95 → 09.98	X 20 XEV	S103057001Z	KS

ASTRA Mk III Estate

1.4 i (60 kW \| 1.4 Litre)
03.91 → 02.98	C 14 SE		S101938001Z	CrSS
1.4 i 16V (66 kW \| 1.4 Litre)
02.96 → 01.98	X 14 XE		S101938001Z	CrSS
1.6 i (52 kW \| 1.6 Litre)
07.94 → 02.98	X 16 SZ		S101938001Z	CrSS
1.6 Si (74 kW \| 1.6 Litre)
03.91 → 12.94	C 16 SE		S101938001Z	CrSS
1.6 i 16V (74 kW \| 1.6 Litre)
01.94 → 02.98	X 16 XEL		S101938002Z	CrSS
1.8 i (66 kW \| 1.8 Litre)
09.91 → 02.98	C 18 NZ		S101918001Z	CrSS
1.8 i 16V (85 kW \| 1.8 Litre)
09.94 → 02.98	C 18 XEL		5WK90541Z	CrSS
09.94 → 02.98	C 18 XEL		5WK90551Z	CaSS
09.94 → 02.98	C 18 XEL		5WK90554Z	CaSS
09.94 → 02.98	C 18 XEL		5WK9150Z	MAFS
09.94 → 02.98	C 18 XEL		S103057001Z	KS
1.8 i 16V (92 kW \| 1.8 Litre)
09.94 → 02.98	C 18 XE		5WK90541Z	CrSS
09.94 → 02.98	C 18 XE		5WK90551Z	CaSS
09.94 → 02.98	C 18 XE		5WK90554Z	CaSS
09.94 → 02.98	C 18 XE		5WK9150Z	MAFS
09.94 → 02.98	C 18 XE		S103057001Z	KS
2.0 i (85 kW \| 2.0 Litre)
09.91 → 02.98	C 20 NE		S101918001Z	CrSS
2.0 i 16V (100 kW \| 2.0 Litre)
01.94 → 02.98	X 20 XEV		5WK90541Z	CrSS
01.94 → 02.98	X 20 XEV		5WK90551Z	CaSS
01.94 → 02.98	X 20 XEV		5WK90554Z	CaSS
01.94 → 02.98	X 20 XEV		5WK9150Z	MAFS
01.94 → 02.98	X 20 XEV		S103057001Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk III Convertible

1.4 i (60 kW \| 1.4 Litre)
05.93 → 03.01	C 14 SE	S101938001Z	CrSS
1.4 i 16V (66 kW \| 1.4 Litre)
01.96 → 03.01	X 14 XE	S101938001Z	CrSS
1.6 i (52 kW \| 1.6 Litre)
03.93 → 08.96	X 16 SZ	S101938001Z	CrSS
1.6 i (55 kW \| 1.6 Litre)
01.96 → 03.01	X 16 SZR	5WK9150Z	MAFS
01.96 → 03.01	X 16 SZR	S101938001Z	CrSS
1.8 16V (85 kW \| 1.8 Litre)
11.94 → 03.01	C 18 XEL, X 18 XE	5WK90541Z	CrSS
11.94 → 03.01	C 18 XEL, X 18 XE	5WK90551Z	CaSS
11.94 → 03.01	C 18 XEL, X 18 XE	5WK90554Z	CaSS
11.94 → 03.01	C 18 XEL, X 18 XE	5WK9150Z	MAFS
11.94 → 03.01	C 18 XEL, X 18 XE	S103057001Z	KS
2.0 i (85 kW \| 2.0 Litre)
03.93 → 10.94	C 20 NE	S101918001Z	CrSS

ASTRA Mk IV Hatchback

1.2 16V (55 kW \| 1.2 Litre)
09.00 →	Z 12 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
1.4 16V (66 kW \| 1.4 Litre)
02.98 →	X 14 XE, Z 14 XE		S101938001Z	CrSS
09.00 →	X 14 XE, Z 14 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
1.6 (55 kW \| 1.6 Litre)
02.98 → 09.00	X 16 SZR		5WK9150Z	MAFS
02.98 → 09.00	X 16 SZR		S101938001Z	CrSS
1.6 16V (74 kW \| 1.6 Litre)
02.98 →	X 16 XEL, Z 16 XE		5WK9606Z	MAFS
02.98 →	X 16 XEL, Z 16 XE		S101938002Z	CrSS
1.8 16V (85 kW \| 1.8 Litre)
02.98 → 09.00	X 18 XE1		5WK9606Z	MAFS
02.98 → 09.00	X 18 XE1		S105578001Z	CrSS
02.98 → 09.00	X 18 XE1		S105778001Z	CaSS
1.8 16V (92 kW \| 1.8 Litre)
09.00 →	Z 18 XE		5WK9606Z	MAFS
09.00 →	Z 18 XE		S105778001Z	CaSS
09.00 →	Z 18 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
09.00 →	Z 18 XE		S107541001Z	CrSS
2.0 16V (100 kW \| 2.0 Litre)
02.98 →	X 20 XEV		5WK90541Z	CrSS
02.98 →	X 20 XEV		5WK90551Z	CaSS
02.98 →	X 20 XEV		5WK90554Z	CaSS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk IV Hatchback

2.0 16V (100 kW \| 2.0 Litre)
02.98 →	X 20 XEV	5WK9150Z	MAFS
02.98 →	X 20 XEV	S103057001Z	KS
2.0 SRI Turbo (141 kW \| 2.0 Litre)
07.02 →	Z 20 LET	5WK9606Z	MAFS
2.2 16V (108 kW \| 2.2 Litre)
03.01 →	Z 22 SE	5WK9150Z	MAFS
1.7 DTI 16V (55 kW \| 1.7 Litre)
02.00 →	Y 17 DT	S107470001Z	WSS	T1: Front Both Sides (T32)

ASTRA Mk IV

1.2 16V (55 kW \| 1.2 Litre)
09.00 →	Z 12 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
1.4 16V (66 kW \| 1.4 Litre)
09.98 →	X 14 XE, Z 14 XE		S101938001Z	CrSS
09.00 →	X 14 XE, Z 14 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
1.6 (55 kW \| 1.6 Litre)
09.98 → 09.00	X 16 SZR		5WK9150Z	MAFS
09.98 → 09.00	X 16 SZR		S101938001Z	CrSS
1.6 16V (74 kW \| 1.6 Litre)
09.98 →	X 16 XEL, Z 16 XE		5WK9606Z	MAFS
09.98 →	X 16 XEL, Z 16 XE		S101938002Z	CrSS
1.8 16V (85 kW \| 1.8 Litre)
09.98 → 09.00	X 18 XE1		5WK9606Z	MAFS
09.98 → 09.00	X 18 XE1		S105578001Z	CrSS
09.98 → 09.00	X 18 XE1		S105778001Z	CaSS
1.8 16V (92 kW \| 1.8 Litre)
09.00 →	Z 18 XE		5WK9606Z	MAFS
09.00 →	Z 18 XE		S105778001Z	CaSS
09.00 →	Z 18 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
09.00 →	Z 18 XE		S107541001Z	CrSS
2.0 16V (100 kW \| 2.0 Litre)
09.98 →	X 20 XEV		5WK90541Z	CrSS
09.98 →	X 20 XEV		5WK90551Z	CaSS
09.98 →	X 20 XEV		5WK90554Z	CaSS
09.98 →	X 20 XEV		5WK9150Z	MAFS
09.98 →	X 20 XEV		S103057001Z	KS
2.2 16V (108 kW \| 2.2 Litre)
03.01 →	Z 22 SE		5WK9150Z	MAFS
1.7 DTI 16V (55 kW \| 1.7 Litre)
02.00 →	Y 17 DT		S107470001Z	WSS	T1: Front Both Sides (T32)
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk IV Estate

1.2 16V (55 kW \| 1.2 Litre)
09.00 →	Z 12 XE	S107470001Z	WSS	T1: Front Both Sides (T32)
1.4 16V (66 kW \| 1.4 Litre)
02.98 →	X 14 XE, Z 14 XE	S101938001Z	CrSS
09.00 →	X 14 XE, Z 14 XE	S107470001Z	WSS	T1: Front Both Sides (T32)
1.6 (55 kW \| 1.6 Litre)
02.98 → 09.00	X 16 SZR	5WK9150Z	MAFS
02.98 → 09.00	X 16 SZR	S101938001Z	CrSS
1.6 16V (74 kW \| 1.6 Litre)
02.98 →	X 16 XEL, Z 16 XE	5WK9606Z	MAFS
02.98 →	X 16 XEL, Z 16 XE	S101938002Z	CrSS
1.8 16V (85 kW \| 1.8 Litre)
02.98 → 09.00	X 18 XE1	5WK9606Z	MAFS
02.98 → 09.00	X 18 XE1	S105578001Z	CrSS
02.98 → 09.00	X 18 XE1	S105778001Z	CaSS
1.8 16V (92 kW \| 1.8 Litre)
09.00 →	Z 18 XE	5WK9606Z	MAFS
09.00 →	Z 18 XE	S105778001Z	CaSS
09.00 →	Z 18 XE	S107470001Z	WSS	T1: Front Both Sides (T32)
09.00 →	Z 18 XE	S107541001Z	CrSS
2.0 16V (100 kW \| 2.0 Litre)
02.98 →	X 20 XEV	5WK90541Z	CrSS
02.98 →	X 20 XEV	5WK90551Z	CaSS
02.98 →	X 20 XEV	5WK90554Z	CaSS
02.98 →	X 20 XEV	5WK9150Z	MAFS
02.98 →	X 20 XEV	S103057001Z	KS
2.2 16V (108 kW \| 2.2 Litre)
03.01 →	Z 22 SE	5WK9150Z	MAFS
1.7 DTI 16V (55 kW \| 1.7 Litre)
02.00 →	Y 17 DT	S107470001Z	WSS	T1: Front Both Sides (T32)

ASTRA Mk IV Coupé

1.8 16V (85 kW \| 1.8 Litre)
03.00 → 10.00	X 18 XE1		5WK9606Z	MAFS
03.00 → 10.00	X 18 XE1		S105578001Z	CrSS
03.00 → 10.00	X 18 XE1		S105778001Z	CaSS
1.8 16V (92 kW \| 1.8 Litre)
09.00 →	Z 18 XE		5WK9606Z	MAFS
09.00 →	Z 18 XE		S105778001Z	CaSS
09.00 →	Z 18 XE		S107470001Z	WSS	T1: Front Both Sides (T32)
09.00 →	Z 18 XE		S107541001Z	CrSS
2.0 16V Turbo (140 kW \| 2.0 Litre)
09.00 →	Z 20 LET		5WK9606Z	MAFS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

ASTRA Mk IV Coupé

2.2 16V (108 kW l 2.2 Litre)
03.00 →	Z 22 SE		5WK9150Z	MAFS

ASTRA MK IV Convertible

1.6 16V (74 kW \| 1.6 Litre)
03.01 →	Z 16 XE	5WK9606Z	MAFS
1.8 16V (92 kW \| 1.8 Litre)
03.01 →	Z 18 XE	5WK9606Z	MAFS
03.01 →	Z 18 XE	S105778001Z	CaSS
03.01 →	Z 18 XE	S107470001Z	WSS	T1: Front Both Sides (T32)
03.01 →	Z 18 XE	S107541001Z	CrSS
2.0 Turbo (141 kW \| 2.0 Litre)
03.02 →	Z 20 LET	5WK9606Z	MAFS
2.2 16V (108 kW \| 2.2 Litre)
03.01 →	Z 22 SE	5WK9150Z	MAFS

ASTRAVAN Mk III

1.6 i (52 kW l 1.6 Litre)
02.94 → 10.96	X 16 SZ		S101938001Z	CrSS

ASTRAVAN Mk IV

1.6 i (55 kW l 1.6 Litre)
08.98 → 09.00	X 16 SZR	5WK9150Z	MAFS
08.98 → 09.00	X 16 SZR	S101938001Z	CrSS

CALIBRA

2.0 i (85 kW \| 2.0 Litre)
06.90 → 07.97	C 20 NE		S101918001Z	CrSS
2.0 i 4x4 (85 kW \| 2.0 Litre)
06.90 → 07.97	C 20 NE		S101918001Z	CrSS
2.0 i 16V (100 kW \| 2.0 Litre)
06.90 → 07.97	X 20 XEV		5WK90541Z	CrSS
06.90 → 07.97	X 20 XEV		5WK90551Z	CaSS
06.90 → 07.97	X 20 XEV		5WK90554Z	CaSS
06.90 → 07.97	X 20 XEV		5WK9150Z	MAFS
06.90 → 07.97	X 20 XEV		S103057001Z	KS
2.0 i 16V 4x4 (100 kW \| 2.0 Litre)
02.94 → 07.97	X 20 XEV		5WK90541Z	CrSS
02.94 → 07.97	X 20 XEV		5WK90551Z	CaSS
02.94 → 07.97	X 20 XEV		5WK90554Z	CaSS
02.94 → 07.97	X 20 XEV		5WK9150Z	MAFS
02.94 → 07.97	X 20 XEV		S103057001Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

CALIBRA

2.0 i 16V (110 kW \| 2.0 Litre)
06.90 → 02.94	C 20 XE	S101918001Z	CrSS
2.0 i 16V 4x4 (110 kW \| 2.0 Litre)
06.90 → 02.94	C 20 XE	S101918001Z	CrSS
2.0 i Turbo 4x4 (150 kW \| 2.0 Litre)
03.92 → 07.97	C 20 LET	S101918001Z	CrSS

CARLTON Mk III

1.8 N (60 kW \| 1.8 Litre)
09.86 → 08.87	18 NV	S101918001Z	CrSS
1.8 (65 kW \| 1.8 Litre)
09.87 → 03.94	E 18 NVR	S101918001Z	CrSS
1.8 S (66 kW \| 1.8 Litre)
09.86 → 03.94	18 SV	S101918001Z	CrSS
1.8 i (85 kW \| 1.8 Litre)
09.86 → 03.94	18 SEH	S101918001Z	CrSS
2.0 (85 kW \| 2.0 Litre)
09.86 → 03.94	C 20 NE	S101918001Z	CrSS
2.0 i (90 kW \| 2.0 Litre)
09.86 → 03.94	20 SE	S101918001Z	CrSS
3.0 3000 24V (150 kW \| 3.0 Litre)
09.89 → 03.94	C 30 SE	S101938002Z	CrSS

POLO Coupe (86C, 80)

1.3 G40 (83 kW \| 1.3 Litre)
08.90 → 12.90	PY	G855302990800Z	KS
1.3 G40 (85 kW \| 1.3 Litre)
01.87 → 08.90	PY	G855302990800Z	KS

POLO (6N1)

45 1.0 (33 kW \| 1.0 Litre)
10.94 → 09.96	AEV		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
50 1.0 (37 kW \| 1.0 Litre)
07.96 → 09.01	AER, ALL		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.96 → 10.99	AER, ALL		S105705001Z	WSS	T1: Front Left (T25); T6
09.96 → 10.99	AER, ALL		S105705002Z	WSS	T1: Front Right (T28); T6
55 1.3 (40 kW \| 1.3 Litre)
10.94 → 04.97	ADX		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.94 → 07.95	ADX		S105705001Z	WSS	T1: Front Left (T25); T6
10.94 → 07.95	ADX		S105705002Z	WSS	T1: Front Right (T28); T6
55 1.4 (40 kW \| 1.4 Litre)
07.95 → 09.01	AEX		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.95 → 10.99	AEX		S105705001Z	WSS	T1: Front Left (T25); T6
08.95 → 10.99	AEX		S105705002Z	WSS	T1: Front Right (T28); T6
60 1.4 (44 kW \| 1.4 Litre)
07.95 → 09.01	AEX, APQ, AKV		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.95 → 10.99	AEX, APQ, AKV		S105705001Z	WSS	T1: Front Left (T25); T6
07.95 → 10.99	AEX, APQ, AKV		S105705002Z	WSS	T1: Front Right (T28); T6
100 1.4 16V (74 kW \| 1.4 Litre)
04.96 → 10.99	AFH		5WK9693Z	PS
04.96 → 09.01	AFH		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
04.96 → 10.99	AFH		S105705001Z	WSS	T1: Front Left (T25); T6
04.96 → 10.99	AFH		S105705002Z	WSS	T1: Front Right (T28); T6
75 1.6 (55 kW \| 1.6 Litre)
10.94 → 10.99	AEA, AEE, AHS		5WK9693Z	PS
10.94 → 09.99	AEA, AEE, AHS		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO (6N1)

75 1.6 (55 kW \| 1.6 Litre)
01.96 - 10.99	AEA, AEE, AHS	S105705001Z	WSS	T1: Front Left (T25); T6
01.96 - 10.99	AEA, AEE, AHS	S105705002Z	WSS	T1: Front Right (T28); T6
120 1.6 16V GTI (88 kW \| 1.6 Litre)
09.98 - 10.99	AJV	5WK9693Z	PS
04.98 - 09.01	AJV	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.98 - 10.99	AJV	S105705001Z	WSS	T1: Front Left (T25); T6
09.98 - 10.99	AJV	S105705002Z	WSS	T1: Front Right (T28); T6
1.7 SDI (42 kW \| 1.7 Litre)
05.97 - 09.01	AHG	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
04.97 - 10.99	AHG	S105705001Z	WSS	T1: Front Left (T25); T6
04.97 - 10.99	AHG	S105705002Z	WSS	T1: Front Right (T28); T6
60 1.7 SDI (44 kW \| 1.7 Litre)
05.97 - 09.01	AKU	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.97 - 10.99	AKU	S105705001Z	WSS	T1: Front Left (T25); T6
08.97 - 10.99	AKU	S105705002Z	WSS	T1: Front Right (T28); T6
64 1.9 D (47 kW \| 1.9 Litre)
10.94 - 09.01	AEF	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.96 - 10.99	AEF	S105705001Z	WSS	T1: Front Left (T25); T6
01.96 - 10.99	AEF	S105705002Z	WSS	T1: Front Right (T28); T6
64 1.9 SDI (47 kW \| 1.9 Litre)
10.94 - 09.01	AGD	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.96 - 10.99	AGD	S105705001Z	WSS	T1: Front Left (T25); T6
07.96 - 10.99	AGD	S105705002Z	WSS	T1: Front Right (T28); T6

POLO Box (6NF)

1.0 (33 kW l 1.0 Litre)
10.94 → 09.96	AAU		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.96 → 12.99	AAU		S105705001Z	WSS	T1: Front Left (T25); T6
01.96 → 12.99	AAU		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 (44 kW l 1.4 Litre)
07.95 → 09.01	AEX, APQ		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.98 → 12.99	AEX, APQ		S105705001Z	WSS	T1: Front Left (T25); T6
05.98 → 12.99	AEX, APQ		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO Box (6NF)

1.7 SDI (44 kW \| 1.7 Litre)
05.97 → 09.01	AKU	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.97 → 12.99	AKU	S105705001Z	WSS	T1: Front Left (T25); T6
08.97 → 12.99	AKU	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 D (47 kW \| 1.9 Litre)
10.94 → 09.01	AEF	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.96 → 12.99	AEF	S105705001Z	WSS	T1: Front Left (T25); T6
01.96 → 12.99	AEF	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
03.97 → 09.01	AGD	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.94 → 09.01	AGD	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
07.96 → 12.99	AGD	S105705001Z	WSS	T1: Front Left (T25); T6
07.96 → 12.99	AGD	S105705002Z	WSS	T1: Front Right (T28); T6

POLO CLASSIC (6KV2)

60 1.4 (44 kW \| 1.4 Litre)
12.95 → 09.01	AEX, AKV, AKK, AUD, ANW, APQ		S105705001Z	WSS	T1: Front Left (T25); T6
12.95 → 09.01	AEX, AKV, AKK, AUD, ANW, APQ		S105705002Z	WSS	T1: Front Right (T28); T6
75 1.4 16V (55 kW \| 1.4 Litre)
10.99 → 09.01	APE, AUA	6K-Y-502 795→	5WK9693Z	PS
10.99 → 09.01	APE, AUA		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	APE, AUA		S105705002Z	WSS	T1: Front Right (T28); T6
75 1.6 (55 kW \| 1.6 Litre)
11.95 → 09.97	1F		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 → 09.97	1F		S105705002Z	WSS	T1: Front Right (T28); T6
100 1.6 (74 kW \| 1.6 Litre)
01.00 → 12.00	AFT, AEH, APF, AKL, AUR		A2C59512892	MAFS	T40: 6K-Y-502 794
01.00 → 12.00	AFT, AEH, APF, AKL, AUR		A2C59512896	MAFS	T40: 6K-Y-502 795
12.95 → 09.01	AFT, AEH, APF, AKL, AUR		G85530299150Z	KS
12.95 → 09.01	AFT, AEH, APF, AKL, AUR		S105705001Z	WSS	T1: Front Left (T25); T6
12.95 → 09.01	AFT, AEH, APF, AKL, AUR		S105705002Z	WSS	T1: Front Right (T28); T6
75 1.6 (55 kW \| 1.6 Litre)
11.95 → 09.01	AEE, ALM		5WK9693Z	PS
01.97 → 09.01	AEE, ALM	6K-Y-502 795→	5WK9693Z	PS
11.95 → 09.01	AEE, ALM		S105705001Z	WSS	T1: Front Left (T25); T6
11.95 → 09.01	AEE, ALM		S105705002Z	WSS	T1: Front Right (T28); T6
90 1.8 (66 kW \| 1.8 Litre)
01.97 → 09.01	ADD		S105705001Z	WSS	T1: Front Left (T25); T6
01.97 → 09.01	ADD		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO CLASSIC (6KV2)

2.0 (85 kW \| 2.0 Litre)
08.99 → 09.01	ADC	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 09.01	ADC	S105705002Z	WSS	T1: Front Right (T28); T6
57 1.7 SDI (42 kW \| 1.7 Litre)
07.97 → 09.01	AKW	S105705001Z	WSS	T1: Front Left (T25); T6
07.97 → 09.01	AKW	S105705002Z	WSS	T1: Front Right (T28); T6
64 1,9 D (47 kW \| 1.9 Litre)
10.94 → 09.01	1Y	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
64 1.9 SDI (47 kW \| 1.9 Litre)
12.95 → 08.99	AEY, 1Y	S105705001Z	WSS	T1: Front Left (T25); T6
12.95 → 08.99	AEY, 1Y	S105705002Z	WSS	T1: Front Right (T28); T6
68 1.9 SDI (50 kW \| 1.9 Litre)
08.99 → 09.01	AQM, AGP	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 → 09.01	AQM, AGP	S105705002Z	WSS	T1: Front Right (T28); T6
90 1.9 TDI (66 kW \| 1.9 Litre)
09.96 → 09.01	AHU, ALE, ALH, AGR	S105705001Z	WSS	T1: Front Left (T25); T6
09.96 → 09.01	AHU, ALE, ALH, AGR	S105705002Z	WSS	T1: Front Right (T28); T6
110 1.9 TDI (81 kW \| 1.9 Litre)
06.98 → 09.01	AFN, ASV	S105705001Z	WSS	T1: Front Left (T25); T6
06.98 → 09.01	AFN, ASV	S105705002Z	WSS	T1: Front Right (T28); T6

POLO Variant (6KV5)

1.4 (40 kW \| 1.4 Litre)
03.97 → 09.01	AKP		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
12.98 → 09.01	AKP		S105705001Z	WSS	T1: Front Left (T25); T6
12.98 → 09.01	AKP		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 (44 kW \| 1.4 Litre)
03.97 → 09.01	AEX, AKV, AKK, ANW, APQ, AUD		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.97 → 09.01	AEX, AKV, AKK, ANW, APQ, AUD		S105705001Z	WSS	T1: Front Left (T25); T6
05.97 → 09.01	AEX, AKV, AKK, ANW, APQ, AUD		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 16V (55 kW \| 1.4 Litre)
10.99 → 09.01	APE, AUA	6K-Y-502 795→	5WK9693Z	PS
03.97 → 09.01	APE, AUA		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	APE, AUA		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	APE, AUA		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (55 kW \| 1.6 Litre)
05.97 → 09.01	AEE, ALM	6K-Y-502 795→	5WK9693Z	PS
05.97 → 09.01	AEE, ALM		5WK9693Z	PS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO Variant (6KV5)

1.6 (55 kW \| 1.6 Litre)
05.97 - 09.01	AEE, ALM	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.97 - 09.01	AEE, ALM	S105705001Z	WSS	T1: Front Left (T25); T6
05.97 - 09.01	AEE, ALM	S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (74 kW \| 1.6 Litre)
05.97 - 09.01	AFT, AEH, APF, AKL, AUR	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.97 - 09.01	AFT, AEH, APF, AKL, AUR	S105705001Z	WSS	T1: Front Left (T25); T6
05.97 - 09.01	AFT, AEH, APF, AKL, AUR	S105705002Z	WSS	T1: Front Right (T28); T6
1.8 (66 kW \| 1.8 Litre)
05.97 - 09.01	ADZ	S105705001Z	WSS	T1: Front Left (T25); T6
05.97 - 09.01	ADZ	S105705002Z	WSS	T1: Front Right (T28); T6
1.7 SDI (42 kW \| 1.7 Litre)
08.97 - 09.01	AKW	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.97 - 09.01	AKW	S105705001Z	WSS	T1: Front Left (T25); T6
08.97 - 09.01	AKW	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
03.97 - 09.01	AEY	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.97 - 09.01	AEY	S105705001Z	WSS	T1: Front Left (T25); T6
06.97 - 09.01	AEY	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (50 kW \| 1.9 Litre)
03.97 - 09.01	AGP, AQM	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
08.99 - 09.01	AGP, AQM	S105705001Z	WSS	T1: Front Left (T25); T6
08.99 - 09.01	AGP, AQM	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
01.97 - 09.01	AHU, ALE, AGR, ALH	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
05.97 - 09.01	AHU, ALE, AGR, ALH	S105705001Z	WSS	T1: Front Left (T25); T6
05.97 - 09.01	AHU, ALE, AGR, ALH	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
06.98 - 09.01	AFN, ASV	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
06.98 - 09.01	AFN, ASV	S105705001Z	WSS	T1: Front Left (T25); T6
06.98 - 09.01	AFN, ASV	S105705002Z	WSS	T1: Front Right (T28); T6

POLO (6N2)

1.0 (37 kW \| 1.0 Litre)
07.96 → 09.01	ALD, AUC		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO (6N2)

1.0 (37 kW \| 1.0 Litre)
10.99 → 09.01	ALD, AUC		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	ALD, AUC		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 (40 kW \| 1.4 Litre)
07.95 → 09.01	AKP		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AKP		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AKP		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 (44 kW \| 1.4 Litre)
07.95 → 09.01	AKK, AUD		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AKK, AUD		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AKK, AUD		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 16V (55 kW \| 1.4 Litre)
10.99 → 09.01	AHW, AUA, APE	6N-Y-500 001→	5WK9693Z	PS
01.99 → 09.01	AHW, AUA, APE		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AHW, AUA, APE		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AHW, AUA, APE		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 16V (74 kW \| 1.4 Litre)
10.99 → 09.01	AFK, AUB, AQQ		5WK9693Z	PS
10.99 → 09.01	AFK, AUB, AQQ	6N-Y-500 001→	5WK9693Z	PS
04.96 → 09.01	AFK, AUB, AQQ		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AFK, AUB, AQQ		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AFK, AUB, AQQ		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 16V GTI (92 kW \| 1.6 Litre)
10.99 → 09.01	ARC, AVY	6N-Y-500 001→	5WK9693Z	PS
04.98 → 09.01	ARC, AVY		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	ARC, AVY		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	ARC, AVY		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 TDI (55 kW \| 1.4 Litre)
01.99 → 09.01	AMF		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AMF		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AMF		S105705002Z	WSS	T1: Front Right (T28); T6
1.7 SDI (44 kW \| 1.7 Litre)
05.97 → 09.01	AKU		A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AKU		S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AKU		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO (6N2)

1.9 D (47 kW \| 1.9 Litre)
10.94 → 09.01	AEF	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AEF	S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AEF	S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
10.94 → 09.01	AGD, ASX	A2C59512228Z	WSS	T1: Rear Both Sides (T31); T2: 2
10.99 → 09.01	AGD, ASX	S105705001Z	WSS	T1: Front Left (T25); T6
10.99 → 09.01	AGD, ASX	S105705002Z	WSS	T1: Front Right (T28); T6

POLO (9N_)

1.2 (40 kW \| 1.2 Litre)
01.02 →	AWY, BMD	9N-2-000 001→	5WK9693Z	PS
11.01 →	AWY, BMD		A2C59513057	WSS	T1: Front Left (T25)
01.02 →	AWY, BMD		S107583005Z	KS
1.2 (44 kW \| 1.2 Litre)
04.07 →	BBM		A2C59513057	WSS	T1: Front Left (T25)
1.2 (47 kW \| 1.2 Litre)
11.01 →	AZQ, BME		A2C59513057	WSS	T1: Front Left (T25)
10.01 →	AZQ, BME		S107583005Z	KS
1.2 (51 kW \| 1.2 Litre)
04.07 →	BZG		A2C59513057	WSS	T1: Front Left (T25)
1.4 16V (55 kW \| 1.4 Litre)
10.01 →	AUA, BBY, BKY	9N-2-000 001→	5WK9693Z	PS
11.01 →	AUA, BBY, BKY		A2C59513057	WSS	T1: Front Left (T25)
10.01 →	AUA, BBY, BKY		S107646001Z	KS
1.4 16V (59 kW \| 1.4 Litre)
05.06 →	BUD		A2C59513057	WSS	T1: Front Left (T25)
1.4 FSI (63 kW \| 1.4 Litre)
11.01 →	AXU		A2C59513057	WSS	T1: Front Left (T25)
05.02 →	AXU		S107646001Z	KS
1.4 16V (74 kW \| 1.4 Litre)
10.01 →	AUB, BBZ	9N-2-000 001→	5WK9693Z	PS
11.01 →	AUB, BBZ		A2C59513057	WSS	T1: Front Left (T25)
10.01 →	AUB, BBZ		S107646001Z	KS
1.6 16V (77 kW \| 1.6 Litre)
05.06 →	BTS		A2C59513057	WSS	T1: Front Left (T25)
1.8 GTI (110 kW \| 1.8 Litre)
09.05 →	BJX		A2C59513057	WSS	T1: Front Left (T25)
1.8 GTi Cup Edition (132 kW \| 1.8 Litre)
06.06 →	BBU		A2C59513057	WSS	T1: Front Left (T25)
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

POLO (9N_)

1.4 TDI (51 kW \| 1.4 Litre)
11.01 →	BNM, BWB	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
11.01 →	AMF, BAY	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (59 kW \| 1.4 Litre)
11.01 →	BMS, BVN	A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
11.01 →	ASY	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
11.01 →	ATD, AXR, BMT	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (96 kW \| 1.9 Litre)
10.03 →	ASZ, BLT	A2C59513057	WSS	T1: Front Left (T25)

POLO Saloon

1.4 (55 kW \| 1.4 Litre)
11.01 →	BBY, BKY	A2C59513057	WSS	T1: Front Left (T25)
07.03 →	BBY, BKY	S107646001Z	KS
1.4 (74 kW \| 1.4 Litre)
11.01 →	BBZ	A2C59513057	WSS	T1: Front Left (T25)
11.03 →	BBZ	S107646001Z	KS
2.0 (85 kW \| 2.0 Litre)
04.02 →	BBX	A2C59513057	WSS	T1: Front Left (T25)
1.4 TDI (55 kW \| 1.4 Litre)
11.01 →	BAY	A2C59513057	WSS	T1: Front Left (T25)
1.9 SDI (47 kW \| 1.9 Litre)
11.01 →	ASY	A2C59513057	WSS	T1: Front Left (T25)
1.9 TDI (74 kW \| 1.9 Litre)
11.01 →	ATD	A2C59513057	WSS	T1: Front Left (T25)

SCIROCCO (53B)

1.8 16V (95 kW l 1.8 Litre)
03.86 → 07.92	PL		G855302990800Z	KS

SHARAN (7M8, 7M9, 7M6)

1.8 T 20V (110 kW \| 1.8 Litre)
09.97 → 04.00	AJH, AWC		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.97 → 04.00	AJH, AWC		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
09.97 →	AJH, AWC		G85530299150Z	KS
09.97 →	AJH, AWC		G85530299160Z	KS
09.97 →	AJH, AWC		S107646001Z	KS
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

SHARAN (7M8, 7M9, 7M6)

2.0 (85 kW \| 2.0 Litre)
01.96 - 12.00	ADY, ATM		A2C59512892	MAFS
09.95 - 04.00	ADY, ATM		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.95 - 04.00	ADY, ATM		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
09.95 -	ADY, ATM		S103957001Z	CrSS
09.95 -	ADY, ATM		S107646001Z	KS
09.95 -	ADY, ATM		S119054003Z	KS
2.8 VR6 (128 kW \| 2.8 Litre)
09.95 - 04.00	AAA, AMY		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.95 - 04.00	AAA, AMY		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.8 VR6 Syncro (128 kW \| 2.8 Litre)
11.96 - 04.00	AAA, AMY		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
11.96 - 04.00	AAA, AMY		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
2.8 V6 24V (150 kW \| 2.8 Litre)
09.95 - 04.00	AYL		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.95 - 04.00	AYL		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
04.00 -	AYL		S107646001Z	KS
2.8 V6 24V 4motion (150 kW \| 2.8 Litre)
11.96 - 04.00	AYL		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
11.96 - 04.00	AYL		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
04.00 -	AYL		S107646001Z	KS
1.9 TDI (66 kW \| 1.9 Litre)
09.95 - 04.00	1Z, AHU, ANU		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.95 - 04.00	1Z, AHU, ANU		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
1.9 TDI (81 kW \| 1.9 Litre)
09.96 - 04.00	AFN, AVG		A2C59513054	WSS	T1: Front Both Sides (T32); T2: 2
09.96 - 04.00	AFN, AVG		A2C59513056	WSS	T1: Rear Both Sides (T31); T2: 2
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

TOUAREG (7LA, 7L6, 7L7)

3.2 V6 (162 kW \| 3.2 Litre)
10.02 → 11.06	AZZ, BKJ, BAA	S107646001Z	KS
4.2 V8 (228 kW \| 4.2 Litre)
12.02 → 11.06	AXQ, BHX	G855302990800Z	KS	T2:2

TOURAN (1T1, 1T2)

1.6 (75 kW \| 1.6 Litre)
07.03 →	BGU, BSE, BSF	S107646001Z	KS
1.6 FSI (85 kW \| 1.6 Litre)
02.03 →	BAG, BLF, BLP	S107646001Z	KS
2.0 FSI (110 kW \| 2.0 Litre)
10.03 →	BLX, BLY, AXW, BLR	S107646001Z	KS

VENTO (1H2)

1.4 (40 kW l 1.4 Litre)
11.91 → 09.98	ABD, AEX	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABD, AEX	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABD, AEX		S105705001Z	WSS	T1: Front Left (T25); T6
11.91 → 09.98	ABD, AEX		S105705002Z	WSS	T1: Front Right (T28); T6
1.4 (44 kW l 1.4 Litre)
11.91 → 09.98	ABD, AEX	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABD,AEX	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABD, AEX		S105705001Z	WSS	T1: Front Left (T25); T6
\( {11.91} \rightarrow {09.98} \)	ABD, AEX		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (55 kW l 1.6 Litre)
01.96 → 09.98	ABU, AEA, AEE		5WK9693Z	PS
09.92 → 09.98	ABU, AEA, AEE	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.92 → 09.98	ABU, AEA, AEE	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
09.92 → 09.98	ABU, AEA, AEE		S105705001Z	WSS	T1: Front Left (T25); T6
09.92 → 09.98	ABU, AEA, AEE		S105705002Z	WSS	T1: Front Right (T28); T6
1.6 (74 kW l 1.6 Litre)
01.96 → 12.98	AEK, AFT		A2C59512892	MAFS
10.94 → 09.98	AEK, AFT		S103957001Z	CrSS
10.94 → 09.98	AEK, AFT		S105705001Z	WSS	T1: Front Left (T25); T6
10.94 → 09.98	AEK, AFT		S105705002Z	WSS	T1: Front Right (T28); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

VENTO (1H2)

1.8 (55 kW \| 1.8 Litre)
01.92 → 09.98	AAM	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	AAM	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	AAM		S105705001Z	WSS	T1: Front Left (T25); T6
11.91 → 09.98	AAM		S105705002Z	WSS	T1: Front Right (T28); T6
1.8 (66 kW \| 1.8 Litre)
01.92 → 09.98	ABS, ADZ	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABS, ADZ	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	ABS, ADZ		S105705001Z	WSS	T1: Front Left (T25); T6
11.91 → 09.98	ABS, ADZ		S105705002Z	WSS	T1: Front Right (T28); T6
2.0 (85 kW \| 2.0 Litre)
11.91 → 09.98	2E, ADY, AGG, AKR	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.96 → 12.98	2E, ADY, AGG, AKR		A2C59512892	MAFS
01.97 → 12.98	2E, ADY, AGG, AKR		A2C59512897	MAFS
11.91 → 09.98	2E, ADY, AGG, AKR	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	2E, ADY, AGG, AKR		S103957001Z	CrSS
11.91 → 09.98	2E, ADY, AGG, AKR		S105705001Z	WSS	T1: Front Left (T25); T6
11.91 → 09.98	2E, ADY, AGG, AKR		S105705002Z	WSS	T1: Front Right (T28); T6
11.91 → 09.98	2E, ADY, AGG, AKR		S119054003Z	KS
2.8 VR6 (128 kW \| 2.8 Litre)
01.92 → 09.98	AAA	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
01.92 → 09.98	AAA	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
01.92 → 09.98	AAA		S105705001Z	WSS	T1: Front Left (T25); T6
01.92 → 09.98	AAA		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 SDI (47 kW \| 1.9 Litre)
04.97 → 09.98	AEY		A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
04.97 → 09.98	AEY		S105705001Z	WSS	T1: Front Left (T25); T6
04.97 → 09.98	AEY		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 D (48 kW \| 1.9 Litre)
11.91 → 09.98	1Y	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	1Y	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	1Y		S105705001Z	WSS	T1: Front Left (T25); T6
钩			VDO		i
Date	Engine Code	Chassis No.	Article No.	Product Name	Information

VENTO (1H2)

1.9 D (48 kW \| 1.9 Litre)
11.91 → 09.98	1Y		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TD (55 kW \| 1.9 Litre)
11.91 → 09.98	AAZ	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	AAZ	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
11.91 → 09.98	AAZ		S105705001Z	WSS	T1: Front Left (T25); T6
11.91 → 09.98	AAZ		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (66 kW \| 1.9 Litre)
07.93 → 09.98	1Z, AHU, ALE	→1H-S-385334	A2C59512224Z	WSS	T1: Rear Both Sides (T31); T2: 2
09.93 → 09.98	1Z, AHU, ALE	1H-S-385335→	A2C59513052	WSS	T1: Rear Both Sides (T31); T2: 2
09.93 → 09.98	1Z, AHU, ALE		S105705001Z	WSS	T1: Front Left (T25); T6
09.93 → 09.98	1Z, AHU, ALE		S105705002Z	WSS	T1: Front Right (T28); T6
1.9 TDI (81 kW \| 1.9 Litre)
04.96 → 09.98	AFN		S105705001Z	WSS	T1: Front Left (T25); T6
04.96 → 09.98	AFN		S105705002Z	WSS	T1: Front Right (T28); T6

Abréviation	Description	F
MAFS	Capteur débit masse
WSS	Capteur de vitesse de roue
CaSS	Emetteur de l'arbre à cames
CrSS	Emetteur du vilebrepquin
KS	Capteur de butée
PS	Capteur de pression

(+) ...	Adapté à ...
(o) ...	Egalement adapté à ...
(-) ...	Non adapcé à ...
T1 ...	Installation)côté : ...
T2 ...	Nombre de pieces nécessaires : ...
T3 ...	Pour numéro OE : ...
T4	Pour vehicules à conduite à gauche
T5	Pour vehicules à conduite à droite
T6	Pour vehicule équipé de l'ABS
T7	Pour vehicule sans ABS
T8	Boîte de vitesses manuelle
T9	Boîte de vitesses automatique
T10	Boîte de vitesses automatique - 4 rapports
T11	N° de transmission :
T12 ...	Restriction (constructeur) : ...
T13	Pour vehicules sansvoyant de frein
T14 ...	Longueur de cable [mm] : ...
T15 ...	Couleur du connecteur : ...
T16	bleu
T17	marron
T18	gris
T19	vert
T20	noir
T21	blanc
T22 ...	Tolerance [mm] : ...
T23 ...	Nombres de pôles : ...
T24	Gauche
T25	Avant gauche
T26	Arrière gauche
T27	Droit
T28	Avant droit
T29	Arrière droit
T30	Deux côtsés
T31	Deux côtsés arrêté
T32	Deux côtsés avant
T33	Injection
T34	Bloc cylindre
T35	Nouveaux systèmes
T36	Capteur
T37	du numéro organisationnel
T38	au numéro organisationnel
T39	du numéro de moteur
T40	au numéro de moteur
T41	Les modèles de vehicules sont présentés à titre d'information générale uniquement. Ce document ne constitue pas un guide pratique et ne doit pas être utilisé comme tel.

Sommaire Cliquez un titre pour y accéder

Envoi et réception d'informations
Capteurs de vitesse de roue
Capteurs d'arbres à cames
Capteurs de cliquetis
FOCUS II (DA_)
FOCUS II saloon (DA_)
FOCUS II Turnier (daw_)
GALAXY (WGR)

Assistant notice

En attente de votre message

Informations produit

Marque : VDO

Modèle : SENSORS

Catégorie : Capteur moteur
