Type de produit	Purificateur d'eau
Marque	CURTIS
Modèle	MWC612
Matériau du boîtier	Plastique transparent
Type de filtration	Composite à impact direct, rétrolavage, siphon et céramique fine
Capacité du réservoir supérieur	Environ 2 litres (indiqué par repères)
Capacité du réservoir inférieur	Environ 2 litres (indiqué par repères)
Débit d'eau	Variable, diminue avec l'encrassement du filtre
Durée de vie des cartouches	4 à 6 mois pour une famille de 2-3 personnes
Entretien courant	Nettoyage périodique des cartouches (tous les 200-300 L)
Nettoyage de la cartouche céramique	Trempage et lavage à l'eau claire
Nettoyage du filtre principal	Lavage avec raccord de nettoyage sous le robinet
Précautions d'utilisation	Éviter l'exposition directe au soleil ; vidanger après inactivité d'une semaine
Sécurité anti-fuite	Repères de niveau d'eau sur les réservoirs pour éviter les fuites
Pieces détachées fournies	Raccord de nettoyage, composant flotteur, joint de cartouche, plateau de montage
Réparabilité	Cartouches et joints remplaçables
Remarque	La première eau filtrée peut être jetée pour garantir la qualité

FOIRE AUX QUESTIONS - MWC612 CURTIS

Comment nettoyer la cartouche céramique ?

Dévissez la cartouche céramique, puis lavez-la délicatement à l'eau claire pour enlever les impuretés de transport. Réassemblez après séchage.

Pourquoi l'eau ne coule-t-elle pas ?

Cela peut être dû à un blocage d'air dans le filtre. Secouez doucement l'appareil ou nettoyez la cartouche selon la procédure. Vérifiez aussi que le niveau d'eau dans le réservoir supérieur est suffisant.

Comment installer le purificateur ?

Vissez le flotteur sur le couvercle étanche du réservoir inférieur. Insérez le réservoir inférieur dans le bac de dérivation. Placez le joint et vissez la cartouche sur le réservoir supérieur. Remplissez d'eau et emboîtez les deux réservoirs.

Que faire en cas de fuite d'eau ?

Vérifiez que le flotteur est bien fixé et que la surface d'étanchéité de la valve est propre. Si le réservoir du distributeur est trop peu profond, remplacez-le. Nettoyez les corps étrangers sur la valve.

Quelle est la durée de vie des cartouches filtrantes ?

Pour une famille de 2-3 personnes, remplacez les cartouches tous les 4 à 6 mois, ou plus tôt si le débit diminue fortement.

Peut-on utiliser l'eau du robinet directement ?

Oui, mais il est recommandé de connaître la qualité de votre eau locale. En cas d'eau de mauvaise qualité, il est préférable de ne pas boire l'eau brute sans filtration.

Comment éviter les fuites entre les réservoirs ?

Utilisez les repères de niveau d'eau : quand le réservoir inférieur est au repère 0, remplissez le supérieur jusqu'au repère 0. Faites de même pour les autres niveaux.

Que faire si le filtre principal n'a pas été bien nettoyé ?

Des résidus de charbon actif peuvent apparaître. Nettoyez à nouveau la cartouche conformément aux instructions. Jetez la première bouteille d'eau pour garantir la qualité.

Comment retirer l'air du filtre ?

Après avoir ajouté de l'eau dans la cartouche, dévissez le couvercle de liaison de la cartouche céramique, puis revissez-le quand l'eau commence à sortir. Cela permet d'évacuer l'air.

Peut-on utiliser le purificateur sans électricité ?

Oui, l'appareil fonctionne par gravité et ne nécessite aucune alimentation électrique.

MODE D'EMPLOI MWC612 CURTIS

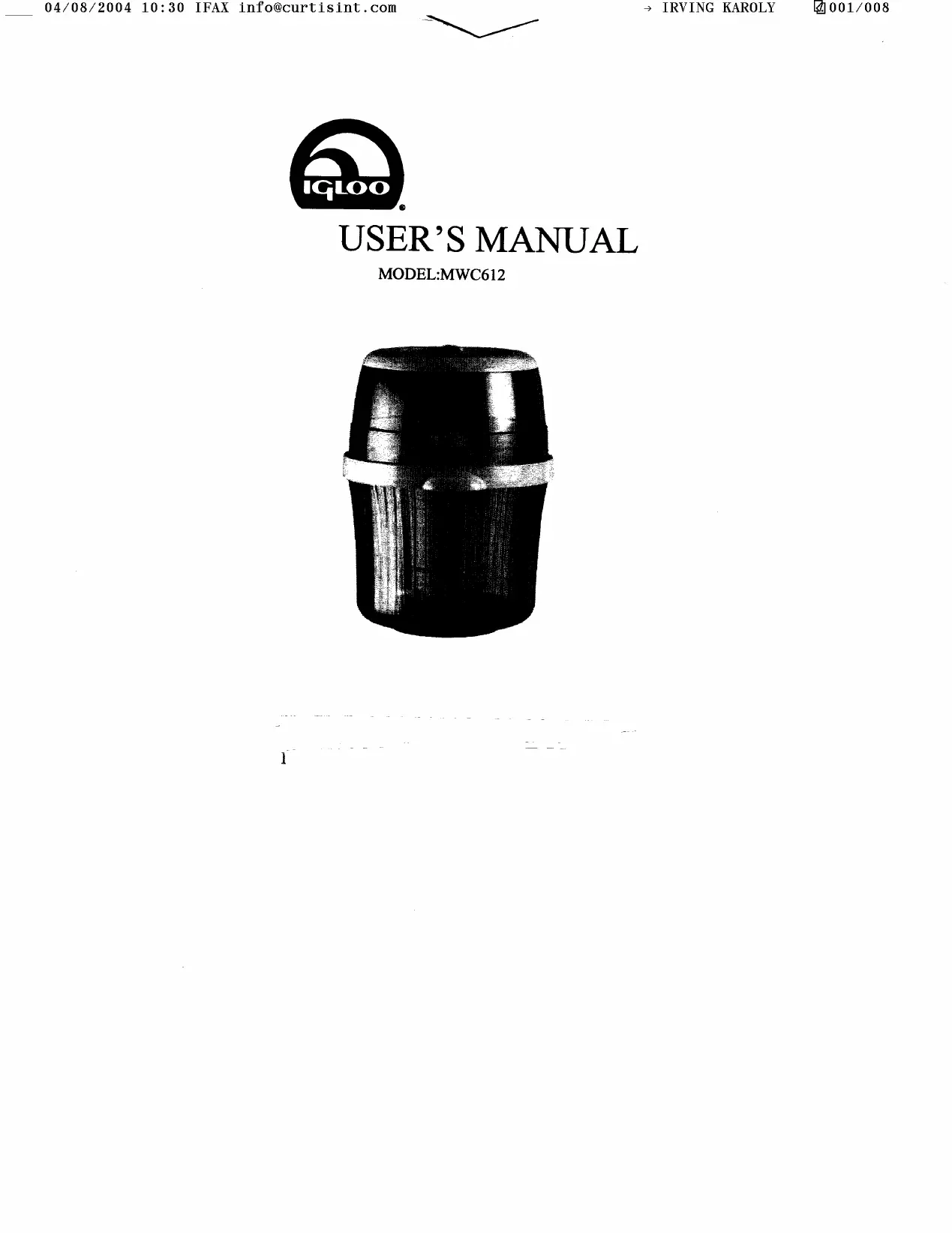

USER'S MANUAL

MODEL:MWC612

DIRECTORY

A. Part name. 1
B. Product introduction 1
C. Operation instructions on cleaning filter cores.. 1
D. Instructions on installation 3
E. Method of disassembly and cleanness 3
F.Cautions 4
G Troubleshooting 5
H. Packing accessories.. 6

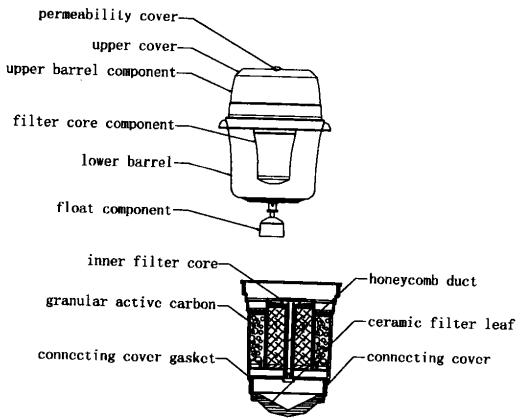

A. Part Name

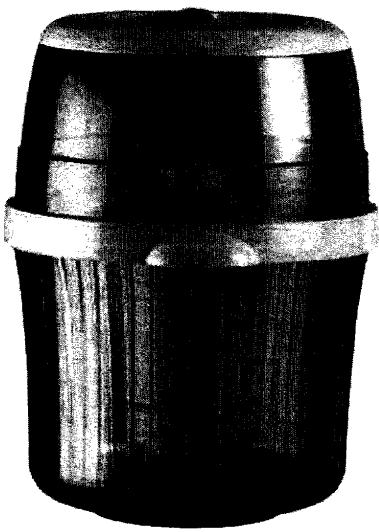

B. Product introduction

1 Adopting a completely new and ultra-long flow filtration structure combining composite direct impact, back flushing and siphon as well as fine ceramic filtration, to fully purify each drop of water.
2 Air-purification design, preventing air pollution.
3 Using completely transparent corrugated modeling, with elegant, novel appearance.
4 Utilizing a float to control water level, easy to operate.

Comment: Level

C. Operation instructions on cleaning filter cores

1 Screw out the ceramic filter core.
2 Take out the upper cover plate of filter core, the filter screen underneath

and the white non-woven cloth.

3 Put the entire master filter core in a barrel of clear water horizontally and wash it gently up and down. After immersing it for 4-5 minutes, take it out and keep it upside down until no water comes out of the outlet of the master filter core. Later, keep it up until water comes out completely, then put the entire master filter core in a barrel of clear water, and wash it gently up and down. After immersing it for 2-3 minutes, take it out and keep it upside down until no water comes out of the outlet of the master filter core. Finally place it up until water comes out completely. Repeat the above operation three times (See Fig. A and B)
Fix a cleaning joint to the bottom outlet of the master filter core. With the joint pointing to the water tap, wash the master filter core (See Fig. C) until no black water comes out of it (approximately 15 min).
5 Wash and immerse the ceramic filter core with water, and remove the ash occurring during the transportation. (See Fig. D)
6 After cleaning, mount the upper cover plate of filter core, the filter screen underneath and the white non-woven cloth, and screw up the ceramic filter score.

D

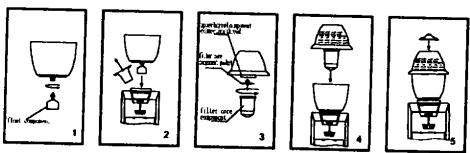

D. Instructions on Installation

1. Screw in the float component into the seal cap of the lower barrel.
2. Screw out the supporter on the water disperser, and insert the lower barrel into the diversion tank.
3. First put the filter core component gasket at the connecting thread of the upper barrel component, and then screw in the filter core component into the connecting thread of the upper barrel component.
4. After filling the upper barrel component with water, insert the upper barrel component into the lower barrel. At the moment, the water-purifying barrel begins to filter the original water.
5. Put the upper cover into the upper barrel component.

E. Method of Disassembly and Cleanness

1. Screw out the master filter core, and wash it according to the directions of cleaning.

2. After removing the upper cover, take out the decorative cover and clean or replace the upper cover plate of filter core, the filter screen and the white non-woven cloth.

3. Screw out the ceramic filter core and wash it according to the directions of cleaning.

F Cautions

a) In case the master filter core has not been thoroughly cleaned, some powder of active carbon may seep, and please wash the filter core in accordance with the directions of cleaning. To guarantee water quality, the first bottle of water can be abandoned.
b) Keep this product away from direct sunshine.
c) Water quality varies with various regions. If the service life of filter core and water quality purified are affected by worse water source, it is advisable not to drink the raw water if you are not aware of the condition of local water source.
d) When this product is not in use for over a week and to use it again, please let the remaining water out of the lower barrel.
e) Please disassemble and clean the unit according to the directions when 200 - 300L water is used or the water flow becomes less apparently.
f) To avoid water leakage during the use, water marks of the upper and lower barrels are especially designed. For example, when the water in the lower barrel is at mark “0”, it is better to add water into the upper barrel to mark “0” on it. When the water in the lower barrel is at mark “1”, it is better to add water into the corresponding upper barrel to mark “1” on it. Reason out the rest by analogy.
g) It is normal that the water flow becomes less gradually or blocked.

during the use if the lower barrel has a higher water level and the upper barrel has a lower water level. This is aimed at preventing water from leaking from the middle gasket when the lower barrel is full.

h) After adding water into the master filter core, water cannot come out until the air inside is eliminated some time later. To facilitate air removal, first screw out the connecting cover of the ceramic core and then screw in it when water comes out from the master filter core.
i) Purify the recommended water source during the service life of this water purifier. For a family of 2-3 people, please replace the filter core after it has been used for 4-6 months or when quality decreases obviously.
j) Attention please: Don't add water any more if the water level reaches the highest line.

G Troubleshooting

Problems	Possible causes	Solutions
Water Creepage	1. The float falls off	1. Fix the float
	2. The dispenser has a too shallow reservoir	2. Replace the dispenser or water-purifying barrel's model
	3. There is foreign matter on the sealing surface of the float valve core (i.e. sealing cork)	3. Clean the sealing surface of the float valve core of the foreign matter
	4. The float valve core has not been properly fixed	4. Fix the float valve core properly
Cross temperature	1. The dispenser has a too low return-air pore	1. Replace the dispenser or water-purifying barrel's model
	2. Failures inside the dispenser	2. Repair or replace the dispenser

H. Packing Accessories

No water comes out	1. Air block happens to the internal pipe of the filter core	1. Please shake the bottle gently, or clean the filter core according to Fig. VI.
	2. Water level in the upper barrel is too low	2. Add water to the upper barrel
	3. The filter core has not been cleaned for a long time	3. Please clean or replace the filter core.
	4. The filter micro pores of the ceramic filter core have been blocked	4. Please screw out the ceramic filter core, and clean it.
	5. The dispenser has a too shallow reservoir	5. Replace the dispenser or water-purifying barrel's model

Serial No.	Name
1	Cleaning joint
2	Float component
3	Filter core component gasket
4	Months tray
