OVATOR - Enceinte acoustique NAIM - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil OVATOR NAIM au format PDF.
| Type de produit | Enceinte acoustique colonne |
| Marque | NAIM |
| Modèle | OVATOR S-600 |
| Dimensions (H x L x P) | 1168 x 401 x 434 mm |
| Poids | 61 kg |
| Réponse en fréquence | 28 Hz - 35 kHz |
| Sensibilité | 88 dB pour 2,83 Vrms |
| Impédance nominale | 4 ohms (minimale 3,2 ohms) |
| Puissance d'amplification recommandée | 25 - 150 W (sous 8 ohms) |
| Finition | Placage bois véritable (plusieurs options) |
| Technologie de haut-parleur | Radiateur à mode équilibré (BMR) pour les aigus/médiums, deux haut-parleurs de graves à cône papier rigide |
| Fréquence de coupure | 380 Hz (filtre acoustique du 4e ordre) |
| Construction | Ébénisterie multicouche rigide avec panneaux de 25 et 50 mm, contreventée, socle en aluminium moulé sous pression |
| Découplage | Ressort à lames en acier entre l'enceinte et le socle (découplage >12 Hz) |
| Pointes de sol | Pointes M8 en acier inoxydable antimagnétique |
| Possibilité de bi-amplification | Oui, par retrait du module de filtre (bi-amp ou tri-amp actif) |
| Entretien | Nettoyer avec un chiffon doux et sec. Éviter les produits chimiques. |
| Notice d'utilisation | Disponible en téléchargement gratuit sur notice-facile.com |
FOIRE AUX QUESTIONS - OVATOR NAIM
Questions des utilisateurs sur OVATOR NAIM
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Enceinte acoustique au format PDF gratuitement ! Retrouvez votre notice OVATOR - NAIM et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil OVATOR de la marque NAIM.
MODE D'EMPLOI OVATOR NAIM
OVATOR
OVATOR
Finishes available*
Ovator S-600 specifications
| Frequency response (in room): | 28 - 35000Hz |
| Sensitivity: | 88dB for 2.83Vrms i/p |
| Nominal impedance: | 4 Ohm (Minimum Impedance 3.2 Ohm) |
| Suggested power amplifier rating: | 25 - 150W (8 Ohm rating) |
| Weight: | 61 kg |
| Dimensions (including spikes and grilles): | 1168x401x434mm (HxWxD) |
*Please note due to the nature of wood, actual finishes may vary slightly to those photographed.
world class sound...
NAIM AUDIO LIMITED
Southampton Road • Salisbury • England • SP1 2LN Tel: +44 (01) 722 426 600 • Fax: +44 (0) 871 230 1012
Email: info@naimaudio.com • www.naimaudio.com
world class sound...
THE STORY OF THE
OVATOR
The Ovator S-600 is the result of a three-year development programme and represents both a remarkable new expression of proven Naim speaker engineering and a technological advance that, quite literally, recasts the accepted ground rules of electro-acoustics.
Constructed on the rigidia foundation of a pressure die-cast aluminium plinth, the Ovator S-600 comprises a visually stunning leaf-spring decoupled enclosure fitted with two custom-designed rigid paper cone boss drivers. Located above the boss drivers, within a nested and leaf-sprung aluminium enclosure, is a uniquely advanced Balanced Mode Radiator. The Balanced Mode Radiator reproduces all six octaves from the 380Hz crossover point to well above audibility with a flat frequency response, minimal distortion and consistently wide dispersion.
Encasing all of this, the Ovar 5-600's striking, curved-panel enclosure is an outstanding example of contemporary aesthetic industrial design. Its form is striking yet subtle and with four real wood veneer finishes available it integrates effortlessly into domestic settings of any style.
Music heard through the Ovator S-600 is a revelation. The uncoloured, detailed and natural coherence of the Balanced Mode Radiator combines with the rhythmic clarity and accuracy of the twin bass driver system endlessly to reveal previously unheard musical details and insight. Stereo imagery and recorded ambience is portrayed with scale and depth that remains consistent across the listening room, and with the Ovator S-600 an entire music collection becomes new again. The speaker is the point at which recorded music leaves the world of electronics and becomes real. With the Ovator S-600, the reality is a musical experience unlike any heard before.

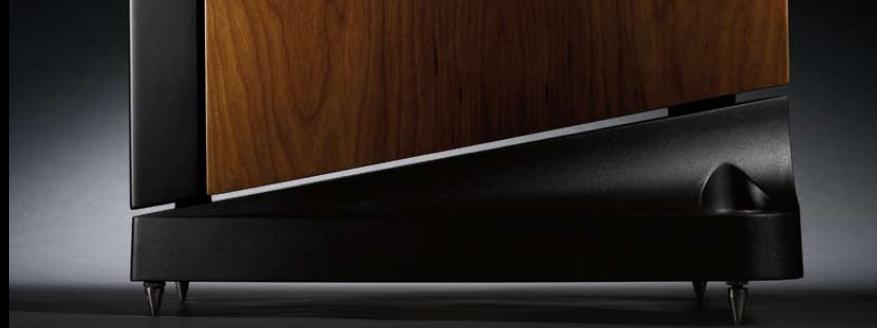

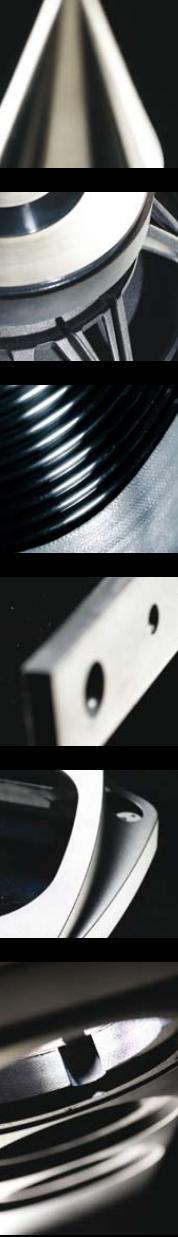

Surgical grade, anti-magnetic, stainless steel M8 floor spikes define the safety of the surgical interface between speaker and the floor of the listening environment
HARPDEN
FLOOR SPIKES
The bass driver chassis incorporates features on its mating surface that consistently define the steering system's cabinet and help manage vibrational energy.
FEA MODELLED
DRIVER CHASSIS
The crossover incorporates state of the art components including laminated and air-coiled inductors, and metallised polypropylene capacitors.
COMPUTER-MODELLED
CROSSOVER
A steel leaf-spring defines the interface between enclosure and plinth and decouples above 12Hz
DECOUPLING
LEAF SPRING
The pressure die-cast pinlin incorporates enclosure interface locations, housing for lift and lift floor lift fittings with 10-access adjustment.
DIE-CAST
PLINTH

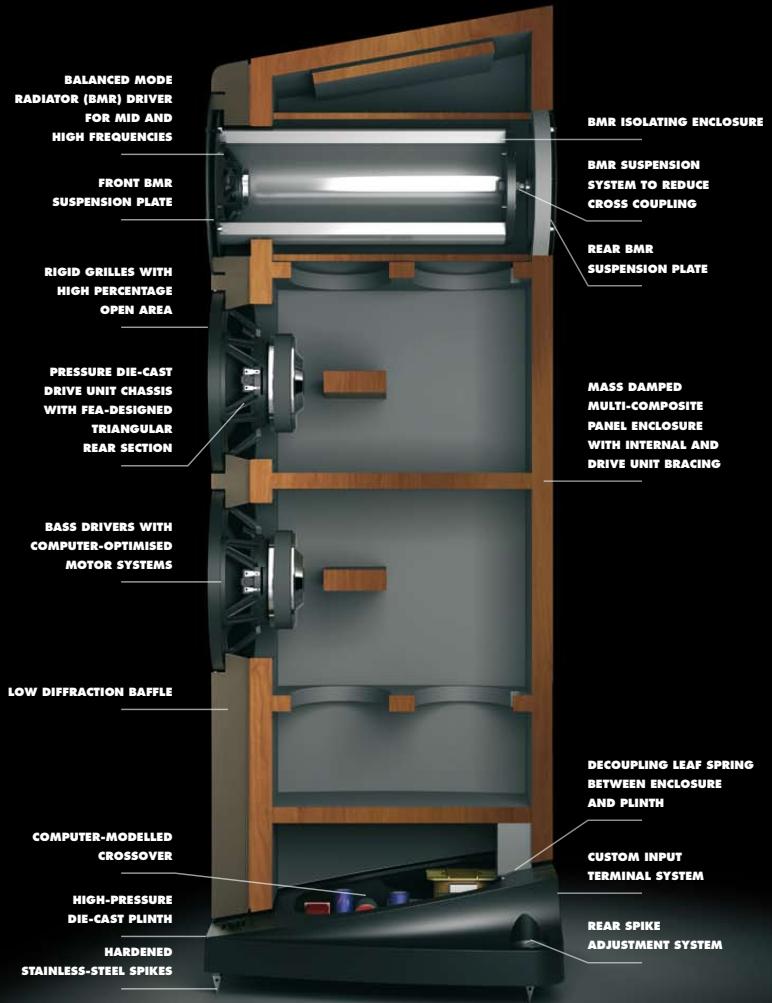

The enclosure is constructed from a combination of 25mm and 50mm panels comprehensively braced with a single non-resonant and low diffraction reference plane for the drivers. Selected panels also benefit from strategic mass-damping, and the driver's head includes a division that creates separate loading volumes for each bass driver.
RIGID MULTI-COMPOSITE
ENCLOSURE
THE OVATOR UP CLOSE
The Ovarr S-600's Balanced Mode Radiator (BMR) constitutes its most visible technological advance, yet its performance is equally the result of painstaking refinement in numerous elements of design, construction and material selection.
For example, there is so much more to the musical reproduction of bass than low frequency extension, so the Ovar 5-600 LF driver is designed not simply to play bass, but to do so with faultless musical accuracy. It incorporates a multitude of electro-acoustic details aimed at minimising distortion and compression, and the result is extended bass with peerless timing, dynamics and pitch accuracy. One vital element in the design of a high performance bass driver is its chassis. Great rigidity and an open structure are vital but potentially conflicting requirements, so the Ovar 5-600's pressure die-cast bass driver chassis incorporates a triangulated framework, borne of finite-element analysis, that ensures both rigidity and unimpeded air passage.
The Ovator S-600 crossover network is housed within the pinth and divides the audio signal between bass drivers and BMR with fourth order acoustic slopes at 380Hz. Each component selection is the result of intense technical analysis and listening, and the component arrangement is fundamentally informed by the layout and earthing techniques developed for Naim power amplifiers. A crossover module suspension system and individual component decoupling ensures any chance of microphony is minimised. Conversion to either bi-amp or tri-amp active drive is easily achieved through removal of the crossover module.
Just as much as it is BMR technology, it is the fine detail and the sum of the parts – the result of decades of speaker experience and development – that makes the Ovator S-600 so remarkable.

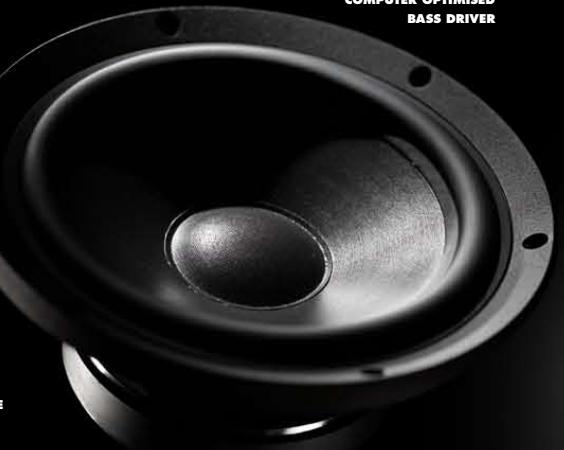

The Ovator S-600 bass driver features a rigid paper cone and natural rubber surround together with aluminium demolding. The system is an integrated system and generous pole-piece ventilation. Its linearity and resistance to compression is outstanding.
COMPUTER OPTIMISED
BASS DRIVER

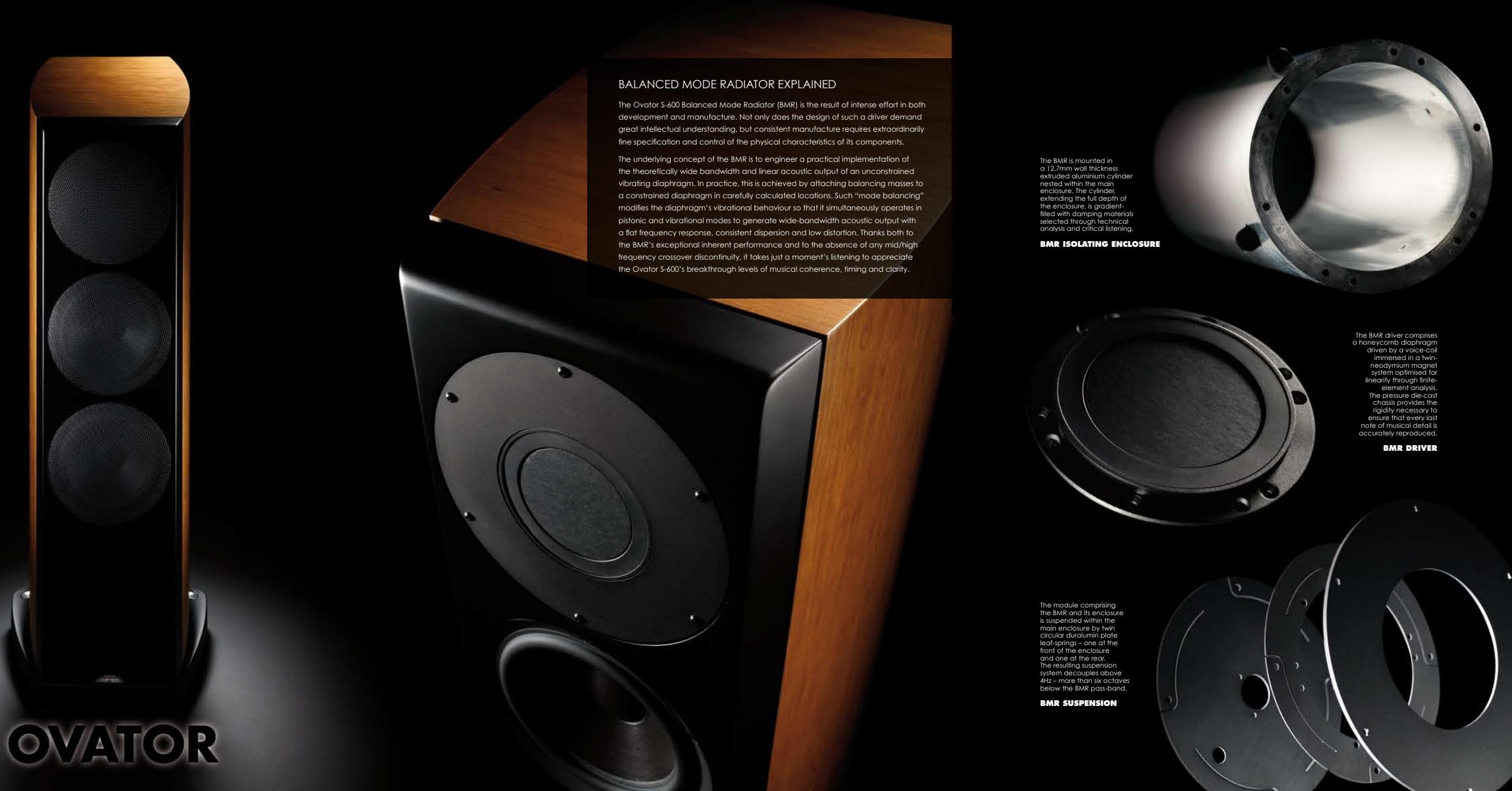

The BMR driver comprises a honeycomb diaphragm driven by a voice-coil immersed in a 3-wire neodymium tungate resonator. The system is linearly through finet element analysis. The pressure die-cast chassis provides the rigidity necessary to ensure the accurate and accurate note of musical detail is accurately reproduced.
BMR DRIVER
The module comprising the BMR and its enclosure is suspended within the main enclosure by twin lift lifts. The inside leaf-springs - one at the front of the enclosure and one at the rear. The resulting suspension is then lowered to a speed 4Hz - more than six octave below the BMR pass-band.
BMR SUSPENSION
Marque : NAIM
Modèle : OVATOR
Catégorie : Enceinte acoustique
