RCD 212BTI - Autoradio CALIBER - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Autoradio avec lecteur CD/MP3/WMA, tuner FM/AM, Bluetooth, USB, SD, iPod
Marque	CALIBER
Modèle	RCD 212BTI
Dimensions (L x P x H)	178 mm x 178 mm x 51 mm
Poids	2,0 kg
Alimentation	12 V CC, masse négative ; fusible 10 A
Puissance de sortie	4 x 75 W (max.)
Impédance des enceintes	4 à 8 ohms
Nombre d'enceintes	4 (avant gauche/droite, arrière gauche/droite)
Sortie RCA	1 V (niveau bas)
Récepteur FM	Plage 87,5 - 108 MHz ; sensibilité 12 dBu
Récepteur AM	Plage 522 - 1620 kHz ; sensibilité 30 dBu
Lecteur CD	CD, CD-R, CD-RW ; rapport S/B > 80 dB ; réponse 20 Hz - 20 kHz
Formats audio pris en charge	MP3, WMA (sur CD, USB, SD)
Bluetooth	Mains-libres, streaming audio (A2DP), connexion automatique
Fonctions RDS	AF, TA, PTY, REG
Entrée auxiliaire	Jack 3,5 mm avant
Ports USB et SD	USB (jusqu'à 8 Go, FAT32) et lecteur SD/MMC
Compatibilité iPod/iPhone	iPod, iPhone (via câble USB, iPad non supporté)
Égaliseur	Préréglages : Pop, Rock, Flat, Classic ; graves/aigus réglables
Horloge	Affichage et réglage
Entretien et nettoyage	Nettoyer avec un chiffon sec ; ne pas utiliser de liquide
Sécurité	Débrancher la batterie avant installation ; utiliser des fusibles de même calibre
Pièces détachées / réparabilité	Fusible 10 A ; contactez un installateur professionnel pour toute réparation

FOIRE AUX QUESTIONS - RCD 212BTI CALIBER

Comment coupler mon téléphone Bluetooth avec l'autoradio ?

Maintenez enfoncé le bouton PHONE jusqu'à ce que 'PAIRING' clignote. Sur votre téléphone, recherchez les périphériques Bluetooth et sélectionnez 'BT Car Stereo'. Entrez le code 0000 pour confirmer l'appairage.

Que faire si l'autoradio ne s'allume pas ?

Vérifiez le fusible de 10 A. Assurez-vous que les connexions d'alimentation (jaune pour +12V permanent, rouge pour ACC) sont correctes et que la masse (noir) est bien reliée à la carrosserie.

Comment réinitialiser l'appareil ?

Utilisez un objet pointu (stylo) pour appuyer sur le bouton RESET situé à l'avant. Attendez quelques secondes que le voyant rouge clignote.

Le CD ne se charge pas, que faire ?

Vérifiez qu'il n'y a pas déjà un CD dans l'appareil. Assurez-vous d'avoir retiré les deux vis de transport sur le dessus de l'unité avant l'installation.

Comment régler l'horloge ?

Appuyez sur CLK/DISP une fois pour afficher l'heure. Maintenez enfoncé jusqu'à ce que les heures clignotent, tournez le bouton VOL pour régler les heures, appuyez sur VOL pour passer aux minutes, puis tournez pour régler.

Pourquoi la réception radio est-elle mauvaise ?

Vérifiez la connexion de l'antenne. Assurez-vous que l'antène est complètement déployée et non endommagée. En FM, activez le mode MONO ou LOCAL dans les réglages pour améliorer la réception.

Comment passer d'une source à une autre ?

Appuyez sur le bouton MOD pour basculer entre Radio, CD, USB, SD, AUX et Bluetooth Audio. Les modes USB et SD n'apparaissent que si un périphérique est inséré.

Puis-je connecter un amplificateur externe ?

Oui, utilisez le fil orange (sortie télécommande d'antenne/ampli) pour commander un ampli externe (max 300 mA). Branchez les sorties RCA aux entrées de l'ampli.

Comment utiliser la fonction RDS TA ?

Appuyez sur le bouton TA pour activer les annonces de trafic. Lorsqu'une annonce est diffusée, l'autoradio passe automatiquement en mode radio, puis revient à la source précédente après l'annonce.

Que faire si la télécommande ne fonctionne pas ?

Remplacez la pile de la télécommande. Vérifiez qu'aucun obstacle ne bloque le capteur. Si le problème persiste, réinitialisez l'appareil avec le bouton RESET.

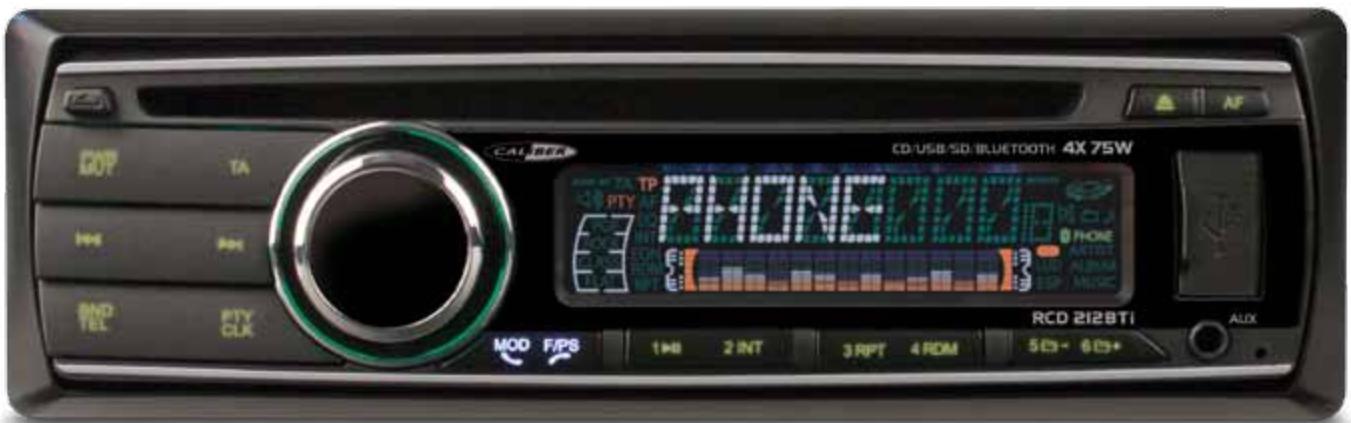

MODE D'EMPLOI RCD 212BTI CALIBER

CALIBER AUDIO TECHNOLOGY

CD/USB/SD: BLUETOOTH 4X 75W TP PHONE RCD 212BTI ALIX MOD F/PS 1 INT 3 RPT 4 RDM 50-60+

RCD 212BTI

MANUAL

• GB •

Contents

Precautions....3

Warnings Before Installation....4-6

Before You Install....7

Installation (DIN FrontMount)......8

Installation (Vehicle's Brackets)....9

Wiring Connections....10-11

Controls of the Unit....12

Bluetooth Operation....13

Basic Operation....14

Radio Operation....15

RDS Operation....16-17

CD/MP3/WMA/USB Operation....18-19

Maintenance....19

Ipod Operation....20

Simple Troubleshooting Guide....21

Specifications....22

Welcome!

Thank you for purchasing this high-technology car stereo with CD/MP3 and USB, SD/MMC control. This unit will support CD-R and CD-RW Playback. Also it supports up to 8GB storage size of USB flashdisk and SD/MMC media storage. If there is any compatibility problems, we recommend you to format your flashdisk/storage card in FAT32 mode before using it. If the problem persists, kindly consult your dealer for assistance.

Precautions

- This unit will only play the following discs.

Type of disc	Label on the disc			Recorded material	Size of disc
CD, MP3, WMA				Audio only	12 cm

DO NOT ATTEMP TO MODIFY THE UNIT, MODIFYING THE UNIT MAY CAUSE AN ACCIDENT. STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD INTERFERE WITH YOUR DRIVING. DO NOT TURN ON THE UNIT IF THE TEMPERATURE INSIDE THE VEHICLE IS OUT OF -20'C TO 60'C. THIS PRODUCT IS DESIGNED FOR ONE SINGLE VIDEO OUT PUT, PLEASE USE A SPLITTER IF YOU WOULD LIKE TO CONNECT FOR MULTIPLE VIDEO OUTPUT.

This unit only reads 12 cm discs.

Don't attempt to modify the unit; it could result in an accident.

Stop the vehicle before any manipulation which could interfere with your driving.

Do not use the unit if the temperatures are extremely cold or extremely high (lower than -20^ or higher than +60^ ).

To enjoy a sound of best quality, handle discs as indicated below:

Clean the discs with a cleaning cloth.

Clean each sisc from the center to the outside edge.

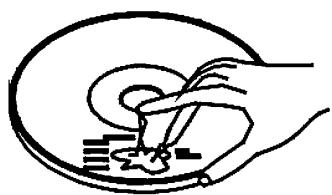

Don't use CDs with blobs of glue or ink on its surface.

Simple line drawing of a hand holding a circular object with a pen inserted (no text or symbols)

Simple line drawing of a disc with internal structure and a handle, no text or symbols present

Don't use Cds with label or stickers on its surface.

There coule be some remainder of glue which would interfere with the good performance of the unit if labels were starting to be rubbed away.

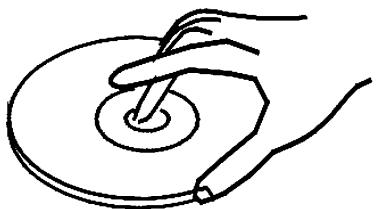

Hold and handle discs by the edges to keep the disc clean and don't touch its surface.

Simple line drawing of a hand holding a pen over a circular object with geometric markings (no text or symbols)

Illustration of hands holding a disc with arrows indicating rotation or movement (no text or symbols)

Warnings Before Installation

Important Warnings to Take Note of BEFORE Commencing Installation

Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take The Time To Read The Installation Notes Carefully.

To Validate The Warranty Please Ensure That The Unit Is Installed By A Professional, VAT Registered Car Audio Installation Company.

• To avoid shorts in your vehicles electrical system, be sure to disconnect the battery cable before beginning installation.
• This unit is intended for vehicles with a 12-volt battery and negative grounding. Before installing the unit in a recreational vehicle, truck, or bus, check that the battery voltage is 12 volts.
• Remove the two transport screws from the top of the unit before installation.
• The black lead is ground. A good chassis ground requires a tight connection to ground. The area should be free from rust, paint or any form of dirt. Please ground this lead separately from the ground of high-current products such as power amps. If you ground the products together and the ground becomes detached, there is a risk of damage to the products or fire.
• Be sure to connect the colour coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage the vehicle's electrical system. Cords for this product and those for other products may be different colours even if they have the same function. When connecting this product to another product, refer to the supplied installation manuals of both products and connect cords that have the same function.
• Be sure to connect the negative (-) speaker leads to the negative (-) speaker terminal. Never connect the negative (-) speaker leads to chassis ground.
• The unit is only designed for use with 4 speakers. Do not combine outputs for use with 2 speakers. Do not ground negative speaker leads to the chassis ground.
• Speakers connected to this unit must be high-power units with a minimum rating of 45W and impedance of 4 to 8 ohms. Connecting speakers with output and/or impedance values other than those noted here will result in damage to the head unit

Warnings Before Installation

and the speakers. Check the condition of your speakers carefully- connecting this unit to old or degraded speakers may result in a fault which will damage the audio IC and invalidate the warranty.

• If this unit is installed in a vehicle that does not have an ACC (accessory) position on the ignition switch, the red lead of the unit should be connected to a terminal coupled with ignition switch ON/Off operations. If this is not done, the vehicle battery may be drained when you are away from the vehicle for several hours.
• Secure the wiring with cable clamps or adhesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts. To avoid short-circuiting, cover all disconnected lead with insulating tape. There is a possibility of short-circuiting if the leads are not insulated.
• Route and secure all wiring so it cannot touch any moving parts, such as the gear lever and handbrake. Do not route wiring in places that get hot, such as near the heater outlet. If the insulation of the wiring melts or gets torn, there is a danger of the wiring short-circuiting to the vehicle's body.
• Don’t pass the yellow lead through a hole into the engine compartment to connect to the battery. This will damage the lead’s insulation and cause a very dangerous short.
• Do not shorten any leads. If you do, the protection circuit may fail to work when it should.
• Never feed power to other equipment by cutting the insulation of the power supply lead of the unit and tapping into the lead. The current capacity of the lead will be exceeded, causing overheating.
• Since a unique audio I/C circuit is employed, never wire so the speaker leads are directly grounded or the left and right – speaker leads are common.
• When this product's source is switched ON, a control signal is outputted through the orange lead. Connect to an external power amp's system remote control or the car's Auto-antenna relay control terminal (max. 300mA 12 V DC). If the car features a glass antenna, connect to the antenna booster power supply terminal.
• When an external power amp is being used with this system, do not connect the orange lead to the amp's power terminal. Likewise, do not connect the orange lead to the power terminal of the auto-antenna. Such connection could cause excessive current drain and a major malfunction. Refer to the relevant owner's manual

Warnings Before Installation

for details on connecting the power amp and other units, then make the connections correctly.

• Do not block any vents or heater panels. Blocking them will cause heat to build up and may result in fire.
• Make sure that the unit has a good chassis ground. A good ground connection will eliminate most electrical noise. A good chassis ground requires a tight connection to the vehicles metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic or dirt for a good electrical connection.
• If noise is still experienced when the motor of the vehicle accelerates, a choke should be placed in line with the power to the unit. The installation company will know what is required.
• When replacing the fuse(s) the replacement must be of the same amperage as shown on the fuse holder. Never replace a fuse with another of a different value. If the fuse blows again please contact your installation company.
• Do not block vents or heater panels. Blocking them will cause heat to build up inside and may result in fire.
• Double check that all wiring and connections are correct before reconnecting the battery and turning on the unit.
• After completing the installation and before operating the unit, reconnect the battery, Then press the (RES) button with a pointed object, such as a ball-point pen to set the unit to its initial status. After pushing the button, wait a few seconds for the red light to flash.

Tools for Installation

- 2 removal wrenches are supplied for taking out the old unit and place with this brand name car radio. The following tools and supplies may also be needed for the installation:

Tools for Installation:

• Philips Screw-drivers
• Wire Stripper
• Wire Cutter
• Hammer
• Pencil
• Electrical Tape
• Electric Drill

Supplies for Installation:

• Machine Screws
• Crimp Connectors
• 14 Gauge Wire for Power Connections
• 14-16 Gauge Speaker Wires
  * The above are not supplied.

Before You Install

Automotive audio equipment installations can be troublesome at times, even to the most experienced of installation technicians. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.

IMPORTANT: Remove the two transport screws from the top of the unit before installing.

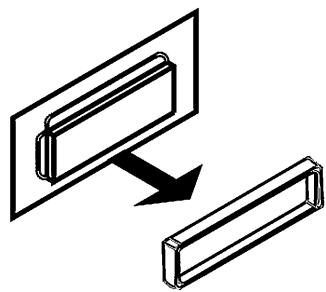

1. Remove the Old Unit from the Dashboard

1. Remove the outer trim frame.

Diagram showing two rectangular components with an arrow indicating transformation or alignment (no text or symbols)

DIN Front Mount

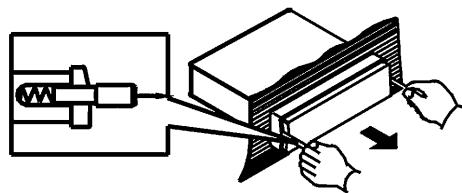

1. Insert the keys supplied with the old unit into both sides of the unit as shown in figure below until they click. Pull to remove the old unit from the dashboard.

Diagram of a mechanical setup with a spring-loaded component and a clamping device (no text or symbols)

DO NOT DISCONNECT WIRES AT THIS TIME!

2. Mark Polarity of the Speaker Wires

Marking the polarity of the speaker wires will make it easier to connect the existing speakers to your car radio. Consult wiring diagram of existing head unit before disconnecting any wires. If you are not positive of the polarity of the existing wires from the speakers to the head unit, install new wires.

1. While the old unit is playing, disconnect the wires from one speaker
2. Take a length of masking tape and fold it around the wire so it forms a flag.

3. On the masking tape mark the polarity of the speaker wires (+ & -), as well as left or right, and front or rear.

4. Double check that you marked the first speaker correctly by checking that the speaker wires are the same at the head unit.

5. Repeat this procedure for all of the speakers.

6. Mark the power, ground, and any other wires also.

Installation

WARNING!

Disconnect negative battery terminal from battery before starting installation. Consult the vehicle's owner's manual for proper instructions.

NOTE: Mark the polarity of the existing speaker wires before disconnecting battery.

NOTE: Remove the two transport screws from the top of the unit before installing.

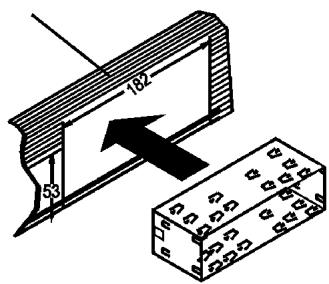

DIN Front Mount

102 53

1. After removing the old radio and mounting sleeve, insert supplied mounting sleeve into opening.

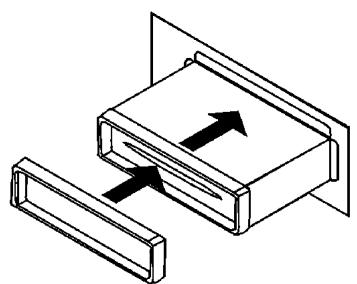

Isometric line drawing of two rectangular blocks with arrows indicating direction (no text or symbols)

1. Attach wires from the unit to existing wires. See wiring connections diagram. Insert radio into dashboard. Then apply the trim frame to outside of radio.

Diagram showing a component being processed with tweezers, no text or symbols present

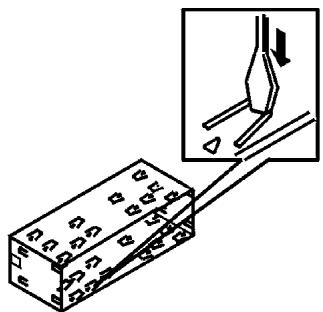

1. Bend the tabs on the mounting sleeve to keep the mounting sleeve firmly in place.

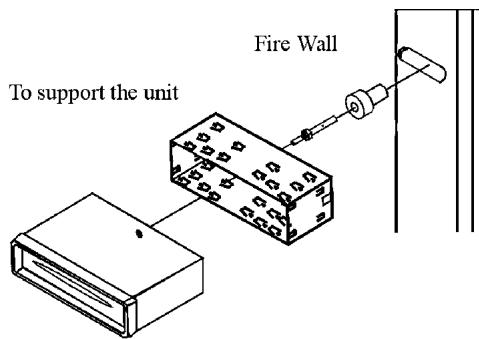

Fire Wall To support the unit

1. Support radio using supplied rear mounting bolt and steel bar. See parts list.

Installation

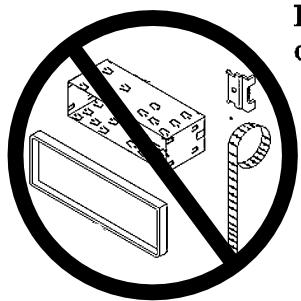

NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation.

This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions.

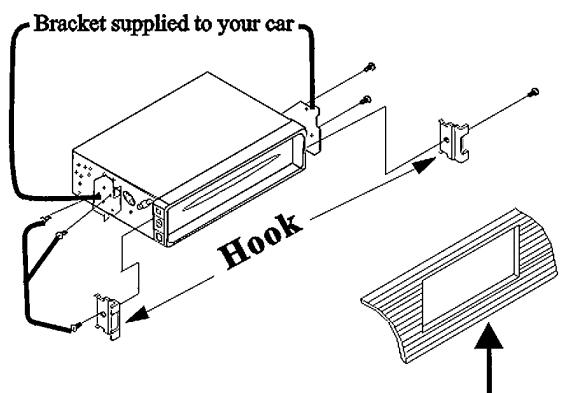

This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.

1. Remove the hooks on both sides.
2. Align the screw holes of the mounting bracket supplied with the car and the screw holes of the main unit. Tighten the 2 screws on each side of the unit. Then fasten the brackets to the car.
3. Attach wires of the unit to existing speaker wires. See wiring diagram.

Pure diagram of circular patterns with downward arrows, no text or symbols present

Bracket supplied to your car Hook

Diagram showing a prohibition symbol with labeled components and numbers, including a rectangle and a ruler.

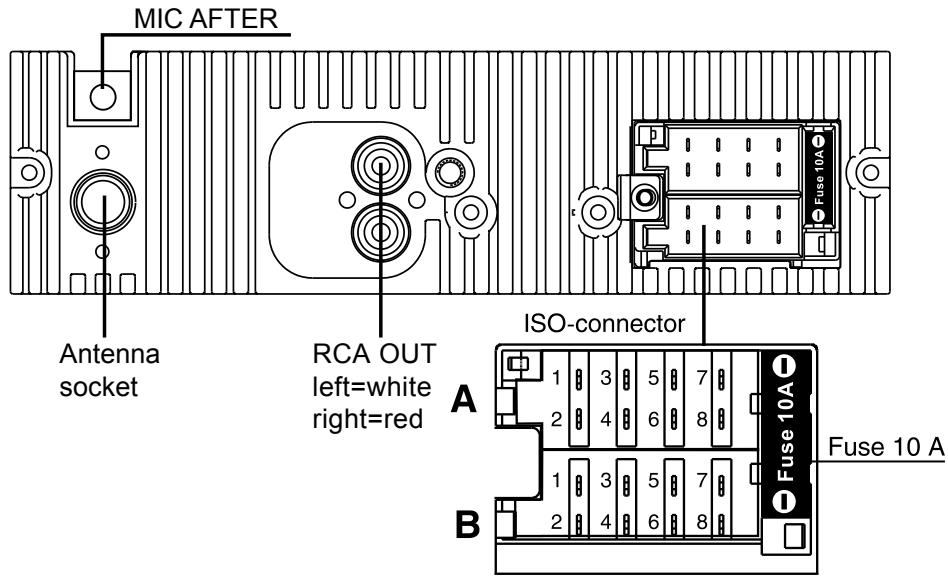

Wiring Connections

Make sure that you have a good chassis ground. Good ground connections will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle's metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.

MIC AFTER Antenna socket RCA OUT left=white right=red ISO-connector A B 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8 Fuse 10 A Fuse 10 A

Connector A

1. Rear right speaker(+)/Blue
2. Rear right speaker(-)/Blue-White
3. Front right speaker(+)/Grey
4. Front right speaker(-)/Grey-White
5. Front left speaker(+)/Green
6. Front left speaker(-)/Green-White
7. Rear left speaker(+)/Brown
8. Rear left speaker(-)/Brown-White

Connector B

1.-
2.-
3. -
4. Battery 12V (+)/Yellow
5. Antenna power/Orange
6. Panel light/White
7. ACC+/Red
8. Ground/Black

Black Ground

Connect to vehicle body/chassis. Make sure that you have a good chassis ground. This will eliminate most electrical noise from the motor and alternator. A good chassis ground requires a tight connection to ground. The area should be free from rust, paint or any form of dirt.

Yellow Memory backup

Connect to electrical terminal always supplied with power regardless of ignition switch position.

Orange Remote

Connect to Auto-antenna or power amp control wire/remote connection. Maximum current 300Ma 12 V DC.(Low Current)

Wiring Connections

White Panel Light

Connect to lighting circuit of vehicle. This will illuminate the buttons on the display for night time operation. This wire can also be connected to the Orange Remote wire to activate the buttons when the unit is powered on. DO NOT JOIN THE WHITE WIRE TO THE LIGHTING CIRCUIT OF THE VEHICLE IF CONNECTED TO THE ORANGE REMOTE WIRE.

Speaker Wiring Notes

Follow the above wiring diagram to install the head unit with new or existing speakers.

• This unit is designed for use with four (4) speakers with impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape to tape the ends of the unused speaker outputs to prevent a short circuit.
• Never ground the negative speaker terminals to chassis ground.

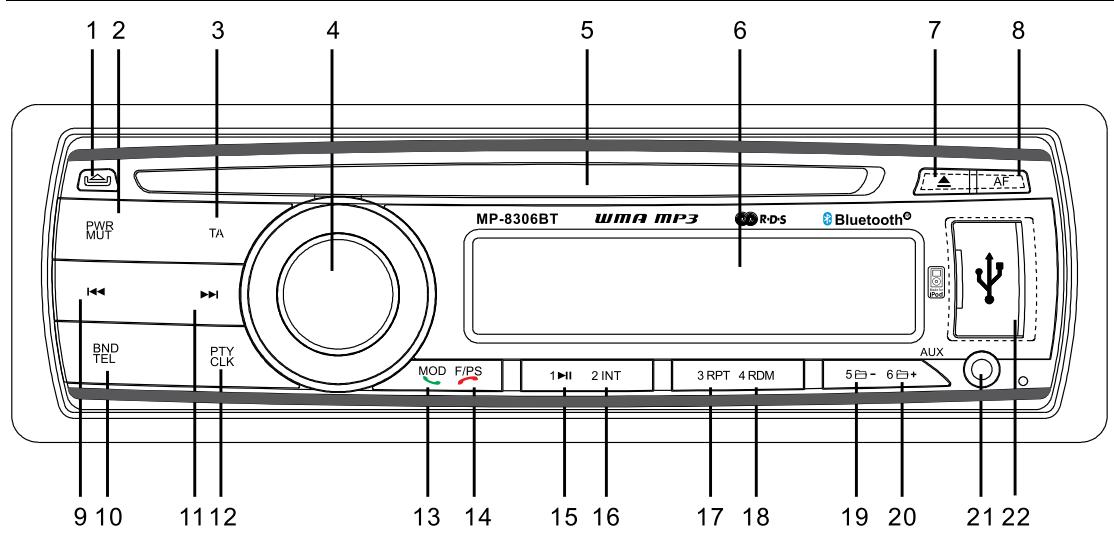

Control of the Unit

1 2 3 4 5 6 7 8 PWR MUT TA MP-8306BT WMA MP3 R-D5 Bluetooth® BND TEL PTY CLK MOD F/PS 1 INT 3 RPT 4 RDM 5 - 6 + 9 10 11 12 13 14 15 16 17 18 19 20 21 22

RESET 23 24 25

1. Release Panel Button
2. Power on / off / Mute
3. TA
4. Sound Select / Volume +/-
5. Disc slot
6. LCD Screen
7. Eject Disc Button
8. AF
9. Previous Track / Backward Button
10. Band Switch / ID3 / Phone
11. Next Track / Fast Forward Button
12. PTY/Clock

13. Mode Select / Answer Button

14. Auto Preset Scan / Reject Button

15. Number 1 / Play / Pause
16. Number 2 / Introduction
17. Number 3 / Repeat
18. Number 4 / Random
19. Number 5 / Folder Down
20. Number 6 / Folder Up
21. Aux input Jack
22. USB Slot

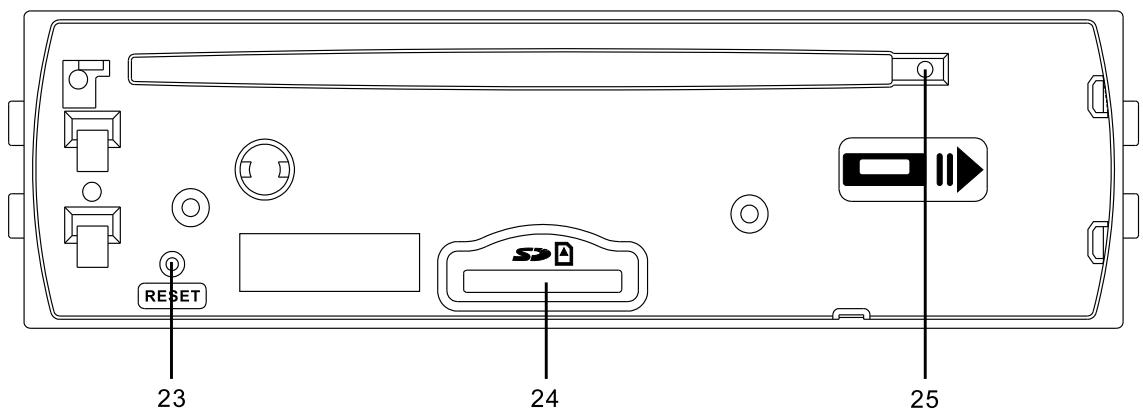

23. Reset Button
24. SD Card Slot
25. MIC Receiver

Bluetooth Operation

1. Pairing

Press and hold PHONE button until the word "PAIRING" blinks on the display waiting for the bluetooth device to connect.

At this blinking time, please run the bluetooth search and connect function in your cell phone. The car radio model no "BT Car Stereo" will be shown on the cellphone. Select this car radio and connect. When you are asked for a connection password, please input "0000" in your cellphone to finish the pairing, there is "PAIR OK" to show on the LCD. Then the bluetooth icon will be shown on the car radio LCD indicating that the bluetooth function is ready to use.

2. Dial

Press and hold PHONE button enter PHONE mode, you could dial telephone number "0-9, *,#" button on the remote control.

You could turn VOL+/- to setup the speaker volume during you are on the phone.

3. Disconnection

Press and hold "Answer" button(with green phone logo), it will disconnect the phone.

When you press and hold "Answer" button(with green phone logo) again, it will connect the phone.

4. Answering/Rejecting call

When there is phone calling in, press the "Answer" button(with green phone logo) anytime to receive a call in your car radio. If you want to reject the

call, press "REJECT" button(with red phone logo).

5. BT Audio (A2DP)

Press MOD button, you could enter mode: Radio/CD/AUX/BT Audio. BT Audio will automatically play when you play the song in the cellphone. You could pause by “ ” button, to choose up and next song by pressing |<< and >>| button.

6. Auto Connect

This unit support the “Auto Connect function”. In case the connected cellphone is out of range (e.g. the user leaves the car for lunch), when the cellphone is in the range again, the unit will automatically connect with the cellphone so that you do not have to set connection in the cellphone. If the auto connect does not work, press the “Answer” button(with green phone logo) so that the unit will connect to the last device(cellphone). “Auto Connect” requires the function is enabled in your cell phone as well.

Basic Operation

1. Tuning the unit On / Off

Press and hold any Button to turn the unit on, the display will show a message WELCOME TO CAR AUDIO to indicate it is ready for use. Press and hold the PWR button to turn the unit off. The display will show a message "GOODBYE".

2. Mode Selection

Press the MOD Button to select Radio Mode. Press the MODE Button to cycle the Play Mode among AUX, RADIO and CD PLAY.

Note: USB & SD mode will only show on the display when a USB flash memory or SD card is inserted into the USB port or SD port.

3. Loudness Control

Press the SEL button until "LOUD OFF" is shown on the display indicates that the loudness function is OFF. Turn the volume knob to select between ON or OFF.

4. Mute Control

Press the MUTE button active or cancel Mute function.

5. Volume

Use the VOL +/- Button to adjust the volume level. The larger the number, the higher the volume level.

6. Bass

Press the SEL Button repeatedly until the display shows "BAS". Use the VOL +/- Button to adjust. When EQ is ON, bass control is not available.

7. Treble

Press SEL Button repeatedly until the display shows "TRE". Use the VOL +/- Button to adjust. When EQ is ON, treble control is not available.

8. Balance

Press SEL Button repeatedly until the display shows "BAL", then use the VOL +/- Button to adjust the balance between the left & right speakers.

9. Fader

Press SEL Button repeatedly until the display shows "FAD", then use the VOL +/- Button to adjust the balance between the front & rear speakers.

10. Clock

The time clock can be set anytime when the power is on. Press the CLK/DISP Button on the faceplate or remote control once (press and hold for more than 2 seconds during radio mode), the time will show on the display.

Then press and hold the button until the hour blinks on the display. Rotate the VOL knob to set hours, then press the VOL knob for the minutes to blink and rotate the VOL knob to set.

Press the CLK/DISP button again or leave the unit idle for new setting to effect. Press the CLK/DISP button anytime to view the time clock display.

11. Preset Beep Sound Off

Press the SEL button repeatedly until "BEEP ON" is displayed. Turn the VOL +/- Button to select "BEEP OFF" or "BEEP ON", then leave the unit idle for setting to take effect.

12. Preset Equalizer Function

Press the SEL Button repeatedly until “EQ” indication is displayed then rotate the Volume knob to choose between the EQ sound effects. The Sequence of equalizer setting will be as follows:

OFF —POP—ROCK FLAT —CLASSIC

13. Dual Color Select (Optional)

Press the SEL knob repeatedly until the display shows "Color 1" or "Color 2" Turn the volume knob to select between "Color 1" or "Color 2".

Radio Operation

1. Choose Radio Band

Press the MOD Button to access the radio function.

The unit comes with five bands- three FM Bands (FM1, FM2, and FM3) and two MW Bands (MW1, and MW2) selects. Each of the five bands can store up to six preset stations, for a total of 30 preset memory stations.

2. Radio Tune / Seek Function

In Radio Mode, press and hold the SEEK |<< or >>| Button for 2 seconds, and the display will show"MANU SEEK". Press the SEEK |<< or >>| Button once to manually adjust the radio frequency.

3. Tuning

Press the SEEK |<< or >>| Button once the radio will seek the next strong and clear frequency station. Repeat to seek more stations in your listening area with a strong signal.

4. Mono/Stereo Reception Control

In FM radio mode, Press the SEL Button until "MONO" is shown on the display. Roate the VOL +/- to select STEREO or MONO. Improvement of reception of distant stations can be done by selecting "MONO" operation which may cut down some reception noise.

5. Local / Distant Control

In FM radio mode, Press the SEL Button until "LOCAL" is shown on the display. Roate the VOL +/- to select "LOCAL" or "--DX--".

Local and distance reception setting can facilitate the radio reception, depending on the location in which the radio is being used.

6. Save Your Preset Stations

There are six numbered preset buttons which can store and recall sta-

tions for each band. While listening to a radio station you would like to save as a pre-set, press and hold one of the buttons numbered 1-6 until you hear a beep. The button you pressed is now the pre-set button for that station.

7. Automatic Store/Preset Scan

There are six numbered preset buttons which can store and recall stations for each band. While listening to a radio station you would like to save as a pre-set, press and hold one of the buttons numbered 1-6 until you hear a beep. The button you pressed is now the pre-set button for that station.

A. Automatic Scan & Store

While listening to the FM Radio, press and hold the F/PS Button. The receiver will automatically scan and save stations of the 3 FM Bands.

While listening to the MW Radio, press and hold the F/PS Button. The receiver will automatically scan and save stations of the 2 MW Bands.

B. Scan & Preview Saved Stations

Press the F/PS button once and the receiver will scan the radio stations in the current band.

Radio Operation(Cont)

RDS Function

RDS (Radio Date System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.

1. AF-ALTERNATIVE FREQUENCY

Press the AF button on the panel to turn the AF function on or off. When the Radio signal strength is poor, enabling the AF function will allow the unit to same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage areas. When AF symbol is on, it means RDS information is received; when AF symbol is flashing, it means RDS information is not yet received. PS (Program Service name): the name of statin will be display instead of frequency.

If RDS service is not available in your area, turn off the AF mode. Dufault setting is ON.

2. TA - TRAFFIC ANOUNCEMENT

Press the TA button to turn TA function on or off.

In TA mode traffic program will be automatically searched, until the program is received. When traffic announcement is received the unit will temporarily switch to the tuner mode(regardless of the current mode) and begin broadcasting the announcement. After the traffic announcement is over, it will return to the previous mode and volume level.

To interrupt traffic announcement press TA button shortly; it will not switch off the TA mode.

3. PTY - PROGRAMME TYPE

This radio will allow you to select the type of programme required, and will search for a station broadcasting that type of programme. Press the PTY button on the panel or button on the RC once to show the music type. Then press 1-6 button to choose the different music types available.

Press the PTY button twice to show the speech type programme. Then press 1-6 button to choose the different speech type programme. Each number keye will show 3 different speech programme for you to choose (see table below).

Button	Music group	Speech group
1	Pop, Rock	News, Affairs, Info
2	Easy, Light	Sport, Educate, Drama
3	Classics, Other	Culture, Science, Varied
4	Jazz, Country	Weather, Finance, Children
5	Nation, Oldies	Social, Religion, Phone IN
6	Folk	Travel, Leisure, Document

when PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched. During 1 loop, if desired PTY is not found, the unit will return to previous mode. Press PTY button on the panel or button on the RC for 3rd time to switch the PTY function off.

4. MASK DPI - MASK ALL

Press the sound select button for 2 seconds, the display will show TA SEEK. Press the sound select button again so that the unit will show MASK DPI. Rotate the encoder volume to

Radio Operation(Cont)

toggle between MASK DPI and MASK ALL mode. Then leave the unit idle for the mode to take effect. During MASK DPI mode, the unit will mask only the AF which has different PI, this is the default mode; during MASK ALL mode, the unit will mask the AF which has different PI and no RDS signal with high field strength.

5. RETUNE S/L - SHORT/LONG

This function is to set the initial duration of automatic TA Search -- Press

and hold the sound select button until "TA SEEK" is shown on the LCD, then press the SEL button to cycle through the menu selections until "RETUNE_S" is shown, use the VOL +/- button to choose "RETUNE_S" or "RETUNE_L". The default is "RETUNE_S".

CD/MP3/WMA/USB/SD Operation

1. Insert / Eject CD

Insert a disc into CD slot with label side up. The disc will be automatically loaded into the unit, even when it is off or at radio mode. The word "LOAD" will blink on the display and the CD will play automatically. Press the EJECT Button to eject the disc from the slot. If the disc is not removed from the slot within 5 seconds, it will automatically be loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to radio mode.

While you are playing a disc with MP3 or WMA, The first file in the root folder will be played. As the file is playing "MP3" or "WMA" will be displayed first, then if there is any ID3 information that will be displayed as the file is playing.

To play MP3/WMA files from a USB flash memory or SD card, insert a USB flash memory or SD card into the USB port or SD port on the left side of the unit. The unit will start playing MP3/WMA files on the USB flash memory automatically.

If the MP3/WMA files are stored in folders on the USB drive, the unit will start by playing the first song in the first folder. After playing all the files sequentially in the first folder, the unit will play sequentially all of the files in the next folder. The unit will continue playing through all of the folders on the USB drive in this manner.

If the USB drive has loose files and folders containing files, it will play the loose files sequentially, then it will play the files in the folders sequentially.

2. Multi-Session CD Reading

This unit can read multi-session CDs. The multi-session reading will be activated automatically if the player detects a file that is written in multi-session format.

3. Selecting Tracks

Press the SEEK >>| Button to advance CD to the next track. Track numbers will be shown on the display. Press and hold SEEK >>| to fast forward.

Press the SEEK |<< Button to go to a previous track. Track numbers will be shown on the display. Press and hold the SEEK |<< Button to fast reverse. Disc will play normally when the No. 1(play/pause) Button is pressed.

4. Play / Pause CD

Press the No.1/PAU Button to pause the CD. Press this button again to resume playback.

5. Scanning Tracks

Press the No.2/INT Button to play the first 10 seconds of each track, "INT" will be displayed on the display. Press this button again to resume playback.

6. Repeat

Press the No.3/RPT Button to repeat the current track. Press it again to cancel.

7. Random

Press the No.4/RDM Button to play all the tracks in random order. "RDM" will appear on the display. Press this button again to stop random play.

8. Folder Down

Press the “ 5 ┌─ ” button once to go back one folder.

9. Folder UP

Press the "6 ☐ + " button once to advance one folder.

10. Search Modes

There are 3 search modes to help find your favorite MP3 & WMA tracks. The search modes only works with MP3/WMA CDs, and USB flash memory with MP3/WMA files.

A. Simple Track Search

Press the SEEK |<< or >>| Button to go to the next track or previous track.

B. Track Search

Press the F/PS Button, TRK-SCH will appear on the display. Use the VOL

CD/MP3/WMA/USB/SD Operation

+/- Button to select the track number. Press and hold the SEL button for 2 seconds, the number of the track is assigned according to you added the file into the media. The file wich are written later will be assigned a larger number.

C. Folder Search

Press the F/PS Button twice and NAVIGATE will be shown on the display. Use the VOL +/- Button to select the folder name. Then press the SEL Button to play the chosen folder.

11. Electronic Skip Protection

Electronic Skip Protection is for driving on rough roads. The CD will play for 10 seconds on rough roads without skipping. If driving on a rough road for more than 10 seconds the CD may skip. For MP3 or WMA files will play for 120 seconds. If the road is rough for more than 120 seconds the CD with MP3 or WMA files may skip.

ID3 Tag

While you are playing an MP3 file which has ID3 Tag information, Press BND/ID3 button repeatedly to show the ID3 Tag information on the LCD. The ID3 Tag information will be as follow: Fold - File - Title - Artist - Album

If there is no ID3 Tag information, nothing will shown on LCD.

MAINTENANCE

Cleaning the Unit

Do not use any liquids to clean this unit.

Do not use petroleum distillates to clean this unit.

Use a clean, dry cloth to clean this unit.

Replacing the Fuse

Make sure the amperage matches the specified value when replacing the fuse(s). If the fuse is bad, check the power connection and replace the fuse with a new one. If the same problem occurs, this might indicate a malfunction within the unit.

Warning

When replacing a fuse, do not use a fuse with a higher amperage rating than the fuse originally supplied to your unit, otherwise damage will result to your unit.

IPOD Operation

1. Connect your IPOD

Connect your IPOD with the original Ipod cable (supplied with the Ipod). This unit can play all the audio Ipod including Ipod Touch and Iphone. Ipad is not supported.

2. Play / Pause

Once the unit has been connected, playback will start automatically. During playback, press the “▶” to play, pause or resume play.

3. Broswing your Ipod

Press the F/PS button, the screen will display "PLAY LIST". Rotate the volume knob to cycle through "PLAY LIST", "ARTIST", "ALBUM", "GENRE", "SONGS", "COMPOSER", "AUDIO BOOK", "PODCAST", same listing as in your Ipod. Press the volume knob to confirm your desired category. Then rotate the knob for further selection and press the volume knob to confirm.

4. Detaching your Ipod

Unplug your Ipod cable from the USB port anytime to eject the Ipod.

Simple Troubleshooting Guide

PROBLEM	CAUSE/SOLUTION
No Power	Check and make sure that the fuses did not blow.
Errors are displayed on the screen or no function is active	Unplug your car radio then plug it again
No radio reception	Check the connection of the antenna.Make sure the antenna is completely extended and that it is not broken
CDs cannot be loaded	A CD is already inside the appliance.Make sure that the fixing screws of the CD mechanism have been removed.
The stereo indicator is blinking	Set the frequency more accurately.The reception signal is too low.

Specifications

GENERAL

Operating Power....12 Volts DC, Negative Ground

Speaker output....4 speakers

RCA line out....low-level outputs - 1V

Output Impedance.... 4 to 8 Ohms

Fuses....10 A

Dimensions....178mm(W) x 178mm(D) x 51mm (H)

Weight....2.0 Kg

CD PLAYER

Signal / Noise Ratio.....>80dB

Frequency Response....20 Hz\~20KHz

Channel Separation.....>50dB

D / A Converter....16 Bit

FM TUNER

Tuning Range....87.5 - 108 MHz

FM Sensitivity....12dBu

Stereo Separation @ 1 Khz....35dB

AM TUNER

Tuning Range....522-1620 KHz

AM Sensitivity....30dBu
